Konica Minolta Sensing Americas, Inc.    Ramsey, NJ 07446
May 31, 2007 Model CA-2000 2D Color Analyzer delivers 1-million pixel resolution, 2D measurement of luminance and chromaticity distribution of flat panel displays, DLP projectors, back up lights, and instrument panels. Tristimulus filters combined with ultra high-resolution CCD offer responsivity matching human eye, while compact, lightweight design allows it to be used anywhere. CA-S20w Data Management Software provides processes from measurement to data analysis and color evaluation.

GE Fanuc Embedded Systems    Huntsville, AL 35803
May 31, 2007 Supplied as fully integrated hardware and software package, DaqScribe DDR-200 offers turnkey, out-of-the-box operation and recording speeds to 100 MBps. Solution supports programmable gain and filter and can be configured with 32 channels of 24-bit ADC at up to 100 KHz/channel or 32 channels of 16-bit ADC at up to 1.0 MHz/channel. Lower channel counts can be recorded at rates to 10.0 MHz/channel. Various signal conditioning options are available as options.

Cascade Technologies    Somerset, NJ 08873
May 30, 2007 Designed to meet high-speed signal capture and averaging requirements of scientific, R and D, and manufacturing test applications, 1/5 Gsample/sec Model AV1500 can digitize one channel with 8-bit precision across voltage ranges spanning ±10 mV to ±1.5 V. Card is also capable of sampling 650 MHz bandwidth signals. Using onboard FPGA averaging, unit can co-add data up to 65,000 times 2 Kpoints, effectively providing 16-Bit resolution.

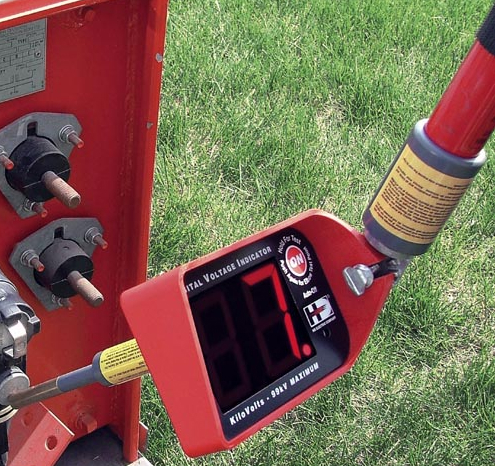

HD Electric Co.    Waukegan, IL 60085
May 30, 2007 Featuring 2.5 in. tall LED display that can be read on end of long hotstick, DVI-100T reads voltage on conductor up to 99 kV line-to-ground. Direct contact, compact instrument is used on overhead lines or in underground applications by contacting conductor and reading display. It can also measure Elbow Test Points when in Capacitive Test Point Mode. Unit gives audible indication of voltage detected, allowing user to distinguish between nominal and induced voltages.

SICK STEGMANN, INC.    Dayton, OH 45413
May 30, 2007 Eliminating need for precise linear guidance, XKS Motor Feedback Wire Draw Encoders provide position or distance information with repeatability to ±0.15 mm for linear measurement paths up to 5 m at speeds to 3.5 m/sec. HIPERFACE® interface combines incremental and absolute encoder functions, making it possible to receive commutation, speed regulation, and position information from single device and 8 wires.

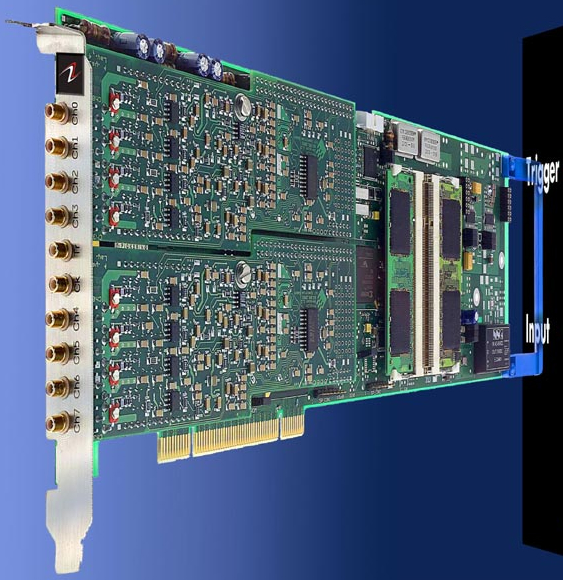

Strategic Test Corporation    Woburn, MA 01801-1915
May 30, 2007 Equipped with ABA Mode, 1-16 channel UltraFast(TM) Oscilloscope/Digitizer PCI cards can be configured for slow continuous recording, switch to high-speed sampling on detection of trigger event, and return to slow recording until next trigger event. Timestamp is recorded for each trigger event, and pre-trigger can be set so that data is recorded prior to trigger event at fast sample rate. Min sampling rate is 1 kSPS, and max sample rates range from 0.25-200 MSPS.

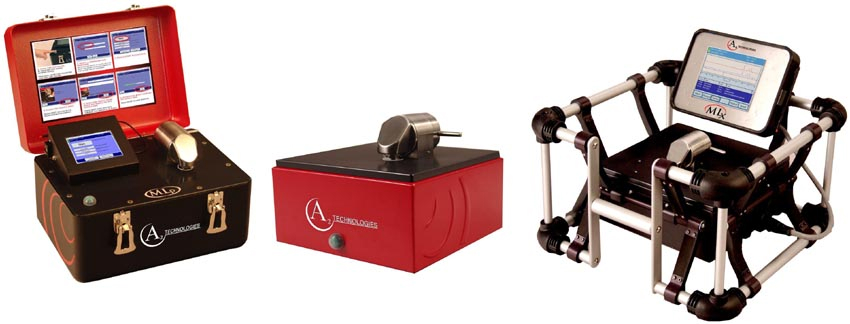

A2 Technologies, LLC    Danbury, CT 06810
May 30, 2007 Developed for use in field, Mobility Series consists of MLp, ML, and MLx, which provide users with actionable information for on-the-spot decisions. Units incorporate 2 diamond-based sampling systems, one utilizing principle of internal reflection and another with transmission cell. By enabling analytical information to be obtained in real-time, spectrometers allow for instant results in petrochemical industry, lubrication condition monitoring, food analysis, and mining applications.

General Pipe Cleaners    McKees Rocks, PA 15136
May 30, 2007 Equipped with 1.4 in. diameter camera with stainless steel housing, Gen-Eye GL(TM) is designed to keep picture right side up at all times as camera glides through pipeline. Camera carries 16 white LEDs to light up lines as large as 10 in. diameter. DVD recorder provides crisp picture with jitter-free freeze frame, while separate 9 in. industrial color monitor delivers clear picture in field. Gel-Rod® push rod protects against moisture damage if rod is cut or abraded.

Sensocon, Inc.    Lakeland, FL 33801
May 30, 2007 Featuring digital push-button calibration and optional 4-20 mA output, Series A1 and A2 gauges can be used to measure positive, negative, and differential pressure. Both accept universal power from 24-240 Vac/dc and incorporate 4-digit LED display with 5 user-selectable engineering units. Full-scale pressure ranges of 0.5-50 in. wc are available, with accuracies of 1%, 0.5%, and 0.25%. Series A2 also includes process arch that mimics movement of indicating needle.

Agilent Technologies, Inc.    Santa Clara, CA 95051
May 30, 2007 Agilent N9020A MXA makes flexible signal and spectrum analysis measurements during design and manufacture of wireless communication devices. Phase noise measurement application allows engineers to troubleshoot and measure short-term signal stability, and incorporates 2 swept measurements and 1 I/Q acquisition into GUI. Device also features gated sweep for bursted power measurements and auto UL/DL zone-map detection for modulation analysis setup.

AcroMetrix    Benicia, CA 94510
May 30, 2007 OptiChallenge Inhibition Panel allows laboratories and manufacturers to identify testing limitations and take appropriate actions while evaluating performance of assay in presence of interfering substances. This 7-member panel provides quantified amounts of commonly recognized and accepted inhibitors and can be used in various ways, including assay validation, instrument evaluation, commercial and in-house assay characterization, and troubleshooting.

LitePoint Corporation    Sunnyvale, CA 94085
May 30, 2007 Available with ZigBee Software Package, IQview and IQflex are 802.11a/b/g/n one-box testers that support ZigBee 802.15.4-based wireless products as well as legacy and MIMO WiFi and WiMAX products. Software is automatically recognized upon installation and integrates seamlessly into test environment, adding ZigBee test capability for R&D and manufacturing applications. Both testers have integrated vector signal analyzer and vector signal generator.

Trident Systems Incorporated    Fairfax, VA 22030
May 30, 2007 Sentry Node is designed to meet hand-emplaced unattended sensor needs for tactical C4ISR and force protection requirements. While node's organic passive infrared sensors can be used in trip-wire mode for detection and warning functions, node can also relay data for external seismic, acoustic, or imagery sensors. Solution features active GPS, integrated anti-tamper, and encryption features; sets up in as little as 5 min; and is sensor- and Common Operational Picture-agnostic.

Navitar Inc.    Rochester, NY 14623
May 30, 2007 Available with NIR coatings, Zoom 6000, 12X, and Precise Eye lens systems offer zoom magnification ranges from 0.09-228 X or fixed magnification from 0.30-91 X. Both zoom and fixed options are available with detents and apertures. Systems are suited for broad range of manufacturing applications including backside photomask registration, SOI bond inspection, internal silicon structure, and photoemission microscopy.

Laurel Electronics, Inc.    Costa Mesa, CA 92626
May 29, 2007 Custom Curve Linearization option for Laureate digital panel meters and counters is implemented in form of 20 nonlinear spline-fit segments. Typical error will be 0.1-0.01% of full scale, depending on number of data points used for setup, error in data points, and severity of nonlinearities or discontinuities. Setup is accomplished using external PC, RS232 cable, and linearizing software, with spreadsheet, actual input, and polynomial programming methods offered.

Emerson Process Management    Austin, TX 78754
May 29, 2007 Providing predictive machinery health monitoring, multi-channel CSI XP32 can be carried into field and attached to turbo machinery for continuous monitoring on temporary basis. Unit offers simultaneous collection, storage, and access of up to 32 channels of vibration data. More than 400 hours of data can be stored for retrieval and analysis. Live dashboard enables user to view plots of events as they occur to avoid unexpected shutdowns or prevent catastrophic failures.

Vision Engineering Inc.    New Milford, CT 06776
May 29, 2007 Merlin 300 includes Quadra-Chek 300 video microprocessor with touch-screen technology. Contrast teach facility enables operator to determine component edge, and system features high specification camera, high numerical aperture objective lenses, and dimmable LED surface and substage illumination. It is also equipped with automated point data capture with full PC connectivity, and is suited for batch routines or measurement of form features.

Envirosight LLC, Video Pipeline Inspection    Randolph, NJ 07869
May 25, 2007 ROVVER crawlers are available with DigiSewer(TM) digital visual sidewall scanning (DVSS) camera, which enables full-speed, Hi-Res pipeline inspection. By grabbing one frame of video at established intervals, DigiSewer generates complete sidewall scan whose length corresponds to length of pipe and height corresponds to pipe's full circumference. Scans load directly into freeware viewer on any PC for analysis with zoom as well as direct scan measurement and annotation capabilities.

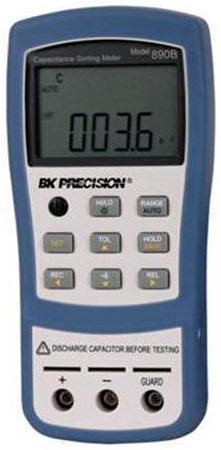

B & K Precision Corp.    Yorba Linda, CA 92887
May 25, 2007 Hand-held, battery-powered Model 890B comes with pre-programmed capacitor tolerances of 1, 5, and 10% as well as dedicated chip and microprocessor for programmable high/low limits. Included 4.5 digit LCD can simultaneously display values and deviations from selected tolerances. Along with 11,000 count resolution, capacitance meter offers 9 automatically selected ranges with FS value from 1.0 pF to 50 mF. Optional software is available for PC-based data logging and monitoring.

Safeline Metal Detection, Inc.    Tampa, FL 33634 3009
May 25, 2007 Suited for inspection of free-flowing pharmaceutical powders, Pharma GF can identify various types of metal contamination including ferrous, non-ferrous, and all grades of stainless steel. Self check capability continuously monitors sensitivity and sounds alarm if problem occurs, while high speed diverter reject minimizes product loss during contaminant removal. Variety of aperture sizes are available to accommodate volume throughput of up to 2,250 lb per hr.
