Elma Bustronic    Fremont, CA 94538

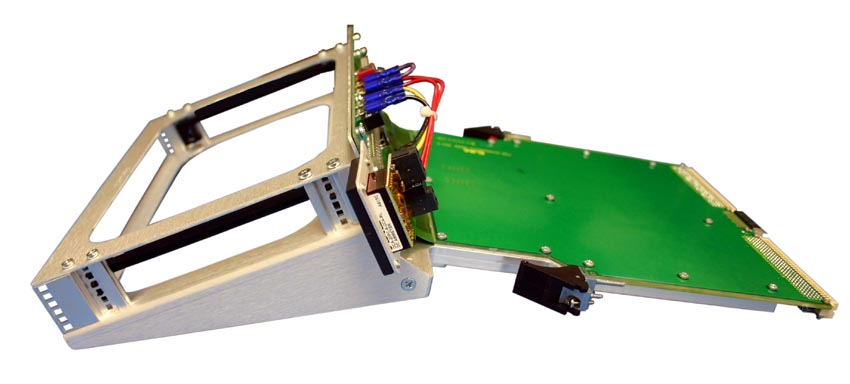

Jun 12, 2007 Designed to provide access to both sides of test board, VXS Payload Extender Boards bring circuit card completely out of card cage or enclosure so that it can be tested or debugged. There are test points for all of lines on each 160-pin connector and MultiGig P0 connector. Offered 10-layer stripline design for rigid PCB and microstrip design for flex circuit portion, boards include ampmeter and feature digital indicator on front panel showing status.

PerkinElmer, Inc., Optoelectronics Headquarters    Fremont, CA 94538-3180
Jun 12, 2007 Featuring quad-element design, triple-channel DigiPyro(TM) PYQ 2898 has 2 pairs of elements representing 2 channels and additional temperature reference channel. Housed in 3-pin TO-5 package, unit offers 42-bit output direct link. It can be utilized in range of home and industrial motion detection applications including intrusion alarms, motion-activated light switches, and door openers.

Adtran Inc.    Huntsville, AL 35806 2807
Jun 12, 2007 Featuring all-in-one integrated platform, multiservice NetVanta 1335 incorporates modular IP access router, 802.11a/b/g wireless access point, 24-port Layer 2/3 PoE switch, firewall, VPN appliance, and DSU/CSU in single chassis. It offers business-class features such as multiple SSIDs, ability to disable SSID broadcasts, 802.1x for user authentication, and WPA2 support. With 1U high design, device provides single expansion slot for NIMs or dial backup interface modules.

Freescale Semiconductor    AUSTIN, TX 78735-8598
Jun 12, 2007 MPC8360E-RDK development platform supports industrial network protocols including PROFIBUS, ETHERNET Powerlink, and IEEE® 1588 clock synchronization, and features graphics and touchscreen functionality. It includes MPC8360E PowerQUICC® II Pro processor which supports control and communications processing tasks on single device. System is based on Power Architecture(TM) technology and also integrates QUICC Engine(TM) communications controller technology.

Horiba Jobin Yvon Inc.    Edison, NJ 08820
Jun 12, 2007 Model EMGA 620W/SP is combination of O₂/N analyzer and H analyzer using same extraction furnace, balance, and computer system. It uses standard conventional methods for analysis of extracted gases and controls all operating and analysis modes. O₂ is determined using IR detector, while N and H are measured using thermal conductivity detectors. Product allows either helium or argon gas to be selected, and applies constant purge flow during measurement.

Laurel Electronics, Inc.    Costa Mesa, CA 92626
Jun 11, 2007 Laureate Model LW UL-listed meter features weighing firmware that includes manual tare or auto-tare, selectable count by function of 1, 2, 5, 10, 20, or 50 to round off display, and selectable setpoint offset. Device operates in 4- or 6-wire hookup, and includes built-in isolated 10 Vdc, 120 mA excitation supply and can power up to 4 x 350W load cells in parallel. Dummy right-hand zero is available to convert 5-digit display to 6-digits.

Micro Control Co.    Minneapolis, MN 55432
Jun 11, 2007 Providing 16 user-defined pattern and power zones, LC-1 Logic Burn-In with Test System accommodates 64 burn-in boards up to 24 x 12.5 in. and 128 I/O or 32 burn-in boards up to 24 x 24 in. and 256 I/O. Offering programmable temperature control up to 150°C, system features 4M vector memory depth and provides per pin timing, testing, and formatting of pattern data. Applications include engineering characterization, life testing, and production screening of low-power logic devices.

AddisonMckee    Preston, Lancashire PR5 8AJ  United Kingdom
Jun 11, 2007 Designed to facilitate component inspection, measurement, and data collection, AddiCheck interfaces directly to DataBend and PowerBend CNC tube bending machines and also provides necessary coordinate data to set up non-CNC machines. System is comprised of portable workbench, optical probe attached to 5-axis digitally encoded measuring arm, laptop computer with software, and optional printer. Addata G Plus technology provides distortion-free measurement.

Radcom Equipment Inc.    Paramus, NJ 07652
Jun 11, 2007 Omni-Q Model R70 probe for UMTS radio access network (UTRAN) monitoring and troubleshooting enables UMTS service providers to monitor and analyze traffic. Probe also allows users to track calls and sessions, and detect and report abnormal network conditions at the Iu and Iub interfaces. Unit generates rich call detail records (CDRs) for every call or session, and creates complete call-tracing files for detailed analyses.

DALSA Corporation    Billerica, MA 01821

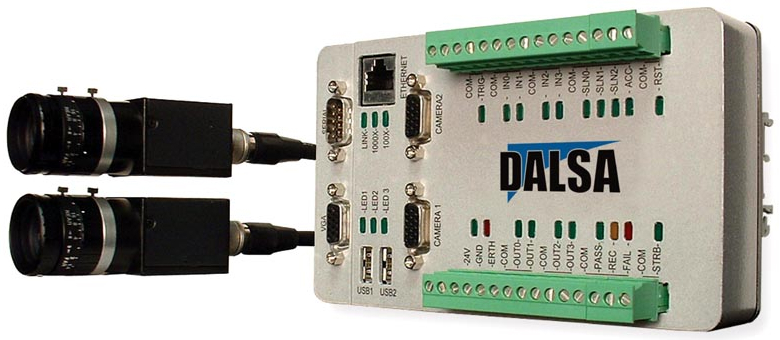

Jun 08, 2007 Available in two versions, IPD VA3X machine vision appliance comes in DIN mount enclosure and readily supports choice of sensor resolution from 640 x 480 to 1,024 x 768. Resolutions to 1,600 x 1,200 are possible. Model VA30 comes with iNspect software and features Gigabit-compliant network connection for real-time image feed to web browser. Model VA31 adds Sherlock machine vision software and direct connection for keyboard, mouse, and monitor.

Bryant Electric    Milford, CT 06460 2465
Jun 08, 2007 Suited for industrial, commercial, and construction environments, 15 A in-line cord sets come in single- and triple-tap configurations and can be used indoors or outdoors. Portable ground fault products feature heavy-duty construction and NEMA-3R rating. LED indicator provides at-a-glance power and fault status, while recessed test and reset buttons help user avoid accidental actuation during handling and use. Products are offered with automatic reset or manual (safe-start) reset.

Industrial Test Systems, Inc.    Rock Hill, SC 29730
Jun 08, 2007 Approved for drinking water compliance, EPA-approved Sensafe(TM) Free Chlorine Water Check is suited for field analysis and can be used for reporting purposes. Product does not require any powders, liquids, tablets, or instruments and delivers results in 40 sec. Not subject to indicator bleach-out or monochloramine interference, strip has all reagents needed to perform test embedded in solid state in reaction area of aperture. Detection range covers 0.0-6.0 mg/L.

Viscotek Corp.    Houston, TX 77060
Jun 08, 2007 Model 802-DLS combines single mode fibre technology and 3-axis, automated platform. High Throughput Dynamic Light Scattering instrument uses Dual Attenuation Technology to control level of light entering sample as well as scattered light going to detector. Researchers are able to work at optimum conditions for laser and detector, regardless of sample type, as product automatically adjusts to optimal setting sample by sample.

Quantum Devices, Inc.    Barneveld, WI 53507

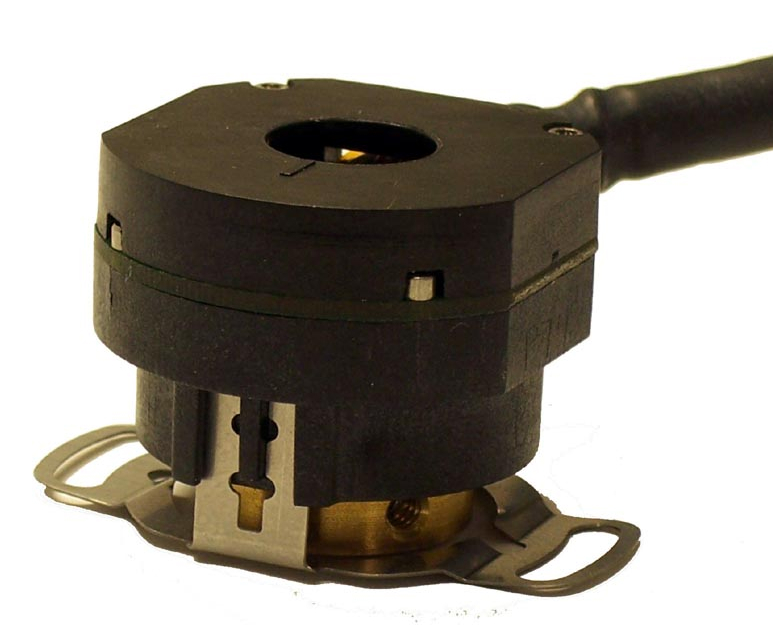

Jun 08, 2007 Providing feedback in applications typically using modular encoders, QR12 with 1.280 Bolt Circle Mounting Flange features 1.2 in. OD and overall height of over 1 in., and offers stability of bearing encoder design. Outputs consist of quadrature with index pulse and 3-phase commutation. Flexible member enables tail shaft run-out and provides 30° of rotation for commutation timing, providing performance of lightweight assembly.

Banner Engineering Corp.    Minneapolis, MN 55441
Jun 08, 2007 PresencePLUS® ring lights connect directly to PresencePLUS vision sensors or external power supply. Using 3 tiers of bright LEDs, 150 mm lights provide illumination of inspected parts by enhancing contrast of surface features. They include 2 m attached cable with threaded 3-pin Pico-style pigtail quick disconnect for direct connection to P4 sensor. Flying leads are also available to connect lights to 24 Vdc power source.

Weed Instrument Co., Inc.    Round Rock, TX 78680
Jun 08, 2007 ACCU-TEMP Type M Tank Measurement Sensor measures temperature levels of liquid hydrocarbons in tanks and other large storage vessels up to 200 ft high. Unit is built of flexible, corrosion-resistant stainless steel or Monel annular-ring hose and is designed for immersion. Available with various tank entry connections and terminal enclosures and in Variable Length Averaging RTD or Multiple Spot Averaging RTD versions.

Flexicon Corporation    Bethlehem, PA 18020 8006
Jun 08, 2007 Featuring stainless steel contact surfaces, Weigh Batching System discharges material from bulk bags, de-lumps product, and feeds it gravimetrically into rigid bins. Bulk-bag-to-hopper interface consists of manual Spout-Lock® clamp ring at top of pneumatically actuated Tele-Tube® telescoping tube. Pneumatically actuated Power-Cincher® flow control valve cinches bag spout concentrically, while Flow-Flexer® bag activators raise and lower opposite bottom edges of bag, loosening compacted materials.

Horiba Jobin Yvon Inc.    Edison, NJ 08820
Jun 08, 2007 Models XGT-1700WR and XGT-5700WR Energy Dispersive X-Ray Fluorescence Spectrometers are designed for WEEE/RoHS regulations for high sensitivity measurement of 5 elements (Pb/Cd/Cr/Hg/Br) in electronic and electrical devices. They feature 3 mm X-ray beam, combined dual optical filter, large sample chamber, and 2 selectable X-ray Guide Tubes (XGT) with smallest being 0.01 mm spot size. Model XGT-5700WR has mapping, X-Ray transmission, and full imaging capabilities.

Horiba Jobin Yvon Inc.    Edison, NJ 08820
Jun 08, 2007 Suited for research, analytic measurements, and quality control, FluoroMax®-4 Bench-Top Spectrofluorometer offers 400,000 cps sensitivity for water-Raman peak at 397 nm and signal-to-noise ratio of 3,000:1. Device uses xenon arc lamp for broadband coverage from UV to near-IR. Optional accessories include automatic polarizers, stopped-flow device, microwell-plate reader, autotitrator, temperature baths, multiple-sample holders, cuvettes, and fiber-optic bundles.

Horiba Jobin Yvon Inc.    Edison, NJ 08820
Jun 08, 2007 Modular Raman Spectrometer systems enable users to optimize spectral coverage and resolution with choice of 0.32 or 0.55 m spectrometers. They are composed of fiber-coupled Raman microscopes and probes, iHR imaging spectrographs, and Synapse CCDs. Laser filter sets are available for wide variety of excitation lasers.
