Toshiba Teli America, Inc.    Irvine, CA 92618

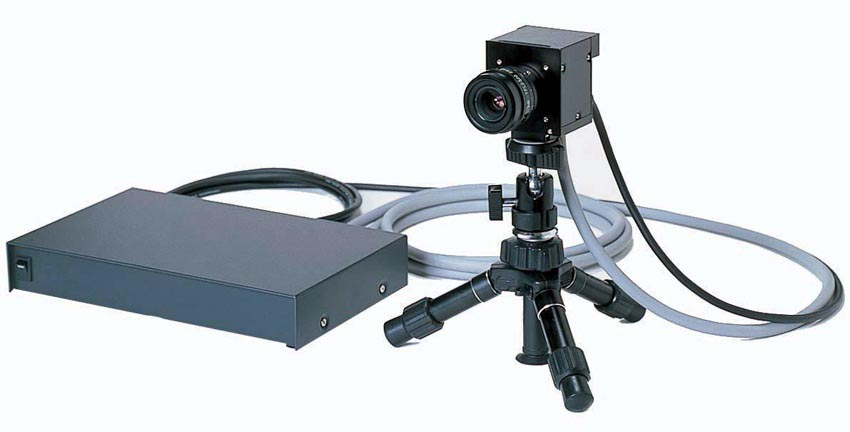

Jun 26, 2007 Suited for real-time inspection of consumer goods, semiconductors, packaging, electronics assembly, and continuous web applications, Model CSB1000 delivers 443 fps at 1,280 x 1,024 resolution for smear-free image capture in machine visions environments. Monochrome camera uses 1.3 megapixel sensor, standard C-Mount lenses, 12 Vdc power, and Window of Interest functionality that speeds up image processing by reading only arbitrary regions designated by end-user.

OTEK Corp.    Tucson, AZ 85714
Jun 26, 2007 Powered by 4-20 or 10-50 mA, 4½ digit LPM Series features optional loop-powered backlight and is RS232/485/USB compatible. Meter includes 0.01% accuracy and linearity, zero and span adjustments for engineering units, captive screw terminal connector, ½ in. LCD display, and 100% metal enclosure with NEMA4X and EMI/RFI gaskets. Unit can be used as loop-powered display, PLC/DCS/SCADA/PC control of various parameters, or as serial input remote display.

J microTechnology, Inc.    Portland, OR 97229-7068
Jun 26, 2007 Based on zoom optics, Model NAT-31 42X-540X resolves features 1 micron or less when added to probe station. Zoom optics have 0.7-4.5X objective lens, providing magnification of 42-270X for probe placement and device under test alignment with standard 0.5X auxiliary lens. Removal of auxiliary lens changes range of magnification to 84-540X for inspection and fine geometry probing. Working distance is 4.25 in. for 540X optics and 7.4 in. for 270X option.

VPInstruments    Delft   Netherlands
Jun 26, 2007 Available in start kit that enables immediate measuring, VPFlowScope provides users with all-in-one device for measuring compressed air systems. Product measures mass flow, temperature, and pressure simultaneously, displaying all 3 parameters in real-time on bright blue LCD display. Device also has built-in data logger capable of storing 500,000 data points. Kit also includes measurement software, power supply, and English manual.

MicroStrain, Inc.    Williston, VT 05495
Jun 26, 2007 Supporting type J, K, R, S, T, E, and B thermocouples, TC-LINK®-6CH 2.4 GHz 802.15.4 can transmit real-time data from multiple nodes to single base station or store up to 300,000 data points in on-board 2 MB non-volatile flash memory. It offers line-of-sight wireless communications range of 70 or 280 m with standard and high-gain antennas, respectively. Node includes 24 bit delta-sigma A/D, cold junction compensation sensor, and optional relative humidity sensor.

Extech Instruments Corp.    Nashua, NH 03063
Jun 25, 2007 Providing measurements of surface temperatures from -4 to 520°F, Model EX470 is suited for locations that are unsafe or difficult to reach. Autoranging unit features 4,000 count display, 0.3% basic DCV accuracy, capacitance and frequency functions, and Type K thermocouple measurements. Rated CAT III-600V, meter provides 0.1 mV resolution for AC/DC voltage and 0.1 µA resolution for AC/DC current. Measurements are displayed on backlit LCD with 1 in. digits.

Mersen    Newburyport, MA 01950
Jun 25, 2007 In addition to measuring and monitoring electrical values on switchboards, DIRIS can remotely control and command equipment. Pushbuttons provide access to data, while backlit LCD display guarantees clear visibility, and ASIC chip ensures accuracy. Add-on modules plug into back of DIRIS to provide expanded capabilities such as pulse output, communications, and harmonic analyses. DIRIS installs with quick-mounting retaining clips and terminal blocks.

OEM Data Delivery    Shelton, CT 06484
Jun 25, 2007 Designed to guard against fuel theft, Radio Pump Tracker IDs each vehicle and fuel dispensed to it in real-time. After dispensing, hand-held device or PC captures vehicle hours, odometer readings, and gallons dispensed from Pump Tracker. System allows management to track fuel consumed per hour, per machine, and flags aberrations. It also facilitates calculations and analyses for use in audits and resource planning as well as maintenance scheduling.

Keithley Instruments, Inc.    Cleveland, OH 44139 1891
Jun 25, 2007 Model 2910 RF v2.0 internally generates any signal with up to 40 MHz of modulation bandwidth and signals greater than 400 MHz using external I-Q inputs. It features continuous tuning capability from 400 MHz to 2.5 GHz. Model 2910-DIG option lets users create multiple permutations of digital modulation signals including ASK, FSK, PSK, and QAM, each with user-selectable symbol rates, filter types, and data types, while 2910-GPS option simulates coded L1 signal of GPS satellite.

Chandler Engineering    Tulsa, OK 74147
Jun 25, 2007 Utilizing ultrasonic transducer technology, Model 4265-HT provides continuous compressive strength measurement of oilfield cements during curing under harsh down-hole temperature (600°F max) and pressure (20,000 psig max) conditions. It determines cement strength by measuring change in velocity of ultrasonic signal transmitted through cement as it hardens. Non-destructive method allows for real-time observation of strength development versus time.

TandD US, LLC    Saratoga Springs, NY 12866
Jun 25, 2007 Portable and waterproof, RTR-5 Series is suited for wet, freezing, or high humidity environments. Handheld units feature real-time monitoring with audible alarms, ability to download logged data, and view results with graphical displays. Equipped with LAN interface, RTR-5W Network Connected Data Collectors feature built-in web server, which allows viewing through web browser. Units can be set to originate email warnings and text messages if limits are exceeded.

GE Intelligent Platforms    Charlottesville, VA 22911
Jun 25, 2007 Providing realistic operation, part programming, and maintenance environment, NC Guide and NCGuidePro can simulate lathes, machining centers, and compound applications. Operators, programmers, and maintenance personnel can repeatedly practice complex actions and develop Custom Macro B subprograms without risks to people or machine tool assets. Simulators also enable development of complex machine troubleshooting scenarios that are not feasible on real equipment.

Grayhill, Inc.    La Grange, IL 60525 5914
Jun 25, 2007 Series 62AG optical encoder generates 2-bit digital output to measure magnitude and direction of shaft or knob rotation. It is terminated with 4 in. cable/connector assembly and optically coupled switching enables encoder to surpass one million rotational cycles. Featuring either 16 or 32 detent positions/rotation, it is also available with optional integrated pushbutton for scrolling items from list or menu and selecting desired function.

DeltaTRAK    Pleasanton, CA 94566
Jun 25, 2007 Featuring stainless steel probe with 0.1 in. dia, Model 11002 FlashCheck® Jumbo Display Digital Probe Lab Thermometer is designed with round probe tip that provides fast temperature response time. It includes large dual scale and highly visible 1.5 x 0.5 in. LCD display. IP56-waterproof rated thermometer can be field calibrated, is N.I.S.T. traceable, and complies with CE mark.

ACCES I/O Products, Inc.    San Diego, CA 92121 1506
Jun 25, 2007 Suited for use in factory automation environments, Model LVDT-8A provides simultaneous outputs that directly correspond to sensed positions in real-time environment. It offers 20 Hz to 20 kHz oscillator frequency per channel and ±10 or ±5 Vdc outputs. Packaged in rugged industrial enclosure, unit comes with removable screw-terminal blocks for connecting LVDTs, 5 on-board LEDs for verifying circuit connection, and DIN rail-mounting provision.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Jun 25, 2007 Enabling failure recovery in carrier-scale networks, N2X single-platform solution allows testing of IP/MPLS device's BFD implementation against thousands of similar emulated devices. N2X test solution includes tools for testing Carrier Ethernet protocols, including LACP, CFM, MEF 9, and MEF 14, emulations for carrier routing, MPLS signaling and OAM, access protocols, layer-2 and layer-3 conformance test suites, and productivity applications for high availability and IPTV.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675
Jun 25, 2007 Designed for measuring ultra-low-level seismic events and low-frequency vibration on structures and objects, Model 87 IEPE seismic accelerometer provides near-dc frequency response flat to 0.05 Hz. Unit is hermetically sealed against environmental contamination and weighs 6 oz. Features include full scale output voltage of 5 V, temperature range of -4 to 212°F, overload protection to 400 g, and low impedance output at less than 10 W.

Cooper Bussmann    Ellisville, MO 63021
Jun 22, 2007 InVision(TM) System uses Intelligent Fuse Monitors, Intelligent Circuit Monitors, wireless mesh router, and software to identify and relay open-circuit events caused by short circuits and overloads. When circuit opens, maintenance staff is notified by phone, e-mail, or fax detailing circuit location, correct replacement fuse to bring, and appropriate level of personal protective equipment. System offers 99.999% event transmission reliability.

Fluid Components Intl.    San Marcos, CA 92069 5115
Jun 22, 2007 Designed for CEMS pollution control applications, Model MT91 has chromium-carbide coating that protects it from dirty, abrasive, and hot particulates. Unit measures complex stack gas flows in accordance with clear air regulatory requirements and provides signal outputs of 4-20 mA, 0-5 Vdc, 1-5 Vdc, and 0-10 Vdc. Able to operate in environments up to 850°F and in line sizes greater than 24 in., meter features turndown range from 5:1-100:1 and flow sensitivity from 0.25-150 sfps.

Spectrex, Inc.    Cedar Grove, NJ 07009
Jun 22, 2007 SharpEye 20/20SI Triple IR Flame Detector has main section sealed to protect electronics and sensors from moisture during commissioning and maintenance. Modbus protocol is standard for RS-485 output, and microprocessor design allows for field programmability, minimizing false alarms. Factory settings can be updated before installation using PDA or laptop. Optical detector is available in FM and ATEX versions in aluminum or stainless steel housing.
