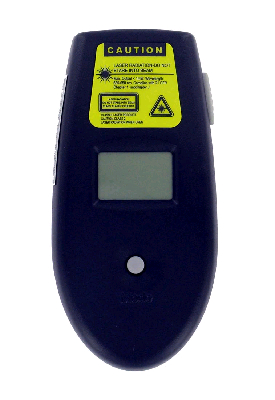

Dwyer Instruments, Inc.    Michigan City, IN 46361 0373
Aug 03, 2007 Non-contact, pocket-sized Series MIT utilizes built-in laser for accurate aiming. Miniature, infrared unit includes 6:1 optics, selectable temperature units in °F/°C, and LCD display. Measurement modes include maximum, minimum, and lock for continuous temperature reading.

Lyndex-Nikken Inc.    Mundelein, IL 60060
Aug 03, 2007 Used in tool measurement and inspection, E123 Presetter features solid ground granite column and base construction for rigid and accurate performance. Hand wheels are incorporated for final framing of profile in screen, and fixed rotating spindle uses 6 mini-bearings with radial concentricity error compensation. Offering resolution from 1-5 µm, measurement over 130 mm X-Axis and 360 mm Z-Axis is fully automatic and includes radii as well as angle values.

McCrometer, Inc.    Hemet, CA 92545
Aug 02, 2007 Designed to replace electro-mechanical counters, digital FlowCom(TM) Register FC101 provides simultaneous flow rate and volumetric totalized flow data. Up to 22 output measurement units, including gallons, cu-ft, and liters are user selectable. With remote-mount option, FC101 can be mounted away from confined spaces where combustible and hazardous gases may be present. Device is programmable via magnetic wand with menu-driven features and includes 4-digit access lock-out for security.

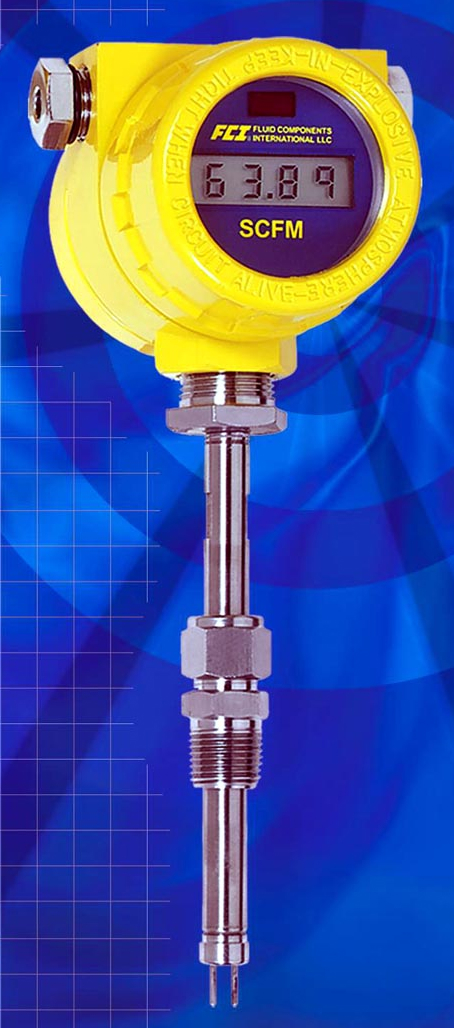

Fluid Components International    San Marcos, CA 92069
Aug 02, 2007 Allowing measurement of line sizes from 2-24 in., ST50 Flow Meter Series includes thermal dispersion mass flow sensing technology that provides direct flow measurement. Also featuring built-in temperature compensation, units measure air flow from 1-125 sfps, nitrogen from 1-150 sfps, and compressed air from 4-400 sfps. In addition to wireless IR I/O, they also feature 4-20 mA and 0-10 Vdc dual analog outputs and RS232C I/O port.

Measurement Computing Corp.    Norton, MA 02766
Aug 02, 2007 Supported under Windows® OS, USB-TC-AI and USB-TEMP-AI are USB 2.0 modules featuring 4 differential temperature inputs and 4 differential or single-ended voltage inputs with programmable gain. Model USB-TC-AI's temperature channels support J, K, R, S, T, N, E, and B type thermocouples, and USB-TEMP-AI adds support for RTDs, thermistors, and semiconductor temperature sensors. Input ranges for voltage channels on both models are software-programmable for ±10, ±5, ±2.5, and ±1.25 V.

Laurel Electronics, Inc.    Costa Mesa, CA 92626
Aug 02, 2007 Providing 0.01% FS accuracy, Laureate DC Digital Voltmeter/Ammeter is suited for peak capture, alarm, control, and real-time computer interface. Used as direct-reading voltmeter, unit provides 5 full-scale voltage ranges from 200 mV with 10 µV resolution to 600 V with 100 mV resolution. Used as ammeter, it provides 4 full-scale, direct-acting current ranges from 2 mA with 0.1 mA resolution to 5 A with 1 mA resolution. Isolated 5, 10, and 24 Vdc excitation output is standard.

Graywolf Sensing Solutions    Shelton, CT 06484
Aug 02, 2007 Telescoping from 21-37 in., Model AS-202A provides range of 0-6,000 fpm and utilizes Windows Mobile(TM) PDA to display and log measurements such as airspeed, temperature, and volume flow. Top 6 in. of tip can be snapped straight out at 180° or may be ratcheted to 90°, making probe suited for reaching ceiling diffusers and filters without ladder. Probe also plugs into Windows XP(TM) and Vista(TM) notebook computers, tablet computers, and desktops.

Sensor Products Inc.    Madison, NJ 07940
Aug 01, 2007 P-Nip® provides operators of rollers, laminators, coaters, and printers, with rolls under 39 in. long, means to get instant spot readings of nip width. Accurate to ±2%, portable electronic device captures nip readings at multiple discrete locations across roller sets' face length. Solution consists of LCD display and replaceable sensor finger that extends from top. Designed for nips that are 1/16-½ in., unit records reading within seconds and includes memory for reading storage.

New Wave Research    Fremont, CA 94539
Aug 01, 2007 Optimized for high g-force gantry operation to 3g, QuikLaze 200 and BDS1000 industrial microscope combine to create optomechanical platform that features bolt-on installation. Along with beam-shaping true color optics, beam delivery system, and camera port, FPD system offers selectable repetition rates from single shot to 50 Hz continuous, Tri-lite beam blending configurations, and rotational X-Y shutter. Uses include LCD repair, semiconductor failure analysis, and light micromachining.

Leica Geosystems Inc.    Norcross, GA 30092
Aug 01, 2007 Upgradeable to future satellite positioning systems, GPS900 RTK System includes 72-channel ATX900 GG GLONASS antenna with GNSS technology. It offers choice of controllers, including Leica RS900 with internal memory and Leica RX900c, which features ¼ VGA color display and removable CF card for data transfer. System is suited for foundation and drainage work, alignment stakeout, and instant volume calculations, as well as topographic and as-built surveys.

Timbercon, Inc.    Lake Oswego, OR 97035
Aug 01, 2007 Single-chassis 250 km network simulation module provides platform for testing and measurement of fiber networks, test equipment, and optical sub-systems requiring extended fiber channel lengths. Requiring minimal physical rack space while eliminating need to daisy chain multiple modules, customizable solution is available with any number of channels and variety of fiber and connector types. Each module can be designed and built to emulate any network or scenario.

RLE Technologies    Fort Collins, CO 80524
Aug 01, 2007 Configurable with up to 12 virtual zones, SeaHawk LD5100 determines location of any conductive fluid on up to 5,000 ft of SeaHawk Leak Detection Cable to within ±2 ft. Thresholds for leak, delay, and contamination alarms are adjustable, and solution integrates with existing building/network management systems. After conductive fluid comes in contact with cable or SeaHawk zone spot detectors, system pinpoints location of leaks, annunciates alarm, and displays distance on backlit LCD.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Aug 01, 2007 Suited for time measurement applications, Model TC890 records multiple events or hits on each of 6 input channels, with timing resolution of 50 ps and mean dead time between sequential pulses on same input of less than 15 ns. Precision time measurement is achieved with less than 3 ps rms jitter and ±2 ppm stability. Running at full speed, instrument offers 25 million events/sec data-throughput. It enables event counting or histogram creation for data and spectra comparison.

Strategic Diagnostics, Inc.    Neward, DE 19702
Aug 01, 2007 Designed to assess both cleanliness and sanitation in facilities, Lumitester®PD-10N/LuciPac(TM)W utilizes enzymatic recycling technology to enable detection of AMP and ATP. System sees residual biological materials other methods can miss when cleaning chemicals interfere with sample detection. In addition to food market, hygiene monitoring is conducted in personal care, beverage, and environmental industries.

Pickering Interfaces    Wobum, MA 01801
Aug 01, 2007 Family of 40-19X modules integrate switching required for hardware-in-the-loop fault simulation into compact PXI modules. Model 40-190 for automotive applications permits 64 controller connections to be connected to up to 8 different fault conditions. Model 40-195 supports 22 channels of 2 wire connections and permits channels to be opened, shorted together, or connected to user supplied fault, while Model 40-196 is 10 bank design that supports 5 A hot/cold switching.

Aruba Networks, Inc.    Sunnyvale, CA 94089
Aug 01, 2007 Enterprise Analyzer works in conjunction with Aruba's Adaptive Radio Management and wireless access points to troubleshoot Wi-Fi network problems and detect, identify, and classify unauthorized devices, sources of radio interference, and radio jammers. In new installations analyzer can help plan around sources of interference, while in existing networks product ensures that Wi-Fi spectrum is available for its intended purpose. Spectrum analysis is provided through specialized sensors.

ABB Inc.    Warminster, PA 18972
Jul 31, 2007 Palm-sized, battery-operated FlashDrop MFDT-01 can copy parameters between 2 identical drives, or between PC and drive, making it suited for high-volume customization of machines. It stores max of 20 parameter sets and, if needed, parameters can be adjusted within tool. Once user selects parameter set, parameters are downloaded from FlashDrop tool to each drive in less than 3 seconds. Drives are not connected to mains during parameter setting.

NAVIGON, Inc.    Chicago, IL 60606
Jul 31, 2007 Offering real-time traffic works without subscription, NAVIGON 7100 enables drivers to re-route around congestion. Reality View(TM) provides photo-realistic images of complicated highway interchanges, while Lane Assistant guides drivers to best lane relative to route. Equipped with 4.3 in. full color touchscreen, unit delivers 3D map views as well as spoken driving directions and street names. Bluetooth® functionality enables hands-free calling when used in conjunction with mobile device.

Thermo Fisher Scientific    Waltham, MA 02454
Jul 31, 2007 Providing optimized excitation of elements, NITON® XL3 Series uses NITON Data Transfer software to preserve and protect data from each sample analysis. Model 800 can take measurements on operating units in excess of 800°F for alloy analysis. Providing RoHS and WEEE compliance, Model 700 performs rapid simultaneous measurement of up to 25 elements in sample. Model 500 can identify new mine sites, while Model 600 helps identify pollution boundaries at sites of industrial contamination.

SEAWARD ELECTRONIC LTD    County Durham SR8 2SW  United Kingdom
Jul 31, 2007 Battery-powered, hand-held Primetest 100 combines functionality of tool and appliance tester with extension cord tester and power receptacle checker in single instrument. By verifying electrical safety of electrical products, equipment, and appliances, unit helps employers meet OSHA obligations. OSHA 1910.334(a) indicates any damaged portable cord or plug connected equipment may not be used by employee until repairs and tests necessary to render equipment safe have been made.
