InspX LLC    Fremont, CA 94538

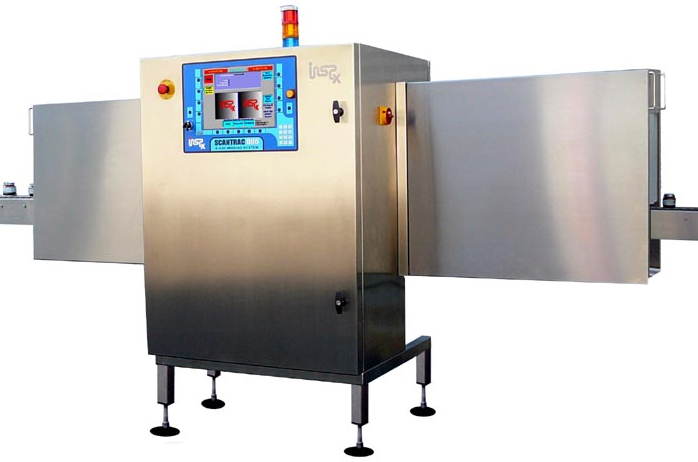

Aug 06, 2007 Using 2 x-ray beams, ScanTrac DUO(TM) inspects packaged products for foreign material contamination as well as packaging imperfections and underfills at conveyor speeds to 700 fpm. It inspects as many as 1,400 containers/min while ensuring inspection coverage on bottom of glass bottles and jars. With false reject rate of less than 1:10,000, side-view system provides real-time non-contact inspection and detection as well as automatic rejection of out-of-tolerance products.

austriamicrosystems AG    Premstatten   Austria

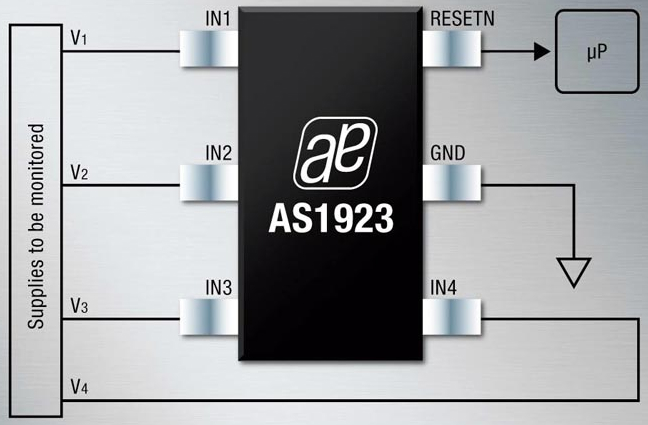

Aug 06, 2007 Able to monitor up to 4 system supply voltages without requiring external components, AS1923 asserts single reset if any monitored supply voltage drops below threshold. Factory-trimmed voltage threshold options are available for monitoring +5.0, +3.3, +3.0, +2.5, +1.8, and -5.0 V supplies with -5% and/or -10% tolerances. Solution is also available with 1 or 2 user-adjustable threshold options, via external resistor-divider network, if non-standard voltage thresholds are required.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Aug 06, 2007 Running Special High Data Rate W-CDMA/HSDPA Lab Application, 8960 Wireless Communications Test Set provides 7.2/2 Mbps HSPA IP data connections, real-time 3GPP network emulation, and HSUPA RF measurement capbilities. One-box, benchtop solution supports parametric through functional test of wireless UMTS user equipment. HSPA IP data connection capability helps to ensure UE design will meet most stringent network conditions.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Aug 06, 2007 Combining realistic network stimulus of SAN tester application with protocol analysis and troubleshooting capabilities, Agilent 8 Gbps 1736 Fibre Channel module lets engineers accelerate design and development of next-generation storage devices. Solution scales up to 64 ports and supports 1, 2, 4, and 8 Gbps line rates. SAN tester application offers error-injection features and flow-control stress test. Protocol analyzer includes dual-channel trigger sequencer and post-processing abilities.

ifm efector, Inc.    Exton, PA 19341
Aug 06, 2007 Suited for production control applications, efector dualis object sensor detects and compares defined shapes and provides up to 5 configurable outputs. Compact 24 Vdc sensor measures 42 x 45 x 54 mm and incorporates 640 x 480 CMOS image processor, image sensor, evaluation electronics, LED display, and infrared LED lighting in die-cast housing. It uses industrial M12 cable assembly for electrical connection and Ethernet cable for software connection.

Connect One Semiconductors, Inc.    Phoenix, AZ 85023
Aug 06, 2007 Designed for programming iChip CO2064, II-EVB-600 supports upper layer Internet protocols using either AT+i commands or iChipConfig Utility and can be used for evaluation and development of secure WiFi, LAN, cellular, or dial-up networking. Along with 2 CO2064 chips for prototyping, RoHS-compliant II-EVB-600 offers 2 USB host and device connectors, 2 male-female RS-232 DB-9 connectors, RJ-45 connector, RJ-11 connector, SocketModem, and WiFi daughter board with antenna.

TM Electronics, Inc.    Boylston, MA 01505

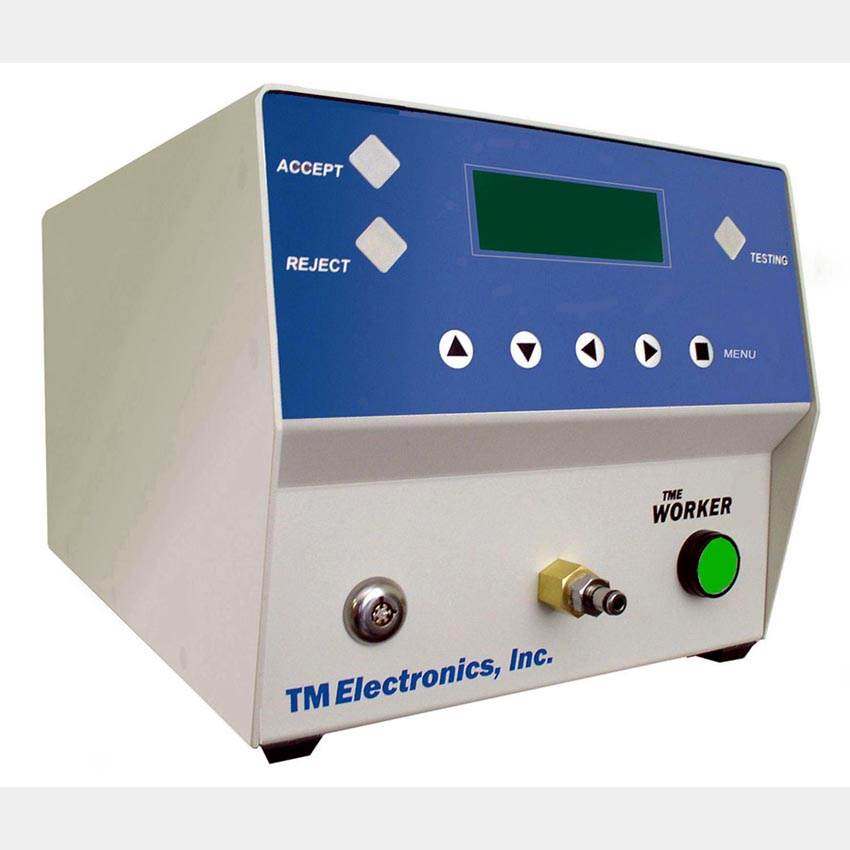

Aug 03, 2007 Worker(TM) single port diagnostic instrument tests fluid dynamics and is available in Leak Tester, Leak and Flow Tester, and Leak and Occlusion Tester configurations. Units are offered in pressure or vacuum design for pressure decay or vacuum decay leak testing. Features include 100 individual test program capacity, 5,000 result datalog capacity, LED pass/indicators, PLC controls, and optional Ethernet connectivity. Unit measures 8 wide and 13.7 in. long.

Dwyer Instruments, Inc.    Michigan City, IN 46361 0373
Aug 03, 2007 Non-contact, pocket-sized Series MIT utilizes built-in laser for accurate aiming. Miniature, infrared unit includes 6:1 optics, selectable temperature units in °F/°C, and LCD display. Measurement modes include maximum, minimum, and lock for continuous temperature reading.

Lyndex-Nikken Inc.    Mundelein, IL 60060
Aug 03, 2007 Used in tool measurement and inspection, E123 Presetter features solid ground granite column and base construction for rigid and accurate performance. Hand wheels are incorporated for final framing of profile in screen, and fixed rotating spindle uses 6 mini-bearings with radial concentricity error compensation. Offering resolution from 1-5 µm, measurement over 130 mm X-Axis and 360 mm Z-Axis is fully automatic and includes radii as well as angle values.

McCrometer, Inc.    Hemet, CA 92545
Aug 02, 2007 Designed to replace electro-mechanical counters, digital FlowCom(TM) Register FC101 provides simultaneous flow rate and volumetric totalized flow data. Up to 22 output measurement units, including gallons, cu-ft, and liters are user selectable. With remote-mount option, FC101 can be mounted away from confined spaces where combustible and hazardous gases may be present. Device is programmable via magnetic wand with menu-driven features and includes 4-digit access lock-out for security.

Fluid Components International    San Marcos, CA 92069
Aug 02, 2007 Allowing measurement of line sizes from 2-24 in., ST50 Flow Meter Series includes thermal dispersion mass flow sensing technology that provides direct flow measurement. Also featuring built-in temperature compensation, units measure air flow from 1-125 sfps, nitrogen from 1-150 sfps, and compressed air from 4-400 sfps. In addition to wireless IR I/O, they also feature 4-20 mA and 0-10 Vdc dual analog outputs and RS232C I/O port.

Measurement Computing Corp.    Norton, MA 02766
Aug 02, 2007 Supported under Windows® OS, USB-TC-AI and USB-TEMP-AI are USB 2.0 modules featuring 4 differential temperature inputs and 4 differential or single-ended voltage inputs with programmable gain. Model USB-TC-AI's temperature channels support J, K, R, S, T, N, E, and B type thermocouples, and USB-TEMP-AI adds support for RTDs, thermistors, and semiconductor temperature sensors. Input ranges for voltage channels on both models are software-programmable for ±10, ±5, ±2.5, and ±1.25 V.

Laurel Electronics, Inc.    Costa Mesa, CA 92626
Aug 02, 2007 Providing 0.01% FS accuracy, Laureate DC Digital Voltmeter/Ammeter is suited for peak capture, alarm, control, and real-time computer interface. Used as direct-reading voltmeter, unit provides 5 full-scale voltage ranges from 200 mV with 10 µV resolution to 600 V with 100 mV resolution. Used as ammeter, it provides 4 full-scale, direct-acting current ranges from 2 mA with 0.1 mA resolution to 5 A with 1 mA resolution. Isolated 5, 10, and 24 Vdc excitation output is standard.

Graywolf Sensing Solutions    Shelton, CT 06484
Aug 02, 2007 Telescoping from 21-37 in., Model AS-202A provides range of 0-6,000 fpm and utilizes Windows Mobile(TM) PDA to display and log measurements such as airspeed, temperature, and volume flow. Top 6 in. of tip can be snapped straight out at 180° or may be ratcheted to 90°, making probe suited for reaching ceiling diffusers and filters without ladder. Probe also plugs into Windows XP(TM) and Vista(TM) notebook computers, tablet computers, and desktops.

Sensor Products Inc.    Madison, NJ 07940
Aug 01, 2007 P-Nip® provides operators of rollers, laminators, coaters, and printers, with rolls under 39 in. long, means to get instant spot readings of nip width. Accurate to ±2%, portable electronic device captures nip readings at multiple discrete locations across roller sets' face length. Solution consists of LCD display and replaceable sensor finger that extends from top. Designed for nips that are 1/16-½ in., unit records reading within seconds and includes memory for reading storage.

New Wave Research    Fremont, CA 94539
Aug 01, 2007 Optimized for high g-force gantry operation to 3g, QuikLaze 200 and BDS1000 industrial microscope combine to create optomechanical platform that features bolt-on installation. Along with beam-shaping true color optics, beam delivery system, and camera port, FPD system offers selectable repetition rates from single shot to 50 Hz continuous, Tri-lite beam blending configurations, and rotational X-Y shutter. Uses include LCD repair, semiconductor failure analysis, and light micromachining.

Leica Geosystems Inc.    Norcross, GA 30092
Aug 01, 2007 Upgradeable to future satellite positioning systems, GPS900 RTK System includes 72-channel ATX900 GG GLONASS antenna with GNSS technology. It offers choice of controllers, including Leica RS900 with internal memory and Leica RX900c, which features ¼ VGA color display and removable CF card for data transfer. System is suited for foundation and drainage work, alignment stakeout, and instant volume calculations, as well as topographic and as-built surveys.

Timbercon, Inc.    Lake Oswego, OR 97035
Aug 01, 2007 Single-chassis 250 km network simulation module provides platform for testing and measurement of fiber networks, test equipment, and optical sub-systems requiring extended fiber channel lengths. Requiring minimal physical rack space while eliminating need to daisy chain multiple modules, customizable solution is available with any number of channels and variety of fiber and connector types. Each module can be designed and built to emulate any network or scenario.

RLE Technologies    Fort Collins, CO 80524
Aug 01, 2007 Configurable with up to 12 virtual zones, SeaHawk LD5100 determines location of any conductive fluid on up to 5,000 ft of SeaHawk Leak Detection Cable to within ±2 ft. Thresholds for leak, delay, and contamination alarms are adjustable, and solution integrates with existing building/network management systems. After conductive fluid comes in contact with cable or SeaHawk zone spot detectors, system pinpoints location of leaks, annunciates alarm, and displays distance on backlit LCD.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Aug 01, 2007 Suited for time measurement applications, Model TC890 records multiple events or hits on each of 6 input channels, with timing resolution of 50 ps and mean dead time between sequential pulses on same input of less than 15 ns. Precision time measurement is achieved with less than 3 ps rms jitter and ±2 ppm stability. Running at full speed, instrument offers 25 million events/sec data-throughput. It enables event counting or histogram creation for data and spectra comparison.
