Alcatel-Lucent    Paris 75008  France
Mar 19, 2008 Alcatel-Lucent 9900 Wireless Network Guardian enables carriers to engineer wireless data flow and measure/track its impact on every network layer and choke point, specifically in radio access networks. Through this end-to-end, real-time visibility, carriers can determine best and most efficient way to accommodate demanding data applications via traffic optimization and/or strategic network expansion. Solution also helps detect and protect networks from wireless-specific DOS attacks.

Sunrise Telecom Inc.    San Jose, CA 95119
Mar 19, 2008 Using lab-grade spectrum analyzer, RealWORX(TM) Web monitors ingress and RF performance for RF CATV and broadband communications services. It can monitor above 65 MHz, helping operators to detect laser clipping, and can also detect and capture extremely low level RF impairments such as transients, CPD, and noise floor degradation. Web-based platform constantly monitors upstream and downstream channel performance, alerting operators to impairments before they have serious effects.

GAO Tek Inc.    Toronto M1B2K4  Canada
Mar 19, 2008 Featuring 16-bit data bus, I/O, and other hardware interfaces that expand via DIMM 200-pin, ARM Mini2410-I processor card incorporates all common features of S3C2410, and measures 67.6 x 45 mm. It has 0 to +70°C temperature, 64 Mb SDRAM, 2 Mb Nor flash, On-chip MPLL, 32,768 Hz RTC, 1.0 mm space 8-pin JTAG interface, and single 3.3 V power supply. Unit includes Nand Flash on carrierboard or Nor Flash on Processor boot, and selectable CPU jumpers.

GAO Tek Inc.    Toronto M1B2K4  Canada
Mar 19, 2008 Featuring open port that is compatible with non-ARM and DSP kernel, ICE for ARM Professional v5.1 supports long distance debugging, multi-users sharing debugging through network to GAO-ICE's current server. It also supports ARM SDT/ADS/RDS and other RDI standard debuggers such as GreenHills Multi2000, IAR EWARM, WinCE platform builder, and GNU GDB Debugger to debug embedded Linux. Compatible with ARM Multi-ICE, unit offers programmable JTAG transmission rate that can be set to 5-10 kHz.

Micronor    Newbury Park, CA 91320

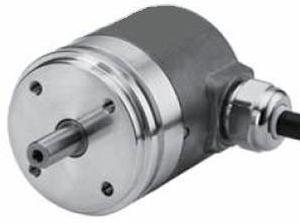

Mar 18, 2008 Ruggedized with greater than 500 g shock and 30 g vibration resistance, ENA361M (hollow shaft) and ESA361M (solid shaft) series single-turn absolute encoders provide 12-bit resolution and can be used in outdoor applications over -40 to +85°C range. Products are offered with choice of 4-20 mA or 0-10 V output and measuring range options of 45, 90, 180, or 360 deg. Protected against humidity and condensation, IP67-sealed units (IP69K optional) operate from 18-30 Vdc input.

Orbitform    Jackson, MI 49204
Mar 18, 2008 Weld Tip System (WTS) for robotic spot welding inspects spot welding electrodes and ensures that face diameters and general appearance meet acceptance criteria. It incorporates CURE® technology (Concurrent Universal Recognition Engine) memory processing architecture and is suited for all welding cells.

Hart Scientific, Inc.    American Fork, UT 84003 9775

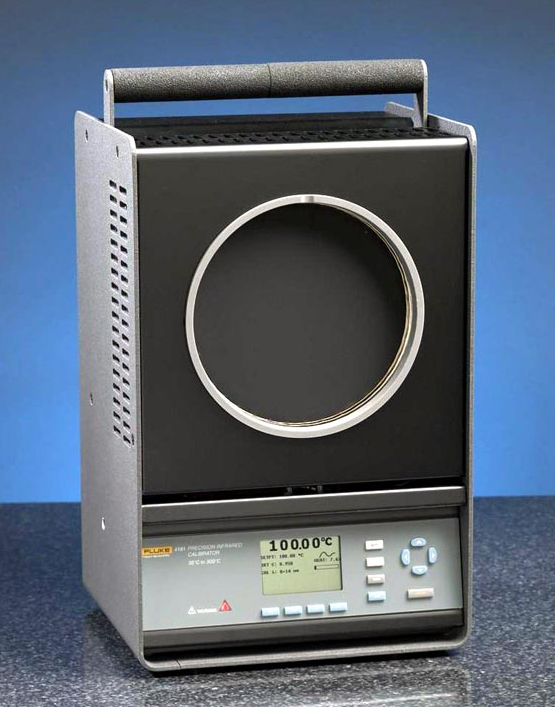

Mar 18, 2008 Series 4180 Precision Infrared Calibrators feature target stability/uniformity, 6 in. target diameter, traceable radiometric calibration, and compensation for emissivity settings. Model 4180 has temperature range of -15 to 120°C with ±0.40°C radiometric display accuracy, while Model 4181 measures from 35-500°C with ±0.35°C radiometric display accuracy. Sample calibration procedures for Fluke thermometers are built into instrument, facilitating setup.

Pentek Inc.    Upper Saddle River, NJ 07458

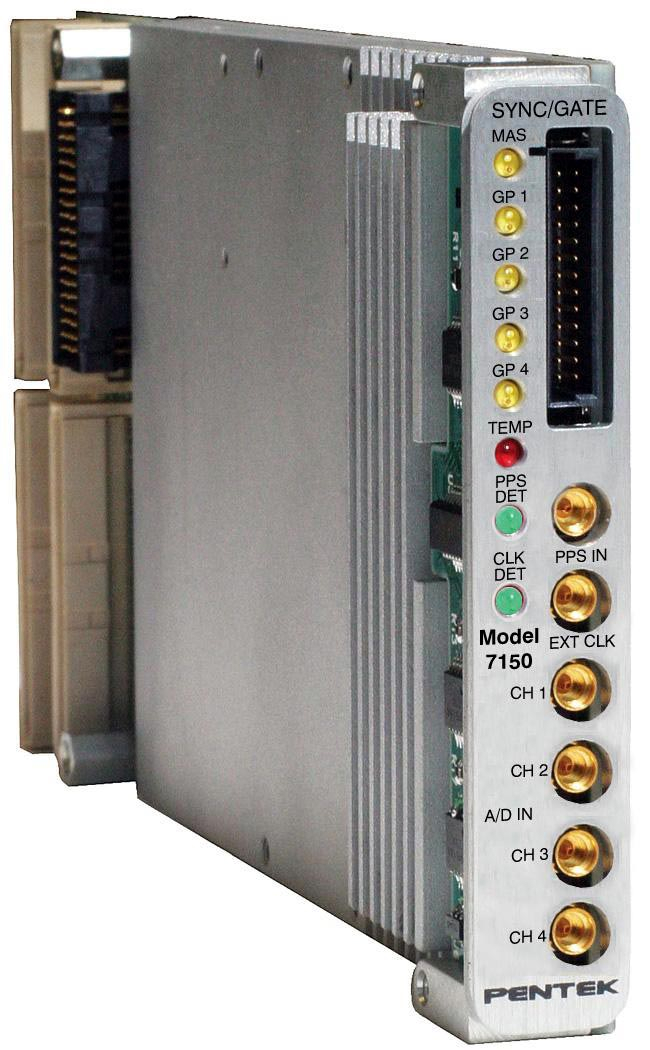

Mar 18, 2008 Model 7150 comes with four 200 MHz, 16-bit A/Ds, multi-module synchronization capability, variety of IP cores, built-in data capture modes, and pair of Xilinx Virtex-5 FPGAs, including processing and interface FPGAs. PMC/XMC module connects directly to RF/IF inputs of communications system. With flexible form factor, unit features front-panel synchronization bus, sampling clock, and 3 banks of 1.5 GB DDR2 synchronous DRAM connected to main processing FPGA.

SICK, Inc.    Minneapolis, MN 55438

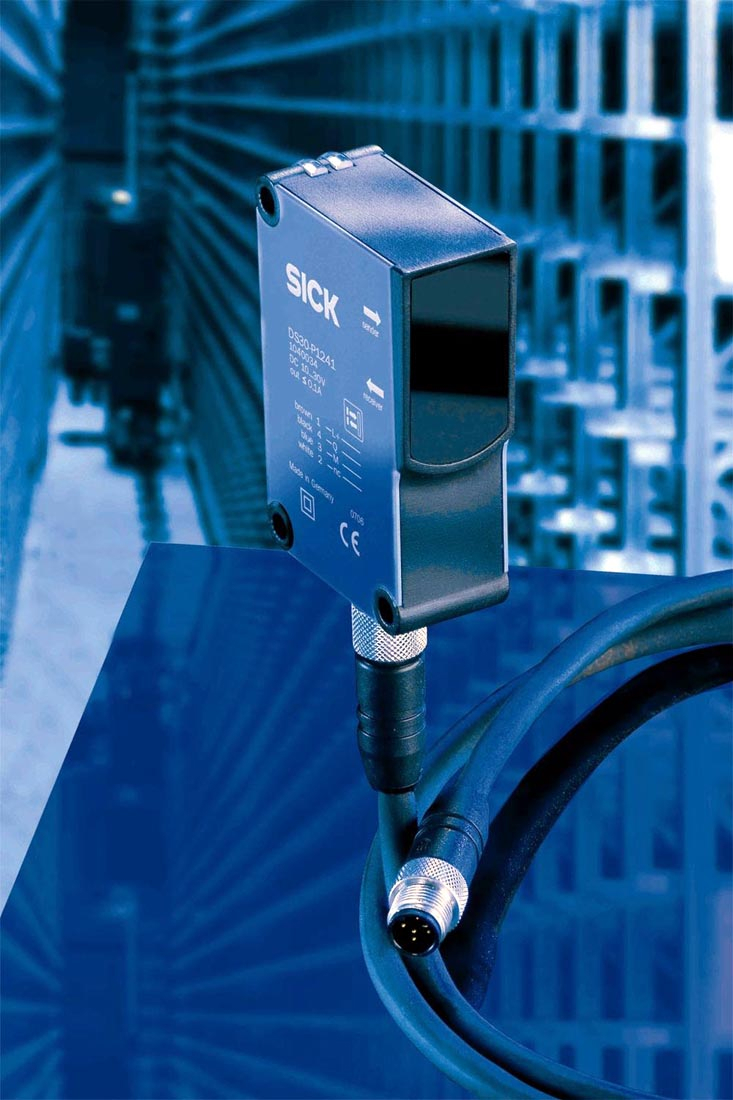

Mar 18, 2008 Capable of detecting flat black and shiny targets at same range repeatedly, Model DS30 proximity style sensor comes with single PNP/NPN output to detect virtually any target within its 2 m range. Hybrid laser generates high gain reserves under dirty conditions for solid detection in industrial environments, while Time-of-flight technology helps provide small black/white shift. Unit is suited for pallet bay/bin empty/full detection and loop control for web materials.

JDSU    San Jose, CA 95131
Mar 18, 2008 Equipped with VDSL Service Interface Module, Model HST-3000 enables technicians to test across VDSL and ADSL/ADSL2+, including Ikanos, Accelity, and Broadcom VDSL 2 chipsets. Modular, hand-held test tool also includes Dr. DSL® diagnostic solutions from Aware, Inc., which enable far-end and in-home physical layer loop diagnostics, DSLAM and customer premises modem emulation, ATM layer testing, and end-to-end IP connectivity.

Tektronix, Inc.    Beaverton, OR 97077
Mar 18, 2008 Model P7520 TriMode(TM) allows users to debug and validate 3rd harmonic of 10 Gbps signals and do compliance testing to 5th harmonic on signals up to 8 Gbps. It enables engineers to switch between differential, single-ended, and common mode measurements without moving probe connections. Streamlined so that several probes are able to fit into confined spaces, needle-nose handheld style probe module can be used for both fixtured and handheld applications.

Automation U.S.A., Inc.    Gettysburg, PA 17325
Mar 18, 2008 MI Fe 500 µm Coating Thickness Measuring Instrument is pen-shaped probe for measurements of thin coatings on both normal and small parts like screws, small machine parts, rings, braces, nails, beams, or studs. Operating with Magnetic Inductive principle, it measures non-ferromagnetic coatings as well as lacquer, enamel, or plastic coatings on steel substrate. It is also available with coating thickness gauge stand.

GAO Tek Inc.    Toronto M1B2K4  Canada
Mar 18, 2008 Including Intel® Wireless MMX(TM) technology which is able to work up to 520 MHz, Model PXA270DB offers 64 M SDRAM and 32 MB Intel Strata Flash. With flexible design using CPU board and expansion board, it is also capable of supporting PXA255 CPU board. Operating over -40 to +85°C ambient temperature range, board comes with 3.5 in. TFT LCD, 2-way earphone output, 1 MIC interface, and CF card interface, and is suited for wide range of industrial applications.

JDSU    San Jose, CA 95131
Mar 17, 2008 UltraFED 30 MHz far-end device (FED) meets test needs of field technicians who install and maintain VDSL access networks. It is fully interoperable with JDSU HST-3000 and enables turn up and troubleshooting of 30 MHz VDSL2. Combining advanced copper FED test features and process improvement applications using variety of user-configured test states and modes, it can be operated by single technician.

Atlas Material Testing Technology LLC    Chicago, IL 60613 1831
Mar 17, 2008 Available in low voltage or standard voltage options, Ci5000 Xenon-arc Weather-Ometer® is suited for large capacity, accelerated laboratory weathering. Both models include full-color TFT touchscreen with intuitive icons, embedded control system that replaces PLC controller, and digital network for accurate control and monitoring of data. Digital control offers color trend plot screen, smart media card interface, and smart sensors that communicate status to touch panel at power-up.

IOGEAR    Irvine, CA 92618
Mar 17, 2008 Suited for students or professionals who need to take down information when on-the-go, Mobile Digital Scribe works on any paper and uses standard refills. Ultrasonic transmitter and IR sensor capture hand movements while receiver attached to notepad stores up to 50 pages of memos and images. By connecting receiver to PC with USB cable, handwriting recognition software translates notes into text and saves sketches as JPEGs for users to save, edit, and organize documents.

GAO Tek Inc.    Toronto M1B2K4  Canada
Mar 17, 2008 Based on STR710F-Z2T6 processor with embedded 272 KB FLASH and 64 KB SRAM memory, Model STDV710A comes with CAN2.0 communication interface, LCD interface, and 32 CPU multi-functional reusable I/O expansion. It includes UART0 and UART2 with 2 RS232 ports, which interconnect for RS232 communication. Evaluation board is suited for wide range of applications such as factory automation, point-of-sale, and protocol translators.

Fluid Components International    San Marcos, CA 92069
Mar 14, 2008 Made of stainless steel with Hastelloy-C tips, Model ST50 Remote Mount Flow Meter is suited for hazardous and difficult-to-reach areas. Featuring no-moving parts thermal mass flow sensor design, field configurable unit measures air flow from 1-125 sfps, nitrogen from 1-150 sfps, and compressed air from 4-400 sfps. Accuracy is +1% of reading, +0.5% of full scale, with repeatability of +0.5% of reading. It operates over 40-100°F temperature range.

VersaLogic Corp.    Eugene, OR 97402
Mar 14, 2008 With 16-channels of 12-bit analog output and 24 digital I/O lines, VCM-DAS-3 PC/104 helps add I/O functionality in single board embedded computing applications. RoHS-compliant unit operates over -40 to +85°C extended temperature range. It features software programmable output ranges, software calibration, ability to reset to zero scale on power-up, read back of DAC and SPAN codes, and latching 2 mm headers. Supporting both unipolar and bipolar operations, unit comes with legacy features.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055

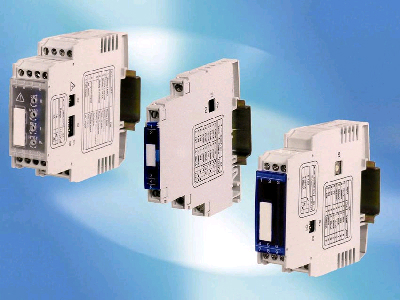

Mar 13, 2008 Measuring 6 mm wide, DIN rail mounted Signal Conditioners are available in programmable multi-function units or single input/single output models. Series includes analog converters and isolators, RTD and thermocouple converters, analog-to-frequency signal converters, and threshold modules. Programmable via dip switches, conditioners are available for use with 24 Vdc supply. Accuracy is .1%, making devices suited for demanding process control applications.
