DeFelsko Corp.    Ogdensburg, NY 13669
Sep 16, 2008 PosiTector 6000 facilitates compliance with International Maritime Organization Performance Standard for Protective Coatings (IMO PSPC) regulation for seawater ballast tanks in all types of ships and double-side skin spaces on bulk carriers. After target thickness value is entered, product indicates PASS/FAIL condition for each measurement taken. PosiSoft software and USB cable are included for downloading reports with thickness criteria, readings, and PASS/FAIL statements.

EMCO Flow Systems    Longmont, CO 80501
Sep 15, 2008 Featuring non-invasive, clamp-on design, Sono-Trak(TM) includes SS quick clamps and heavy-duty, urethane-coated cables. Using NEMA 6-rated transducers, Sono-Trak measures liquids for pipe sizes from 2-100 in. with accuracy of ±0.5% of rate and repeatability ±0.1% of rate. Meter can process temperatures from 40-400°F and measurable flow velocities for liquids from -40 to 40 ft/sec. Plug-and-play I/O modules enable custom electronics configuration and/or field upgrades.

Wilkerson Instrument Co., Inc.    Lakeland, FL 33811
Sep 15, 2008 Acting as standard DAQ device or repeater, DR9051R wireless transmitter provides analog and contact closure data to DR9050 controller. Latter acts as portal between Modbus Master Controller and from 1-247 remote transmitters. It outputs standard Modbus RTU data via RS485/422 data port and can be wired in parallel with other Modbus products. Combined DR9050/DR9051R system offers choice of 3 radio frequencies, 2 in 915 MHz ISM band and one in 2.4 GHz band, that use SSFH technology.

National Semiconductor Corp.    Santa Clara, CA 95051-0695

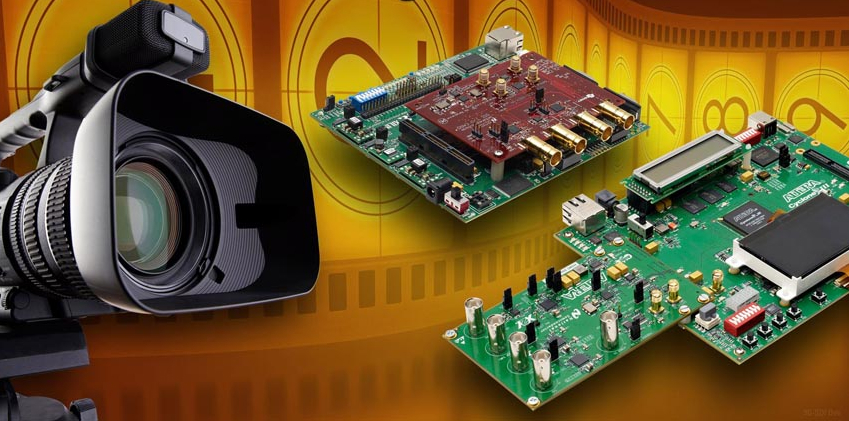

Sep 15, 2008 SDALTEVK and SDXILEVK triple-rate SDI and video clocking daughter card development kits include FPGA IP for audio embedding and test pattern generation and framing for SD, HD, and 3 Gbps type-A SDI formats. They support 270 Mbps, 1.485 and 2.97 Gbps data rates. SDALTEVK plugs directly into Altera's Cyclone III development board via high-speed mezzanine connector, while SDXILEVK plugs into Xilinx Spartan-3A development board via Avnet's EXP expansion module.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Sep 15, 2008 With TSW3070 development kit, designers can evaluate signal chain performance for test and measurement, industrial, and communications applications - including arbitrary waveform and signal generators. It facilitates interfacing high-speed DACs and amplifiers and includes clocking and power management devices to aid design and reduce cycle time. Kit includes dual-channel, 1 GSPS DAC; 2 amplifiers; complete on-board clocking solution; and power supply circuitry.

Linear Technology Corp.    Milpitas, CA 95035
Sep 15, 2008 Supplied in 4 x 3 mm DFN and MSOP packages, 1-channel LTC2301 and two-channel LTC2305 are 12-bit ADCs that communicate via I²C-compatible, 2-wire interface and dissipate 1.5 mW at 1 ksps output rate. LTC2301 measures single differential input, while LTC2305 digitizes 2 single-ended inputs. Both operate from 5 V supply and include 2 address select pins that can be tied low, high, or left floating. Internal reference and low-power shutdown mode reduce power dissipation to 35 µW.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Sep 12, 2008 Complementing CorrTran® MV online corrosion monitoring transmitter, Division 2/Zone 2 CorrTran® Corrosion Data Logging System allows users to access real-time corrosion data via Ethernet, USB, SD card, or locally via videographic chart recorder. System includes KFD2-HLC-EX1.D HART loop converter, which receives HART data from CorrTran MV corrosion monitor and delivers three 4-20 mA outputs that represent general corrosion, localized corrosion, and conductance.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Sep 12, 2008 With 3-phase line voltage applied, Model BFA flashes normal LED green light for positive indication of good fuse and integrity of wire connection to each side of fuse. Indicator flashes red fault LED when fuse is unconnected or open, if there is lost connection to either side of fuse, and if mismatched line/load wires are present. When phase loss occurs, both fault and normal LEDs will extinguish. Mounted externally to panel, product can be used for all UL Fuses Class H/J/K/R/RK.

Gamma Scientific    San Diego, CA 92123 1876
Sep 12, 2008 Designed for cockpit display backlights where lighting changes from tungsten and fluorescent to solid-state LEDs, RS-5NVIS Digital Light Source tests and calibrates ANVIS radiometers and spectroradiometers. It features light level setting to 1 part in 65,535 in absolute, NIST-traceable, ANVIS radiance and luminance units, as well as linearity deviation of less than 0.25% rms. Unit is equipped with manual control and ASCII computer interface control via built-in RS-232 port.

Rudolph Technologies, Inc.    Flanders, NJ 07836
Sep 12, 2008 Suitable for any production environment, E30(TM) and B30(TM) modules are suited for inspection and in-line monitoring of 32 nm manufacturing processes from front end of line (FEOL) through final manufacturing. Edge defects as small as 2 µm on patterned, production wafers can be detected. Part of all-surface Explorer(TM) Inspection Cluster, modules can also be used with NSX(TM) Series inspection systems commonly used in outgoing quality assurance and back-end fab applications.

GAO Tek Inc.    Toronto M1B2K4  Canada
Sep 12, 2008 Supporting various configurable test fixtures, Model GAO2782 can measure frequency ranges of 75 kHz to 30 MHz with resolution of 100 Hz. With 5 mV to 2 V signal level range, it has 0.01 W to 10 MW impedance measurement range, 0.1 pF to 100 µF range for capacitance, and 0.1 nH to 100 mH for inductance. Other measurable parameters include dissipation factor, quality factor, conductance, reactance, susceptance, and phase angle.

Aries Electronics, Inc.    Bristol, PA 19007-6810
Sep 12, 2008 RF test sockets, for use with PCBs, and CSP/BGA test and burn-in sockets, for use with burn-in-boards (BIB), feature solderless, gold over nickel-plated pressure mount compression spring probes that are mounted with 4 SS screws, which allows for height variations in device thickness. Units also include 4-point spring probe crown to insure scrub on solder ball oxides. Signal path during test is 0.977 in. and units operate from -67 to +302°F and accommodate up to 500,000 cycles.

FARO Technologies, Inc.    Lake Mary, FL 32746 6204
Sep 12, 2008 Offered in 6, 8, 10, and 12 ft lengths, Quantum FaroArm Series provides precision up to 16 microns, making it suited for inspection and reverse engineering of precision components for aerospace, automotive, and machine building. Platinum and Fusion FaroArms feature Bluetooth® wireless technology, enabling users to inspect, digitize, and transmit data up to 30 ft away, even through walls, without cables. Sleep Mode feature automatically turns off units to save energy.

Ironwood Electronics, Inc.    St. Paul, MN 55121
Sep 12, 2008 Designed for 11 x 11 mm, 0.65 mm pitch, 15 x 15 array 225 balls, ASE 225 LTFBGA SS-BGA225G-01 is 10 GHz high endurance socket that can be used for hand test and burn-in applications. With 16 g actuation force per ball and -40 to +150°C temperature range, spring pin contactor has self inductance of 1.3 nH, insertion loss of less than 0.25 dB at 4.5 GHz (less than 3dB at 10GHz), capacitance of 0.53 pF, and 2.5 A current capacity.

Misco Products    Cleveland, OH 44122
Sep 11, 2008 Models BKPR-2 - Dual Scale and BKPR-4 - Four Scale MISCO Digital Honey Refractometers are designed for state and federal inspectors responsible for measurement and grading of honey. Handheld devices feature optical engine, with ±0.1% accuracy, that includes linear detector array containing 1,024 elements. They also feature 2-line, 24-char LCD showing unit of measure/actual value, as well as SS sample well with sapphire prism at bottom and cover to prevent absorption of water.

Brookfield Engineering Laboratories, Inc.    Middleboro, MA 02346
Sep 11, 2008 Model CT3 is offered with TexturePro CT v1.0 software designed for collecting data and analyzing test samples of various shapes/sizes with real-time graphic plotting for food, cosmetics, and pharmaceutical industries. Custom reports and graphs are created directly from menu screen, and sample identification set-up helps operators get started with test fields outlining parameters. Mean and standard deviation can be evaluated for each test result parameter of up to 30 samples.

Malvern Instruments Inc.    Westborough, MA 01581
Sep 11, 2008 Offering sample preparation and loading, measurement set-up and operation, and data analysis and reporting, Kinexus delivers high performance measurement in complex materials such as particulate, macromolecular, and multiphase systems. It features applications-led interface, rSpace software, and rMotion drive. Kinexus pro is designed for routine and research applications, while Kinexus ultra suits low torque applications such as weakly-structured and small volume sample measurements.

FEI Company    Hillsboro, OR 97124

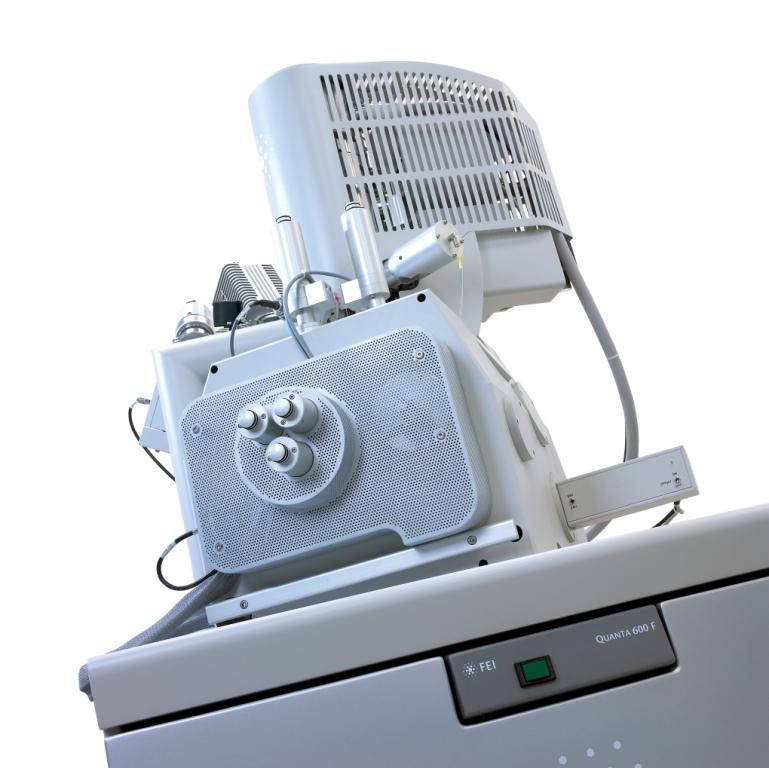

Sep 11, 2008 Using scanning electron microscope equipped with field emission gun (FEG) and multiple high-speed energy dispersive X-ray spectrometers (EDS), model MLA 600F mineralogy analyzer acquires image and composition information from large number of samples. Software uses data to acquire and measure characteristics such as mineral type and distribution, liberation and association-essential properties of ore that must be accommodated in mineral processing to achieve maximum metal recovery.

Malvern Instruments Ltd    Malvern Worcestershire WR14 1XZ  United Kingdom
Sep 11, 2008 Offered in Pro version that suits routine and research applications as well as Ultra version for demanding, low-torque applications, Kinexus has standard operating procedure-driven processes and applications-led interface that facilitats interaction. Adaptive intelligence actively guides users at every stage, and environmental controllers and geometries offer plug-and-play functionality. Other features include intelligent sample loading system and dynamically optimized motor.

Great River Technology, Inc    Albuquerque, NM 87110
Sep 11, 2008 Able to capture and analyze 8B/10B traffic on link, including all data and special characters, HOTLink® Serial Link Analyzer accelerates implementing and troubleshooting video systems using HOTLink II SERDES solutions from Cypress Semiconductor Corp. Analyzer supports systems with link speeds from 160 Mbps to 1.5 Gbps and covers wide range of commercial and military video and data applications. Capture depth is up to 2 Gb, which provides 18-125 s of capture, depending on link speed.
