Photovac Inc.    Waltham, MA 02451 1166

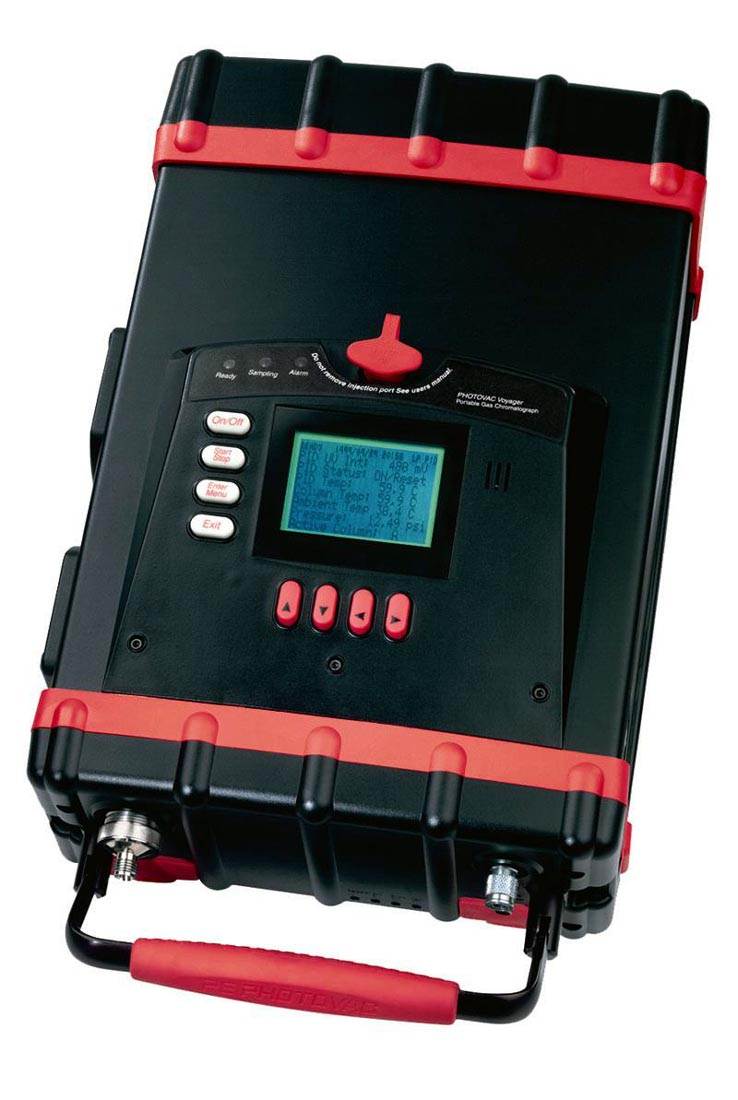

Oct 28, 2008 Voyager Portable Gas Chromatograph offers on-site capability for measuring critical sulfur species to establish sulfur and VOC content in natural gas, thereby allowing production companies to determine corrective measures for scrubbing and removal of contamination. Datalogging capability enables readings to be stored in instrument and downloaded to computer for analysis and recordkeeping. Voyager is intrinsically safe for operations in hazardous environments.

HunterLab    Reston, VA 20190
Oct 28, 2008 Featuring rubberized handle for sure-handed carrying, MiniScan EZ can be used on plant floor, production line, or outdoors to measure reflected color of product. Weighing 2.25 lb including batteries, unit offers measurement repeatability, ability to take thousands of measurements using standard AA batteries, and button pad for thumb-tip navigation. Measurements can be stored in memory for printing or downloading to PC.

GAO Tek Inc.    Toronto M1B2K4  Canada

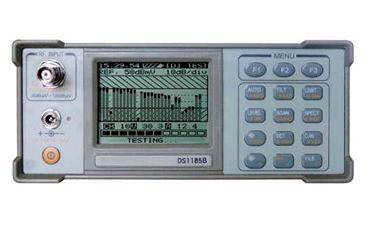

Oct 28, 2008 Available with frequency range of 46-870 MHz and 5-870 MHz, Model GAO1185 (B) Super Signal Level Meter can measure signal level of 30-120 dBµV at 0.1 dB resolution. It offers peak-hold level measurement in LEVEL and SPECTRUM mode that can detect occasional disturbance. Measuring 190 x 80 x 152 mm and weighing about 1,060 g, unit features FCC standard limit test, automatic timing measurement, quick charging function, built-in speaker, and 0.28-9.99 MHz digital channel power.

Aeroflex, Inc.    Wichita, KS 67215

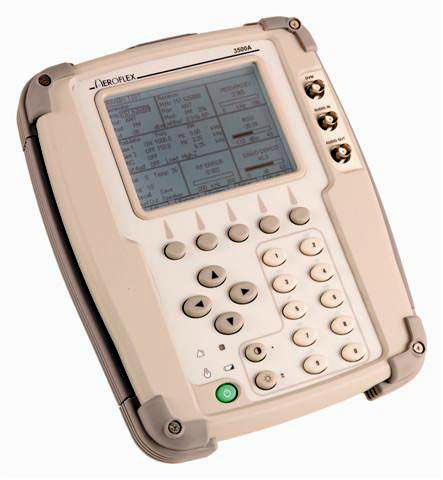

Oct 28, 2008 Housed in cast magnesium alloy case, Model 3500A 1 GHz Handheld Radio Test Set offers lightweight integrated audio test connections and microphone interface. Test capabilities for AM and FM radio systems include power measurements, RSSI, frequency error, FM deviation, AM modulation index, SINAD, distortion, and AF level. Optionally, 3500A supports single-channel scope and spectrum analyzer for extended testing, is P25-ready, and is MIL-28800F Class II certified.

Banner Engineering Corp.    Minneapolis, MN 55441
Oct 28, 2008 Compatible with PLC or other logic-level control outputs, EZ-LIGHT(TM) Audible and Segmented Indicator Lights feature color LEDs for operator guidance and equipment status indication. Audible styles offer 2 decibel levels, with steady or pulsed tones, in addition to standard Green/Red/Yellow lights. Segmented styles provide up to 4-color display, with individual segments lighted separately or in combination. Both versions feature PNP or NPN input types and Euro-style quick-disconnects.

Objet Geometries Inc.    Billerica, MA 01821
Oct 28, 2008 Designed to print true-to-life parts, Alaris(TM)30 is based on PolyJet(TM) Photopolymer Jetting Technology, which achieves resolution of 600 x 600 dpi by jetting FullCure photopolymer materials in 28 micro layers. Each layer is immediately cured and hardened by UV light, producing models that can be handled immediately without additional post-curing. Support structure enables complicated geometries, such as cavities, overhangs, undercuts, delicate features, and walls as thin as 0.6 mm.

Dwyer Instruments, Inc.    Michigan City, IN 46361

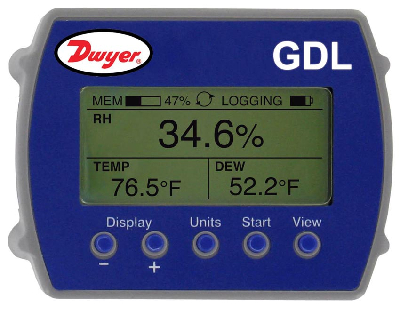

Oct 27, 2008 Using text or graphic format, GDL Graphic Display Data Logger can record and instantly display trend for temperature, humidity, and dew point. Unit includes logging summary, which details sample rate and memory status. Recording starts immediately with push of button or at user-specified date and time. With provided software, user can select sampling interval, high/low alarm settings, logging channels, and recording start time. Over 40,000 data points can be downloaded via PC's USB port.

National Semiconductor Corp.    Santa Clara, CA 95051-0695

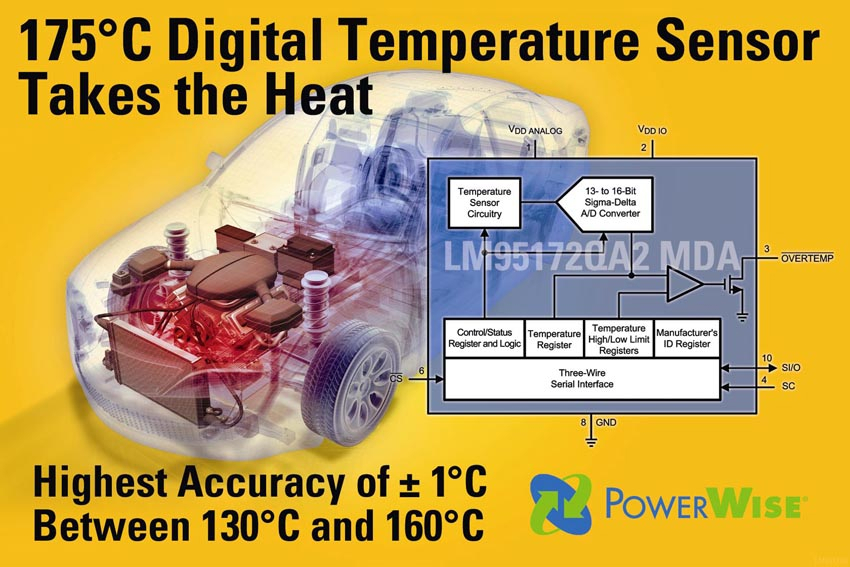

Oct 27, 2008 Manufactured on automotive grade flow meeting AEC-Q100 Grade 0 qualification requirements, model LM95172Q monitors automotive system temperature between -40 to 175°C. It includes serial peripheral interface as well as MICROWIRE® bus interface. Supplied in die form for mounting on hybrid circuit boards, unit features 16-bit sigma-delta ADC, conversion rate of 35 ms, high resolution of 0.008°C/LSB, and temperature switch as well as self diagnosis to ensure safe, continuous operation.

Cognex Corp.    Natick, MA 01760 2059

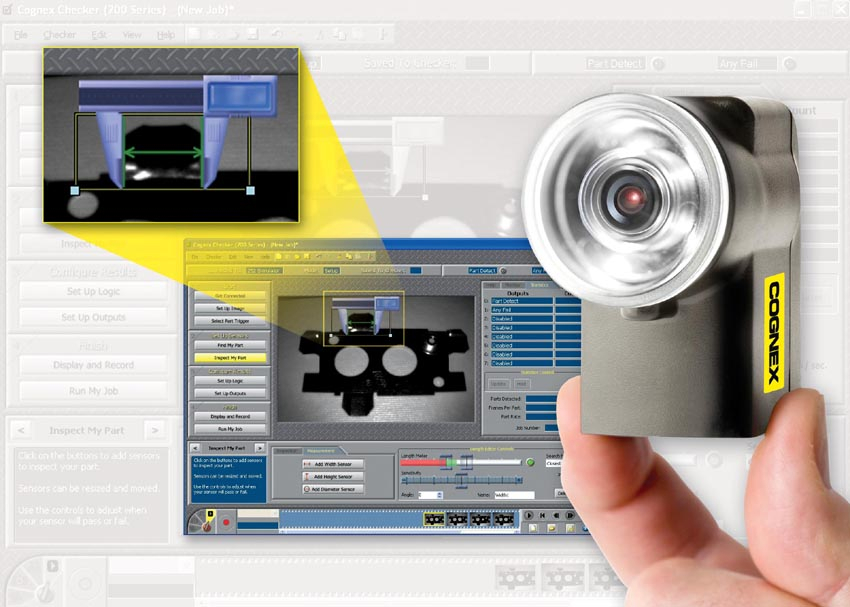

Oct 27, 2008 Designed to provide pass/fail results on high-speed production lines, Model 252 Checker Vision Sensor helps manufacturers in verifying dimensions of parts with low-contrast edges. One-Click Setup(TM) allows user to click on center of part feature to be inspected, displays image of familiar caliper, which locks on edges of part feature, sets minimum/maximum thresholds, and learns edge polarity automatically. Product is available with compact Cognex SensorView(TM) 350 panel-mount display.

LSI Logic Corp.    Milpitas, CA 95035
Oct 27, 2008 Allowing SAS capabilities to be added to existing SATA disk drives, 6 Gb/s Models LSISS9252 and LSISS9253, which are for 2.5 and 3.5 in. drives, respectively, consist of LSI(TM) AAMUX® technology, dual-ported SAS host interface, and SATA device interface. Cards support auto-speed negotiation and Native Command Queuing, as well as full SAS SSP protocol to host, removing SATA commands and signaling from SAS domain. Two SAS addresses per host port help eliminate failover issues with SATA drives.

Balluff, Inc.    Florence, KY 41042-0937

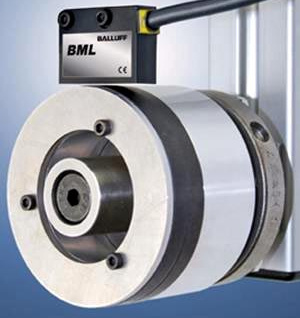

Oct 24, 2008 Used to monitor continuous and/or oscillating rotary shaft motion, BML S2E provides velocity and position information for applications such as conveyors, speed control, and angle measurement. Basic design, comprised of magnetically encoded ring and non-contact sensor head, facilitates installation and provides quadrature output at up to 46,000 ppr. Offering continuous feedback, encoder also provides angle measurement for any apparatus that revolves around shaft.

Aeroflex, Inc.    Wichita, KS 67215

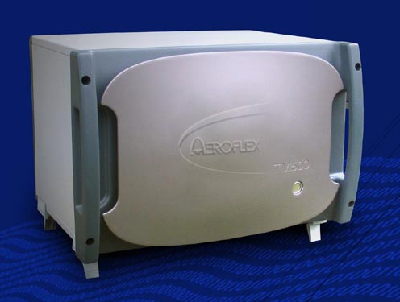

Oct 24, 2008 With up to 32 Long Term Evolution handset UEs, TM500 Multi-Handset Test Mobile simplifies complex tasks such as functional network testing with multiple UEs and performance measurement of resource scheduling algorithms. All 3GPP UE categories are supported with maximum aggregate data rates up to 75 Mbps on uplink and 300 Mbps on downlink. In addition to functional and performance testing, TM500 Multi-UE Test Mobile can be upgraded to support hundreds of UEs for load and stress testing.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Oct 24, 2008 Housed in 7 x 7 mm, 48-pin QFN package, 12-bit Model ADS6129 and 14-bit Model ADS6149 are suited for communications, defense, and test and measurement equipment. Model ADS6149 features 70 dB signal-to-noise ratio and 80 dB spurious-free dynamic range for input frequencies ranging from DC to 250 MHz. At max sample rate of 250 MSPS, ADS6149 consumes 687 mW, and at sample rate of 150 MSPS, with dynamic power scaling, device consumes as little 490 mW.

GAO Tek Inc.    Toronto M1B2K4  Canada
Oct 24, 2008 Multifunctional GAO5855 E1 Service Tester is designed for installation test, engineering check and acceptance, and daily maintenance of E1 PCM line. Functions include channel test, alarm analysis, fault finding, and signaling analysis of 2 Mbps E1 line. Device features transmission clock maximum deviation of ±999 ppm as well as bit, rate, and other error insertion modes. It also includes high-resolution backlit LCD, real-time clock, and long-term storage via second spare battery.

EMCO Flow Systems    Longmont, CO 80501
Oct 24, 2008 Suited for 2-100 in. pipe sizes, Sono-Trak® Doppler uses 2 transducers mounted side by side operating as ultrasonic signal transmitters and receivers. Flow meter is obstruction-less and provides accuracy ratings of ± 2.0% FS from 1-30 ft/sec and repeatability of ±0.01%. It is rated for temperatures from 40-300°F and features programmable display that reads pulse, voltage, and analog rates and provides built-in high/low limit alarms, 4-20 mA signals, and echo light.

Alliance Scale Inc.    Canton, MA 02021
Oct 23, 2008 With operating capability of up to 350 ft, Alliance/CAS Caston-IIIBT wireless crane scale allows operators to position themselves safely away from large, heavy loads. Offered in capacities ranging from 10,000 x 5 up to 100,000 x 20 lb, unit comes equipped with 6-digit 1.5 in. LED display. It features rechargeable battery pack, spare battery pack and charger, manual or automatic on, off, zero, tare and hold functions, auto span adjustment, and auto zero tracking.

Emerson Process Management    Austin, TX 78754
Oct 23, 2008 Model 1057 combines up to 3 measurements, heterogeneously selectable from pH, ORP, and contacting conductivity/resistivity. Additionally, four 4-20 mA current outputs allow live measurement data, along with process temperature, to be communicated to SCADA, PLC, or DSC host monitoring systems. Modular design allows in-field signal input board replacement, while Quick Start programming screens, measurement board auto-recognition, and menu screens facilitate setup/use.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Oct 23, 2008 TechCheck features backlit display, adjustable alarm indicating when preselected moisture threshold is reached, and hold feature. Moisture measurement modes include pin mode with 5-60% MC wood scale, and scan mode with 0-300 numerical reference scale. Ruggedly constructed device includes 9 V battery and auto shutoff timer that optimizes battery life. Unit is suited for wall and floor coverings, wood, and dry wall applications.

Patlite (USA) Corporation    Torrance, CA 90501
Oct 23, 2008 Able to play up to 32 built-in sounds for signaling/identifying different conditions, BD series produces 90 dB output to ensure audibility. Sounds - stored in 16 groups, with 4 sounds per group - are comprised of beeps, chimes, and melodies. Controls and memory card slot are located on front panel to facilitate access and operation. Volume control is located behind panel, along with rotary dial to select sound groups and SD memory card slot to program unique sound groups.

Eaton Hydraulics    Eden Prairie, MN 55344
Oct 22, 2008 Accommodating up to 4 students, HTS-2 fluid power training simulator demonstrates aeration and cavitation and provides experience with various fluid power concepts. Dual-operator station unit features several valves, including lever-operated, 4-way, 3-position tandem center directional control valve; 2 cylinders; and spool valve motor. Central power unit, supplying 1 or both sides, offers total flow of 3 gpm at 500 psi and plugs into 120 Vac, 15 A lighting circuit.
