Mahr Federal Inc.    Providence, RI 02905
Apr 16, 2009 Measuring cylindricity and other deviations of form and position, MMQ 200 Formtester can be operated by integrated 15 in. touchscreen or by keypad built into machine base. It is controlled by EasyForm v3 Software, which guides users through measurement setup and operation and saves up to 32 measuring routines. Measurement results are displayed onscreen and can be printed and saved in various file formats. Unit can also perform range of ISO and/or ASME form checks.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Apr 16, 2009 Designed to measure relative humidity from 1-99% non-condensing and ambient temperature from -4 to 140°F, Model THI-10 can store up to 99 readings in non-volatile memory, allowing HVAC technician to record data after returning to office. Compact unit also features user-selectable engineering units, Max/Min functions, and dew point and wet bulb temperature measurements. Meter includes soft carrying case with belt loop.

Sensor Products Inc.    Madison, NJ 07940
Apr 16, 2009 Revealing pressure magnitude and distribution between any two contacting or mating surfaces, from 2-43,000 psi, Mylar-based Pressurex® Sensor Film helps verify adequate frame-to-module edge sealing. Placed at interface of 2 contacting surfaces, film permanently captures force applied during lamination press by changing color. Film offers solution for quality control checks during equipment setup, calibration, as well as re-qualification of solar module production line.

Stalker Radar    Plano, TX 75074-7467
Apr 16, 2009 With speed range of 0.2-18 m/sec from below 1 mph to over 40 mph, Stalker Pro II surface velocity radar is designed for measuring flow in rivers, streams, and other bodies of water. It can automatically adjusts its speed reading based on angle, radar points at target flow. Device features vertical angle accuracy of ±2° and vertical angle resolution of 1°. It can also measure in cm/sec, ft/sec, and km/hr.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Apr 16, 2009 Drive test solution with VoIP test sequence software (B9990A-510) lets network equipment manufacturers and wireless service providers integrate voice-quality measurements with drive test RF data used in optimization of wireless networks. Using same database for VoIP and RF measurements, product supports RF measurements for all established wireless technologies and provides end-to-end service quality measurements of SIP-based VoIP communication.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Apr 16, 2009 Supporting standards-based and proprietary femtocell implementations, SART Signaling Analyzer Real Time provides detailed real-time diagnostics, troubleshooting, and historic analysis. With SART, users can properly dimension deployment and core network services; evaluate femtocell performance in relation to 3rd-party broadband connections; and interpret, correlate, and analyze protocol messages on both sides of gateway that connects femtocells to mobile networks in IuH implementations.

Sheffield Measurement    Old Lyme, CT 06371
Apr 16, 2009 Supplied with PC-DMIS® metrology software, Pioneer Plus CMM features aluminum orifice air bearing system, 1-piece granite table, Heidenhain scales, and micro-machined aluminum alloy X beam and Z ram construction. System supports ScanShark 4Vix laser scanning probe, which enables data collection at 23,000 points/sec. LSP-X1 analog scanning probe head supports all standard probing modes, while CMM-V vision sensor, with indexable vision measurement, allows non-contact measurement of parts.

ABB Instrumentation    Warminster, PA 18974
Apr 16, 2009 Offered in single- or multi-stream configurations, Aztec 600 Manganese colorimetric monitor uses LED and detector to measure passage of light through sample. One piston pump provides all sample and reagent fluid handling for measurement, mixing, and disposal, while front-mounted pushbuttons and Windows® environment facilitate operation. Along with automatic 2 point calibration and self-cleaning abilities, online analytical analyzer offers current loop, Ethernet, or fieldbus outputs.

Ubicom, Inc.    Sunnyvale, CA 94085-3520
Apr 16, 2009 Built on Ubicom Linux BSP with 2.6.28 SMP kernel using open source packages that run on IP7500 multimedia processors, Networked Audio Reference Design is capable of multi-channel audio including 7.1 and 5.1 outputs, 8 or more I2S or S/PDIF interfaces, bidirectional audio, sample rate conversion, and audio synchronization. Design can also control LCD displays up to 15 in. and 1,280 x 720 resolution while concurrently playing audio and managing networking stack.

VanDyke Software Inc.    Albuquerque, NM 87111-2873
Apr 16, 2009 Combining terminal emulator with Secure Shell protocol, SecureCRT® 6.2 provides IT professionals with multi-session editing, remote access, and ways to automate logging, including nightly log file rotation and ability to include parameter substitutions in file paths. SecureFX® 6.2 supports SFTP, FTP over SSL, as well as standard FTP. Filters for fine-tuning site synchronization can allow users to perform operations such as excluding .svn folders or uploading only HTML files to web server.

Spectrum Sensors & Controls    St. Marys, PA 15857
Apr 16, 2009 Designed to monitor refrigerant temperature in condenser and evaporator coils, Sens-A-Coil comes with 3 ft of Type K thermocouple cable and male plugs to connect directly to digital thermometer. Unit satisfies requirements on regulations that saturation temperature sensor must be part of system once it is installed so that refrigerant temperature can be verified by 3rd party raters. Sensor element is integrated into plastic overmolded copper clip, which snaps onto 3/8 in. return bends.

GOEPEL electronics LLC    Austin, TX 78759

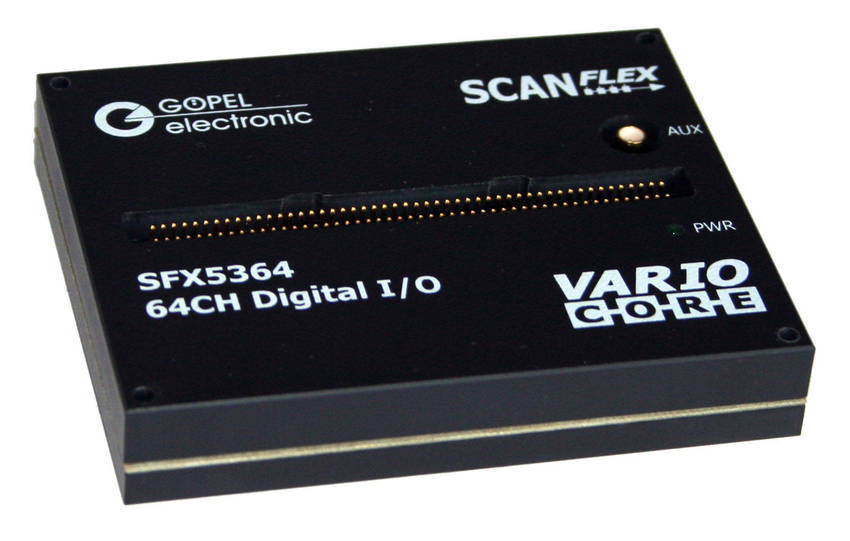

Apr 15, 2009 Model SFX-5364 SCANFLEX® I/O module features 64 programmable I/O channels and is configurable for structural Boundary Scan operations and protocol-based at-speed tests up to 100 MHz through integrated VarioCore® technique. Each channel is configurable as In/Out/Bidir/Tri-state and groups of 32 I/O each can be adjusted from 1.8-4.5 V in 0.1 V steps. It supports interconnection or cluster test and dynamic pattern generation/recording, protocol generator, or counter/timer function procedures.

GAO Instruments Inc.,    Toronto   Canada
Apr 15, 2009 Integrating optical power meter module and optical light source module, LP-236 handheld Optical Multi Meter is designed for fiber optics network testing. Device implements loop-around tests by using both modules, and provides dual-wavelength laser diode stabilized light source and one port output.

Hexagon Metrology Inc.    North Kingstown, RI 02852
Apr 15, 2009 OMEGA portable multi-purpose measuring arm suits 3D scanning applications such as reverse engineering, rapid prototyping, and non-contact inspection. It includes 4 models: model 2025 measuring 9 ft, model 2018 measuring 6 ft, model 2030 of 10 ft and model 2036 of 12 ft. Weighing about 12 lb, seven-axis arm includes advanced carbon fiber and aluminum construction. Other features included are repeatability, automatic color recognition, and real-time display of point clouds and point data.

GAO Tek Inc.    Toronto M1B2K4  Canada
Apr 15, 2009 With ability to take multi-mode measurements, multi-functional optical power meter GAO3020 is suited for installation, calibration, and maintenance of telecommunications and CATV networks. Measurement results can be transfered into report forms automatically and printed through RS232 interface or transmitted to PC. Device features LCD graphic display.

Carl Zeiss Microimaging, Inc.    Thornwood, NY 10594-1939
Apr 15, 2009 Used for confocal observation in live cell imaging experiments, Cell Observer SD can capture cellular processes without damaging cells and maintain optimum conditions for survival over extended periods. It integrates Yokogawa Electric Corporation's CSU-X1 confocal scanning unit, and all major incubation parameters, such as temperature and CO2 content, are saved automatically together with image data. All settings are made via AxioVision software.

Digi International    Minnetonka, MN 55343
Apr 15, 2009 THe iDigi development kits provide hardware, hosted software, and services necessary to develop sustainable application. While iDigi X4 Starter Kit ZB focuses on helping users configure ZigBee network, iDigi Wi-9P Starter Kit ZB concentrates on developing wireless embedded applications on ARM9 processor. Also available, BL4S100 Add-on Kit ZB (for iDigi X4 Starter Kit ZB) includes all components necessary to add wireless embedded control to ZigBee network through iDigi platform.

Cardiac Science Inc.    Everett, WA 98201
Apr 15, 2009 With addition of DICOM and HL7 technology, Quinton Q-Stress can connect to electronic medical records, healthcare information systems, picture archiving and communication systems, and other healthcare systems, including GE Muse. Demographics, billing, and procedure codes can be imported via bi-directional communications, and comprehensive tests can be exported to minimize documentation errors. Little to no HIS customization is required.

Hagiwara Sys-Com Co., Ltd.    Aichi   Japan
Apr 15, 2009 Evaluation kit for CFast(TM), which is CompactFlash® that utilizes SATA interface, helps companies prototype and evaluate systems that meet needs of SBCs featuring SerialATA (SATA) storage interface. Components include CFast card (model HFD10S) and CFast to SATA adapter that converts CFast 7 + 17 pin connector to standard SATA interface.

National Instruments Corp.    Austin, TX 78759-3504
Apr 15, 2009 By plugging embedded C Series Modules into NI Single-Board RIO embedded control and data acquisition devices, users can add high-voltage power monitoring, high-resolution analog input, strain, and communications capabilities. RIO Devices combine embedded real-time processor, reconfigurable FPGA, and analog and digital I/O on single PCB. Modules include 3-channel, 300 V analog input, 16-channel analog output module; 4-channel, 24-bit bridge/strain module; and 4-channel, 24-bit universal module.
