Agilent Technologies, Inc.    Santa Clara, CA 95051
Mar 08, 2011 Respectively capable of measurements from 1 MHz to 20 GHz and 13.6 GHz, N9344C and N9343C are tunable to 9 kHz and designed for those who install, maintain, and troubleshoot RF/microwave systems, monitor spectrum, or manage interference in field. Fanless design incorporates GPS receiver/antenna and tracking generator. RF performance is -155 dBm/Hz DANL, with min sweep time less than 2 msec, and dedicated applications facilitate/accelerate spectrum monitoring and interference analysis.

Newport Corporation    Irvine, CA 92606
Mar 07, 2011 Offering stable platform for optical components and sub-assemblies, SA2 Series comes in 6 x 24 in., 6 x 36 in., 12 x 36 in., and 24 x 36 in. sizes to afford flexibility for optical experiments. Grid of tapped holes, which extends to within 0.5 in. of plate edges, optimizes mounting surface, while in-grid counter-bored holes and deep edge chamfers facilitate lifting, alignment, and integration onto optical tables. All versions are deep black anodized, minimizing surface reflection.

Applied Measurements Limited    Aldermaston, Berkshire RG7 8PN  United Kingdom
Mar 07, 2011 Based on battery-powered, 2.4 GHz wireless telemetry data acquisition and transmission system, Model DTDR-F is intended for rotating applications up to 6,500 rpm where direct, in-line torque measurement is desired. System has pair of balanced Delrin housings, one containing telemetry module and another containing 3.6 V Li-Ion battery that is recharged in-situ. With 120 m range, T24-SA telemetry module achieves 650 hr/27 day battery life based on continuous use at transmission rate of 1/sec.

GAO Tek Inc.    Toronto M1B2K4  Canada
Mar 07, 2011 Intended for field use, Model 8385 measures CATV TITL, C/N, and trunk cable voltage, facilitating installation of CATV systems. Unit tests CATV signal levels in both channel (SCAN) and frequency (SPECTURM) modes. In SCAN mode, analyzer scans all channels and records signal levels in internal memory for later analysis. In SPECTRUM mode, device displays spectrum tests within frequency range of 5-870 MHz. Portable handheld unit can store 24 groups of scanned data and offers 2 RF F-type input ports.

Diamond Systems Corporation    Mountain View, CA 94043
Mar 07, 2011 With single SUMIT-ISM(TM) Type I form factor measuring 3.55 x 3.775 in., Corona integrates socketed 802.11a/b/g WiFi radio card, two 10/100Base-T Ethernet LAN ports, 2 USB 2.0 ports, and mounting location for optional 2.5 in. SATA SSD card. WiFi radio supports 108 Mbps transmit/receive rates and peak power up to 28 dBm. Operating from 40-85°C, multi-function module handles temperature extremes of fixed and mobile applications in both indoor and outdoor environments.

Energy Optimizers Limited    Grimsby DN31 2TB  United Kingdom
Mar 07, 2011 Operating with single phase, split 2-phase, and balanced 3-phase loads, Plogg Meters provide load analysis in commercial buildings with 230 Vac appliances. Plug-in format facilitates installation and connection to mains socket-powered appliances, while Internet connection permits remote access and data retrieval. With Plogg Manager PC interface, user can define 13 different logging parameters for time and electrical performance and set logging interval from 1 min to 1 month.

Ironwood Electronics, Inc.    St. Paul, MN 55121
Mar 07, 2011 Operating at bandwidths up to 10 GHz with less than 1 dB insertion loss, SG-BGA-7203 allows testing of 2 different WLCSPs - 0.5 mm pitch, 40-ball WLCSP and 0.4 mm pitch, 30-ball - in one socket, side by side. Contact resistance is 20 mW typ per I/O, and socket connects all pins with 10 GHz bandwidth on all connections. Mounted without soldering on target PCB using supplied hardware, socket incorporates insertion method using shoulder screws and swivel socket lid to accelerate IC change-out.

Renishaw, Inc.    Hoffman Estates, IL 60192
Mar 07, 2011 RenDx(TM) RUO multiplex assay system, configurable to individual research requirements, features reagents kit with materials needed to process 100 assays, and robotic sample processor with touchscreen interface. It also includes analyzer that uses surface enhanced resonance Raman scattering (SERRS) to detect and analyze range of samples. Analysis is direct from sample and product is suited for clinical research, pharmaceutical, food and drink, and environmental applications.

Synopsys, Inc.    Mountain View, CA 94043 4033
Mar 07, 2011 HAPS®-600 series extends FPGA-based prototyping capacity up to 81 million ASIC gates equivalent, enabling early software development, hardware verification, and hardware/software integration before tape-out for larger SoC projects. Based on Xilinx Virtex®-6 LX760 FPGA devices, solution offers performance up to 200 MHz. Automated software flow from ASIC RTL code to FPGA-based prototype, utilizing programmable switch routing technology, reduces initial turnaround times and subsequent iterations.

Hamamatsu    Bridgewater, NJ 08807 0910
Mar 07, 2011 Quantaurus series characterizes photoluminescent materials in thin film, powder, solid, or liquid form. Covering 300-800 and 380-1,030 nm spectral ranges, Quantaurus-Tau enables measurement of fluorescence lifetimes from as short as 100 psec to millisecond range with single photon counting sensitivity. Quantaurus-QY, which enables measurement of quantum yields, performs absolute measurements and does not require known reference samples. Models cover 300-950 and 400-1,100 nm ranges.

Saelig Co., Inc.    Pittsford, NY 14534
Mar 07, 2011 Based on Atmel ATXMEGA32A4 MCU, with 32 KB Flash, 4 KB SRAM, and 1 KB EEPROM, Xprotolab offers 44 kHz arbitrary waveform generator capabilities and can be mounted on breadboard/PCB for in-situ testing/verification. Integrated 128 x 64 pixel OLED display provides functions of 8-bit mixed-signal oscilloscope with simultaneous sampling of analog/digital signals, providing 2 analog and 8 digital channels. Max input is ±10 V with 2 MS/sec max sampling rate, resulting in 320 kHz analog bandwidth.

GOEPEL electronics LLC    Austin, TX 78759

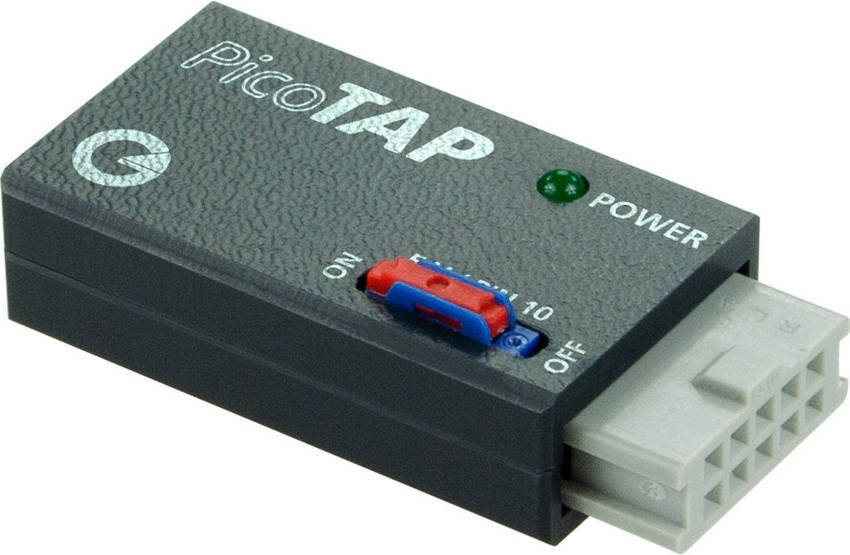

Mar 04, 2011 PicoTAP JTAG/Boundary Scan Controller provides pre-configured plug-in Test Access Port (TAP), so it can be directly plugged to assembly being tested. Designed for simple Boundary Scan test and programming tasks, unit is controlled by USB 2.0 interface and doesn't require additional voltage supply. System's 5 V auxiliary supply voltage is switchable at TAP interface and programs generated are cross-compatible to SCANBOOSTER® and SCANFLEX® platforms.

General Tools & Instruments    New York, NY 10013

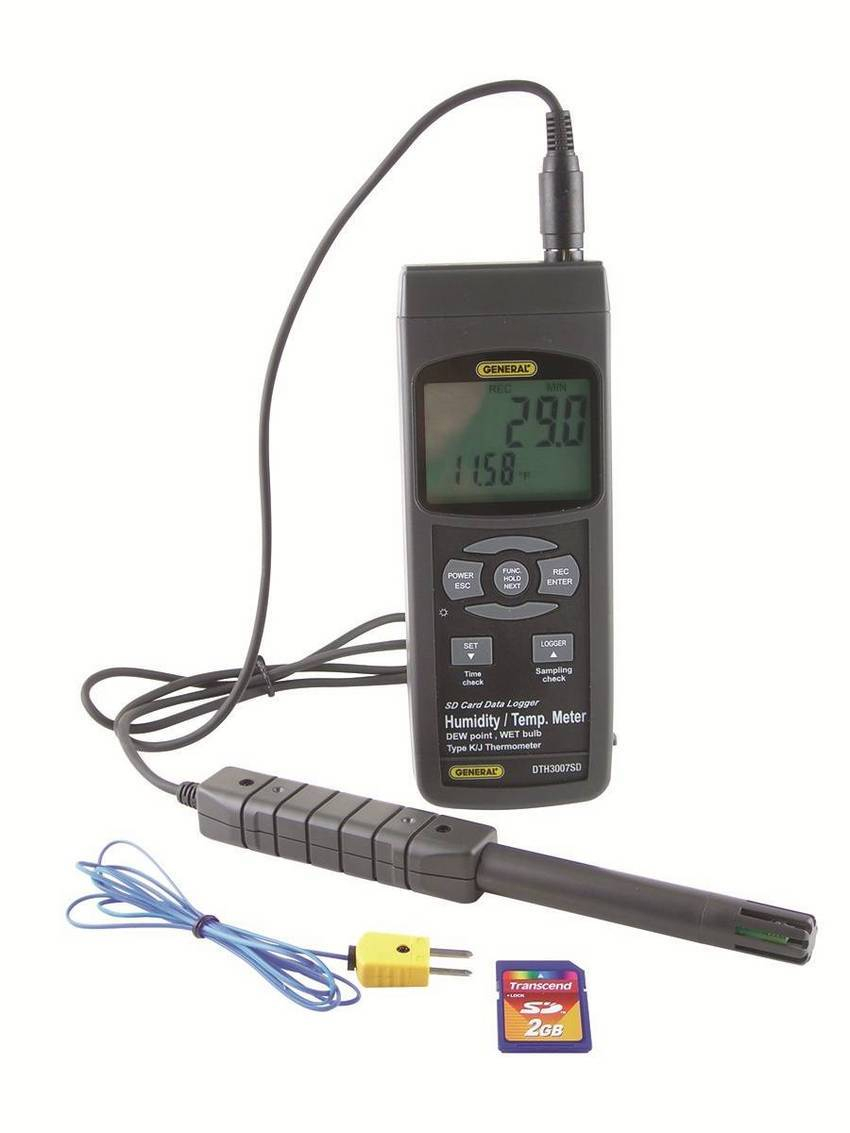

Mar 04, 2011 Line of SD Card Real-Time Data Logging Instruments include devices for measuring temperature, pressure, humidity, air velocity, vibration, water quality, and sound level. Data is stored on internal, 2 GB SD cards, which insert into computer and automatically open Excel file to show measured values. Sampling intervals and length of time are adjustable and, as data is collected, time and date stamp fields are populated automatically. Instruments are powered by batteries or optional AC adapter.

Alliance Scale Inc.    Canton, MA 02021

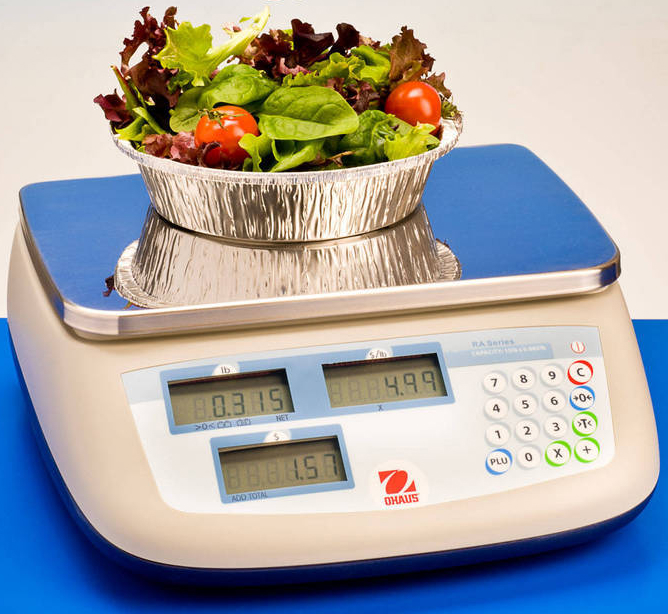

Mar 03, 2011 Featuring ABS plastic construction and removable stainless steel pan, Alliance/OHAUS® RA Series Retail Scale provides by-count price computing function, memory storage, and front/rear backlit LCDs. It is intended for retail applications, including portioning and packaging of foodstuffs, and delivers NTEP-approved 3,000d resolution (30 x 0.01 lb). Measuring 12.3 x 12.9 x 4.6 in., scale comes with 120 V adapter and may be powered by 6 D batteries for up to 60 hr.

Sensorex    Garden Grove, CA 92841

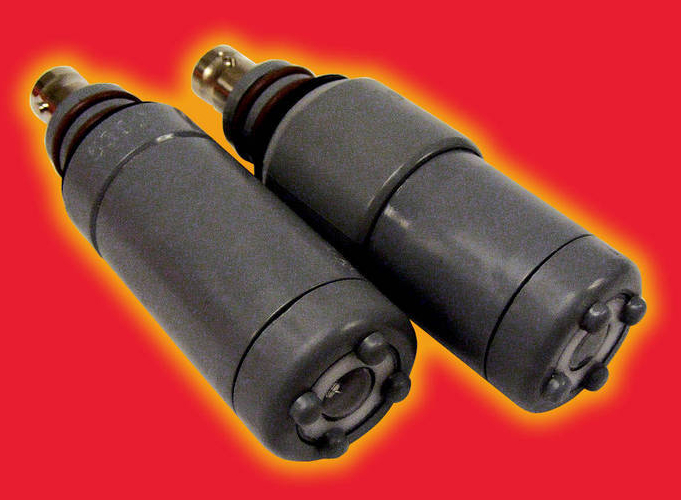

Mar 03, 2011 Suited for use in municipal and industrial water and wastewater treatment, S600 Series has flat surface measuring glass design. Submersible Electrode S651CD integrates pH glass protection and acrylamide reference gel. Featuring standard HT gels and reduced breakage potential, S656CD Insertion Mounted Electrode allows pH measurements in pressurized tanks and main lines without shutting down system for electrode maintenance. Measurement range for both is 0-14 pH at ±2,000 mV for ORP.

JH Technology, Inc.    Sarasota, FL 34233 2432

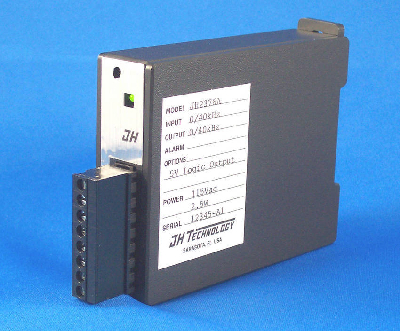

Mar 03, 2011 Equipped with 2 inputs, Model JH2376 accepts waveforms as low as 20 mV peak-to-peak or as high as 250 Vrms, and transforms them to fully isolated 5 V logic output pulses. Unit's low level input amplifies and conditions millivolt tachometer and turbine signals, while high input safely isolates and monitors power and variable frequency drive waveforms. Available with 115 or 230 Vac power options, DIN-rail-mounted device supports frequency response to 40 kHz.

HaydonKerk Motion Solutions    Waterbury, CT 06705

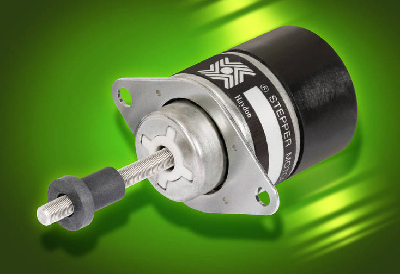

Mar 03, 2011 Available on 1 in. Series 25000 linear actuators, 64-line Incremental Magnetic Encoder utilizes solid state technology and includes both analog detection circuitry and full signal processing on single chip. Quadrature encoder system utilizes high-energy neodymium magnet and provides 8-bit digital resolution resulting in total of 256 output pulses/revolution. When combined with can stack linear actuator, position feedback can be obtained for use in critical applications.

Eagle Eye Power Solutions, LLC    Milwaukee, WI 53211
Mar 03, 2011 Designed exclusively for 12 V batteries, IBEX-EVIC provides Cold Cranking Amps, Internal Resistance, Voltage, and Temperature with measurement speed of 3 seconds. Body of tester fits in palm of user's hand and is equipped with test probes that separate from unit. IBEX-EVIC can store up to 200 results and allows for transfer of results to Evicom Software for data management.

Future Technology Devices International Limited    Glasgow G41 1HH  United Kingdom
Mar 03, 2011 Via EEPROM interface, Model FT232H can be configured to use variety of serial or parallel interfaces. In addition to UART interfacing, single-channel unit supports interfaces to synchronous IOs such as SPI, I2C, JTAG, and FPGA via built-in Multi-Protocol Synchronous Serial Engine, which supports communication speeds up to 30 Mbps. Integrated 1.8 and 3.3 V LDO regulators minimize external component requirements, while 1 KB transmitter/receiver data buffers optimize data throughput.

L.S. Starrett Company    Athol,, MA 01331
Mar 03, 2011 Featuring 2-piece design, Model SR100 measures roughness of large components with gauge range of 0.008 in. and accuracy of 5% of reading plus 4 µin. Bottom half of unit travels across measurement surface and sends electrical signal to handheld upper half, which digitizes signal from sensor and sends it to microprocessor where it calculates parameters using standardized algorithms. In addition to measuring Ra and Rz, portable tester also measures advanced Rp, Rv, and Rt parameters.
