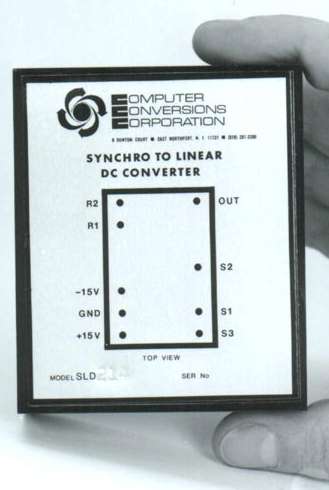

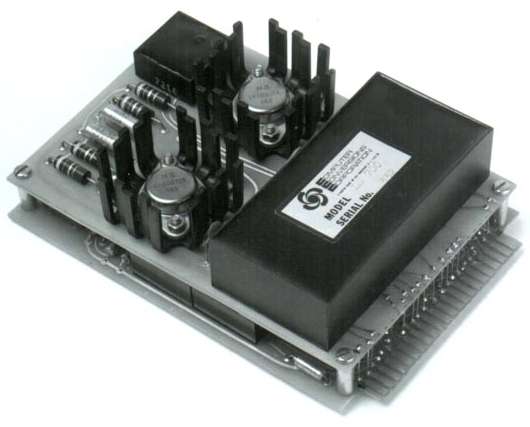

Synchro Converter Modules offer ±6 arc minute accuracy.
Computer Conversions Corp.
East Northport, NY 11731
Oct 02, 2002 Infinite resolution Synchro/Linear DC converter modules measure 2.6 x 3.1 x .82 in. and mount on printed circuit boards. They convert synchro or resolver inputs of 11.8 or 90 V, 400Hz or 90V, 60Hz into ±10 Vdc outputs, representing ±180 of input angle. Output scaling of 0 to 360° for 0 to 10 V is also available. Converters have isolated reference and synchro inputs and are insensitive to input amplitude variations. Output is short circuit protected.
Digital-to-Synchro Converters drive torque receiver synchros.
Computer Conversions Corp.
East Northport, NY 11731
Oct 02, 2002 Miniature converter modules provide up to 3 VA power output and ±6 min accuracy. Measuring 2.6 x 3.1 x 1.0 in., units accept 14-bit natural binary angle and convert it into 3-wire synchro or 4-wire resolver signal. Output is short circuit protected, and ±15 V and +5 Vdc power supplies are required. Standard output voltages are 90 or 11.8 V rms L-L, 60 or 400 Hz. Digital inputs are TTL/DTL compatible, and synchro output and reference is fully transformer isolated.
Surface Finish Gage speeds crankshaft measurements.
Marlborough, MA 01752
Oct 02, 2002 Model 1000 has 3 variable reluctance pickups, each having 5µm diamond stylus that measure roughness parameters such as Ra, Rp, Tp, and Rsk on main and rod journals as well as thrust faces. Manually loaded, fully automatic gage utilizes Windows NT software graphics and may be stored and used in SPC programs. Capable of scanning 2,000 points/mm, gage measures entire length of journal in 1 scan and reports results in 5.6 mm evaluation lengths. It accommodates shafts up to 36 in. long.

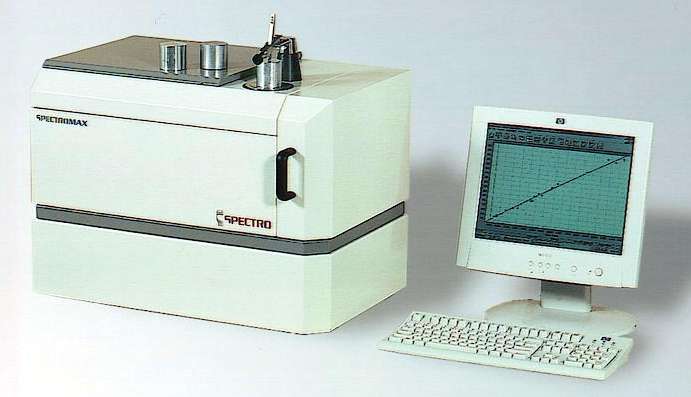

Spectrometer suits factory, shop, and laboratory use.
AMETEK Spectro Analytical Instruments Inc.
Mahwah, NJ 07430
Oct 01, 2002
SPECTROMAX benchtop spectrometer features optical design based on high-resolution, multi-matrix, Charge Coupled Device (CCD) detector technology. Optical system provides full coverage in 165 to 800 nm wavelength range for analytical tasks. New elements or entire calibrations can be added as needed. SparkAnalyzer(TM) software enables single-keystroke analyses and printouts of optional analysis certificates, statistical process-control reports, and charge-correction functions.

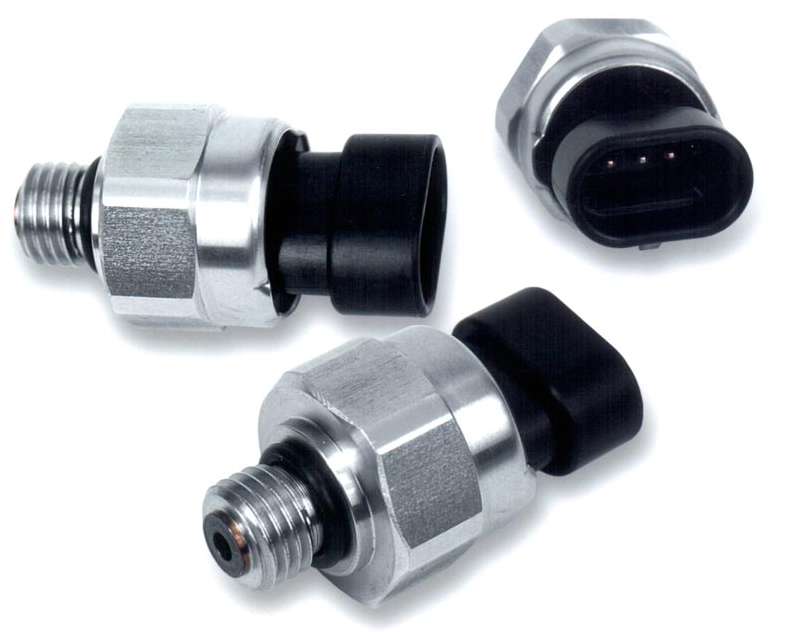

Pressure Transducer has all stainless steel wetted parts.
Milpitas, CA 95035-7410
Oct 01, 2002 BE Bonded Element Isolated Pressure Transducer offers 1.5% total accuracy over -20 to +85°C. It provides amplified analog output voltage, which is directly proportional to pressure. Variety of pressure ranges and pressure ports are available. Plated CRS housing is offered for applications where stainless steel is not required. Pressure port material exposed to media is 17-4PH stainless steel.
Gage measures contour and roughness in one stroke.
Mahr Federal Inc.
Providence, RI 02940
Oct 01, 2002 With traversing length of up to 4.72 in., MarSurfâ„˘ LD 120 utilizes single drive unit and laser interferometer. System includes PC with data acquisition card and menu-driven, Windows-based software. Using triangular support design, LD 120 incorporates tracing arm with .394 in. range and magnetic tracing arm mounts. It uses 2 µm (80 µin.) radius diamond stylus tip and provides ratio of measuring range to resolution of 1.25 million to 1.

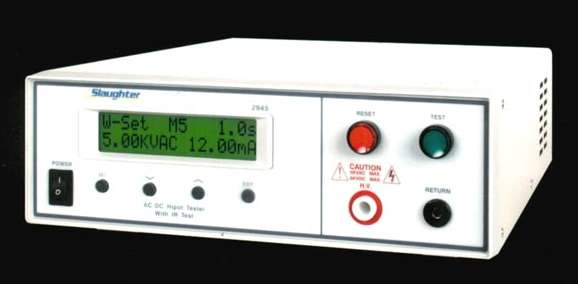

Hipot Testers are UL and TUV listed.
Slaughter Co. LLC
Ardmore, OK 73401
Oct 01, 2002 Series 2900 consists of three models: Model 2925 12 mA, 5 KVac hipot tester; Model 2935 12 mA, 5 KVac hipot and 5 mA, 6 KVdc hipot tester; and Model 2945 which provides 3-in-1 functionality including 12 mA 5 KVac hipot, 5 mA 6 KVdc hipot, and built-in insulation resistance tester with test range of up to 1,000 Megohms. All include microprocessor control, LCD, electronic ramp and dwell, test setup memories, and PLC remote control.

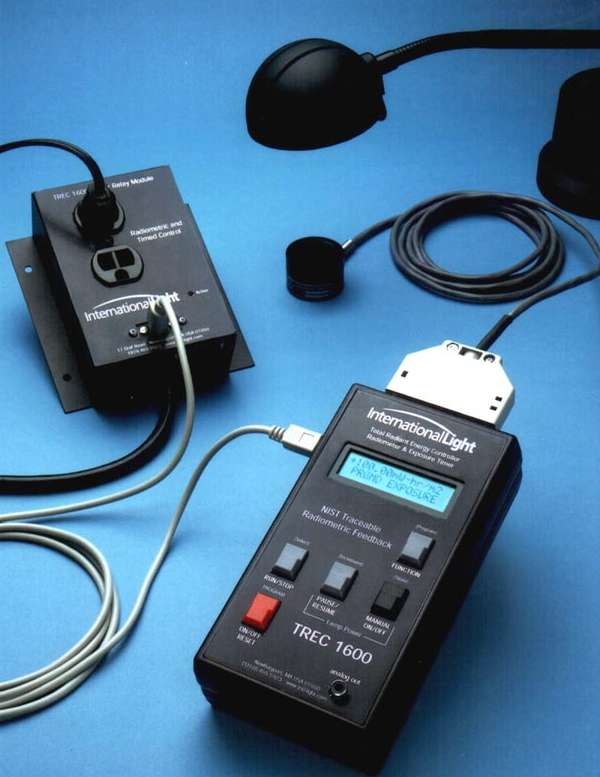

Radiometer accumulates doses and controls lamp exposure.
International Light, Inc.
Newburyport, MA 01950 4092
Oct 01, 2002 Portable IL TREC 1600 Total Radiant Energy Controller radiometer/photometer offers NIST traceable accuracy for exposures up to 5 years. Functioning as time-base lamp exposure controller, it shuts off lamps or shutters at programmed cumulated exposure. It is offered with UV-NIR detectors for applications where dose is important. Incorporating remote power relay module (able to be located 150 ft away), IL TREC 1600 runs on 110 Vac and includes battery back-up.

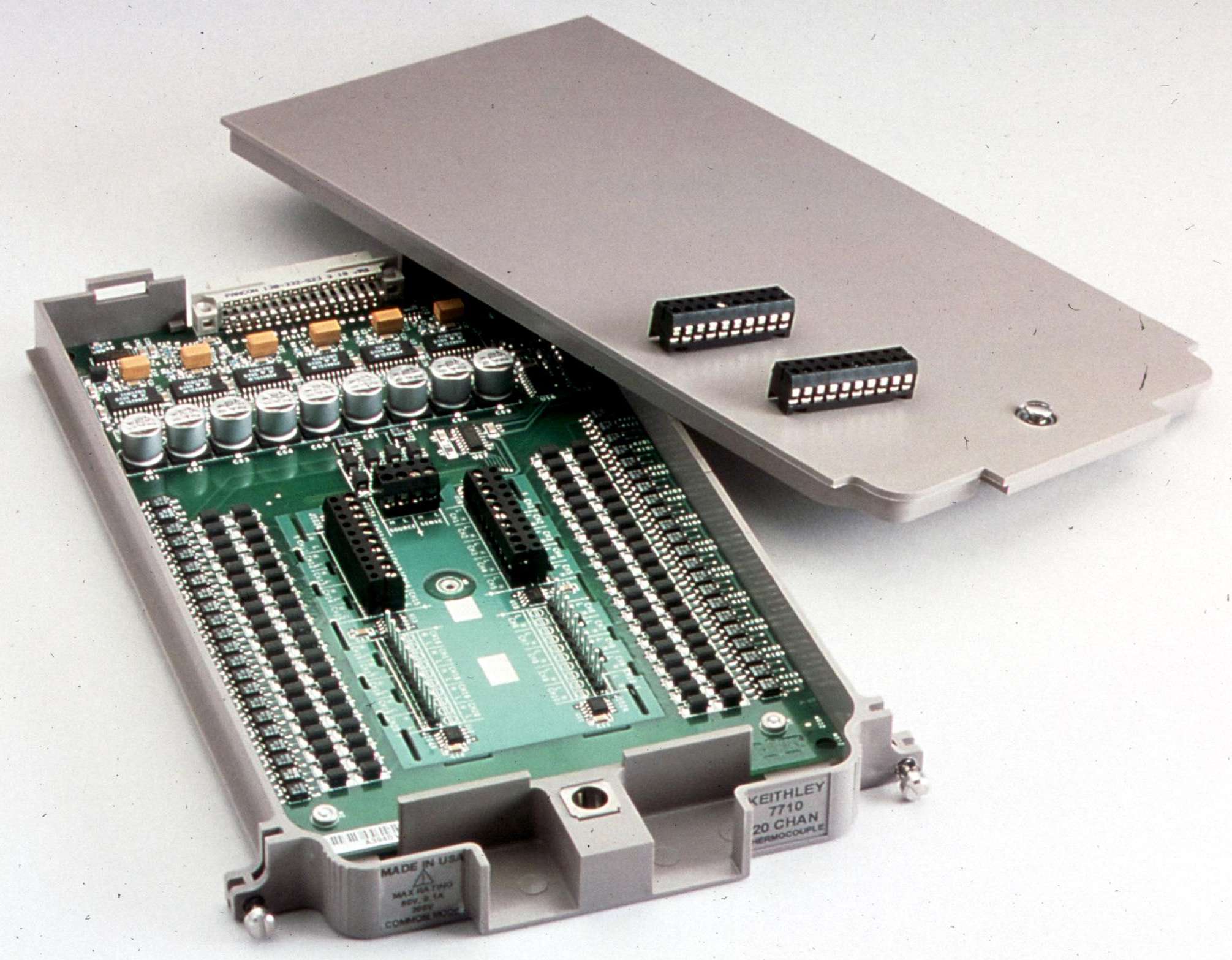

Differential Multiplexers switch up to 20 channels.
Keithley Instruments, Inc., Test Instrumentation Group
Cleveland, OH 44139 1891
Oct 01, 2002 Solid-state 7710 multiplexer modules offer automatic cold junction compensation capability for temperature measurement with thermocouples. They accommodate differential signals up to 60 V and 0.1 A and have insertion loss of less than 3 dB up to 2 MHz. Model 7700 differential multiplexers include latching electromechanical relays, which enable signal bandwidths up to 50 MHz. They handle signals up to 300 V and 1.0 A, with insertion loss of less than 3 dB up to 50 MHz.
Ball Screws suit assembly and packing equipment.
Danaher Motion MCD
Amherst, NY 14228
Oct 01, 2002 Manufactured using PSF Technologyâ„˘, FineLine precision ball screws are available certified to ISO accuracy grade P3 (P5 and T5 grades are also available). Metric and English leads are offered in screw lengths up to 6 m, depending on diameter; diameters range from 12 to 80 mm. Matched ball nuts are offered in 4 flange styles. Applications include machine tools, robots, assembly and packaging equipment, and plastic molding machines.
Alarm Communicator sends point-specific event data.
Waltham, MA 02154
Oct 01, 2002
Serial Digital Alarm Communicator Transmitter (SDACT) accepts RS232 data from intelligent, addressable Fire Alarm Control Panels (FACPs) and serial data sources. SDACT accepts data, dials Digital Alarm Communicator Receiver, and sends addressable point and event specific data for annunciation. Unit provides four EOL resistor supervised hard wired zone inputs. SIA format facilitates annunciation of account number, point or zone number, and event or detector type at receiver.

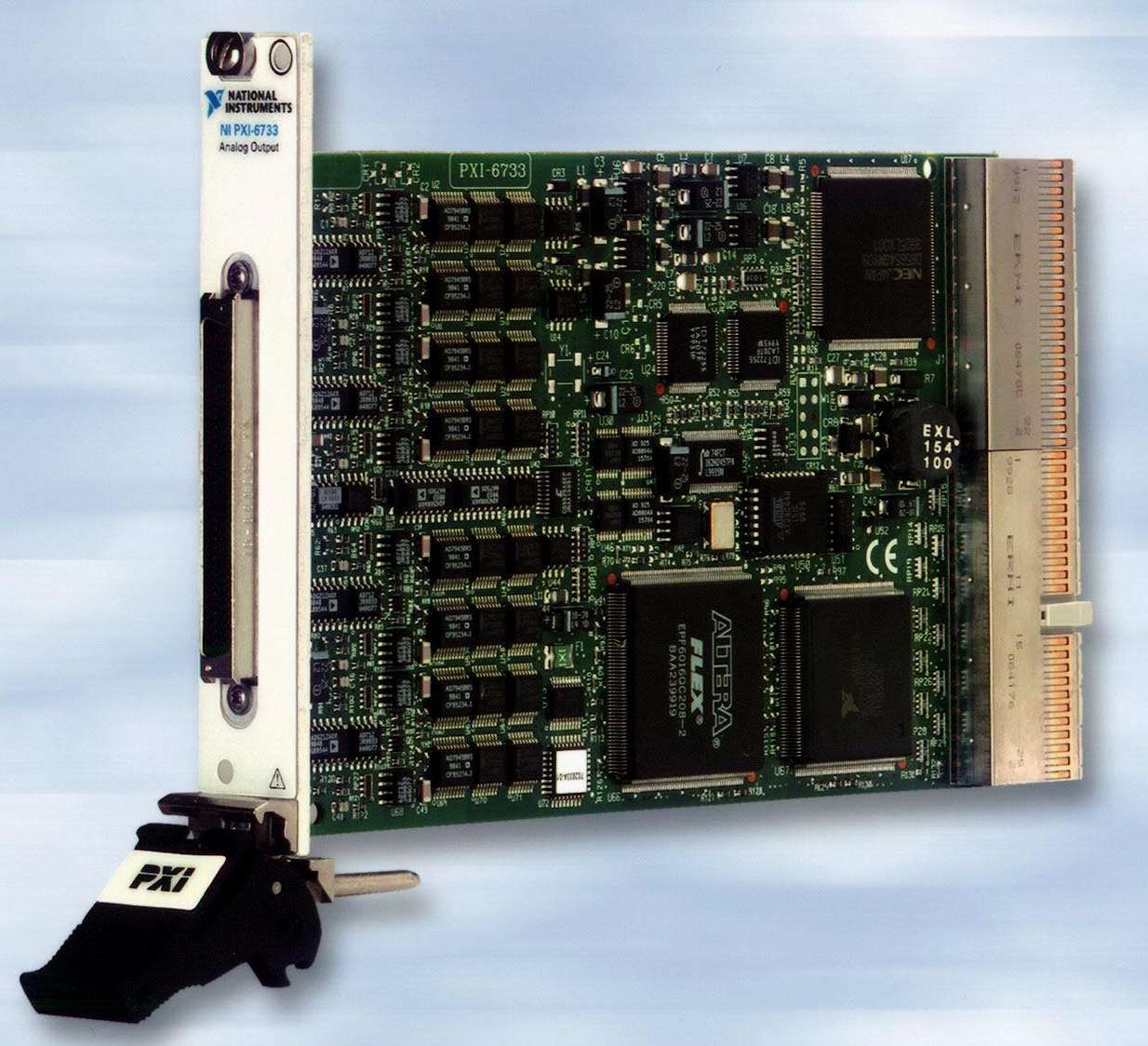

Analog Output Module suits high-speed applications.
National Instruments Corp.
Austin, TX 78759-3504
Sep 30, 2002 Model PXI-6733 delivers high channel density by generating waveforms at 1 MS/s per channel and 16-bit resolution on 8 channels. It features two 24-bit counter/timers and flexible software-controlled timing-signal routing for advanced timing and triggering applications. Module uses PXI trigger bus, which provides synchronization with motion, vision, and data acquisition products. It includes NI-DAQ 6.9 driver software.

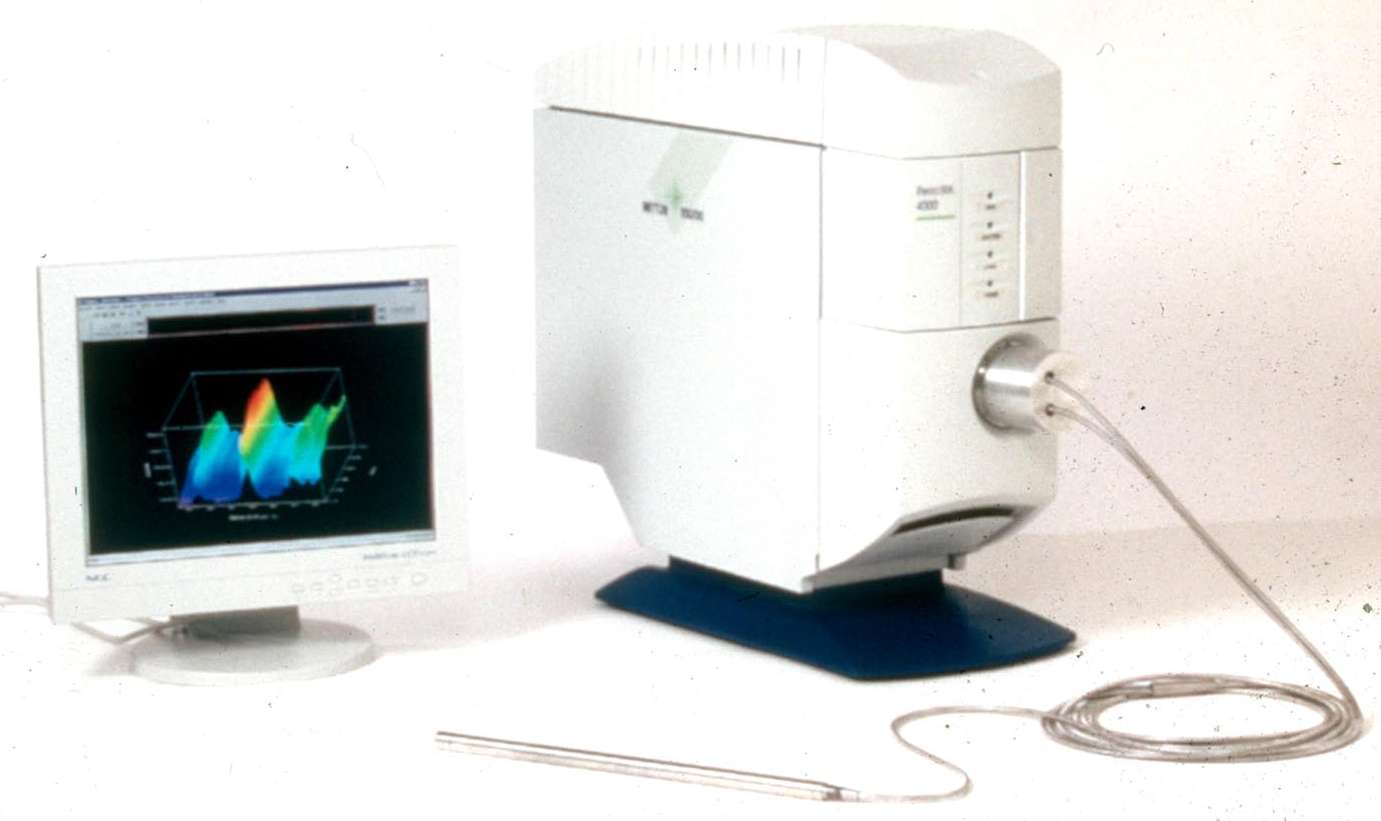

Analyzer allows real-time reaction monitoring.
Millersville, MD 21108
Sep 30, 2002 ReactRAâ„˘ 4000 Reaction Analyzer utilizes Raman, a complementary technique to FTIR for tracking chemical reaction components. Since signals from solids in suspensions or slurries can also be measured using Raman, crystallizations can be monitored in situ. Information can be directly related to Lasentec FBRMâ„˘ and PVMâ„˘ data on particle size, shape, and events. ReactRA 4000 uses integrated 785 nm laser transmitted to sample via fiber optic probe.

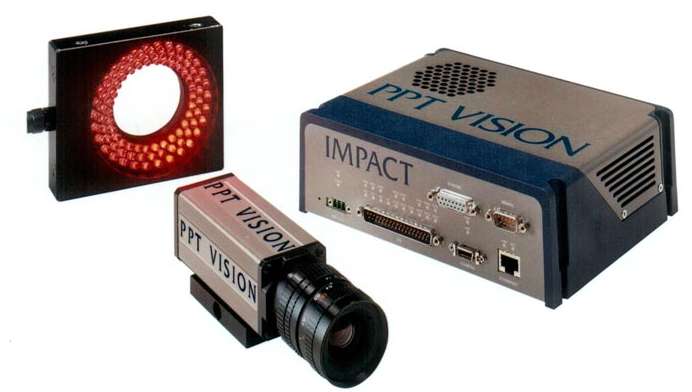

Vision System performs high-speed inspection tasks.
PPT Vision, Inc.
Eden Prairie, MN 55344
Sep 30, 2002 IMPACTâ„˘ machine-vision micro system has dedicated processor and sub-pixel software algorithms for inspection tasks such as Pattern Find, Blob, Edge Find, OCV, OCR, Gauge, and Contrast Sensing. It achieves image capture rate of 60 full frames/sec. Greater speeds can be achieved using built-in support for partial scanning. Inspection Builderâ„˘ software sets up complete inspection programs. System uses DSLâ„˘ family of high-speed cameras.

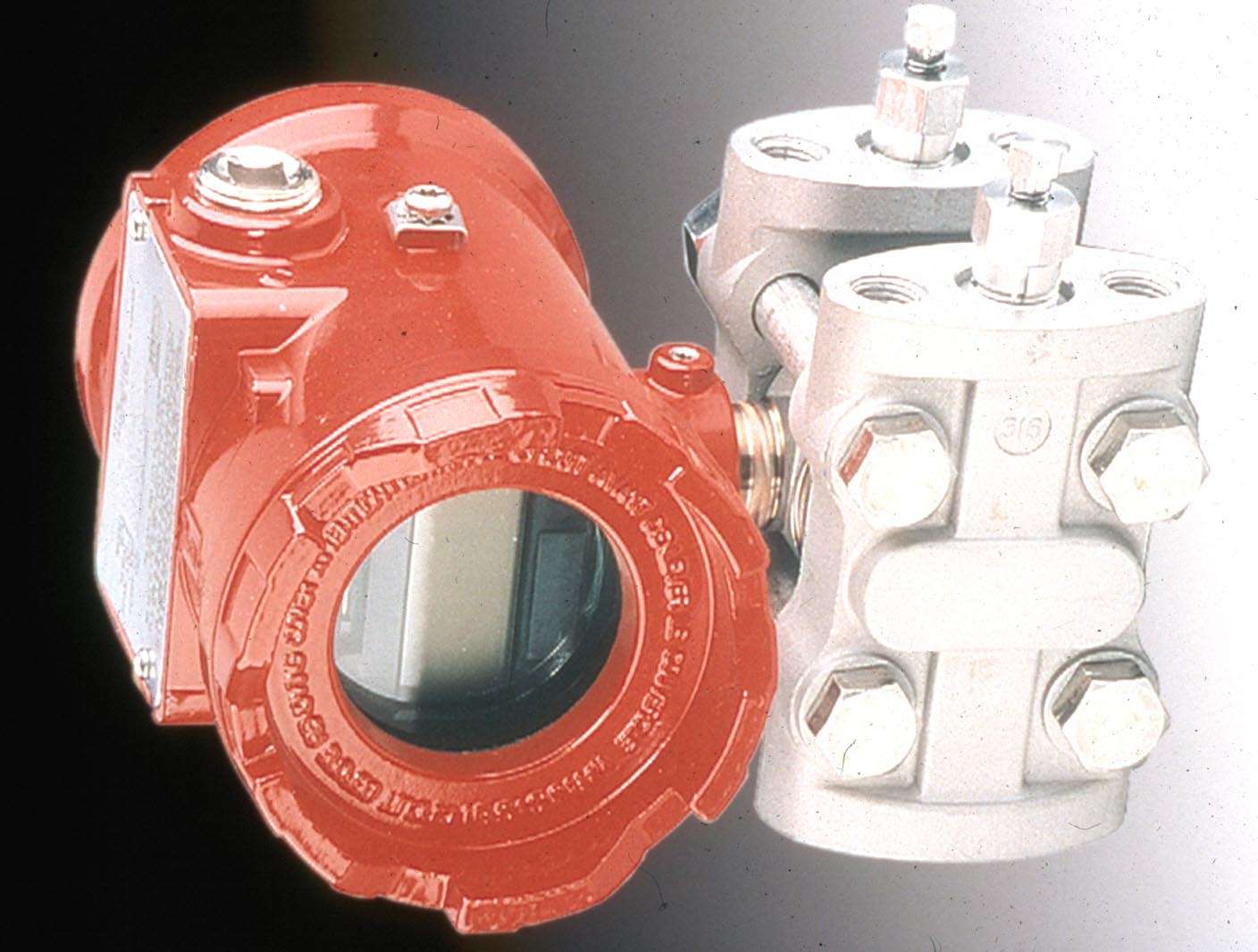

Pressure Transmitters are TUV-certified for safety.
Barton Instrument Systems, LLC
City Of Industry, CA 91749-1882
Sep 30, 2002 Series B45 absolute, differential, and gauge pressure instruments are certified for high availability and safety service. They have hardware and software redundancy, comprehensive self-checking system, and primary and secondary current sources to ensure safe fault indication if failure occurs. These features allow single B45 unit to be installed where two conventional transmitters are usually required in critical process safety applications.

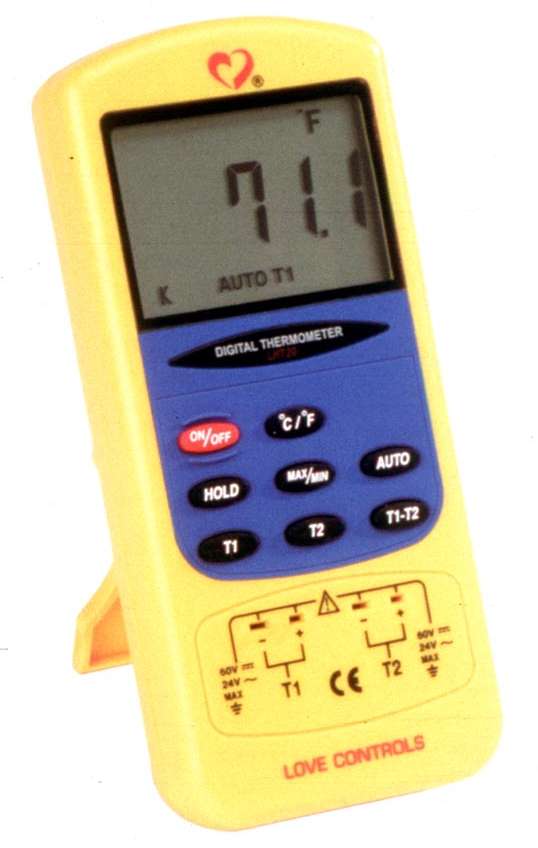

Thermometer uses Type K or Type J thermocouples.
Michigan City, IN 46361
Sep 30, 2002 Model LHT20 Digital Hand-Held Thermocouple Thermometer has 2 ANSI Standard mini-jack connectors allowing for wide variety of probe styles. It measures in degrees F and degrees C, with display resolution in whole degrees or tenth degree increments. Unit can display T1, T2, or differential (T1-T2). Auto power-off conserves battery life. Model LHT20 is suitable for use in laboratories, factories, and shops.
Dew-Point Meter spot checks dry air.
Woburn, MA 01801 1008
Sep 30, 2002 Model DM70 handheld meter provides measurement accuracy of ±2°C for dew-point temperatures ranging from -50°C to ambient. Graphical user interface indicates that measurement has stabilized. Pressure-tight sensor can be inserted directly into pressurized processes and is resistant to condensation. Meter includes built-in logging capability, graphical LCD display, and analog output. Windows® software is optional.

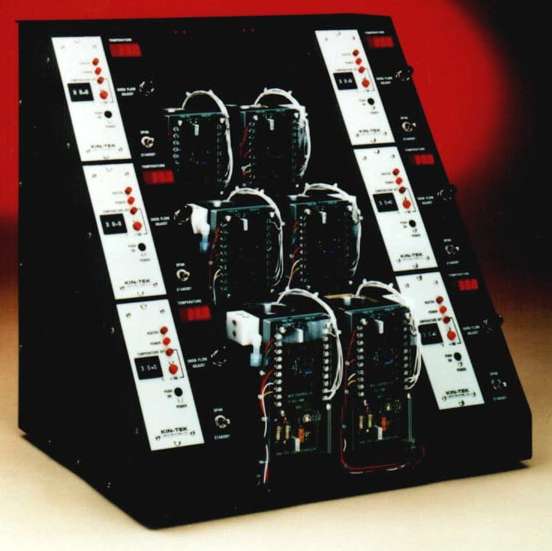

Sample Prep System Generates mixtures for VOC analysis.
LaMarque, TX 77568 4202
Sep 27, 2002 Span Lab TO-14 Calibration Bench generates calibration mixtures which can be fed directly to VOC analysis systems or captured in SUMMA canisters. It contains up to 30 individually controlled permeation tube ovens, with up to eight tubes in each oven. Each tube emits precise amount of component into carrier gas. Mixtures with up to 200 compounds can be prepared. They can be dry or humidified, and delivered at pressures to 40 psi.
Solar Panel Meter suits limited space applications.
Cooper Instrument Corp.
Middlefield, CT 06455
Sep 27, 2002 SP160 Digital Solar Panel Meter is 4.5 x 1.125 x .625 in. and does not require any external power sources. It features temperature range of -58 to 158°F, ±1°F accuracy, and 10 ft probe cord. Applications include heating and ventilation, holding and storage tanks, freezers, foodservice equipment, and beverage coolers and dispensers.
Daylight Simulation Booth is desktop-sized and portable.
Paul N. Gardner Co., Inc.
Pompano Beach, FL 33060 6608
Sep 27, 2002
SpectraLight® Jr provides multiple light sources for color matching and evaluation of color quality/uniformity. It uses filtered tungsten halogen daylight technology. Unit is equipped with 5 selectable light sources for various color evaluations and metamerism testing. Interior is made from low gloss, neutral-gray material. It includes push button membrane keypad, removable diffuser, and separate on/off control for UV source.
