ABB Water Meters, Inc.    Ocala, FL 34478
Nov 13, 2002 Housed in bronze or polymer housing, absolute encoder register reads water meter's odometer digits. Powered by interrogation equipment, InVISION reading technology incorporates strategically placed LEDs to illuminate meter register's odometer digits. Multiple retinas focus through lenses onto odometer digits for absolute meter reading. Error-free readings pass to hand-held or AMR device. Installation is accomplished via quick-connect, screwless design.

Honeywell, Inc., Industrial Automation & Control    Phoenix, AZ 85023

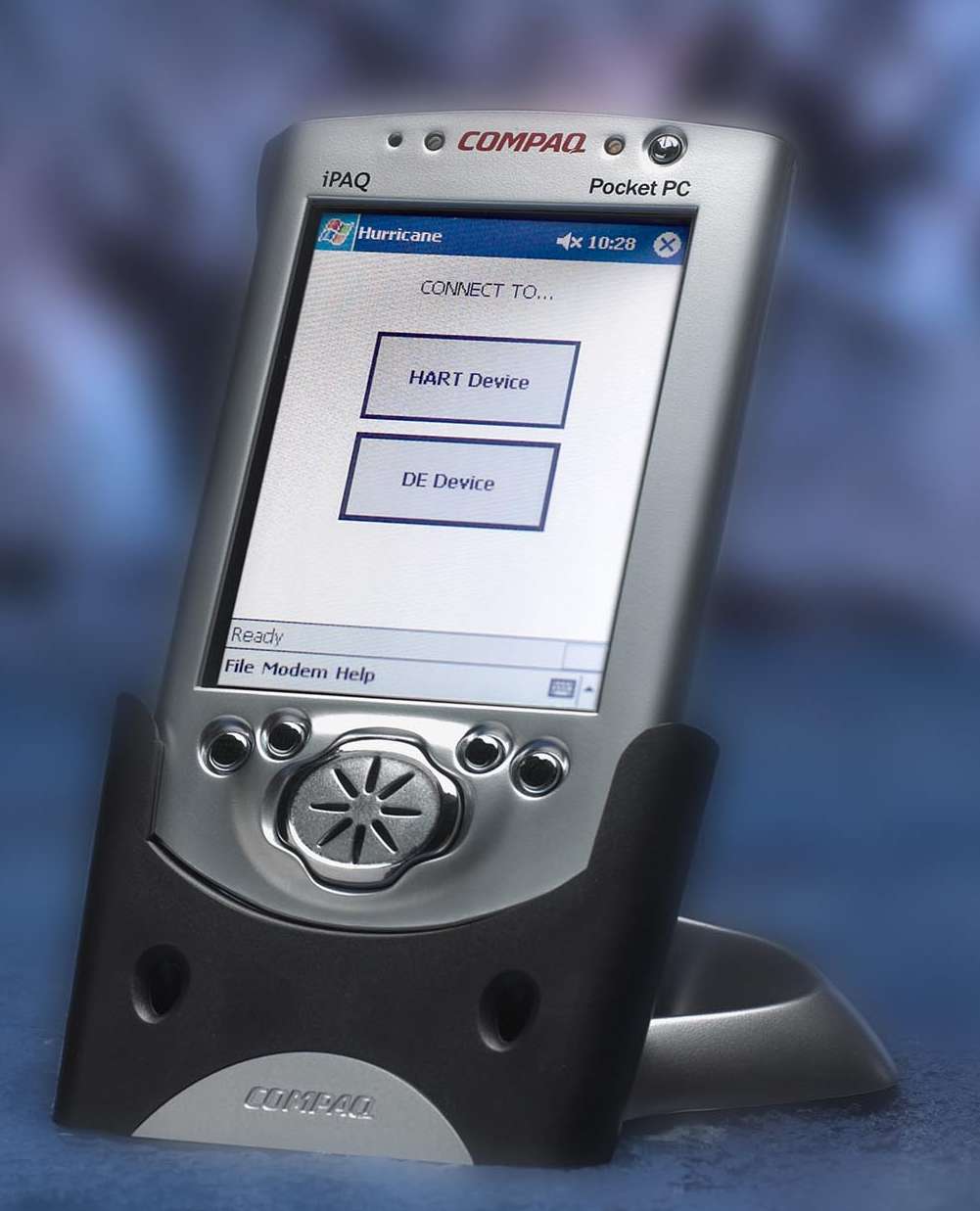

Nov 12, 2002 MC Toolkit, Pocket PC-based tool, is designed to configure, monitor, diagnose, and manage smart field instruments. It handles multiple communications protocols, including Honeywell Digitally Enhanced and HART. Unit automatically compares and detects any differences between device database and its own database. It enables easy configuration of Lower Range Value, Upper Range Value, range, engineering units, and damping. Toolkit provides self-diagnostic as well as full device diagnostic support.

APT Instruments    Litchfield, IL 62056
Nov 12, 2002 Artisanâ„¢ TT2210 dual channel KJT thermocouple thermometer can monitor actual or differential temperature in plant or laboratory applications. Meter adapts to types K, J, and T thermocouple probes. Its backlit digital display provides dual/differential temperature measurements as well as MAX, MIN, and HOLD functions. Options include RS-232 output and Windows®-compatible software program.

APT Instruments    Litchfield, IL 62056

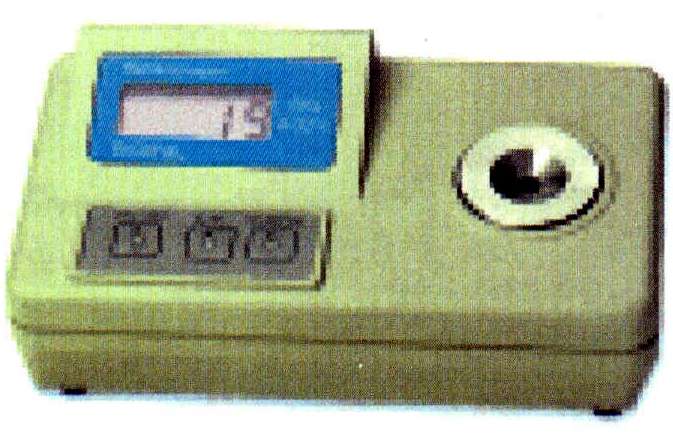

Nov 12, 2002 Portable, battery-operated digital refractometer with digital display and splash-resistant housing provides accurate readings of sugar concentrations (Brix) or refractive index in plant, field, or lab. HR200 refractometer is available in 4 models with different measurement ranges - 0 to 36%(1.3330 to 1.3903 nD), 0 to 45%(1.3330 to 1.4098 nD), 28 to 65%(1.3800 to 1.4535 nD) and 60 to 92%(1.4400 to 1.5230 nD) with an accuracy of ±0.2%.

Draeger Safety, Inc.    Pittsburgh, PA 15230

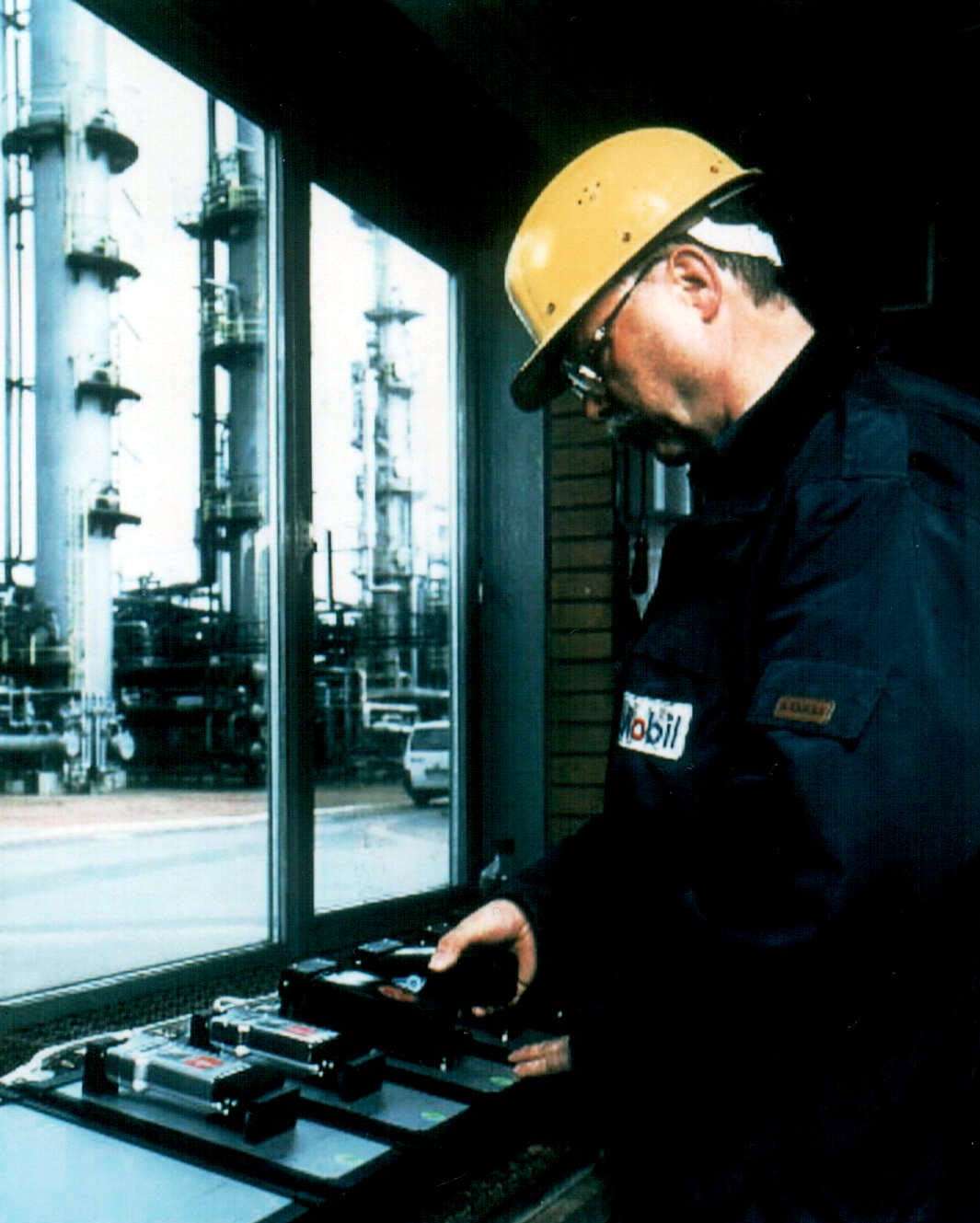

Nov 12, 2002 E-Cal automatically calibrates up to 10 gas monitors and documents entire process. It will also perform bump tests, download stored information, charge instruments, and change instrument configurations with included CC-Vision software. Computer control ensures that calibration is done properly every time. E-Cal system supports different calibration gases, and makes use of parallel processing to simultaneously process instruments.

Cognex Corp.    Natick, MA 01760 2059
Nov 12, 2002 Incorporated into VisionPro®, geometric measurement tools measure distance between circles, points, and lines in ActiveX environment. Data analysis tools allow users to perform statistical analysis of vision tool results without having to first write custom programs, automatically computing various statistics to be analyzed over time. VisionPro systems offer QuickStart(TM) drag-and-drop graphical interface and choice of MVS-8100 frame grabbers.

Endress + Hauser Inc.    Greenwood, IN 46143
Nov 11, 2002 Immune to plant vibration, Promass H has wetted parts made from zirconium for corrosion resistance. Slightly curved, single-tube sensor has no flow splitter. Its ITBâ„¢ system (Intrinsic Tube Balance) provides balance and stability for accurate measurement (±0.15% in liquids) over various process conditions. Available in sizes 3/8 up to 1 1/2 in. for flow rates to 1,650 lb/min, unit operates in temperatures from -60 to +400°F.

Hardy Process Solutions    San Diego, CA 92123 1825

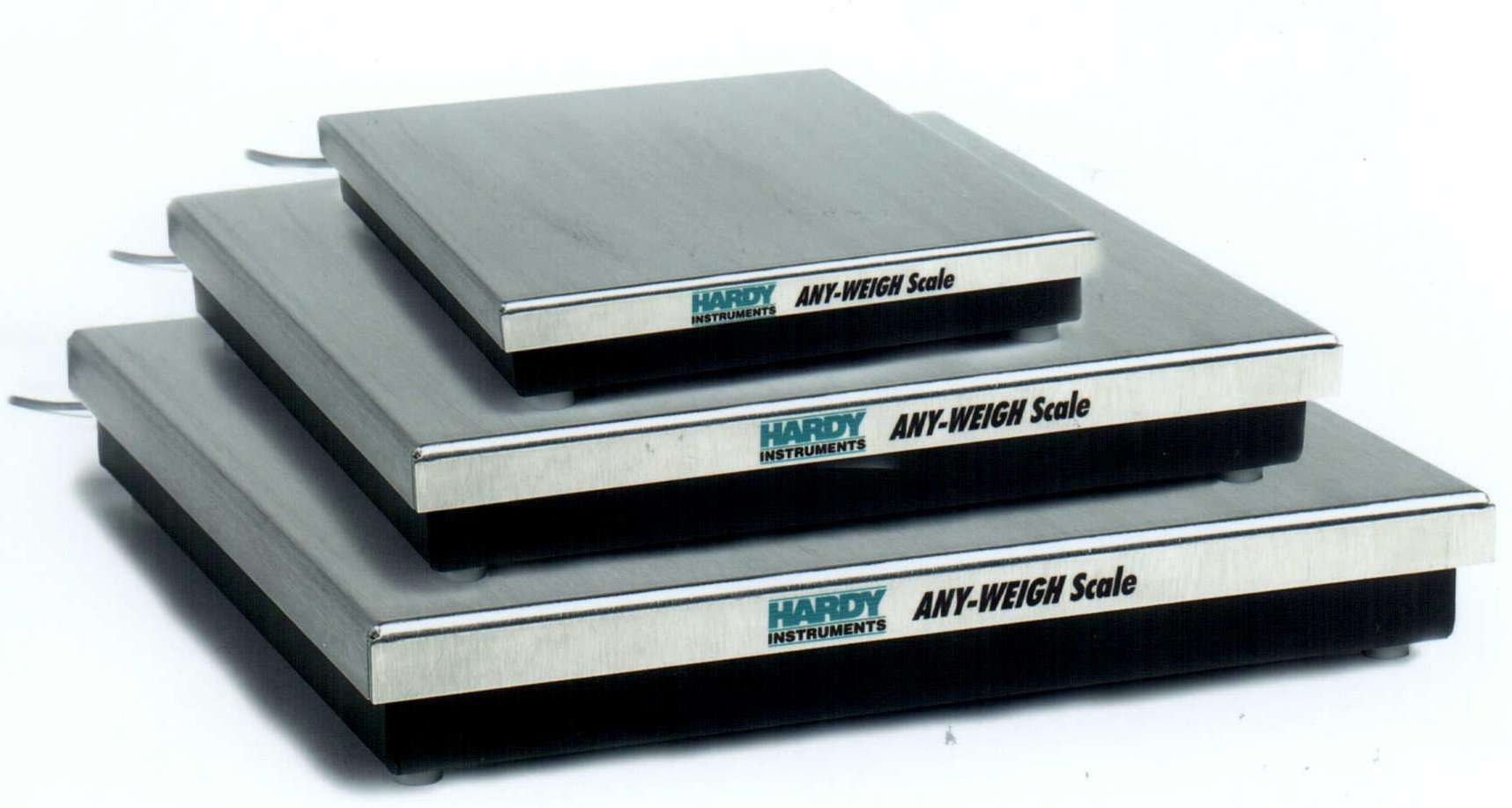

Nov 11, 2002 ANY-WEIGH(TM) Universal Bench Scales come with 15 ft cable for connection to strain gauge based weighing instruments. Other versions have built-in electronics with choice of DeviceNet or 4-20mA analog output communication capabilities. Scale sizes include 12 x 12, 20 x 20, and 24 x 24 in. DeviceNet Bench Scales offer 1-touch local calibration and allow remote DeviceNet C2® electronic calibration or calibration with test weights.

Intertest Inc.    Columbia, NJ 07832

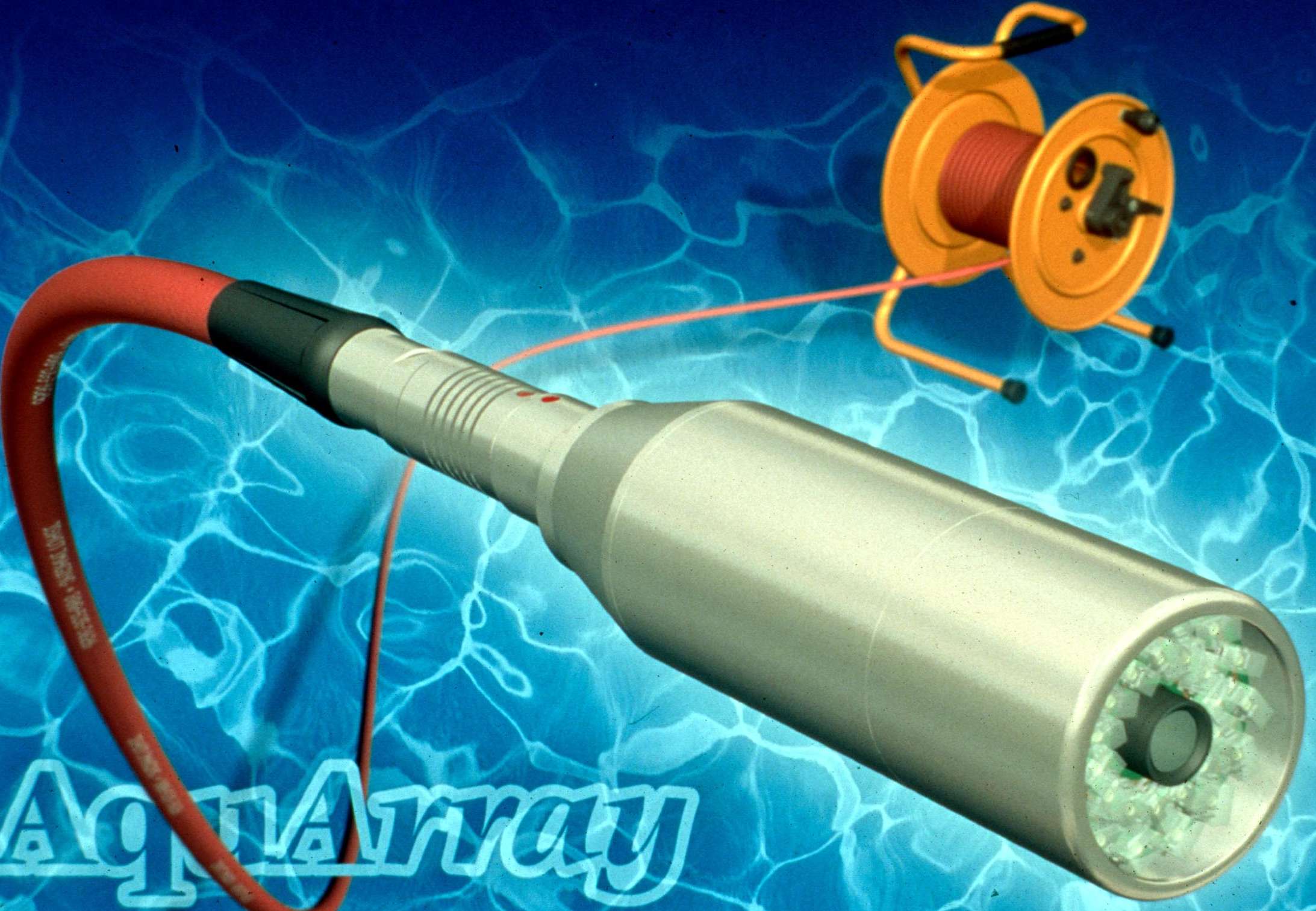

Nov 08, 2002 Offered in cable reel and push pole configurations and submersible to 100 ft, iShot Imaging AquArray(TM) captures color inspection footage from wet and immersed areas. With integral LED lamp and interchangeable lenses, system ensures detailed view of objects in saltwater and other corrosive liquids. Camera measures 1 in. in dia. and weighs 6.4 oz. with 1/4" interline transfer CCD that captures color video at 330 HTVL resolution.

Capital Equipment Corp.    Billerica, MA 01821

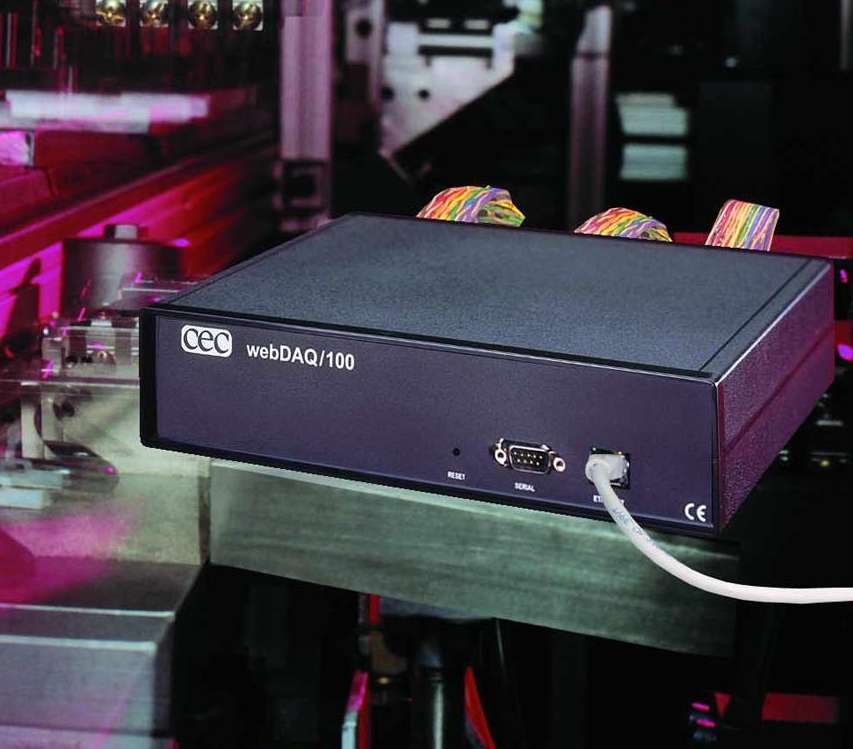

Nov 08, 2002 Distributed data acquisition device, webDAQ/100(TM), has built-in web server and net arm processor. It combines data acquisition hardware, dual processors, 4 to 128 MB of RAM data storage, Ethernet and serial interfaces with web server and FTP and e-mail capability. Graphing capability works in any web browser with single click on home page link. Customized graph options include auto or fixed axis scaling, assignments of channels to graphs, and trace and background colors.

Keithley Instruments, Inc., Test Instrumentation Group    Cleveland, OH 44139 1891

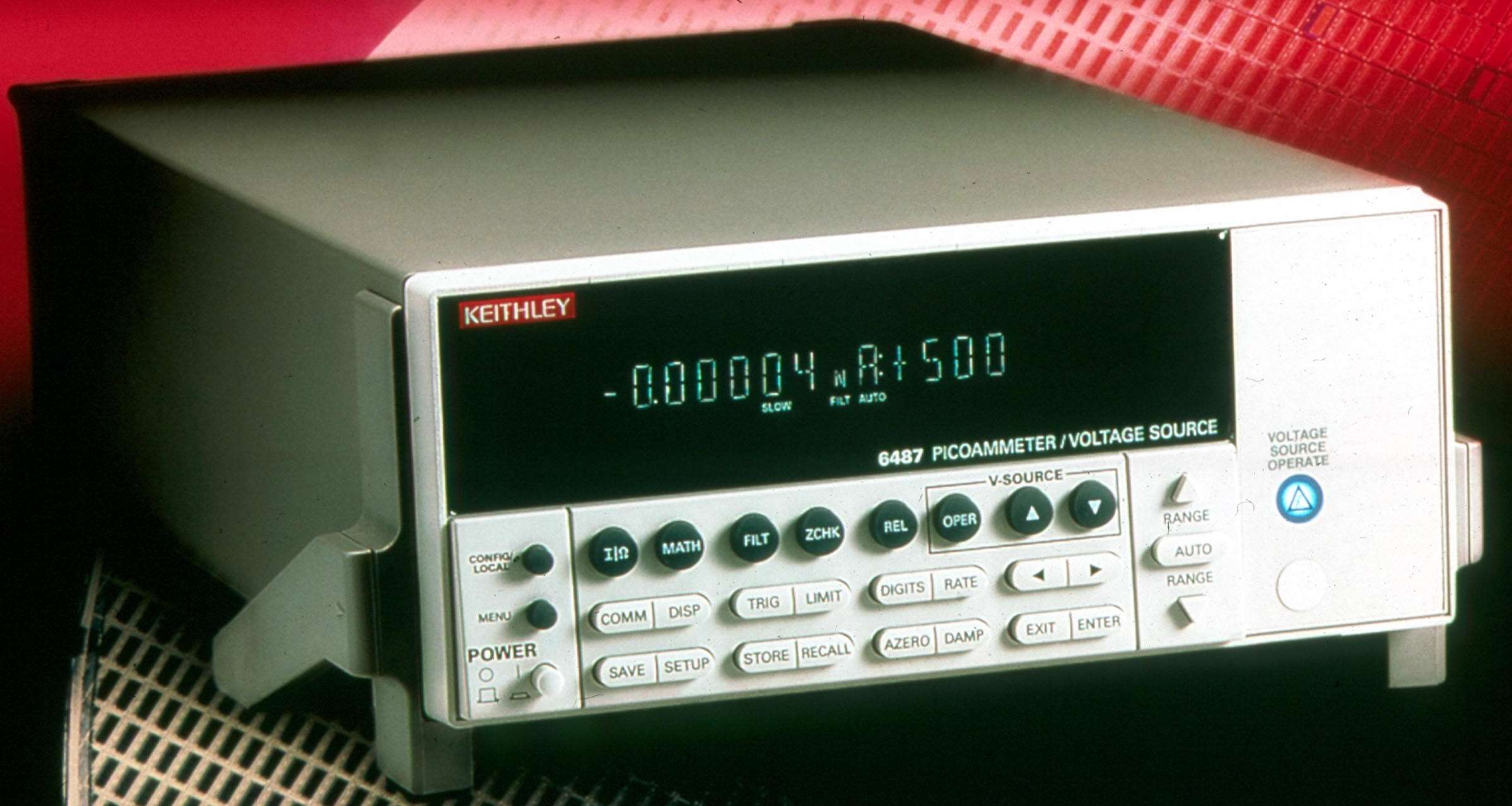

Nov 08, 2002 Model 6487 Picoammeter/Voltage Source can apply voltage stimulus as high as 500 V to device under test and measure currents as low as 20 fA. It also provides direct readout of resistance measurements up to 5x10¹⁶ ohms and offers 5½ digit resolution and voltage burden of less than 200 µV on lower measurement ranges. Voltage source ranges are ±10, ±50, and ±500 Vdc, with basic accuracy of ±0.1% on programmed value.

ERICO    Solon, OH 44139-2631
Nov 08, 2002 Portable Universal Earth System Tester (EST301) with splash-proof construction is microprocessor controlled. Its LCD display shows required test connections and offers complete automatic test sequence for selected operations. It provides 2-pole resistance and 3-pole ground/earth resistance measurements @128 Hz as well as 4-pole resistance measurements for determination of soil resistivity. It also offers clamp-on selective and stakeless measurement capabilities.

Fluid Components Intl.    San Marcos, CA 92069 5115

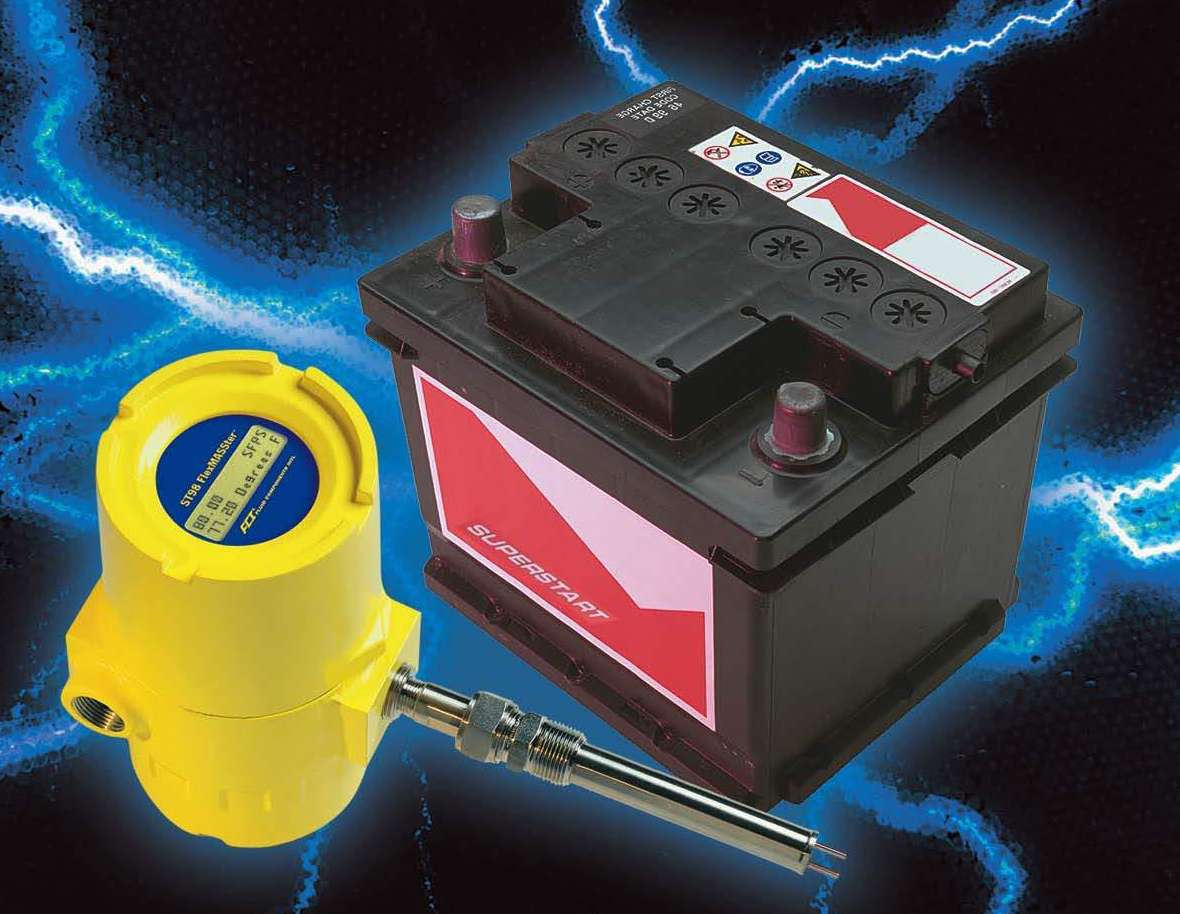

Nov 07, 2002 FlexMASSter® ST98F Series responds to changing media flow rates in 6 seconds or less. With thermal mass-sensing flow element and flex-circuitry design, ST98F offers accuracy of ±1% of reading plus ±0.5% of Full Scale. Flow meter has repeatability of ±0.5% of reading and flow range from 2 to 3183 scfm in air at 70 °F and 14.7 psia, typical to most gases. It offers low-flow sensitivity to 0.25 sfps and operates with turndown ratios from 10:1 to 100:1.

Fluid Components Intl.    San Marcos, CA 92069 5115
Nov 07, 2002 FlexMASSter® ST98 Flowmeter provides process flow information, remote instrument health, and diagnostic status. Flowmeter’s thermal mass sensing element provides accuracy of ±1% of reading plus ±0.5% of FS, with repeatability of ±0.5% of reading. Standard flow elements have adjustable insertion lengths and are available in sizes 2.6 to 120 in. PROFIBUS offers transmission rates up to 12 Mbaud in deterministic network.

ETEC Inc.    West Peabody, MA 01970
Nov 07, 2002 Configurable, VXI-based Digital Stimulus and Response Module (DSRM) is suited for use with multi-wire serial communication busses. With configurable and downloadable FPGA design, device is capable of implementing communications protocols such as CAN, SDDI, and various serial busses.

ETEC Inc.    West Peabody, MA 01970
Nov 07, 2002 High-volume, VXI-based M/STePâ„¢ test system is based on company's MEMS/Sensor Test Platform. M/STePâ„¢ provides both calibration and test of multi-axis MEMS gyros. Test system is suitable for automotive and commercial applications.

Post Glover Resistors, Inc.    Erlanger, KY 41018
Nov 07, 2002 The Shieldâ„¢ provides intelligent grounding fault detection with feeder indication. Each feeder on unit's control panel has its own light, to indicate by name which feeder has the fault. UL Listed product has PulserPlusâ„¢ Controls and handles systems of any size. Unit, available for Wye and Delta Systems, is offered with optional data logging. It includes Split-Core CTs and can be used for the following system voltages: 13.8 kV, 7.2 kV, 4160, 2400, 600, and 480.

Mahr Federal Inc.    Providence, RI 02940

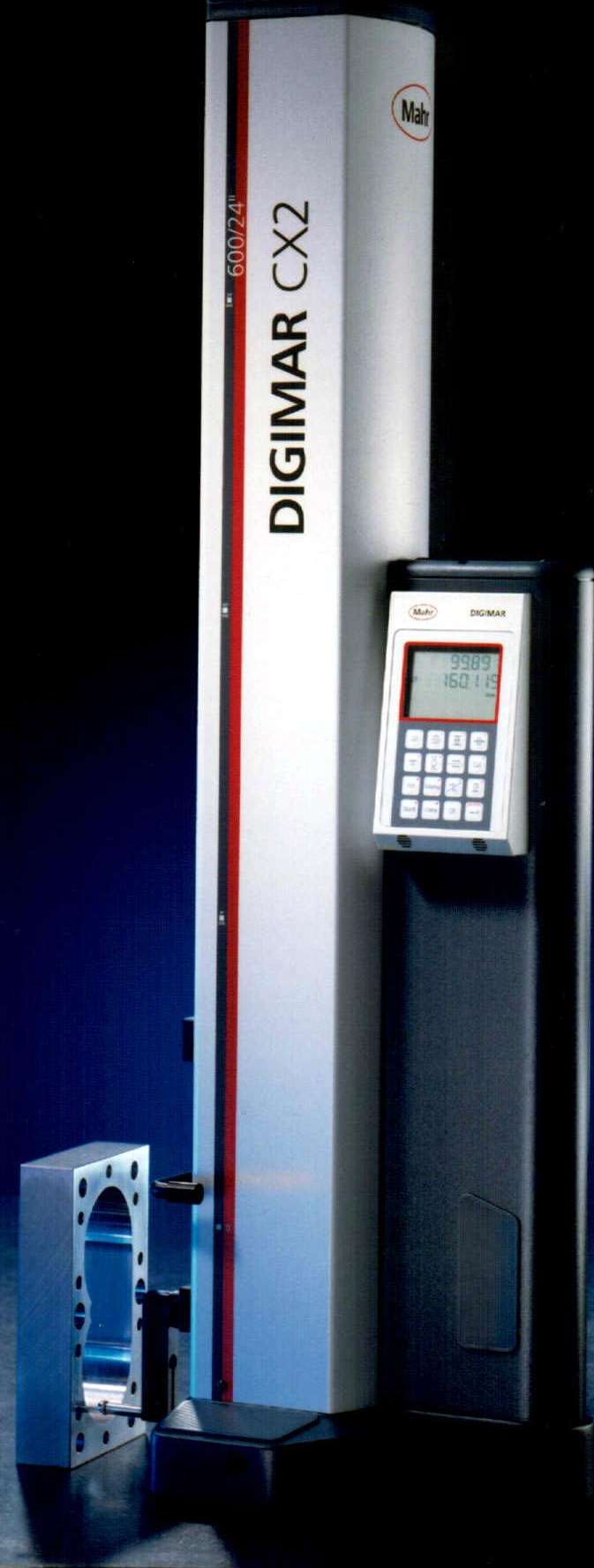

Nov 06, 2002 Motorized Digimar® CX2 features motorized measuring slide that minimizes operator influence for precision and repeatability. Functions include measurement of planes, grooves, bores and shafts, and calculation of distances and symmetries. Max-Min and perpendicularity measurements are supported. System has measuring range of 24 in., extendable to 37 in., with resolution of 0.0001/0.00005 in. and repeatability of 0.00008 in.

Imaging & Sensing Technology, Imaging Systems Group    Woodinville, WA 98072

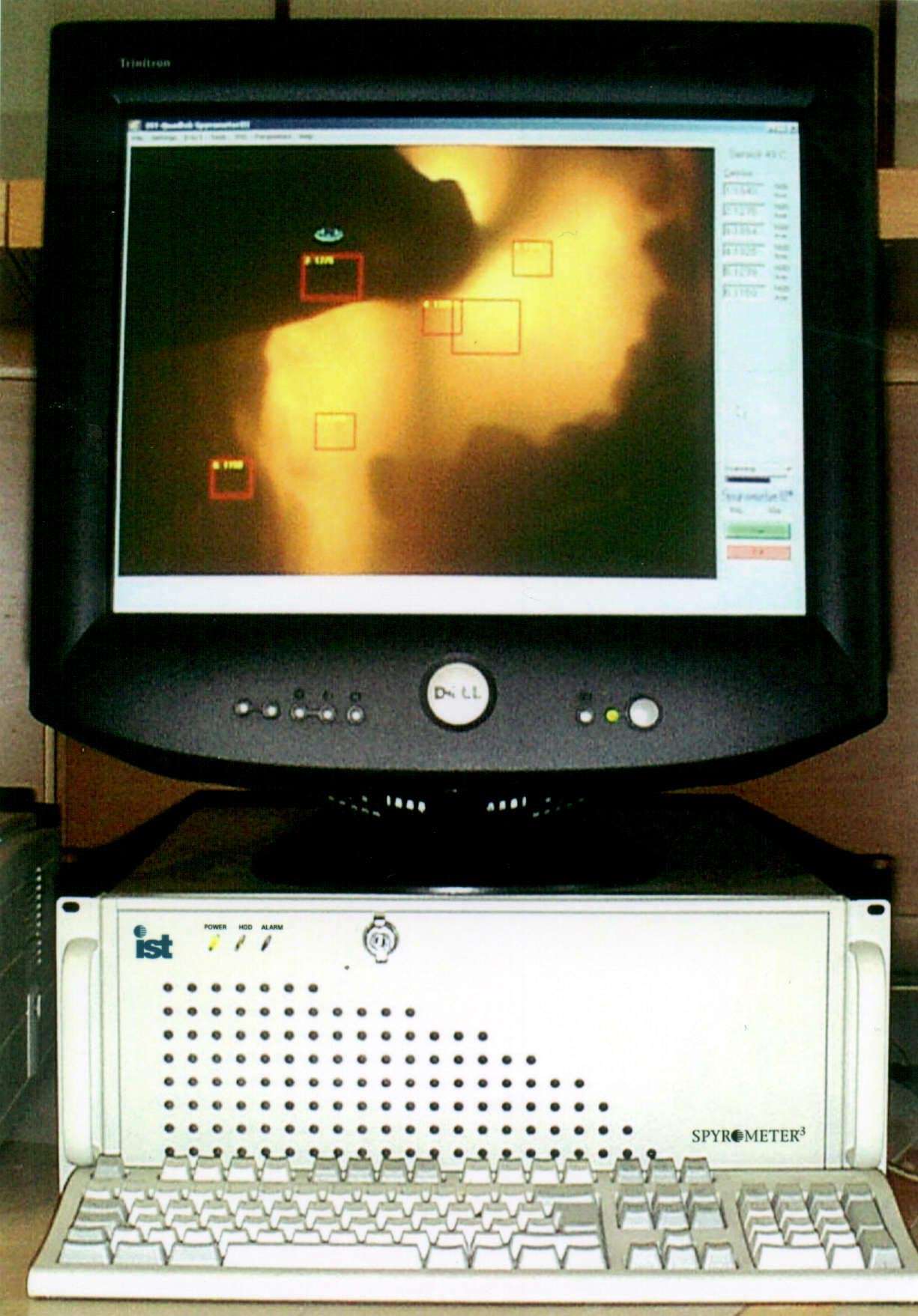

Nov 06, 2002 Spyrometer³ provides simultaneous video and temperature measurement from 2 cameras into single integrated processor. It provides control room personnel with live, high-resolution data that is essential for optimizing operations and can be integrated into plant control system to improve production quality and output. Navigation is simplified with enhanced software features and user interface.

Rockwell Automation    Milwaukee, WI 53204

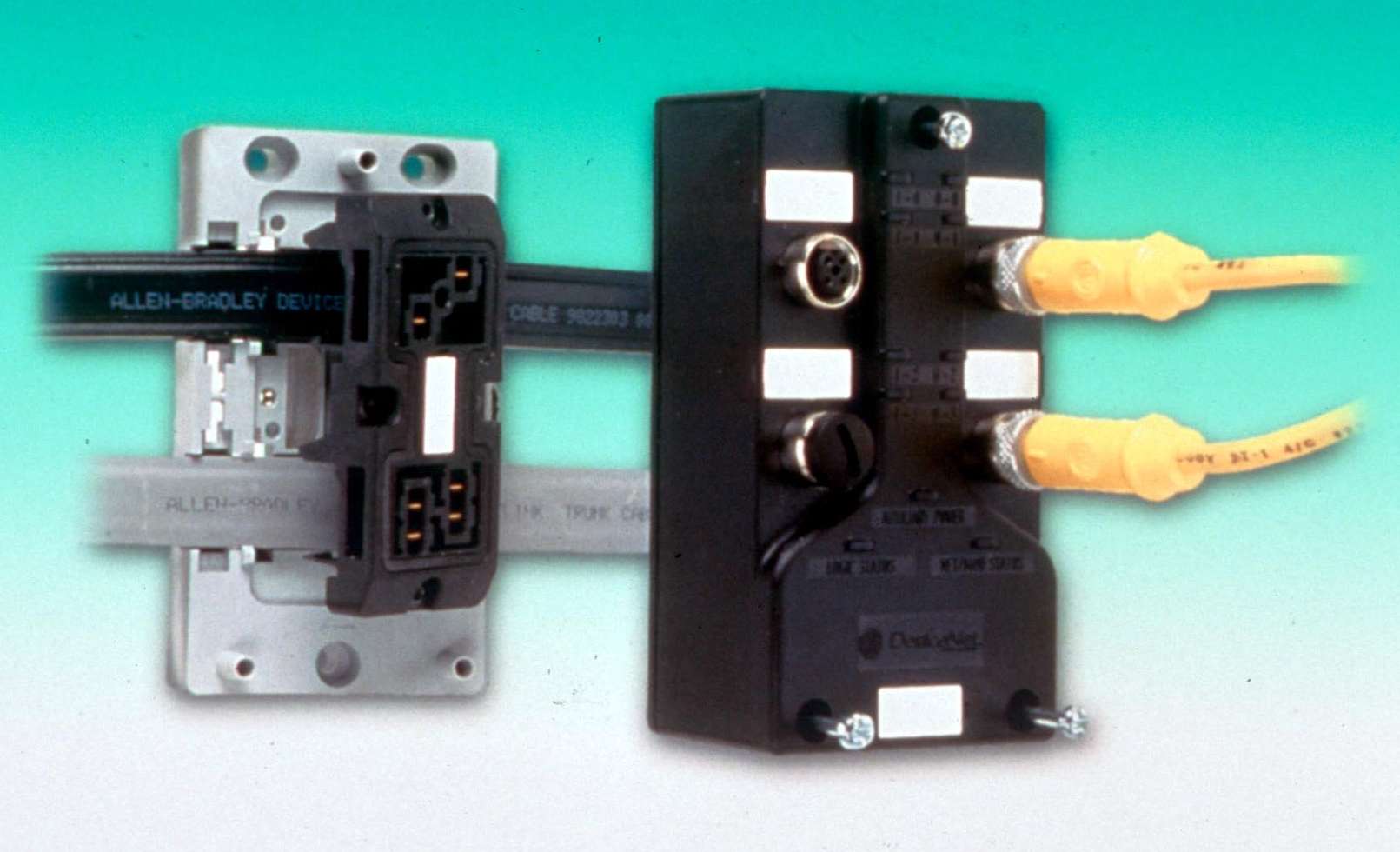

Nov 06, 2002 ArmorBlock MaXum(TM) I/O blocks provide device-specific analysis of faults and advanced warning of off-wire and short-circuit detection. These 16-input DC and 8-input/8-output 24 VDC, 1792D modules are software selectable via EDS parameters in RSNetWorx(TM) for DeviceNet(TM). Able to handle sinking or sourcing inputs, they include input circuitry that eliminates false inputs generated by sensors with high-leakage current. Modules combine adapter, power supply, and I/O.
