Onset Computer Corp.    Bourne, MA 02532

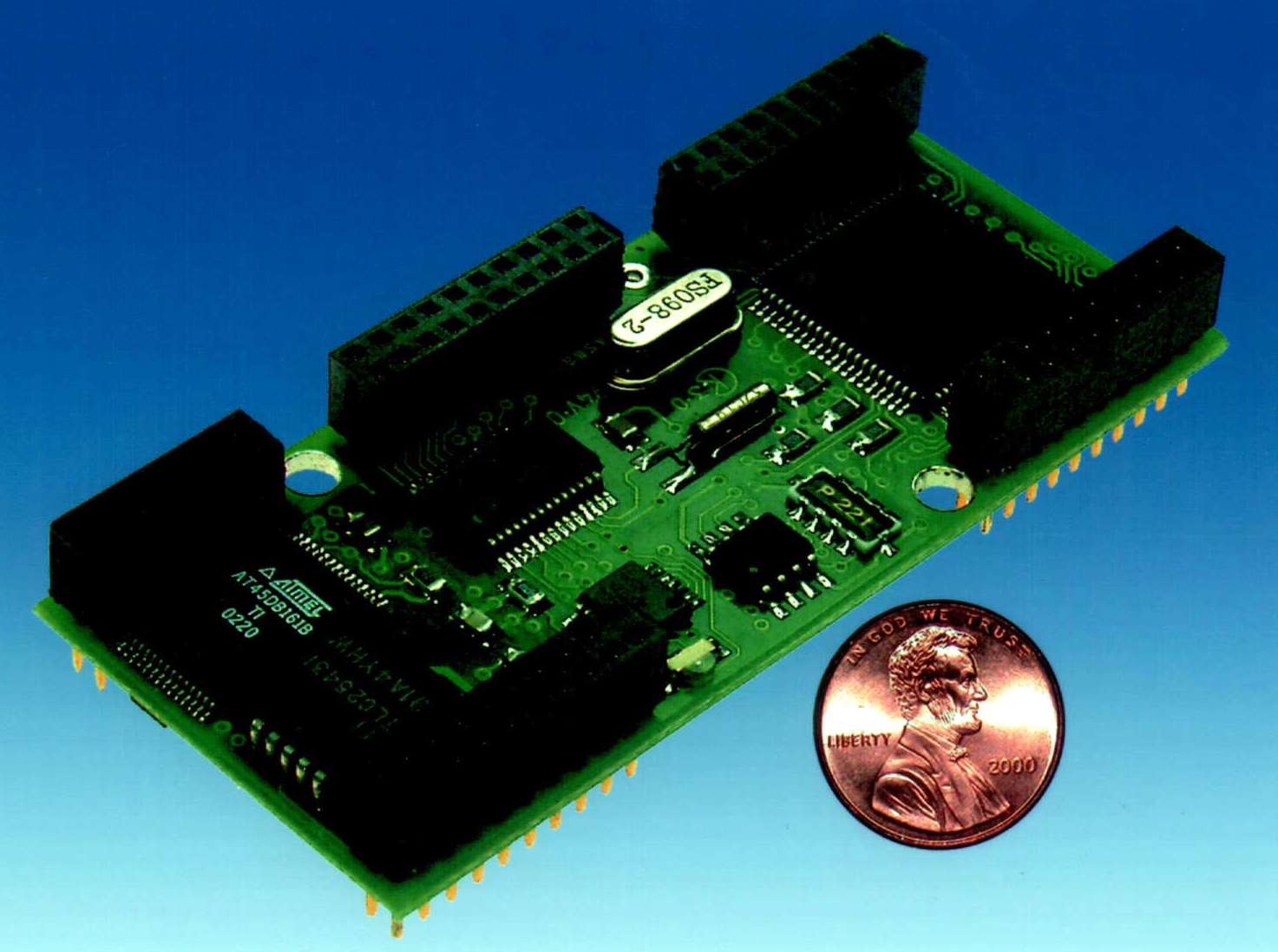

Nov 14, 2002 Embedded Model TFX-11v2 provides 19 analog channels, 24 digital lines, 2 UARTs, up to 6.4 kHz sampling rate, and 2 Mbyte of Flash EEPROM memory. Minimum current draw is less than 100 µA in low-power mode with up to 150 mA available for data acquisition or control tasks. Unit measures only 1.2 x 2.75 x 0.50 in. Logger/controller is user-programmed in Windows®-based TFTools Integrated Development Environment using TFBASIC.

FARO Technologies, Inc.    Lake Mary, FL 32746 6204

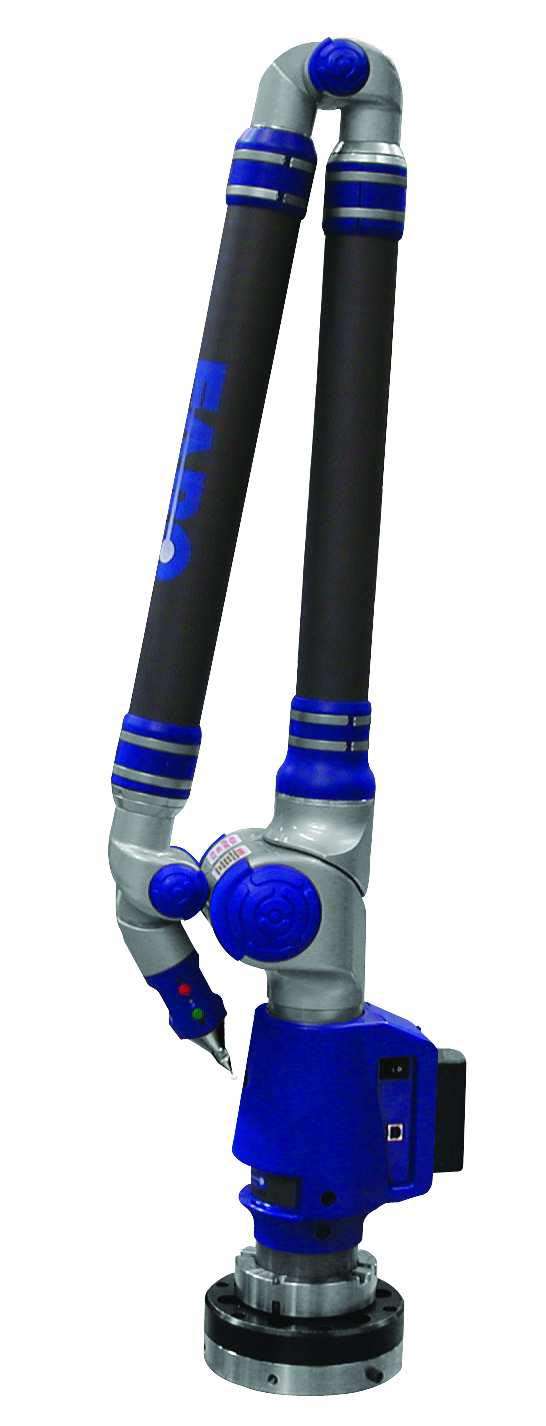

Nov 14, 2002 Titanium FaroArm® provides measurement capabilities, with accuracy to .001 in., to inspect, reverse engineer, or perform CAD-to-Part-analysis on parts, fixtures, and assemblies. Series interfaces with all FARO CAM2® software and includes universal 3.5 in. mounting ring with magnetic mount. Neutrally buoyant machine includes internal counter-balancing, as well as overload sensors that sound alerts when users stress one of 6 axes.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Nov 14, 2002 Series 1730 includes Windows® 2000-based PC, 4-slot 2U chassis, and Fibre Channel Storage Area Network test cards. It enables Fibre Channel traffic generation at wire speeds of 1 or 2 Gbs, with allowances for any combination of data, error, link, fabric control, and fabric server traffic. Engineers can use test system's parametric control to set variables that simulate specific traffic conditions in target SAN under test.

Mettler Toledo, Inc.    Columbus, OH 43240
Nov 14, 2002 Suited for end-users with PC-based manifest software and shipping needs below 70 lbs, models PS15 and PS30 are National Type Evaluation Program (NTEP)-certified. Offered with GEOCALâ„¢ calibration, both models provide simple display and keyboard to eliminate operator confusion. They include 120 Vac, 9 Vdc wall mount power supply and 6 ft RS-232 serial interface cable to send commercial package weights electronically to controlling PC-manifest software.

Extech Instruments Corp.    Nashua, NH 03063
Nov 14, 2002 Hygro-Thermometer Alarm Clock measures relative humidity from 20-90% with ±5% accuracy. Temperature measurements are °C/°F selectable and range from 14 to 140°F with 2°F accuracy. LCD displays temperature and humidity readings as well as day, date, and month. Clock alarm, with 4 minute snooze function, is also included. Unit, with stand, measures 9.8 x 7.5 x 1 in.

Nanmac Corp.    Framingham, MA 01702 2469
Nov 14, 2002 Model NC15 has high-temperature ceramic sheath with thermal shock resistance and high-strength properties at elevated temperatures. Stainless steel support tube protects ceramic sheath from breakage while using adjustable mounting adapter. Thermocouple calibration types include C, B, R, S, and K with lengths up to 48 in. Unit has closed hot end and is gas tight. Applications include furnaces, power generating plants, gas-fired ovens, and combustion chambers.

Hart Scientific, Inc.    American Fork, UT 84003 9775
Nov 14, 2002 Model 5698 Working Standard Platinum Resistance Thermometer features strain-free 25 ohm pure platinum sensor. Enclosed in 19 in. quartz glass sheath, unit covers temperatures from -200 to +661°C. Long-term drift is specified at ±0.006°C after 100 hr at maximum temperature. Calibration options include both fixed-point and comparison calibrations.

Sensor Developments, Inc.    Orion, MI 48359
Nov 14, 2002 Multi-function instrument includes rotating torque sensor with integrated optical encoder for reading out torque, speed, and horsepower. AutoID enables PTI to detect sensor and encoder calibration, units, and ppr for set-up of torque and horsepower testing. PTI single-button instrument offers capacities from in.-oz to thousands of ft-lb. Unit can also detect and hold peak torque/hp values, as well as display peak values and rpm at which they occurred.

Summit Technology Inc.    Walnut Creek, CA 94546
Nov 14, 2002 Model PS4000 simultaneously performs swell, sag, transient, harmonic, and consumption functions. It also determines and holds transient information down to 10 microseconds and analyzes harmonic information to 63rd on every cycle. Displaying measurements continuously, unit interfaces via complete keypad. Capable of operating for 8–10 hours from rechargeable batteries, accessories allow direct connections to voltages from 1–15,000 V and currents from 10 mA to 6,000 A.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Nov 14, 2002 Infiniium 54854A and 54855A are 4 and 6 GHz oscilloscopes that provide sample rate of 20 GSa/s on all 4 input channels simultaneously. They can also capture 4, full-bandwidth, real-time signals off single trigger event. InfiniiMax 1130A series active probes offer single-ended and differential measurements up to 7 GHz. Design allows use in difficult to reach situations such as probing between memory modules on server motherboards.

PBI-Dansensor America Inc.    Glen Rock, NJ 07452
Nov 13, 2002 Lyssy L80-5000 performs barrier testing for high or low permeability in sensitive product packages. Unit measures barrier packaging material applications including films, foil, metallized foils, blister packaging, silicone oxygen substrates, surgical and hygienic membranes, and non-woven materials. It measures water vapor transmission ranges from 0.001 to 10,000 gr/m²-day. Unit can be moved to different locations and requires one annual calibration.

Selco Products Co.    Reno, NV 89521-5908

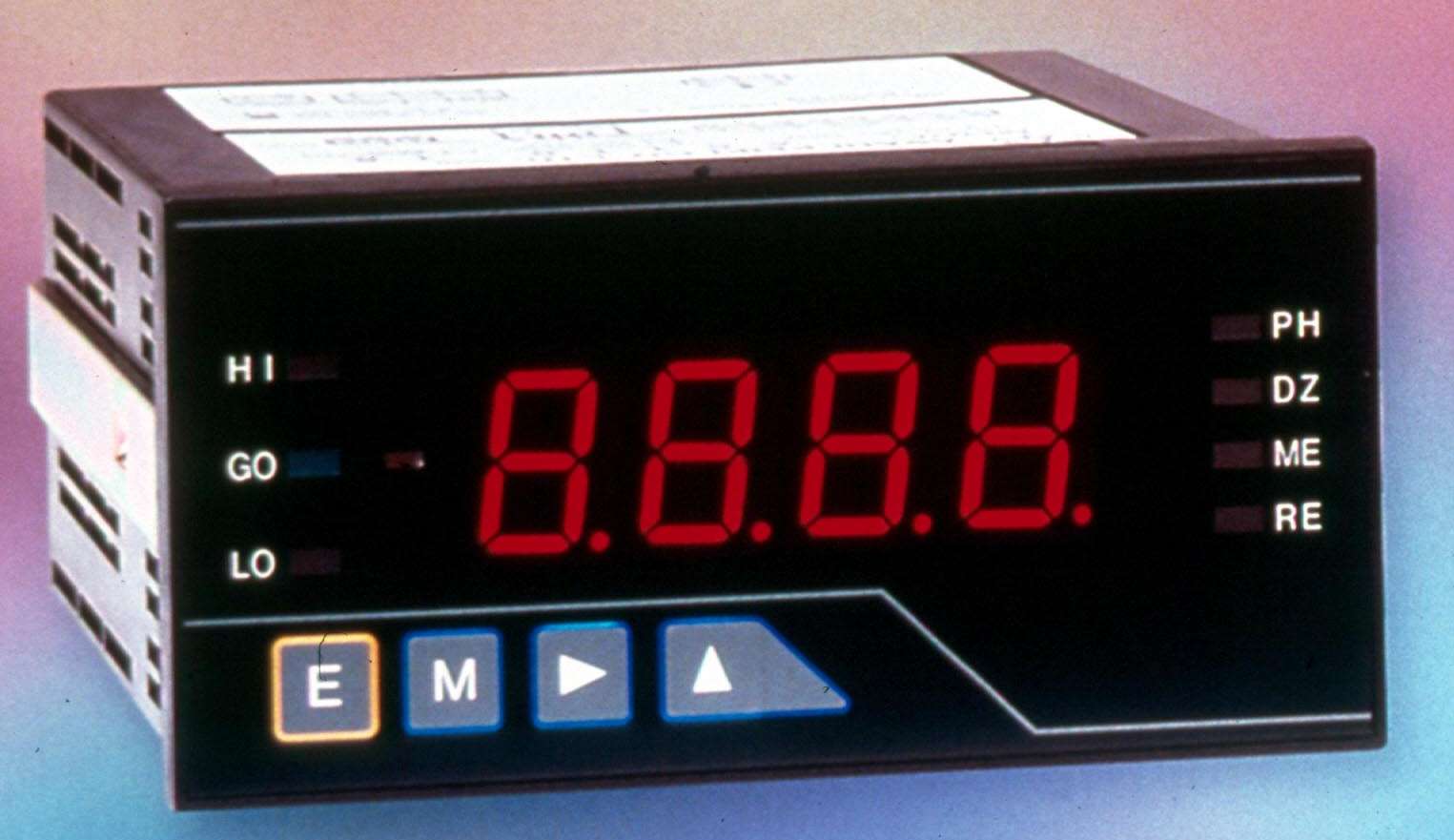

Nov 13, 2002 Model A5000 1/8 DIN size meter uses interchangeable PC boards to provide selection of 7 output choices and 18 input choices. Unit is offered with or without display of setpoints. Output choices include none, HI & LO setpoint with 8 A relays, analog signal, RS-232C and RS-485. Input choices include DC voltage, DC current, AC current, AC voltage, resistance, temperature, frequency, strain and process measurement.

Arlyn Scales    East Rockaway, NY 11518
Nov 13, 2002 Series 5200 handles heavy loads starting at weight capacities of 2,500 lbs. With optional USB interface, scales can download information directly to Windows-based database program, allowing user to track, store, and manipulate weighing data in database or spreadsheet format. Units include stainless steel load cells, LCD indicator with 1 in. high digits, pushbutton tare, and units conversion. Readability is as low as 0.5 lbs.

Keyence Corporation of America    Elmwood Park, NJ 07407
Nov 13, 2002 LS-7030M Optical Micrometer makes high-speed measurements of fast moving targets on production and assembly lines via high-intensity, low-noise GaN LED light source. It generates continuous 30 mm wide beam with no gaps in detection due to scanning. CMOS camera in receiver head of Optical Micrometer provides image of target on Controller Monitor. Unit provides 2400 samples/sec, display resolution of 0.01 microns and repeatability of 0.15 microns.

Sensortechnics Inc.    Dublin, CA 94568
Nov 13, 2002 Series CTU7000 offers long-term stability in pressure ranges from 0–0.15 to 0–100 psi. Unit has 0.86 in. diameter stainless steel housing and utilizes piezoresistive silicon pressure sensor. Output signals include 0.5–4.5 V, 4–20 mA, 1–6 V, and 0–5 V, with typical linearity of 0.2%. Transmitter is used for non-corrosive air and dry gases in applications including filter-monitoring, blow molding machines, and airflow measurement.

ProductionLine Testers    Pleasanton, CA 94588
Nov 13, 2002 Model IC443 bench top, integrated-circuit test system interfaces directly with handlers and probers for wafer probing or final assembly testing. Specifications are input into Excel-like spreadsheet, and test is compiled. Unit includes slew rate window comparator, sine wave generator, and 16-bit setting and measurement accuracy. Each analog pin has precision 4-quadrant VI-source with programmable compliances. Footprint measures only 24 x 22 x 20 in.

ABB Water Meters, Inc.    Ocala, FL 34478
Nov 13, 2002 Housed in bronze or polymer housing, absolute encoder register reads water meter's odometer digits. Powered by interrogation equipment, InVISION reading technology incorporates strategically placed LEDs to illuminate meter register's odometer digits. Multiple retinas focus through lenses onto odometer digits for absolute meter reading. Error-free readings pass to hand-held or AMR device. Installation is accomplished via quick-connect, screwless design.

Honeywell, Inc., Industrial Automation & Control    Phoenix, AZ 85023
Nov 12, 2002 MC Toolkit, Pocket PC-based tool, is designed to configure, monitor, diagnose, and manage smart field instruments. It handles multiple communications protocols, including Honeywell Digitally Enhanced and HART. Unit automatically compares and detects any differences between device database and its own database. It enables easy configuration of Lower Range Value, Upper Range Value, range, engineering units, and damping. Toolkit provides self-diagnostic as well as full device diagnostic support.

APT Instruments    Litchfield, IL 62056
Nov 12, 2002 Artisanâ„¢ TT2210 dual channel KJT thermocouple thermometer can monitor actual or differential temperature in plant or laboratory applications. Meter adapts to types K, J, and T thermocouple probes. Its backlit digital display provides dual/differential temperature measurements as well as MAX, MIN, and HOLD functions. Options include RS-232 output and Windows®-compatible software program.

APT Instruments    Litchfield, IL 62056
Nov 12, 2002 Portable, battery-operated digital refractometer with digital display and splash-resistant housing provides accurate readings of sugar concentrations (Brix) or refractive index in plant, field, or lab. HR200 refractometer is available in 4 models with different measurement ranges - 0 to 36%(1.3330 to 1.3903 nD), 0 to 45%(1.3330 to 1.4098 nD), 28 to 65%(1.3800 to 1.4535 nD) and 60 to 92%(1.4400 to 1.5230 nD) with an accuracy of ±0.2%.
