Emerson Process Management    Knoxville, TN 37932
Dec 03, 2002 Züllig COSMOS-25 provides suspended solids measurements. Able to be used in open channels or basins and pipelines, its multi-beam technology renders product less vulnerable to measurement discrepancies.

Imaging Technology Inc.    Bedford, MA 01730
Dec 03, 2002 iGauge can start, load, or import previously configured solutions; adjust sensor focus, brightness, and contrast; and calibrate to real-world coordinates. Images/inspection parameters are recorded for process debug and analysis. It provides measurements to within 1/10th of 1 pixel on fixed or rotationally oriented parts, automatically compensating for lighting and contrast variations as well as lens and perspective distortion. Unit executes up to 1,800 measurements/min.

APA Optics Inc.    Minneapolis, MN 55449-7218
Dec 02, 2002 Multimode fiber-based DWDM mux/demux offers 8 channel, 200 GHz spacing. It features uniform channel-to-channel insertion loss and large bandwidth due to broad flat-top passband. Insertion loss is typically less than 1 dB and polarization dependent loss is less than 0.3 dB over -40 to +85°C without any active temperature control. Variation across all channels is less than 0.2 dB. Adjacent channel isolation is typically greater than 30 dB.

AGR International, Inc.    Butler, PA 16001-0149
Dec 02, 2002 Model PG9810-ML Profiler Multilayer Gaugeâ„¢ permits evaluation of multilayer preforms and containers for presence and proper distribution of nylon-based barrier materials in 15 seconds. Operated by pushing one button and reading results, PG9810-ML non-contact, automated measuring device uses IR absorption technology to determine PET and nylon wall thickness. Bench-top device includes 3 built-in test routines, results of which are shown on integrated display.

Flo-tech, Div. of Racine Federated Inc.    Racine, WI 53404
Dec 02, 2002 Self-contained Flo-check® PFM Series offers 3 1/2 digit LCD for flow and temperature and makes all flow, pressure, and temperature measurements simultaneously from one point. Pressure rating is 6,000 psi and max operating temperature is 300°F. Testers include pressure relief disc protection and low battery/over-voltage indicators. PFM6 is for troubleshooting of mobile or stationary hydraulic systems. PFM6BD is for in-line testing of bi-directional motors, and PFM8 Dynamometer reads HP and kW power directly.

M2 Optics, Inc.    Los Angeles, CA 90034
Nov 29, 2002 M2 Fiber Lab 3200™ simulates field applications for designing, developing, and manufacturing fiber optic systems. Unit houses spools of fiber to provide 1–8 dB of real fiber attenuation or up to 25 km in each of 4 individual attenuation areas. Package eliminates fiber crimping and breakage, and is available with various connector interfaces, types of fiber, attenuation specified at 1310 or 1550 nm, and with SMF-28 fiber or other single- or multi-mode fibers.

Blum Laser Measuring Technology Inc.    Fort Mitchell, KY 41017
Nov 29, 2002 LaserMicro100 measures outside diameters and dimensions of shafts, rubber rolls, and cylindrical parts. Able to be used as stand-alone measuring device or fully integrated into automated manufacturing line, unit has repeatability of ±0.2 µ at linearity of better than ±1 µ over its 0.02–4 in. measuring range. Non-contact, single-focused beam system is virtually unaffected by part surface variations. Unit accommodates serial port interface or Ethernet card.

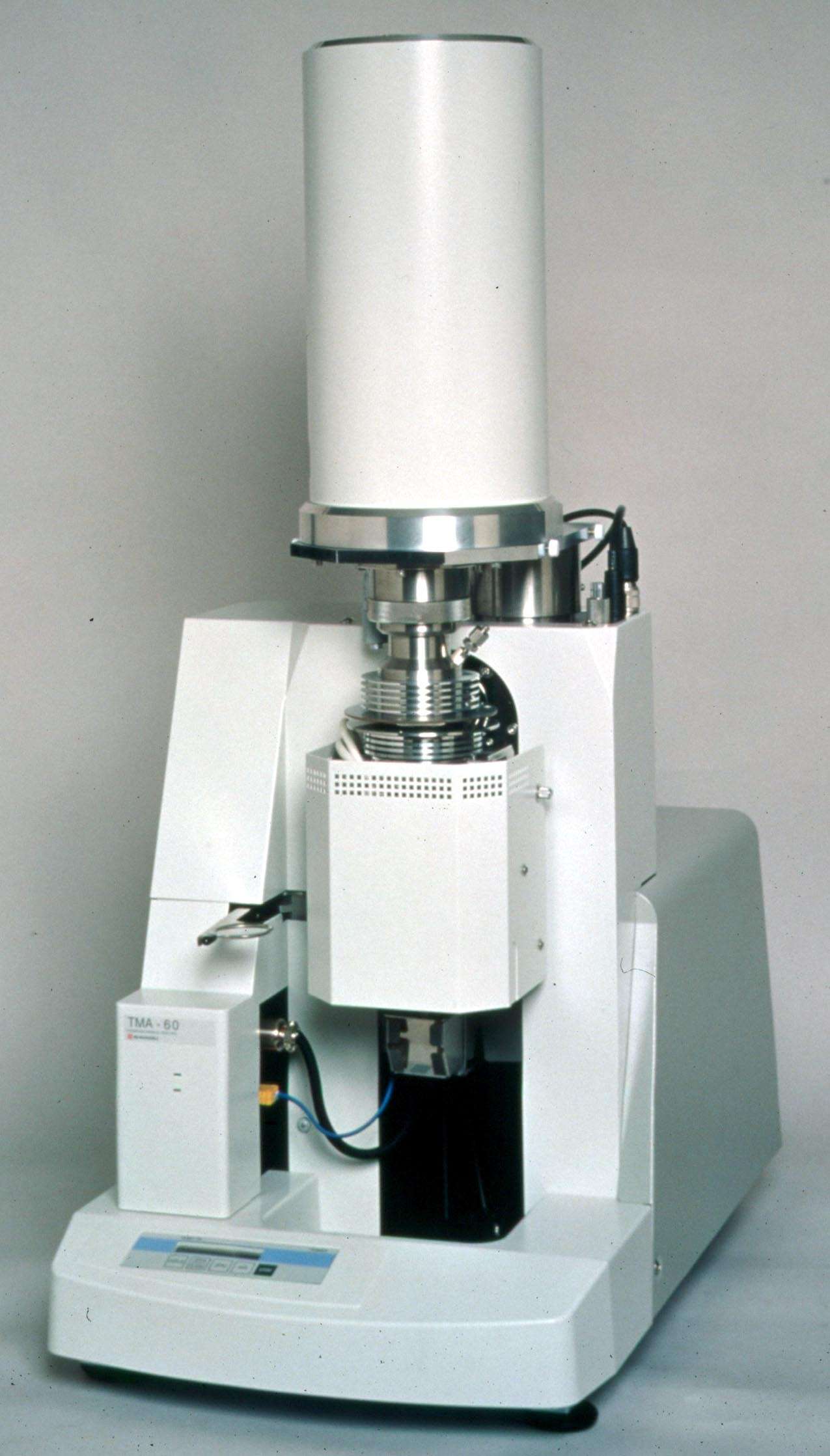

Shimadzu Scientific Instruments, Inc.    Columbia, MD 21046
Nov 29, 2002 Model TMA-60 full-expansion, multifunctional system enables various types of measurements on variety of sample types. Model TMA-60H differential expansion system is for high temperature expansion measurement of ceramics and glass. Low drift digital displacement detector provides measurement accuracy of 1µm/°C. Detection range of ±5 mm enables accurate TMA from extremely small to large deformations.

Leica Geosystems Inc.    Norcross, GA 30092
Nov 29, 2002 DISTO Lite⁵ and DISTO Classic⁵ are handheld laser tools that measure distances from 0.7–650 ft with 1/8 in. accuracy. DISTO Lite⁵ has ergonomic keypad and large clear backlit display. It includes built-in leveling bubble and alignment aid to mark measured points. DISTO Classic⁵ has integrated calculator and indirect height and distance measurement functions. Unit stores last 15 measured values plus up to 10 additional constants.

C & D Technologies    Mansfield, MA 02048-1151
Nov 29, 2002 Series DCA-20PC covers 6 ranges from 0-200 µA to 0-20 A, with ±0.1% accuracy. Ammeter includes factory-calibrated scaling circuitry, 3 ½ digit A/D converters with LED displays, power supply isolation, and terminal blocks for power and load connections. Integral optical filter ensures display can be read at distances up to 15 ft. LED colors include blue, green, and standard red. Power consumption is less than 75 mW for 5-40 V powered models and less than 1 W for 8-36 V models.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 27, 2002 With incorporated dual scale and fully enclosed stainless steel case, Series IF directly measures flow rates up to 20 gpm of water or 90 scfm of air. Each unit has detachable, clear, 3/16 in. thick, polycarbonate front shield that provides protection up to 200°F. Max operating pressure is rated at 200 psi. Suited for wastewater treatment and facility maintenance applications, series provides female NPT end fittings for in-line installation.

ASG, Div. of Jergens, Inc.    Cleveland, OH 44110
Nov 27, 2002 With resolution of 330 x 350 lines, Series IS-1000 video inspection system provides non-destructive method of visually inspecting hidden solder joints. Model IS-1000H system provides 130x magnification for detailed inspection of outermost components. Suited for internal inspection of BGA components, IS-1000L system has 70x magnification. Model IS-1000X provides adjustable magnification from 70–140x. Series can be used with x-ray inspection systems.

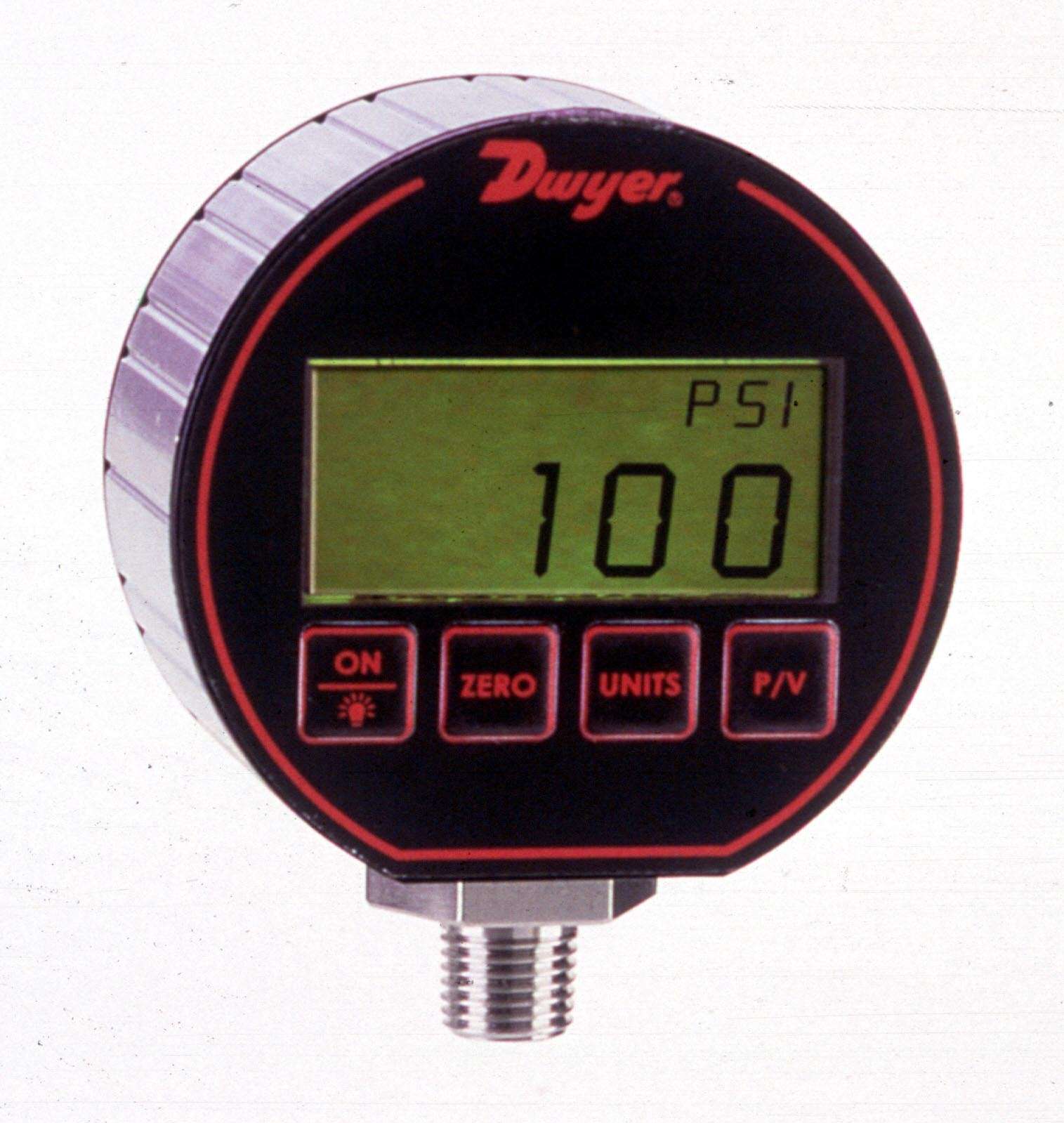

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 27, 2002 Model DPG-100, with 4-digit LCD display, reduces inaccurate readings by eliminating parallax error produced with analog gages. Four-button keypad provides access of functions including backlight, peak and valley, auto-zero, and conversion of pressure units. Readings may be converted from psi to kpa, inches of Hg, and Bar. Model DPG-100 is battery powered with auto shut off, and comes in ranges from 15-6000 psig.

Sealevel Systems Inc.    Liberty, SC 29657
Nov 27, 2002 ULTRA COMM+2.LPCI provides dual RS-232/422/485 ports, allowing field-selectable connection to data acquisition/control devices. With low-profile form factor, unit supports PC data rates and operates at top speed of 921.6 Kbps. Board provides 128-byte FIFO, Universal Bus, and SeaCOMâ„¢ suite of Windows 95/98/ME/NT/2000/XP drivers. Onboard auto-enable hardware automatically handles RS-485 driver enable, allowing RS­485 ports to be treated as serial ports.

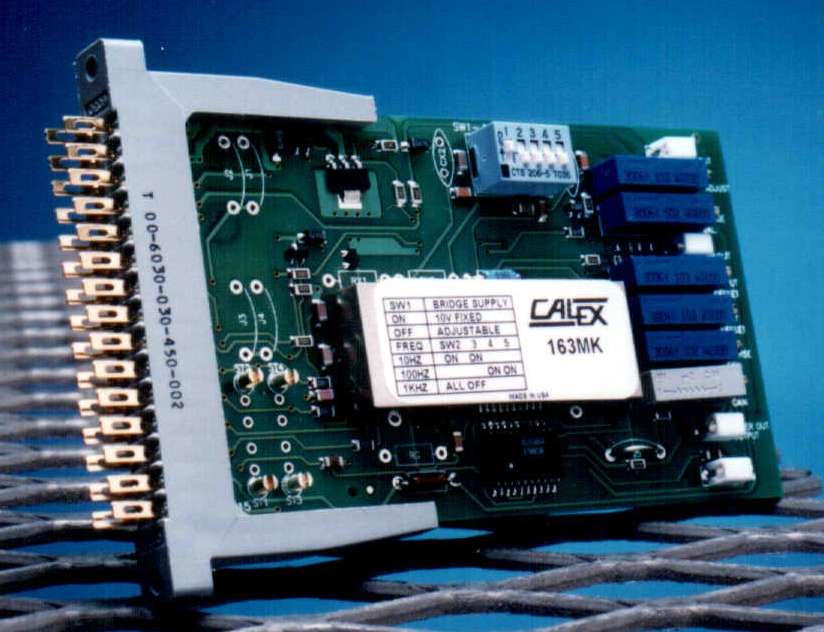

Calex Mfg. Co., Inc.    Concord, CA 94520
Nov 26, 2002 Model 163MK accommodates ¼, ½, and full wheatstone bridge strain gage applications and includes 2 built-in precision ½ bridge completion resistors. Product offers high-gain differential amplifier, 2-pole Butterworth filter, and built-in excitation supply capable of providing up to 120 mA. Gain can be set up to 5,000, amplifier output is ±10 V, and output filter cutoff frequency can be set at 10 Hz, 100 Hz, or 1 kHz via on-board DIP switch.

Scientific Software Inc.    Pleasanton, CA 94588
Nov 26, 2002 OpenLAB(TM) iCON XP(TM) performs intelligent control and data acquisition of analytical instrumentation. It reduces number of dedicated computers and enables full instrument Ethernet connectivity. System can be configured to collect data from serial, USB, IEEE, SCSI, or analog devices via SS420X A/D converter. Built around embedded Microsoft Windows XP®, system has expandable 512 MB memory card and single PCI slot, which can be configured with different cards.

Spectronics Corp.    Westbury, NY 11590
Nov 26, 2002 Spectroline® TITAN® Stinger® comes with 4 ft cord, which plugs into vehicle cigarette lighters, allowing HVAC/R contractors to recharge NiCad battery while driving between jobs. Measuring 7 3/8 in. long, cordless flashlight uses uses xenon-filled bulb and TITAN filter lens technology. Supplied with wall-mountable charging cradle with AC charging cord, flashlight inspects small to medium size AC&R systems.

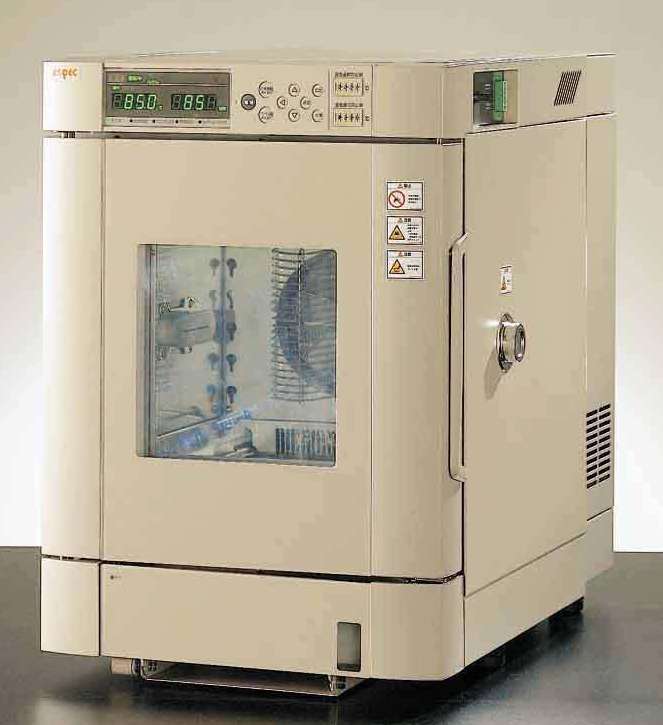

Espec Corp.    Grand Rapids, MI 49509
Nov 25, 2002 Bench-top chambers incorporate refillable water tank and have interior volumes from just under 1 ft³ to 2.2 ft³. SH series chambers perform temperature and humidity testing, while SU series units perform temperature testing. Externally, smaller units measure 17 x 27 x 25 in. high and weigh less than 175 lbs. Offered with 3 temperature ranges, lower limits are -4, -40, or -76°F; upper limit is 302°F. SH chambers have operating humidity range of 30 to 95% RH.

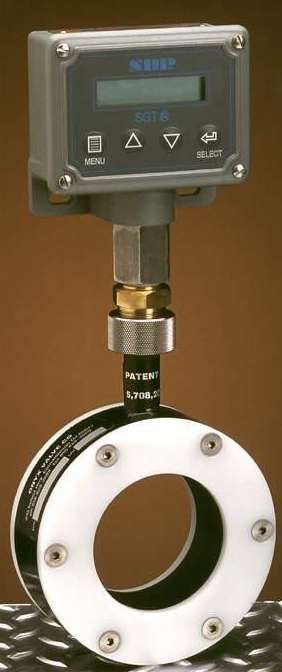

Onyx Valve Co.    Cinnaminson, NJ 08077
Nov 25, 2002 Pressure monitoring solution utilizes Onyx Isolator Ring and multi-function SGT® pressure instrument. Vacuum-filled with silicone-fluid, isolator ring obtains pressure measurements on slurries, abrasives, and hard-to-handle materials. SGT electronic pressure instrument provides 2 relays, local indication, and 4-20 mA output. Unit is equipped with self-diagnostics, on-line testing, and password protection. It offers ranges from 10–2,000 psig/psia and 30 in. Hg vacuum.

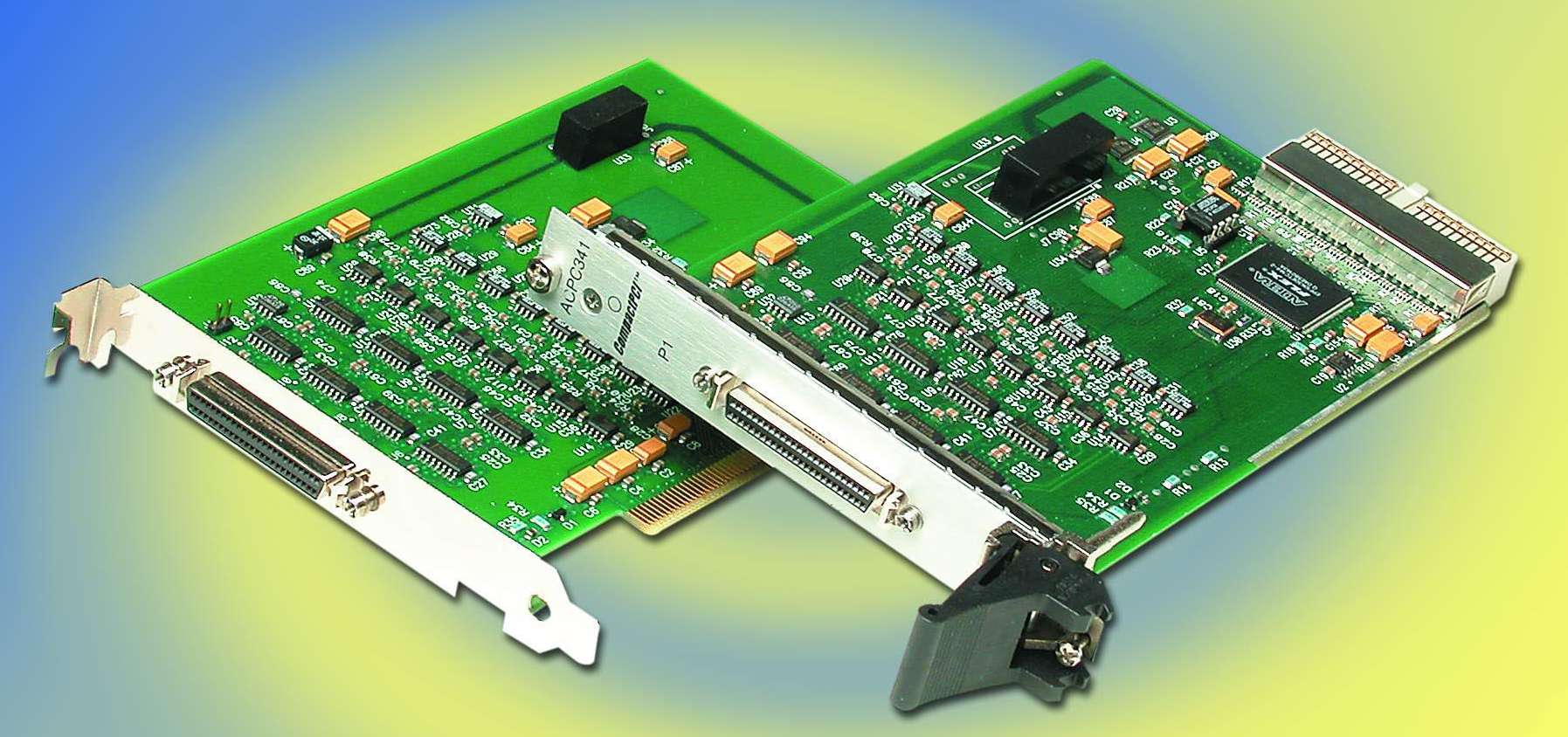

Acromag, Inc.    Wixom, MI 48393 7037
Nov 25, 2002 Models APC341 and AcPC341 have eight 14-bit A/D converters for simultaneous sampling of channels. Suited for desktop PCI and CompactPCI computers, models offer 16 differential input channels with ±10 Vdc range grouped in two 8-channel banks. A/D converters scan channels in 8 µS or 125 KHz. Units are equipped with 512-sample memory buffers, data tagging, and interrupt support. Programmable scan control provides 2 modes of operation: continuous scanning or single cycle.
