GEI International, Inc.    Syracuse, NY 13217 6849
Dec 17, 2002 BNS-0100 measures depth of slots, grooves, dents, and depressions in most materials and objects. Depth of measured item is displayed on dial face of gauge in increments of 0.005 in. Suited for industrial use, unit has knife edge base and moveable needle point. Needle point is moved to contact measured item by touch of 1 button at top of gauge. Gauge measures in inches to 0.0005 in. Maximum depth that may be measured is 0.125 in.

Kernco Instruments Co., Inc.    El Paso, TX 79927 7338

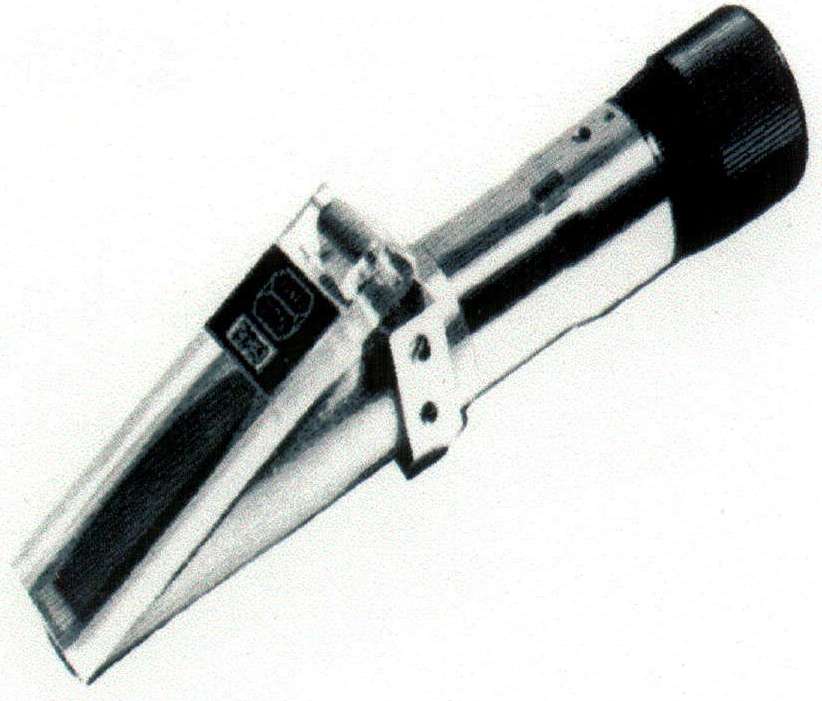

Dec 17, 2002 Able to read glycol concentration levels in plants using cold storage and refrigerant systems, refractometer is offered as dual scale model. Scale 1 has 0-44% range, and scale 2 has 44-72% range. Unit has scale division of .2, which allows for accurate readings of glycol or other fluids/solids in solution. Using 1 or 2 drop samples, concentration is read directly from scale. Self-calibrating instrument comes with adjustment screwdriver.

Gould Instrument Inc.    Cleveland, OH 44125 6100
Dec 16, 2002 Viper II incorporates 10.5 in. writer, 10.4 in. color display, digital storage, signal conditioning, and math and parameter calculations. Inputs range from 1 mV to 1,000 V with thermocouple or PT100 signal condition and rms option. Recorder provides 16 MegaSamples of transient memory and 250 kS/S sample rates with 14-bit resolution. It includes real-time plots and playback mode. Customized paper layouts offer overlapped or stacked channels, grids, and annotation.

Edwards Signaling & Security Systems    Plainville, CT 06062

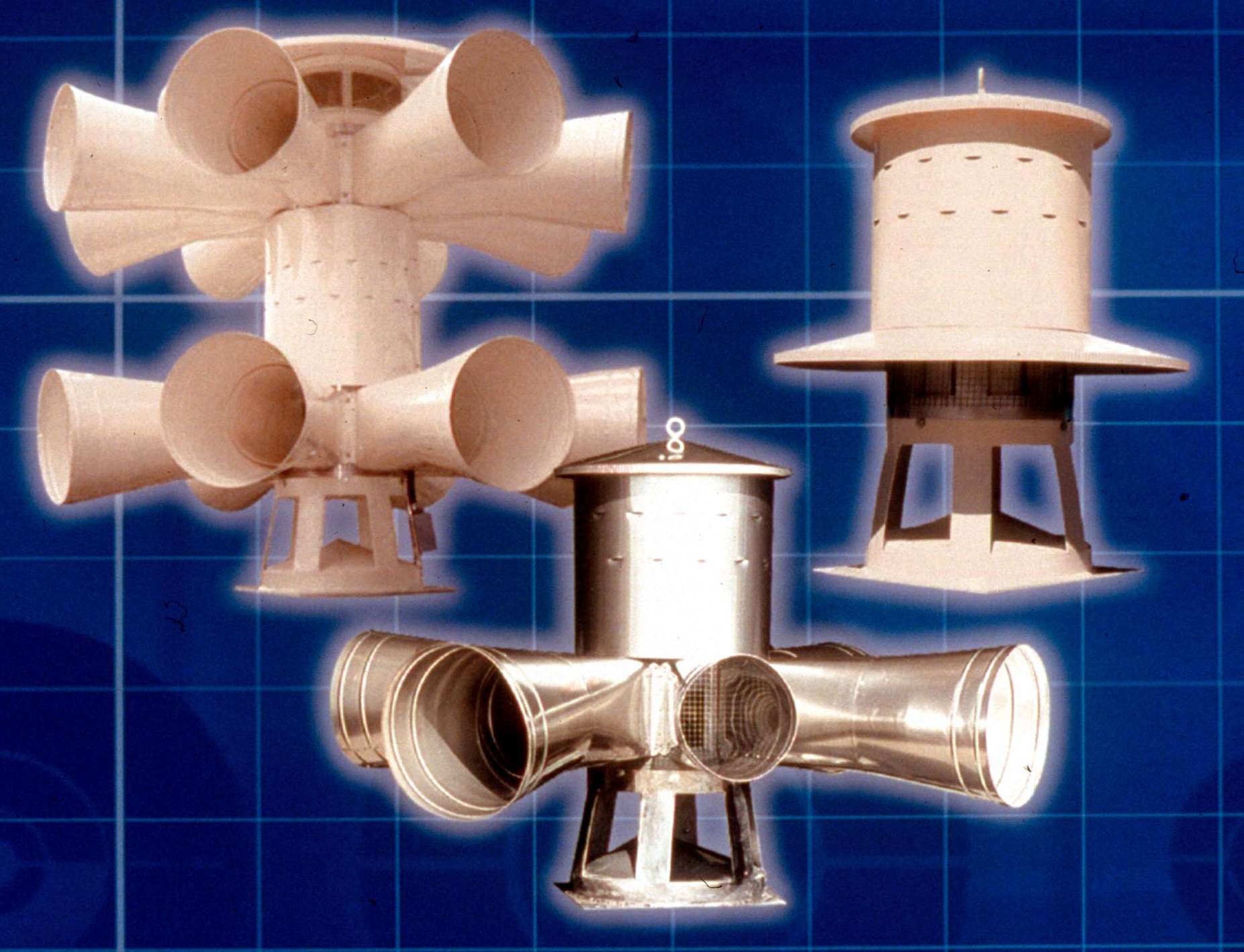

Dec 16, 2002 EWS Series omni-directional sirens project clear, uniform warnings. Outdoor sirens with continuous duty motors range from single-tone EWS-V1 models rated at 107 dB to single-tone EWS-V3 units with projectors in 8-horn, equal length, single-row configuration rated at 112 and 118 dB. Dual-tone models range from EWS-V4 Series, rated at 115 dB, to 125 dB EWS-V8-3. Fan and housing in each model are made of non-corrosive cast aluminum.

Renishaw, Inc.    Hoffman Estates, IL 60192
Dec 13, 2002 Model SP25M uses Renscan(TM) technology to provide scanning on coordinate measuring machines and vision systems. Measuring only 1 in. in diameter, probe can be mounted to motorized articulating heads, or fitted to extension bars to allow access to deep part features. Interchangeable scanning probe modules are available, each optimized to suit range of stylus lengths from 0.8-8 in. Model SP25M includes kinematic stylus changing and bump-stop crash protection.

Gould Instrument Inc.    Cleveland, OH 44125 6100
Dec 13, 2002 Upon trigger, Ultima 500 automatically transfers data to Excel, ProView, or imPRESSion and displays it in dual-video mode: analysis results on external monitor and acquired data on internal display. DataSentryâ„¢ provides remote monitoring and unattended operation, while IntelliProbeâ„¢ interface offers differential and current probes. Ultima offers up to 2 GS/s sampling rate, 12-bit high-resolution mode, 1 million points of data storage per channel, and 500 MHz bandwidth.

Gould Instrument Inc.    Cleveland, OH 44125 6100
Dec 13, 2002 ViewGraf features removable 11 in. real-time thermal array writer, 12.1 in. real-time display panel, and variety of signal conditioners for any type of signal. It provides 16-bit resolution, up to 500 kS/s sample rate and up to 32 channels, with Gigabytes of memory and PC connectivity. Portable unit prints on 11 in. chart paper at 100 mm/sec. It can print real-time and recorded data, or archive data on hard disk, network, paper, or 250 Mbyte Zip disk.

Gould Instrument Inc.    Cleveland, OH 44125 6100
Dec 13, 2002 DAstarNET XE combines full range of signal conditioning, writer output, real-time display and continous storage in compact rack, 13-slot mainframe. Amplifiers cover full range of sensors with programmable inputs from 50 µV to 2,500 V including bridge, thermocouple, accelerometer, and frequency inputs. Summit Software begins displaying signals at start up and up to 4 simultaneous screens show numerics, stripcharts, trends, and X/Y displays.

Electronic Development Laboratories, Inc.    Danville, VA 24540
Dec 13, 2002 Suited for use with type K and J thermocouple sensors, instrument records temperature readings and downloads directly to PC via RS-232 computer interface. Sensors plug into back of instrument as to not interfere with front panel visibility. Unit simultaneously shows temperature output from sensors on 2 different and independent displays in 1/2 in. tall digits. Temperature ranges include -280 to +1,100°F ±1°F (J) and -280 to +2,000°F ±1°F (K).

Intertest Inc.    Columbia, NJ 07832
Dec 12, 2002 Handheld XtendaCam(TM) Series cameras, with 380-470 HTVL resolution, illuminate and view inaccessible areas, delivering crisp video to any monitor or recorder. Carbon-fiber, collapsible pole telescopes from 2 ft 10 in. to 11 ft 6 in. Interior cabling ensures quick deployment and snag-free operation. Locking swivel mechanism lets user aim head manually. Cameras submerge to depth equaling their length and collapse to less than 3 ft long, stowing away in transit case.

Sealevel Systems Inc.    Liberty, SC 29657
Dec 12, 2002 Model SIO.104+2 dual port, serial communications adapter provides two RS-232/422/485 ports, allowing field-selectable connection to real-world devices. Each port can be individually configured and offers automatic control of RTS signal when using RS-485 mode. Adapter uses XR16C850 UART, which supports standard PC data rates with top speed of 460.8 Kbps. It provides 128 byte FIFO, allowing error-free operation. SeaCOMâ„¢ Windows 95/98/ME/NT/2000/XP drivers are included.

Alemite Corporation    Charlotte, NC 28226 3515
Dec 12, 2002 Electronic meters, with ergonomic trigger design, dispense motor oil, gear oil, and pure antifreeze. Furnished with flexible hose and manual, non-drip nozzle, shock-resistant meters provide digital readout of totals. Additional offerings include field-replaceable lithium battery and integral 30-mesh strainer. Quart models are designated Part No. 3651; liter models are Part No. 3651-A.

Advanced Orientation Systems Inc.    Linden, NJ 07036
Dec 12, 2002 EZ-COMPASS-PROBE offers 3 axes and tilt and temperature compensation. Magnetometer compass measures 8.3 in. and has 1.25 in. diameter. Waterproof probe transmits heading, pitch, roll, magnetic field, and temperature over RS232 or RS422 ports. Compass measures tilt angles up to ±75 arc-deg and includes hard and soft iron calibrations. Applications include directional rock drilling, antenna monitoring, logging, and bore hole profiling.

Clark    Hudson, MA 01749

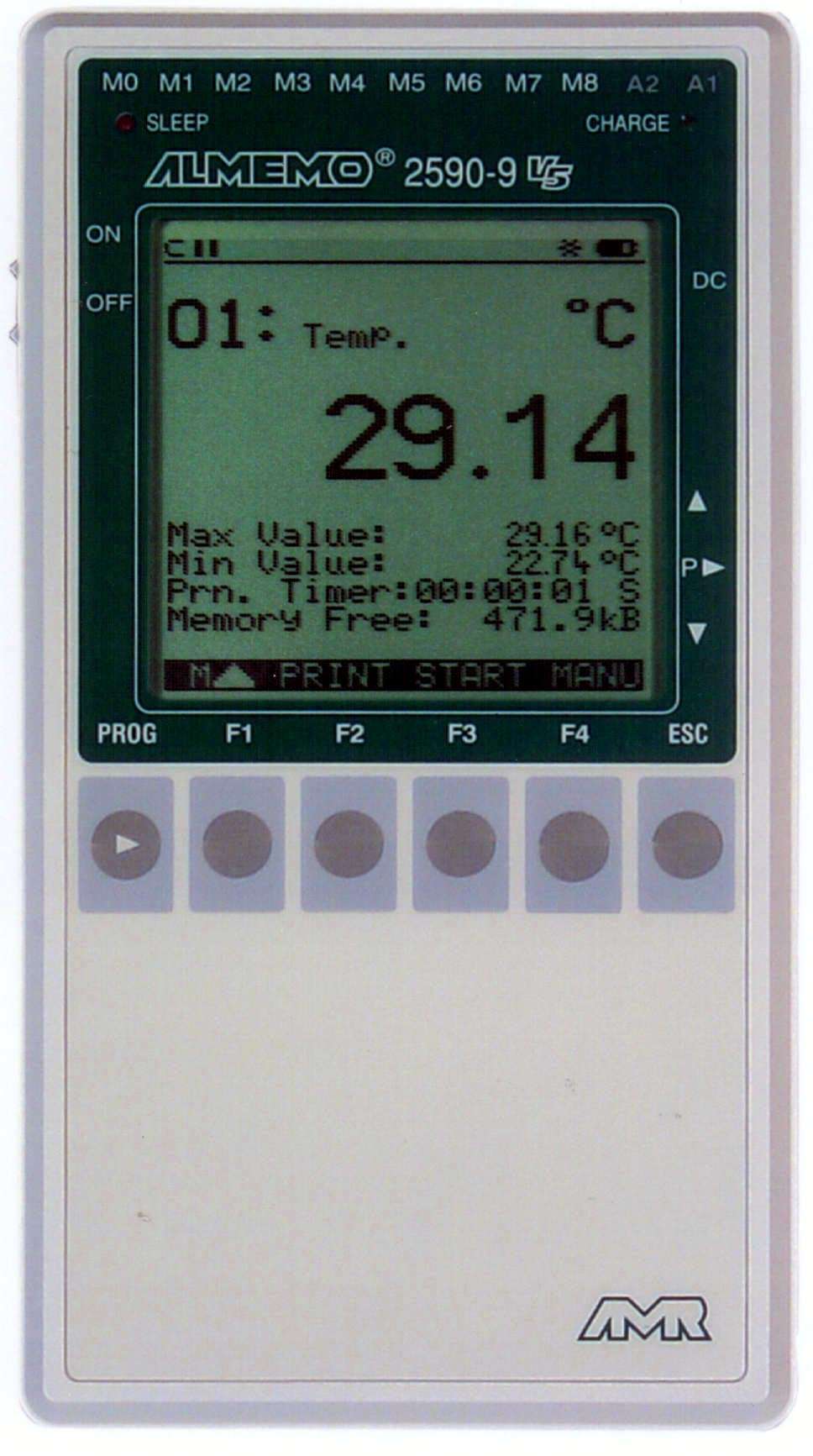

Dec 12, 2002 Model MA2590-9 Universal Portable Datalogger has 100,000-measurement memory, which is expandable up to 25 million measurements. Instrument time and date stamps each logged measurement and can apply 6 digit ID tags as well. Thumbwheel and 5 buttons manage all programming and device functions. Backlit LCD dot-matrix display allows for viewing of multiple measured values simultaneously or for graphical displays of measured values.

PCB Piezotronics Inc.    Depew, NY 14043 2495

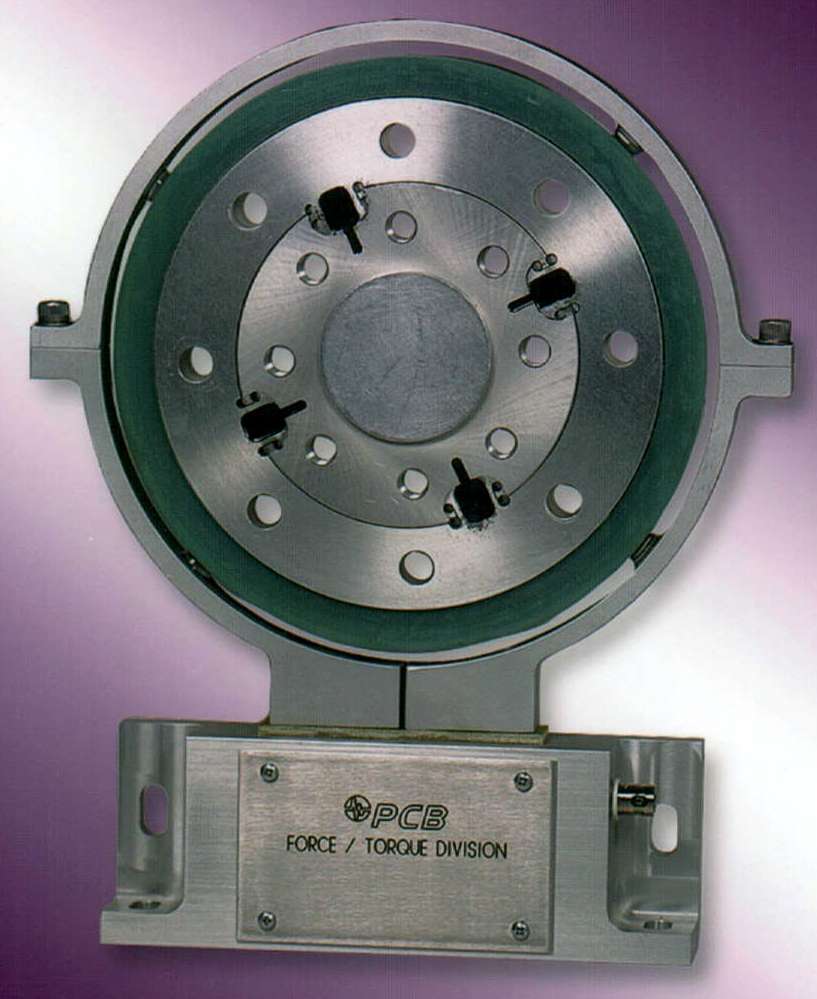

Dec 12, 2002 Series 5302 utilizes strain-gage sensing technology and wireless, digital, signal telemetry to transmit measurement signals to adjacent receiver. With compact design and RF interference immunity, series exhibits low sensitivity to axial thrust and bending moments. Sensor is offered in 7 in. dia flange with choice of capacities from 1000 lb-in. to 6200 lb-in.

Geotest - Marvin Test Systems, Inc.    Irvine, CA 92614-5846

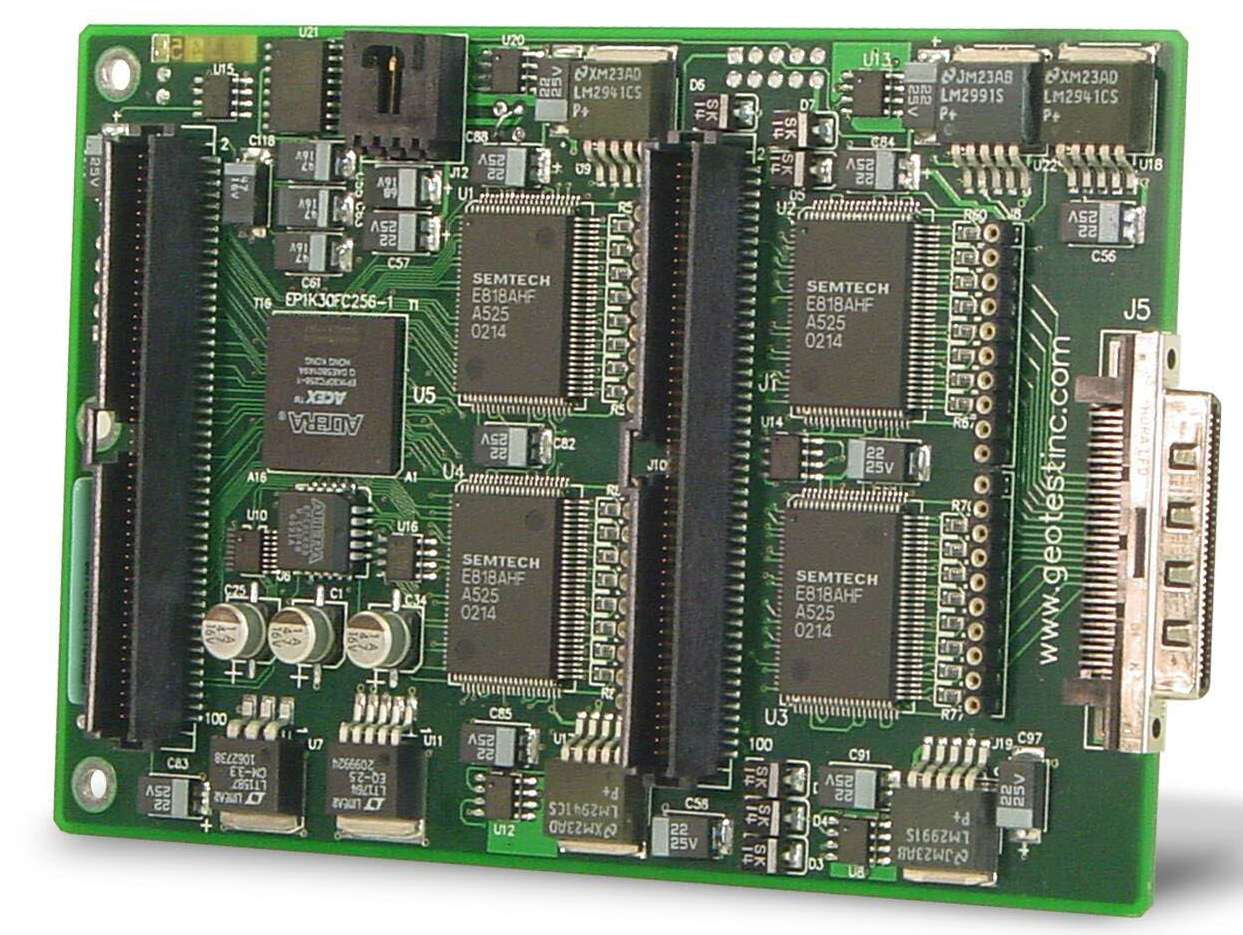

Dec 12, 2002 Models GX5930 and GC5930 provide 32 I/O channels of programmable outputs and threshold inputs. Incorporated DIOEasy software package includes virtual panel stand-alone application, Windows OS driver, and on-line documentation. Suited for applications that require custom voltages/thresholds, GX5930 units are used with PXI-based modules, while GC5930 units are used with PCI cards. Products provide 0–9 V output signals and capture input signals with 0–9 V thresholds.

Druck, Inc.    New Fairfield, CT 06812

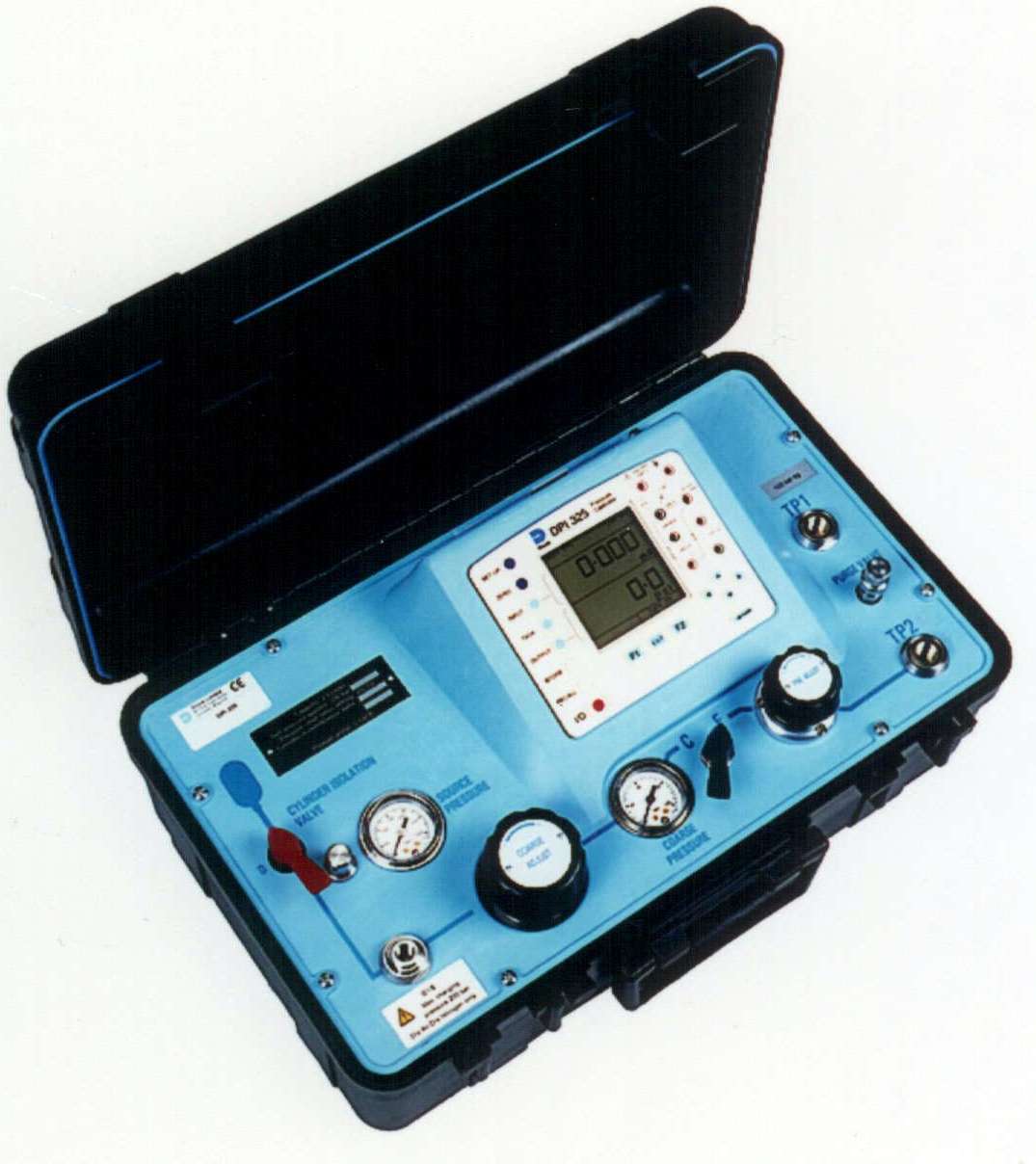

Dec 12, 2002 DPI 320/325 Series high pressure portable calibrators offer bottle source for dry pneumatic calibrations to 3000 psi. Combined with electrical source/measure and PC interface, instruments provide calibrations with 0.025% FS accuracy. Offerings include 122 in.³ capacity gas cylinder, precision regulator, and fine volume adjuster. Pressure ranges vary from 0-500 psi thru 0-3000 psi. DPI 325 units support real-time error analysis with full documenting capability.

Ophir Optronics, Inc.    Danvers, MA 01923

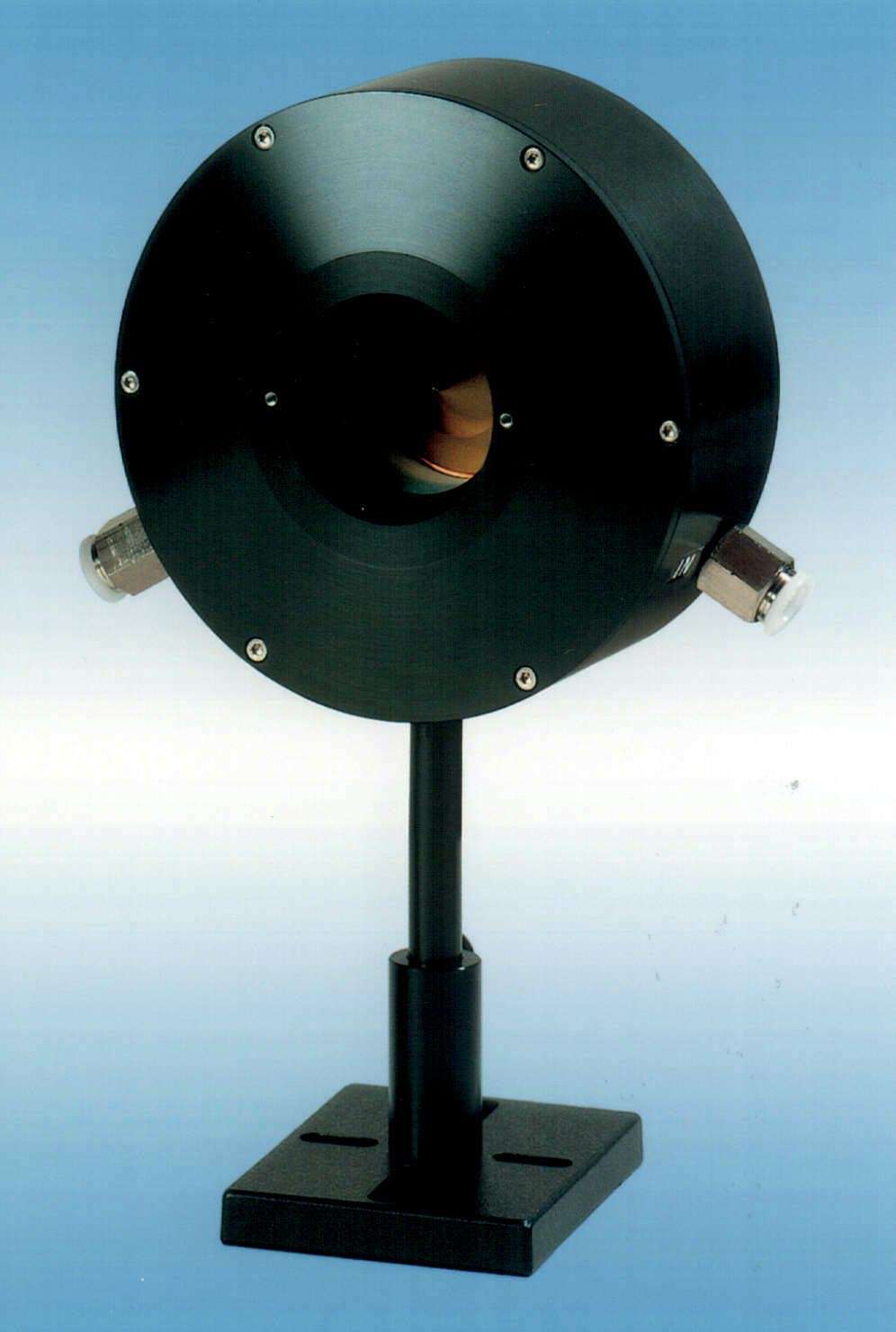

Dec 12, 2002 Model 10K-W water-cooled, thermopile surface absorber head measures YAG and CO₂ lasers at up to 10,000 W of power. It spreads beam out over large area to avoid damage to thermopile sensor. Unit has 45 mm aperture; 1064 nm, 10.6 µm spectral range; and power range from 200 to 10,000 W. Information is stored in EEROM of detector head and is downloaded when display is turned on, making head plug-and-play ready.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Dec 12, 2002 Model 400A76 TEDS Sensor Interface Kit provides hardware and software required to interface with TEDS sensors. Operating on Windows PC via an RS-232 port, kit enables user to read/write data in 16 IEEE TEDS templates as well as in 3 templates established by LMS International. Supported transducers include accelerometers, microphones, charge amplifiers, and microphone preamplifiers. Kit consists of RS-232 Hardware Interface Dongle, TEDS Read/Write software, and cable assembly.

ABM Sensor Technology Inc.    Peterborough, ON K9J 6W6
Dec 11, 2002 Model ABM300/400-25U(C) measures liquids and solids up to 90 ft. It operates with phase array structure ultrasonic transducer, which offers narrow no side lobes beam, 17 in. blanking, and same operation at different temperatures. Self-cleaning probe can replace expensive ultrasonic or microwave level gauges.
