Dresser Instrument Headquarters, Ashcroft Pressure & Temperature Instrument Operation    Stratford, CT 06614 5145

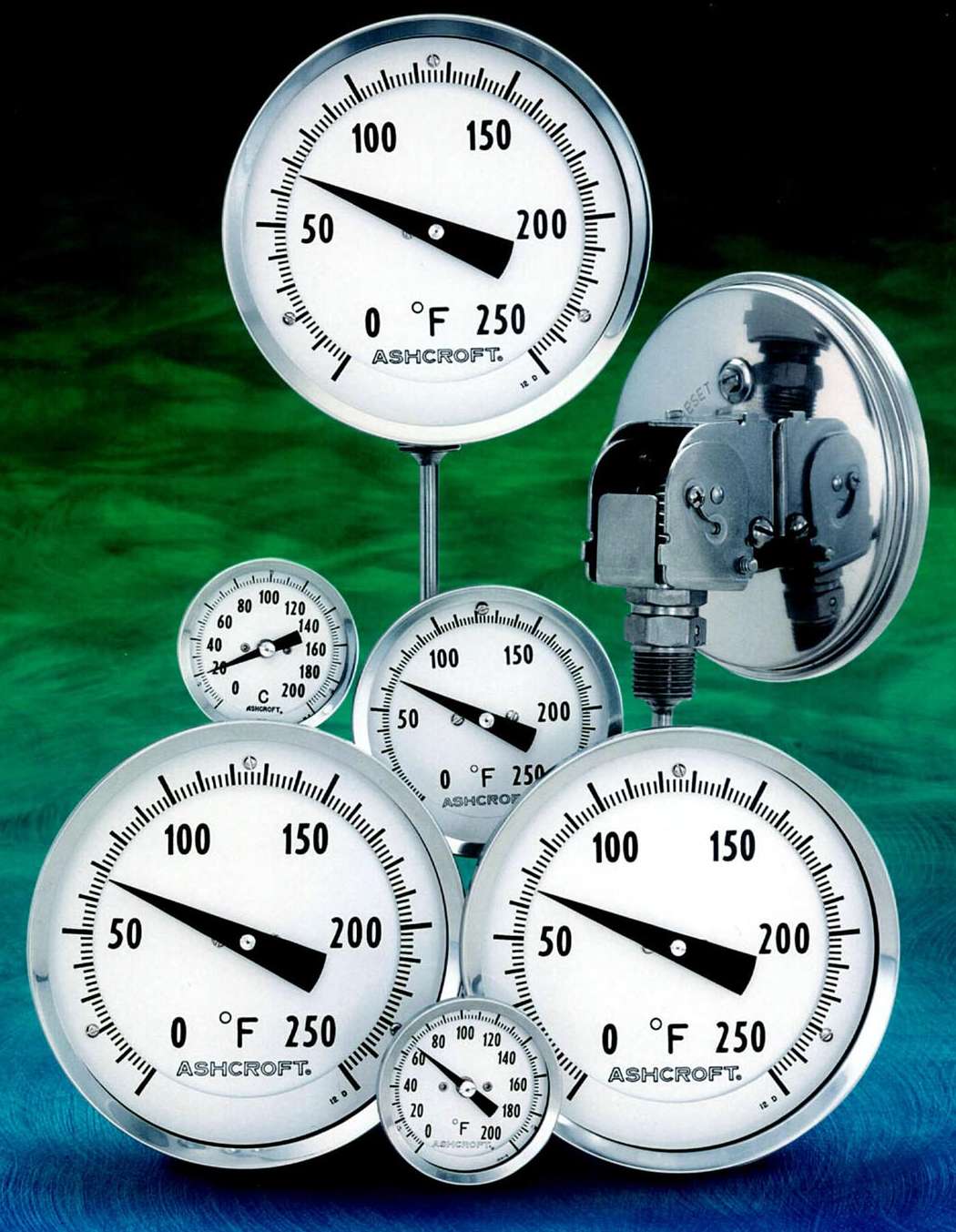

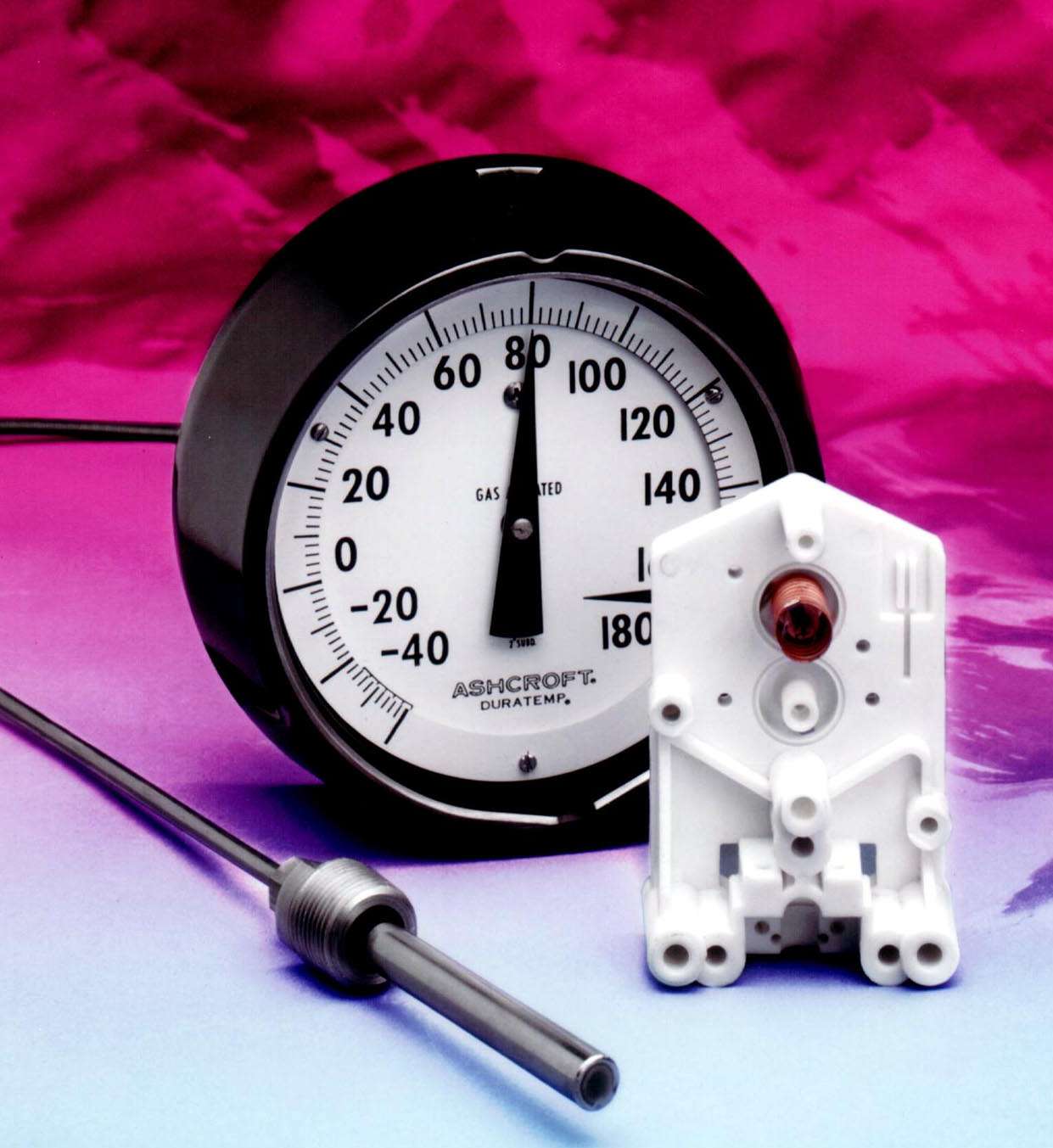

Jan 02, 2003 Duratemp® thermometers feature molecular sieve design, which uses chemically unreactive gas and activated carbon. Direct-drive helical Bourdon tube eliminates need for movement assembly. Bulb is 3 in. long by 3/8 in. OD, and made of AISI 316 stainless steel. Lower or back connections with surface or flush mounting in dial sizes of 4½, 6, and 8½ in. are offered. Thermometers come in remote and direct mount with relatively linear dial.

Dresser Instrument Headquarters, Ashcroft Pressure & Temperature Instrument Operation    Stratford, CT 06614 5145
Jan 02, 2003 Thermometers incorporate Maxivision® dials, which eliminate parallax error and can be read at any angle. Manufactured to ASME B40.3 Grade A accuracy of 1% of span, models come in 2, 3, and 5 in. dial sizes in °F, °C, or dual scale ranges. Configurations are offered with hermetically sealed cases; lower, rear, or everyangle connections; and tamper proof case or with external adjustment. Stem lengths range from 2½ to 24 in. Non-standard stem lengths are offered up to 60 in.

Dresser Instrument Headquarters, Ashcroft Pressure & Temperature Instrument Operation    Stratford, CT 06614 5145

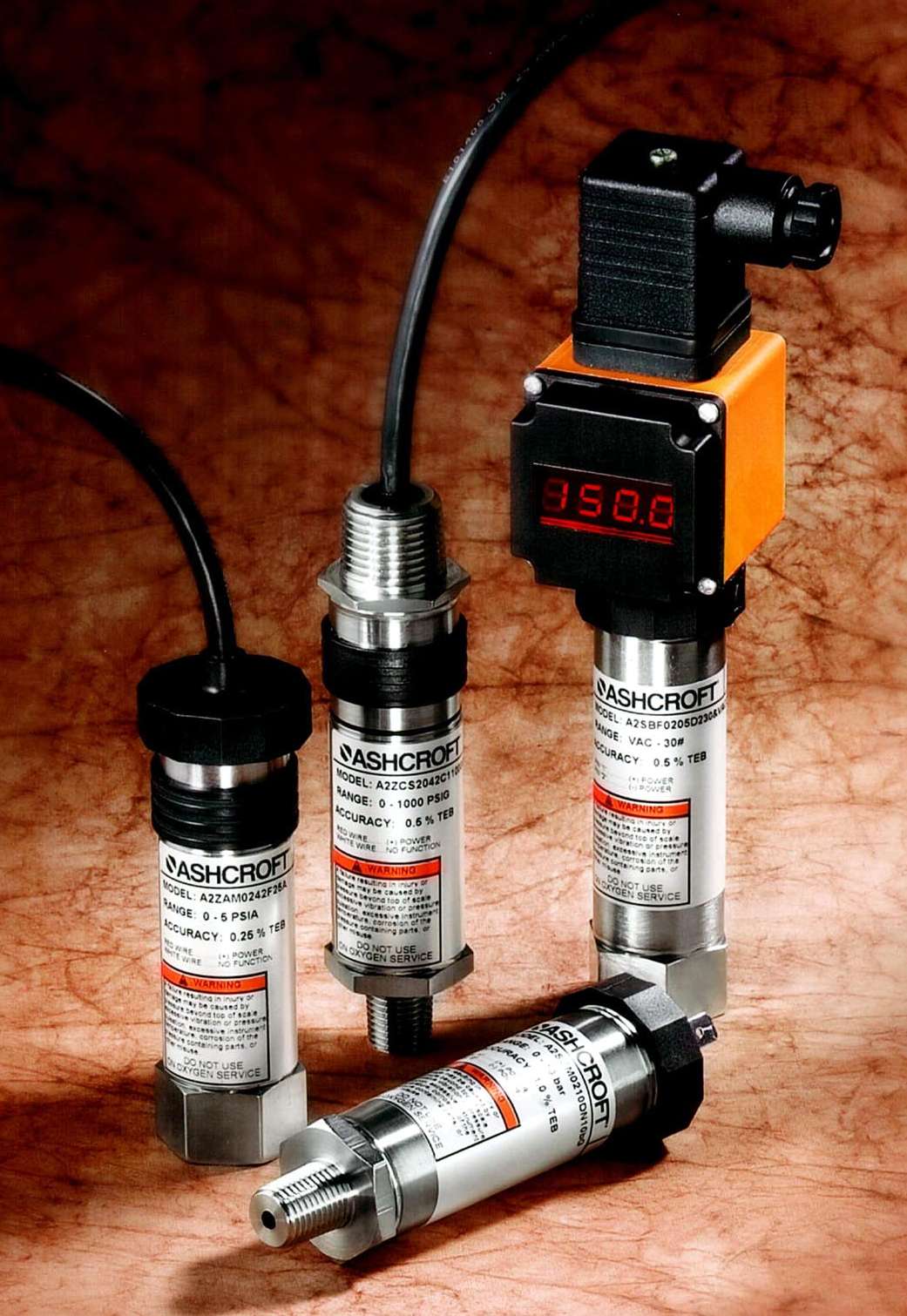

Jan 02, 2003 Ashcroft® A2 offers absolute and standard gauge pressure ranges from vacuum through 10,000 psi. It is offered with explosion-proof; NEMA 7, 9 or watertight; or NEMA 4X, IP67 enclosure. Accuracy classes include 1.0, 0.5, and .25% with choice of temperature compensated ranges of -40 through 257°F. Wetted materials include 17-4PH, Hastelloy C and 316L SS. Transmitter suits applications with wide temperature fluctuations, harsh process fluids, or changes in environment.

Dresser Instrument Headquarters, Ashcroft Pressure & Temperature Instrument Operation    Stratford, CT 06614 5145

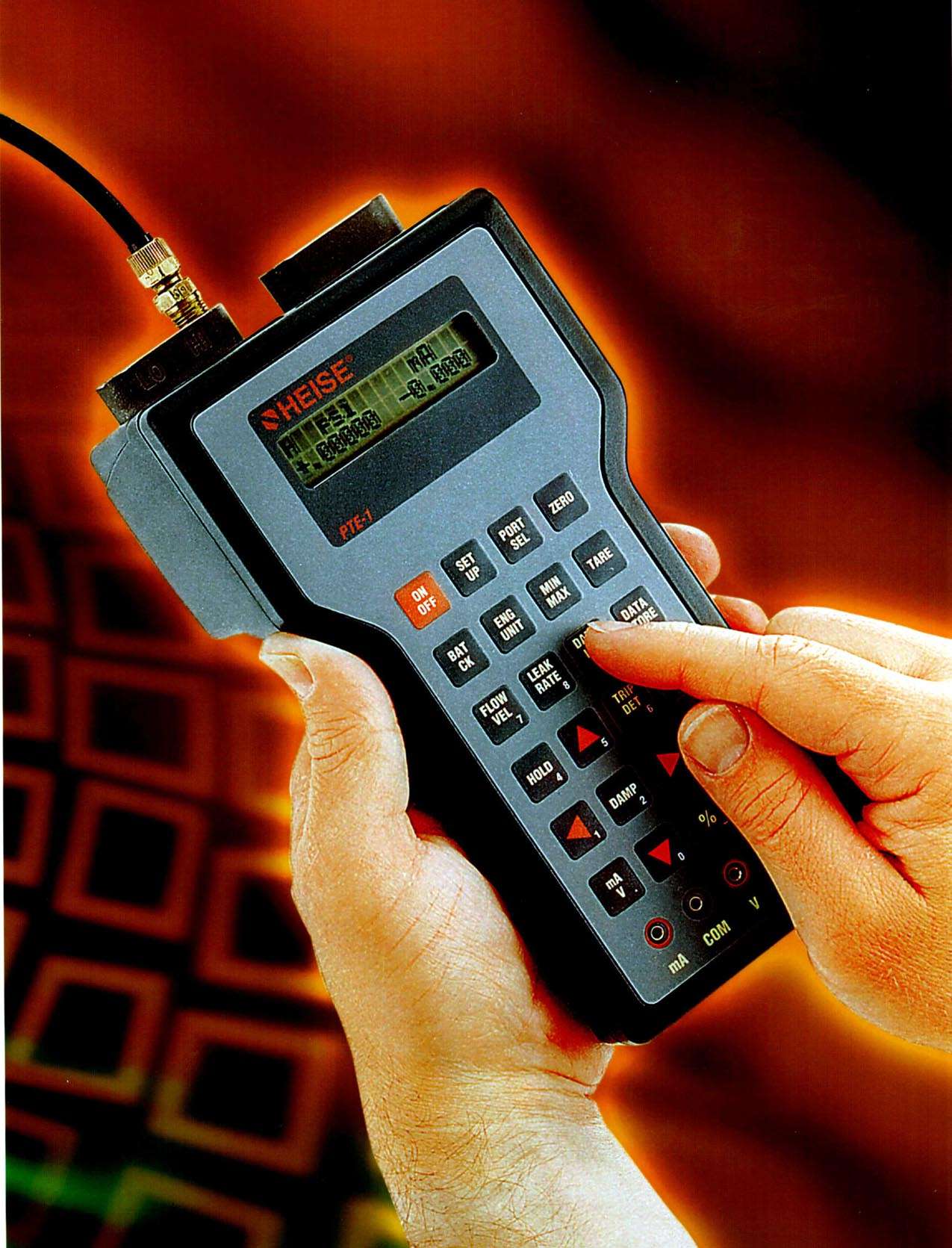

Jan 02, 2003 Heise® PTE-1 consists of base unit and 1 or 2 Quick-Selectâ„¢ pressure modules offering interchangeable ranges of ±0.125 in. H₂O through 10,000 psi. Dual range capability lets user monitor 2 ranges simultaneously. Unit provides measurement of pressure, flow volume and velocity, vacuum, calculation of leak rate, current, voltage, and change-of-state for switch testing. Accuracy ranges from .1–.025%, depending on user's requirements.

Dresser Instrument Headquarters, Ashcroft Pressure & Temperature Instrument Operation    Stratford, CT 06614 5145

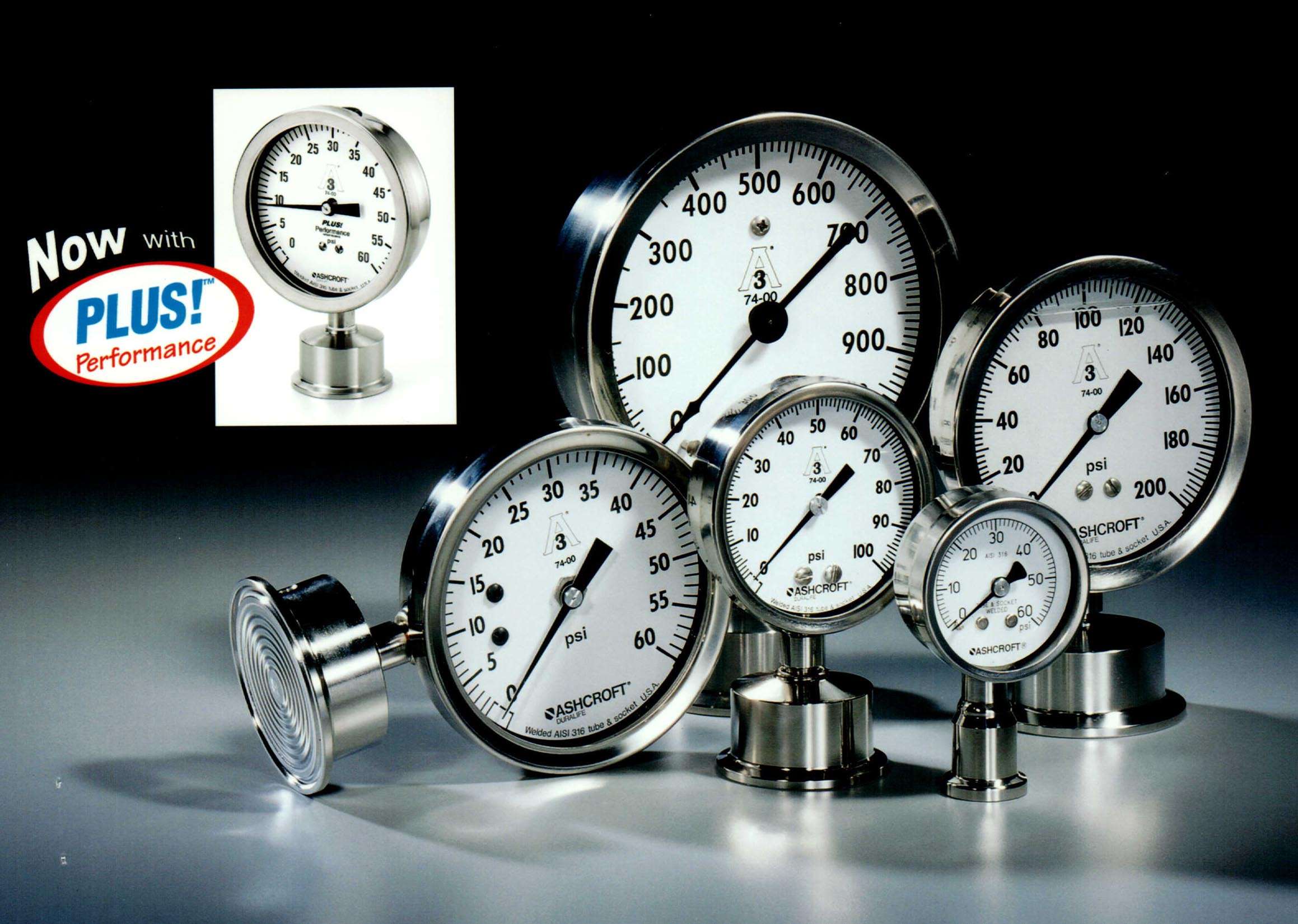

Jan 02, 2003 PLUS!â„¢ Performance option on stainless steel and sanitary gauges dampens effects of pulsation and vibration. It provides benefits of liquid fill in dry gauge. Feature keeps pointers steady while eliminating problems associated with liquid-filled gauges such as leakage. PLUS!â„¢ Performance option is offered on Ashcroft® 2½ and 3½ in. dial size Type 1009 Duralife® Gauge; 4½ and 6 in. Type 1009; 63/100mm Type 1008S; and 2½, 3½, and 4½ in. sanitary gauges.

Arlyn Scales    East Rockaway, NY 11518

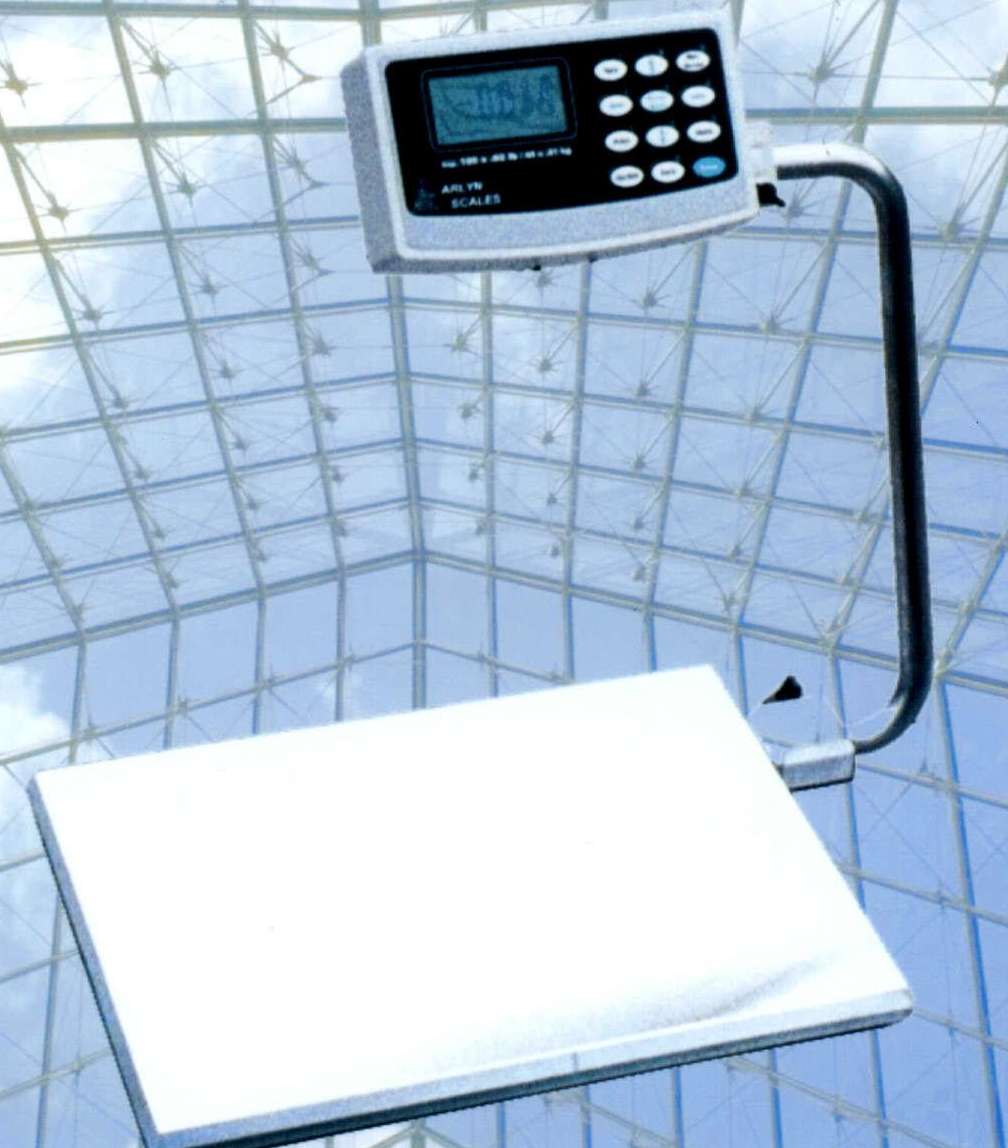

Jan 02, 2003 Equipped with 12 x 16 in. platform and load sensors, Series 6200 scales are corrosion-resistant. With resolution as low as .002 lb and weight capacities to 150 lb, units incorporate digital indicator with 1 in. high graphics attached to base by swing arm. Additional offerings include pushbutton tare, metric conversion, automatic zero, and automatic calibration. Options include 4–20 mA output, 8-level set-point controller, and USB/RS-232 computer interface.

Xtralis Inc.    Norwell, MA 02061
Jan 02, 2003 Fully integrated ADPRO® FastTrace(TM) digital recorder remotely stores video transmissions. Recorder integrates into existing security infrastructure and features compression technology for extended duration recording, and access to remote recorded or live video over ISDN, high speed network, telephone lines, etc. Non-PC hardware platform with Real Time Operating System ensures critical evidence is never missed by providing continual operation.

Wavetek Meterman Test Tools    Everett, WA 98206-9090
Jan 01, 2003 Series XR features Magne-Grip™ holster for hands-free usage. Model 30XR non-contact voltage tester detects live AC voltages. Models 33XR and 34XR offer temperature, capacitance, and frequency measurement. Model 34XR also includes true-rms and autoranging features. Model 37XR has 0.1% accuracy with 10,000 count and offers LCR meter, logic test, frequency, and dBm capabilities. Model 38XR offers optical RS232 output, and tests 4–20 mA loop current, temperature, frequency, and capacitance.

Omega Engineering, Inc.    Stamford, CT 06907

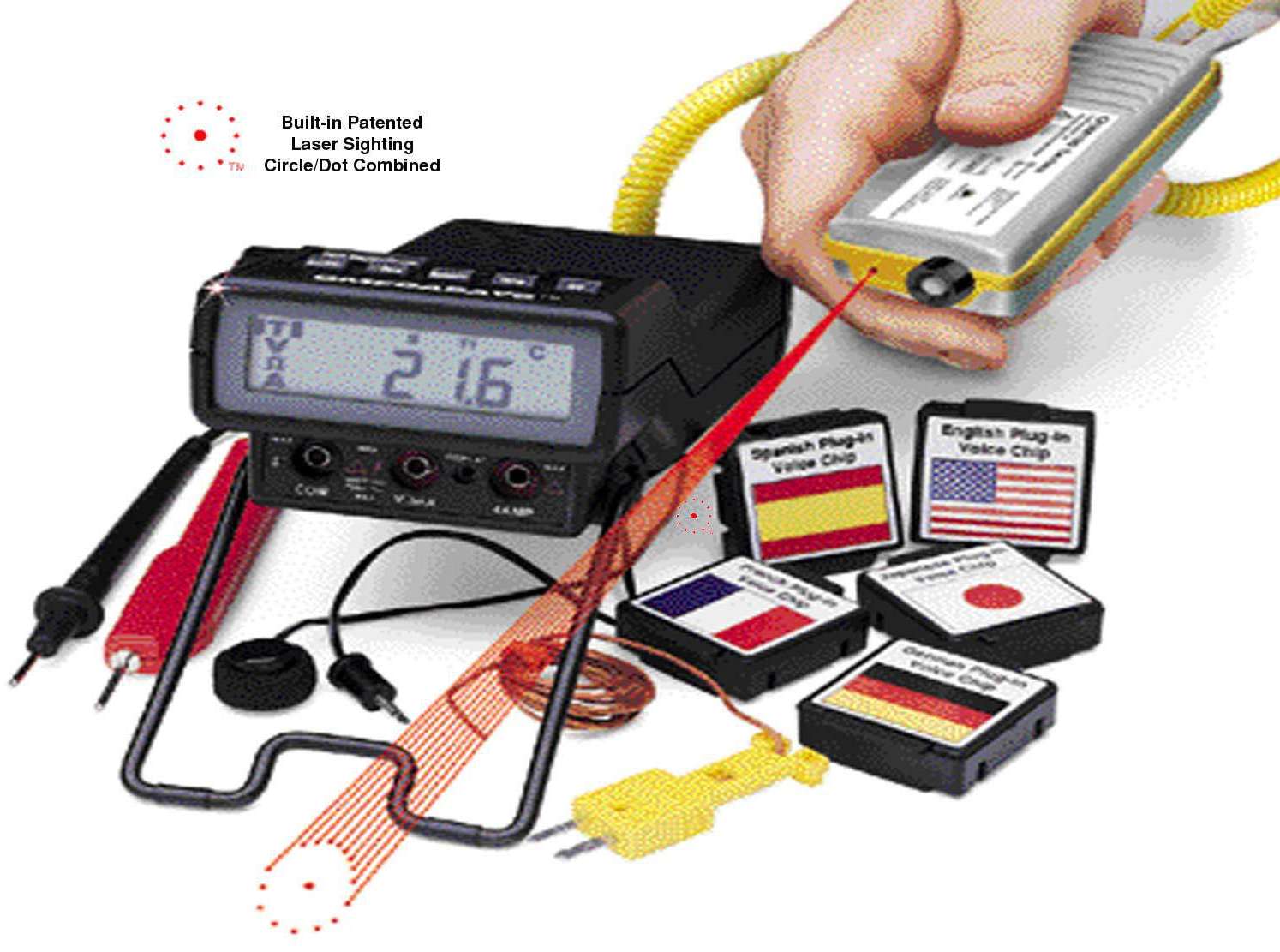

Dec 31, 2002 OMEGASAYS® model HHM2-IR digital multimeter/thermometer/IR Pyrometer offers non-contact infrared temperature measurement with built-in laser dot and circle, dual type K thermocouple inputs, and voice annunciation of measured values. Portable unit measures true RMS AC voltage and current, resistance, and temperature, and accepts any 2 type K thermocouples terminated with miniature SMP connectors. Measured values and other variables are also displayed via LCD.

PAC Petroleum Analyzer Company L.P.    Pasadena, TX 77503
Dec 27, 2002 Model NCK2 5G complies with CEC, ASTM, and IP methods. It features monoblock design and fume-free operation. Smart assistance features automatically alert operator if any test device is not properly set. Instrument tracks sample temperature and vacuum throughout test's duration, providing digital display of each and recording values to memory. Extended local memory capacity, graphic printer connection and PC link enable flexible results management.

InterlinkBT, LLC    Minneapolis, MN 55441
Dec 27, 2002 AIM ST Module, busstop®, mounts directly on motor control enclosures to provide I/O, power, and network signals to inside and outside enclosure. Product offers up to 8 dry contactor inputs and outputs. From outside enclosure, signals are accessed via 5-Pin eurofast® or 4-Pin and 5-Pin minifast® connectors. Rear screw terminals provide clean way to get power and DeviceNet(TM) signals inside enclosure. LED's on front indicate inputs, outputs, and station status.

Danaher Controls    Gurnee, IL 60031
Dec 27, 2002 Using Bidirectional Synchronous Serial Interface, all-digital product runs at 10 MHz and includes cyclic redundancy check (CRC). Hardware-compatible with SSI, BiSS sends full absolute position data whenever controller polls encoders. Able to be configured for point-to-point use, BiSS can carry additional data via internal register. Additional offerings include adjustable protocol length, 4 unidirectional lines, and plug-and-play operability.

Computer Conversions Corp.    East Northport, NY 11731

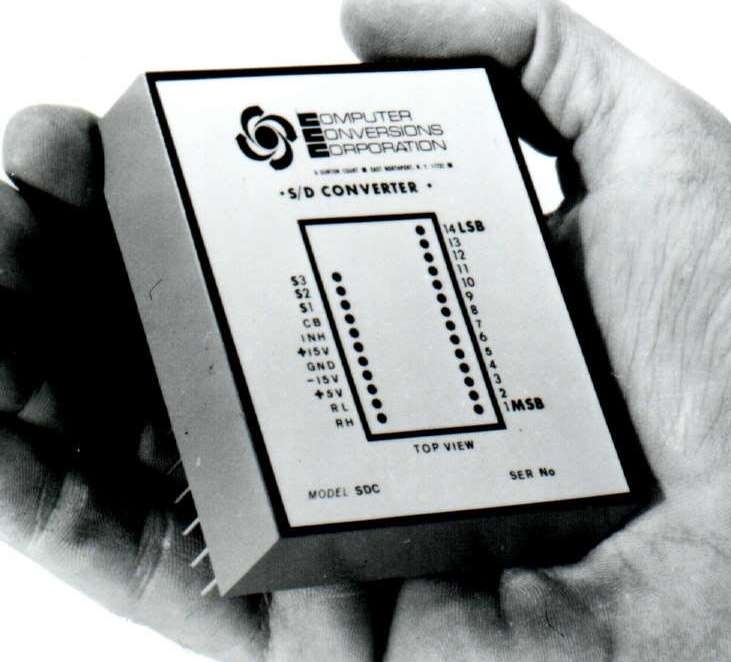

Dec 27, 2002 Solid state tracking modules convert synchro inputs of 11.8 or 90 V, 400 Hz, or 90 V, 60 Hz into 14 bit parallel binary outputs representing angle with accuracy of ±4 arc minutes, ±.9 LSB. Products have isolated reference and synchro inputs and track rates up to 1,800°/sec at 60 or 400 Hz. Insensitive to input amplitude and frequency variations, digital output is buffered and DTL/TTL compatible. P.C. board mounting module measures 2.6 x 3.1 x .82 or 1 in. high.

SKF USA, Inc.    Lansdale, PA 19446

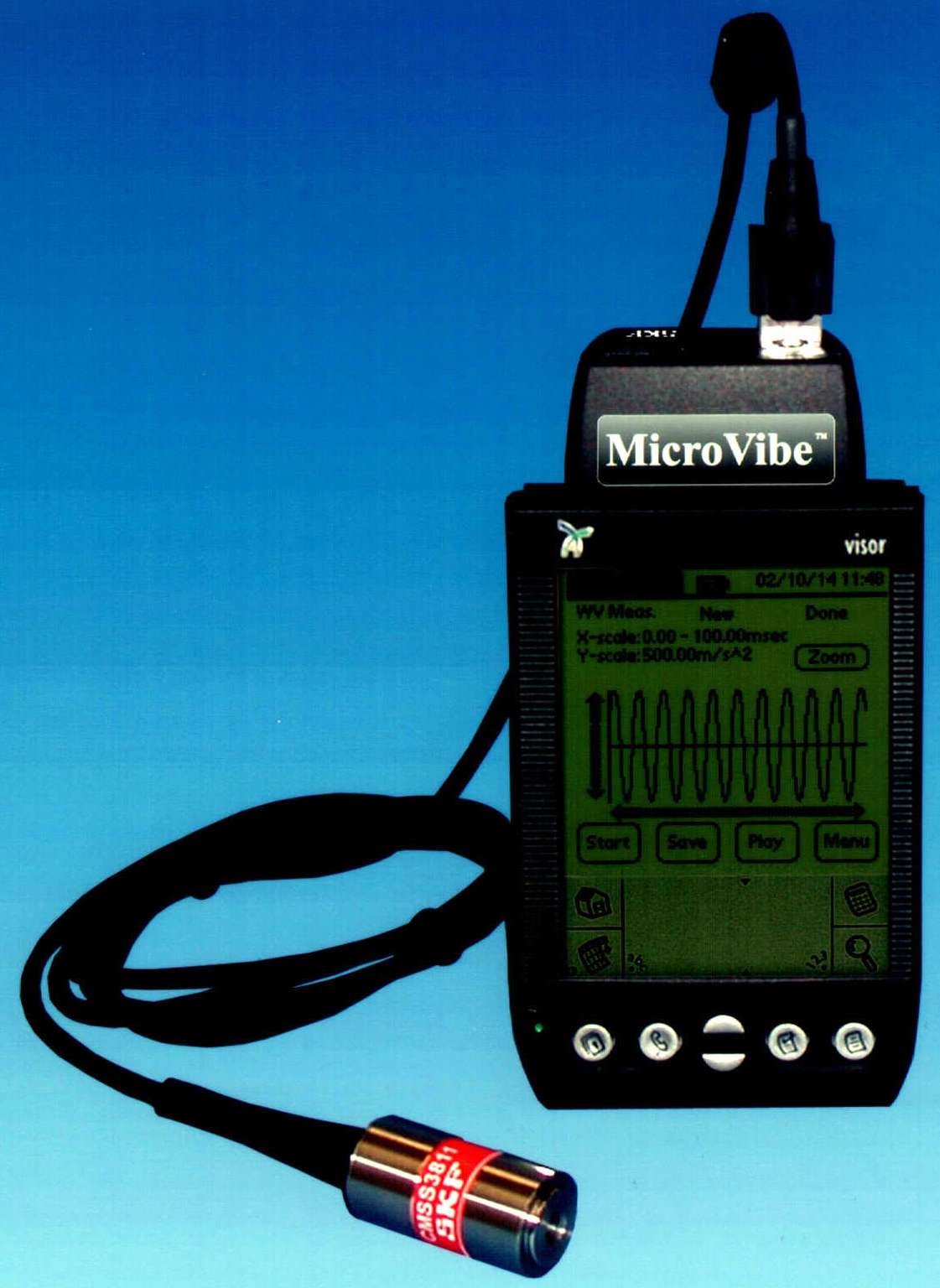

Dec 27, 2002 MicroVibe(TM) portable vibration test/measurement instrument makes analyses of rotating equipment. Able to be used with Personal Digital Assistants (PDAs), product offers user-selectable measurement units; Vibration, Time-waveform, and FFT Spectrum Plots; and judgment criteria based on ISO standards. Unit is made to fit Springboard(TM) expansion slot of Handspring(TM) Visor handheld and accepts accelerometers and electro-dynamic velocity pickups.

AMETEK Power Instruments    West Chicago, IL 60185

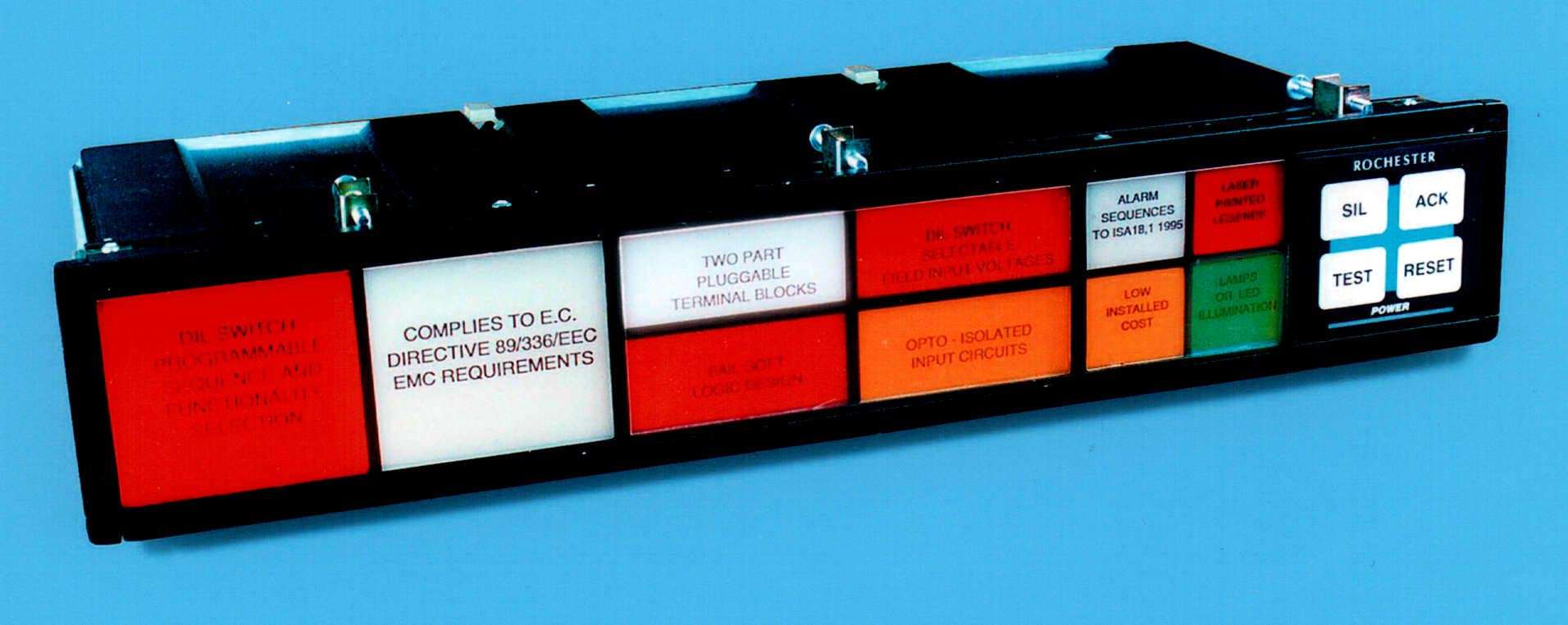

Dec 27, 2002 Series AN6100B, offered in any matrix of models in various window sizes, is available up to 5 high by 4 wide with 1–156 alarm point combinations. Overall size of 1 module is DIN 2.83 x 5.67 in. with required depth behind panel of 7.32 in. Unit offers 4 window sizes, laser-printed legends, 2-part removable terminal blocks, fail-safe logic, and DIP switch programmable functions for alarm sequence, repeat relay, and NO/NC input.

Absolute Process Instruments Inc.    Libertyville, IL 60048
Dec 27, 2002 Model A 210 measures current; voltage; active, reactive, and apparent power; power factor; frequency; neutral current; and active and reactive energy in 3-phase systems. Equipped with triple LED display, unit offers 2 digital outputs that can be used for pulse output to energy meters. Optional MODBUS RS485/RS232 communications and datalogging modules can be snapped onto back of instrument. Inputs, outputs, and power supply are electrically isolated.

Keithley Instruments, Inc., Test Instrumentation Group    Cleveland, OH 44139 1891
Dec 27, 2002 Model 4500-MTS features expandable test platform built on open PCI backplane architecture with 9 card slots. When fully populated with Quad I-V Cards, system can simultaneously characterize light-current-voltage performance of 36 laser diodes in multi-head test fixture. Unit can be configured to execute up to 8 separate hardware-synchronized test sequences, each running independently, on 8 different test heads. Rack-mountable, 19 in. chassis is 5U high and accepts 3rd party PCI cards.

Danaher Controls    Gurnee, IL 60031

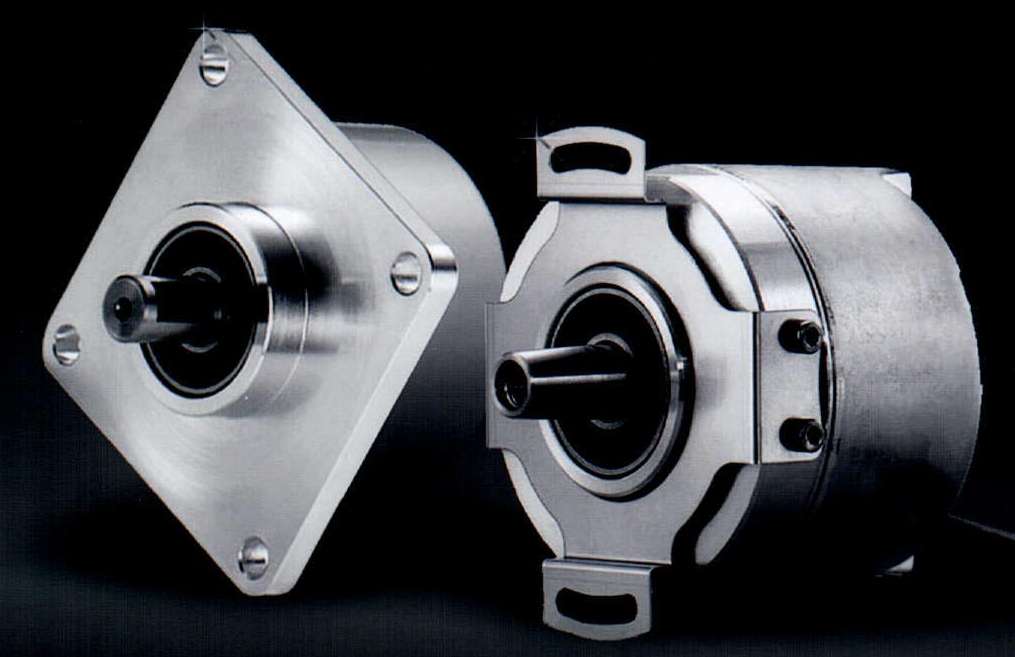

Dec 27, 2002 Dynapar ACURO encoder series is available with various resolutions, single- or multi-turn configurations, and solid- or hollow-shaft coupling. ACURO Industry has 58 mm housing for industrial and systems engineering applications, while ACURO Drive is suited for use with motors as feedback element. Former provides resolutions up to 17 bits in single-turn configuration, while latter provides up to 22 bits. Each encoder provides resolutions to 12 bits in multi-turn configuration.

Conbraco Industries, Inc.    Matthews, NC 28106 0247
Dec 26, 2002 Sized from 2½â€“10 inches, DCDA units protect against cross-connection of non-hazardous water into safe drinking water systems. Able to monitor water leakage, they have FDA-approved epoxy coated ductile iron body and bronze by-pass, which houses water meter and double check valve assembly. Max working pressure is 175 psig, and operating range is 33–140°F. Corrosion-resistant assemblies are built with removable seats and replaceable discs for in-line maintenance.

Druck, Inc.    New Fairfield, CT 06812
Dec 26, 2002 Model PDCR 3500, 1 in. dia, fluid isolated, analog output device achieves total accuracy of better than ±0.1% FS over -65 to +250°F. Internal digital electronics correct for repeatable errors without affecting analog bandwidth. Due to internal microprocessor electronics, unit can also give digital pressure output in engineering units via RS485, which is also used for re-calibration, serial number retrieval, and diagnostics.
