DAS Distribution Inc.    East Granby, CT 06026

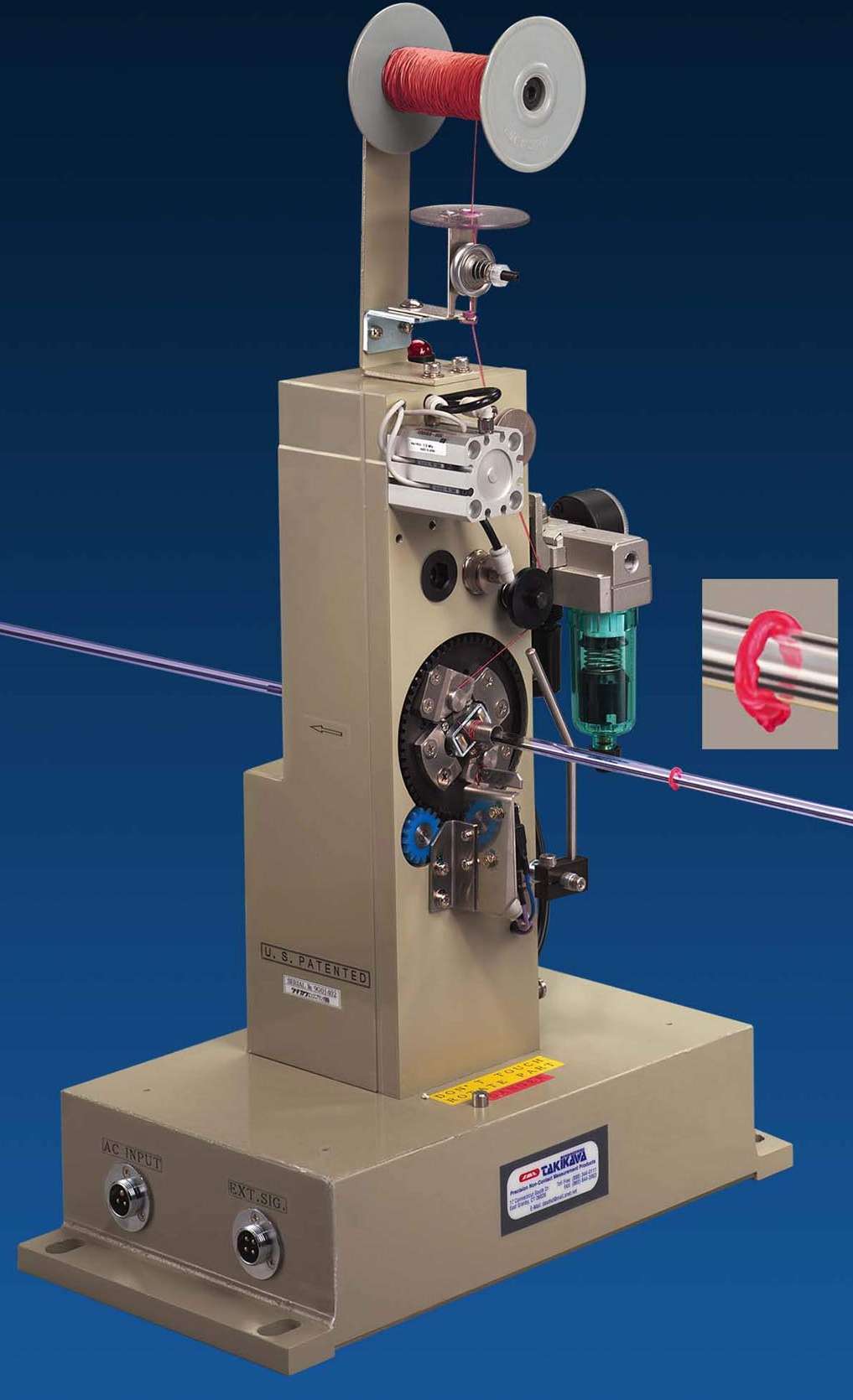

Jan 30, 2003 EMAC System (Elastic String Marking Device) snaps colorful elastic-string loop onto wire, cable, hose, and other irregular-shaped extrusions, to mark specific points of concern. System works with defect detectors, laser micrometers, capacitance gauges, spark testers, ultrasonic gauges, wall-thickness gauges, and other devices that provide contact closure. Unaffected by line speeds, it works with materials from 1–230 mm in size, regardless of shape.

Sensors, Inc.    Saline, MI 48176

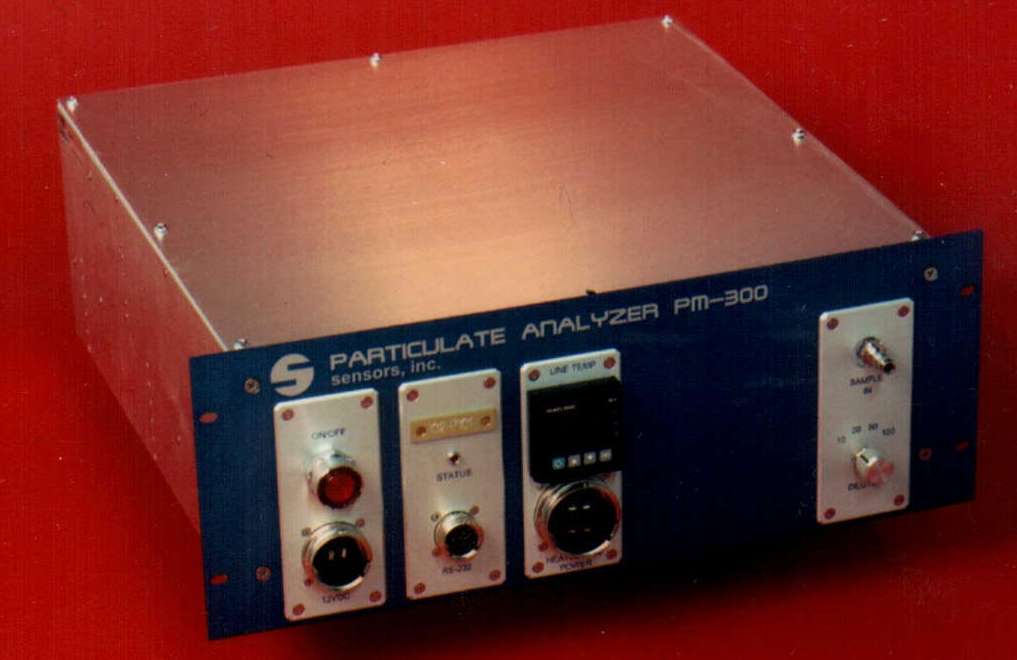

Jan 30, 2003 For stationary or portable use, PM-300 particulate analyzer enables real-time measurement of particle sizes emitted by internal combustion engines in 100 nm increments down to 300 nm. Exhaust is drawn through analyzer via heated sample line and temperature controlled dilution system with mass flow controllers. Mini-diluter mixing chamber combines raw exhaust fraction with clean air. Analyzer generates curves with data-sampling rate of 1 sec.

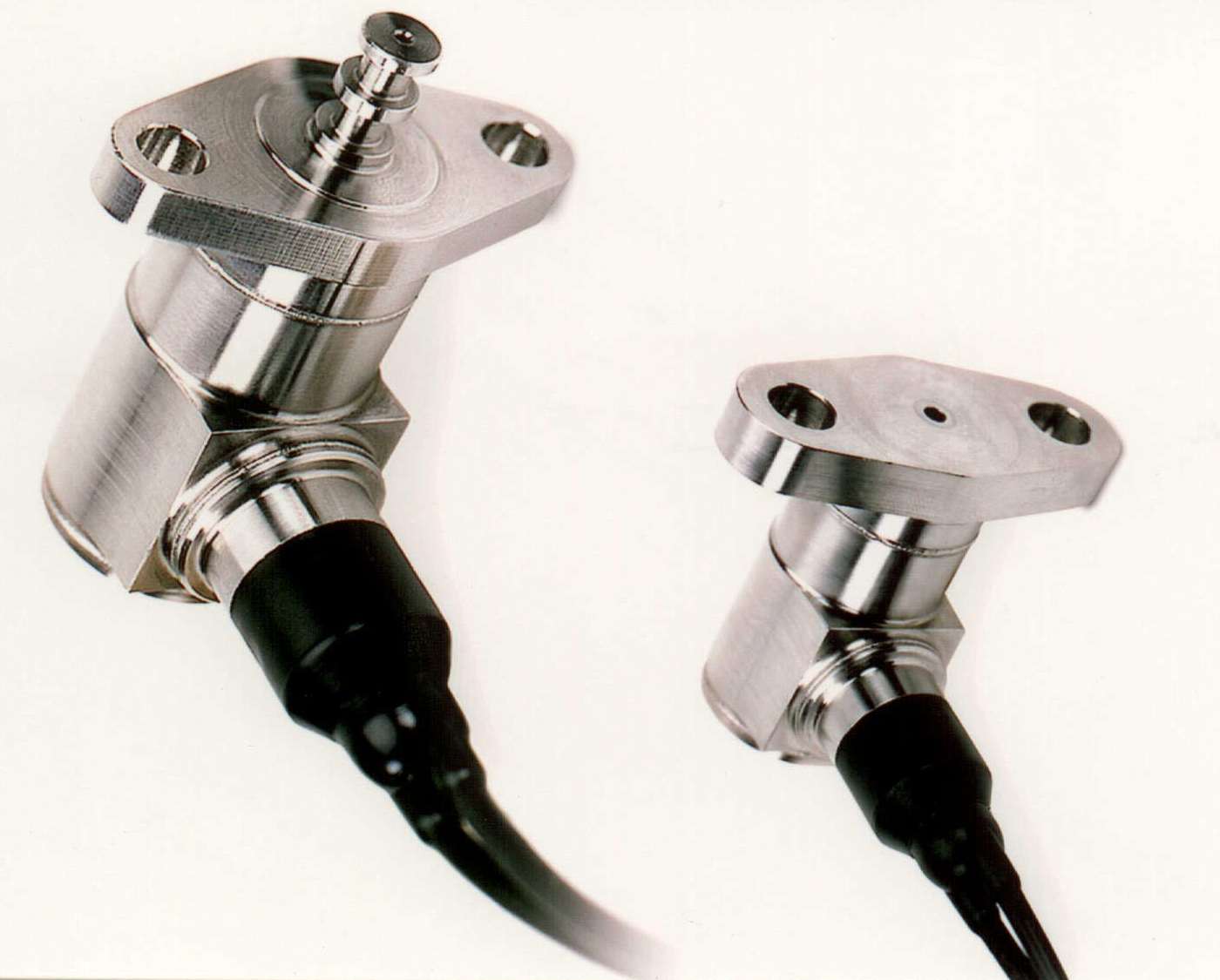

Druck, Inc.    New Fairfield, CT 06812
Jan 30, 2003 With all welded construction, PTX 300 Series is fully submersible with ambient pressure rating to 4,000 psi. Product utilizes micromachined piezo resistive silicon pressure measurement technology and is packaged to suit specific requirements of subsea hydraulic control systems. Series, offered with pressure ranges from 1,000–15,000 psi sealed gauge or absolute, offers better than 0.1% accuracy.

Leica Microsystems, Inc.    Buffalo Grove, IL 60089
Jan 30, 2003 Model DFC 300F, 1.3 Megapixel, color digital camera offers imaging for documentation and publication. DFC 350F, 1.3 Megapixel, monochrome camera offers near infrared sensitivity for analysis and quantification. Products, with Peltier cooling system, achieve exposure times in excess of 10 min and are built with CCD sensor design. They offer IEEE 1394 FireWire interface and are supported by driver architecture for OS X operating system.

Stoelting Co.    Wood Dale, IL 60191 1164
Jan 30, 2003 Products preserve levels of enzyme-regulated neurotransmitters and metabolic substances in brain at concentrations that exist in living tissue. Microwave Focusing Applicators act as catalysts, while uniform fixation of entire brain is achieved without changing/damaging hypothalamus or other soft, deep brain structures. Interchangeable applicators and holders are available from 20–500 g. Systems are available in max power output of 5 or 10 kW.

Omron Electronics, LLC    Schaumburg, IL 60173
Jan 30, 2003 Model G3TC features built-in hold down screw, which fastens relay to board to eliminate loosening by vibration. AC input module's operating voltage is 90-140 Vdc/ac and 180-280 Vdc/ac, while DC input module's range is 10-32 Vdc/ac. Logic level output supply voltage is 5-24 Vdc on both input modules. AC output module's applicable load is 3 A @ 75-280 Vac depending on model. Input voltage is 5-24 Vdc. DC output module's applicable output load is 3 A @ 5-60 Vdc and 1 A at 5-200 Vdc.

Baumer Ltd.    Southington, CT 06489 1534

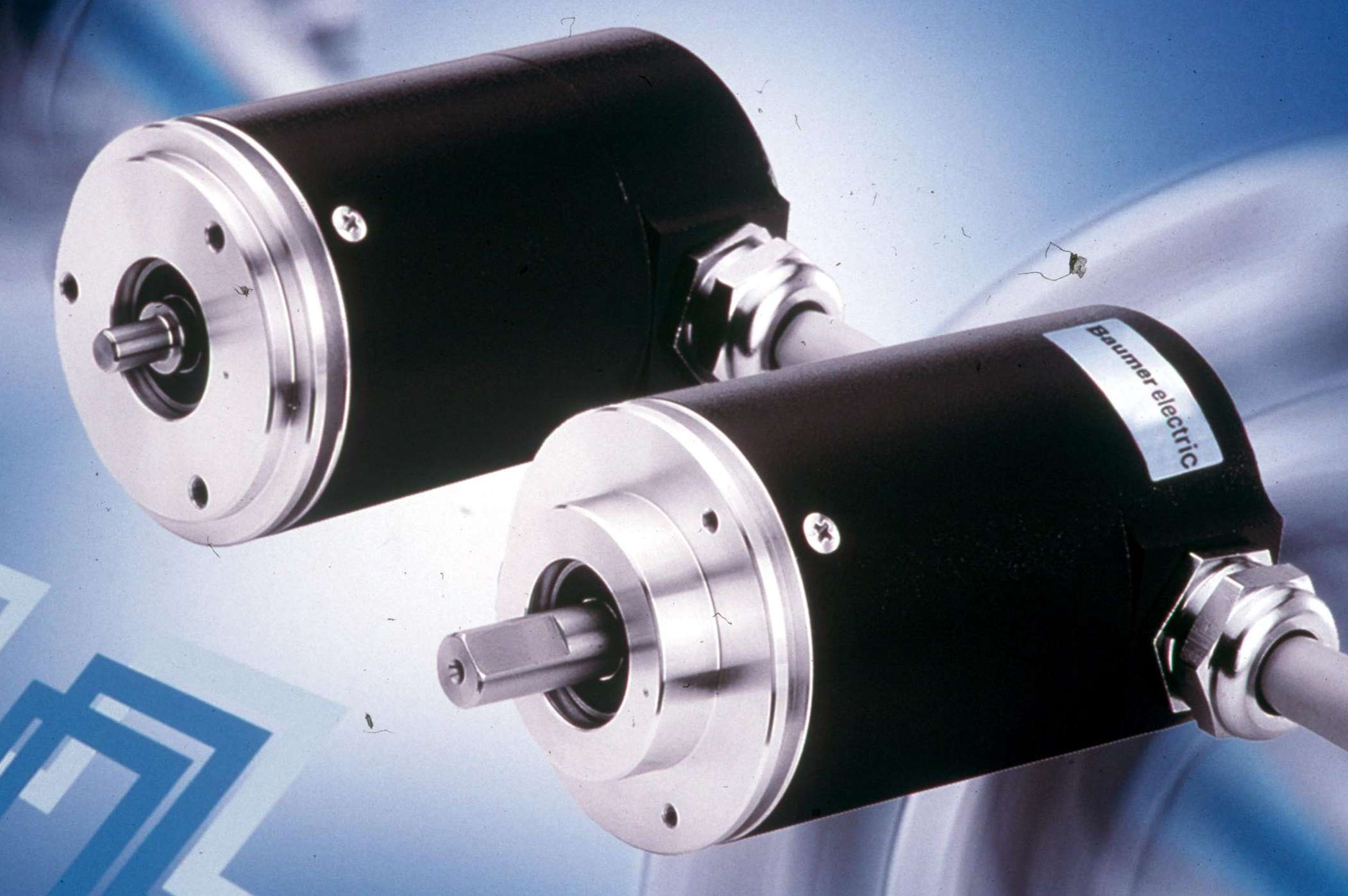

Jan 29, 2003 Absolute Cam Encoder monitors speed, direction, and position, allowing user to control 16 outputs through 250 programmable cams. Able to retain cam position information in event of power loss, product has IP65 housing that measures 58 mm in diameter and 78 mm deep. Encoder can be programmed through serial interface with Windows-based PC using PROGEBER. Unit offers 24-bit overall resolution and single and multi-turn steps that can be adjusted separately.

A & D Weighing    Milpitas, CA 95035

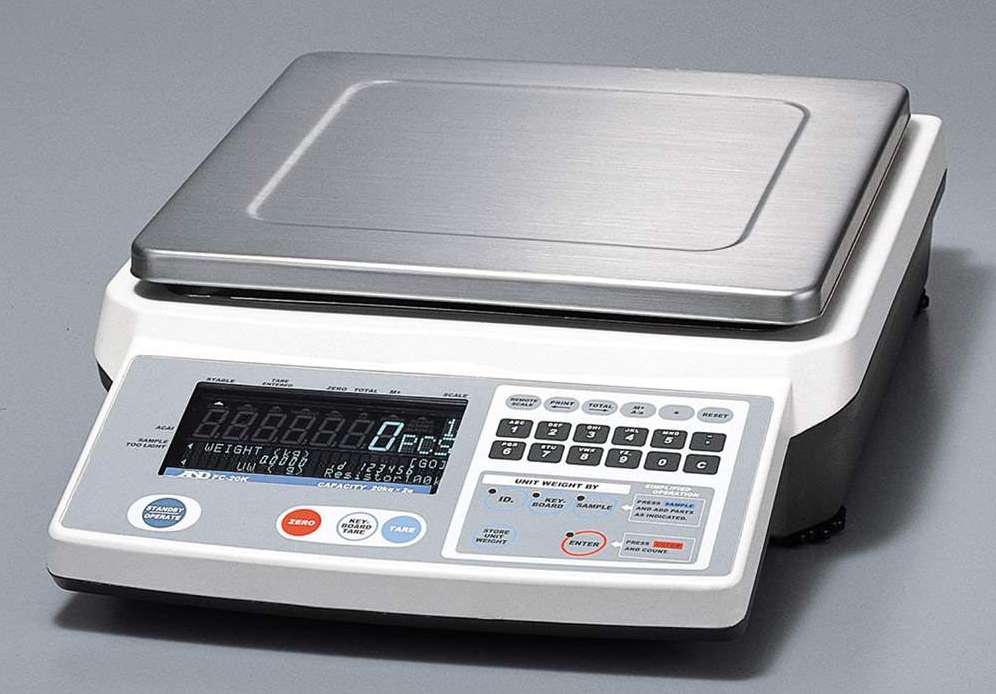

Jan 29, 2003 FCi Counting Scale, with Super Hybrid Sensor (SHS) technology and comparator and accumulator functions, is offered in models with internal resolutions up to 5 million parts. Standard RS-232C connects to computer, printer, or bar code reader. Product incorporates 4-line, alphanumeric Vacuum Fluorescent Display and can store up to 500 unit or tare weights into memory. Capacities range from 1-100 lb, with minimum unit weights as low as 0.000003 oz.

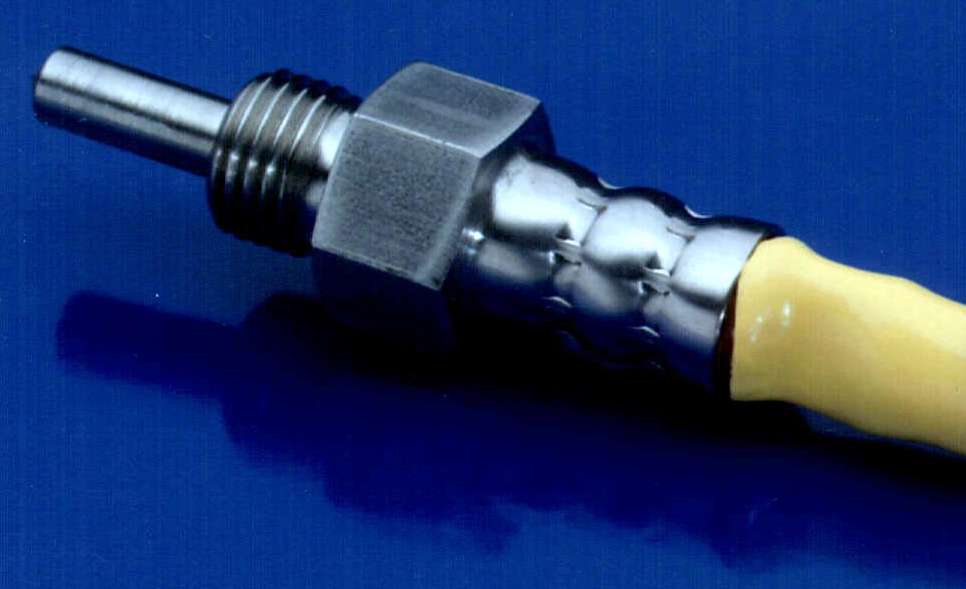

Watlow    St. Louis, MO 63146
Jan 28, 2003 ENVIROSEALâ„¢ RTD sensors employ cold end seal that houses rubber gland and offers temperature rating of -5 to +400°F. Seal provides extreme protection from salt water, motor oil, and chemicals such as bleach, ammonia, and boric and nitrous acid. Combined with sensor's wide temperature rating, units are suitable for refrigeration or condensation units, food processing, industrial ovens, packaging equipment, and environmental control systems.

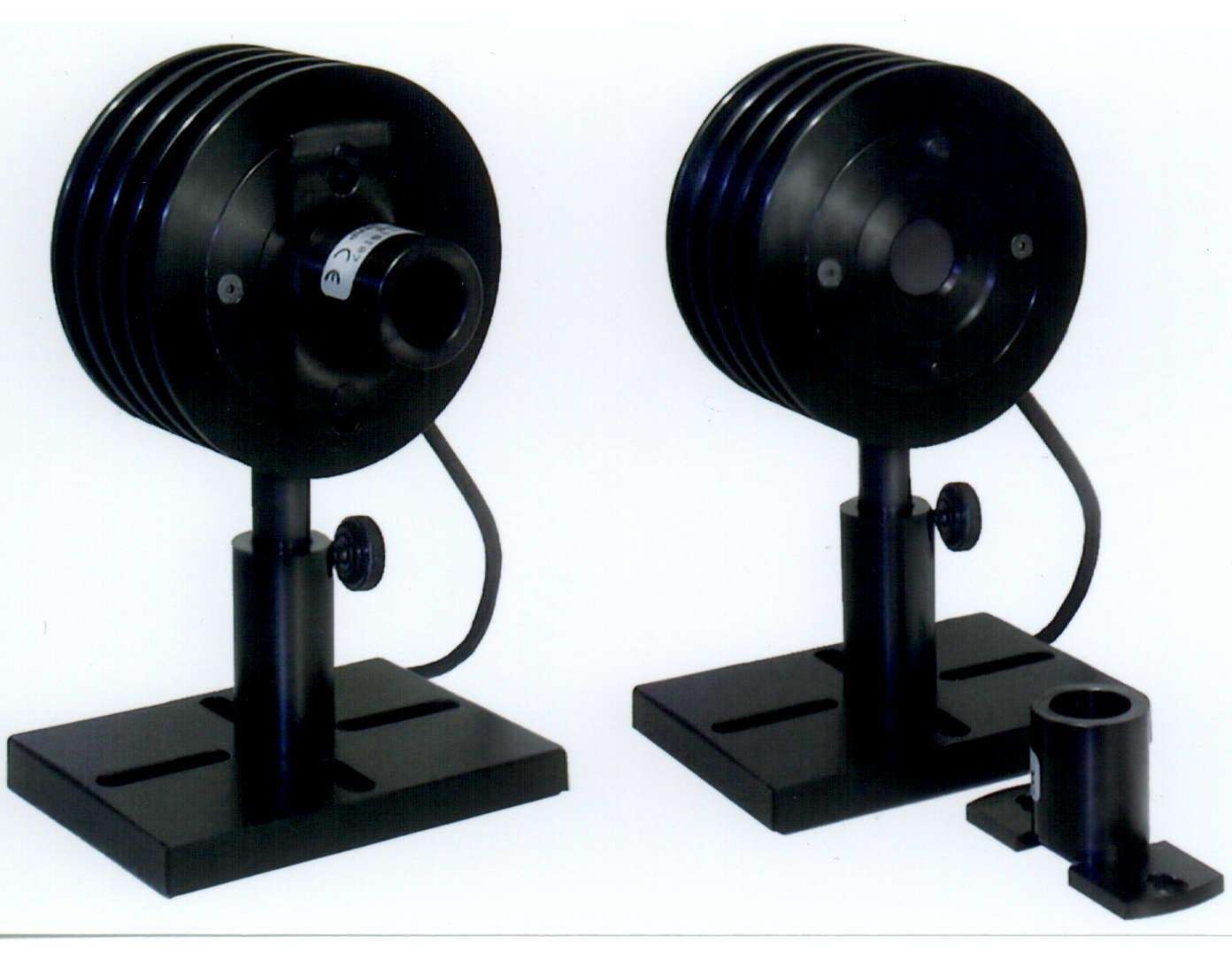

Ophir Optronics, Inc.    Danvers, MA 01923
Jan 28, 2003 Volume Absorbing Head, Model 30(150)A-HE-DIF offers average power measurements up to 30 W, continuous or 150 W, intermittent. Energy density rating is 5 J/cm² for 1064 nm, and max average power density is 500 W/cm². Unit provides 3 digital power scales of 3, 30, and 150 W and response time of 4 sec. Information is stored in EEPROM of absorber head and downloaded when display is attached and turned on, making all heads plug-and-play ready.

Communications Specialties, Inc.    Hauppauge, NY 11788
Jan 28, 2003 Pure Digital Fiberlink® 7040 Series transmits 4 channels of composite video over 1 single mode or multimode fiber. It features 7 MHz bandwidth and is compatible with NTSC, PAL, or SECAM video standards. Unit operates over wide temperature range using 9–24 V ac or dc power. Transmitter and receiver are both equipped with indicator LEDs to continuously indicate presence of power and up to 4 video signals. Box or card versions are available.

Hach Company    Loveland, CO 80539-0389
Jan 28, 2003 pHDâ„¢ series uses 3 measuring electrodes. Process electrode and standard electrode measure pH differentially with respect to third ground electrode. Technique provides reduced reference junction fouling and virtually eliminates ground loops.

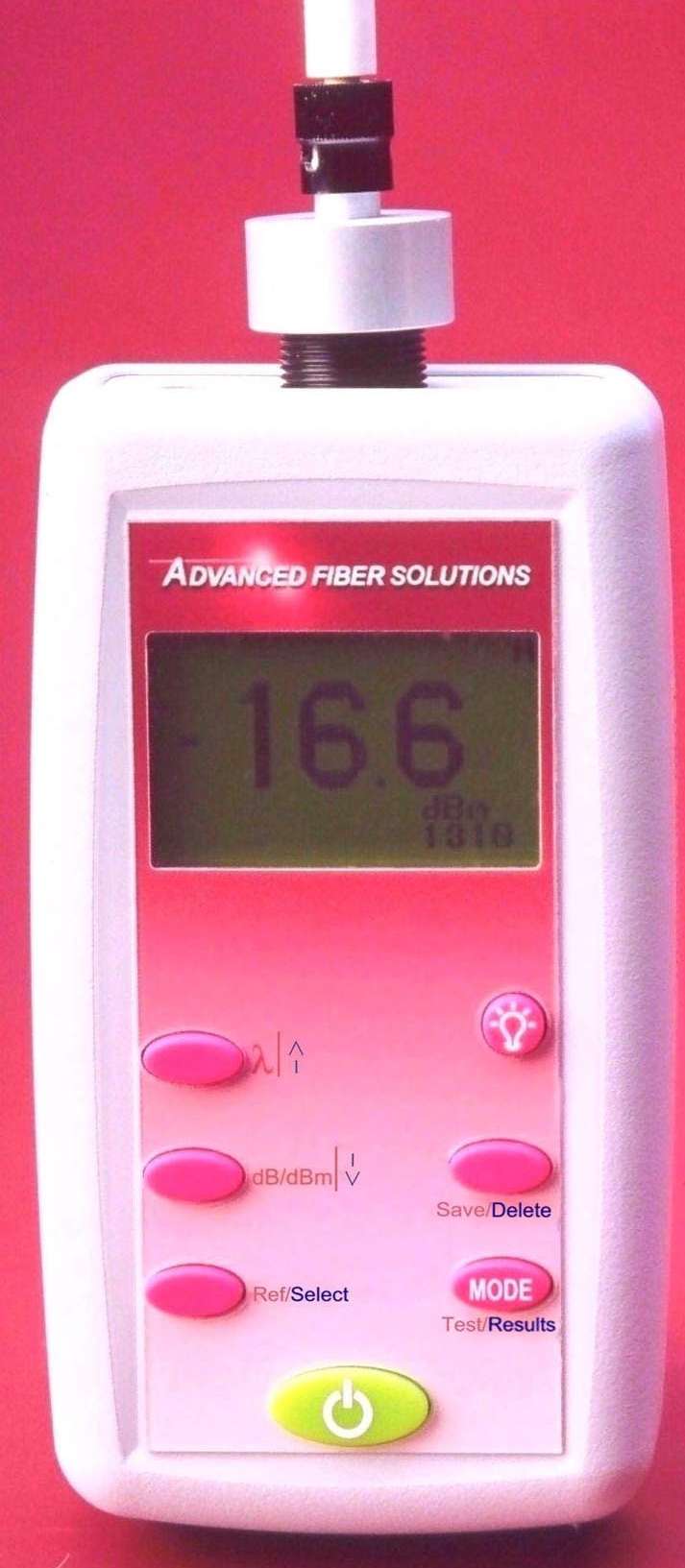

Advanced Fiber Solutions, Inc.    Milton, MA 02186
Jan 27, 2003 OM200 series data storage meters include OM220, for general purpose applications, OM210, for POF and short wavelength applications, and OM230, for high powered CATV applications. Meters feature auto power down, zero reference capability, user selectable resolution of 0.1 or 0.01 dB, and storage for 500 time and date stamped readings. Units come with PC software for reporting and documentation.

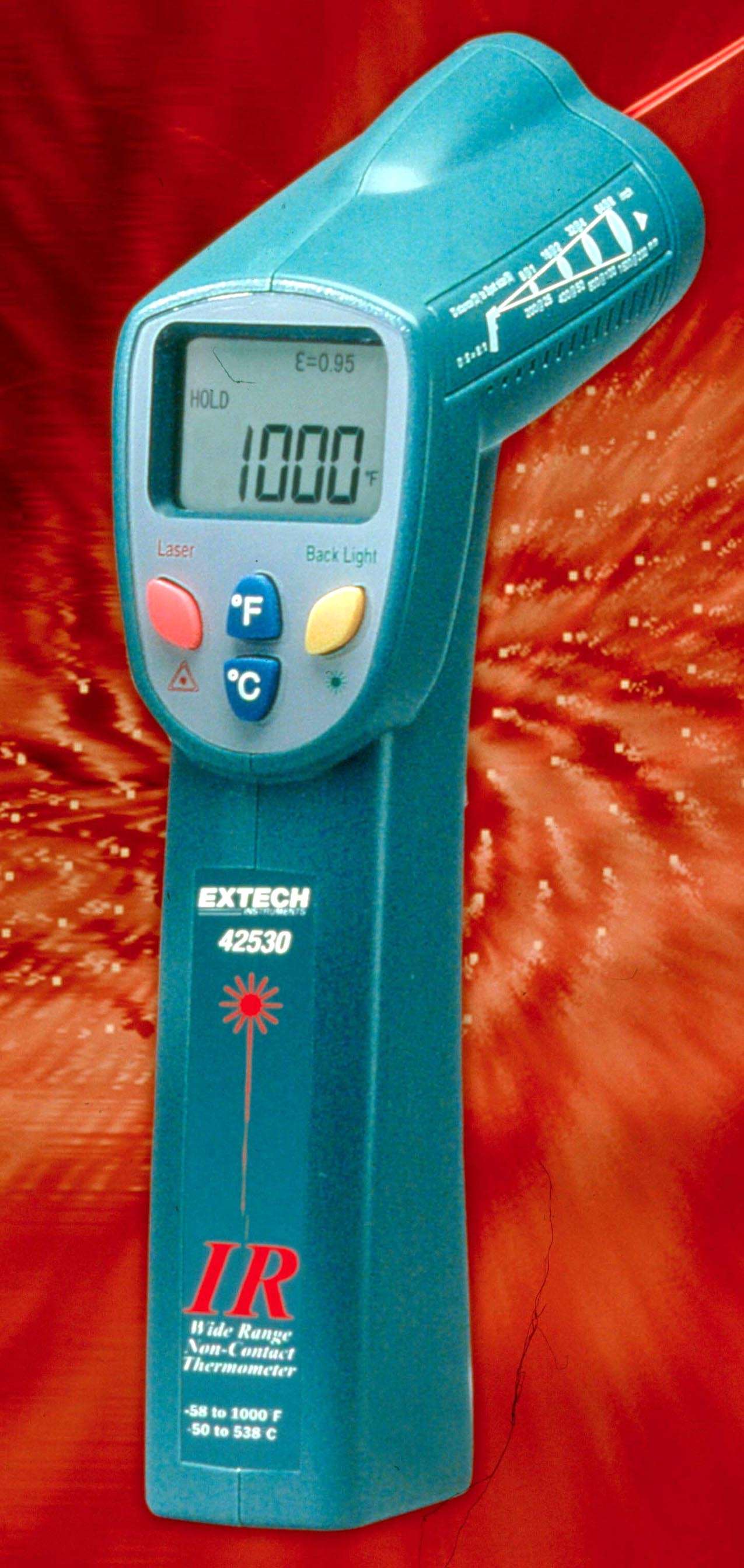

Extech Instruments Corp.    Nashua, NH 03063
Jan 27, 2003 Model 42530 uses built-in laser pointer to target area to be measured, and provides measurements from -58 to 1,000°F with 1° resolution. LCD with backlight allows viewing in dim light. Narrow field of view measures 1 in. target at 6 in. distance. Fixed emissivity of 0.95 covers 90% of surface temperature applications. Thermometer includes automatic data hold feature and audible and visual over range indicators.

Square D Co.    Palatine, IL 60067
Jan 27, 2003 POWERLOGIC® Power Server 750 self-contained web server can be used as stand-alone system for local power monitoring or for enterprise-wide applications. It connects up to 64 compatible devices. Once installed, users can access data over web through preconfigured web pages. Using intelligent data-publishing feature, unit can transfer collected information to enterprise system server, making it possible to analyze and monitor large number of sites.

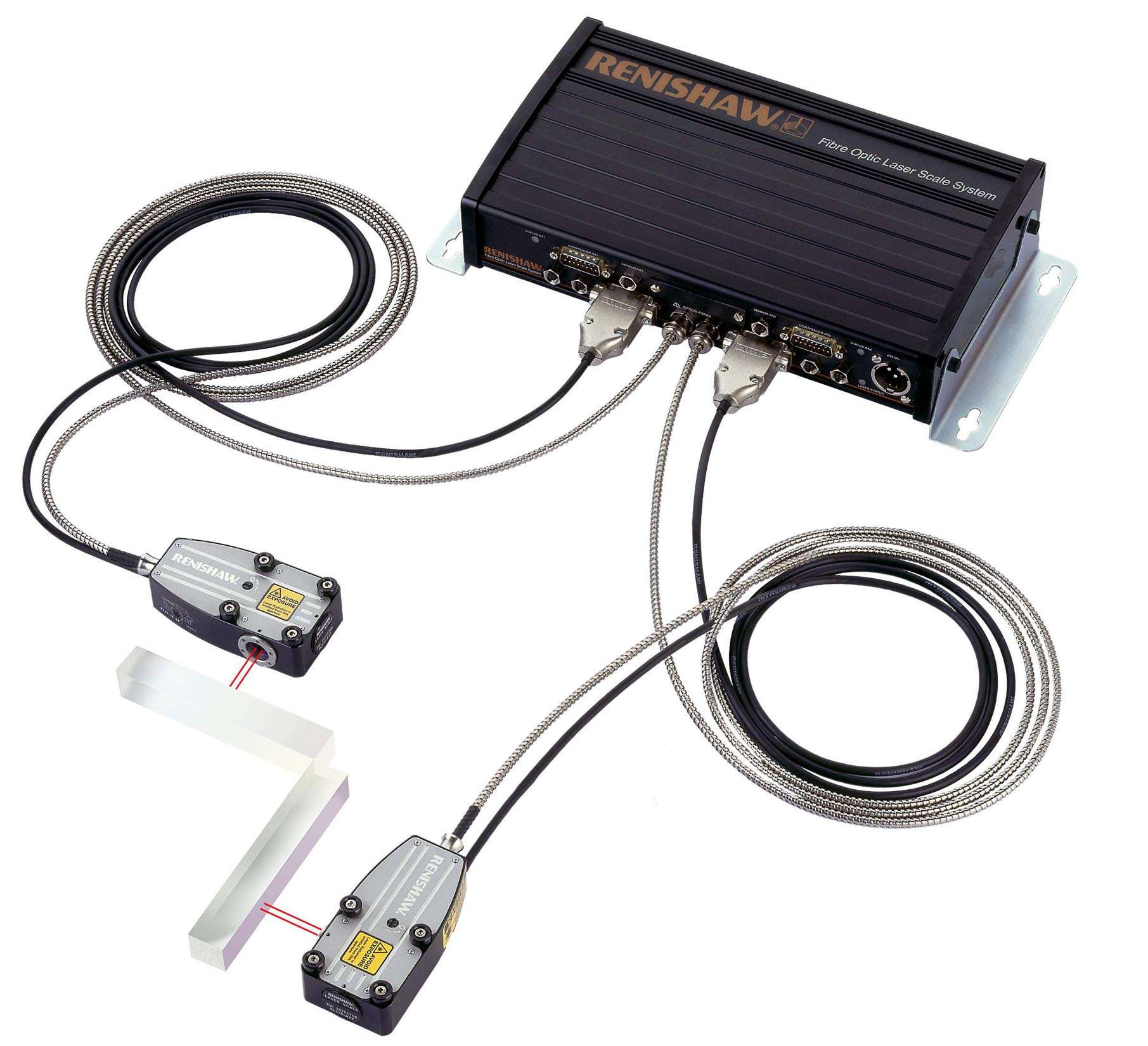

Renishaw, Inc.    Hoffman Estates, IL 60192
Jan 27, 2003 Laser Model RLE interferometer-based encoder uses fiber optic links to transport laser beam directly to axis measuring position. Optical beam-steerer reduces laser alignment to simple bolt-down and dial-in process. Using retroreflectors or plane mirrors, system can be applied to axis lengths up to 4 m. It allows outputs in digital RS422 format quadrature, with resolutions from 10-633 nm, or 1 Vpp Sin/Cos signals.

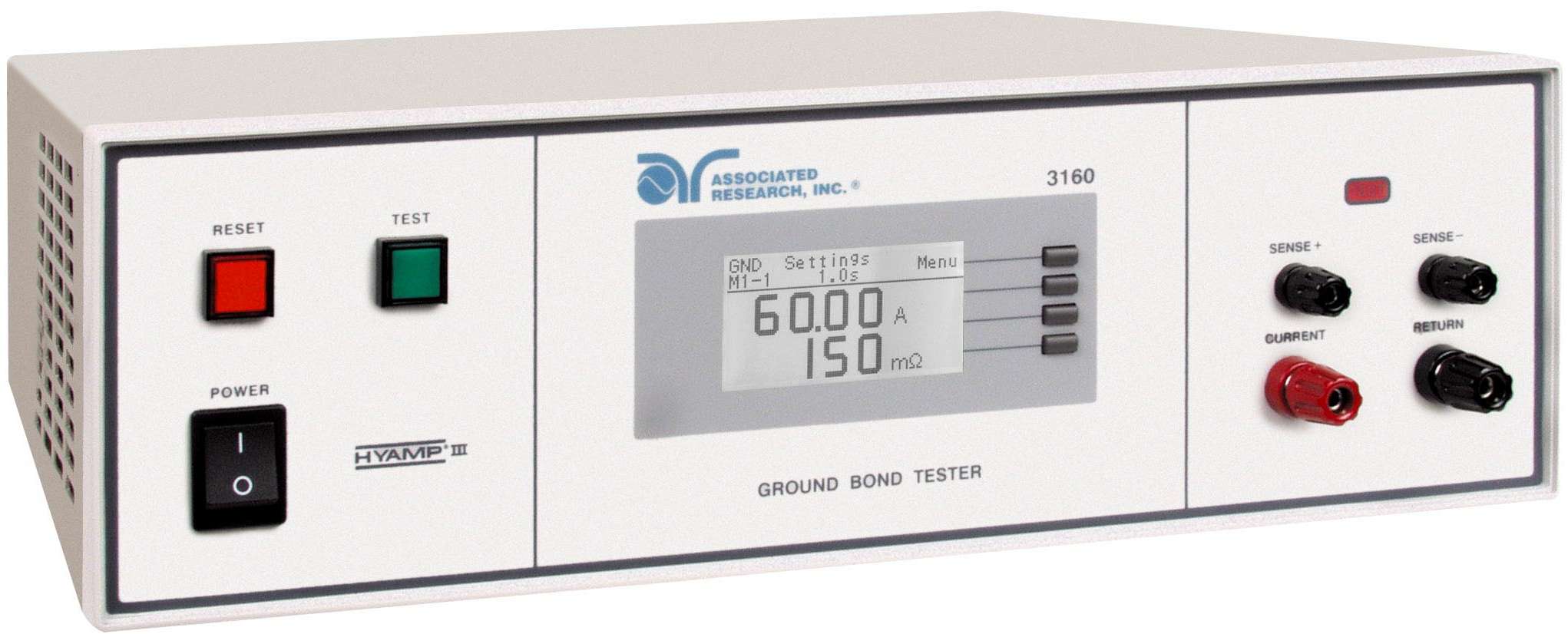

Associated Research, Inc.    Lake Forest, IL 60045
Jan 27, 2003 Mid-range Model 3160 provides 60 A of test current and features VERI-CHEKâ„¢ verification system and CAL-ALERTâ„¢ automatic calibration alert system. Unit includes offset function, Kelvin test leads, user-selectable, output-voltage frequencies of 50 or 60 Hz, and provides storage of up to 10 different test programs with 3 steps per memory. Graphic LCD provides simplified menu, allowing operators to clearly view test parameters while setting up tests, running tests, and viewing results.

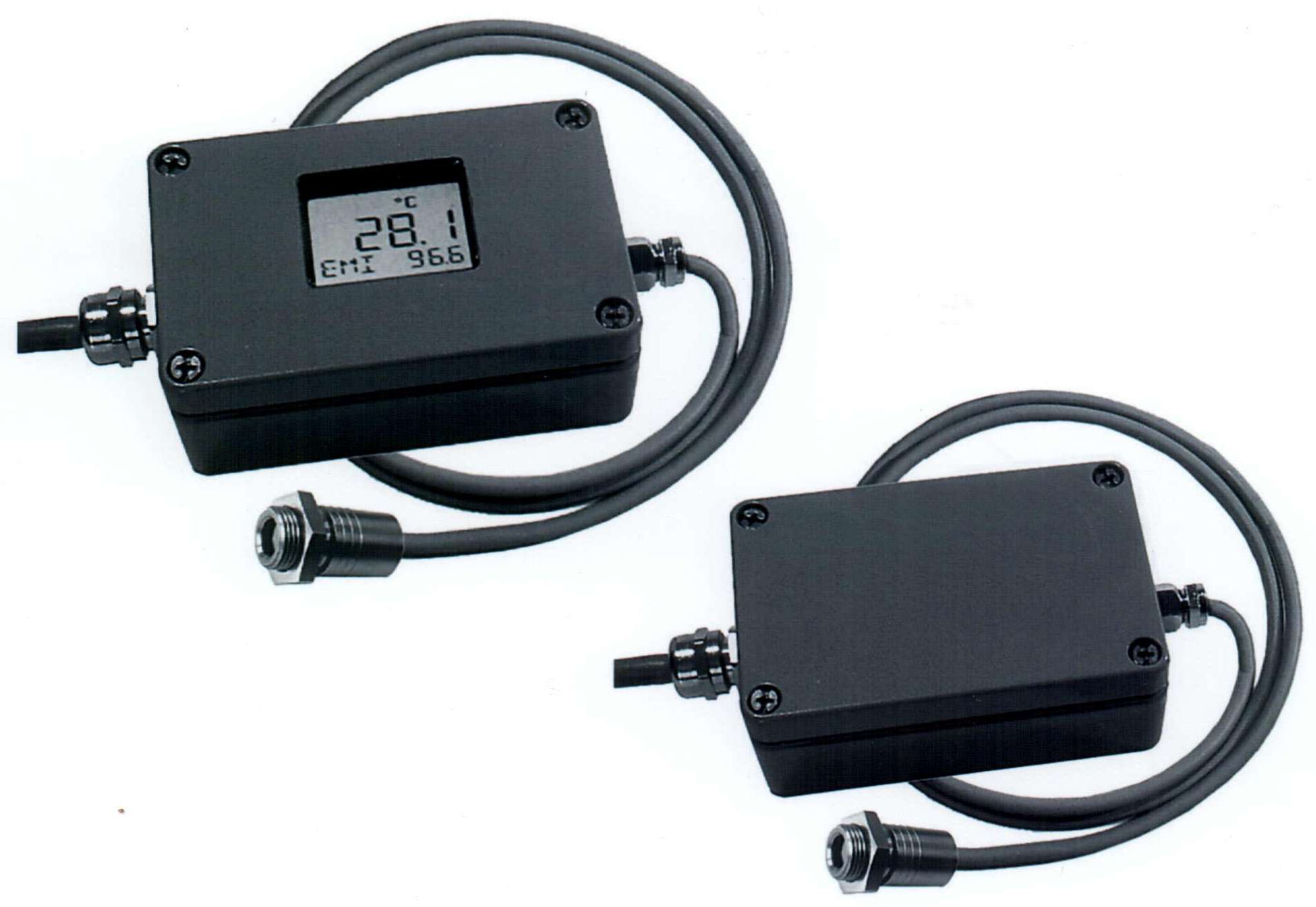

Mikron Instrument Co., Inc.    Oakland, NJ 07436
Jan 27, 2003 Model MI-500N non-contact, infrared sensor measures temperatures between -40 and 1292°F. It can be equipped with 2 different sensor heads with field of view of 10:1 or 2:1. Unit includes relay contact and alarm, switchable analog output, digital RS232 or RS485 UPP® output, built-in digital peak/valley storage, and adjustable emissivity. Additional model, MI-500 provides built-in illuminated temperature display and 3 pushbuttons for adjustment of parameters.

Telatemp Corp.    Fullerton, CA 92831

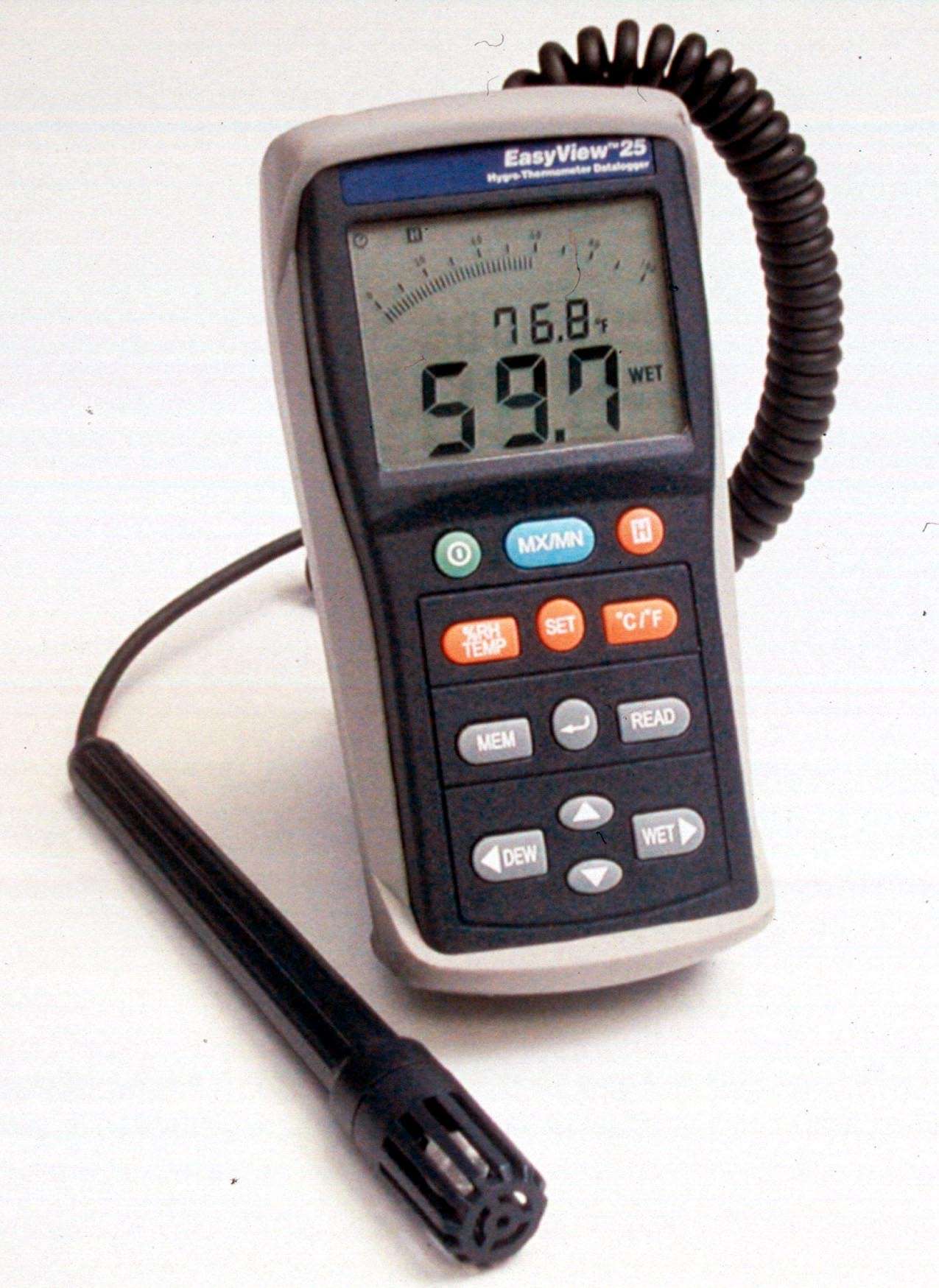

Jan 27, 2003 Portable, multi-functional Hygro-Thermometer provides humidity, temperature, dew point, and wet bulb measurements. Time and date stamped data is available in list or graph form using Windowsâ„¢ compatible software. Unit records humidity levels from 10–95% with accuracy of ±3% and temperature readings from -4 to 140°F with accuracy of ±0.9°F. For processes such as curing, automatic timer function offers elapsed time for min and max readings.

Sealevel Systems Inc.    Liberty, SC 29657
Jan 24, 2003 ULTRA COMM+8.LPCI low-profile PCI bus serial I/O adapter connects to PLCs, barcode readers, scales, and other data acquisition/control devices. Designed using XR16C850 UART, adapter supports standard PC data rates and offers top speed of 460.8 Kbps. It provides 128-byte FIFO for error-free operation. Connection to board is made through 68-pin connector. Single fan-out cable provides connection to each serial port through individual DB-25 male connectors.
