Transducer System addresses DE measurement.
Bently Nevada Corp.
Minden, NV 89423
Feb 07, 2003 Suited for use with medium- and large-sized steam turbines used in power generation service, transducer system utilizes 25 mm proximity probe, extension cable, and Proximitor® sensor. Probe, available in various case styles and thread sizes, replaces existing 25 mm and 35 mm installations. System is compatible with existing Bently Nevada monitoring systems, using same power requirements and providing same output signal as previous DE transducer systems.

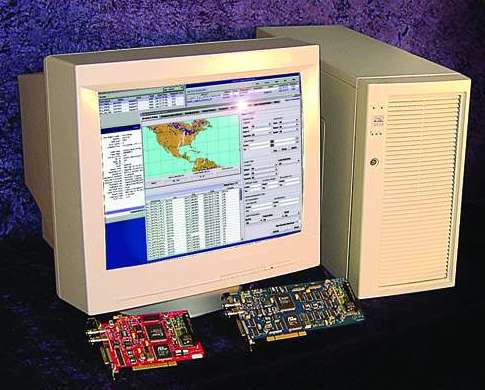

Data Capture System is Linux based.
Boulder, CO 80301
Feb 06, 2003 Vexcel Data Capture System (VxDCS) incorporates disk array, which may contain up to 10 disk units, into rack mountable chassis. System also houses Vexcel Ionâ„˘ circuit boards and PC components. Tape drive, for data archiving, is optional. Machine is available in low-end and high-end configurations at respective processing speeds of 200 and 380 Mbps. Product is suited for direct-to-disk data acquisition and optional retransmission of satellite downlinks.
DC/DC Converter is offered in SIP package.
Boxborough, MA 01719 1316
Feb 06, 2003
Non-isolated NiQor® series, with on-board input and output filtering, eliminates need for I/O capacitors. Point-of-load converter series has 3.0-3.6 V input range and delivers up to 15 A of current at 2.5, 1.8, 1.5, 1.2, and 0.9 V. Unit measures 2.0 x 0.55 x 0.335 in. and can be configured in vertical or horizontal orientations. Module employs synchronous rectification to achieve efficiencies of 92% at full load, allowing full power with no derating at elevated ambient temperatures.

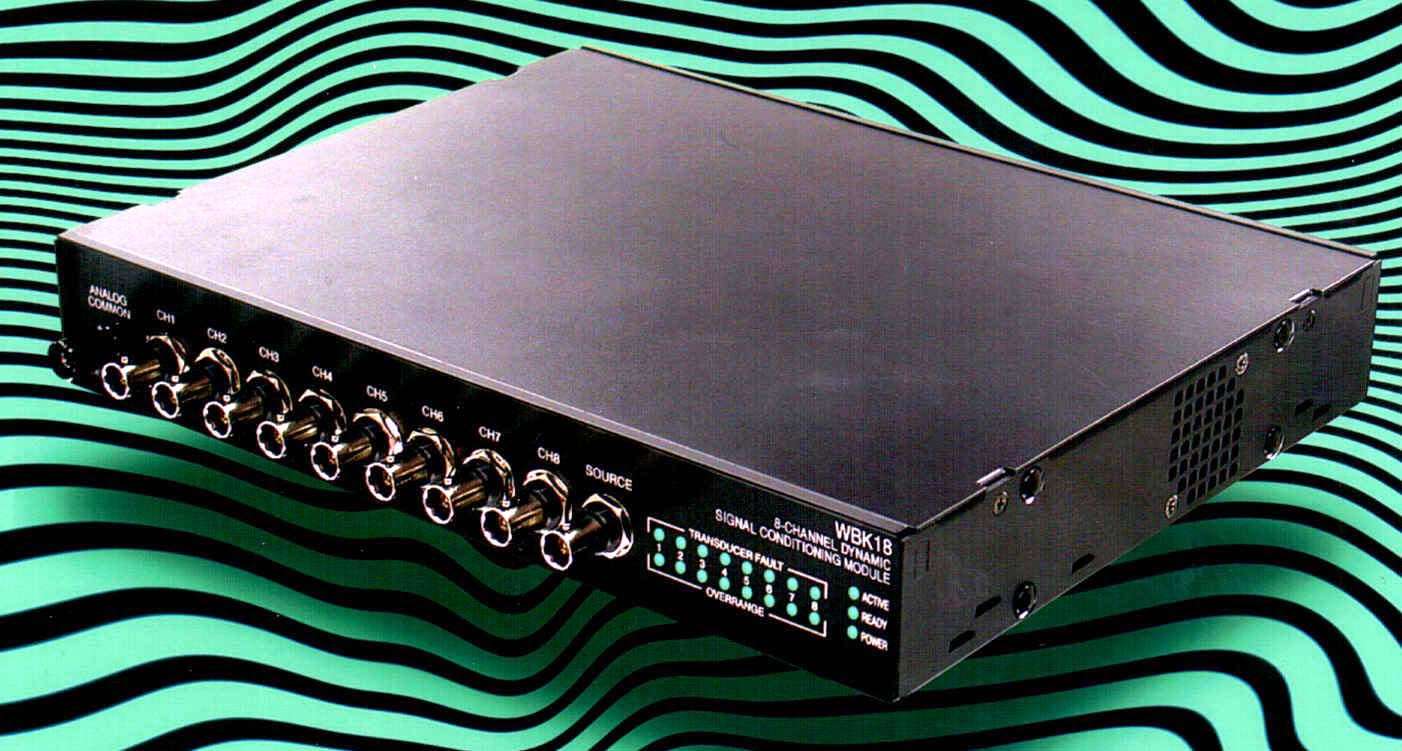

Signal Conditioning Module adds TEDS support.
Bedford Heights, OH 44146-1833
Feb 06, 2003 Model WBK18â„˘ offers 8 channels of dynamic signal input for WaveBookâ„˘ systems. It provides all signal conditioning and biasing required to accept accelerometers, sensors, microphones, or other dynamic input source. All channels are sampled simultaneously to insure phase matching between channels. Up to 8 units can be attached to one WaveBook for total ICP® sensor capacity of 64 channels. WBK18 contains ICP® fault detection with front panel LED indicator.

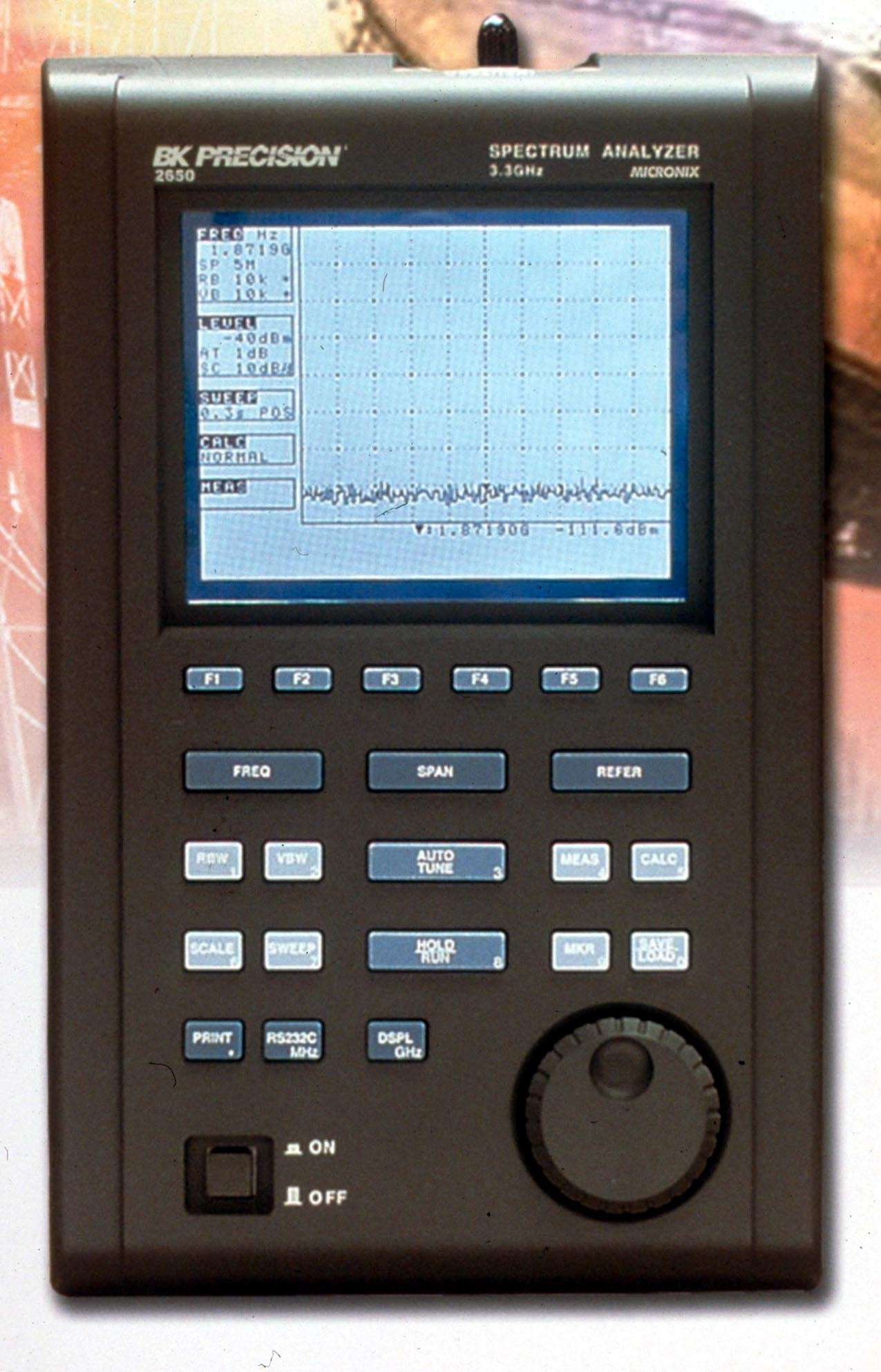

Spectrum Analyzer is PC compatible.
B & K Precision Corp.
Placentia, CA 92870
Feb 06, 2003 Handheld 3.3 GHz Model 2650 evaluates W-CDMA, CDMA, GSM, PDC, PHS, Wireless LAN, 802.11, and Bluetooth systems. Analyzer measures frequency from 50 KHz to 3.3 GHz. Resolution bandwidth is 3 dB and video bandwidth is 100 Hz to 300 KHz. Built-in RS-232 PC interface allows user to control analyzer's settings or sample signals and then save, manipulate, or print imported signals. Front panel display provides Center Frequency, Marker Frequency and Attenuation Levels.

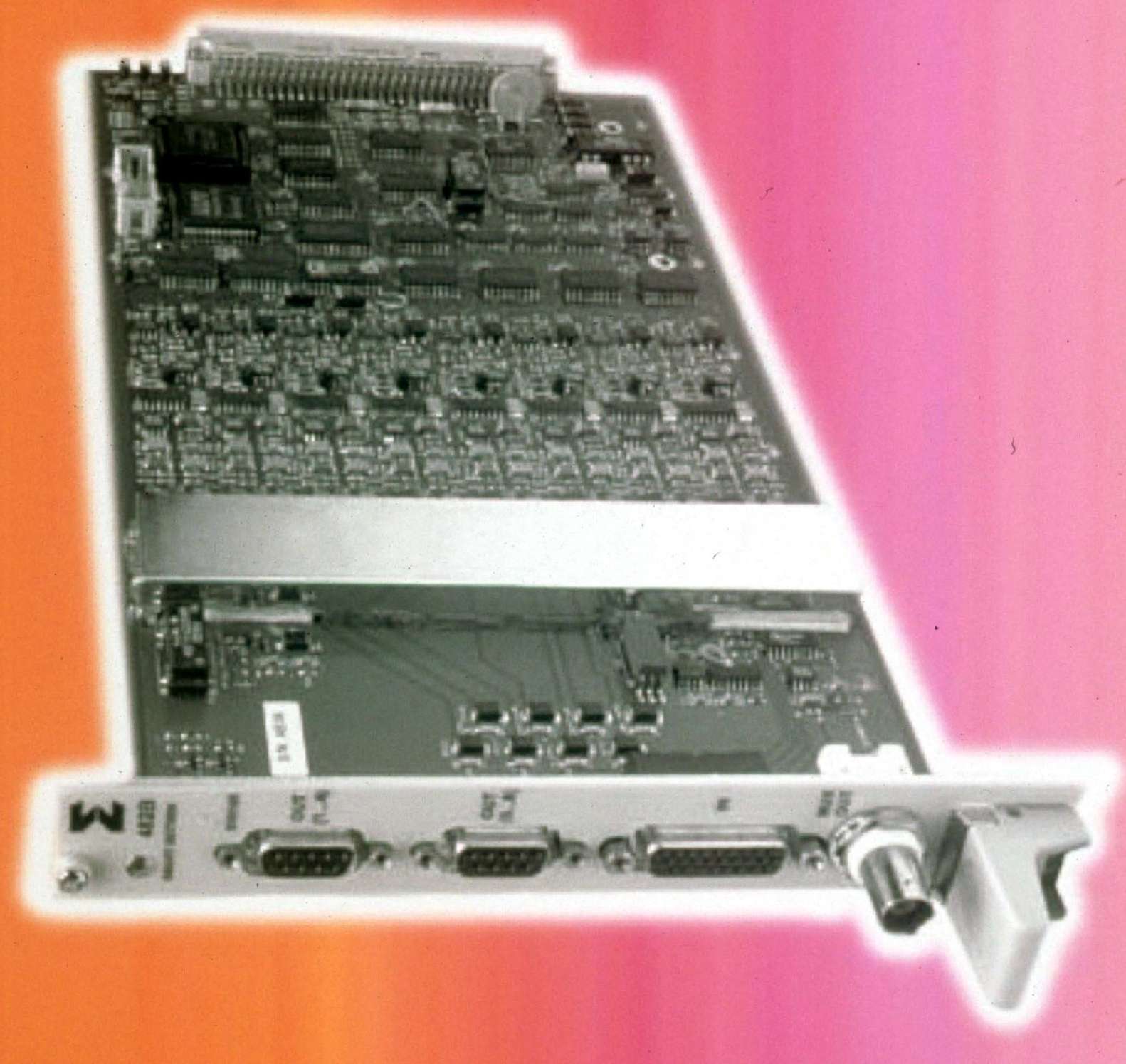

Signal Conditioner suits multi-channel applications.
Meggitt Sensing Systems (Endevco Corp.)
San Juan Capistrano, CA 92675
Feb 06, 2003
Rack-mounted Model 482B, 8-channel amplifier card communicates with SMART ISOTRON® (IEEE P1451.4 TEDS) accelerometers and provides backwards compatibility for use with IEPE transducers and RCCs. Each card has independent microprocessor and programmable gain of 0-100 with accuracy of ±0.5% at 1 KHz for gains greater than 1. Features include selectable Butterworth 2-pole low-pass filter corners at 100 Hz, 1 KHz, 5 KHz, and broadband. Product is suited for modal testing on large structures.
Bench Scale suits retail and shipping manifest systems.
A & D Weighing
Milpitas, CA 95035
Feb 06, 2003
SBR Series comes with LED displays and user-selectable RS-232C interface that is compatible with all major Point-of-Sale and Shipping Manifest Systems. Scales come in 30 x 0.01 lb, 70 x 0.05 lb and 150 x 0.05 lb models, meeting NIST legal-for-trade requirements. SB-30 and SB-70 models have external weight displays attached with 6 ft cable. All 30 and 70 lb scales have 10.2 x 13 in. stainless steel weigh pans.
Transducers and Coating meet governmental/facility edicts.
Franklin, MA 02038
Feb 06, 2003 Oil filled pressure transducers, suited for food and medical extrusion markets, meet FDA requirements 21 CFR 178.3620, 21 CFR 172.878, and 21 CFR 573.680 as well as H1 status from USDA. DyMaxâ„˘ proprietary coating for melt pressure transducer diaphragms adds abrasion resistance without limiting performance. Product does not add to thickness of machined, high-grade stainless steel transducer diaphragms or negatively impact sensitivity.
Capillary Rheometers measure viscosity of molten polymers.
Dynisco Polymer Test Systems
Morgantown, PA 19543 0709
Feb 06, 2003 Series LCR7000 employs 32-bit microprocessor, which enables temperature control, digital recognition of sensor, real-time multi-sensor data output, and dynamic speed range of 20,000:1. Used with LAB KARS data processor/software package, LCR7000 units can provide shear rate vs viscosity, shear stress vs viscosity, and thermal degradation vs time. LAB KARS permits detailed analysis for Non-linear curve fitting, Bagley and Rabinowitsch corrections and SQC reporting.
Gauge provides single-spindle machining diagnostics.
The Modal Shop, Inc.
Cincinnati, OH 45241
Feb 06, 2003
Based on TMS LanSharc(TM) Smart Digital Controller, ePIG(TM) (cutting Energy Process Integrity Gauge) uses statistical vibration analysis to alert machine operators of change in single spindle machine's condition. It runs constant diagnostics during cutting, milling, drilling, and boring without interrupting flow of production. Using non-intrusive vibration sensor, ePIG analyzes cutting energy during machining cycle and ambient rotating energy while machine idles.
Digital Panel Meter suits process control industry.
Automatic Timing & Controls
Lancaster, PA 17605
Feb 05, 2003 Model 3830 SMART Rate/Totalizer panel meter includes up to one Form-A, 5 A and three Form-C, 5 A output relays. Microprocesser-based process controller offers 4 analog outputs or RS 232 serial communication. Active in background or foreground, 6-digit totalizer delivers scaled pulsed output to PLCs or other controllers. Unit is available in various DC voltage or current inputs: 0â€“5 Vdc, 0â€“10 Vdc, and 4â€“20 mA. Aluminum case and NEMA 4 front bezel are standard.
Analyzer measures coatings of small to mid-sized parts.
Ametek, Inc. / EDAX
Mahwah, NJ 07430
Feb 05, 2003 Equipped with laser for rapid sample positioning, CoatMaster 350 XRF coating thickness measurement machine is offered with choice of collimators of various sizes and Z motorized stage. Software is included for coating thickness measurements, compositional analysis, report generation, element identification, and/or bath analysis measurement. Unit may also be used for jewelry analysis to provide precious metals determination.

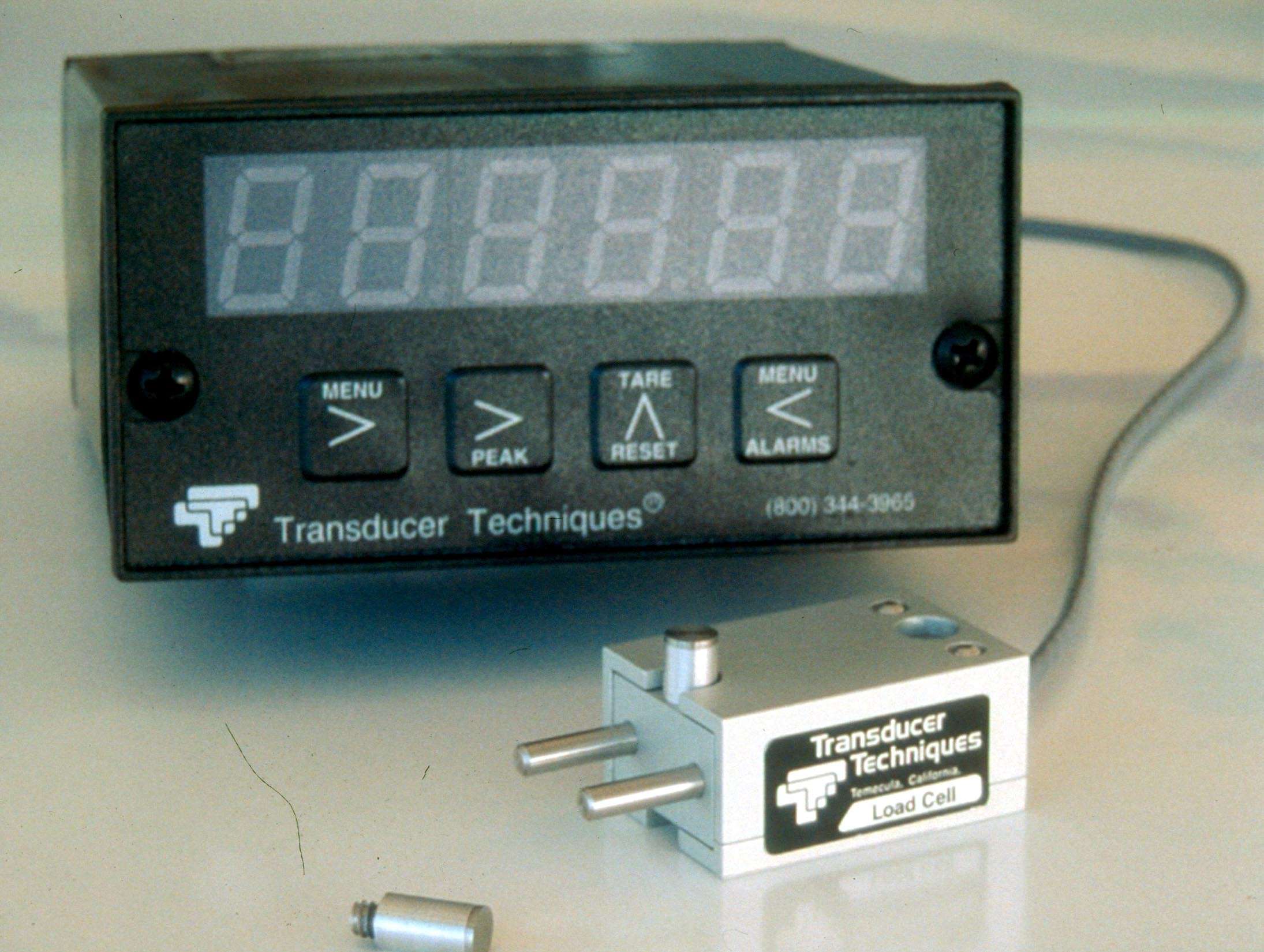

Sensor/Meter System measures force and weight.
Temecula, CA 92590
Feb 04, 2003 System GS0/DPM-3 combines GS0 Precision Gram Sensor and Model DPM-3 Panel Mount Meter. DPM-3 can be scaled to 5 digits, samples 60 readings per second, and features analog output and true peak reading capability. GS0 tension and compresssion sensor is offered in ranges from 10â€“1,000 g. Accuracies are consistent with strain gage based load cells.

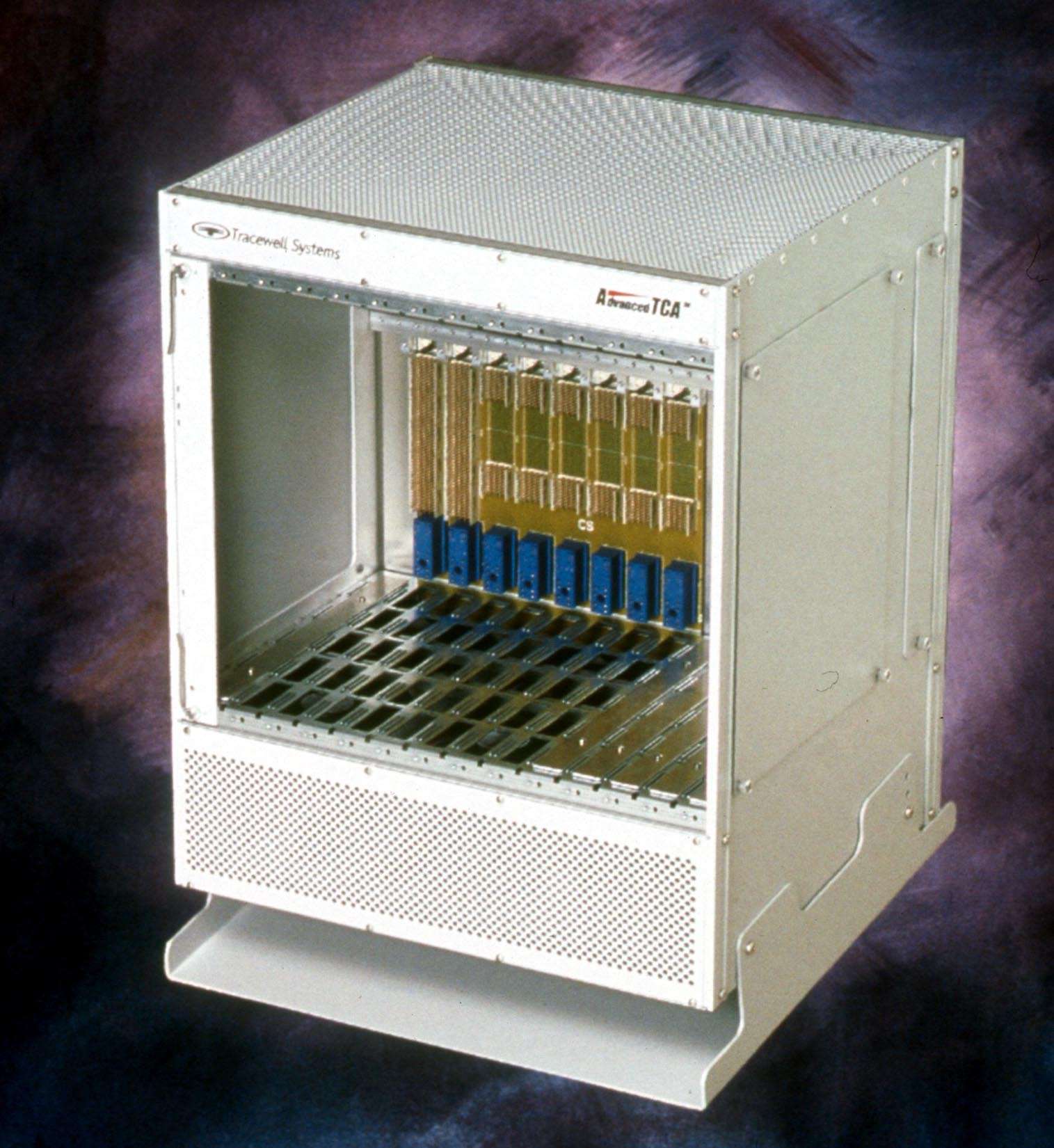

Test/Development System provides PICMG® 3.0 functionality.
Tracewell Systems, Inc.
Westerville, OH 43081-8846
Feb 04, 2003 T-Frameâ„˘ is optimized for development of AdvancedTCA main boards and rear transition modules. Eight-slot unit is 12U high and mounted on tilt stand for easy access to cards. Cooling is provided by 3U lower air chamber and 1U upper air chamber, each with 6 axial double-bladed fans. Shelf Management Controller monitors, controls, and assures proper operation of boards and shelf. Backplane supports dual star switch fabric routing at data rates of 3.125 Gbps and higher.

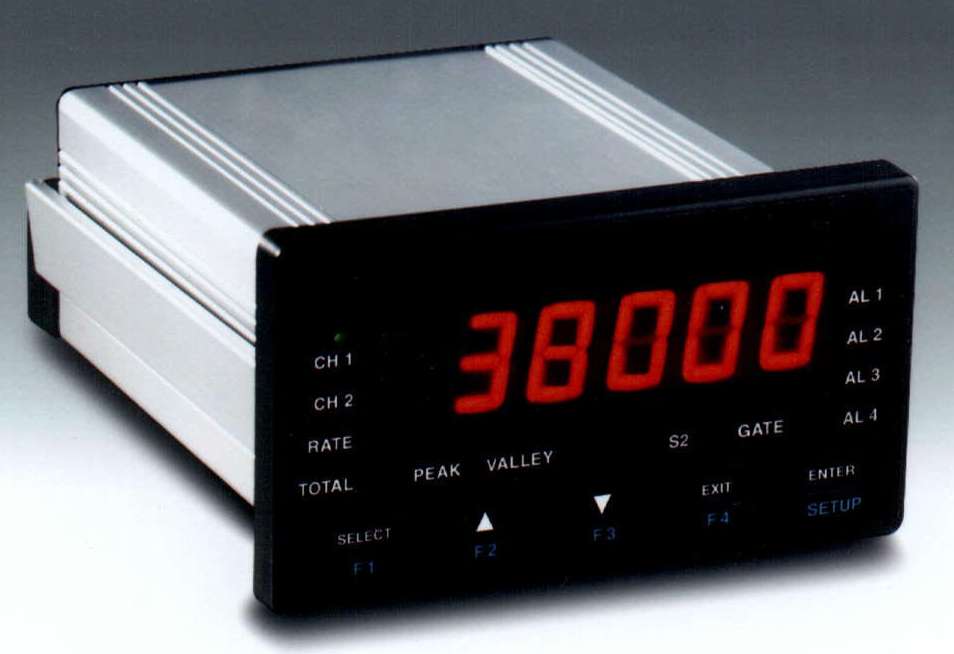

Frequency Input Rate/Totalizer suits process control industry.
Automatic Timing & Controls
Lancaster, PA 17605
Feb 04, 2003 Model 3870 SMART digital panel meter series, with 6-digit totalizer mode, can incorporate 1 Form-A, 5 A relay output and 3 Form-C, 5 A relay outputs. With 4 analog outputs or RS 232 serial communications, microprocesser-based process controller provides rate measurements with pulse rate inputs as low as 1 pulse per 100 sec. Setup entries include time base scale, offset, and K factor. Offerings include 16-point linearization, NEMA 4 front bezel, and aluminum case.
Interface/Monitor converts HART to Modbus RTU.
Moore Industries International, Inc.
North Hills, CA 91343
Feb 04, 2003
HIM Smart HART Loop Interface and Monitor is offered with HART-to-MODBUS option that converts digital signal from smart HART instrument to standard MODBUS RTU protocol output. HIM provides for redundant MODBUS communications link identical to primary link. Converter provides 4-20 mA analog output that may be mapped to any HART variable. Dual alarm trip outputs can be individually configured to warn of high/low process conditions.

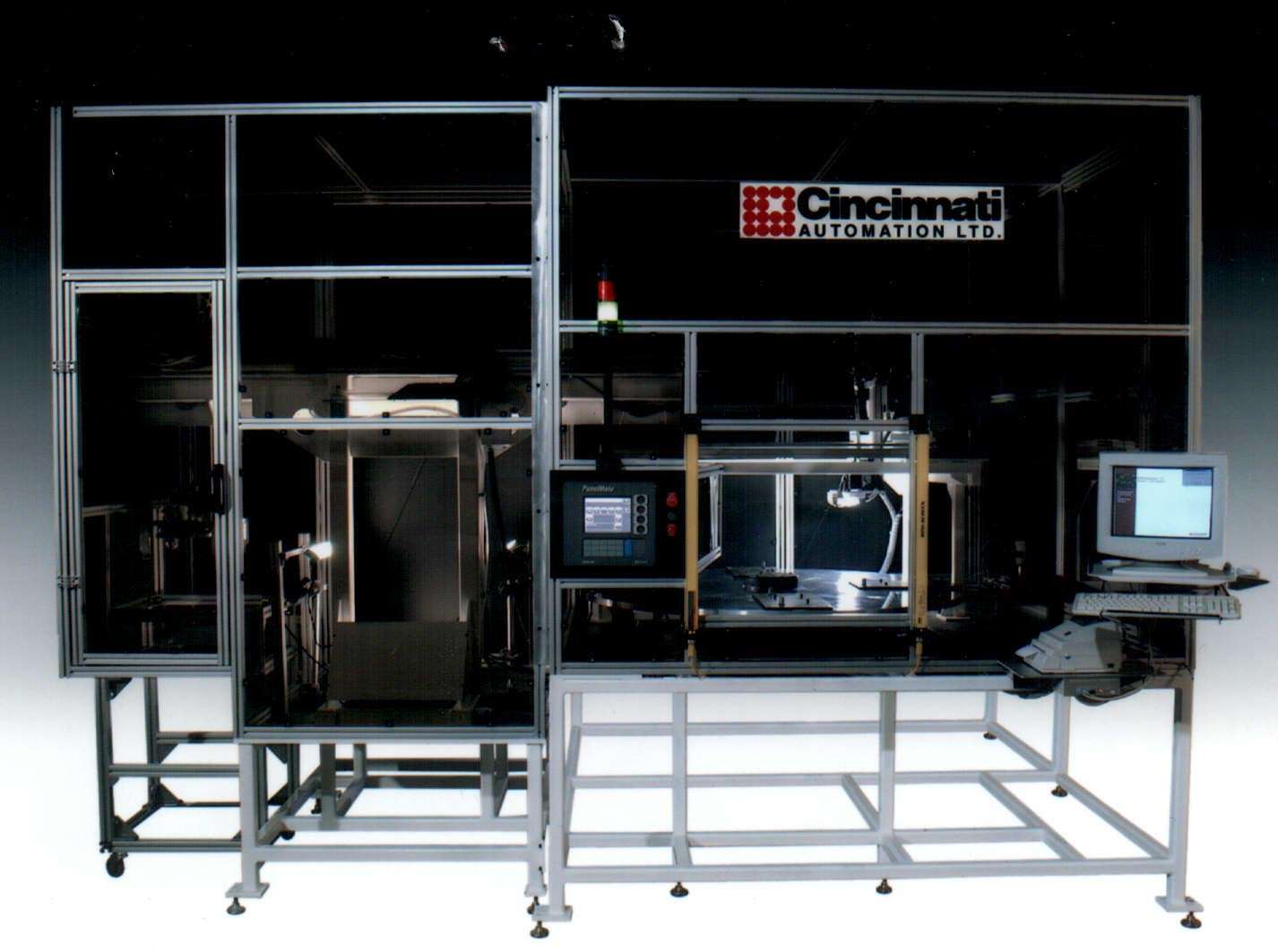

Inspection System is custom designed.
Cincinnati Automation Ltd.
Erlanger, KY 41018
Feb 04, 2003 Automated Inspection Machine includes EZVisionâ„˘ machine vision system with camera optics and lighting, plus necessary material handling needed for user's application. EZVisionâ„˘ system includes application engineering for lighting, optics, and methodology inspection setup. Mechanical configurations vary, and include vision-guided robots, feeder bowls, part-positioning tracks, conveyors, and laser making.
Tester troubleshoots analog and digital components.
Huntron Instruments, Inc.
Mill Creek, WA 98012
Feb 04, 2003 Dual channel, bench-top Tracker 2700 has 21 selectable voltage/resistance ranges available at 5 frequencies for total of 105 combinations of voltage, source resistance, and test frequency. With SigAssistâ„˘, users can select optimal ranges for testing and analyze dynamic changes in signatures. Variable 5 Vdc generator lets users test SCRs, optical couplers, and other gate-fired devices in both on and off states.
Mezzanine Module operates at sampling rates up to 105 MHz.
Upper Saddle River, NJ 07458
Feb 04, 2003 Model 6236 Velocity Interface Mezzanine module is based on Model AD6645-105 14-bit monolithic A/D converter. Two-channel VIM-2 board features configurable XC2V1000 or SC2V3000 FPGA. Both A/D converter outputs are connected directly to FPGA to facilitate compute-intensive signal processing functions. FPGA can deliver wideband A/D data or processed results directly to processor board through dual 400 MB/sec mezzanine interfaces.
Current Monitor measures high currents with fast risetime.
Ion Physics Corp.
Fremont, NH 03044
Feb 04, 2003 Model CM-1-MGS5 Wide Band Current Monitor features risetime of 20 nanoseconds and 3 dB bandwidth, which extends from 0.7 Hz to 25 MHz. Sensitivity is 10 mV/A and saturation is 5 As. Using inner diameter of 3.2 cm, unit monitors AC and pulse currents without physically contacting conductor, eliminating ground-loops, and interference noise. Electrostatically shielded, monitor provides output voltage that is equal to current times sensitivity.
