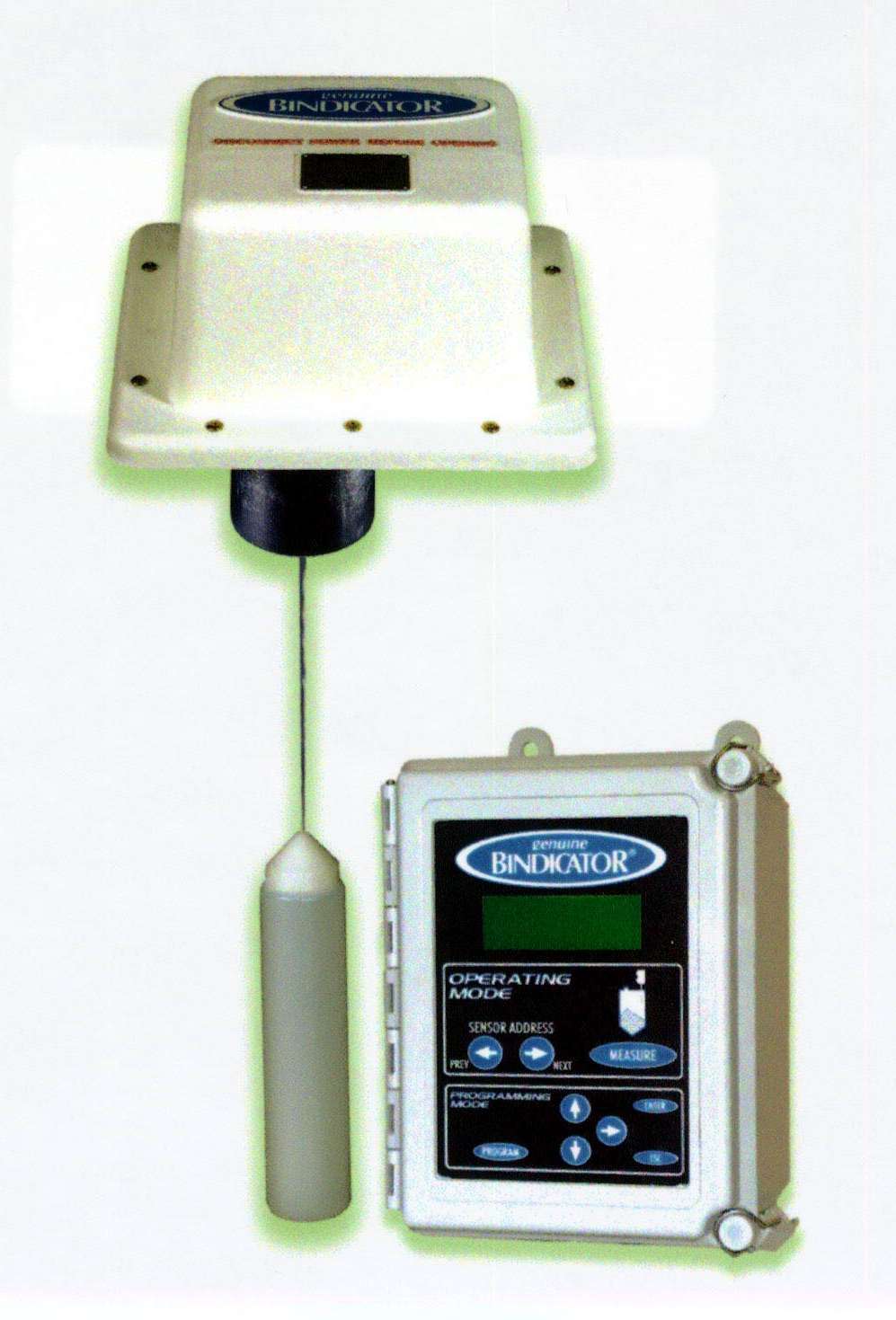

Inventory Management System handles up to 99 level sensors.
Spartanburg, SC 29306
Mar 28, 2003 Model GP-4 Yo-Yo Inventory Management System consists of GP-4 weight-and-cable level-measurement sensor and NEMA 4x Remote Display. Sensor has 4â€“20 mA output with adjustable span, RS-485 communication, and optional integral telephone modem. Silos up to 100 ft can be measured with resolution of 0.39 in. With Remote Display, up to 99 GP-4 sensors can be remotely set-up and configured, and measurement can be requested and displayed.

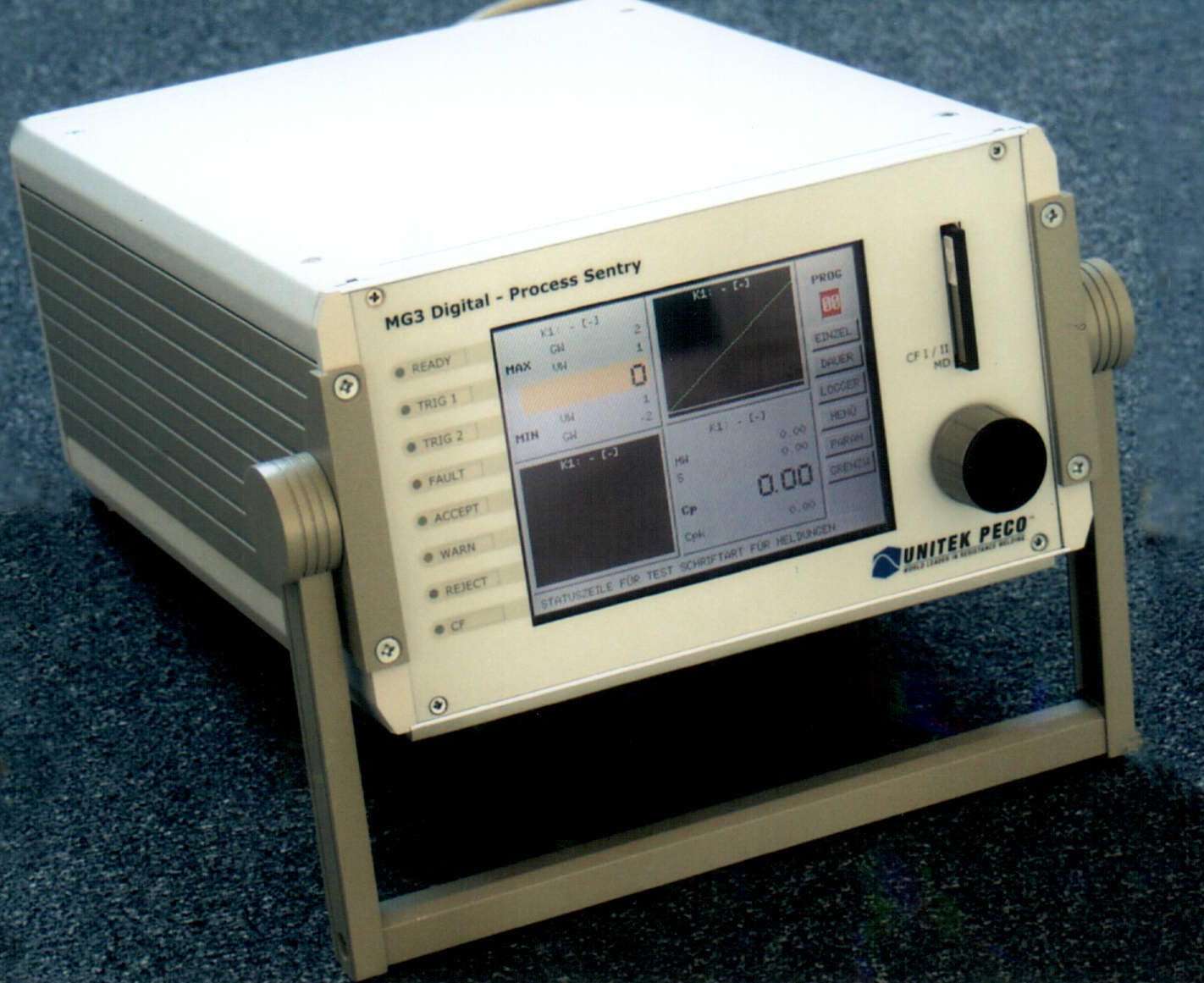

Welding Monitor displays 2 stations simultaneously.
Unitek Miyachi Lasers
Monrovia, CA 91017 7133
Mar 27, 2003 Offered in 3 models, compact, color, digital Series MG3 measures and monitors current, voltage, and displacement. Configurable to meet user requirements, product provides 2 channels of current and voltage monitoring (standard) plus one or 2 channels of displacement monitoring, depending on model. Features include flexible, full color run screen, zoom function, and built-in SPC capabilities, including histograms and run charts.
Data Acquisition Recorder has Verilinx certification.
Leesburg, VA 20175
Mar 27, 2003
Graphic Series 5000 provides FTP Ethernet and Modbus TCP/IP communications to Allen-Bradley SLC Series PLC. Total sample rate is 125 mS for up to 48 channels. In addition to standard displays of bar, chart, and numeric formats, custom plant mimic displays can be created. MVI71-MNET module acts as gateway between Modbus TCP/IP Ethernet network and Allen-Bradley SLC PLC backplane. Data transfer from SLC processor is asynchronous from actions on Modbus TCP/IP network.

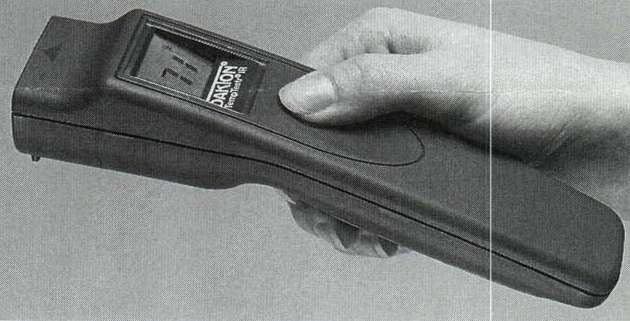

IR Thermometer utilizes non-contact measurement.
Scientifics, A Division of Edmund Scientific
Tonawanda, NY 14150-6711
Mar 27, 2003
Offering one-handed operation, TempTestr(TM) infrared thermometer provides response times to 500 msec for 95% response. With 0 to 500°F range, instrument offers accuracy and repeatability down to ±2% or ±3°F. Spectral response varies from 7-18 µm, and emissivity is preset at 0.95. Product is suited for troubleshooting electrical equipment, measuring objects too hot to touch, or checking contaminant-free substances.
Universal Testing Machine includes handheld controller.
Tinius Olsen Testing Machine Co., Inc.
Willow Grove, PA 19090 0429
Mar 27, 2003 Hydraulically powered Super L UTM provides critical materials testing up to 600,000 lbf. Portable controller and LCD display enables handheld operation at load frame. It allows positioning of adjustable crosshead, prior to test, and opening and closing of optional hydraulically actuated grips. Testing software can be added for data acquisition and computer-assisted control of machine. Accuracy is within ±0.5% of indicated load from 0.2â€“100% of capacity.

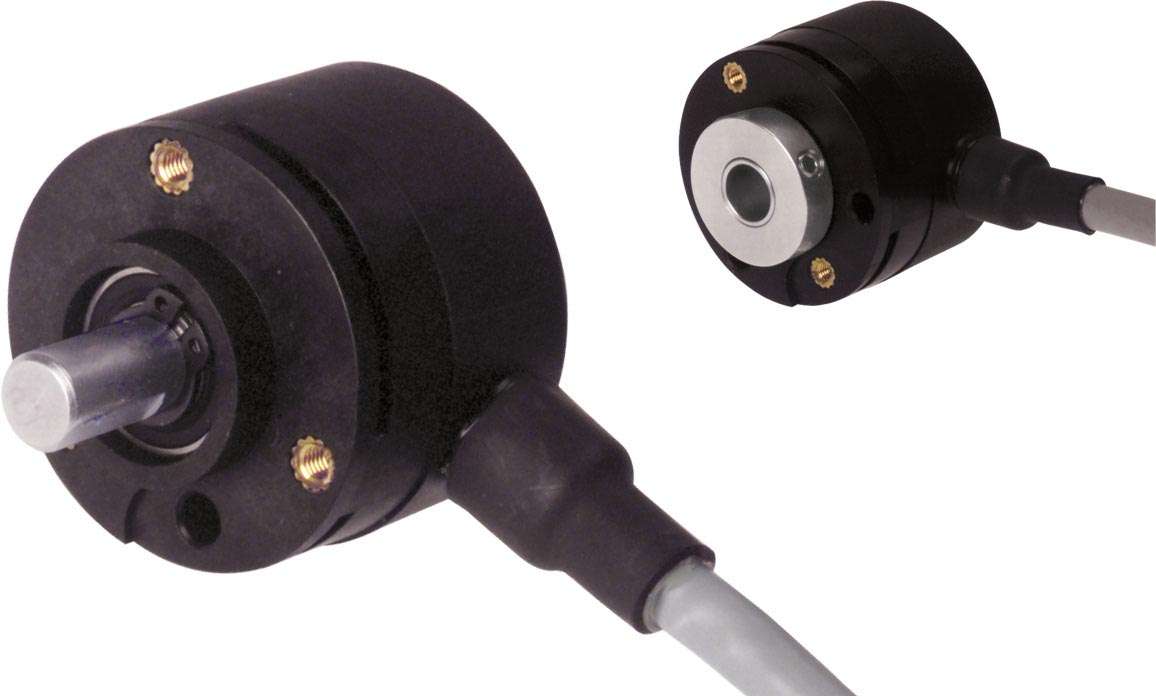

Composite Encoder is offered in two styles.
Plymouth, MN 55441
Mar 27, 2003 Enclosed within 1.5 in. dia housing made of composite material, KĂĽbler by TURCK 37 series is offered in shaft and hollow shaft versions. Series operates up to 194°F and is shock proof and resistant to EMI. Model 3700 is available with resolutions up to 1024 PPR in quadrature, and is offered with 5â€“30 V differential line driver interface. Cable egress employs Tube Tech® cable connection technology. Temperature and aging compensation is standard.
Digital Multimeter offers optional data acquisition package.
Wavetek Meterman Test Tools
Everett, WA 98206-9090
Mar 27, 2003 Data Acquisition Package comprises Model 38XR 10,000â€“count, full-function digital multimeter with Model 38-SW Microsoft Windows-based data logging software and PC interface cabling. DMM provides basic and specialty measurements including temperature, frequency, 4-20 mA control loop percent, duty cycle, true rms current draw, and voltage supply. Software logs, displays, and stores data from all measurement functions for later retrieval or further analysis.

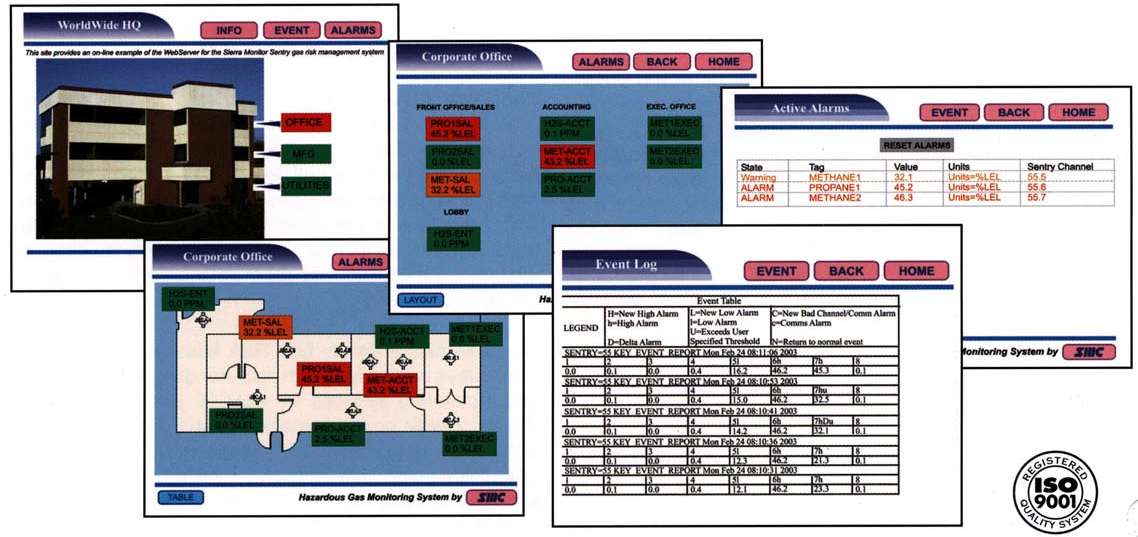

Monitoring System displays hazardous conditions via Internet.
Sierra Monitor Corp.
Milpitas, CA 95035 6825
Mar 27, 2003 Sentry WebServer provides graphical display of hazardous gas conditions using Microsoftâ„˘ web-browser. Safety data is presented visually on any PC, located anywhere in plant or remotely. Product enables users to web-browse to system data from LAN, WAN, or over Internet. Configurable graphic color changes are displayed as events, and all current alarms are displayed and updated on one web page. Event log provides access to history.

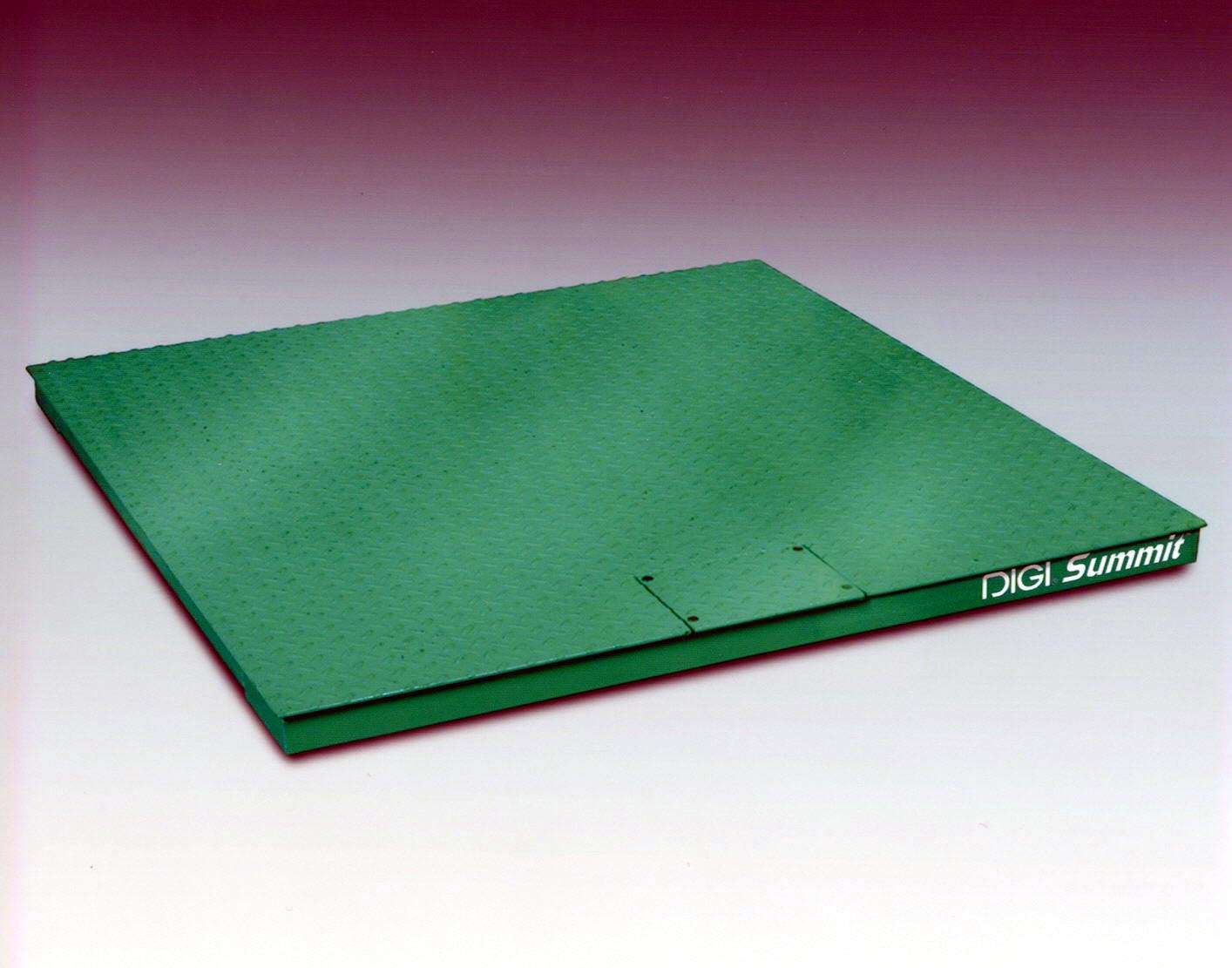

Low-Profile Floor Scale suits light industrial applications.
Rice Lake Weighing Systems
Rice Lake, WI 54868
Mar 27, 2003 Summit 3000 features DIGI® green diamond treadplate with rugged steel deck. Four NTEP-certified alloy steel load cells are recessed within steel channels for protection on all sides. Standard 20 ft cable exits from center allowing cable to be routed out any side for connection to indicator. Top-access junction box is housed in ABS enclosure, protected from industrial abuse. Rigid polyurethane rubber feet are fully adjustable. Scale is certified in 2,000â€“10,000 lb capacities.
Remote Display automatically adjusts intensity.
Rice Lake Weighing Systems
Rice Lake, WI 54868
Mar 27, 2003 SURVIVOR® LaserLightâ„˘ uses IntelliBrightâ„˘ sensing feature that provides optimal intensity for viewing under all ambient lighting conditions. Viewable from distances over 220 ft, LED display provides image of weight values, while non-glare lens prevents wash-out in direct sunlight. Displays are available in 4 or 6 in. digit sizes with annunciators for gross, net, lb, and kg. Heat-resistant enclosure opens from bottom to allow access to electronic components.
Power Meter offers high-voltage measurement display option.
Power Measurement Ltd.
Saanichton, BC V8M 2A5 Canada
Mar 26, 2003 ION 6200â„˘ panel-mount meter, when equipped with Megawatt option, can measure electricity in megawatt/kilovolt range and offers solution for utility-management applications such as energy-cost tracking, load profiling, and substation panel metering. Bright LED display allows readability in adverse lighting conditions. Unit provides 4-quadrant power, demand, energy, power factor, and frequency measurements.
Suspended Solids Meter uses non-hazardous ultrasound.
Markland Specialty Engineering Ltd.
Rexdale, ON M9W 4M2 Canada
Mar 26, 2003 Model 502 can replace nuclear type density meters. It provides LCD local readout of percent solids, 4-20 mA output, two set-point relays, and RS-232/485 serial port. Sonic transducers fit flush with pipe wall, eliminating intrusions into flow, which avoids fouling with stringy sewage sludge. Microprocessor is housed in NEMA 4X enclosure and features diagnostics, pushbutton calibration and dynamic damping.
Substation Multiplexor includes 10-Base T Ethernet option.
Westbury, NY 11590
Mar 26, 2003
Model SB1-16 multiplexes 16 serial ports to one master port, providing ability to communicate and switch between multiple serial devices. Optically isolated, 19 in. rack mount unit includes two RS485 and fourteen RS232 ports, built-in isolated 33 or 56 k modem, and Modem Manager® technology. Equipped with multi-level password protection, product has universal design for use with any serial IED, and enables devices with different baud rates to share same modem.
Spectroradiometer features 200 to 1100 nm coverage.
International Light, Inc.
Newburyport, MA 01950 4092
Mar 25, 2003 Model IL RGS-2 UV-VIS-NIR offers better than 2 nm resolution, and >10-5 stray light rejection. It includes full radiometric/photometric software for controlling hardware and data analysis, and has USB interface. Incorporating gratings that are 600 g/mm holographic optimized at 300 nm and 600 g/mm holographic blazed at 500 nm, spectroradiometer provides ±0.1 nm wavelength repeatability and ±0.3 nm accuracy.
Optical Encoder suits dynamometer applications.
Sensor Developments, Inc.
Orion, MI 48359
Mar 25, 2003
Suited for company's non-contact, infrared rotary torque sensor line, 1024 optical encoder provides accurate means of measuring torque and angle in dynamometer applications. Sensor includes digital infrared transmission system, which provides immunity to noise sources such as eddy current brakes or AC motors. It also offers analog output to represent torque load, and is designed as drop-in replacement for existing rotary transformer torque sensors.
Coordinate Measuring Machine handles complex geometries.
Carl Zeiss IMT Corporation
Brighton, MI 48116
Mar 24, 2003 SPECTRUM multi-sensor, bridge-type CMM is equipped with rotary dynamic sensor system, which offers ±180° of bi-directional rotation and permits indexing steps of 2.5° to reach 20,736 individual positions. ViSCAN optical probe and non-contact trigger probe allow operator to perform optical measuring tasks in all directions. X, Y, and Z measuring ranges are offered from 700 x 700 x 600 mm to 1000 x 2100 x 600 mm. Product also has C99 intelligent scanning controller.

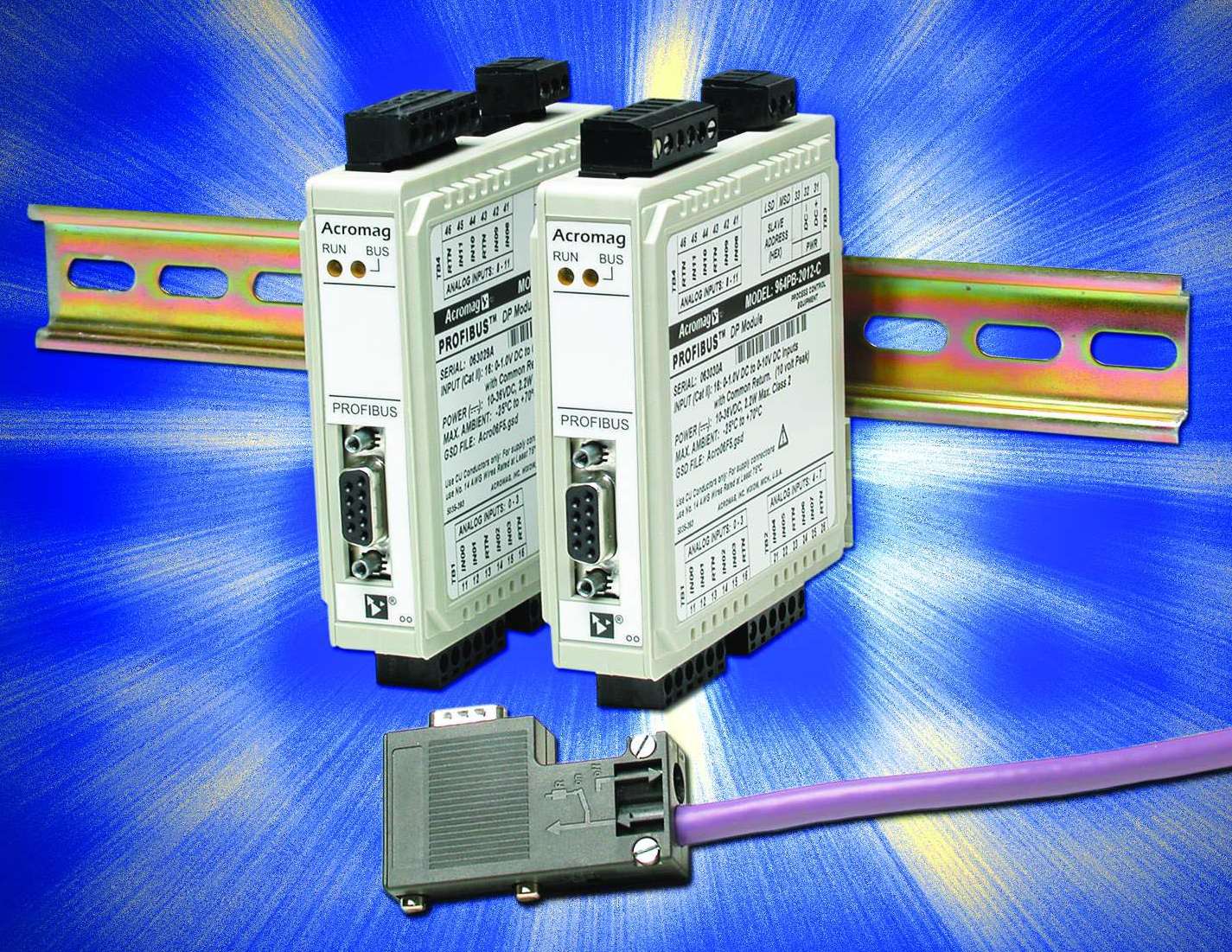

RTD Input Modules interface sensors to Profibus network.
Wixom, MI 48393 7037
Mar 24, 2003 BusWorks® 966PB interfaces up to 6 RTD or resistance signals directly to Profibus-DP network. Each module contains 16-bit A/D converter, microcontroller for intelligent signal processing, and SPC3 ASIC to communicate with network. Ranges are user selectable for platinum, nickel, or copper RTD sensors and 0â€“500 ohm signals. Three-way 1,500 Vac isolation between input, network, and power circuits protects against surges and ground loops. Units support communication rates up to 12 Mbaud.
Portable Vibration Analyzer has dual-channel functionality.
Emerson Process Management
Knoxville, TN 37932
Mar 24, 2003
Model 2130 RBMconsultant® PRO data collector/analyzer offers embedded intelligence that guides users through data collection process and dual channel functionality for simultaneous gathering of any two vibration signals. Product automatically compensates for actual turning speed when performing in-field alarming, allowing for proper diagnosis of problems. Unit offers color display, low-noise circuitry, and PeakVue® technology, which filters out normal rotational vibration.
Tensile Tester Retrofit Kit provides linearity of 0.005%.
Electro Standards Laboratories
Cranston, RI 02921
Mar 24, 2003 Tensile Tester Retrofit Kit suits manual or motorized test frames. It can include ESLSense I-Plus intelligent indicator, load cell and extensometer, and GUI software. DataView Lite-Plus software provides file management, expanded statistical reporting, real-time data plotting, expanded report generation and zooming, password security, and graphical user interface. Kit includes auto cell identifcation, dual line 24-character VFD display, and bipolar 6-digit readout.

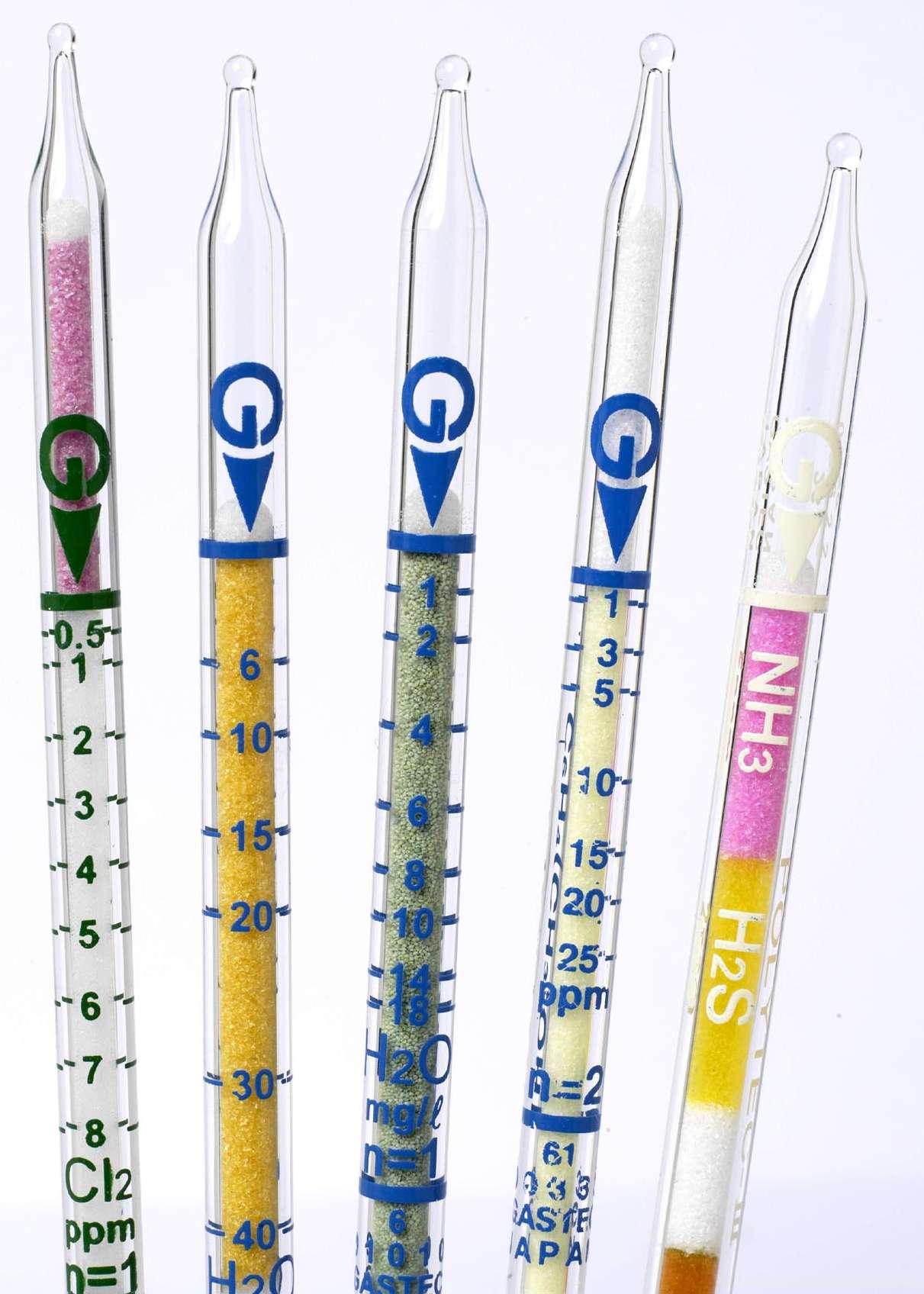

Detector Tube measures trace amounts of acetaldehyde.
Tampa, FL 33634
Mar 20, 2003 In one pump stroke, Low Range Gastec Acetaldehyde Detector Tube No. 92L detects a measurement range of 1-20 ppm. System includes piston pump that produces on-the-spot results for 500+ substances in air, water, and soil.
