Spirax Sarco, Inc.    Blythewood, SC 29016
Mar 20, 2003 DIVAâ„¢ direct in-line variable flowmeter automatically compensates for changes in steam density, providing 4-20 mA and pulsed outputs proportional to mass or energy flow, as well as real-time display of steam pressure, temperature, and flow rate in English and Si units. Meter configuration is via on-board display and code-protected keypad. Unit can be mounted in vertical or horizontal lines, and requires straight line runs of 6 pipe diameters upstream and 3 downstream.

Dwyer Instruments, Inc.    Michigan City, IN 46361 0373

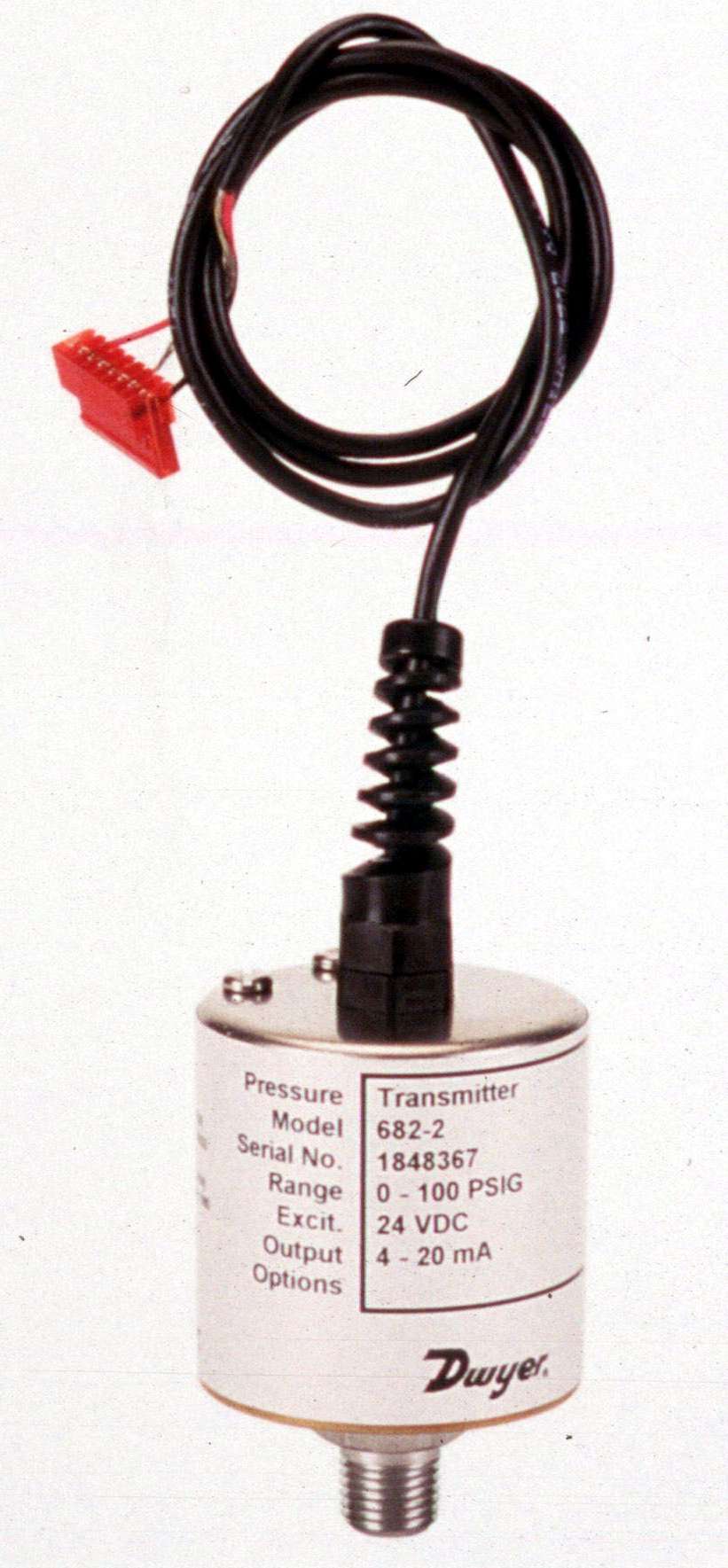

Mar 20, 2003 Series 682 withstands environmental effects such as shock, vibration, extreme temperature, and EMI/RFI. Enclosed in welded stainless steel housing, electronics and capacitive sensor meet NEMA 4 protection ratings. Units feature external zero and span adjustments and reverse polarity protection. Temperature range is -4 to 176°F, with accuracy of ±0.13% FS, supply voltage of 9-30 Vdc, and 4-20 mA output. Several models offer ranges from 0-25 psi to 0-10,000 psi.

Ducon Technologies, Inc.    Farmingdale, NY 11735
Mar 19, 2003 Intelli-CEMS Continuous Emission Monitoring system measures SO₂, CO, NO_x, O₂, and CO₂. CEMS consists of Insitu Probe type multi-gas analyzers, By-pass Extractive analyzers, Gas Velocity Monitors, and DAQ and EPA reporting software; all with dynamic online zero and span verification and remote diagnostics access. COMS consists of laser-based, path-independent opacity monitor, which is vibration resistant and has zero pipe fiber optic technology.

Silvertronic USA    Windsor, CA 95492 8125

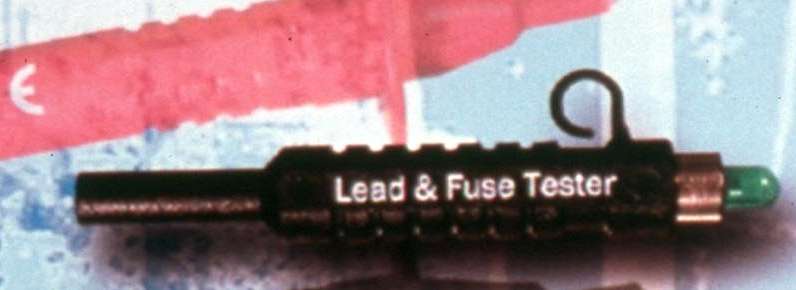

Mar 19, 2003 Fused Probes and Test Accessories, compliant with International Safety Standard IEC61010, utilize ceramic fuses rated up to 10 A located near probe tips. With performance ratings from 1,000 V CAT III and 600 V CAT IV to 300 V CAT III, design includes flexible double insulated silicone leads that resist corrosive chemicals. Deluxe Test Probe Kits include two probes and one pair of heavy-duty insulated alligator test clips, while standard kits include paired fused probes.

Zeiss, Carl, Industrial Measuring Technology (IMT) Corp.    Minneapolis, MN 55428
Mar 19, 2003 SPECTRUM CMM, equipped with rotary dynamic sensor system, measures complex geometries. RDS articulating probe offers ±180° of bi-directional rotation and permits indexing steps of 2.5° reaching 20,736 individual positions. X, Y, Z measuring ranges are from 700 x 700 x 600 mm to 1000 x 2100 x 600 mm. Accuracy up to MPEe 2.5 + L/250 is guaranteed over temperature range of 64 to 75°F. C99 Intelligent Scanning Controller permits future upgrades to scanning probes.

White, O.C., Co.    Thorndike, MA 01079

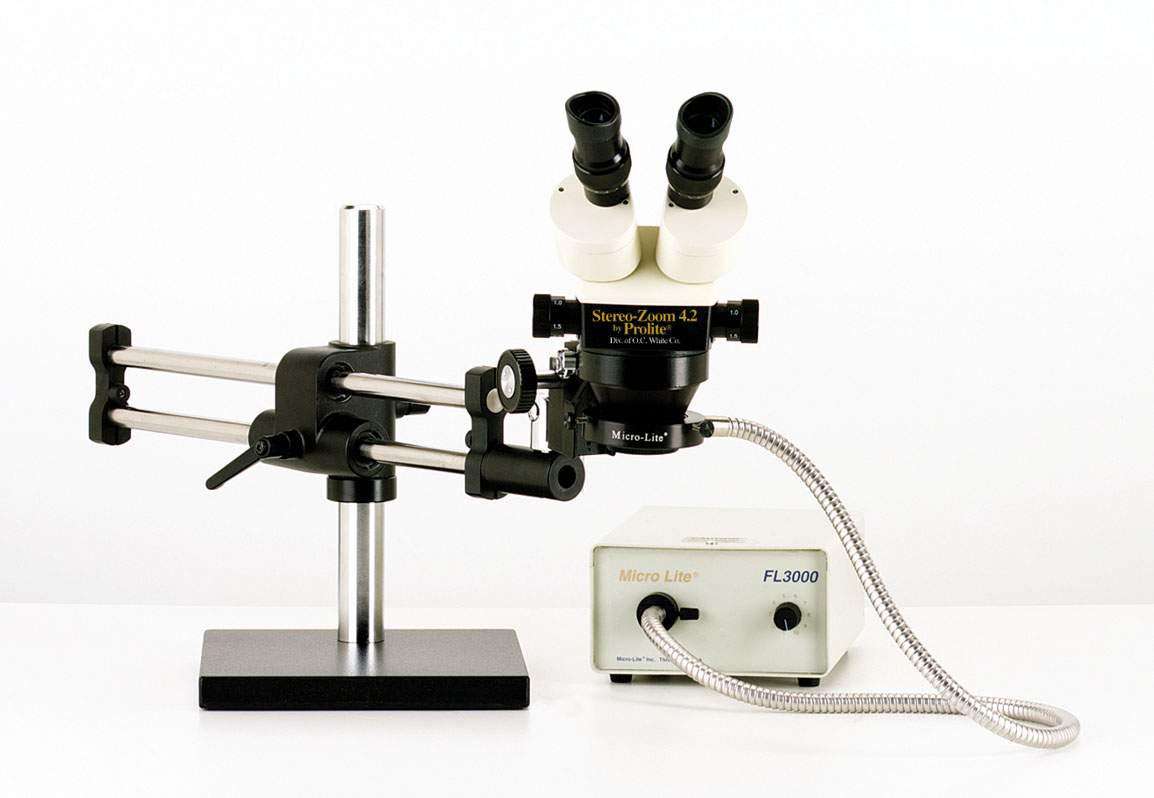

Mar 19, 2003 ProLite® microscope line includes 3-D binocular and Stereo-Zoom trinocular systems, and Video-Zoom, with range of features and accessories including extra-large 22 mm eyepieces, coated prism optics, parfocal zoom, 90 mm working distance, 45° eyepieces, and protective eyeguards. Units are mounted on stainless steel, double glide arm, with ball bearings for smooth travel. Carbon-impregnated conductive coating minimizes ESD danger.

Intelligent Quality Systems    Toledo, OH 43624
Mar 19, 2003 See-Moreâ„¢ Automated Optical Comparator gauges precision-machined parts, threaded fasteners, plastic bottles, precision-molded parts, prototypes, and difficult materials, such as glass and crystal, with accuracy of 0.0005 in. or better. It can be connected to factory networks or data archival systems. Wide-Eyeâ„¢ lens system offers large field of view with deep working range. See-More provides automatic QC data collection and archival, report generation, and GUI.

Setra Systems, Inc.    Boxborough, MA 01719
Mar 18, 2003 With ±1% FS accuracy, Model 265 provides positive and negative pressure sensing ranges from 0.25–100 in. of water column, with 10 psi overpressure on all ranges. Unit can be configured with choice of 0–5 or 0–10 Vdc voltage output or 4-20 mA current output and 12 or 24 Vdc excitation. With 1.89 x 2.74 x 1.64 footprint, it is suited for temperatures from 0 to 150°F. Applications include static pressure and air velocity control and stack gas monitoring.

Starrett, L.S., Co., The    Athol, MA 01331 1915
Mar 18, 2003 Ergonomically shaped ProSite® Measuring Tape incorporates over-molded grip for comfortable hold. High-visibility, impact-resistant case incorporates cam-operated lock for positive locking, shock absorbing blade bumper cushions, heavy-duty, nylon-coated blade, and Tough Tip® Stainless Steel Blade Protector.

Acromag, Inc.    Wixom, MI 48393 7037
Mar 17, 2003 Series PMC480 features high channel density to conserve PMC slots on VMEbus and CompactPCIâ„¢ boards by processing more I/O functions from single card. Counter/timer modes offer support for internal/external triggering, while quadrature measurement supports X1, X2, X4, and index pulse decoding. Model PMC482 has ten 16-bit counters with TTL interface, PMC483 has four 16-bit TTL counters and four 32-bit RS422 counters, and PMC484 provides six 32-bit RS422 counters.

EHM, Inc., Ergonomics & Occupational Health    Sterling, VA 20165-0848
Mar 17, 2003 Model KPI-800 Piezo Audio Indicator is 26 mm in diameter and 22 mm high with lead pitch of 15 mm. Parts are epoxy sealed at base and are available in both PC-mount and wire-lead versions. Standard operating voltage is 6–18 Vdc.

Parvus Corp.    Salt Lake City, UT 84115 2913
Mar 17, 2003 Providing non-blocking switching performance, 10/100 Ethernet Switching Hub provides method for networking up to five embedded computing devices with 10BaseT or 100BaseTX Ethernet connections. Measuring 3.550 x 3.775 in., device is available in 2 configurations for PC/104-based systems and 2 models that work with embedded computer environments. PC/104 models include 104-pin/socket header, while other 2 models include 2-pin Molex connector.

IOtech, Inc.    Bedford Heights, OH 44146-1833

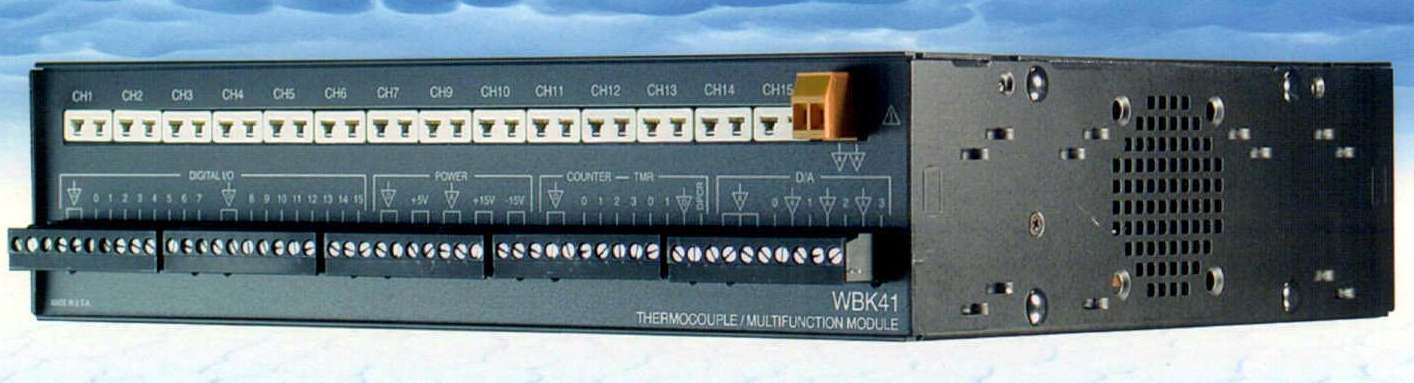

Mar 17, 2003 Models WBK40â„¢ and WBK41â„¢ provide measurement capabilities for Ethernet-based 1 MHz WaveBook/516Eâ„¢ by adding up to 224 thermocouple inputs. WBK40, 14-channel thermocouple modules have on-board, 16-bit, 200 kHz A/D converters that measure TC inputs synchronously with WaveBook's 1 MHz measurements. Multifunction WBK41 modules, similar to WBK40 modules, include 14 thermocouple inputs, but also offer 40 digital I/O lines, 4 counter inputs, and 2 timer outputs.

TURCK, Inc.    Plymouth, MN 55441

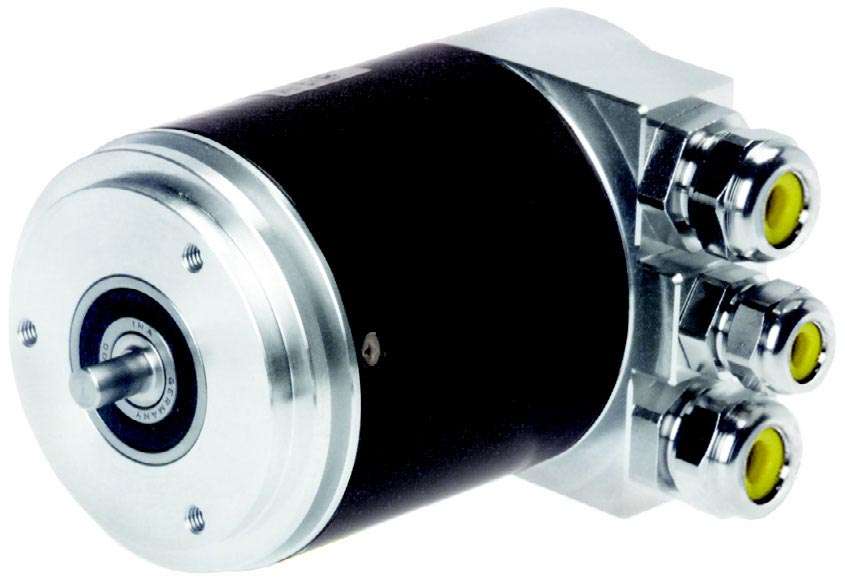

Mar 17, 2003 Kübler by TURCK multiturn absolute encoders are offered in shaft and large bore hollowshaft models, with Class 2 Profibus-DP fieldbus communication protocol, supporting user specific configuration and diagnostic programming. T-coupler box includes address DIP switches and on-board terminating resistor. Units are rated IP65 and IP66 with shaft seals. Non-contact Intelligent Sensing Technology and Integrated Technology use custom ASICs with all components mounted on single PCB.

Berkeley Varitronics Systems    Metuchen, NJ 08840-1217

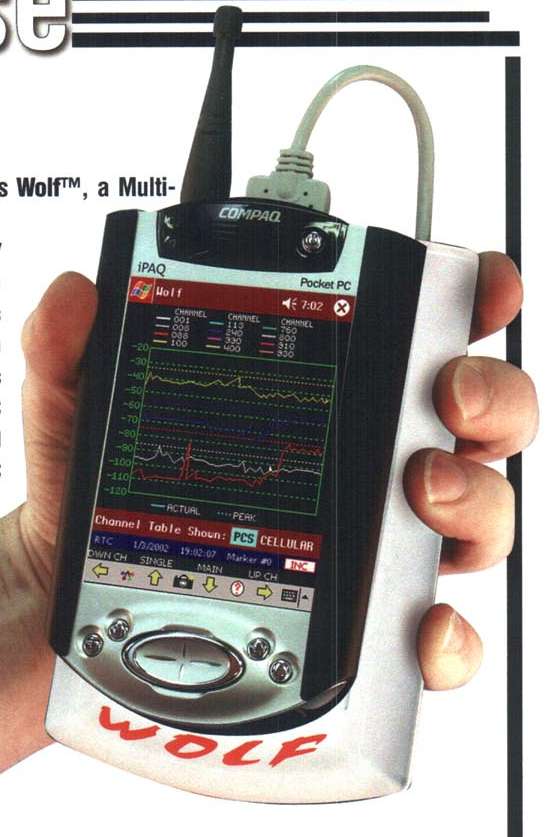

Mar 14, 2003 Wolfâ„¢ multi-band, continuous wave system works with HP/ Compaq's iPAQ® PocketPC® in sweeping, analyzing, and optimizing PCS and Cellular networks. Receiver performs full spectrum sweeps including channel/compare, adjacent channel, best servers, and scan table measurements. Wolf utilizes Microsoft's® PocketPC 2002® interface for navigation, display and storage of all collected data.

Rosemount, Inc.    Chanhassen, MN 55317

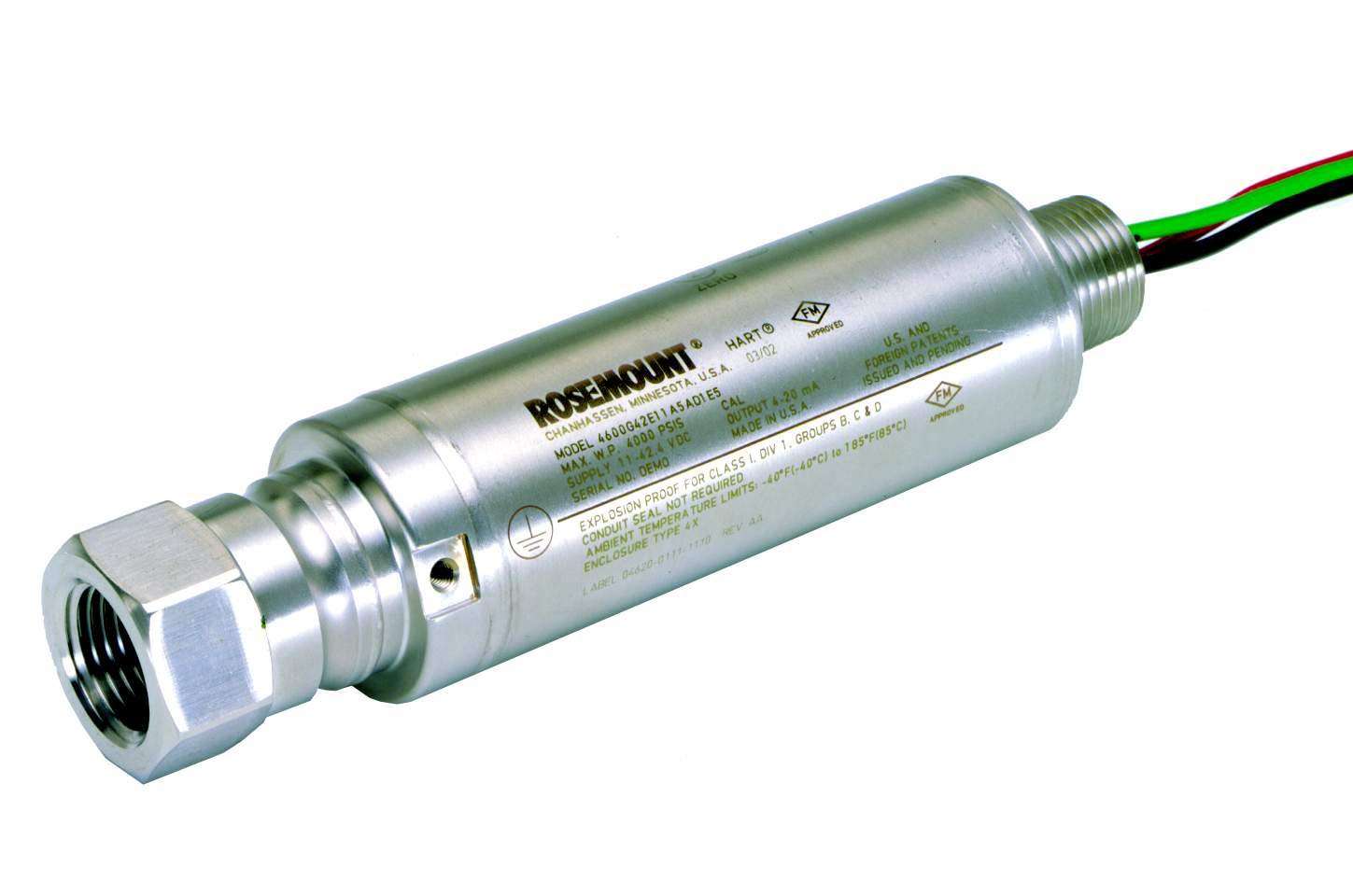

Mar 14, 2003 Model 4600 all-welded, stainless steel, oil and gas transmitter withstands harsh conditions found in high pressure, offshore applications. Dual process sealing provides safety for panel applications. Capacitance sensor features integral temperature measurement. Rangeability of 30:1 provides flexibility for changing well pressures. Three ranges cover pressures from 130-20,000 psi. Three-year set-and-forget stability guarantee reduces frequency of calibration.

PCB Piezotronics Inc.    Depew, NY 14043 2495

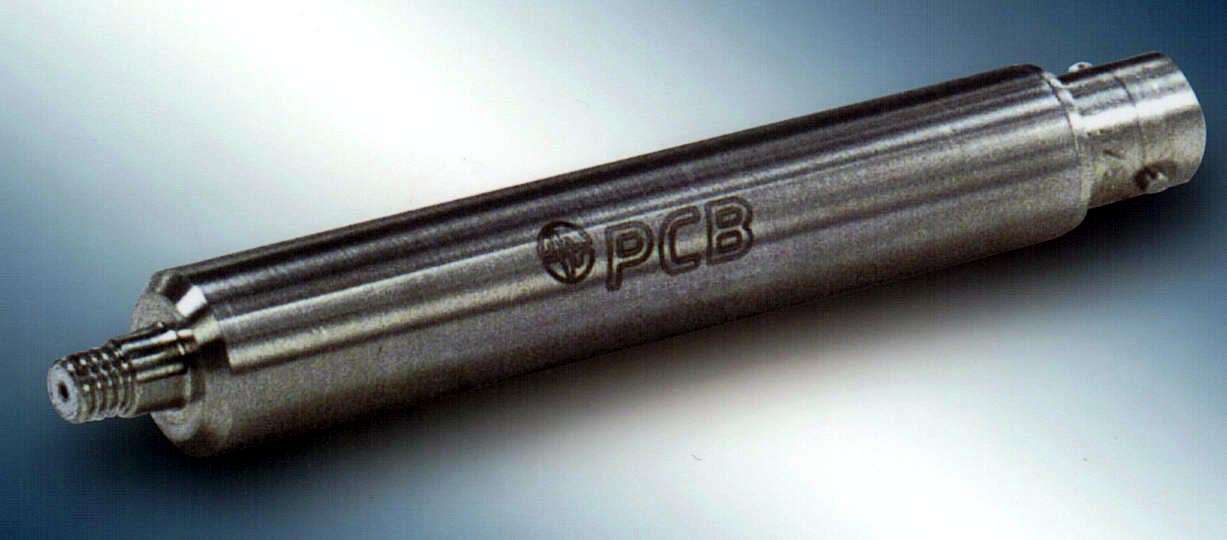

Mar 14, 2003 Series T422 converts charge mode piezoelectric sensor signals into low-impedance voltage signals for operation with ICP® sensor signal conditioners or readout devices which have ICP® sensor input. TEDS interface chip enables identification, location, sensitivity, and other information relative to attached sensor to be stored. Devices allow use of extreme environment charge mode sensors in large channel count modal analysis and structural testing.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Mar 14, 2003 Series IP converts current input signal to linearly proportional pneumatic output pressure. Product incorporates built-in volume booster, field reversibility, and flexible zero and span adjustments. NEMA 4X enclosure allows unit to be used in splashdown and outdoor applications. Unit offers ¼ in. female NPT pressure connections, ½ in. electrical connections, 4-20 mA input signal, and repeatability of 0.5% of span. Operating temperature of -20 to +140°F.

Berkeley Varitronics Systems    Metuchen, NJ 08840-1217
Mar 13, 2003 Yellowjacket 802.11b v3 (YJ3) incorporates calibrated 802.11b receiver and software that provides full spectrum analysis, Peak Search and Peak Hold functions, and 3 distinct waveform traces. Multipath analysis offers Delay Spread in chips or nanoseconds and provides Q-Factor Signal Quality Bar. Each AP detected appears as different color in appropriate channel. Screen Snapshot function prints any Yellowjacket spectrum screen for later analysis.

AMETEK Test & Calibration Instruments    Largo, FL 33773
Mar 13, 2003 Multi-function unit tests electrical switch contact resistance, crushability of core cable, and compressibility of insulated wires. It measures interruptions in flow of electrical current in cable, wire, or switch sample subjected to compressive forces applied by materials-testing system. Suited for checking integrity of plastic insulation when force is applied, unit indicates which conductors have shorted together or broken through outer insulation.
