PCB Piezotronics Inc.    Depew, NY 14043 2495

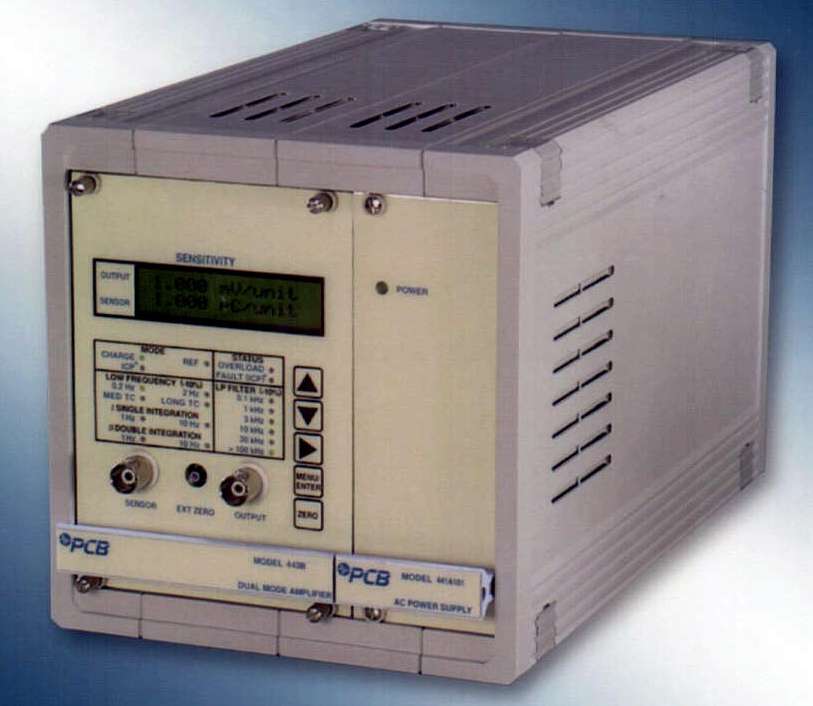

Apr 08, 2003 Multi-function 443B01 signal conditioner offers menu-driven display with keypad or RS-232 serial communication. Logical operation adjusts input sensor sensitivity, gain, and charge conversion with 4-digit accuracy. Additional offerings include selectable low and high pass filtering, sensor fault detection, and sensor and amplifier overload detection. With modular architecture, product is suited for use with charge mode, ICP®, and TEDS IEEE P1451.4 compliant vibration sensors.

Controlotron Corp.    Hauppauge, NY 11788
Apr 08, 2003 System 1020 clamp-on, transit-time flow meter offers flow rate accuracy of 1% or better for applications in 1-360 in. dia pipes. With Wide-Beam(TM) transducer technology, unit provides bi-directional flow measurement up to 40 ft/sec. Product is available as integrated Flow Display Computer/Transmitter and sensor package or with remote, wall-mounted, one- or two-channel Flow Display Computer/Transmitter.

PCB Piezotronics Inc.    Depew, NY 14043 2495

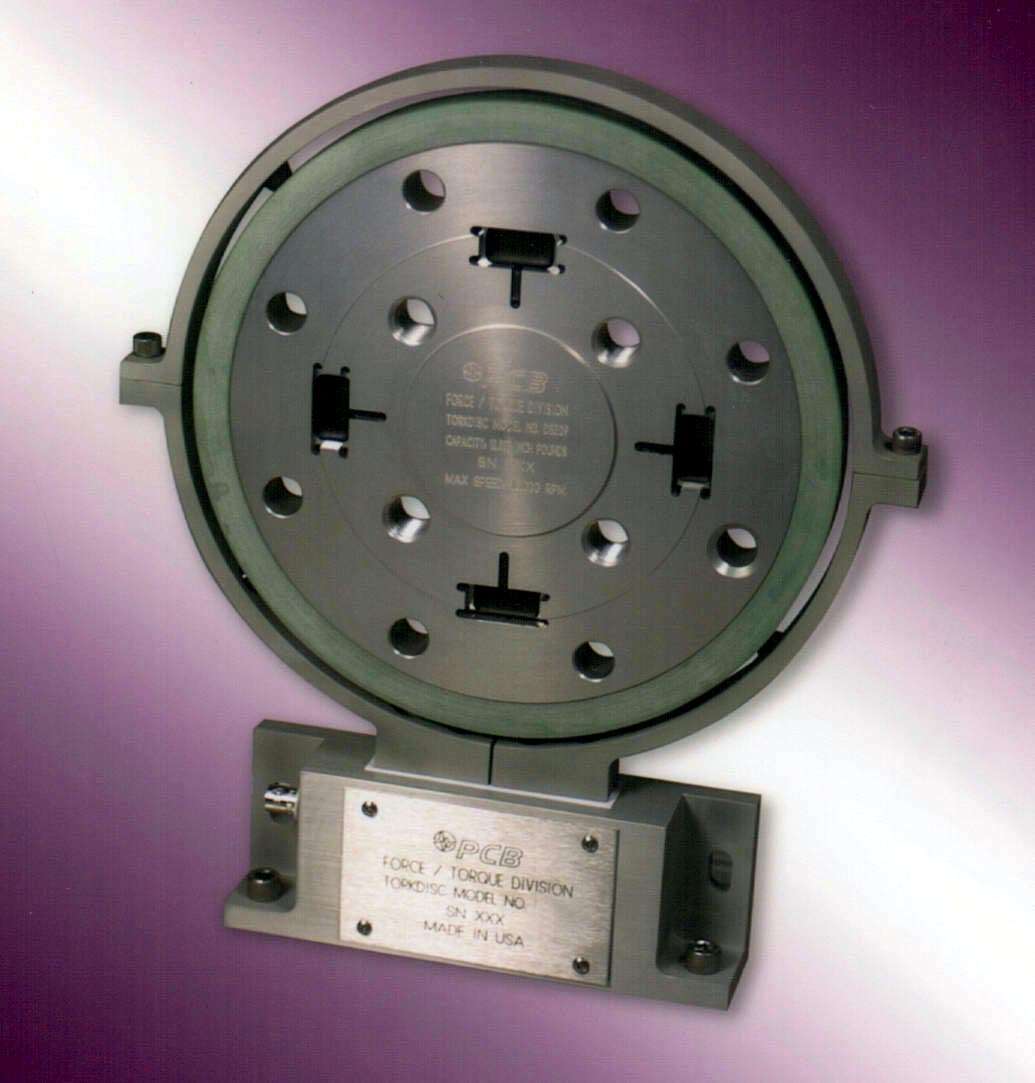

Apr 08, 2003 Torkdisc® Series 5310 rotary torque transducers range in capacities from 150,000–225,000 lb-in. and have speed rating up to 6000 rpm. They utilize strain-gage sensing technology combined with wireless, digital, signal telemetry to transmit measurement signals to adjacent receiver. Features include high stiffness, low rotating inertia, RF interference immunity, and low sensitivity to extraneous loads. Voltage and current outputs are available.

Barton Instrument Systems, LLC    City Of Industry, CA 91749-1882
Apr 08, 2003 Model 232C DP Indicator is actuated by dual liquid-filled bellows with integral temperature-compensation feature. It exhibits accuracy of ±2% FS with DP ranges from 50 in. WC to 100 psid. Bellows withstand repeated over-ranges without change in calibration. Hermetically-sealed, integral torque tube eliminates possibility of leakage and need for lubrication. Pointer traverses 270° arc in uniform or square root reading.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Apr 08, 2003 CAM-Wafer performs QC, research, cleanliness, and analytical functions on various of substrates, including silicone wafers with up to 12 in. dia. Using analysis software, product can save images of drops, do statistical analysis on data, and export data to spreadsheet. Unit enables exact positioning of substrate, has open design, and uses CCD Camera and software to measure contact angle. Machine comes with one 4 in dia stage and one 6, 8, or 12 in. dia stage.

Omega Engineering, Inc.    Stamford, CT 06907
Apr 08, 2003 Series PX4200 uses solid-state silicon strain gages on Sapphire carrier, which is glass bonded to titanium diaphragm. All-titanium wetted parts provide corrosion resistance to harsh industrial chemicals. Transmitters are stable over wide temperature range.

Teradyne, Inc.    Boston, MA 02118 2238

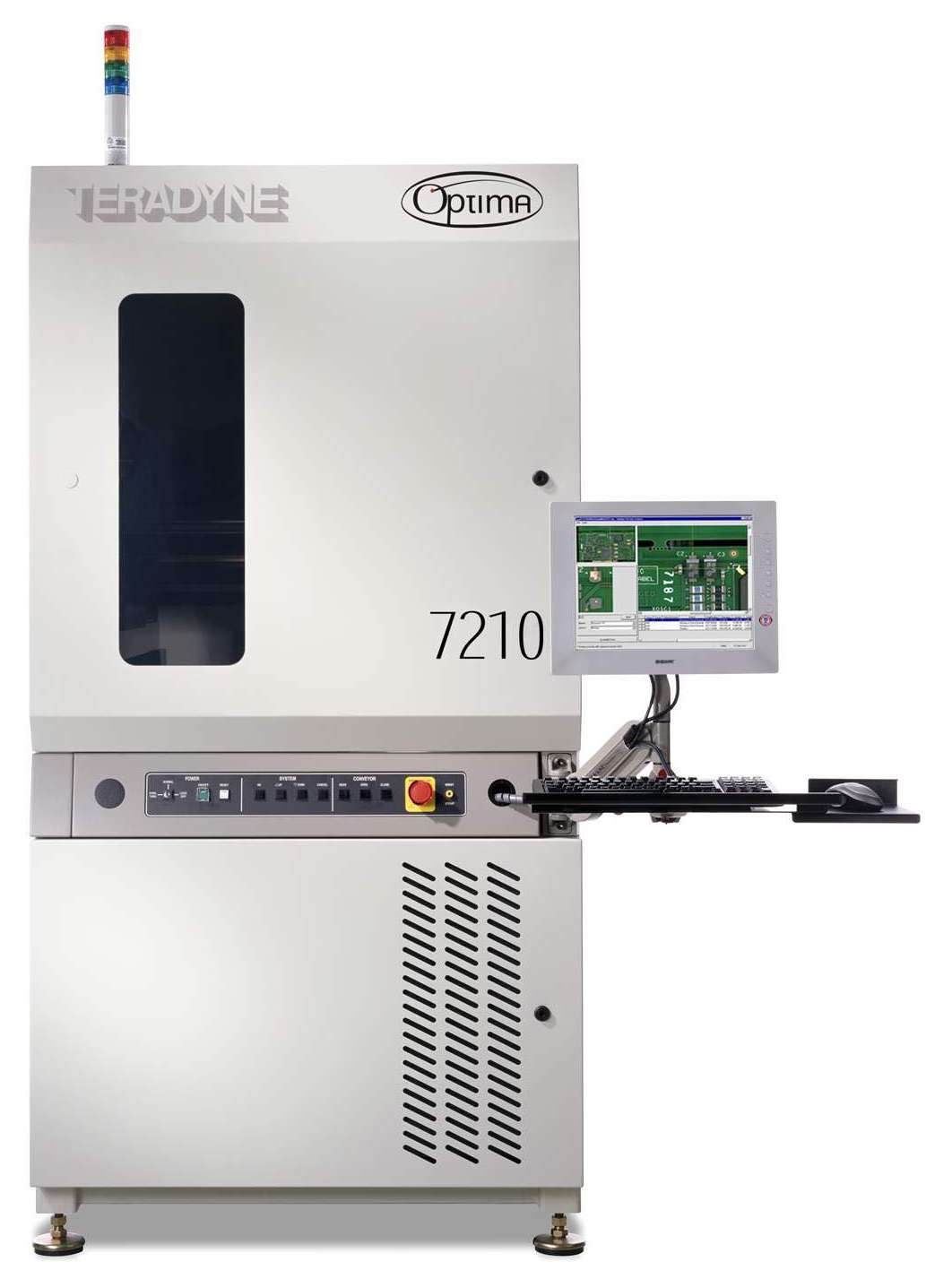

Apr 07, 2003 Optima 7210(TM) optical process test (OPT) system is designed for post-placement, inline defect detection, and process measurement. System utilizes built-in knowledge of SMD process and variation compensation. Based on Configural Recognition(TM) object recognition and image analysis technology, system provides non-contact testing with VARI-Smart(TM) image compensation software, which builds process knowledge and variation awareness into image analysis phase.

Teradyne, Inc.    Boston, MA 02118 2238

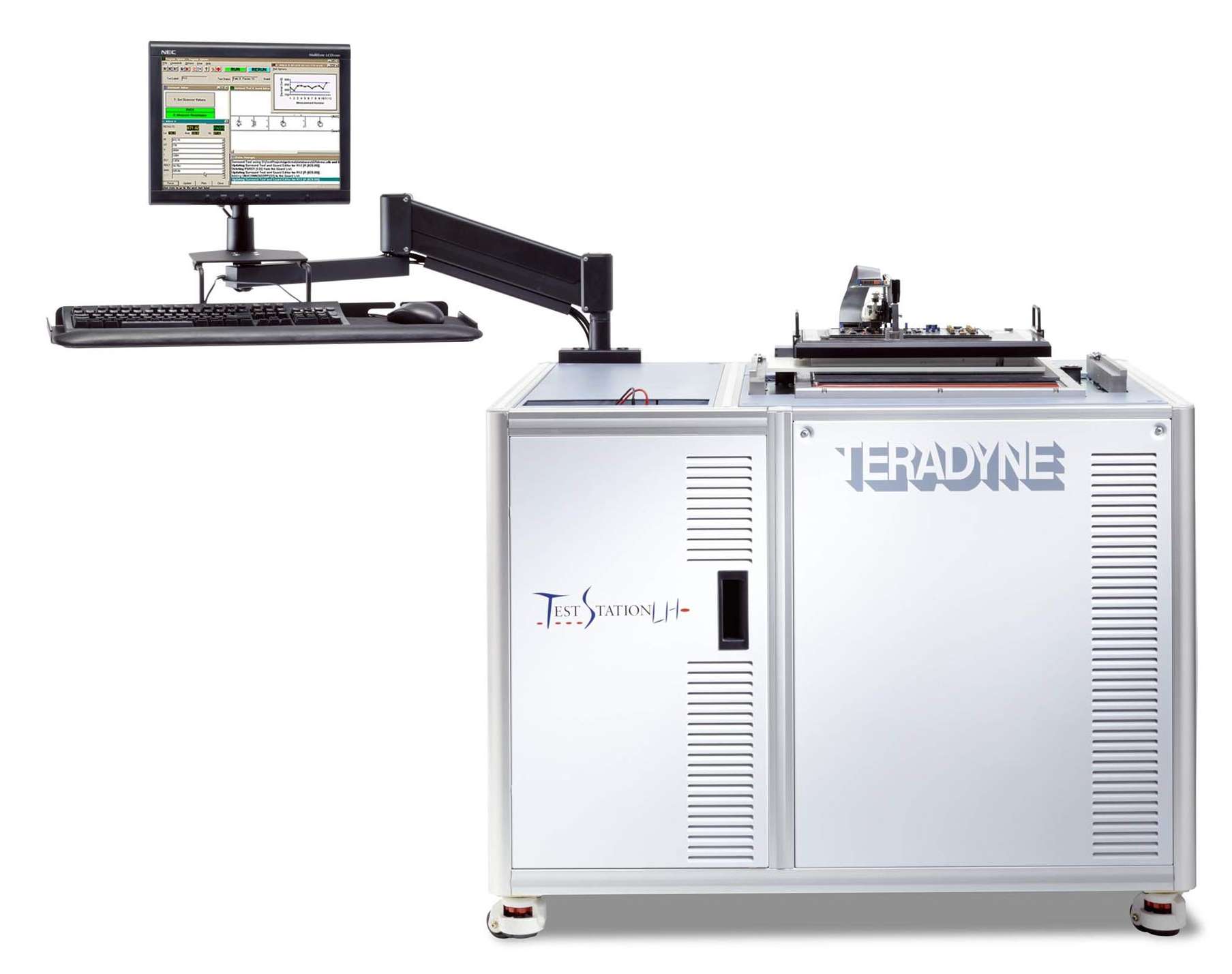

Apr 07, 2003 TestStation LH(TM) offers voltage accuracy and backdrive current measurement embedded in company's SafeTest(TM) protection technology to test low-voltage technologies. Offered with scalable feature set, product can be configured with 256-4096 test pins and is compatible with GR228X(TM)/TestStation programs and fixtures. SafeTest protection technology features closed loop driver, backdrive current sensing, and programmable backdrive current and duration thresholds.

Dematic Corp.    Grand Rapids, MI 49505

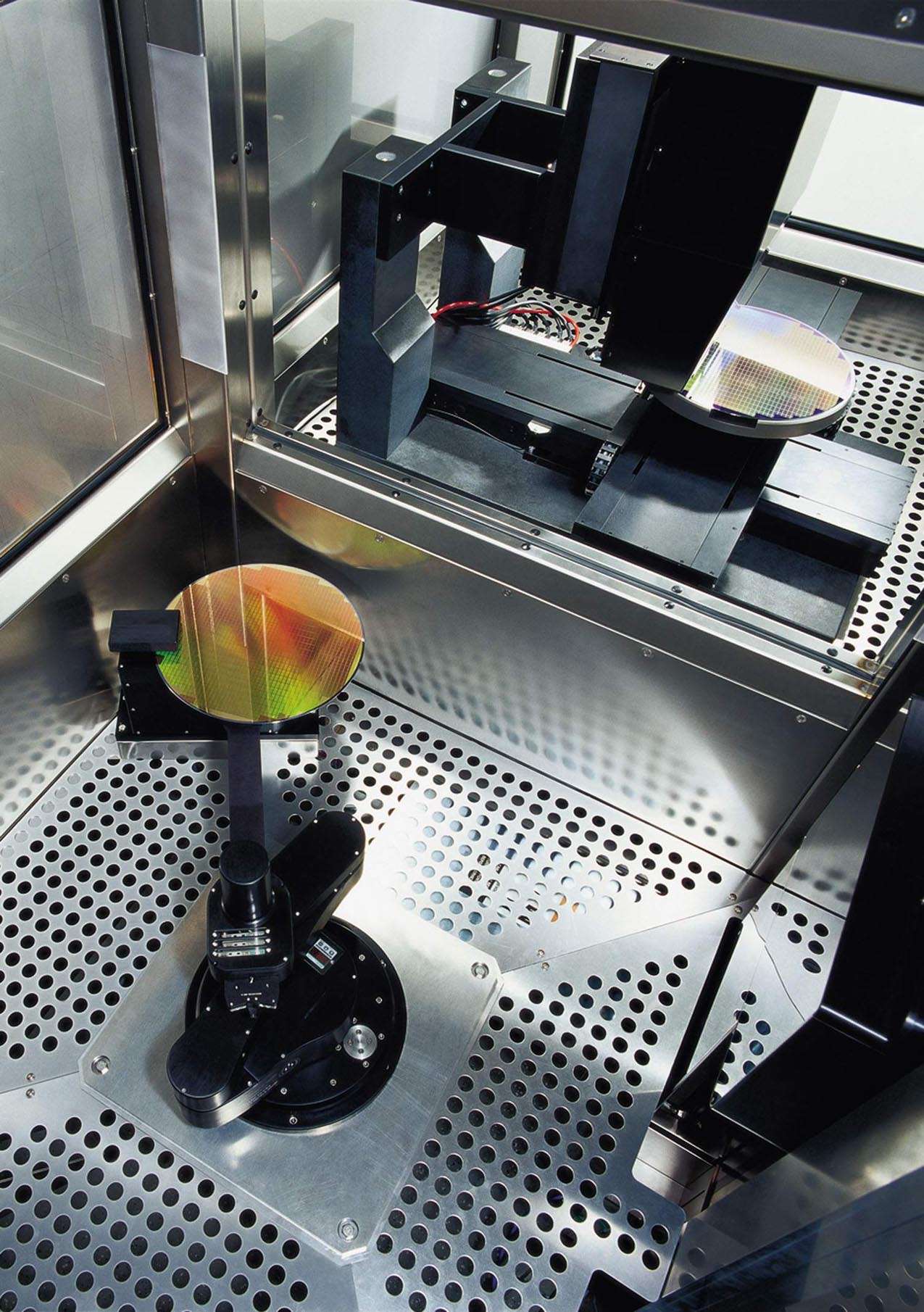

Apr 07, 2003 Siscan(TM) fully automatic, confocal, 3D inspection system provides process-synchronized, 100% inspections in manufacturing environment. It achieves throughput of 21.6 wafers/hr, referred to 8 in. reference wafer with more than 227,240 bumps, as well as x/y resolution of 10 micrometers and z-axis accuracy of 500 nm. Siscan can also be used for inspection of fine laser welds on high-pressure injection valves in automotive industry.

Care Controls, Inc.    Mill Creek, WA 98082

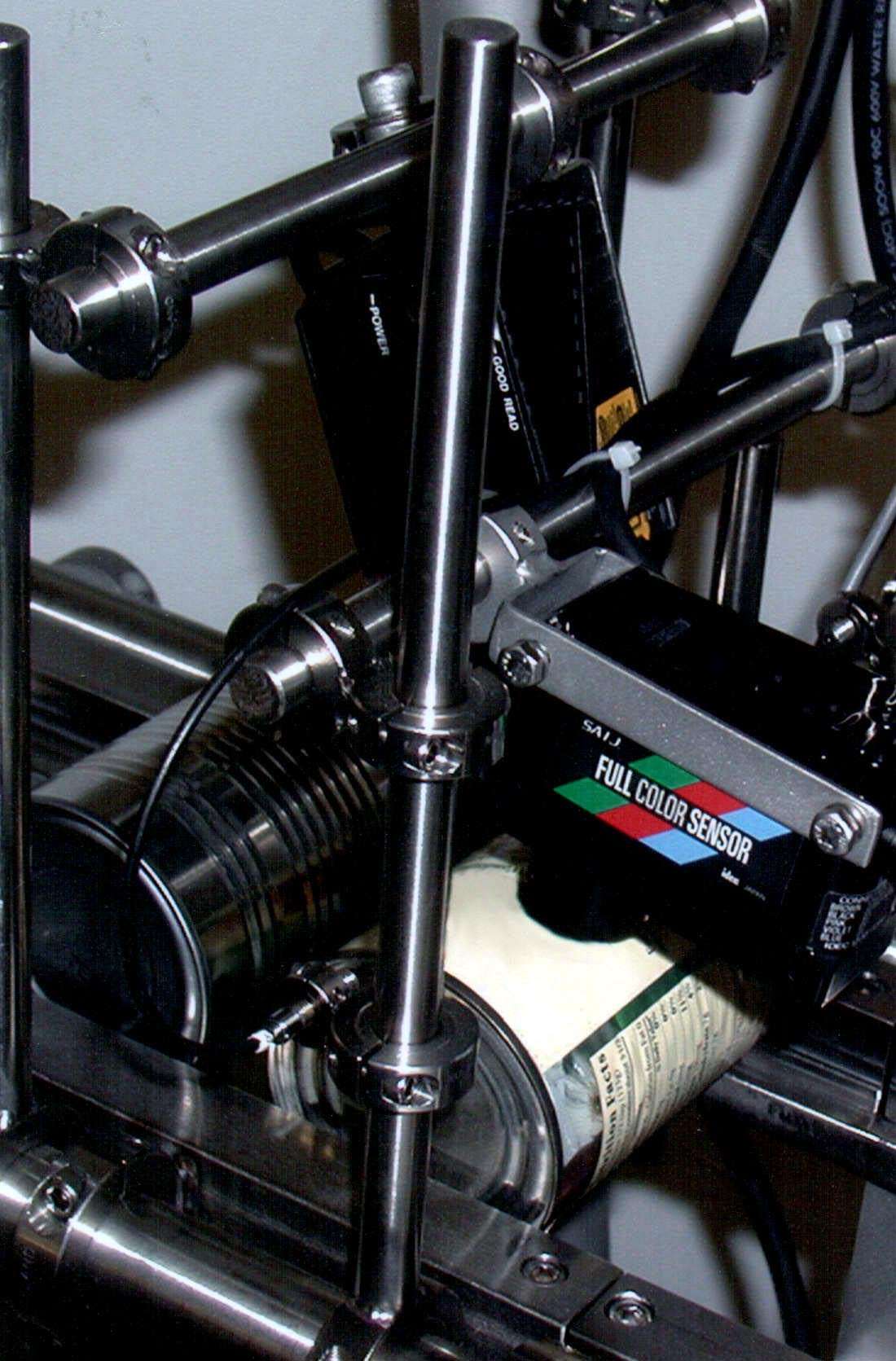

Apr 07, 2003 Canalyzer RTLI inline system is located immediately after roll-though labeler. As containers pass through inspection area, at up to 1000 pieces/min, they are checked for label presence, improper gluing, loose labels, and dog-ears. System automatically rejects containers failing basic label application quality parameters of alignment, positioning, and secure-affixing. Stainless steel, electric-powered unit accommodates can sizes from 202 to 603.

EDAX, Inc.    Mahwah, NJ 07430
Apr 07, 2003 Electron Backscatter Diffraction (EBSD) System models OIM 2000, OIM 4000, and OIM 7000 include EBSD cameras, data collection, and analysis software that provides various tools for characterizing crystalline microstructures. Units also incorporate ChI-Scan, which takes advantage of simultaneously collected EDS and EBSD data to handle multi-phase samples.

Transducer Techniques    Temecula, CA 92590
Apr 04, 2003 TLL Tension Load Cell and PHM-100 Portable Hand-Held Transducer Indicator system is for industrial and OEM force measurement and weighing applications. PHM-100 has Peak Hold feature that captures at less than 1 msec and operates on 9 V battery for 60 hr. Inline TLL is constructed from stainless and offered in ranges from 5,000 to 50,000 lb.

Draeger Safety, Inc.    Pittsburgh, PA 15230

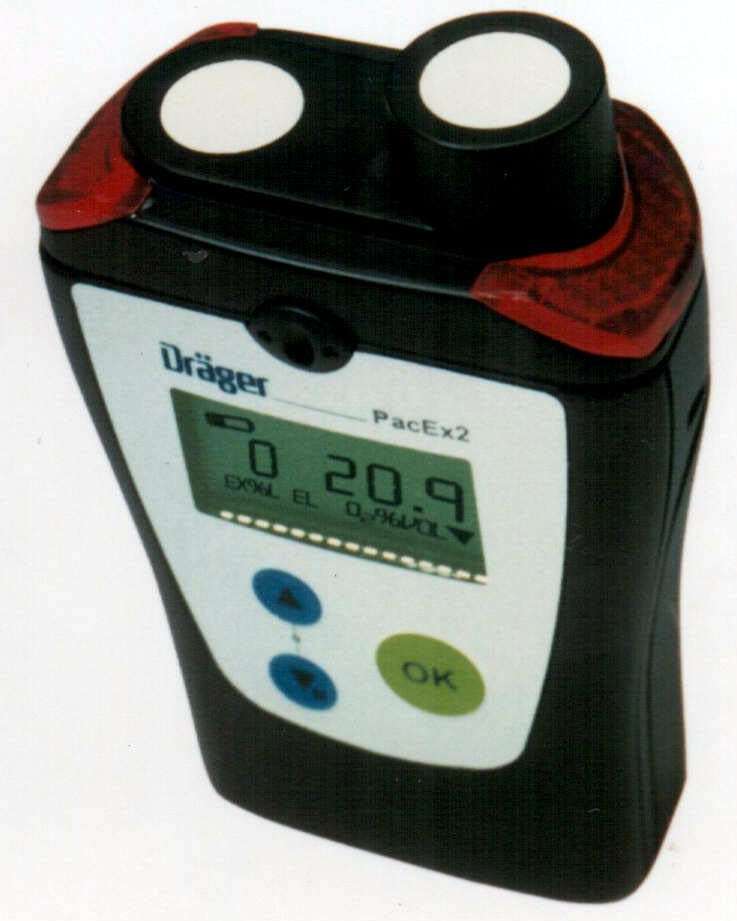

Apr 04, 2003 Pac Ex 2 hand-held, combustible gas and oxygen monitoring device features LCD concentration display with audible, visual, and vibrating alarms. Optional sample pump allows for confined space measurements. Monitor measures combustible gases in 0-100 %LEL range, and range of 0-25% Volume Oxygen. Unit measures for smaller leaks as well as larger concentrations that may exist in oil and gas, petrochemical, utilities, and shipping industries.

Magtrol, Inc.    Buffalo, NY 14224
Apr 04, 2003 High-Speed WB Dynamometers incorporate optical speed sensor and torque measurement, providing typical accuracy of 0.3%. Units are available with torque ratings from 150 mN·m to 20 N·m and speed ranges from 70,000–65,000 rpm, respectively. Company's TM Torque sensor may be mounted in line with dynamometer for system accuracy of 0.1% and speeds up to 50,000 rpm. Dynamometers test electrical motors in tools, medical/dental equipment, vacuum cleaners/systems, and toys.

Elysium Inc.    Southfield, MI 48037
Apr 04, 2003 OneSpace-to-CATIA V5 Data Adapter supports integration of OneSpace Designer and OneSpace Collaboration data into CATIA V5 format, and vice versa. It speeds up product development cycle because there is no need to convert data to standard format prior to translation between CATIA V5 and OneSpace. Adapter is supported on Windows NT 4.0 SP 4, Windows 2000, and Windows XP, as well as Sun Solaris 8, AIX 4.3.3 and HP-UX 11.i.

Stoelting Co.    Wood Dale, IL 60191 1164
Apr 03, 2003 Dynamic Plantar Aesthesiometer records and displays latency of paw withdrawal reflex and force at time of latency on electronic unit. Animal is placed in enclosure with perforated bottom. Stimulator is positioned under paw, and filament rises to touch paw, exerting force until animal flicks paw. Data can be routed directly to serial port of PC via Win-DAS Software Package.

FeinFocus USA, Inc.    Stamford, CT 06902

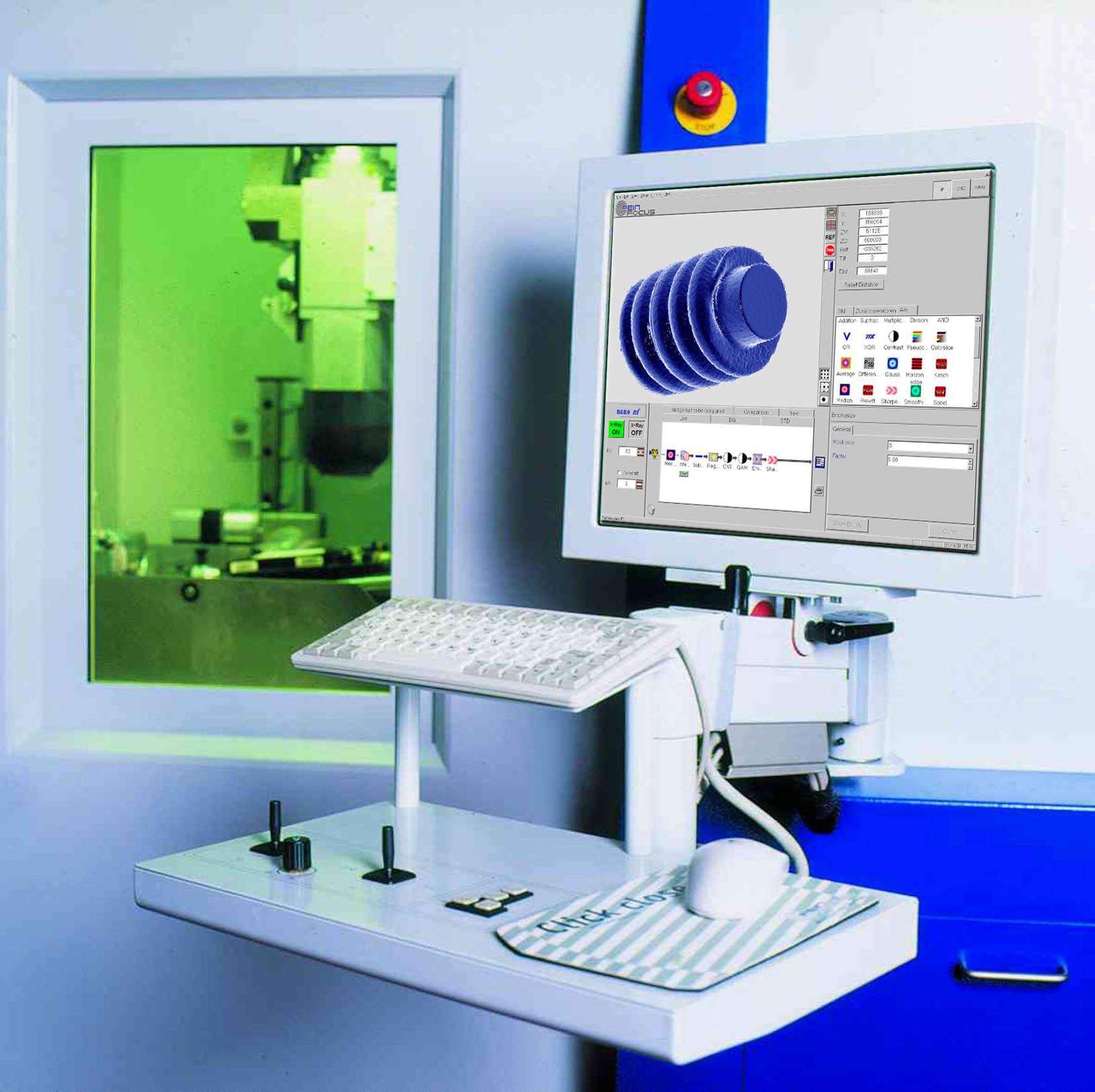

Apr 03, 2003 Model µCT-F.O.X. combines 2D X-ray technology with 3D Computed Tomography techniques and volume rendering software for detailed inspection and analysis of complex electronic devices. Cracks, voids, delamination, and other anomalies can be depicted in actual 3D position. Multifocus X-ray tube offers detail recognition of 0.3 µm and geometric magnifications up to 2,400x. TXI Control constantly controls output level of X-ray intensity during image acquisition process.

Robotrol Corporation    San Martin, CA 95046

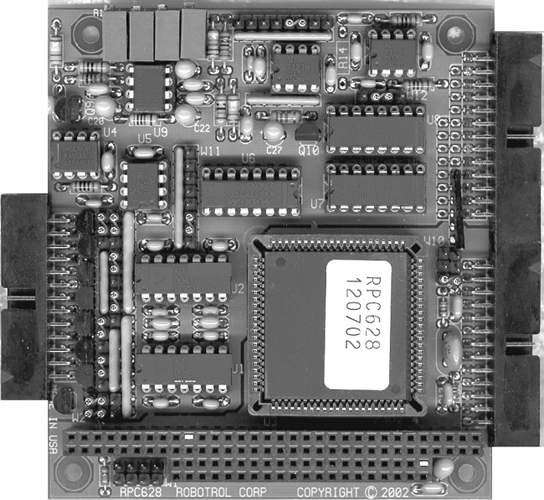

Apr 03, 2003 Model RPC628 contains 16 analog-to-digital inputs, 8 digital-to-analog outputs, and 16 digital I/O with programmable modes. Analog inputs have 12-bit resolution and may operate as 16 single-ended inputs or 8 differential inputs, with each input protected to ±32 V. The 8 analog outputs have 12-bit resolution and 7 voltage ranges. Conversion intervals may be programmed from 4 µsec to 64 msec. Unit includes interrupt, polled status, and external trigger capabilities.

Control Co.    Houston, TX 77258 8307

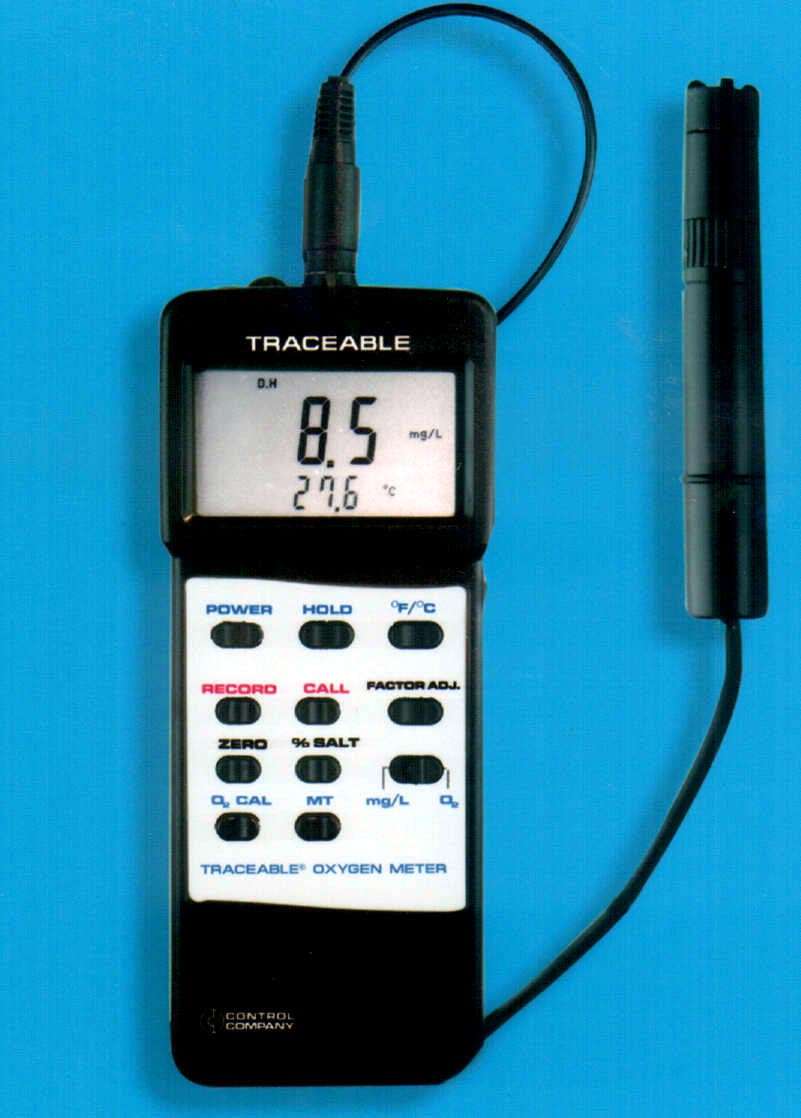

Apr 03, 2003 Traceable® Dissolved Oxygen Meter simultaneously displays oxygen concentration and temperature. Serial RS-232 output allows it to be connected to computer or data logger for monitoring and keeping results. Instrument recalls highest, lowest, and average readings, while DATA HOLD button can be used to freeze display. Unit includes probe, 40 in. cable, 5 membranes, electrolyte solution, Traceable® Certificate, 9 V battery, and serial computer output.

Keithley Instruments, Inc., Test Instrumentation Group    Cleveland, OH 44139 1891

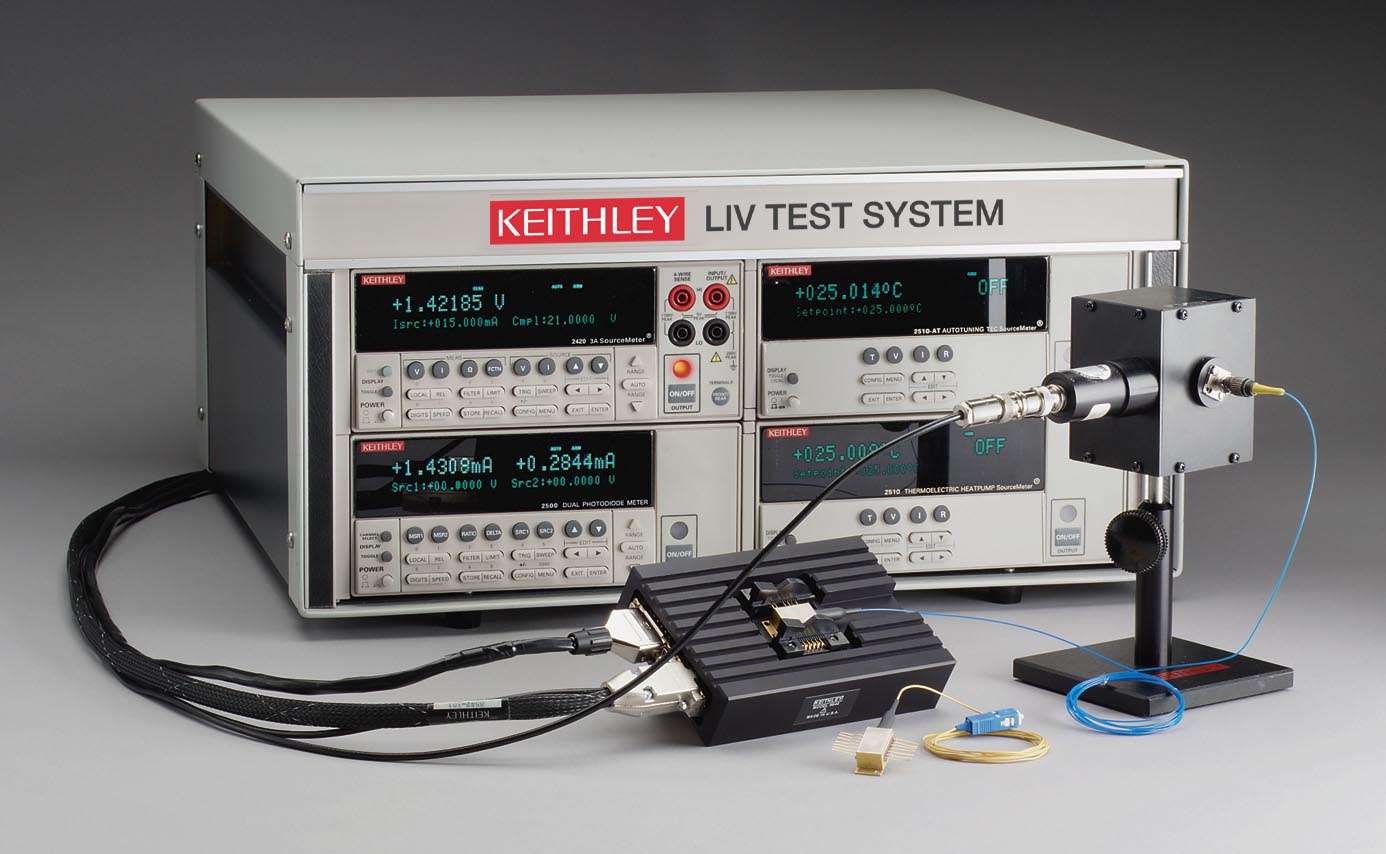

Apr 03, 2003 System 25 provides light-current-voltage characterization of laser diodes and assembled laser diode modules. It delivers up to 5 A laser drive current, precision voltage measurements, 2 channels of photodetection, selectable photodiode detector types, optional laser diode mount, and up to 2 temperature controllers for laser cooling. Users can select only essential system components needed for application, avoiding unnecessary items.
