Invensys    Foxboro, MA 02035
Jun 02, 2003 Model 2500 functions as remote I/O for PLCs, HMIs, or Model T800 visual control system. It can also operate as stand-alone PID loop controller for up to 8 loops. Up to 4 simultaneous masters allow 4 devices to communicate to system at same time. Unit includes 10baseT field communications and ability to obtain IP address from Dynamic Host Configuration Protocol server. Preferred master connection ensures that connection is always available for preferred master.

Tropel Corporation    Fairport, NY 14450
Jun 02, 2003 Tropel ThetaFormâ„¢ metrology system consists of dual-wavelength interferometer, mounted on programmable, multi-directional stage to measure rotationally symmetric surfaces. System creates high-density surface maps in less than one minute. It provides point-to-point resolution of distances in nanometer range and is capable of measuring ground parts with surface roughness up to 2 microns. System is suitable for high-volume manufacturing processes.

VTI Technologies, Inc.    Dearborn, MI 48126
Jun 02, 2003 Series SCA61T offers internal temperature measurement and compensation, and long term stability better than 0.25 mg. Maximum offset error guaranteed over entire temperature range of –40 to 125°C, without additional compensation, is less than 15 mg for ±1 g sensor. Models SCA61T-FAHH1G and SCA61T-FA1H1G are 4 V/g and 2 V/g units that measure up to ±0.5 g at ±30° and ±1 g at ±90°, respectively. They feature analog output along with digital SPI output.

Intelligent Weighing Technology    Oxnard, CA 93030
May 30, 2003 Series SAC allows user to automatically change capacity as load is added to scale. Available in 15, 30, 60, and 150 lb capacities, portable unit can count items as small as 0.003 oz. It includes rechargeable battery, dust cover, backlighting, and check-weighing alarm. RS232 or printer output is optional.

Tidal Engineering Corporation    Randolph, NJ 07869
May 30, 2003 The eChamber Gateway combines 3 communication capabilities and thermocouple monitoring system into one instrument. Product connects environmental chamber temperature controllers to LAN or Internet via on-board 10BASE-T Ethernet interface, or optional external/internal modem. Each module incorporates 16-channel thermocouple monitoring system which, when joined in 16-unit master/slave RS-485 daisy chain arrangement, enables monitoring and data logging of 256 sensors on one Web server.

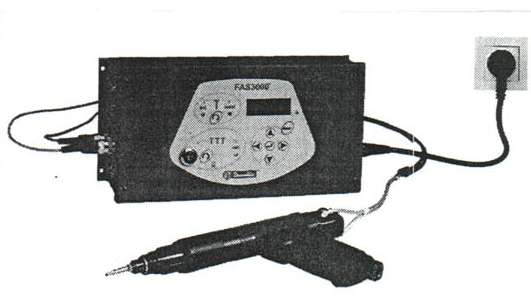

Chicago Pneumatic Co.    Rock Hill, SC 29730-7463
May 29, 2003 Programmable FAS3000 Fastening Assurance System detects off-spec fastening events and can eliminate need for inspection procedures. Interface allows local or remote control/monitoring of fastening operations on several workstations. Unit can be furnished with company's pneumatic torque shut-off screwdrivers or retrofitted by changing modular control top. Fastening-tool line offers torque control range from 3.5–266 lb-in. with free speed ranges from 550–3500 rpm.

Larscom, Inc.    Milpitas, CA 95035
May 29, 2003 Plug-and-play Orion 7400 SONET access platform enables carriers to deliver flexible, incremental-level Ethernet-based bandwidth services as well as TDM services on mass-market basis. Product leverages Generic Framing Procedure (GFP)-based Ethernet over SONET (EoS) standards, including Low- (VT 1.5) and High- (STS-1) order Virtual Concatenation. Interoperable with existing SONET infrastructure, it includes up to 16 Fast Ethernet ports in single 1.75 in. high device.

Meriam Instrument    Cleveland, OH 44102
May 28, 2003 With typical RTD measurement accuracy of 50 ppm + 10 ppm/°C, model RIO4000 measures or simulates resistance for RTD sensor types with resistances up to 4,000 ohms. In measure mode, product converts measured resistance from RTD to corresponding temperature values in user-selected unit of °F, °C, °R, or °K; ohms can also be displayed. In simulation mode, unit provides resistance value to simulate RTD input to temperature transmitter or other receiving device.

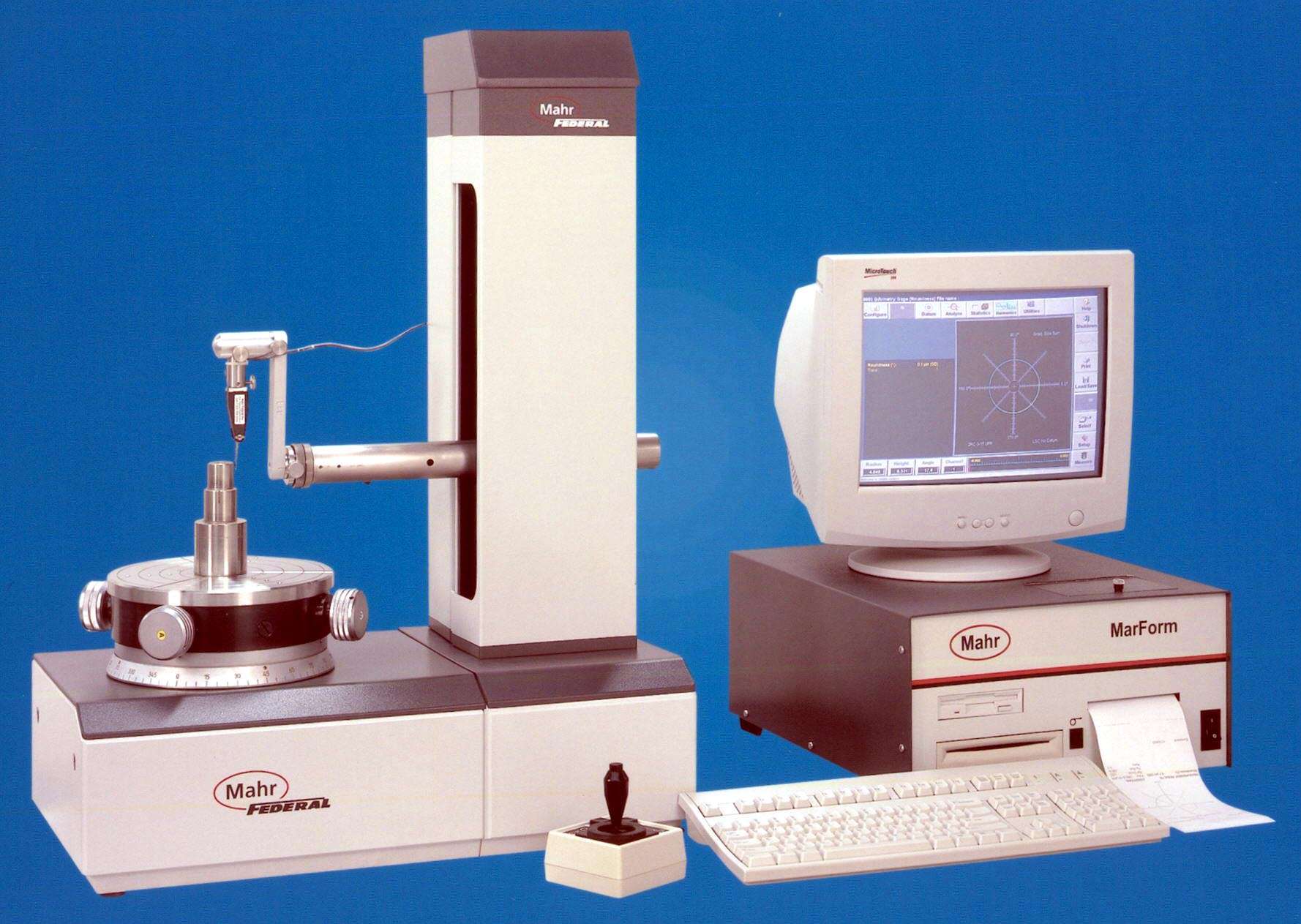

Mahr Federal Inc.    Providence, RI 02940
May 28, 2003 Utilizing proprietary MarForm Metrology Software, MarFormâ„¢ MMQ 6200 multi-parameter system measures parts weighing up to 132 lbs and measuring up to 15.5 in. in diameter and 13.5 in. high. Product incorporates motor-driven gage head stand, touch screen, and variable-speed joy stick controls. Additional offerings include heavy-duty base; precision, 8.6 in. mechanical bearing spindle; and tilt/centering table. Precision spindle offers radial accuracy of ±1.38 µin.

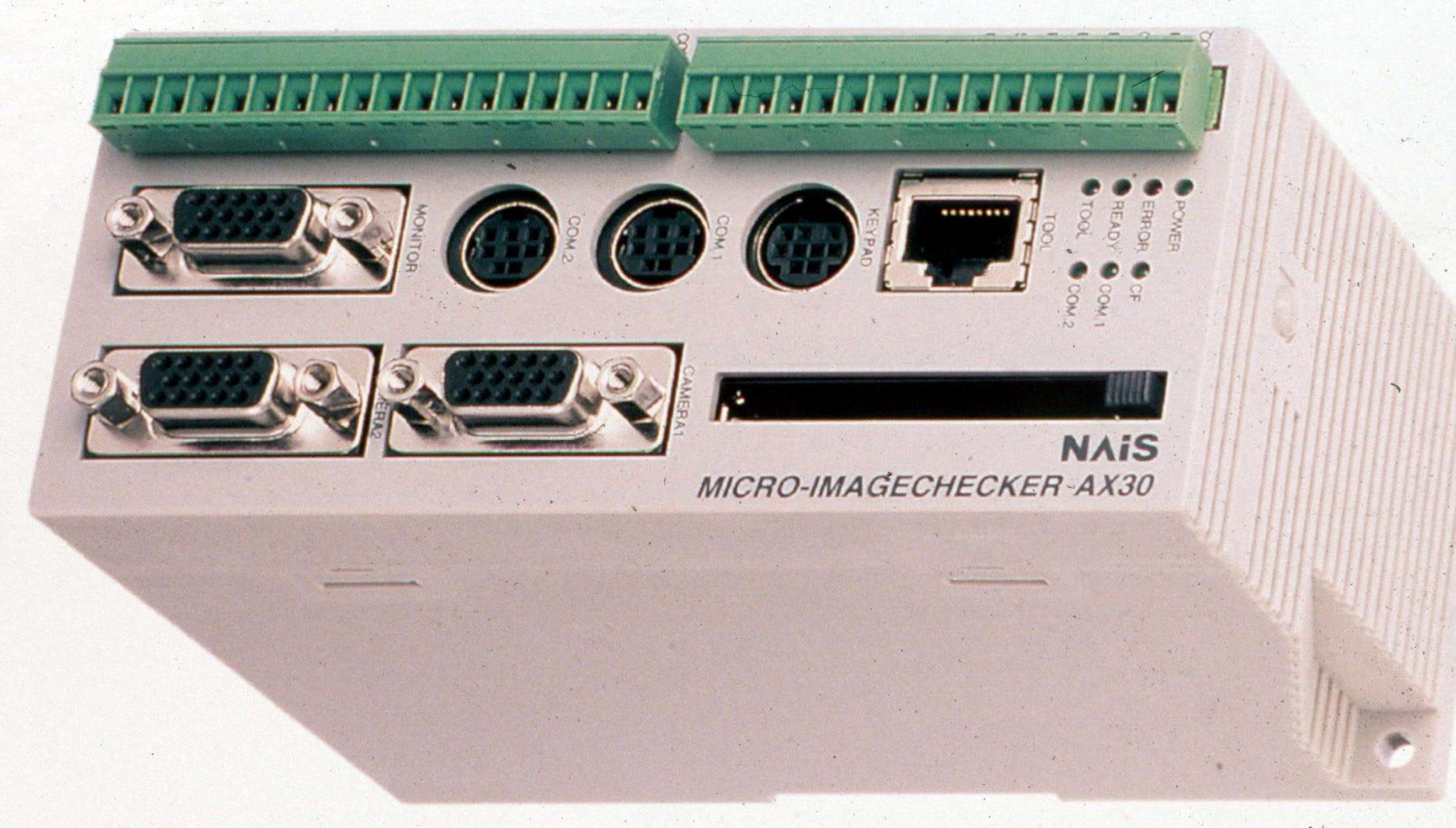

Aromat Corp.    New Providence, NJ 07974 1507
May 28, 2003 Model AX30 MICRO-IMAGECHECKER consists of dual-camera, image-processing device that offers 512 x 480 pixel resolution and RGB color-scale extraction. Product offers contour algorithms for 360° object tracking, built-in Ethernet communications, and VGA outputs. Color inspection tools such as Color Scale Registration, Object Counter, and Area Measurement aid in applications that require color inspections and maximum defect containment.

Dynatrol Div., Automation Products, Inc.    Houston, TX 77008
May 28, 2003 Viscosity System uses vibratory principles to provide measurement at on-line process conditions for plastics, chemicals, inks, paper, foods, etc. System consists of in-line or stand-alone viscosity probe and analog converter that converts signal into 4-2O mA output. Stainless steel probe uses vibrating rod immersed in process media and operates in ranges to 100,000 cp. Features include pressure rating of 1000 psi and temperature range to 300°F.

Spectronics Corp.    Westbury, NY 11590
May 28, 2003 Spectroline® AP-400 UltraWandâ„¢ features 4 W UV probe measuring 1 in. in diameter and 6 in. long. It delivers typical peak 365 nm UV intensity of 5,500 µW/cm² at light source and over 1,500 µW/cm² at 1 in. Probe is useful in tight places, such as small-diameter pipes and turbine engines. It provides more than 40 hours of inspection time on 8 D-cell alkaline batteries. Kit includes 10 ft power cord, 10 ft extension cord, adjustable mirror, and spare 4 W tube.

ADMET    Norwood, MA 02062
May 28, 2003 Precise Digital Controller measures load, load rate, crosshead position, position rate, strain, and strain rate. It stores 3 test procedures and up to 350 test results per procedure. Closed loop servo capabilities facilitate repeatable testing. Unit uses WinCom Plus data communications program to share XY data and results with Windows-based spreadsheet and database programs. It is suitable for manually operated and servo-equipped, electromechanical and hydraulic testing machines.

Perten Instruments, Inc.    Springfield, IL 62707
May 28, 2003 With no moving optical components, DA 7200 second generation diode array based NIR analysis system is suited for analysis of raw materials and finished products. Samples are presented to instrument in open sample dishes in full ambient light and require no sample preparation. With 3 sec spectra collection and Pour and Place Sampling, total analysis time is 10 sec. Offerings include automated referencing system, Windows XP software, and 256 pixel array.

Vantico Inc.    East Lansing, MI 48823
May 28, 2003 RenShape(TM) SL 7565 material builds clear, ABS-like parts with flexural modulus of 300,000 psi and elongation of greater than 20%. RenShape SL 5260 photopolymer produces opaque, white prototypes and parts with ABS thermoplastic-like surface, flexural modulus of 350,000 psi, and elongation of 12%. Adhesives, for filling and bonding stereolithography models and prototypes, include RenShape SL Bond 110 (low viscosity), SL Bond 120 (standard-viscosity), and thixotropic SL Bond 130.

Dynisco Instruments    Franklin, MA 02038
May 27, 2003 HDV3 System measures Distortion Temperature Under Load (DTUL) and VICAT softening point of plastic materials. Up to 6 test stations containing digital gauges with LVDT transducers can be mounted in system's insulated stainless steel oil bath, and programmable PID controller provides precise control of temperature rise at rates of 50°C/hr or 2°C/min up to max temperature of 300°C. Specimen temperatures are monitored by individual thermocouples.

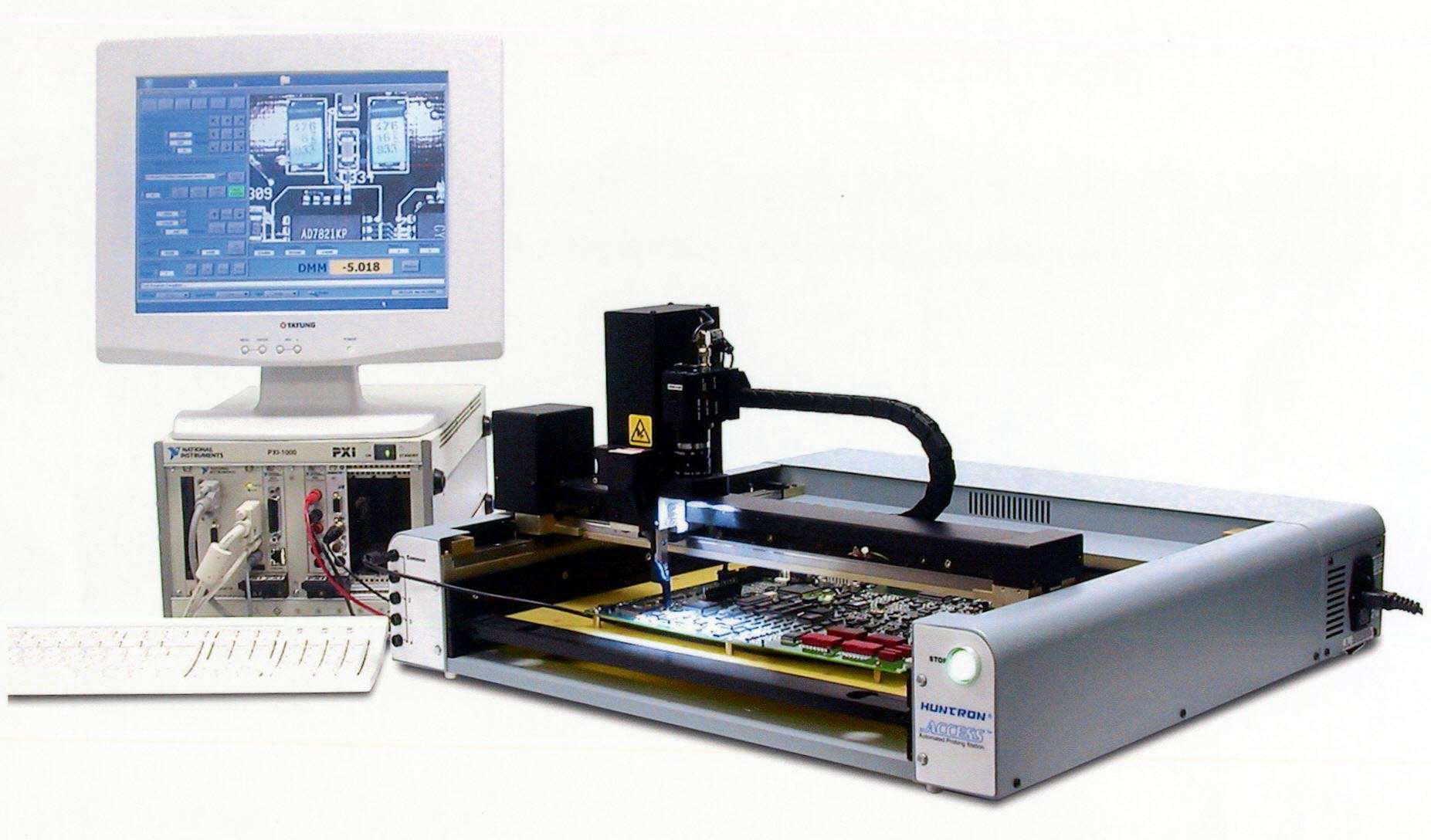

Huntron Instruments, Inc.    Mill Creek, WA 98012
May 27, 2003 Huntron Access, when coupled with National Instrument's Labview, can integrate with general purpose ATE measuring equipment. Open-architectured, automated probing station delivers accuracy and performance of ProTrack probers with freedom to use additional general-purpose test equipment. It is suited for applications where circuit card is in powered up state.

Invensys    Foxboro, MA 02035
May 27, 2003 Foxboro CFT50 digital Coriolis mass flow transmitter allows mass flow meters to continue operating during 2-phase flow. It is capable of performing in batch applications starting with empty flow tube conditions. Dual digial processing system improves meter control throughout void fraction operation. One processing system controls meter drive sequence to provide uninterrupted flow tube operation, while second system processes measurement data from Coriolis meter.

Dynisco Instruments    Franklin, MA 02038
May 27, 2003 SPT family of Non-Filled pressure transducers and transmitters are for food and medical extrusion markets. Silicon Pressure Transducer comes in various pressure ranges and includes 3.33 mV/V, 0–5 Vdc, 0–10 Vdc, and 4–20 mA outputs.

Dynisco Instruments    Franklin, MA 02038
May 27, 2003 SPX Series of smart pressure transmitters provide 4–20 mA outputs and HART communication functionality. Devices are for extrusion and process pressure measurements, from 25 to 30,000 psi and maintain up to 0.25% accuracy at process temperatures up to 400°C. Stand-alone and dual temperature and pressure configurations are available. Units are approved by PTB, CSA and FM, and CE.
