Stegmann, Inc.    Dayton, OH 45414
Jun 16, 2003 CoreTech 2.5 in. C125 Series, offered with incremental counts from 1–8,192 ppr, provides up to 820 kHz frequency response. Firmware generated marker pulse of 90° or 180° provides incremental feedback for speeds up to 10,000 rpm while maintaining marker width and synchronization. Able to handle radial or axial loads of up to 40 lb, product operates in temperatures from -4 to +185°F and uses proprietary hybrid OPTO-ASIC and unique code disk.

Agilent Technologies, Inc.    Santa Clara, CA 95051

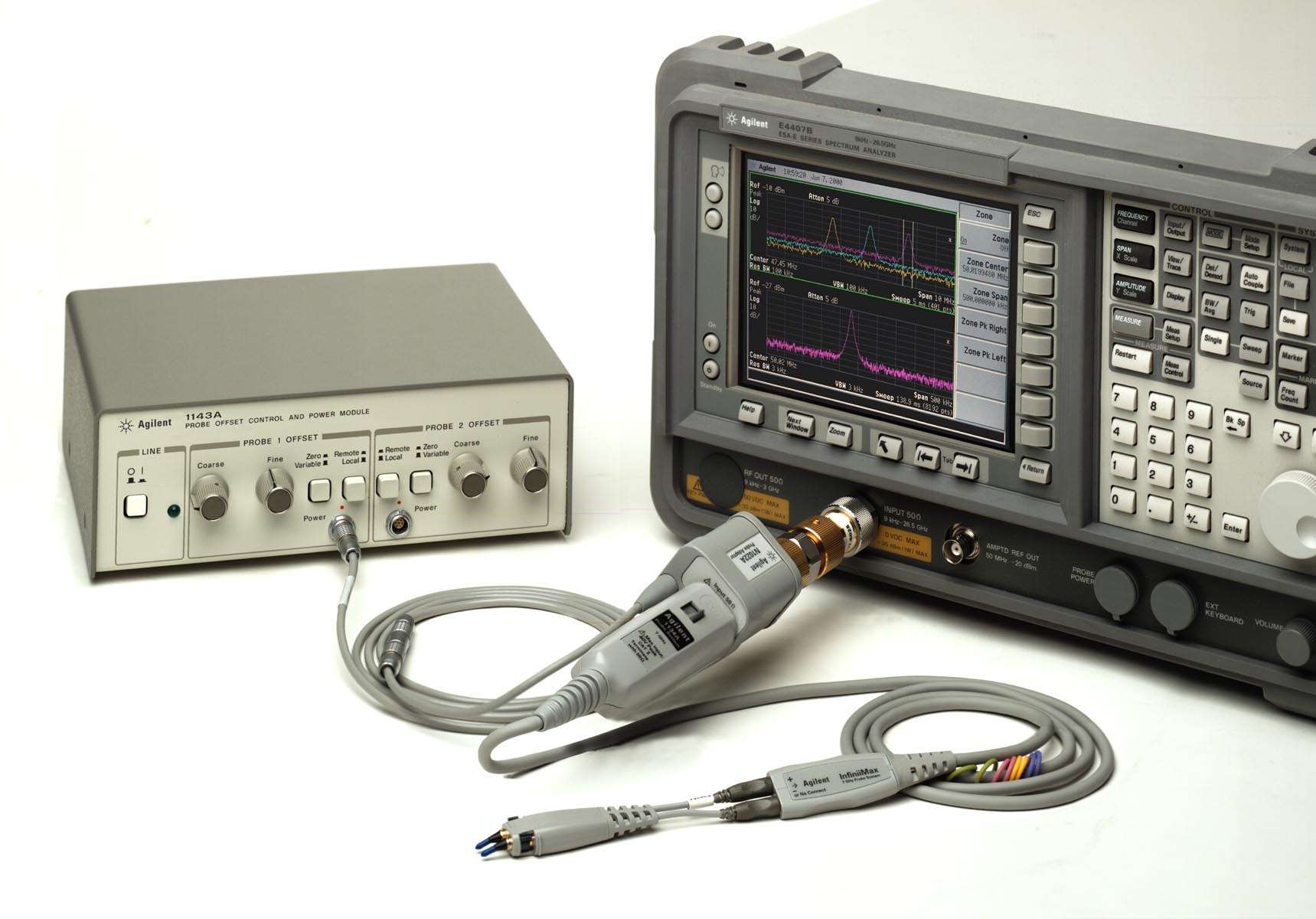

Jun 13, 2003 InfiniiMax E2696A 6 GHz active differential probe allows users of spectrum and network analyzers to make high-impedance measurements on differential signals and quickly validate differential signal designs. It offers low 320 fF differential input capacitance for minimal reactive loading and disturbance of signals in system under test. Variable spacing and Z-axis compliant tips make it easy to probe differential signals on variety of target configurations.

Encoder Products Co.    Sandpoint, ID 83864
Jun 13, 2003 Equipped with industrial-grade, metal, size 25 housing with double O-rings, Model XT20 Superseal X-Treme Encoderâ„¢ employs double case, sealed, encoder-within-a-sealed-encoder design that protects critical components. Superseal adds Teflon seals to bearing assembly, and construction offers additional sealing around cable ports as well as connector options, including M12 connector.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Jun 13, 2003 Baseband Studio N5115A provides digitally integrated single- and dual-channel fading simulation of baseband signals generated by ESG. Model N5110A allows long waveform files residing on PC hard drive to be streamed to ESG or PSG vector signal generator. Model N5101A PCI card enables fading and waveform streaming software applications. Model N5102A digital signal interface module allows ESG and PSG vector signal generators to output baseband signals in digital I/O or intermediate frequency formats.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Jun 13, 2003 PNA Series N5250A millimeter-wave network analyzer features 2 built-in sources, 32 measurement channels, 64 traces, and 16,001 points per channel. Capabilities include pulsed-RF and antenna measurements. Analyzer provides frequency coverage from 10 MHz to 110 GHz in single sweep, with measurement speed of 200 µsec/point. Applications include radar, electronic-warfare (EW), satellite, broadband wireless, and optical communications

E Instruments International LLC    Langhorne, PA 19047
Jun 13, 2003 IRtec P Portable Infrared Thermometers are offered in models with temperature measuring ranges from -20 to 2,000°F. Handheld, non-contact units feature twin laser, telescope, or red point target pinpointing systems. Data memory offers capacity of 500 records. Units provide analog output and Aux, Tc, K, and S inputs. They operate on alkaline or rechargeable battery and provide high and low programmable alarms.

Mesa Electronics    Richmond, CA 94806-1950
Jun 13, 2003 General-purpose 5120 for PCI bus uses 200 K gate Xilinx FPGA for all logic. FPGA configuration is downloadable from PCI bus side, allowing creation of any kind of specialized I/O function. Product offers pre-made functions and uses three 50-pin connectors with I/O module rack-compatible pin-outs and interleaved grounds. Each connector provides 24 I/O bits; all I/O bits are 5 V tolerant and can sink 24 mA. Card utilizes 4-layer circuit card construction to minimize radiated EMI.

Teradyne, Inc.    Boston, MA 02118 2238
Jun 13, 2003 SafeTest(TM) protection technologies for TestStation(TM) in-circuit test systems protect low-voltage devices against exposure to over-voltage and over-current conditions. Risk of damaging or severely weakening devices is reduced, ensuring product quality. UltraPin(TM) digital pin electronics and TestStation software feature automatic driver verification, backdrive current sensing, closed-loop driver, and multi-level digital-isolation software.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Jun 12, 2003 Series 481 (Option 481-486) Multi-Channel Signal Conditioners allow 1 of 3 charge sensitivities to be selected through single input, using computer or keypad control. Sensitivities include 0.1, 1.0, and 10 mV/pC. Units prepare measurement signals from piezoelectric sensors for input to recording or analysis instrumentation, and are available in 8- or 16-channel configurations. All models install into standard 19 in. instrumentation racks.

Z Corp.    Burlington, MA 01803

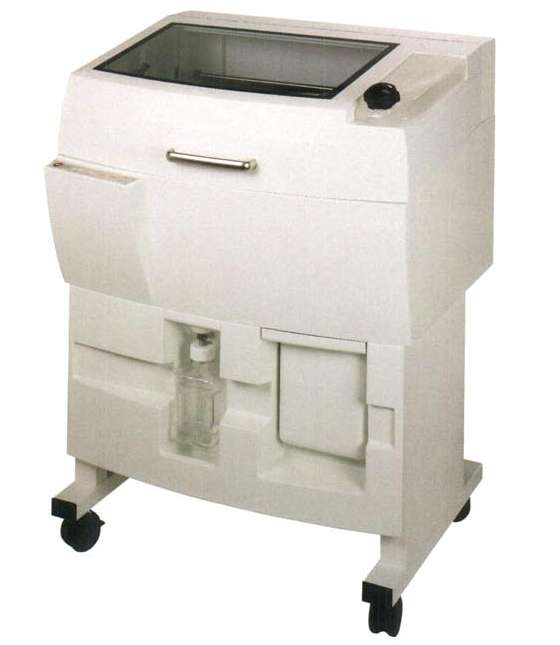

Jun 12, 2003 Based on Hewlett-Packard inkjet printing technology, office-compatible ZPrinterâ„¢ 310 System enables users to efficiently produce prototypes from 3D CAD files. Product includes simplified user interface and ZPrint software, which works with various file formats and can scale, color, and label CAD files.

A & D Weighing    Milpitas, CA 95035

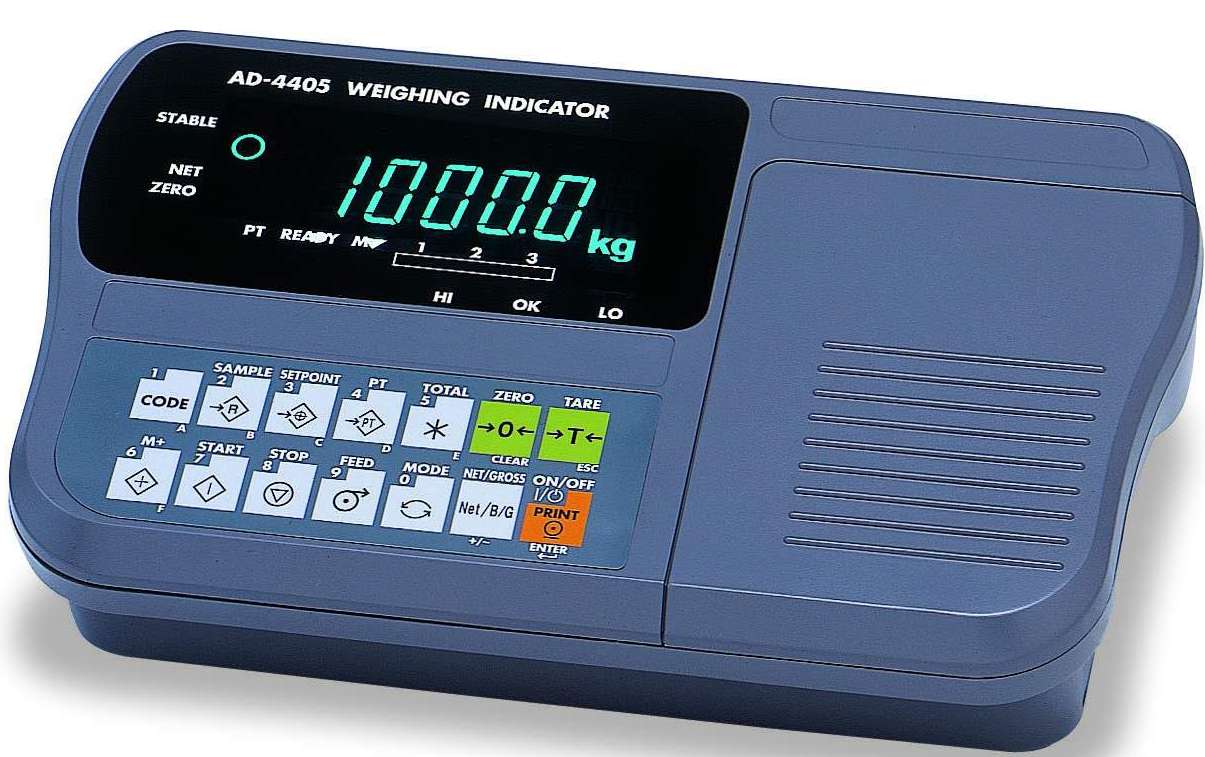

Jun 12, 2003 Model AD-4405 includes keypad, counting, and optional built-in printer for bench, floor, and truck scales in static weighing or batching applications. Device has vacuum-fluorescent display with full 0-9 keypad that includes tare, gross/net, on/off, and 2 user-programmable function keys. RS-232C interface is standard and 5-point comparator function can output to buzzer or optional relays. Unit has internal and display resolutions of 40,000 counts.

Advanced Pressure Products    Ithaca, NY 14850
Jun 12, 2003 Model QS201A performs test procedure for detecting acceptable pressure leaks for quality control compliance. Instrument may also be set-up to test different materials under different test conditions and to store all data, which can be transferred to other locations and used by other software packages. Unit operates using Windows operating system and runs tests in as little as 30 sec at pressures up to 20 psi.

GE Company, GE Industrial Systems    Plainville, CT 06062
Jun 12, 2003 Utilizing one differential piston/cylinder, Model 2482 produces differential pressures from fractions of an inch of water to 100 psi, with differential pressure accuracy of 0.01% plus 0.00007 psi. By adding single mass, it automatically balances piston gauge under computer control and maintains system balance automatically using Thermal Compensator technology. Heaters set in small volume of oil within unit are adjusted to expand oil and return system to balanced condition.

VacuMed    Ventura, CA 93003
Jun 12, 2003 Pediatric Ergometer offers adjustable handle bar height and saddle height as well as adjustable length pedal cranks in pediatric range. Suitable for children from age 6 and up, product includes earlobe pulse sensor. Electro-magnetic braking provides smooth pedaling with accurate resistance calibration to 200 W. Digital display panel shows Pulse Rate, Pedal Cadence, Exercise Time, estimated Calorie Consumption, and workload in torque and watts.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Jun 12, 2003 Series VR View-Rite and Series MVR Mini View-Rite require no external power and mount externally on vessel to be monitored to permit visual indication of level inside tank. Custom built to specific application requirements, maximum indication length is 96 in. Series VR is composed of 316 L stainless steel and has tube diameter of 2 ½ in., while Series MVR has 1 ¼ in. tube diameter and is constructed with 304 stainless steel housing and 316 stainless steel float.

LMS North America    Troy, MI 48098
Jun 12, 2003 LMS Pimento Rev 4.50 laptop-sized portable analyzer supports ISO 3745 and ISO 3746 standards. ISO 3745 takes into account ambient pressure and temperature, analyzes sound power in frequency bands, and checks directivity of sound. Analyzer optimizes qualification-testing procedures for outdoor equipment. It picks up measured data and automatically extracts modal parameters and mode shapes for animation. It can scale modes, run modal model validation, and do FRF synthesis.

Omega Engineering, Inc.    Stamford, CT 06907
Jun 12, 2003 RTD, 2-wire OM-MT20 snaps onto handheld computers, enabling users to collect temperature measurement data. After initial software installation, users can set up testing parameters, run tests, and save data directly to handheld unit. Software includes manual and automatic data logging programs. Stored data is transferable from handheld computer to PC and data transferred to PC is in comma separated value file format (.CSV).

Radiant Imaging Inc.    Duvall, WA 98019
Jun 11, 2003 With 14-bit dynamic range, PM-LED CCD-based colorimeter system performs color and luminance measurements and automatically corrects display control electronics based on said measurements to achieve desired results. Product consists of PM-1400 series CCD camera, control PC, and ProMetric 7.0 software for data acquisition, image processing, and instrument control. Product can be configured to operate without operator intervention or set to utilize operator input.

Honeywell, Inc., Industrial Automation & Control    Phoenix, AZ 85023
Jun 11, 2003 Series ST 2000 Transmitters feature microprocessor-based electronics, which provide 2-wire, 4-20 mA output signals proportional to measured variables. Microprocessor enhances accuracy by compensating signal for temperature effects. Eight gauge-pressure models range from -14.5 to 6,671 psi and 3 absolute-pressure models range from 0-165 psia. LCD provides local display of process variable. Process connections include ½ in. NPT and flush-mount sanitary connections.

Weidmuller, Inc.    Richmond, VA 23236
Jun 11, 2003 WAVEANALOG 2OLP dual output, loop-powered signal conditioner splits current input signal and isolating control signals while deriving power to operate from output 4–20mA current loop. It uses one 4–20 mA input to produce two 4–20 mA outputs. Product utilizes screw or tension clamp connection technology, and features pluggable connectors for quick installation. Isolation is provided between outputs and between output and inputs.
