Thermal Imaging Camera detects faulty parts and processes.
Raytheon Commercial Infrared (RCI)
Dallas, TX 75266
Aug 12, 2003 Model 500DX combines radiometric thermal-imaging camera, handheld iPAQ PDA computer, and visible-light camera. Simultaneous split screen display allows users to see and document difference between component's appearance to naked eye and appearance when viewed with thermal imager. Unit includes 35 mm focal length lens and electronic zoom function that increases view up to 16x with iPAQ PDA. Camera is suited for detecting heat produced by engines, motors, or fluids.
Mini Temperature Sensor suits confined space applications.
E Instruments International LLC
Langhorne, PA 19047
Aug 12, 2003
IRtec Rayometric 6 non-contact, infrared temperature transmitter provides continuous monitoring with accuracy of ±2% of reading and optical resolution of 6:1. Utilizing Smart Microcontroller technology, IP65-rated unit offers temperature range up to 932°F with linear mV or TCs analog output. Emissivity, response time, and measuring range is configurable from PC. Report of calibration is provided.
Digital Gauges offer choice of one or two SPDT switches.
Dresser Instrument Headquarters, Ashcroft Pressure & Temperature Instrument Operation
Stratford, CT 06614 5145
Aug 12, 2003 Ashcroft® Industrial Digital Gauges, with 4â€“20 mA output and switching option, combine indication, transmission, and switching capability into single package. Units are 4½ in. with .88 in. character height and 5-digit resolution. They feature .25% full scale, terminal point accuracy; multiple engineering units; ranges from vacuum through 20,000 psi; tamper-resistant re-zeroing; percent-of-range bar graph; and weatherproof aluminum case, rated to IP65.
Portable Gas Analyzer measures combustion and emissions.
E Instruments International LLC
Langhorne, PA 19047
Aug 12, 2003
GreenLine 2000 analyzes up to 2 gases and stores up to 250 samples. It weighs only 2 lb and includes flame ionization sensor, 2-channel thermometer, built-in impact printer, and gas sniffer. Unit acts as NO/NOx emissions analyzer, ambient CO monitor, draft and differential pressure meter, and flammable-gas leak detector. Remote PLC communications capabilities allow information to be downloaded to PC.
Pyroelectric Array Detector has 1-25 micron sensitivity.
Laser Components, inc.
Santa Rosa, CA 95403
Aug 12, 2003 With 1â€“25 µm sensitivity across IR band, pyroelectric array detector comes with 64 pixels and fully digital signal readout. Product features uncooled operation and utilizes Linear Variable Filter (LVF) technology, which consists of applying optical interference filter as wedge layer on detector window. LVF ensures that each pixel sees and measures different, individual wavelength.
Fluid Baths calibrate thermometers and temperature sensors.
Hart Scientific, Inc.
American Fork, UT 84003 9775
Aug 12, 2003 Constant-temperature, Deep-Well Compact Baths provide 18 in. of depth to accommodate liquid-in-glass thermometers, SPRTs, and other long-stem thermometers. Four baths in series cover temperatures from -80 to +300°C. Stabilities are from ±0.005 to ±0.015°C and uniformities are as good as ±0.007°C. Each bath comes with RS-232 port and Windows-based control software and is compatible with MET/TEMP II software for completely automated calibrations.
Signal Conditioning Module measures full-bridge sensors.
National Instruments Corp.
Austin, TX 78759-3504
Aug 12, 2003 Portable signal conditioning module, Model SCC-SG24 provides built-in 10 V excitation, allowing research and design validation engineers to use signal conditioning tools to measure full-bridge sensors. Dual channel module provides amplification and filtering for guaranteed level of measurement accuracy. SCC carrier fits under laptop and can be combined with E Series DAQ device for laptops to create portable data acquisition system.
Energy Meter protects against revenue losses.
Schweitzer Engineering Laboratories Inc.
Pullman, WA 99163
Aug 12, 2003 Model SEL-734 Revenue Metering System monitors and records energy and demand usage, activates backup systems during peak demand, and monitors for potentially damaging conditions before equipment is harmed. Capable of recording single-phase quantities, system can issue alarm if power in one phase drops to zero. Model SEL-734 has 12-channel load profile recording system with interval lengths of 5 min to 1 hr. It is MV-90 compatible and offers DNP and Modbus communications.
Power Quality Meter complies with EN50160 standards.
Westbury, NY 11590
Aug 11, 2003 Nexus 1252 performs flicker analysis, which can be damaging to equipment and humans. It provides interharmonic analysis, with logging and monitoring for short- and long-term evaluation. Incorporating DNP 3.0 protocol, unit maps up to 136 measurements to DNP Static points. Up to 16 relays and 8 resets are controlled through DNP. Meter offers high-speed transient recording, fault recording, and voltage surge and sag recording at up to 512 samples/cycle.

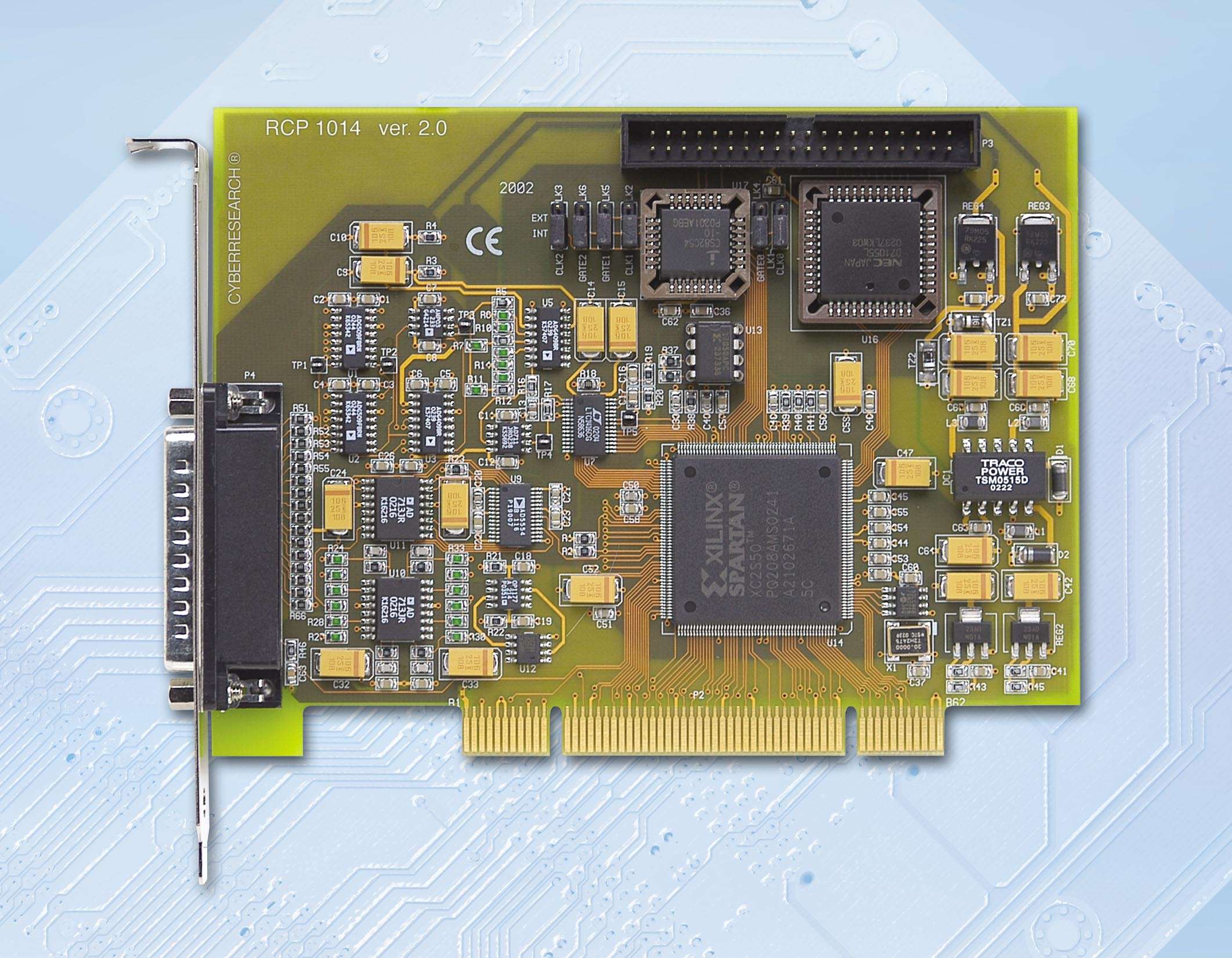

Data Acquisition Boards are based on 32-bit PCI architecture.
Branford, CT 06405 2932
Aug 07, 2003 Series RCP 1014 PCI A/D Boards offer choice of 16 single-ended or 8 differential channels, 14-bit resolution with ±1 LSB accuracy, 24 digital I/O channels, and sample FIFO memory with room for 2,048 samples. They include 3 or 6 counter/timers and up to four 14-bit D/A channels. Included DataWin for Windows® software operates in scope mode or chart-recorder mode and can be used as waveform generation tool or power-supply controller.

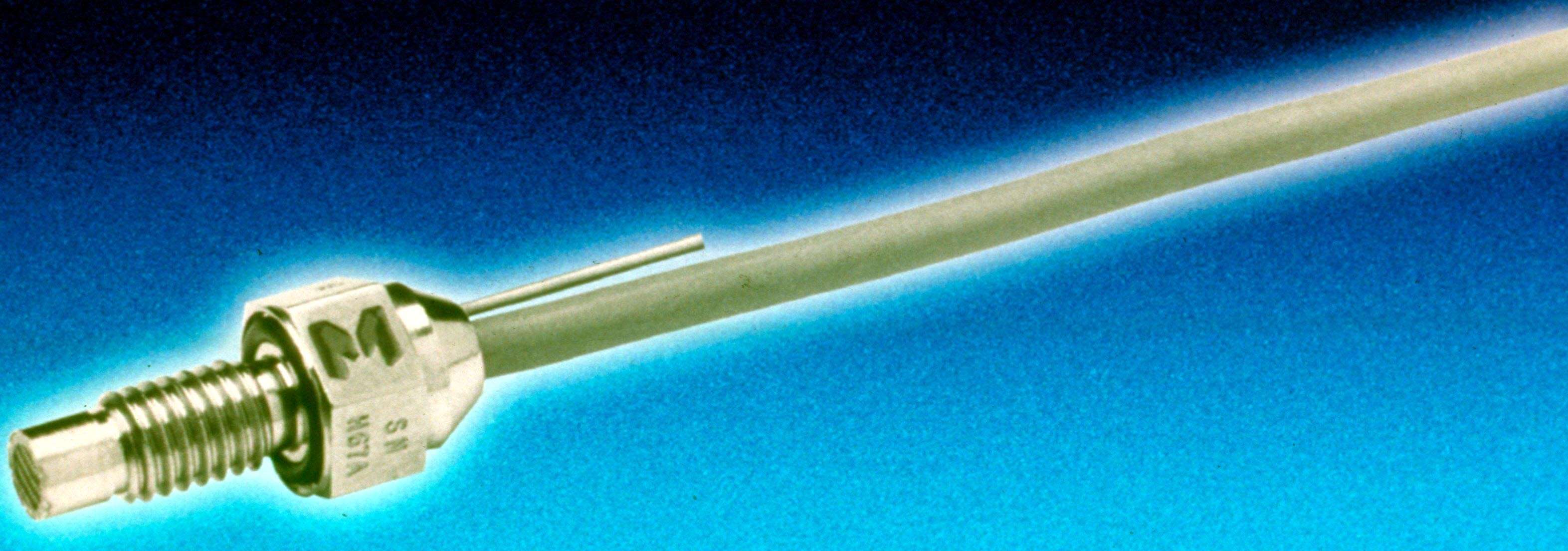

Pressure Transducer supports field-detachable cable.
Meggitt Sensing Systems (Endevco Corp.)
San Juan Capistrano, CA 92675
Aug 07, 2003
Suited for applications where transducer has to be removed and re-installed repeatedly, miniature Series 8510/8530 supports 4-pin detachable cable. Sensor, with 3.8 mm face diameter and 10-32 mounting thread, is available in ranges from 15-2,000 psi. Unit integrates 4-arm strain-gage bridge into sculptured silicon diaphragm. Self-contained hybrid temperature compensation system provides stable performance over 0 to 200°F temperature range.
Photometer is waterproof and portable.
Calverton, VA 20138
Aug 07, 2003 Model V-2000 Multi-Analyte Photometer is a microprocessor-based LED colorimeter featuring preprogrammed methods to measure 13 mm, 16 mm, or 1 in. cells in concentration, transmittance, or absorbance modes. With RS-232 output, unit can log 100 data points and download them to printer or computer. Self-filling, pre-measured Vacu-vial® reagent ampoules can be used to minimize contact with chemicals and provide safe water quality test for 30 analytes.

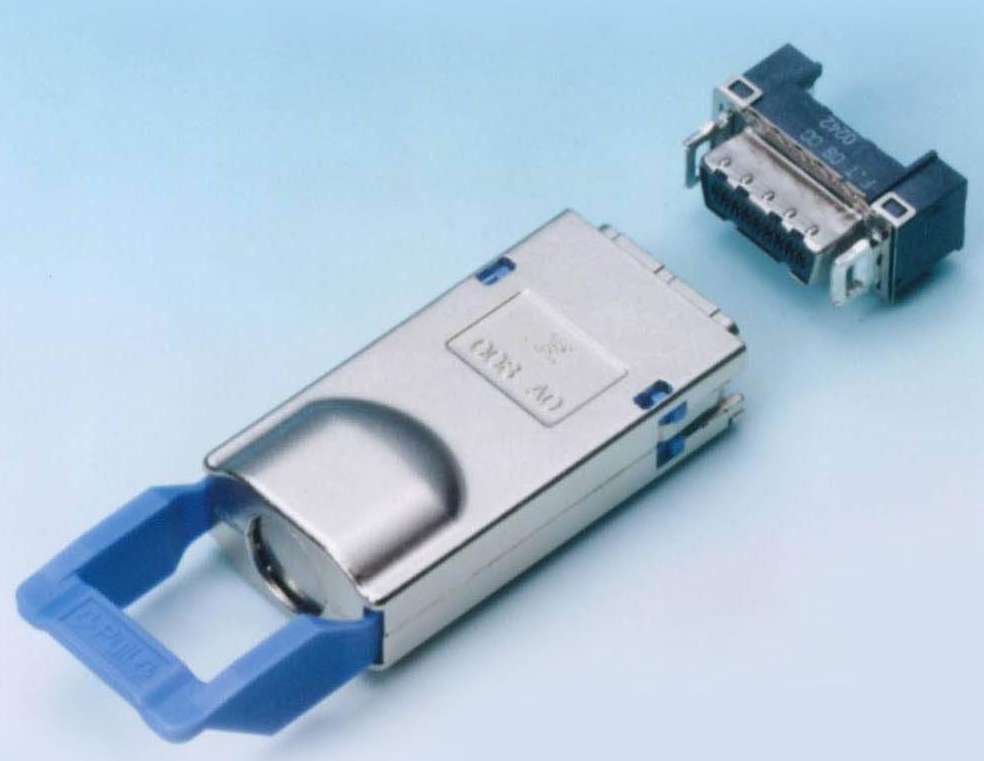

Loop Back Module is suited for high-speed systems.
Fujitsu Components America, Inc.
Sunnyvale, CA 94089
Aug 06, 2003 Suited for testing systems operating at 500 Mbps to 3.2 Gbps per channel, FCN-261Z00x matched-impedance loop-back module uses internal matched-impedance PCB to perform signal testing. Design offers crosstalk of less than 4% and in pair skew of less than 5 ps to maintain integrity of signal being tested. Unit has die-cast metal housing and latching mechanism. Overall, 12x device measures 48.9 x 71.9 mm.

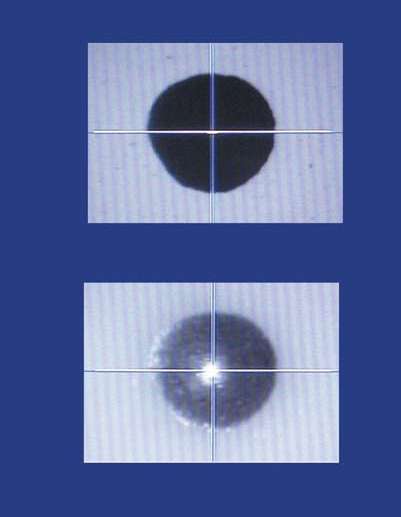

Calibration Station provides precise vision alignment.
Grand Junction, CO 81505
Aug 06, 2003 Backlit Calibration Station eliminates ghosting from dispensed dots and eliminates dot sheen when calibrating materials with reflective properties, resulting in more accurate dispense outline for vision alignment system calibration. Backlit calibration can be combined with topside lighting for additional alignment control. Continually refreshed calibration area is made possible by auto feed paper system.
Optical Encoders suit applications needing size 15 servo mount.
Vancouver, WA 98682 8713
Aug 06, 2003 Models H15D and H15S are non-contacting, rotary to digital position feedback devices with 2 radial ball bearings and standard ¼ in. diameter shaft. Units may be mounted and held in position by 4â€“40 machine screw holes in base, or by using attached servo ring and separate servo cleats. Both encoders allow for polarized connector that latches directly into encoder, while only H15D features internal RS422 differential line driver.
Multimeter Test Kit reads distribution panel voltages.
Windsor, CA 95492 8125
Aug 06, 2003 Ten-piece Professional Series DMM Test Lead Kit includes test leads, 2 modular probe sets, crocodile clips, and sprung hooks. One probe set features sharp stainless steel tip for electronic and electrical test applications. Second probe set is configured with flat blade tip for hands-free testing of AC outlet receptacles. Test leads have over 250 fine strands of flexible, double insulated silicone wire, which is resistant to solder iron damage.

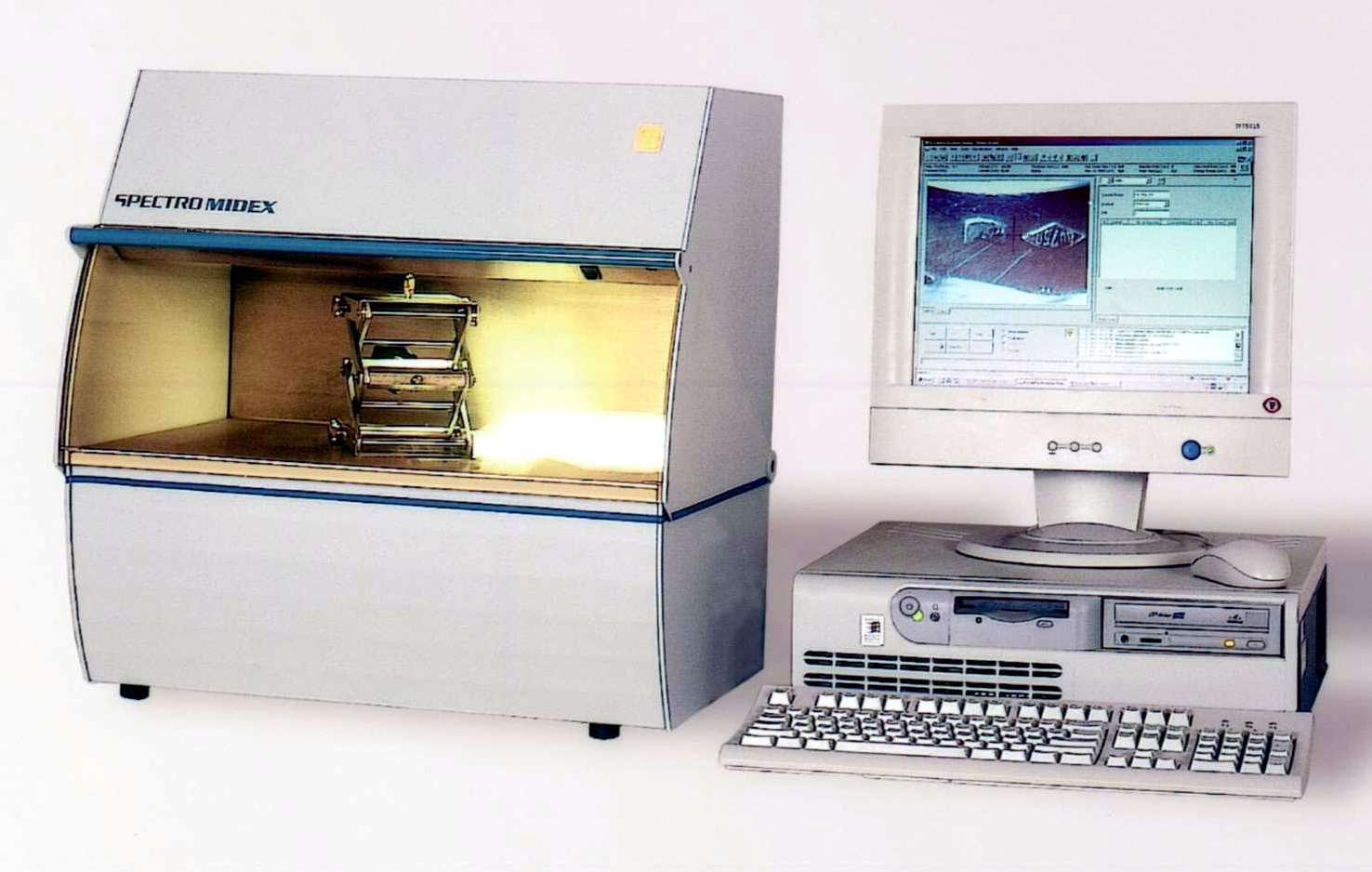

Spectrometer handles curved surfaces and complex shapes.
AMETEK Spectro Analytical Instruments Inc.
Mahwah, NJ 07430
Aug 05, 2003
MIDEX alloy analyzer features tightly focused, collimated x-ray beam that produces .7 mm dia measurement spot. Precise factory pre-configuration enables immediate analysis of all 80 elements. Typical measurement times are less than 2 min, and typical accuracy is ±0.15%. Instrument is suited for non-destructive alloy analysis tasks, including measurement of curved surfaces such as brake drums, wire and tubing, small samples, and high-value scrap.
Machine Health Monitor allows full-time process monitoring.
The Modal Shop, Inc.
Cincinnati, OH 45241
Aug 05, 2003

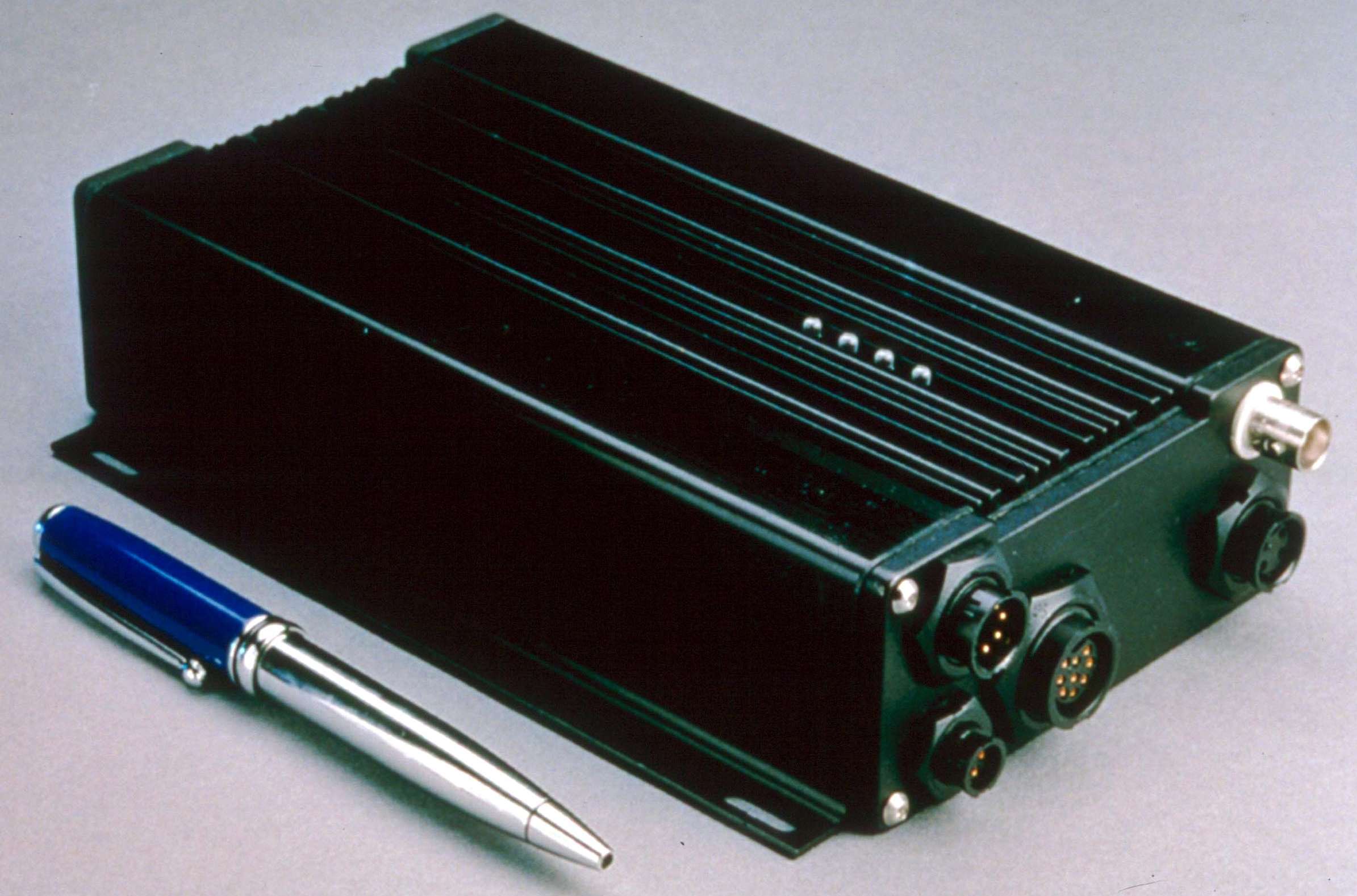

By analyzing band energy, BEAR(TM) (Band Energy Alert/Recorder) provides on-line monitoring of machine health with alarm and data logging capabilities for trending and root-cause analyses. Single or multiple frequency band energy monitoring helps identify specific condition faults or degradation. Based on programmable LanSharc(TM) Smart Digital Controller, unit may be installed as stand-alone module or as PC-based controller connected via Ethernet.
Analog-to-Digital Converter eliminates need for PGA.
Linear Technology Corp.
Milpitas, CA 95035
Aug 05, 2003
Offered in 10-pin MSOP package, low noise (1.45 µVRMS) LTC2433-1 offers 16-bit performance over reference range of 100 mV to 5 V. Its 100 mV reference resolves differential input signal of ±50 mV to 16-bits. Product performs transparent offset and FS calibration on every conversion to provide 20 µV offset error, 1.25 LSB FS error, 1.25 LSB integral non-linearity error, and transition noise less than 0.02 LSB. It utilizes no latency architecture that allows single cycle settling.
Test System performs 4 tests with single connection.
Slaughter Co. LLC
Ardmore, OK 73401
Aug 05, 2003 Interconnected Hipot and Ground Bond Testers perform AC Hipot, DC Hipot, Insulation Resistance, and Ground Bond tests with single Device Under Test connection. Any model of Series 2900 Hipot Testers can be interconnected with Model 2630 30 A Ground Bond Tester to form test system. All units are UL and TUV listed and offer LCD display, multiple test memories, electronic ramp and dwell, PLC remote control, milliohm offset, adjustable output current, and milliohm trip current.
