Pressure Transducer supports field-detachable cable.
Meggitt Sensing Systems (Endevco Corp.)
San Juan Capistrano, CA 92675
Aug 07, 2003
Suited for applications where transducer has to be removed and re-installed repeatedly, miniature Series 8510/8530 supports 4-pin detachable cable. Sensor, with 3.8 mm face diameter and 10-32 mounting thread, is available in ranges from 15-2,000 psi. Unit integrates 4-arm strain-gage bridge into sculptured silicon diaphragm. Self-contained hybrid temperature compensation system provides stable performance over 0 to 200°F temperature range.
Photometer is waterproof and portable.
Calverton, VA 20138
Aug 07, 2003 Model V-2000 Multi-Analyte Photometer is a microprocessor-based LED colorimeter featuring preprogrammed methods to measure 13 mm, 16 mm, or 1 in. cells in concentration, transmittance, or absorbance modes. With RS-232 output, unit can log 100 data points and download them to printer or computer. Self-filling, pre-measured Vacu-vial® reagent ampoules can be used to minimize contact with chemicals and provide safe water quality test for 30 analytes.
Loop Back Module is suited for high-speed systems.
Fujitsu Components America, Inc.
Sunnyvale, CA 94089
Aug 06, 2003 Suited for testing systems operating at 500 Mbps to 3.2 Gbps per channel, FCN-261Z00x matched-impedance loop-back module uses internal matched-impedance PCB to perform signal testing. Design offers crosstalk of less than 4% and in pair skew of less than 5 ps to maintain integrity of signal being tested. Unit has die-cast metal housing and latching mechanism. Overall, 12x device measures 48.9 x 71.9 mm.
Calibration Station provides precise vision alignment.
Grand Junction, CO 81505
Aug 06, 2003 Backlit Calibration Station eliminates ghosting from dispensed dots and eliminates dot sheen when calibrating materials with reflective properties, resulting in more accurate dispense outline for vision alignment system calibration. Backlit calibration can be combined with topside lighting for additional alignment control. Continually refreshed calibration area is made possible by auto feed paper system.
Optical Encoders suit applications needing size 15 servo mount.
Vancouver, WA 98682 8713
Aug 06, 2003 Models H15D and H15S are non-contacting, rotary to digital position feedback devices with 2 radial ball bearings and standard Ľ in. diameter shaft. Units may be mounted and held in position by 4â€“40 machine screw holes in base, or by using attached servo ring and separate servo cleats. Both encoders allow for polarized connector that latches directly into encoder, while only H15D features internal RS422 differential line driver.
Multimeter Test Kit reads distribution panel voltages.
Windsor, CA 95492 8125
Aug 06, 2003 Ten-piece Professional Series DMM Test Lead Kit includes test leads, 2 modular probe sets, crocodile clips, and sprung hooks. One probe set features sharp stainless steel tip for electronic and electrical test applications. Second probe set is configured with flat blade tip for hands-free testing of AC outlet receptacles. Test leads have over 250 fine strands of flexible, double insulated silicone wire, which is resistant to solder iron damage.
Spectrometer handles curved surfaces and complex shapes.
AMETEK Spectro Analytical Instruments Inc.
Mahwah, NJ 07430
Aug 05, 2003
MIDEX alloy analyzer features tightly focused, collimated x-ray beam that produces .7 mm dia measurement spot. Precise factory pre-configuration enables immediate analysis of all 80 elements. Typical measurement times are less than 2 min, and typical accuracy is ±0.15%. Instrument is suited for non-destructive alloy analysis tasks, including measurement of curved surfaces such as brake drums, wire and tubing, small samples, and high-value scrap.
Machine Health Monitor allows full-time process monitoring.
The Modal Shop, Inc.
Cincinnati, OH 45241
Aug 05, 2003
By analyzing band energy, BEAR(TM) (Band Energy Alert/Recorder) provides on-line monitoring of machine health with alarm and data logging capabilities for trending and root-cause analyses. Single or multiple frequency band energy monitoring helps identify specific condition faults or degradation. Based on programmable LanSharc(TM) Smart Digital Controller, unit may be installed as stand-alone module or as PC-based controller connected via Ethernet.
Analog-to-Digital Converter eliminates need for PGA.
Linear Technology Corp.
Milpitas, CA 95035
Aug 05, 2003
Offered in 10-pin MSOP package, low noise (1.45 µVRMS) LTC2433-1 offers 16-bit performance over reference range of 100 mV to 5 V. Its 100 mV reference resolves differential input signal of ±50 mV to 16-bits. Product performs transparent offset and FS calibration on every conversion to provide 20 µV offset error, 1.25 LSB FS error, 1.25 LSB integral non-linearity error, and transition noise less than 0.02 LSB. It utilizes no latency architecture that allows single cycle settling.
Test System performs 4 tests with single connection.
Slaughter Co. LLC
Ardmore, OK 73401
Aug 05, 2003 Interconnected Hipot and Ground Bond Testers perform AC Hipot, DC Hipot, Insulation Resistance, and Ground Bond tests with single Device Under Test connection. Any model of Series 2900 Hipot Testers can be interconnected with Model 2630 30 A Ground Bond Tester to form test system. All units are UL and TUV listed and offer LCD display, multiple test memories, electronic ramp and dwell, PLC remote control, milliohm offset, adjustable output current, and milliohm trip current.
Analog I/O Boards provide real-time data acquisition.
Exacq Technologies, Inc.
Indianapolis, IN 46250
Aug 04, 2003 Processor-based, general-purpose CM Series Multifunction Analog I/O boards for PCI Bus offer up to 32 analog inputs at speeds to 1 MHz with 16 Bit resolution. Utilizing on-board, 143 MHz, 32-bit digital signal processor; 16 MB of on-board memory; and PCI bus mastering, boards provide capture/playback of analog signals with unlimited lengths. Products come with tools, drivers, and sample source code including Exacq Control Centerâ„˘, Exacq Benchâ„˘, and Exacq SDKâ„˘.
Variable Area Flow Meter measures air, gases, and liquids.
Flo-tech, Div. of Racine Federated Inc.
Racine, WI 53404
Aug 01, 2003
Constructed of polysulfone plastic, EZ-View is available to measure air, compressed gases, oil, and water. Product contains minimal moving parts and flow rate indicator. With accuracy within ±5% FS and repeatability within ±1%, meter operates in any position and does not require flow straighteners or special piping. Flow ranges vary from 2-25 gpm up to 10-100 gpm for liquids and 35-200 scfm up to 140-1000 scfm for gases.
Air Monitor utilizes infrared technology.
Environmental Devices Corporation
Plaistow, NH 03865
Aug 01, 2003 Model HD-1100 Haz-Dust Respiratory Air Monitor is a real-time, light scattering monitor that tests for airborne respiratory particluates. Handheld survey tool can locate and identify hot spots or problem areas, so that further evaluation and suppression control can be implemented. Infrared technology provides accurate and instantaneous data on airborne particulate concentrations, in accordance with NIOSH #0600 method.
Flowmeter totalizes and provides alarm/analog output.
Clinton, MA 01510
Aug 01, 2003 Model DS25 variable area flowmeter handles flow ranges from 0.01 to 570 gpm for liquids and 0.44 to 1,100 scfm for gases. Stainless steel, AISI 316 Ti wetted parts allow use in aggressive media and food and drink handling applications. Flowmeter functions by magnetically coupling float positioned in flowing media to externally mounted indicator. Unit is rated for temperatures up to 400°C and pressure to 320 bar.
Pressure Transducer suits limited space applications.
Measurement Specialties, Sensor Products Div.
Valley Forge, PA 19482
Aug 01, 2003 Providing measurement range up to 3,000 psi, Model MSP-100 is offered with non-amplified output and accuracy of ±1%, with operating temperature of -20 to +85°C. One-piece, stainless steel unit incorporates O-ring and retainer groove for easy installation. Micromachined silicon piezoresistive strain gauges are fused to stainless steel diaphragm, enabling transducer to handle difficult media such as contaminated water, distilled liquids, and mildly corrosive fluids or gases.
Portable Tester Series offers VGA output.
Staveley Instruments, Inc.
Kennewick, WA 99336
Aug 01, 2003 Weighing less than 4 lb, 1000S+ Series is offered in 3 NDT disciplines: ultrasonic (Sonic), eddy current (Nortec), and composite testing (BondMaster). Each device is offered with VGA output that provides for external remote display capability and allows for addition of customer-interchangeable color LCD. Additional interchangeable displays consist of monochrome liquid crystal or hi-brite electroluminescent.
Levels feature PlumbView(TM) end-reading vial.
Bahco North America, Inc. A Sub. Of Snap-On, Inc.
Scranton, PA 18501 2036
Jul 31, 2003
Box and I-Beam 851100-series levels offer 3 edge-reading yellow vials, milled working surfaces, and plastic end bumpers. Plastic 851120 Post and Pipe Level has folding design with 2 horizontal and 1 vertical acrylic level vials. Measuring 10 in. long, 851121 Magnetic Torpedo Level has full-length magnetic-edged side, edge-reading vial, and 3 acrylic vials for horizontal and vertical readings. Measuring 3 in. long, 851122 Line Level incorporates one acrylic vial for horizontal readings.
Gaging Fixtures measure difficult surfaces in seconds.
Mahr Federal Inc.
Providence, RI 02940
Jul 31, 2003 MarSurfâ„˘ Fixtures measure automotive component surfaces right on shop floor. Five units measure cylinder walls, thrust faces on journals and crankshafts, standard bore surfaces, deep bore surfaces, and deck faces on blocks and cylinder heads. Built as modular series keyed to requirements of each component, fixtures automatically position gage probe and enable operators to complete entire measurement process with touch of 1 or 2 buttons.

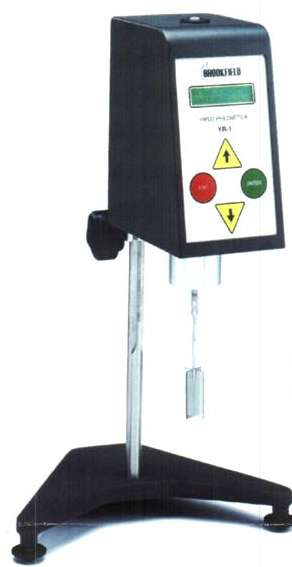

Yield Stress Rheometer measures shear stress to 40,000 Pa.
Brookfield Engineering Laboratories, Inc.
Middleboro, MA 02346
Jul 31, 2003 YR-1 includes 0.232 in. dia V-74 vane spindle, which is suited for thick and/or highly viscous materials such as pastes, peanut butter, and grease. Vane spindle reduces required sample size down to less than ˝ in. in diameter. Tool provides alternative to full-featured lab rheometers and is computer programmable using EZ-Yield software. Additional vane spindles (3) are available to expand viscosity ranges.

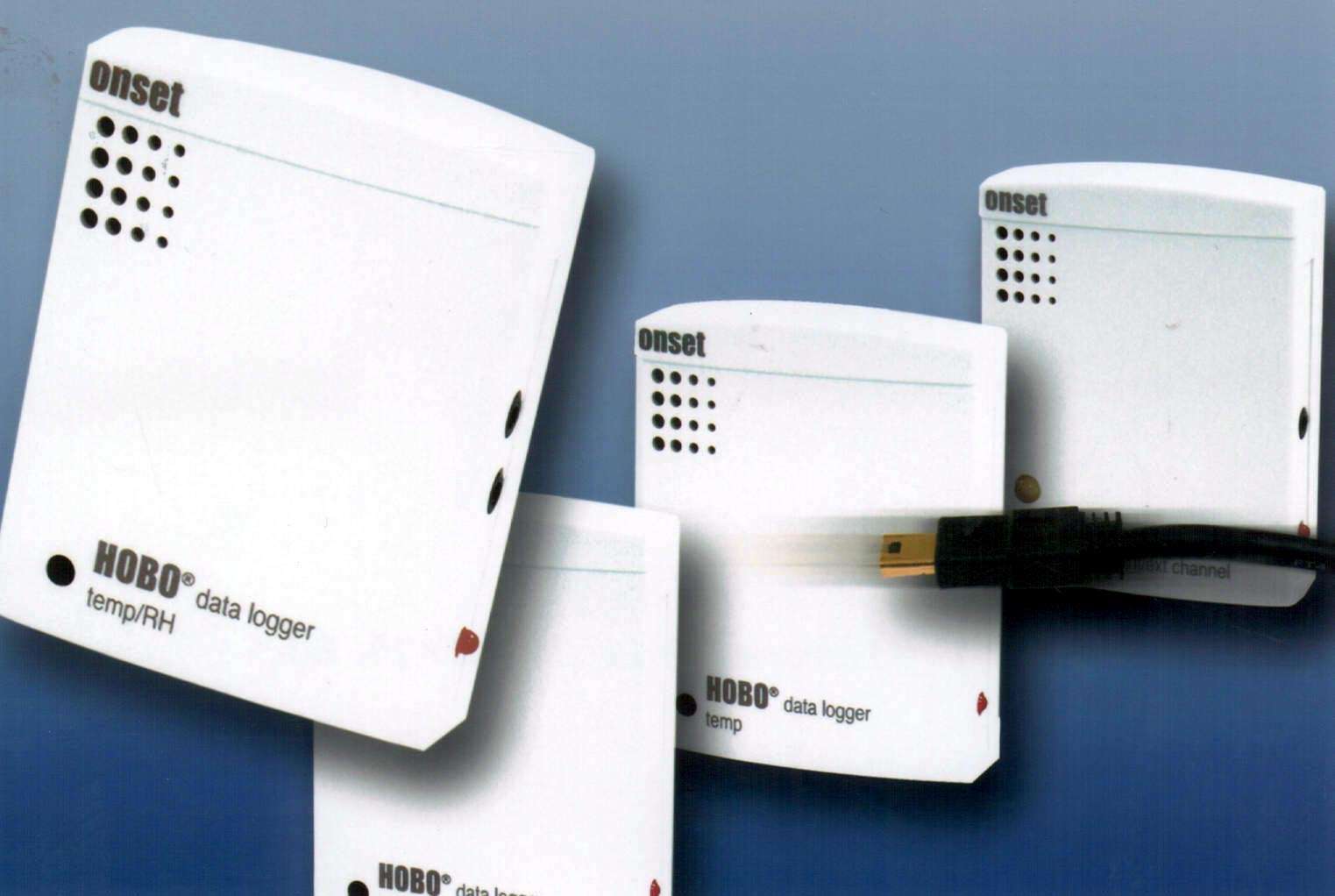

Data Loggers feature direct USB interface.
Onset Computer Corp.
Bourne, MA 02532
Jul 31, 2003 HOBO U12 data loggers measure temperature, relative humidity, light intensity, and other indoor environmental conditions. They offer 12-bit resolution and 43 K measurement capacity. High-precision sensors provide long-term data accuracy, including ±2.5% RH and ±0.35°C. Direct USB interface enables data offloading at 64 Kbytes in 30 sec. GreenLineâ„˘ software provides real-time monitoring on PC and 1-click conversion of data for upload to Microsoftâ„˘ Excel software.
