Portable Holiday Detectors are self-contained.
Pipeline Inspection Company Ltd
Houston, TX 77055
Aug 19, 2003 Offered in 3 models, detectors inspect pipe coatings on 2â€“60 in. pipe. SPY® Model 715 provides infinite voltage settings over 1,000â€“5,000 V range, while Model 725 inspects various coatings with its 1,000â€“15,000 V range. With its 15,000â€“35,000 V range, Model 735 is suited for use with extra thick and somastic coatings. All detectors feature infinite voltage settings to allow specific sensitivity adjustments on the fly.

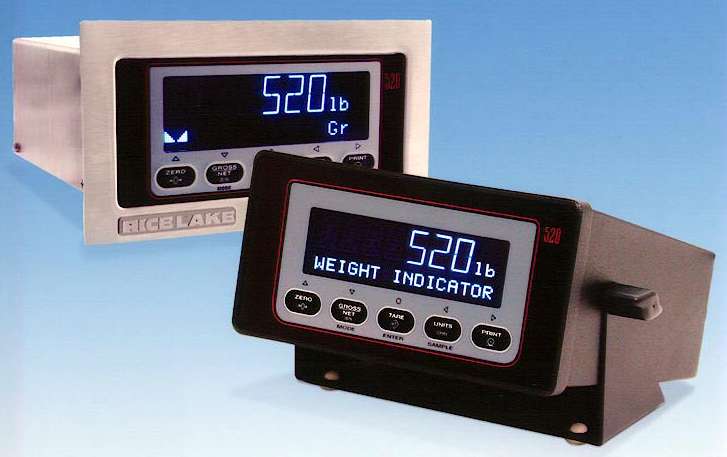

Digital Weight Indicator has panel-mount enclosure.
Rice Lake Weighing Systems
Rice Lake, WI 54868
Aug 19, 2003 Able to be read in light and dark environments, 520 digital weight indicator features vacuum fluorescent primary weight display with .75 in. characters. Its 16-character prompting display can be programmed with up to 8 different messages to guide operators through weighing processes. Product also offers RATTLETRAP® 2-stage, digital filtering; peak hold function; counting mode; and accumulator for material management and inventory tracking.
Immersion Temperature Probe eliminates need for thermal well.
PreCon National Sales Co.
Memphis, TN 38184
Aug 19, 2003 Series PL-PH utilizes corrosion-resistant brass or stainless steel housing with large wall thickness. In most applications, probe can be inserted directly into liquid being measured. Standard unit includes thermistor or RTD sensor elements and wide variety of resistance curves. Applications include pool and spa heaters, food and beverage equipment, surface transportation, analytical instruments, and building controls.
Pressure Gauges withstand severe service applications.
Solon, OH 44139 2764
Aug 19, 2003 Thermoplastic Pressure Gauges monitor vacuum and positive system pressures up to 15,000 psi. Featuring 4˝ and 6 in. dial sizes in lower-back mount and lower mount configurations, gauges come with male NPT or tube adapter end connections. Tube adapter connections allow user to rotate gauge to desired position for viewing. Available unfilled or liquid-filled with glycerin or silicone, solid-front gauges feature turret-style case and blowout back.

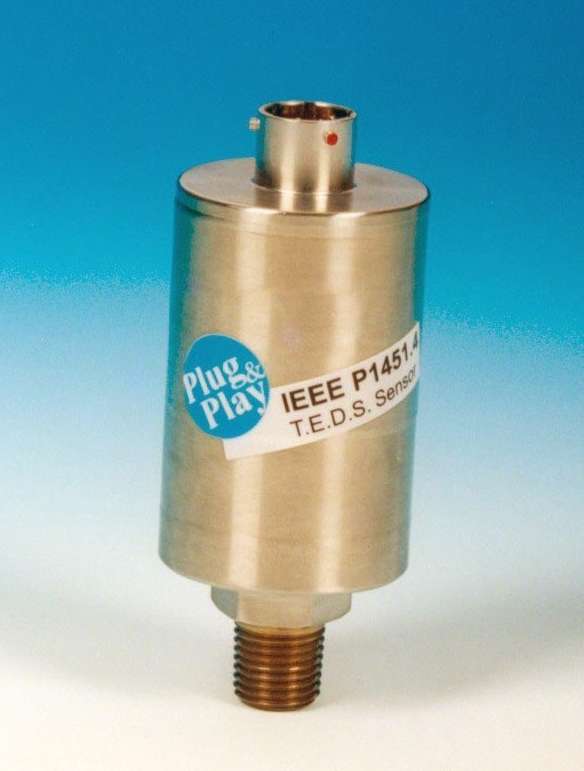

Calibration Systems are IEEE 1451.4 compliant.
Columbus, OH 43228
Aug 19, 2003 Plug, Play, and Calibrate Systems are compliant to IEEE 1451.4 standard for connectivity of sensors and associated signal conditioning. Transducer electronic data sheet containing sensor specifications, calibration data, and user-defined location information is stored in sensor. When connected to SC2000 or any IEEE 1451.4 compliant signal conditioning, sensor is interrogated for TEDS information and automatically sets up and calibrates signal conditioning with sensor.
I/O System offers expanded capacity.
Temecula, CA 92590 3614
Aug 19, 2003 Model SNAP-UP1-M64 SNAP Ultimate brain handles mix of up to 16 analog, digital, and serial modules. Together with SNAP-M64 rack, system allows SNAP Ultimate I/O users to combine up to 64 analog, digital, and serial I/O points on same rack.

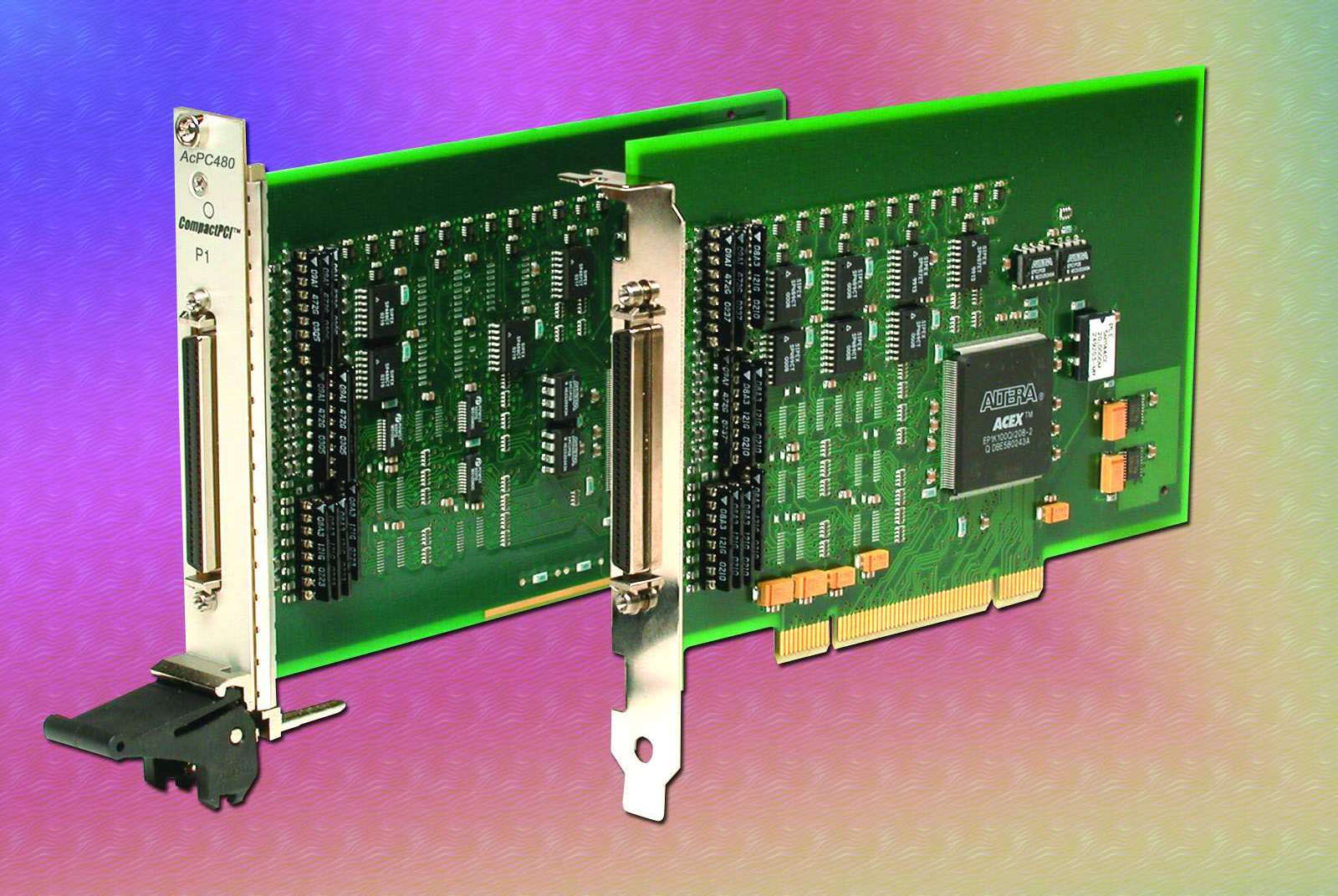

I/O Boards provide 10 counter/timers.
Wixom, MI 48393 7037
Aug 18, 2003 Counter/timer I/O boards, Model APC48x for desktop PCI and Model AcPC48x for CompactPCI, offer several models with up to 10 quadrature/counter/timer channels. Configurations are available with 16 or 32-bit counters and TTL or RS422 interfaces. Quadrature measurement supports X1, X2, X4, and index pulse decoding. Units are suited for counting events, generating waveform control signals, measuring pulse-widths or periodic rates, and other process monitoring operations.

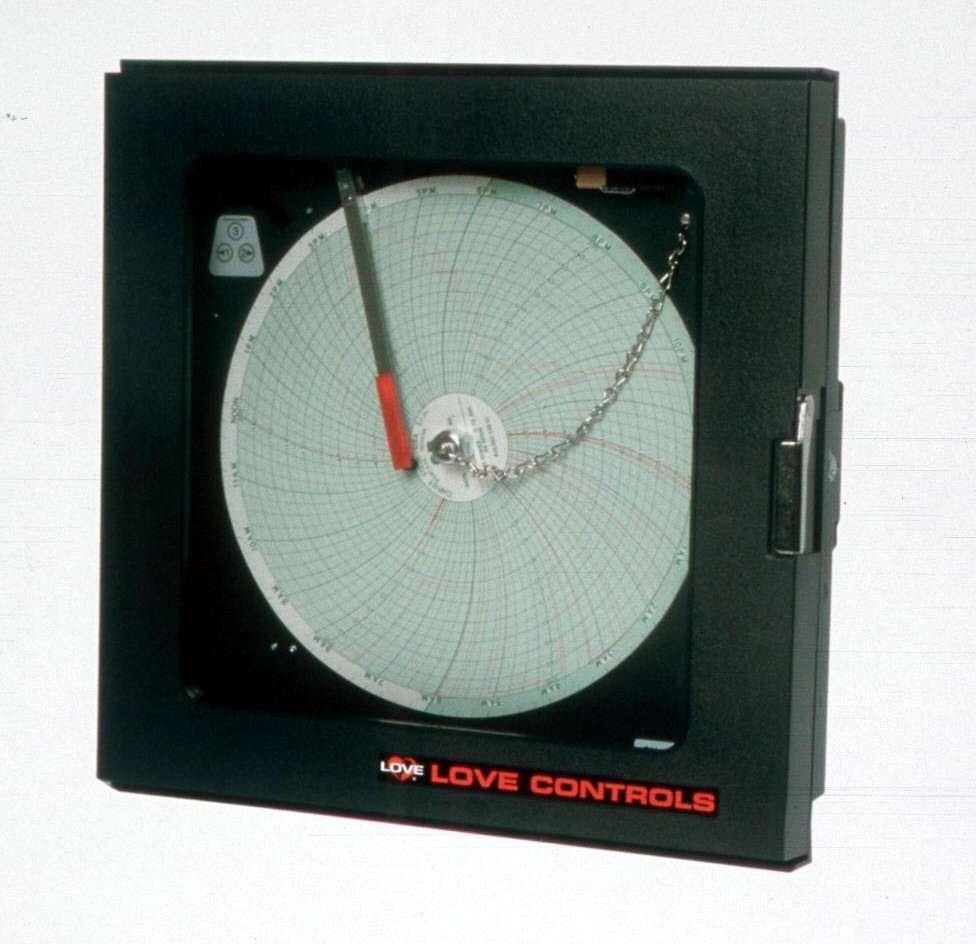

Chart Recorder offers clockwise and counterclockwise rotation.
Michigan City, IN 46361
Aug 18, 2003 Model LCR10 10 in. circular chart recorder can be programmed for Type J, K, T, R, S, or B thermocouples; 100 ohm DIN platinum RTD; or 4â€“20 mA. Chart speeds are selectable from 4â€“168 hr rotation. Standard battery backup allows for up to 72 hr of operation after loss of main power. Enclosure is rated at NEMA 12X. Optional alarm may be programmed as high, low, or guard band alarm. Model LCR10 uses standard 10 in. charts from most major manufacturers.

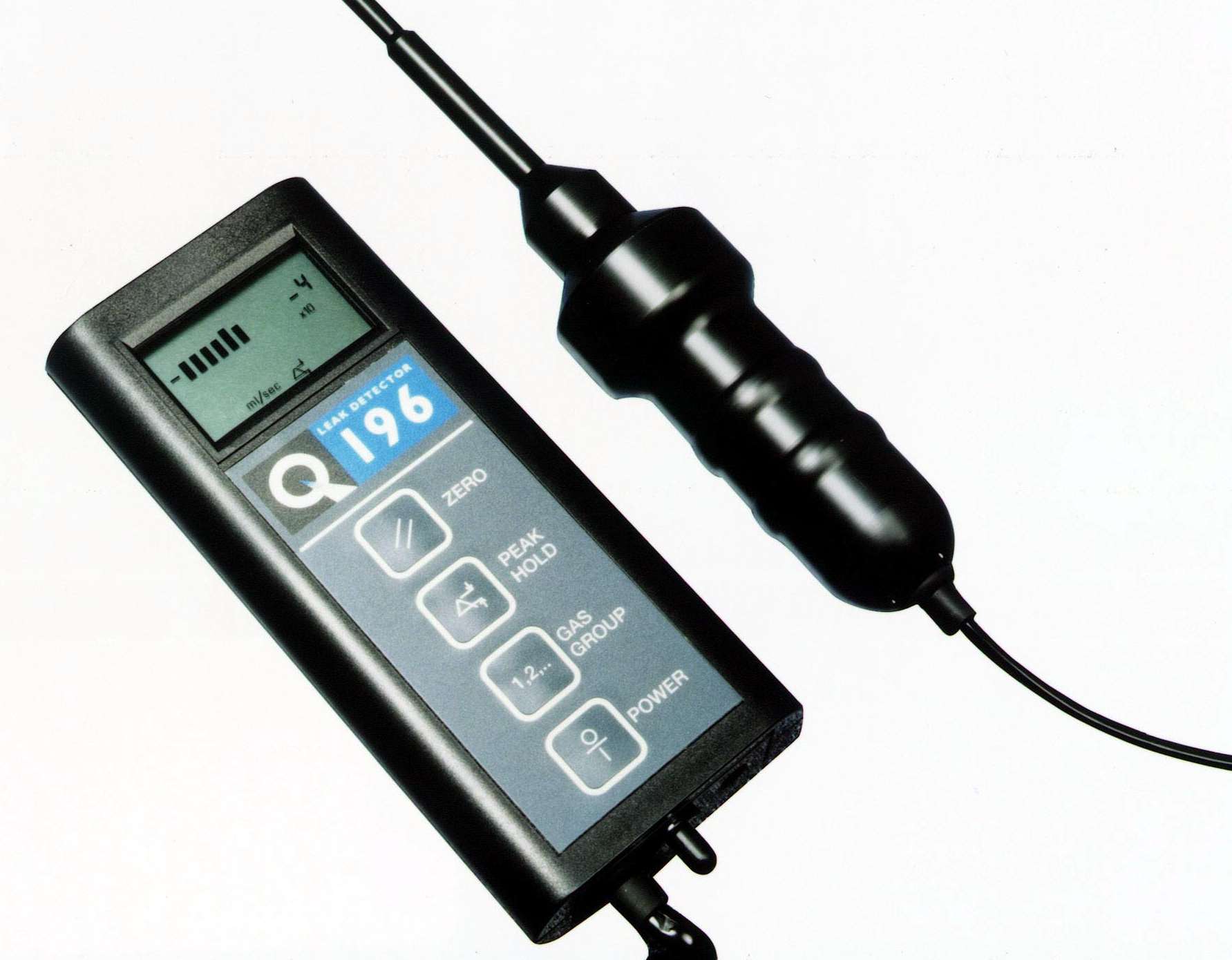

Gas Leak Detector offers response time less than 1 sec.
Houston, TX 77041
Aug 18, 2003 Qualichek 196 portable, electronic, gas leak detector features detachable probe for access to difficult sites. It offers convenience of 1-handed operation and at-a-glance readings. Audio facility further aids positive leak location. Control is via membrane keypad and selection of preset sensitivity factors is offered. Sensitivity automatically adjusts to leak rate. Maximum leak rates are recorded and displayed in choice of user-selectable units.

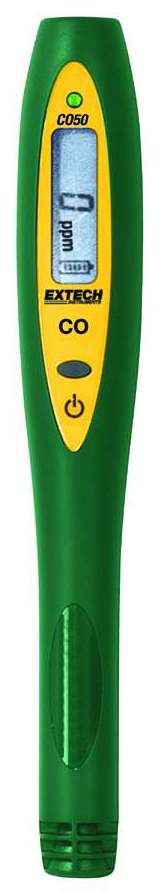

Carbon Monoxide Meter detects CO levels to 10,000 ppm.
Extech Instruments Corp.
Nashua, NH 03063
Aug 18, 2003
Model C050 uses one button to check CO levels. Backlighting on display automatically switches on in low light areas. Audible indicator increases in tone up to 30 ppm; above 30 ppm, 2-tone alarm is activated. Meter provides 15 min ambient room test and stores peak value. Display ranges from 0-999 ppm for low end monitoring.

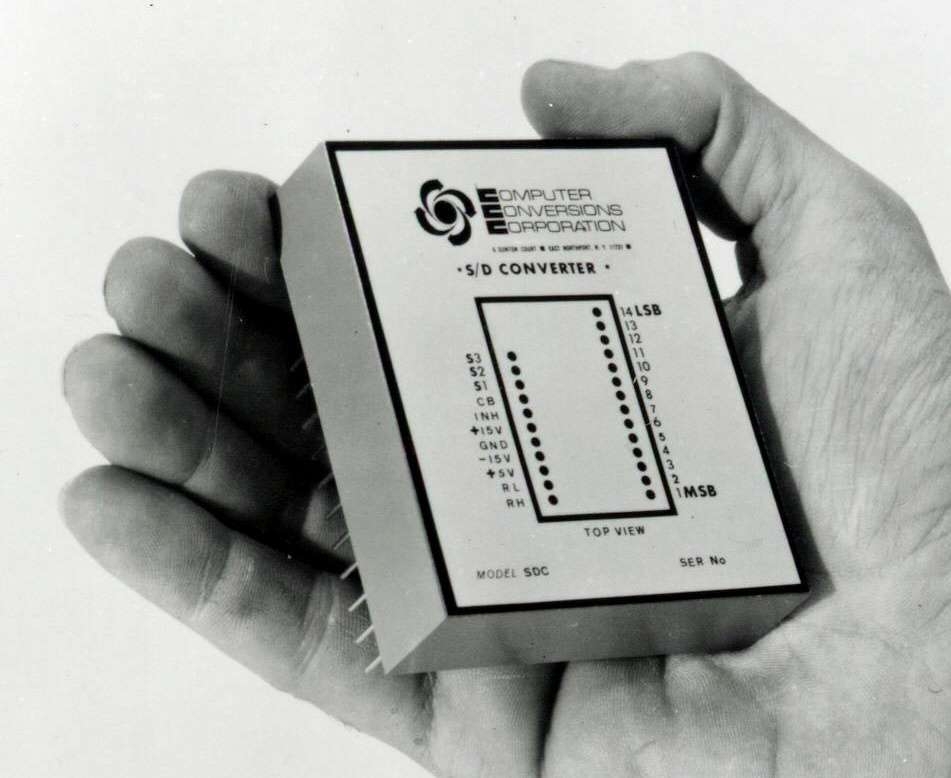

Synchro to BCD Converter offers resolution of .01degree.
Computer Conversions Corp.
East Northport, NY 11731
Aug 18, 2003 Measuring 2.6 x 3.1 x .82 in., PCB-mounted converter series converts Synchro or Resolver inputs of 11.8, 26, or 90 V, 400 Hz or 90 V 60 Hz into 5 decade BDC data representing angle with .05° or .03° accuracy. Product offers isolated Synchro inputs and zero offset adjustment. Digital outputs are TTL/CMOS compatible, and input data is accepted. Frequency range is 47â€“1,200 Hz. Operating temperature ranges are 0 to +70 °C and -55 to +105 °C.
Calibration System calibrates vibration sensors.
The Modal Shop, Inc.
Cincinnati, OH 45241
Aug 18, 2003
Self-contained, portable Model K9100C includes everything needed to calibrate displacement, velocity, and acceleration sensors when operated with user-supplied sensor signal conditioning. Two 10-turn potentiometers set test parameters for calibrating sensors in bandwidth from 10 Hz to 10 kHz. System produces NIST-traceable reports that comply with ISO 17025/A2LA requirements. Included rechargeable power source makes it suitable for testing in the field.
Center Probe Test Socket has floating guide plate.
Aries Electronics, Inc.
Bristol, PA 19007-6810
Aug 18, 2003
Machined from Torlon 4203 or 5530, RF center probe socket features floating guide plate with built-in hard stop. Product can be used for packages with 0.50 mm pitch or higher for devices up to 55 mm wide in applications with speeds from 1-10+ GHz. Decoupling pockets can be placed within 1.0 mm of product's solderless, pressure-mount, compression spring probes. Contacts have cycle life of over 500,000 and can handle up to 2 A continuous current.
I/O Module handles communications to high-power components.
Hartford, WI 53027
Aug 13, 2003 Model CL-408 enables joysticks and other control devices to interface with machine bi-directional servos, valves, and solenoids. Unit can stand-alone or be configured as slave module in CAN system. It provides three 0â€“5 Vdc, 12-bit analog inputs; 1 frequency or Switch to Ground input; four 15 A, bi-directional servo outputs; three 15 A sourcing outputs; and one 50 mA, 5 Vdc regulated supply. Module is packaged in NEMA4 case with Deutsch DT connectors.
Probe Control System inspects tubes in steam generators.
Issaquah, WA 98027 0140
Aug 13, 2003 By combining features of PM-3A Controller, HS MRPC® Controller, and two 10D Probe Pusher Power Supplies, modular Dual Probe Control System streamlines eddy current testing for cracks and flaws. Product supports up to 2 MRPC Motor Units at 2,400 rpm. Tubular Drive Unit System is designed to extend through square bends in steam generator tubing. Drive shaft resides within solid nylon, pushable extension shaft.
Reason Code Module captures OEE machine availability data.
San Diego, CA 92121
Aug 13, 2003 Able to communicate specific factory floor requirements for support and materials, Wireless Reason Code Module automatically captures and profiles machine activity information. It allows manufacturers to monitor, communicate, and automate capture of real-time reasons for machine stoppage. Module can be used to determine overall equipment effectiveness, capture optimal machine performance data, and function as Automated Kanban Pull System.
Differential Pressure Gauges handle harsh environments.
Dresser Instrument Headquarters, Ashcroft Pressure & Temperature Instrument Operation
Stratford, CT 06614 5145
Aug 13, 2003 Ashcroft® Types 5503 and 5509 withstand all types of weather conditions while measuring very low differential pressure. Type 5503 can handle static pressures up to 3,625 psi. Both utilize stainless steel diaphragm-sensing element to protect against corrosive processes. Gauges come in psid, millibar, bar, and in. of water ranges with or without electric contacts. Type 5503 has 1.6% FS accuracy with ˝% upscale accuracy option; Type 5509 has accuracy of 2.5% FS.
Conductivity Detector suits HPLC applications.
Shimadzu Scientific Instruments, Inc.
Columbia, MD 21046
Aug 13, 2003 Seamlessly integrated into system via plug-and-play fiber optic cable, CDD-10AVP allows users to select and adjust mobile phase conditions on sample or analyte basis. Detector features built-in validation support functions for GLP/GMP compliance. Data obtained is digitally transferred through system controller to data system or outputted through analog port to data collection device. Suited for analyzing organic acids and aqueous ions, product offers detection limits down to 1 ppb F.
Digital Refractometer offers 30 programmable user scales.
Paul N. Gardner Co., Inc.
Pompano Beach, FL 33060 6608
Aug 13, 2003
Model RX-5000a Automatic Digital Refractometer uses internal heating/cooling mechanism to provide Refractive Index and Brix testing of dissolved solids with accuracy of ±0.00004 and ±0.03%, respectively. It can call up to 30 latest measurements and, with optional DP-62a printer, measurements can be printed out. Unit displays top and bottom limit bar for set control range allowing user to see, at a glance, if measured value is within tolerance.
Analog-to-Digital Converters suit multi-detector experiments.
AMETEK Test & Calibration Instruments
Largo, FL 33773
Aug 13, 2003 Model 4418Q integrates charge in pulse, and is optimum for direct connection to anode of photomultiplier tube. Model 4418V accommodates pulse-amplitude measurements on pulses from nuclear spectroscopy amplifier. Arrival times of events relative to common Start pulse can be digitized by Model 4418T. All three 12-bit ADCs feature 8 identical inputs with CAMAC and fast FERAbus readout.
