Process Analyzer offers dual capability.
AMETEK Process Instruments
Newark, DE 19702
Sep 09, 2003 Model 931 simultaneously measures hydrogen and hydrogen sulfide in tail gas treatment units, eliminating need for separate monitors. It is suited for monitoring hydrogenation reactors that use hydrogen to convert sulfur dioxide and other unreduced sulfur compounds into hydrogen sulfide that is then scrubbed from gas stream with amine absorber system. UV photometric analyzer is certified for use in Class I, Division 1, and Zone 1 hazardous locations.
Turbine Flow Meter retrofits to most manufacturers' products.
Blancett Flow Meters
Racine, WI 53406
Sep 09, 2003
Able to withstand severe environments in oilfield projects and other industrial applications, Model 1100 delivers accurate and repeatable flow measurements of ±1% for pipe sizes ½-10 in. with flow ranges up to 5,000 gpm. Designed with one moving part, product maintains accuracy in corrosive and abrasive fluids and is capable of electronic integration to provide displayed flow rates and totalization.
Signal Conditioner accepts bridge/strain gauge input.
Leesburg, VA 20175
Sep 09, 2003 DIN rail mount model WV448 utilizes TouchCALâ„¢ technology and provides proportional, selectable DC output. Powered by 9â€“30 Vdc, unit is field configurable via DIP switches for bridge/strain gauge inputs from ±5 to ±200 mV. Excitation voltage range is 1â€“10 Vdc @ 120 mA, and outputs can be field-configured for DC signal ranges of 0â€“10 V, 0â€“20 mA, or 4â€“20 mA. All ranges have zero and span adjustability of up to 95% of range via pushbutton.
Roundness Tester minimizes web-fed printing press down time.
Brudi Bolzoni Auramo
Homewood, IL 60430
Sep 09, 2003 SPIDER utilizes microprocessing and ultrasonic-sound technology to evaluate paper rolls for roundness before they are positioned on high-speed, web-fed printing press. Integrity of roll or roll wrapping is not compromised. Test results can be viewed on LCD display on site or directed to standard PC for further analysis. SPIDER does not have to be positioned precisely; any misalignment will be automatically compensated for by analysis program.
Microscope sends images through real-time video connection.
Saddle Brook, NJ 07663 8346
Sep 09, 2003 Portable TableScope DS-3NL sets up on any surface and under any lighting conditions. Focus, zoom, lighting, and stand are built in and require no assembly. Objects can be viewed at up to 230x magnification on TV or video monitor after plugging in only 2 cables. Image capture element is ¼ in. color CCD with 270,000 pixels, and image output is NTSC format. Optional PC interface kit allows viewing and image storage on destop or laptop.

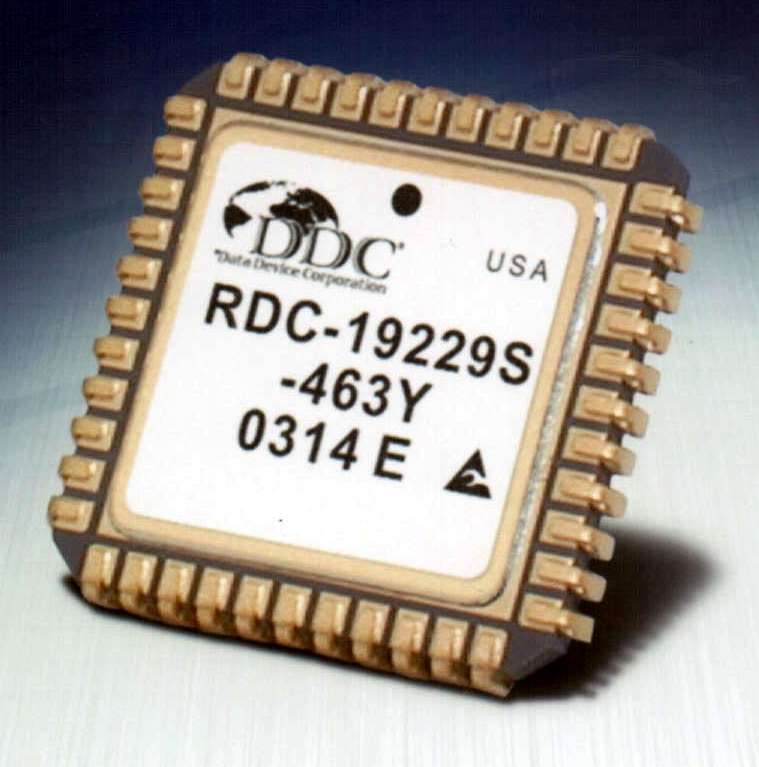

Resolver-to-Digital Converters suit space applications.
Data Device Corp. (DDC)
Bohemia, NY 11716-2482
Sep 09, 2003 Series RDC-19229S-4XX Class K monolithic converters provide programmable 10, 12, 14, and 16-bit resolution, programmable bandwidth and tracking rates, +5 V only input power, and internal synthesized reference. Operating temperature is -55 to +125°C. Units come in 16 x 16 mm, 44-pin ceramic quad flat pack. Typical space applications include motor control, positioning, and reaction wheels.

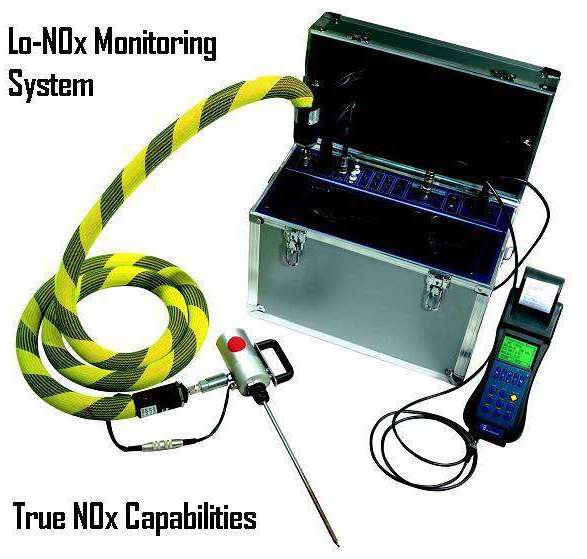

Gas Analyzer provides portable combustion monitoring.
E Instruments International LLC
Langhorne, PA 19047
Sep 09, 2003
Lo-NOx GreenLine 8000 offers true NOx capabilities using sensors for NO and NO2. It includes heated probe and sample line and built-in Peltier cooler. Unit can provide on-demand long term monitoring. It is fully compliant to EPA protocol and CA Low-NOx certified. Remote control unit includes built-in printer. Additional gas sensors include O2, CO, CO2 and CxHy with NDIR.
Converter connects legacy devices to home networking systems.
Texas Instruments, Inc., Semiconductors
Dallas, TX 75243
Sep 09, 2003
OnRAMP lets consumers network legacy audio and video devices such as PCs, A/V receivers, and DVD players to FireWire(TM)-enabled home electronics without upgrading existing equipment. Streaming audio can be transferred from network of FireWire devices to S/PDIF and analog audio connections. OnRAMP can send A/V entertainment and IP data via IEEE 1394b over standard CAT5 cabling. It supports infrared repeating and includes LCD display for status and mode selection.

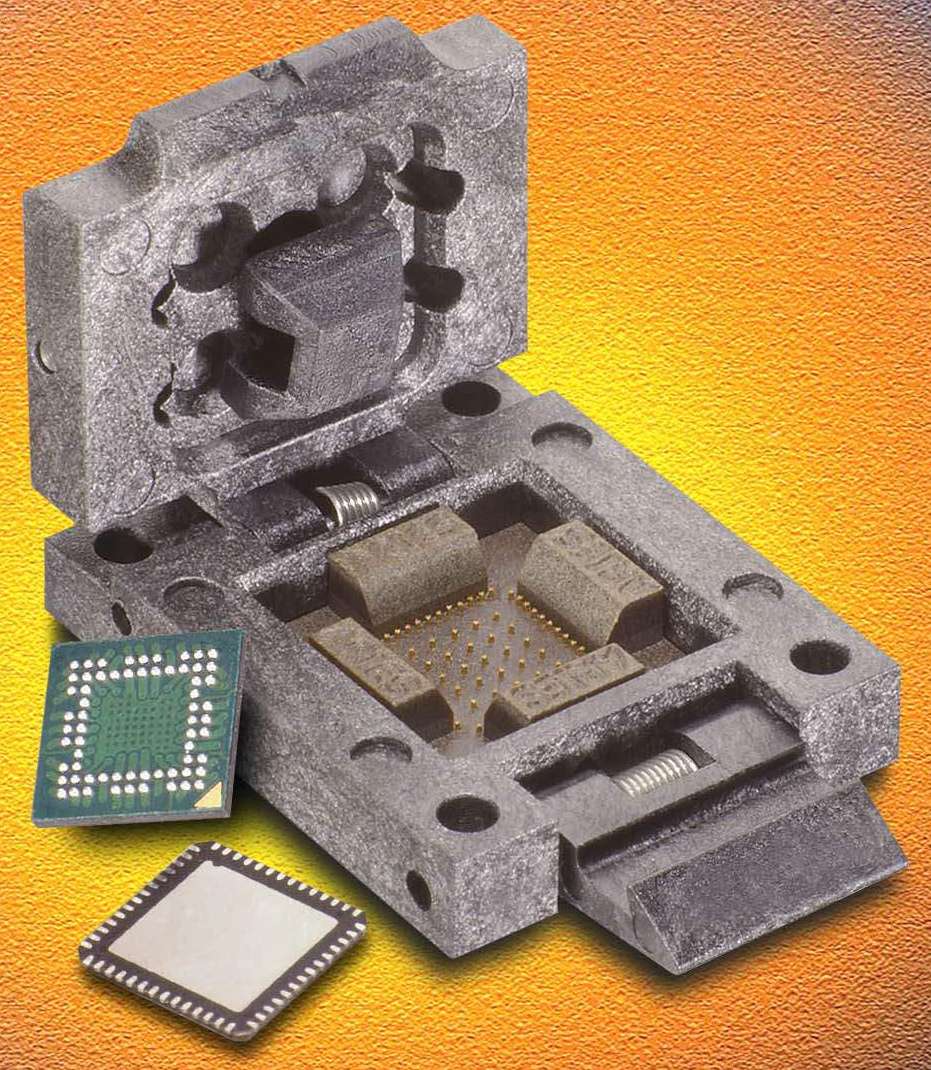

Center Probe Test Socket suits devices to 13 mm².
Aries Electronics, Inc.
Bristol, PA 19007-6810
Sep 09, 2003
RF test socket incorporates solderless, pressure-mount compression spring probes located by 2 molded plastic alignment pins and secured with 4 stainless steel screws. Suited for devices with pitches of 0.50 mm and higher in applications with speeds from 1-10+ GHz, signal path during test is .077 in. Center probe contact forces are 9-12 g per contact for 0.50-0.75 mm pitches and 17-20 g per contact for 0.80+ mm pitches.

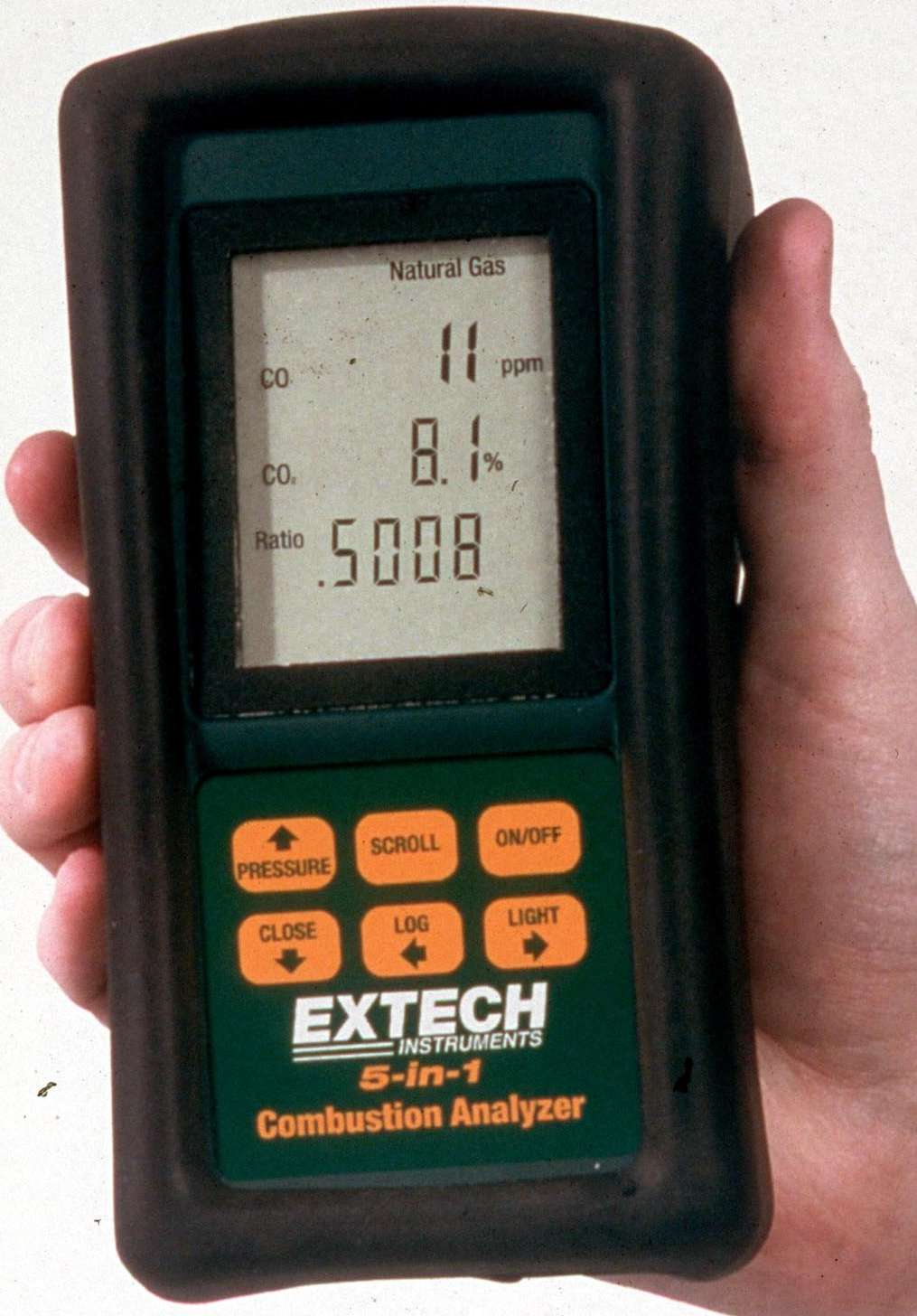

Portable Combustion Analyzer offers 5-in-1 functionality.
Extech Instruments Corp.
Nashua, NH 03063
Sep 08, 2003
Model CO80 combines combustion analyzer, CO detector, flammable gas leak detector, differential thermometer, and differential manometer functions into one unit. As CO detector, unit provides real-time readings up to 10,000 ppm with 1 ppm resolution. It stores up to 75 records and has optional IR link for output to PC or printer. It comes with thermocouple flue probe, silicon tubing, and protective rubber holster and measures 6.3 x 2.8 x 2 in.
Serial-to-Ethernet Converter supports TCP/UDP based modes.
San Jose, CA 95134
Sep 08, 2003
Wireless HelloDevice Super Series manages RS232/422/485 based serial devices over network with features such as PCMCIA interface, flexible host mode, security, and event handling. Units present modem interface to serial device in modem emulation mode, accept AT modem commands, and make raw RS-232/422/485 data travel across local LAN. They run embedded Linux OS and support SSLv2, SSLv3, and TLSv1 for secure data communication.

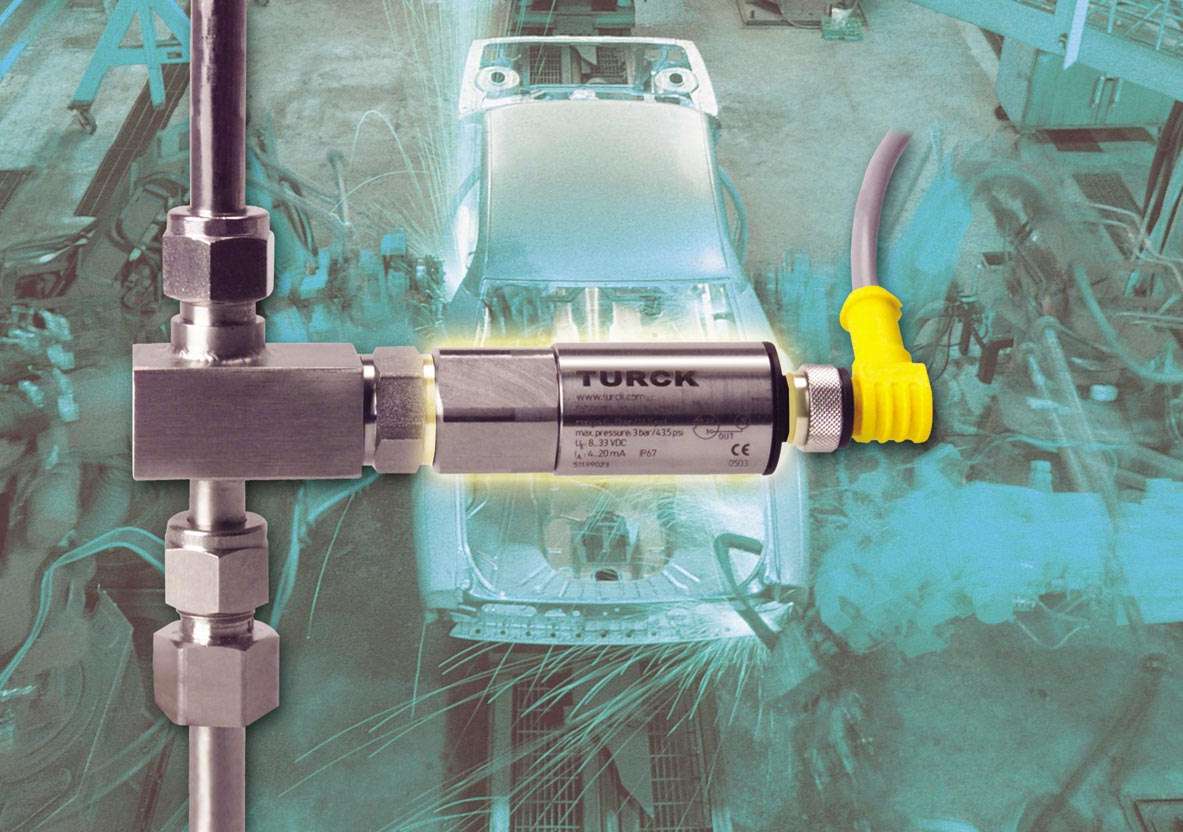

Pressure Transmitters perform in tough environments.
Plymouth, MN 55441
Sep 08, 2003 Solid-state Pressure Transmitters utilize ceramic component for stability and tolerance to over-pressure conditions. Units rated over 40 bars include media stop, which contains process media if burst pressure is exceeded. Housing is stainless steel and provides IP67 protection. Fluid connection is standard G ¼ thread. All transmitters include M12 electrical connection and are offered in 16 pressure ranges from 14.5â€“8,700 psi with 10 V or 4â€“20 mA outputs.
Inspection Light illuminates hard-to-reach areas.
Windsor, CA 95492 8125
Sep 08, 2003 Flexible Seek-N-See Inspection Light is offered in 11 or 24 in. lengths with insulated shaft that prevents accidental shorting. Shaft can be bent to any shape for close illumination, eliminating shadow affects. Unit incorporates LED that withstands knocks and offers focused, clear white light that does not alter wire colors and remains cool to touch. Unit is powered by one 12 V key chain size GP23A Alkaline battery.
Serial-to-Ethernet Converter features 3DES data encryption.
San Jose, CA 95134
Sep 08, 2003 HelloDevice Pro Series manages RS232/422/485-based serial devices over network. It provides IP address filtering to protect unintentional data streams from being transmitted to serial device. Static key-based 3DES data encryption promises secure data communication. Series supports open network protocols such as TCP/IP, UDP, and PPPoE allowing serial devices to be accessed over DSL-based broadband network or LAN environment. Units transfer serial data up to 115 kbps.
IR Thermometer offers compact, lightweight design.
Pleasanton, CA 94566
Sep 08, 2003 Model 15030 ThermoTrace Infrared Thermometer has 8:1 field of view and pocket design that weighs 4.5 oz. Features include 0.1° resolution and laser targeting of spot area 4.9 in. in diameter at 3.3 ft. With -40 to +590°F temperature range, it is designed for instant, non-contact surface temperature measurement and is suited for measuring hot, hard-to-reach, or moving parts.
Hipot Tester includes built-in 8-channel scanner.
Maynard, MA 01754
Sep 05, 2003 Guardian 1030S can perform AC Hipot tests from 50â€“5,000 V with leakage current detection from 1 µA to 30 mA, DC Hipot tests from 50â€“6,000 V with leakage current detection from 0.1 µA to 10 mA, and Insulation Resistance measurements from 100 Kohm to 50 Gohm with programmable test voltage from 50 to 1,000 Vdc. All functions can be programmed via front panel or remotely via RS-232. Tester includes LCD display, GFI circuits, and 500 internal memory locations.
Air Quality Sensor has 0-0.6 mg/m³ range.
Camas, WA 98607 9489
Sep 05, 2003
Model GP2Y1010AU detects particulate matter, smoke, or dust suspended in air. Unit measures 46 x 30 x 17.6 mm, operates on 5.0 V, and has current dissipation of less than 20 mA. Suited for air purifiers and air cleaning systems, device may also be used in various industrial applications. When used in smoke detection system, unit triggers alarm or system shut-down in case of burning or overheating conditions to prevent damage to automated equipment.
Checkweigher suits end-of-the-line applications.
Elk Grove Village, IL 60188
Sep 05, 2003 Modular AS1200C offers stainless steel construction and production line speeds of up to 260 fpm. Target weight range is 12â€“1,200 g, and accuracy is to 0.5 g. Unit's memory holds up to 100 product specifications, while RS output to host computer facilitates data management and provides communication link for printers and other devices. Control panel has vacuum fluorescent display, selection keys, and multiple notification functions.
Wi-Fi Module adds LAN connectivity.
Garden Grove, CA 92841
Sep 05, 2003 Airborneâ„¢ fully integrated Wi-Fi module includes radio, base-band processor, application processor, and software to provide LAN and Internet connectivity to non-consumer electronic applications. Measuring 38 x 27 x 12 mm, module is easily embedded into existing designs and is interoperable with 802.11b access points. Equipment with embedded Airborne module can be monitored and controlled by handheld device, PC in central location, or over Internet.
Sequential Injection Analyzer automates lab procedures.
Ocean Optics, Inc.
Dunedin, FL 34698
Sep 05, 2003 Able to automate wet-chemistry procedures, FIA-SIA-LOV Lab-on-Valve system is suited for all-in-one chemical analyses. Product combines computer-controlled, 6-position selector valve; precision syringe pump; and spectrophotometric flow cell in 12.7 x 15.3 x 15.3 cm package. Software controls procedures with commands to sequence through sample dilution, addition of reagents, and mixing and routing of sample through flow cell for continuous or stopped-flow measurements.
