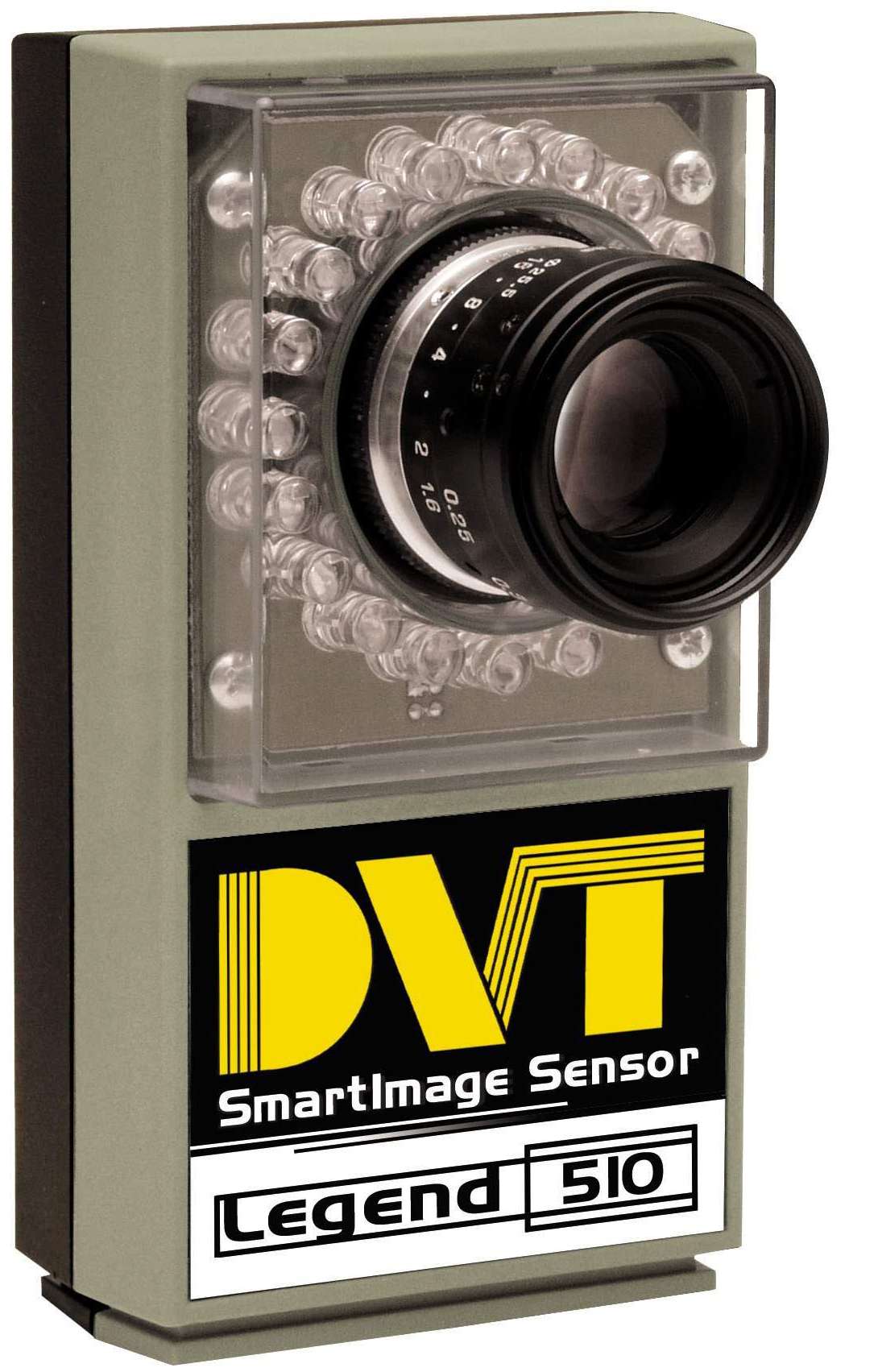

Vision System suits machine vision inspections.
Norcross, GA 30093
Oct 09, 2003 Legend 510 SmartImage Camera features full inspection power of Legend series without reader capabilities. Fully-functioning CMOS smart camera system operates with company's Windows®-based Framework software and includes integrated ring lights, Ethernet-compatibility, and 640 X 480 pixel resolution.
Electronic Flowmeter Register suits hazardous areas.
Actaris, Neptune Liquid Measurement Division
Greenwood, SC 29646-8800
Oct 08, 2003 With built-in temperature display, PULSMATEâ„¢ is UL and CSA approved to be Intrinsically Safe, Class 1, Division 1, Groups A, B, C and D T3C; Ex ia, to 104°F. Battery or external DC-powered, register offers a choice of simultaneous rate and total, resettable, and cumulative total modes, enabling tracking of both flow rate and cumulative volume. Unit also includes scalable pulse output and optional 4-20 mA analog output.

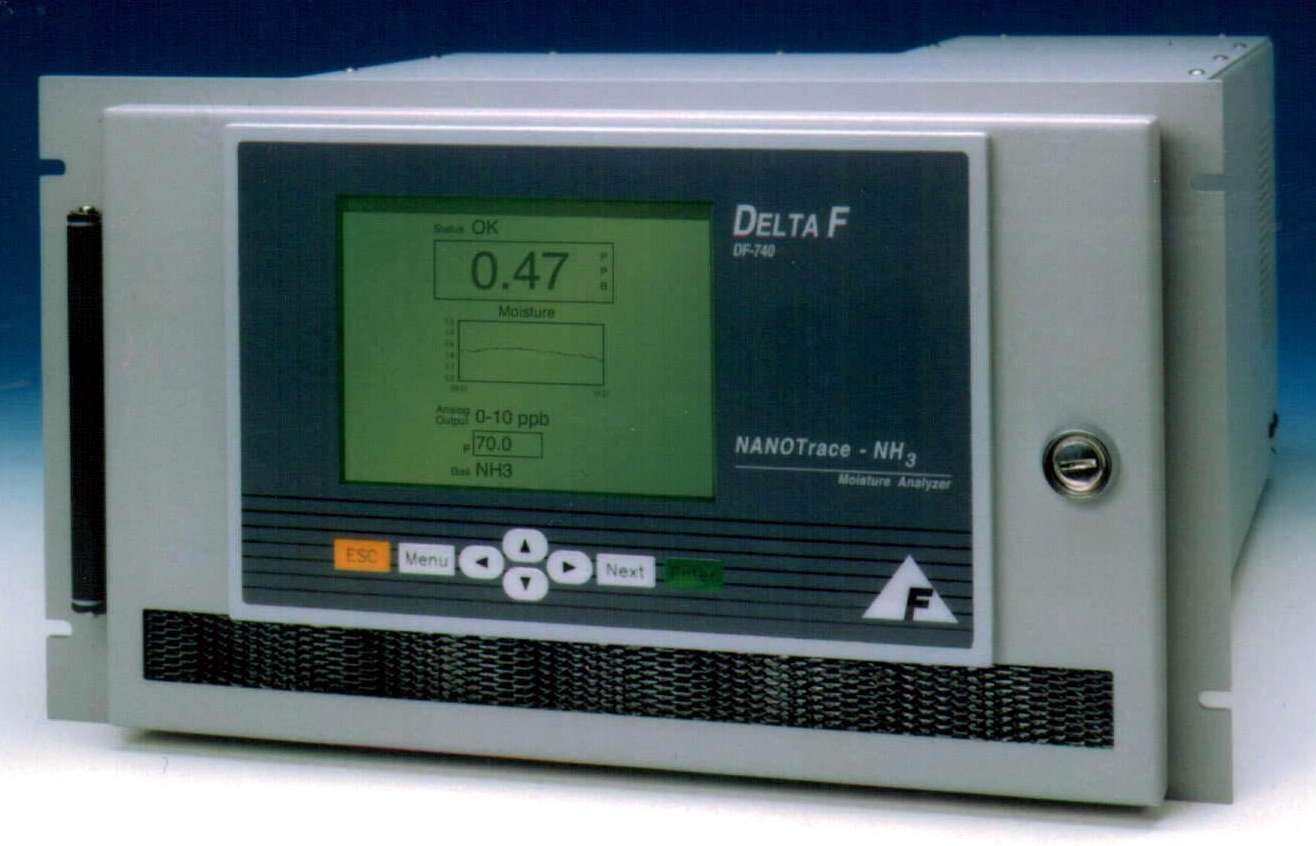

Analyzer measures UHP moisture in gaseous ammonia.
Delta F Corp.
Woburn, MA 01801 1087
Oct 08, 2003
Tunable Diode Laser Absorption Spectroscopy (TDLAS) Moisture Analyzer utilizes laser-based technology to measure UHP levels of moisture in gaseous ammonia. Able to achieve sensitivity of 2 ppb and detection limit of 10 ppb, laser can be finely tuned to moisture peak so that ammonia does not interfere with measurement. By measuring intensity of laser before and after absorption by moisture, users can solve for number of moisture molecules in sample.
Digital Force Gauge has 1,000 lb capacity.
Copiague, NY 11726
Oct 08, 2003
Housed in reversible aluminum, Series CG includes RS-232, Mitutoyo, and analog outputs; full computer control; averaging mode; external trigger; and peak reading memory. Additional features include programmable analog and digital filters; selectable units of measurement; and push-button calibration. Offered in 1,000 and 500 lb capacities with accuracies of ±0.2%, series is calibrated with weights traceable to NIST standards.
Tachometer/Encoder suits high-res industrial applications.
Phoenix America, Inc.
Fort Wayne, IN 46804
Oct 08, 2003
Magnetically actuated P9500 series consists of tachometers/encoders that function as incremental angular position encoders when used with multi-pole magnet target wheels. Series can also be used in linear applications when used with multi-pole magnet strip. Direction of rotation can be obtained from dual output channels that are 90° electrically out of phase. Product offers resolutions up to 1024 ppr @ 10,000 rpm and employs no moving parts.
Flammable Gas Leak Detector offers one button operation.
Extech Instruments Corp.
Nashua, NH 03063
Oct 08, 2003
Able to detect combustible gases with concentrations down to 50 ppm, Model C052 incorporates backlit display that switches on in low-light areas. Unit displays flammable gas levels at 100, 1,000, and 10,000 ppm, and audible indicator increases pitch tone as concentration of gases goes up. Meter provides auto zero on start up, 5 sec response time, battery status display, and dimensions of 1.5 x 10 x 1.1 in.

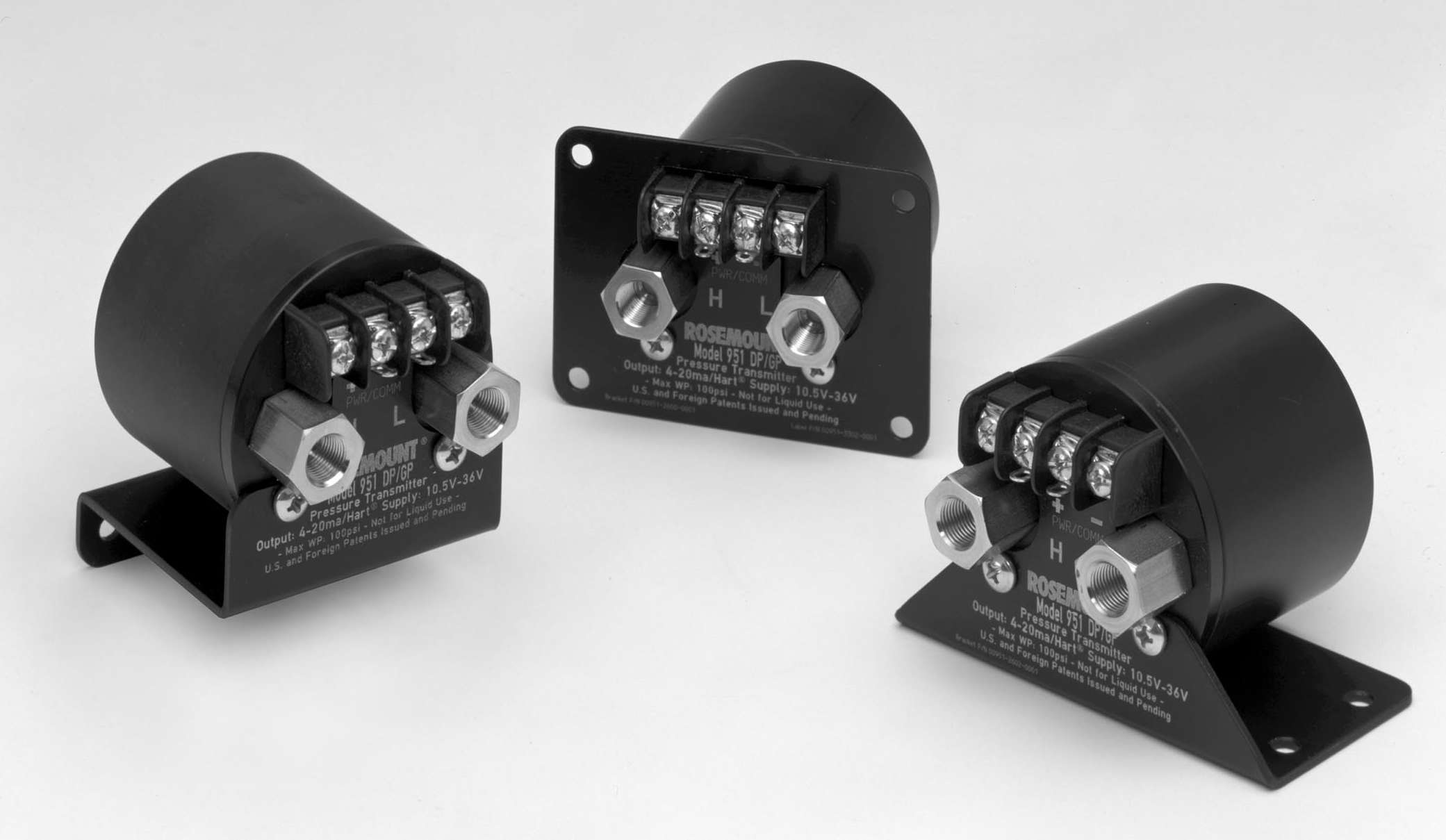

Pressure Transmitter suits cleanroom and HVAC applications.
Emerson Process Management, Intellution Division
St. Louis, MO 63136 8506
Oct 08, 2003 Rosemount® 951 Dry Gas Differential Pressure Transmitter features 4â€“20 mA/Hart® output, enabling user to calibrate, re-range, and configure in the field. It allows 40:1 turndown and provides stability of 0.125% of URL per year. Transmitter is suited for ultra low differential pressure measurement applications, such as control and monitoring of cleanroom pressures and airflows in HVAC systems. Three mounting configurations are available.
Turbine Flow Meter meets 3A sanitary standards.
Blancett Flow Meters
Racine, WI 53406
Oct 07, 2003
Stainless steel FloClean(TM) offers flow ranges from .3 to 400 gpm with accuracy up to ±1%. Signal output is sine wave proportional to volumetric flow. Sanitary clamp end connections range from ¾ to 2½ in. NEMA 6 magnetic pick-up works on temperatures from -150 to 300°F. Flow meter withstands clean-in-place and sterilize-in-place environments, and complies with FDA requirements making it suited for food, beverage, and pharmaceutical applications.
Calibration Conditioner designed for load cells.
Columbus, OH 43228
Oct 07, 2003 Microprocessor-based Model SC2000 AM provides 1 or 2 channels and is calibrated against 8.5-digit, traceable digital voltmeter. Conditioner presents test and reference load cell measurements on split-screen display. Its 22-bit processor offers 19 bits of resolution that measures signals from up to 2 load cells. Unit connects to computer running load cell calibration software to generate certificates and store and retrieve calibrated load cell data.
TDR Enhancement Module provides differential measurements.
Picosecond Pulse Labs, Inc.
Boulder, CO 80301
Oct 06, 2003
Model 4022 Differential Time Domain Reflectrometry Source Enhancement Module works in conjunction with TDR plug-in and 50 or 70 GHz sampling oscilloscope. It provides 9 ps rise-time signals to measure features as small as 0.5 mm in differential communication links. TDR measurements identify small physical transitions in connectors and components that impair performance. Model 4022 can also be configured to provide TDR signals for differential and common mode measurements.

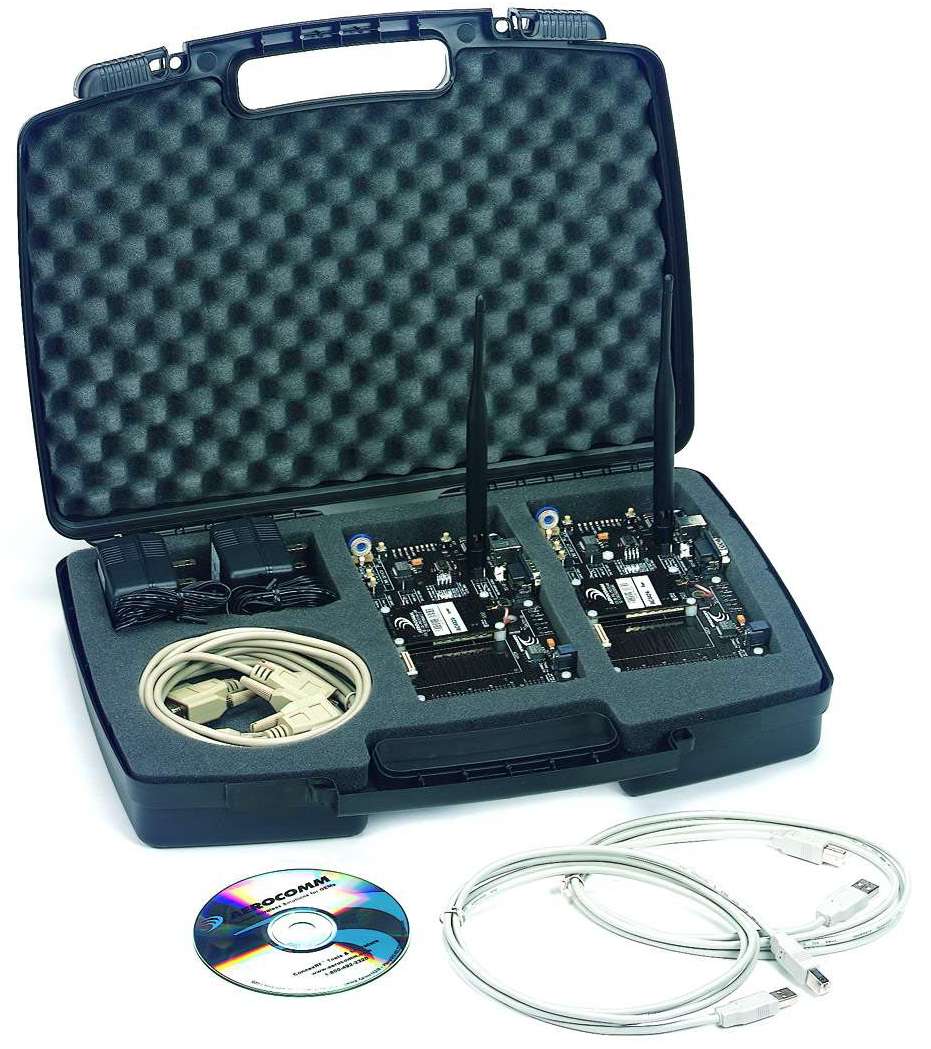

Kits offer tools to design and test wireless applications.
Lenexa, KS 66219
Oct 06, 2003 Company's 900 MHz and 2.4 GHz Design Suites include all tools necessary to set up, test, and configure wireless applications before deploying them. Loop-back mode allows OEM to distance-test using one PC, while status LEDs indicate varying modes, ranges, and operations. Offering support for RS232, RS485, RS422 and USB connections, kits also include ConnexRF transceivers, adapter boards, power adapters and cables, antennas, and site analysis tools.
Digital-to-Analog Converters offer up to 16-bit resolution.
Milpitas, CA 95035
Oct 06, 2003 Series X79000 integrates single channel, 12-bit non-volatile DAC, voltage reference with selectable gain and level shift, configurable output buffer, and 64 Bytes of general purpose EEPROM into single chip. Initial-value DAC-register restores values during power up. Push-Pot control allows for incrementing or decrementing from initial DAC value in either one LSB or byte or word steps. Converters are suited for bias and calibration applications.
Data Loggers suited for industrial equipment management.
Austin, TX 78746-6464
Oct 06, 2003
Series DL 1300 transmits operating data on mobile powered equipment over 2-way wireless pager network. Units collect asset data such as run time, lift time, battery voltage, oil pressure, boom-lift override counts, and GPS location. Eight signal inputs connect to asset sensors and user configures inputs to be duration timers, event counters, or analog sensors. Operator Interface Module controls access to equipment through Driver Identification and Password approval.
Optical Gaging System offers magnification from 10-100 x.
Santa Ana, CA 92704
Oct 03, 2003
Model DH 216-200 LCD features Part-View Screen that shows picture of part as it is being measured and can provide printed copy. It includes motorized XYZ stage travel up to 6 x 18 x 3 in., automatic edge sensing, electronic screen protractor, RS232 interface to printer for hard copy documentation, and choice of PC-based or computerized geometric readouts. Software provides non-contact 50-millionths-step measuring system. Optical accuracy is 0.05%.
Oscilloscope/Multimeter includes RS-232 interface.
Extech Instruments Corp.
Nashua, NH 03063
Oct 03, 2003
MultiScope(TM) Model 381285 combines handheld Graphical Storage Oscilloscope with True RMS Multimeter. Graphical mode display with EL backlighting allows observation of actual voltage waveforms. Multimeter 4,000 count dual display includes analog bargraph. DC to 5 MHz oscilloscope offers sample rate of 25 million samples/sec. MultiScope includes frequency counter, adjustable 5 V square wave output from 2.5 Hz to 78 kHz, and graphical logic analyzer function.

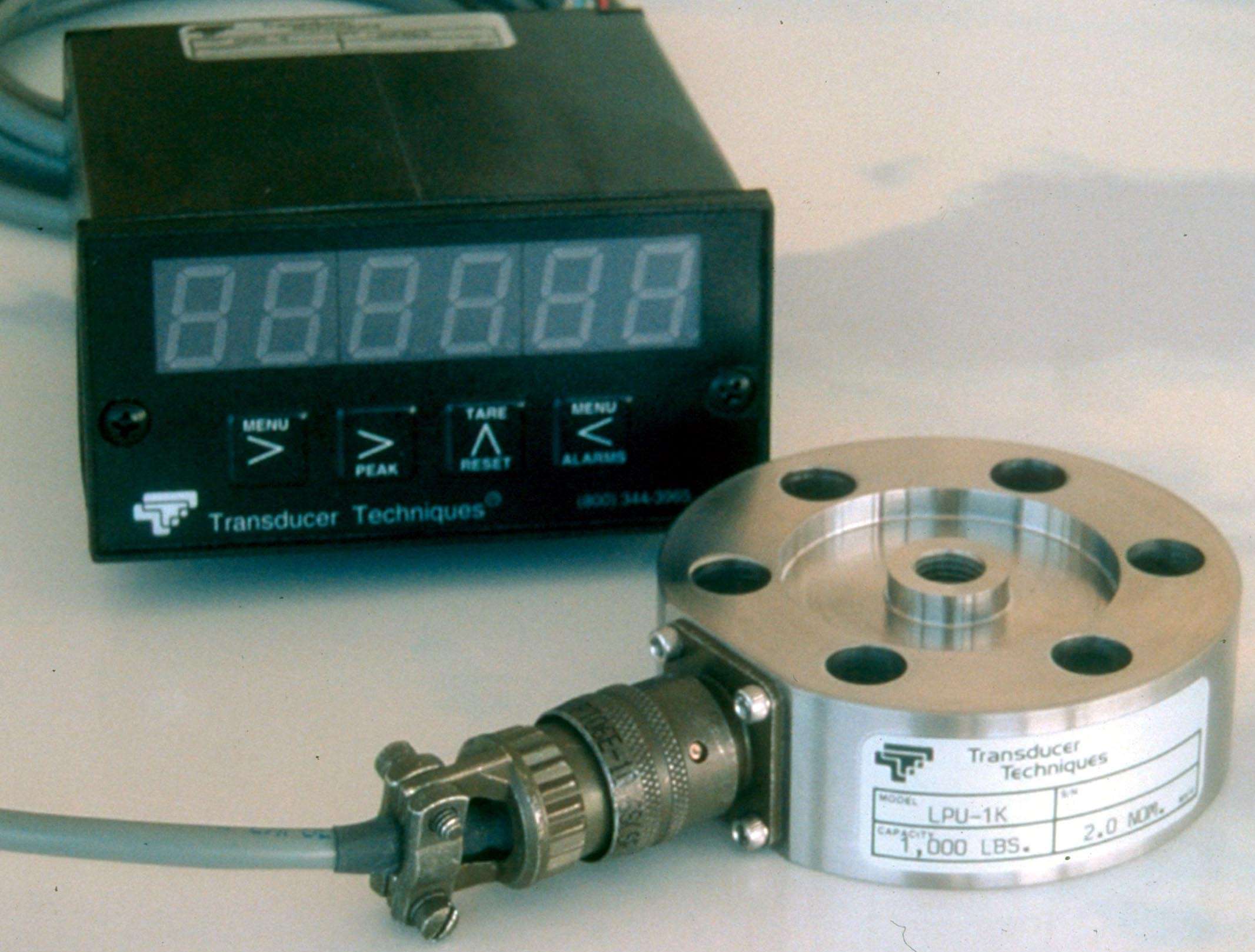

Metering System consists of load cell and meter.
Temecula, CA 92590
Oct 03, 2003 System, comprised Low Profile Universal Load Cell and DPM-3 Panel Mount Meter, is suited for industrial and OEM force measurement and weighing applications. DPM-3 can be scaled to full 5 digits, samples 60 readings per second, and offers analog output and true peak reading capability. LPU tension or compression Load Cell is offered in 14 ranges from 100â€“50,000 lbs. Hold down is via outside diameter counter bored thru holes, and loading is thru center at either end.
Rheometer System provides dynamic mechanical analysis.
Bordentown, NJ 08505
Oct 03, 2003 Modular, research-level DYNALYSER tests rheologically significant materials such as thermoplastics, thermosets, elastomers, semi-solids, and fluid systems. It performs steady, transient, and dynamic shear measurements using parallel plate, cone and plate, couette, rectangular torsion, and dynamic tension fixtures. For control of sample temperature, DYNALYSER includes indirect heated and cooled oven, which provides temperature range from -180 to +500°C.

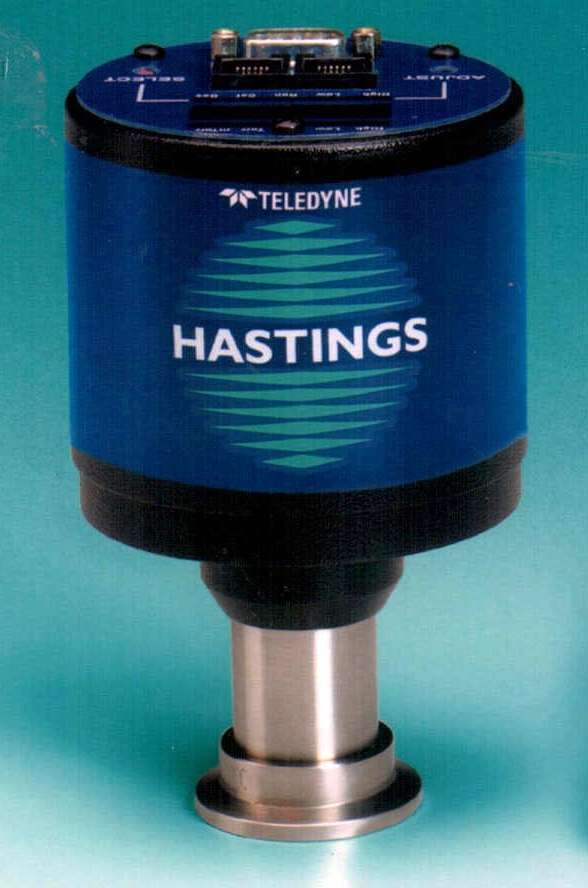

Ionization Gauge suits thin film coating applications.
Teledyne Hastings Instruments
Hampton, VA 23661
Oct 03, 2003 Model IGE-3000 consists of dual-filament, small internal volume Bayard-Alpert ionization gauge tube and electronics package, which consists of 4 boards including electrometer, power supply, processor/control adapter, and options board. System provides pressure measurement from 10-10 to 10-2 Torr, and is driven by 24 Vdc input. It includes LED, RS-232/485 communication, 2 TTL setpoints, and selectable emission currents.
Vector Probe offers serial port for system automation.
Lambda Solutions, Inc.
Waltham, MA 02452
Oct 02, 2003 Model LSI-NIR-VT Near Infrared Vector Probe is for Diffuse Reflectance Spectroscopy and will interface with FTIR, AOTF and Dispersive Spectrometers. Design allows for low internal light reflection and high light collection efficiency ensuring high signal-to-noise characteristics. Probe is stainless steel, PVC and polyamide with 2 m cable. It is suited for process and quality control applications in chemical, agricultural, food, and pharmaceutical industries.

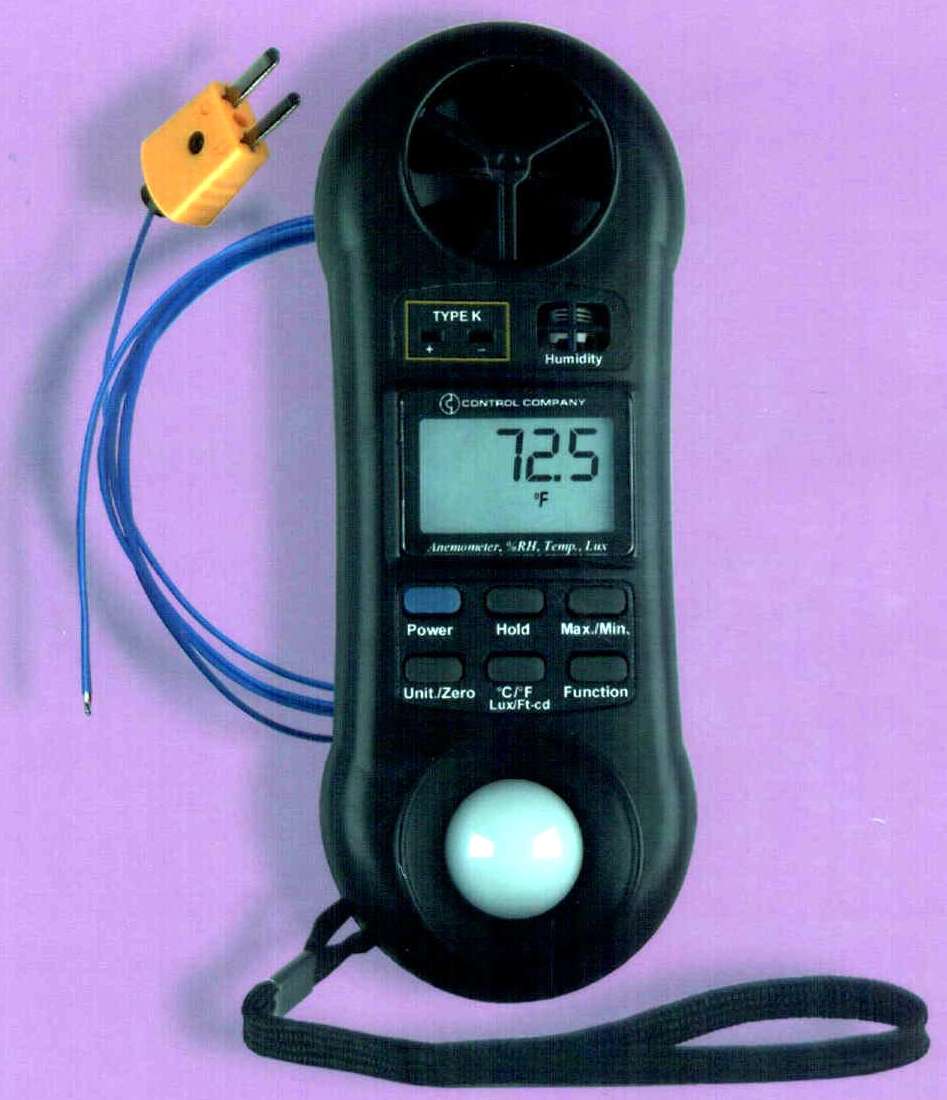

Multi-Purpose Meter combines 5 instruments in one package.
Friendswood, TX 77546
Oct 02, 2003
Measuring 7 x 2.5 x 1.25 in., Enviro-Meter(TM) provides anemometer, humidity meter, light meter, and 2 thermometers in one handheld package. Unit comes with type-K beaded external thermometer probe and 4 ft long cable. Anemometer accuracy is ±3% FS reading (under 20 m/sec), humidity range is 10.0-95.0% RH, and light ranges are 0-20,000 lux and 0-2,000 foot candles. Internal ambient thermometer sensor range is 32.0 to 122°F, while external thermometer range is -148 to +2,372°F.
