Heidenhain Corp.    Schaumburg, IL 60173-5337

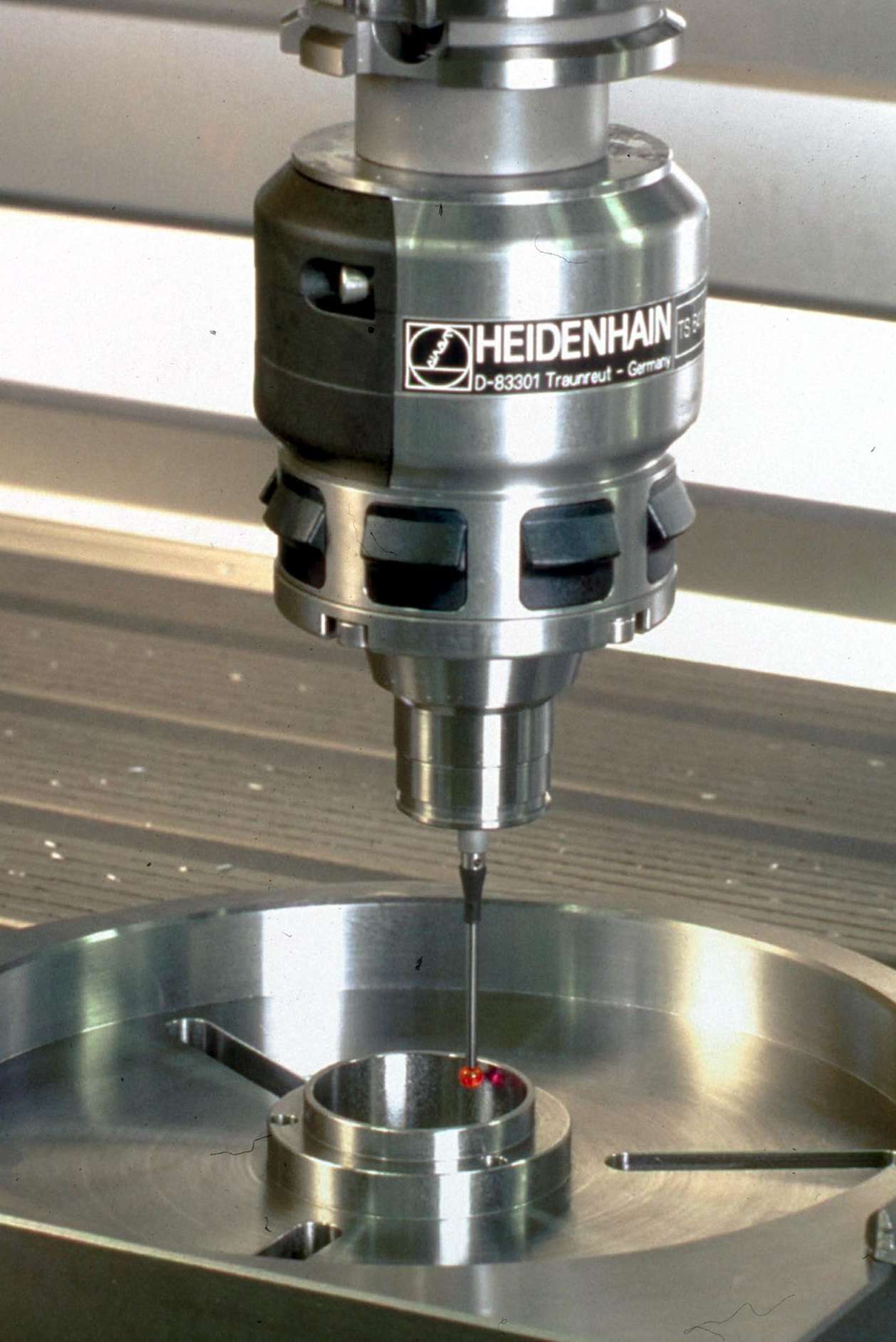

Oct 27, 2003 Model TS 640 3-D Trigger Probe features integrated blasting unit consisting of 3 nozzles at bottom of touch probe. Nozzles use blast of air or coolant to remove coarse contaminants from area being probed. Infrared LEDs and receiver modules for signal transmission are evenly arranged around circumference of probe, ensuring transmission in all directions of working plane. With 7 m area of transmission, unit is suited for use on large machines.

Onset Computer Corp.    Bourne, MA 02532
Oct 27, 2003 Universal Sensor Adapters, offered in 4–20 mA and 0–5 Vdc outputs, enable HOBO Weather Station and Micro Station users to supplement proprietary plug-and-play smart sensors with specialized third-party sensors. Both units feature 12-bit resolution and measurement averaging and provide trigger signals for controlling power to external sensors.

ADMET    Norwood, MA 02062
Oct 27, 2003 ExPress servo-hydraulic universal testing machines feature static crosshead and bottom-mounted servo-hydraulic piston for automatic testing in tension or compression. Design incorporates piston strokes of 12 in. or longer, and units are available in capacities from 11,250–135,000 lb. Floor-mounted machines employ strain gage load cells for direct measurement of force and are available with 2 digital controllers that provide closed loop control.

Megger    Dallas, TX 75237
Oct 27, 2003 Portable PA-9Plus trends flicker measurements PST/PLT while continuing to record events, RMS voltage/current trending, power, energy, waveforms, and harmonics. It records power quality and flow information simultaneously, which is viewed via backlit LCD graphics display and can be downloaded to computer via serial interface or removable Flash Memory Module. Unit uses Phase Lock Loop technology and includes MEGPA9IEC software and remote test log function.

Omega Engineering, Inc.    Stamford, CT 06907
Oct 27, 2003 OMEGASCOPE® OS-XL two-dimensional infrared thermometer is equipped with 64-element thermopile array sensor allowing it to display image of measured subject and temperature distribution at 64 measurement points. It can display and save data with graphic representation of temperature distribution overlaid on image of subject being measured. Unit offers temperature range of -50 to 1,000°F and includes 16 mb flash card.

ABB Automation Analytical Div.    Lewisburg, WV 24901-0831
Oct 24, 2003 Analyze IT AO2000 Series continuous gas analyzers offer integrated field bus technologies and purely digital Ethernet connection. Factory settings are stored on internal memory card. Analyzers utilize multiple modules and are available in versions for measurements in potentially explosive atmospheres. Various mounting and installation methods are utilized.

Agilent Technologies, Inc.    Santa Clara, CA 95051

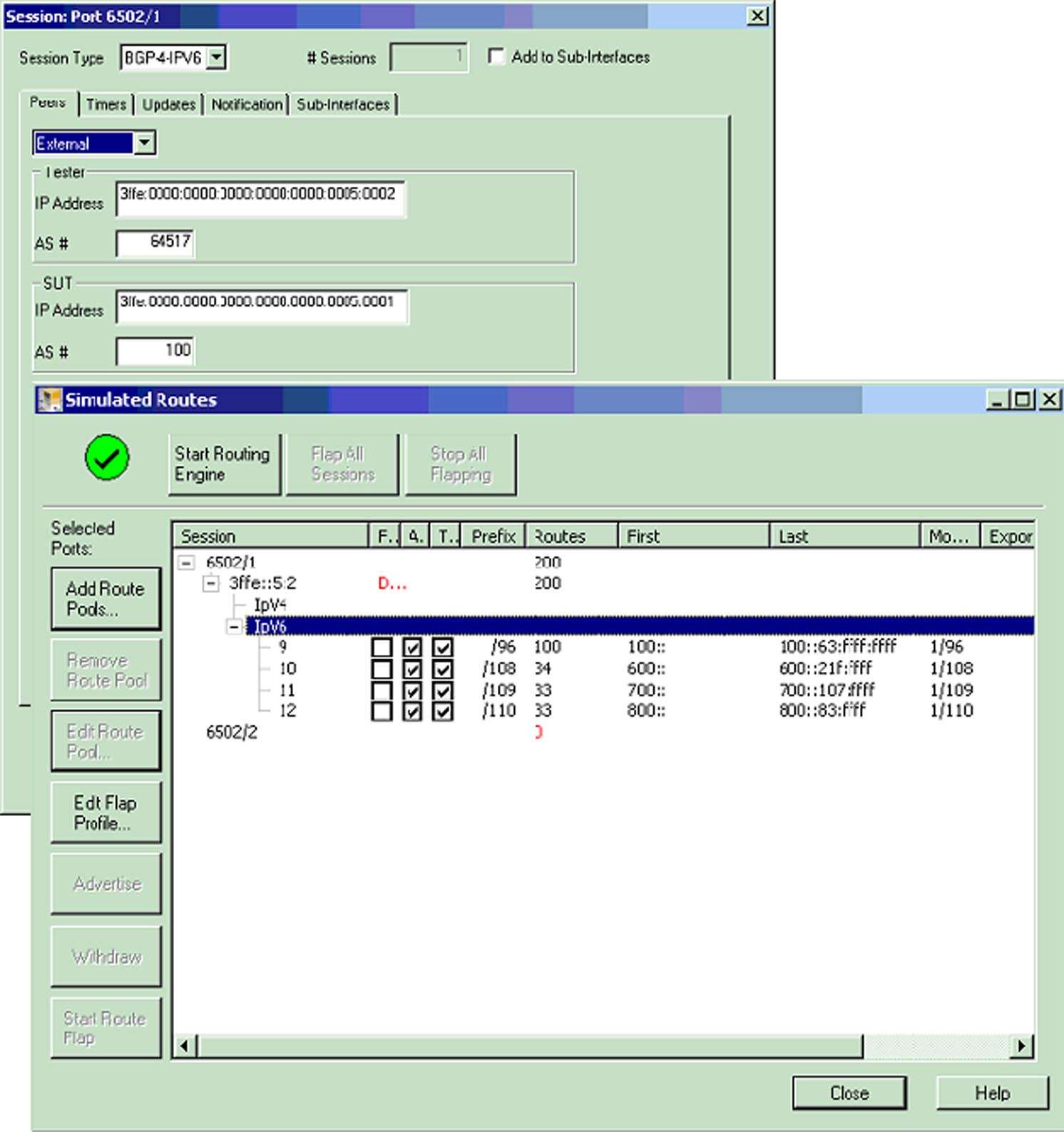

Oct 24, 2003 Routing Emulation Application for RouterTester 900 integrates OSPFv3, BGP4+, IS-ISv6, and RIPng with IPv6 traffic generation and analysis, allowing users to simulate large IPv6 and IPv4 networks while simultaneously generating traffic from multiple simulated network devices. Multi-encapsulation auto-detection feature enables simultaneous measurement of mixed traffic types on each port by automatically detecting each packet's test payload offset.

Rice Lake Weighing Systems    Rice Lake, WI 54868

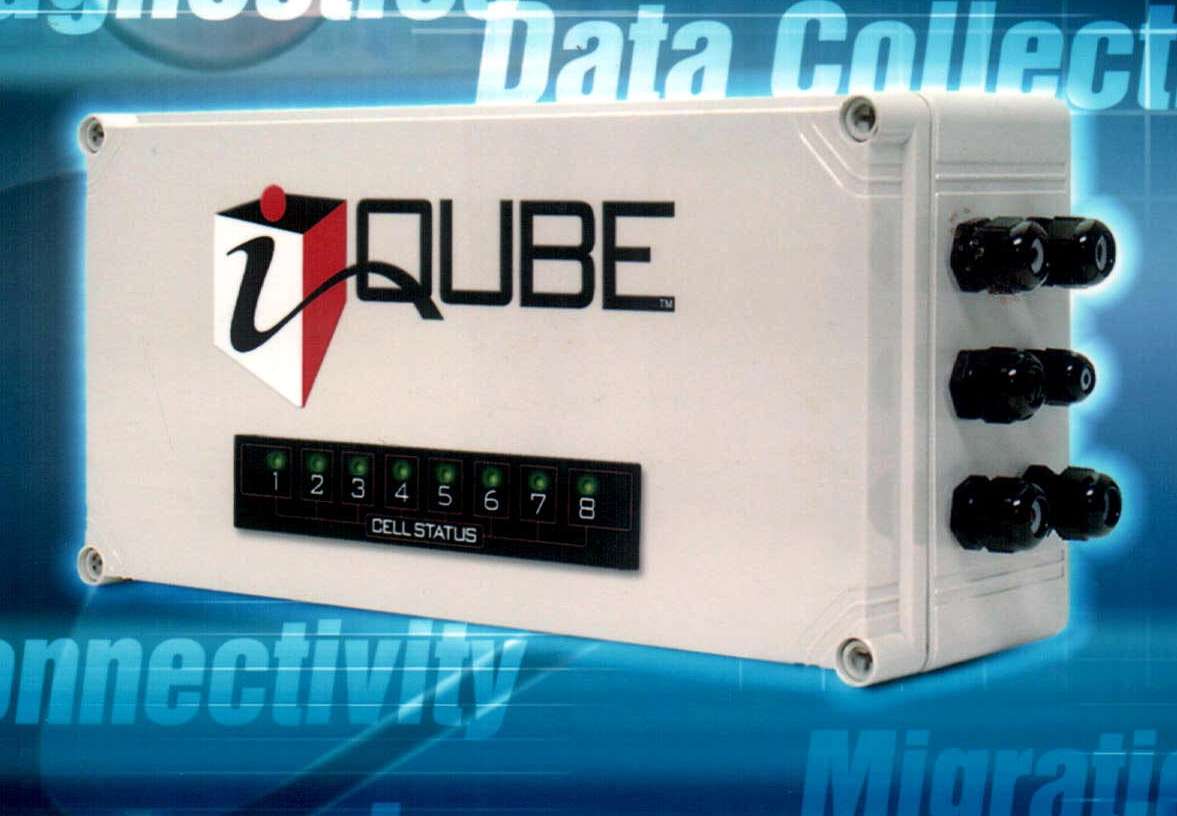

Oct 24, 2003 NTEP-approved, digital iQUBEâ„¢ alerts technicians to potential scale inaccuracies. LEDs change from green to red to indicate suspect load cell and its specific location to help speed diagnosis and repair. Cell-Emulatorâ„¢ compensates for connection errors and A/D drift and failures, and maintains scale operation until repair or load cell replacement is available. iQUBE is suited for new or retrofit, multi-cell weighing applications.

Rice Lake Weighing Systems    Rice Lake, WI 54868

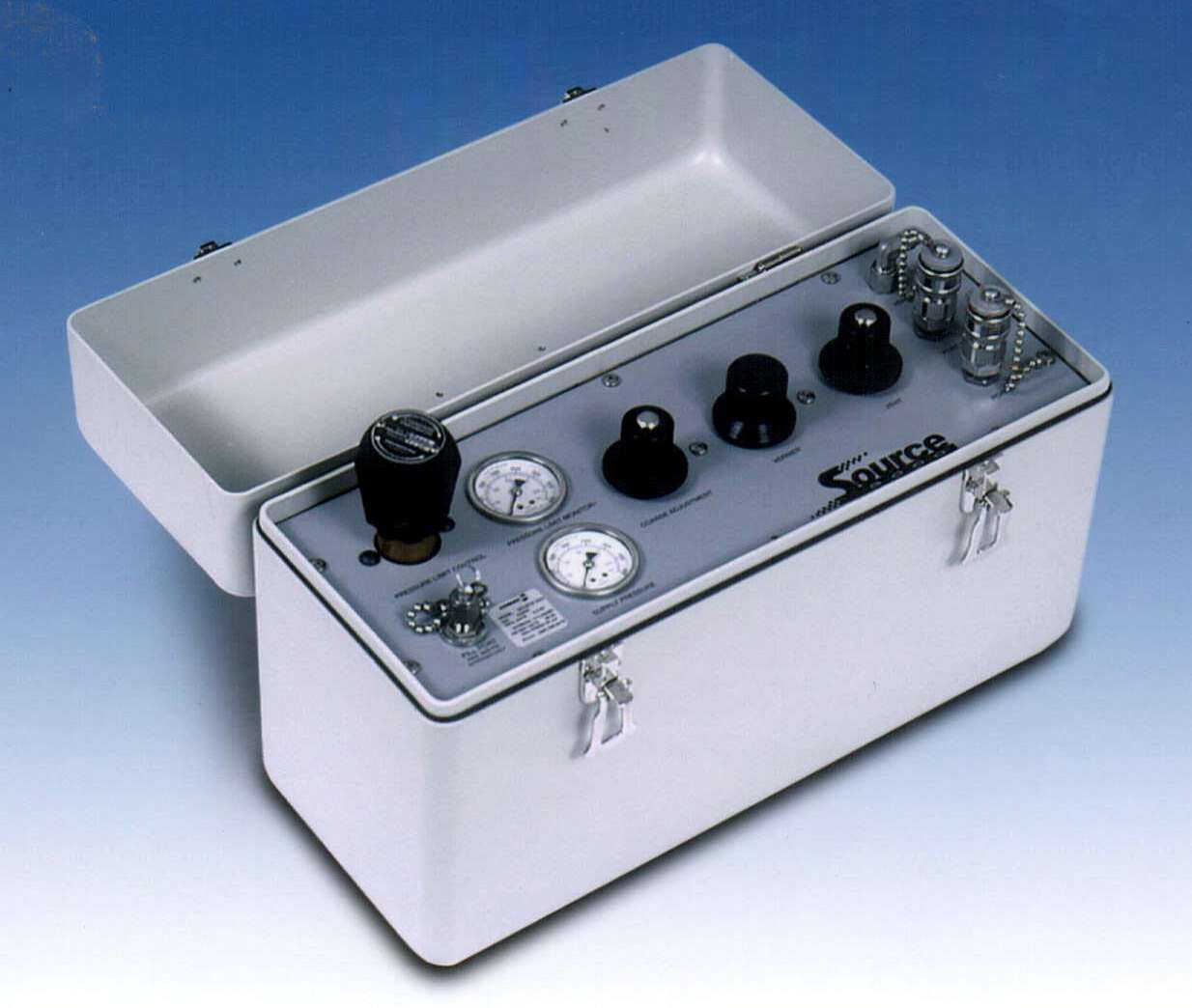

Oct 24, 2003 Portable Source 3000 is equipped with 15.2 ft³ cylinder and 2 ports for connecting to measuring device and calibrator. Cover can be removed for positioning at different angles in tight spaces. Orion 2C pressure vernier allows user to dial in exact pressure readings, and on-board pressure regulator eliminates risk of damage from overshoot. Aluminum case provides lightweight portability as well as protection in industrial environments.

Rice Lake Weighing Systems    Rice Lake, WI 54868

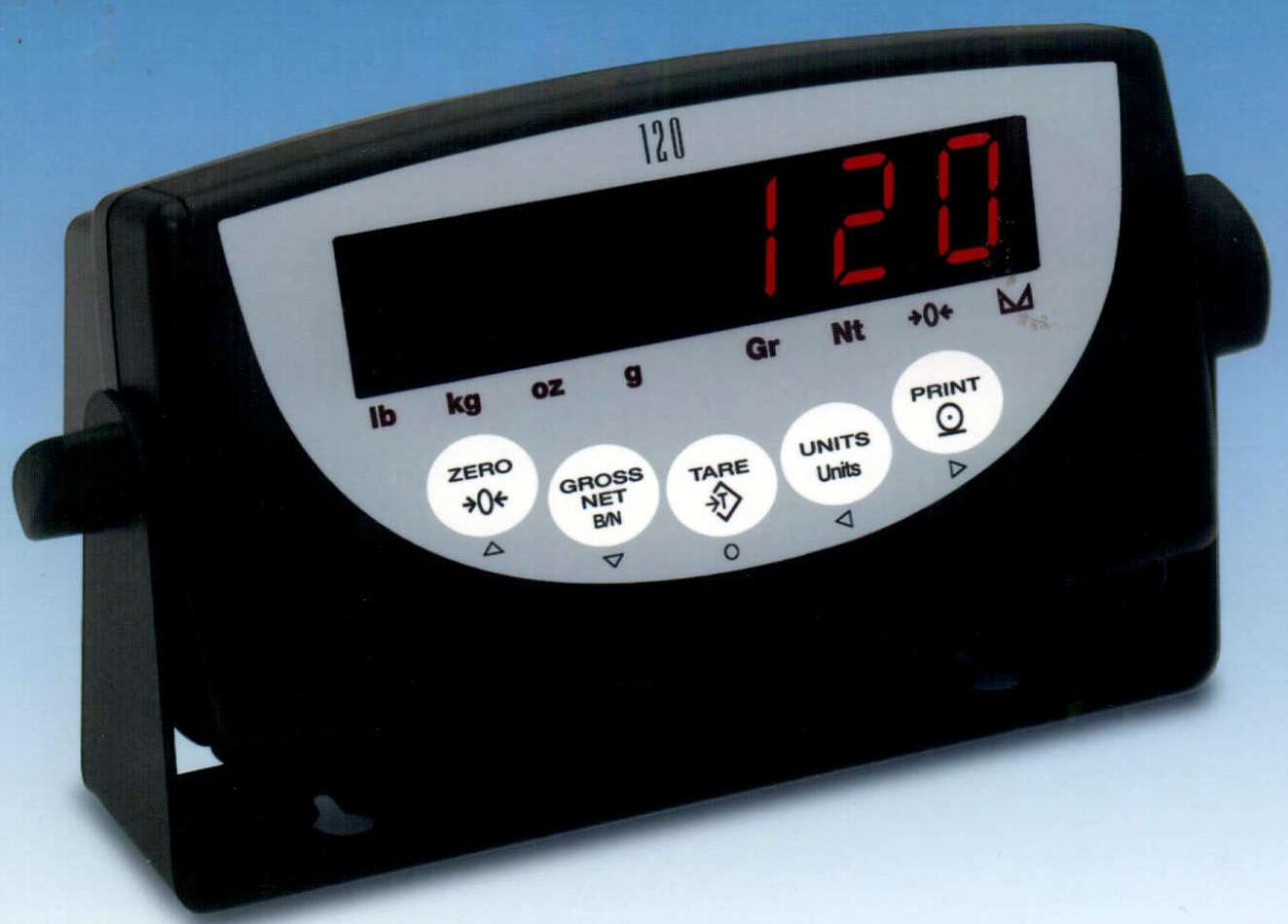

Oct 24, 2003 Model 120, suited for material handling applications, provides 3-stage digital filtering to offer consistent, accurate weight data even when unstable outside conditions exist. With NTEP certification, unit provides full EDP and print ticket programmability for up to two 180-character printouts. It shows weight in lb, kg, oz, or g on .8 in. LED display, while 5-button front panel provides operation, calibration, and configuration capabilities.

Bristol Babcock    Watertown, CT 06795-1631
Oct 23, 2003 Multivariable MVT 3808 provides measurement of differential pressure, static pressure, and process temperature with 0.075% reference accuracy. Communication using BSAP and Modbus protocols is compatible with most controllers, RTU products, and SCADA systems. Suited for remote site applications, unit can operate in hazardous areas with explosion-proof and intrinsically-safe systems. Calibration and configuration are performed via web pages.

ABB Automation Analytical Div.    Lewisburg, WV 24901-0831
Oct 23, 2003 General-purpose Analyze IT PPA4230-GP utilizes lead acetate paper tape coupled to photocell for H₂S measurement. Photocell is zeroed before each analysis cycle, and digital display reports H₂S concentration in ppm, ppb, or mg/m³. Microprocessor-based analyzer includes self-diagnostics for troubleshooting. Fast response time enables corrective action when high levels are detected, resulting in catalyst and corrosion protection in gas plants.

ABB Automation Analytical Div.    Lewisburg, WV 24901-0831
Oct 23, 2003 Analyze IT AO2000 Limas 11UV, based on photometer technology, measures NOx down to few parts per million and allows for simultaneous measurement of NO, NO₂, and NH₃. Electrode-less discharge lamp contains wavelength for resonant absorption by NO molecules. Dual beam, double quotient method for signal conditioning compensates for drift. Gas-filled calibration cells allow for span adjustments without flowing reference gas.

ABB Automation Analytical Div.    Lewisburg, WV 24901-0831
Oct 23, 2003 Analyze IT PGC2007 provides on-line method of measuring total sulfur in fuels with repeatability of ±0.5 ppm. Based on process gas chromatographs, it detects sulfur by using flame photometric detector. Analyzer helps refineries ensure that motor fuels meet stringent requirements for low total sulfur content.

InterlinkBT, LLC    Minneapolis, MN 55441

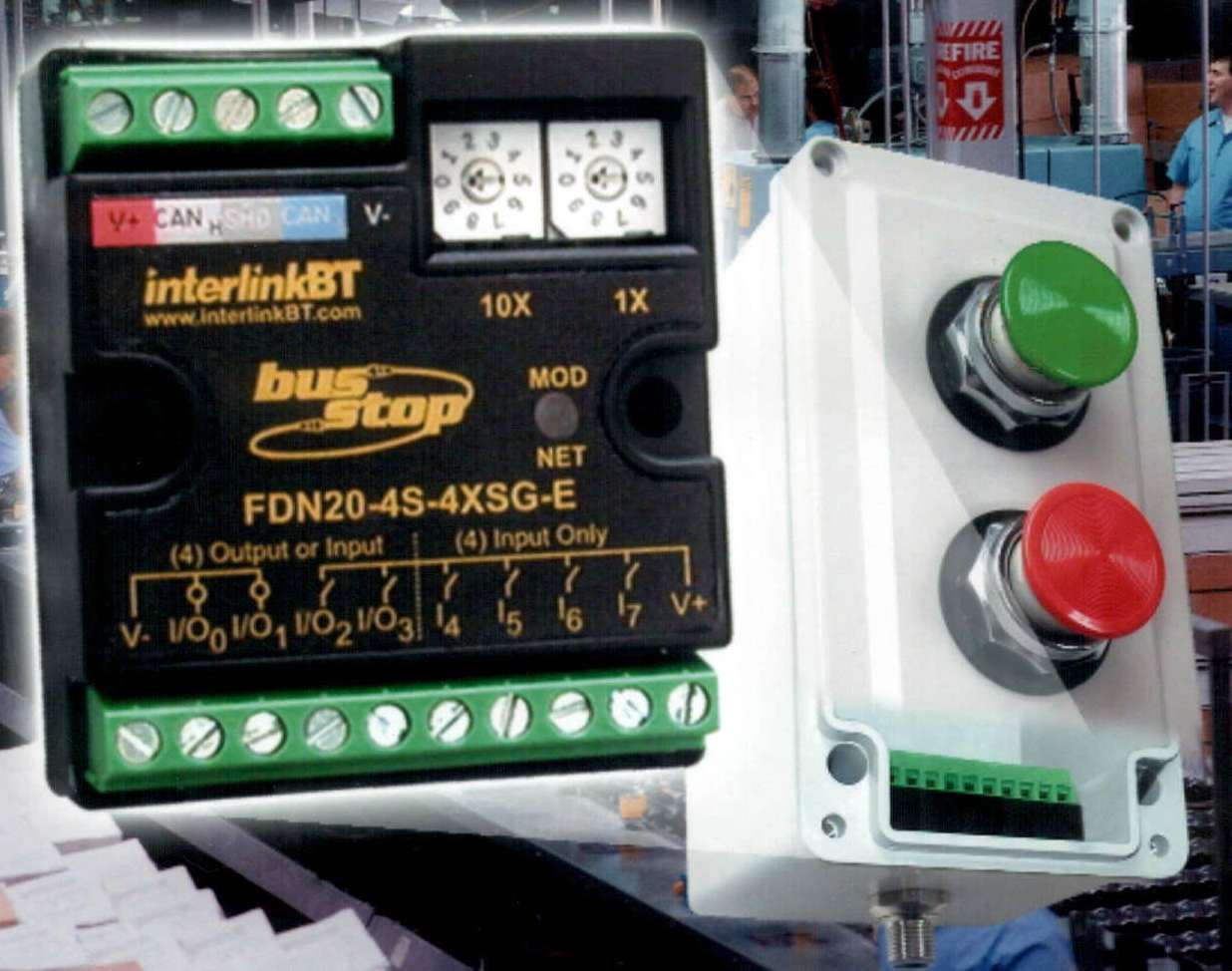

Oct 22, 2003 With IP67-rated, built-in DeviceNet eurofast® connector, FDN20 DeviceNet station fits into any standard pushbutton enclosure. Screw terminals are accessible from inside enclosure, and unit powers I/O from DeviceNet. Model FDN20-4S-4XSG-E has 4 dedicated inputs and 4 inputs or outputs and can handle following I/O mixes: 8 in, 7 in/1 out, 6 in/2 out, 5 in/3 out, or 4 in/4 out.

Sensistor Technologies, Inc.    North Billerica, MA 01862
Oct 22, 2003 Using hydrogen as tracer gas, compact H2000â„¢ detects leaks smaller than bacteria. Fully electronic, portable unit uses non-hazardous 5% Hydrogen in 95% Nitrogen mixture. Features include dynamic background compensation and standard probe with no sample suction. Settings can be changed via display menu, while optional protective cover permits leak detection on wet objects. It is suited for leak detection in factory environments.

Burkert    Irvine, CA 92614 5840
Oct 22, 2003 Type 8030HT paddle-wheel flow sensor accommodates neutral and slightly aggressive solid-free liquids. It handles temperatures to 320°F and fluid pressures to 580 psi. Min/max velocity range is 1.64-32.8 fps, providing flow range of 0.3-500 gpm. Axis and paddle wheel are stainless steel. Available in 2-wire, frequency-sinusoidal and 3-wire, frequency-pulse versions, Type 8030HT is compatible with pipe diameters of ½-2 in.

Cypress Computer Systems    Lapeer, MI 48446
Oct 21, 2003 DataBenders(TM) imports, converts, and exports card access control system file types, enabling multi-site access with one card. Data can be converted to utilize or replace existing hardware, allowing organizations to update card access systems, or change or add vendors. DataBenders is suited for system integration and retrofit applications for access card uses in many industries.

Computer Conversions Corp.    East Northport, NY 11731

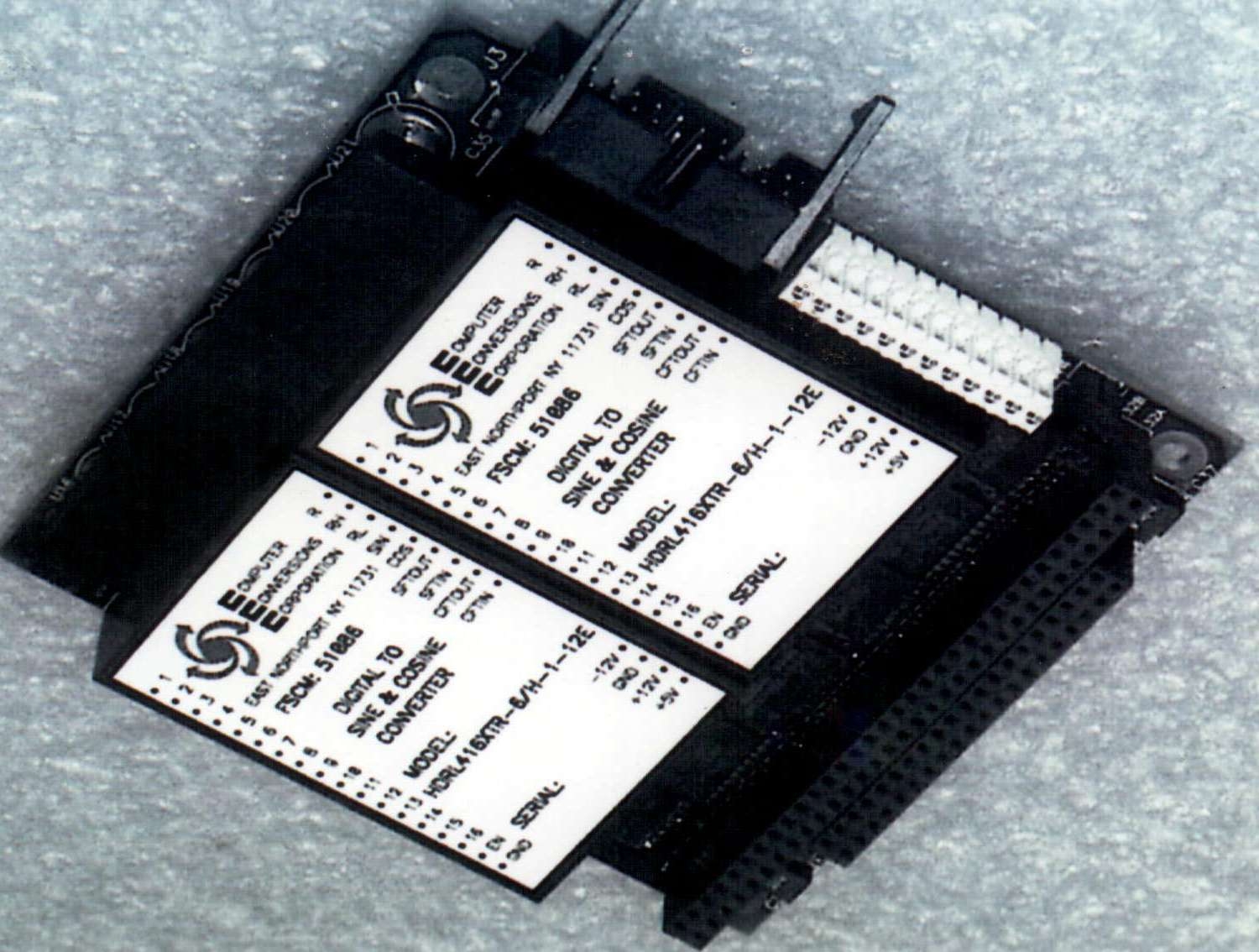

Oct 20, 2003 Series PC104-DS Synchro/Resolver Output Modules feature 2 channels of digital-to-synchro and digital-to-resolver conversion in standard stack-through PC104 footprint. They offer 16-bit resolution, transformer isolated reference inputs, and short-circuit proof outputs capable of driving up to 1.2 Va load per channel. Reference inputs are 2-11 5 Vac at 57–3,000 Hz. External output transformers are available for driving 90 V L-L signals on 60 Hz applications.

Computer Conversions Corp.    East Northport, NY 11731

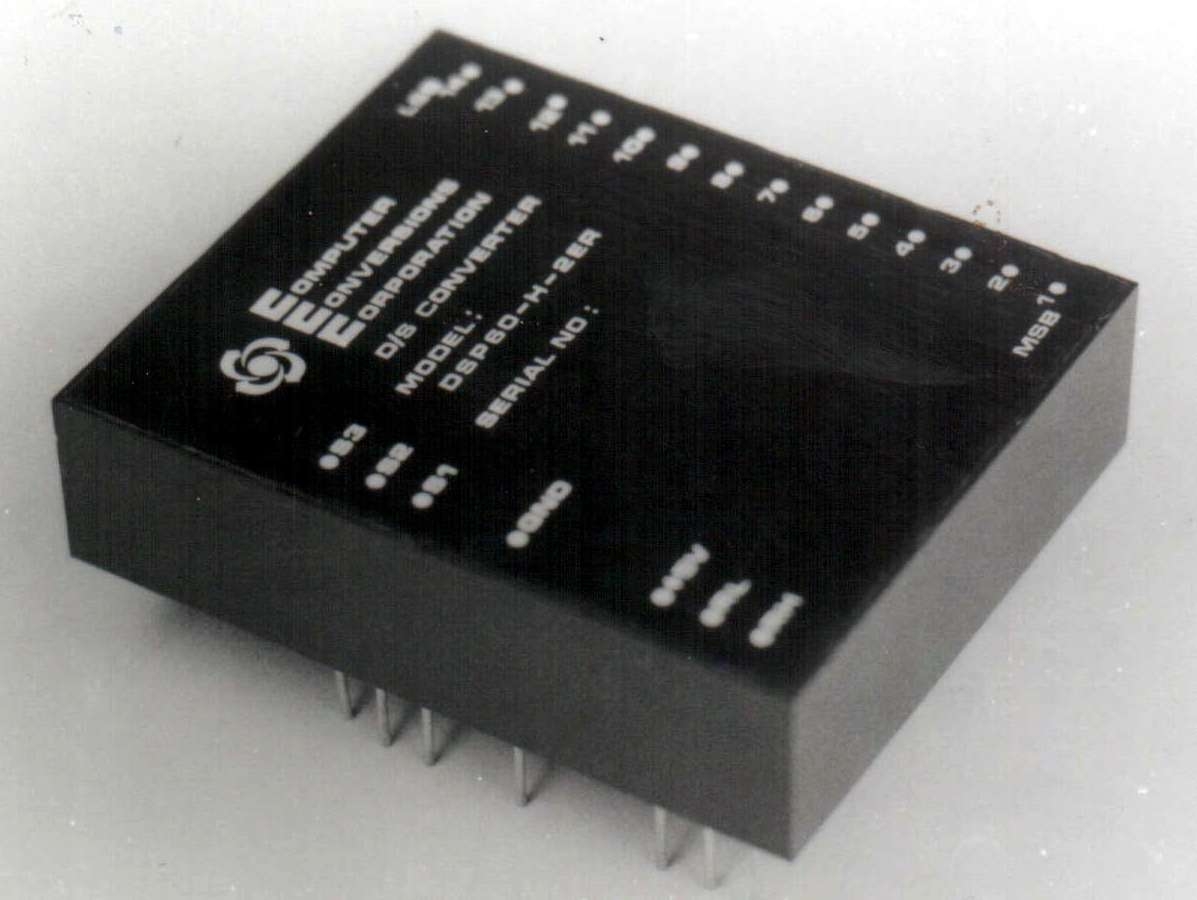

Oct 20, 2003 Reference-powered Digital-to-Synchro Converters require +5 Vdc input power and have internal transformer isolated outputs. They accept 14-bit natural binary angle and convert it into 3-wire synchro signal. Output is short circuit proof, and current limited with transient protection and thermal cutoff. The 400 Hz units have 4.5 Va load capability, while 60 Hz units offer 2 Va capability. All utilize thermally conductive encapsulant and metal top plate.
