Calex Mfg. Co., Inc.    Concord, CA 94520

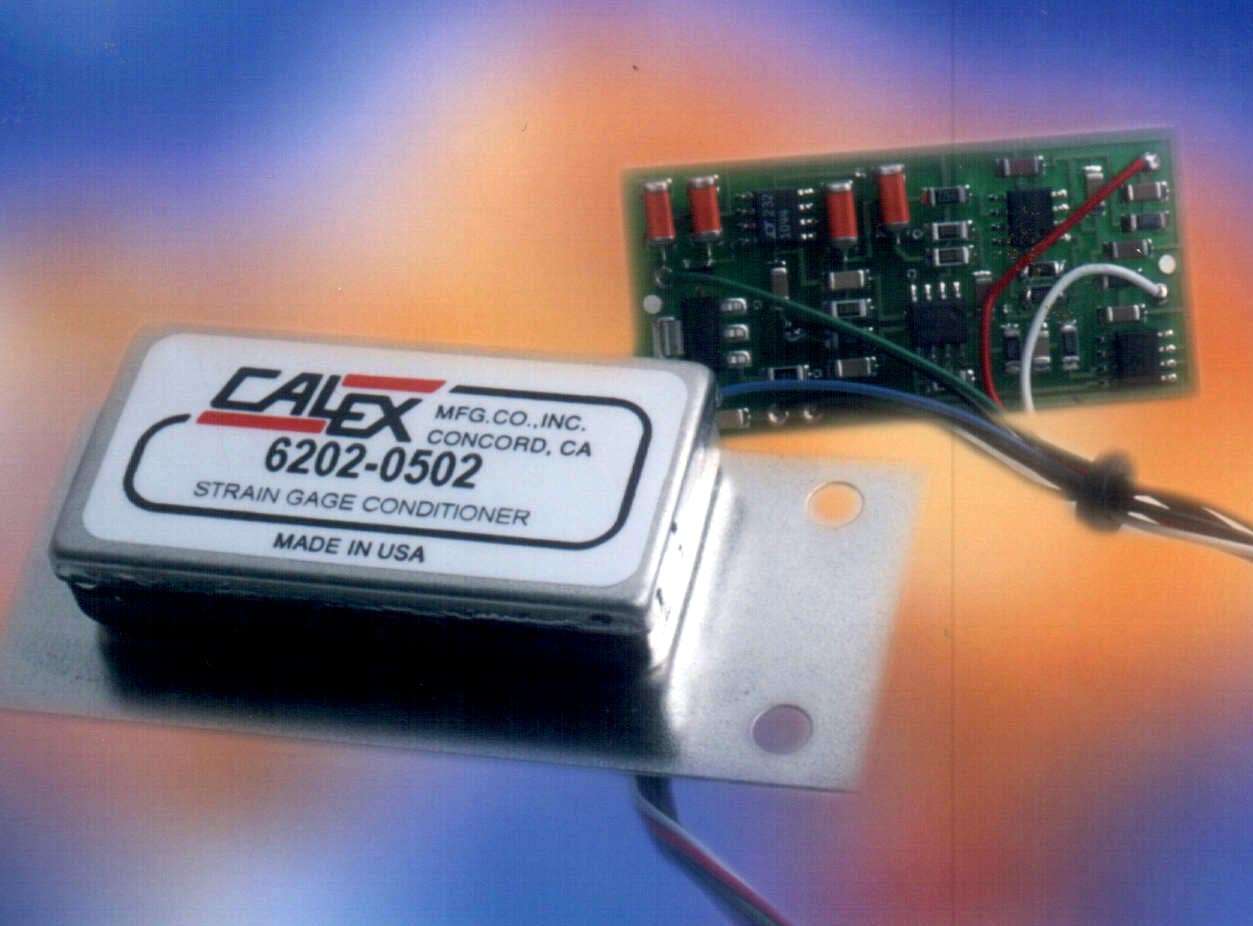

Nov 19, 2003 Series 6202 provides precise excitation, amplification, and filtering for strain gage based measurement or control system. Housed in 1 x 2 in. case attached to mounting flange, unit provides fixed +10 Vdc excitation voltage with up to 30 mA of current making it capable of driving variety of load cell/strain gages. Gain values range from 2–2,965, and amplifier output is rated at -3 to +15 Vdc. Signal conditioner is powered by 24 Vdc with tolerance of 18–26 V.

Datastick Systems Inc.    Santa Clara, CA 95050
Nov 19, 2003 Model DAS-1257 12-bit spectrum and data acquisition module tests vibration and power using Palm handheld. It has 4 analog channels and 1 digital counter input channel. When combined with Connection Wave software and Palm Tungsten T handheld, system permits FFT waveform displays of 512 points across 5 kHz bandwidth running 1 channel, from sensor plugged into DAS-1257. Close-up view of any part of FFT waveform can be analyzed using built-in Zoom feature.

Datastick Systems Inc.    Santa Clara, CA 95050
Nov 19, 2003 Datastick® mDAS-2233 sensor-based data acquisition system consists of waterproof Palm OS® Meazura handheld and 3-channel DAQ module. Analog sensors can be connected to module to provide A/D conversion and signal conditioning. Datastick Connection software displays real-time measurements in 4 views, and offers alarms and level-sensitive recording. Features include Motorola Dragonball 33 MHz CPU, 16 MB on-board memory, and 100 samples/sec sampling rate.

National Instruments Corp.    Austin, TX 78759-3504

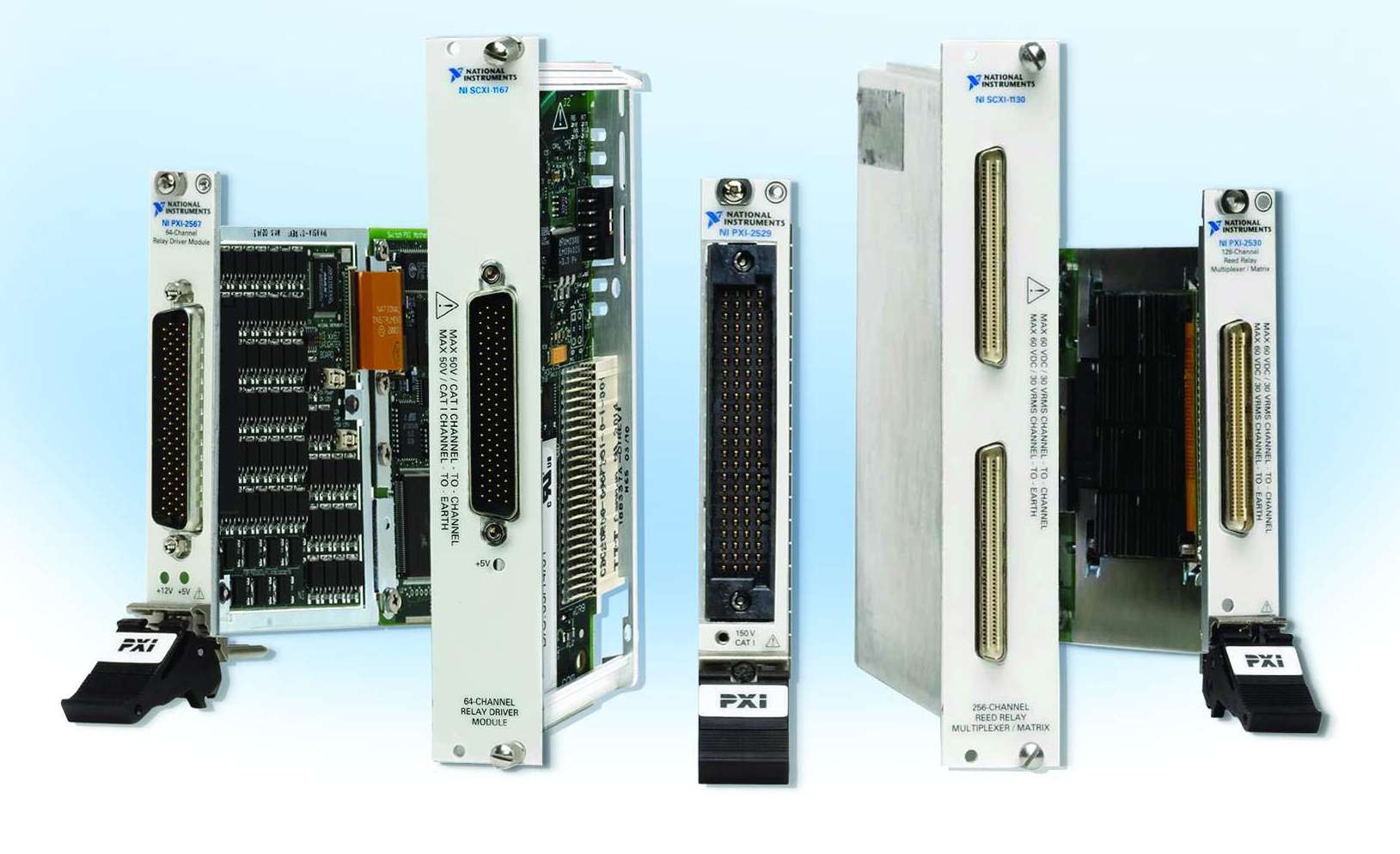

Nov 18, 2003 Models PXI-2530 and SCXI-1130 are high-density, 128-channel and 256-channel, multi-configuration multiplexers/matrices with 14 possible topologies and switching speed of 900 ch/s. Model PXI-2529 brings 128-crosspoint, 2-wire matrix to single-slot 3U PXI module. It can switch up to 150 Vdc or 150 Vrms CAT I and up to 1 A switching/2 A carry. Models PXI-2567 and SCXI-1167 are 64-channel relay-drive modules that accommodate up to 50 V or 600 mA of drive capacity.

E Instruments International LLC    Langhorne, PA 19047
Nov 14, 2003 Non-contact IRtec P500+ Portable Infrared Thermometer provides ±1% accuracy of reading. Features include RS232 PC communication, analog output, high and low programmable alarms, and data memory of 500 records. It detects and prevents temperature-based malfunctions on bearings, motors, switchboards, conductors, and transformers. Close Focus P500+ version measures small targets at short distance, such as electronic components.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Nov 14, 2003 DIN rail mount Model 8161A provides conditioned output signals for test, measurement, and process control. Two concurrent outputs offer ability to conduct measurements and control processes, while simultaneously monitoring or recording. Analog voltage and current mode outputs are provided. Built-in shunt calibration resistor with pushbutton actuation simplifies test setup. Unit is suited for installation in control panels or fabricated skid systems.

Extech Instruments Corp.    Nashua, NH 03063

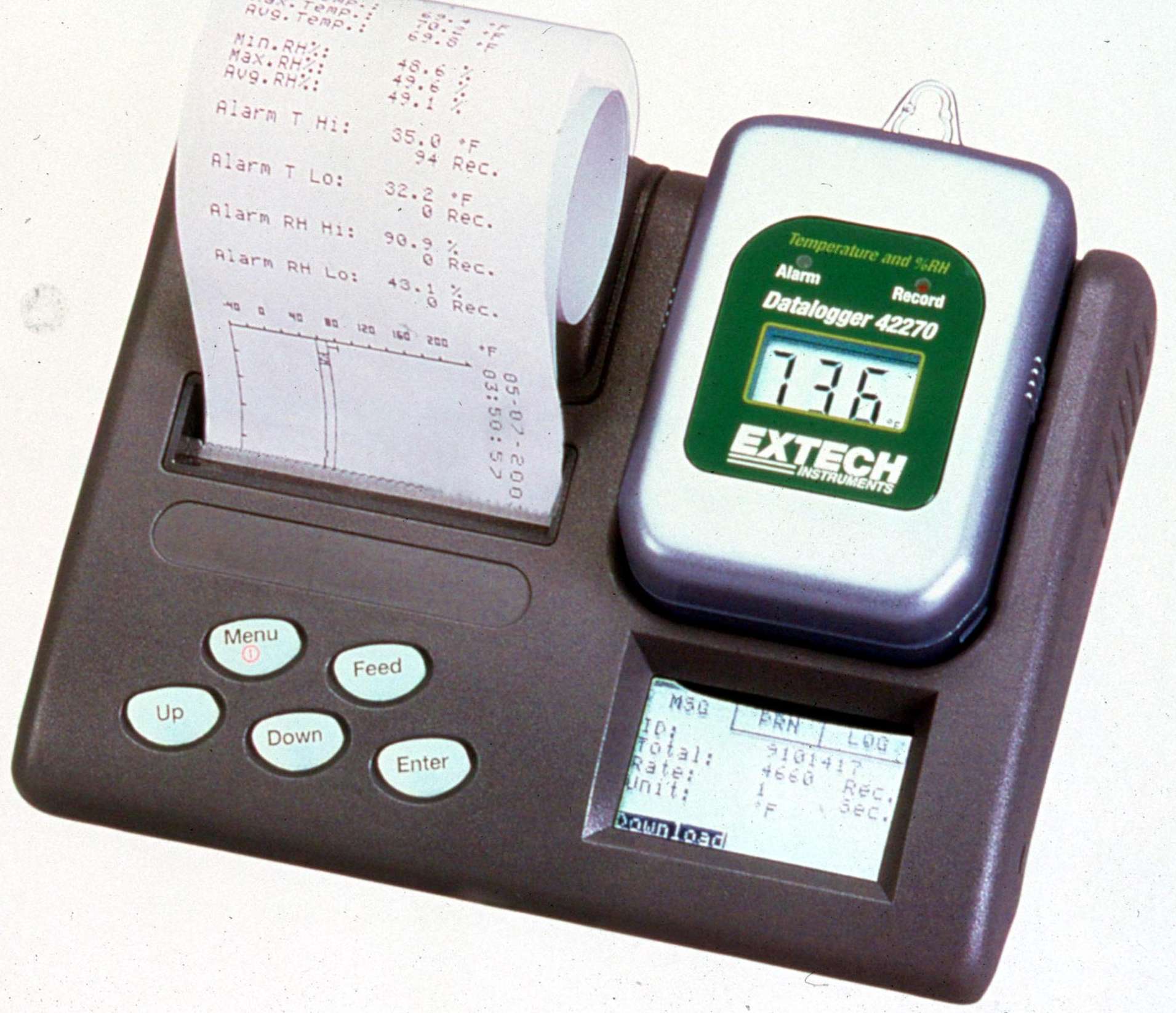

Nov 14, 2003 With operating range of -40 to 185°F, Model 42275 stores up to 16,000 measurements and is offered with self-standing, battery-operated programmer/printer Model 42276. Logged data can be downloaded, printed, or graphed, and programming is performed through 5-button control panel with LCD display. Unit, packaged in ABS plastic case, includes 42270 Datalogger with 3.6 V lithium battery, programmer, and roll of thermal paper.

Burkert    Irvine, CA 92614 5840

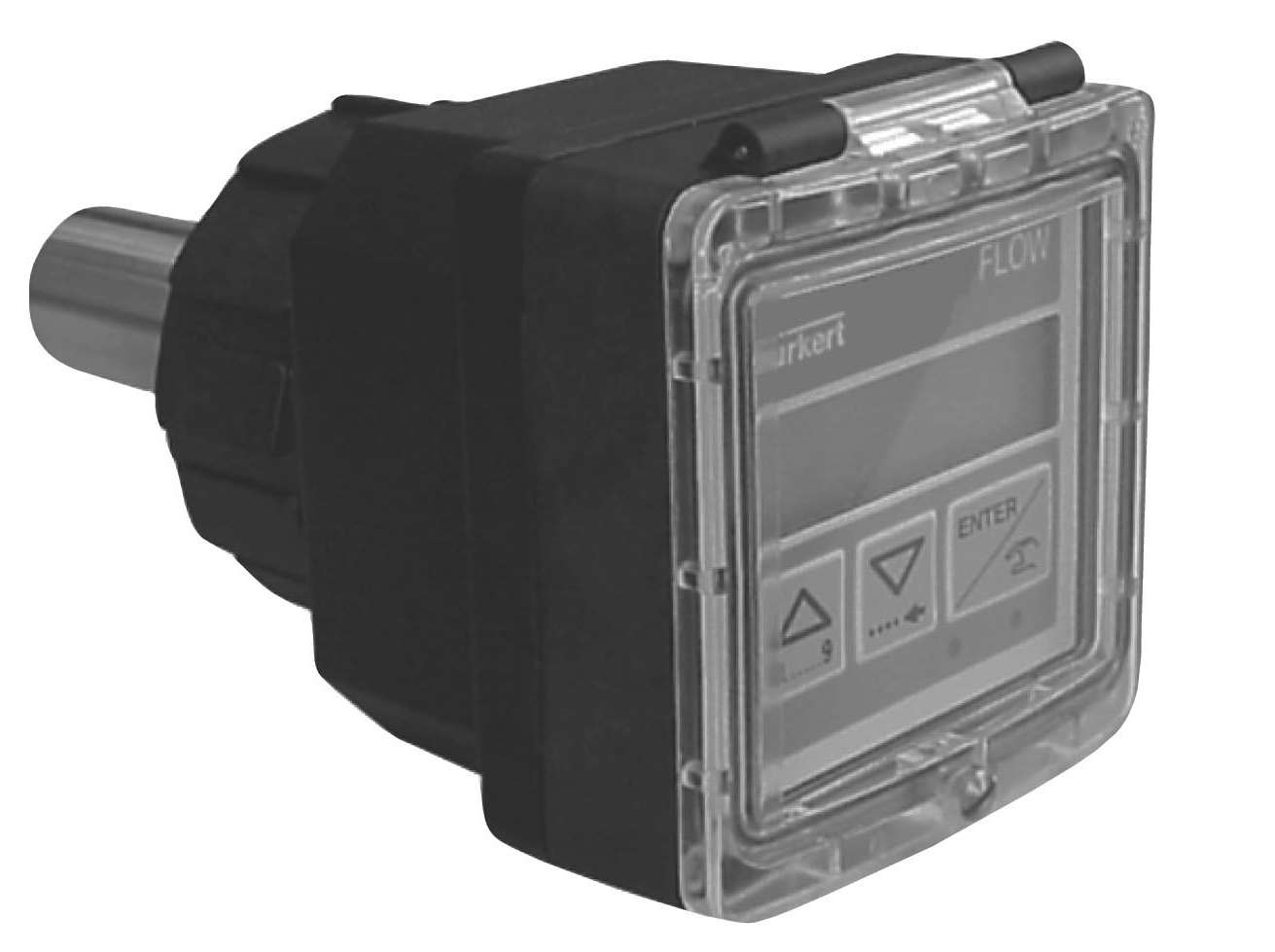

Nov 14, 2003 Type 8045HT Insertion Magflowmeter features stainless steel insertion sensor, which shows flow rate and volume, and accommodates charged and uncharged fluids. Meter handles temperatures up to 230°F and fluid pressures to 230 psi. Standard outputs include pulse, relay, and 4-20 mA. Menu-driven meter is operated via 3-key control pad that is part of 8-character digital display. It is FDA approved and compatible with pipe diameters of ½-8 in.

Saelig Co., Inc.    Pittsford, NY 14534

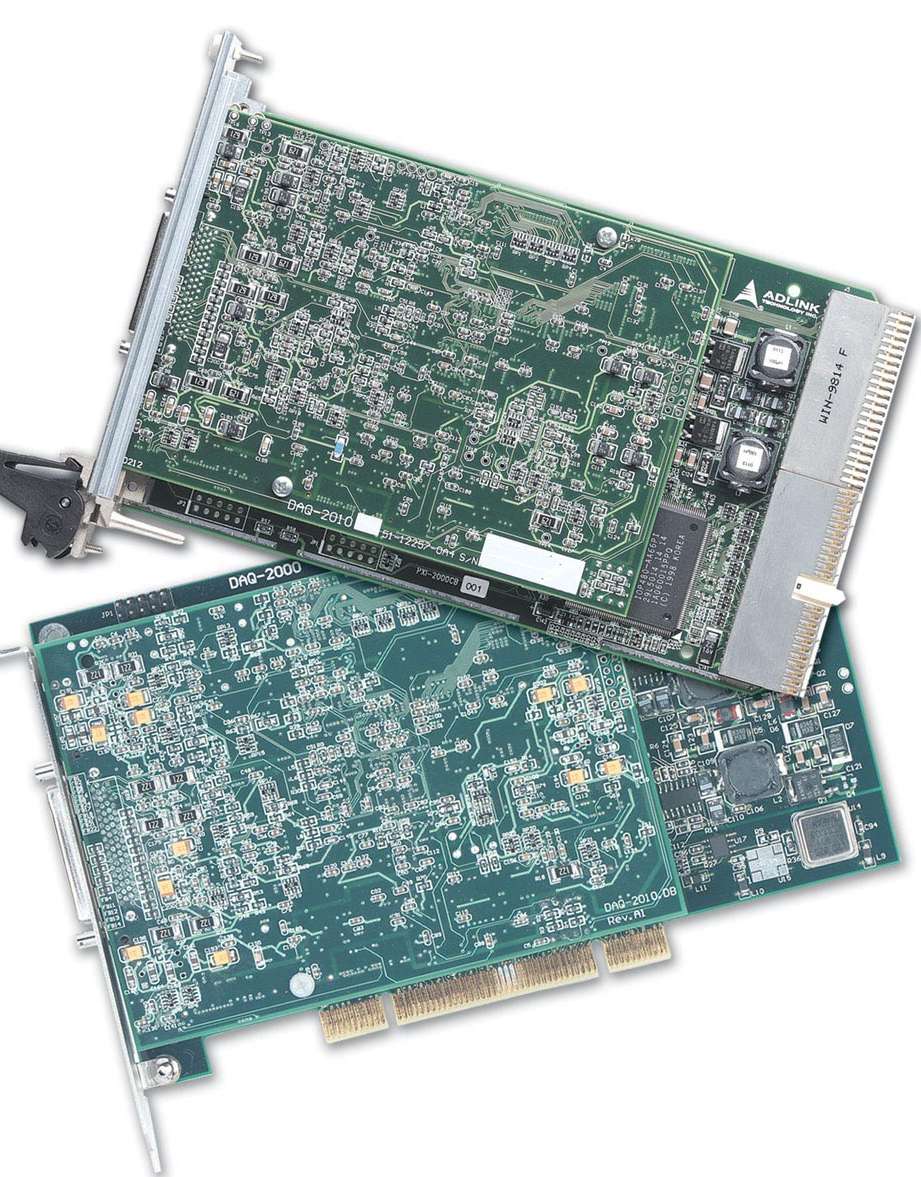

Nov 13, 2003 Series DAQ2200 boards separate digital and analog circuitry on to daughter and carrier boards. On-board custom power regulation ensures stable system power, and small footprint allows integration into half-size chassis. Series DAQ2000 boards, with custom-designed input amplifiers, measure all types of signals in one system. Series DAQ2500 boards offer 4 or 8 analog output channels, allow multiple card synchronization, and enable high-speed data gathering.

Agilent Technologies, Inc.    Santa Clara, CA 95051

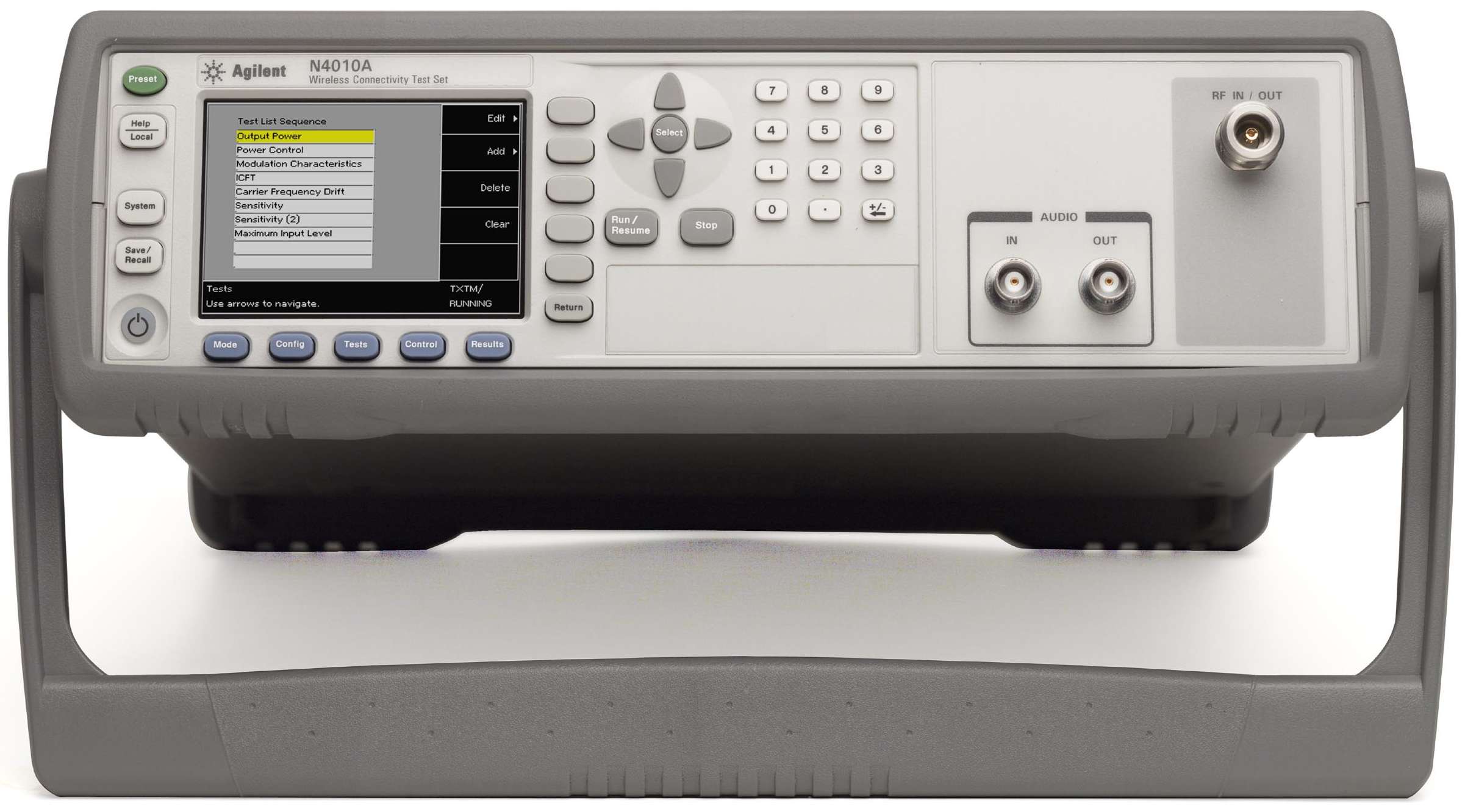

Nov 13, 2003 Model N4010A wireless connectivity test set, suited for products and components that incorporate Bluetooth(TM) and other wireless connectivity technologies, lets users create test sequences during product development cycle. Test set includes internal test sequencer, I/O connectivity, and capability to accomplish 8 of 16 Bluetooth test cases. Additional features include audio I/O, RF analyzer/RF generator modes, and graphical measurement application.

Cypress Computer Systems    Lapeer, MI 48446
Nov 13, 2003 Data Wedge automatically converts data using computers and terminals. With employee or student identification badges, data can be streamlined for security and reporting purposes. Customers can use Wedge to secure computer access and activity as well as monitor inventory and employee time records. Wedge is operational with Proximity, Wiegand, and MagStripe and can be used with IBM and compatible PC systems, as well as most POS terminals.

International Light, Inc.    Newburyport, MA 01950 4092

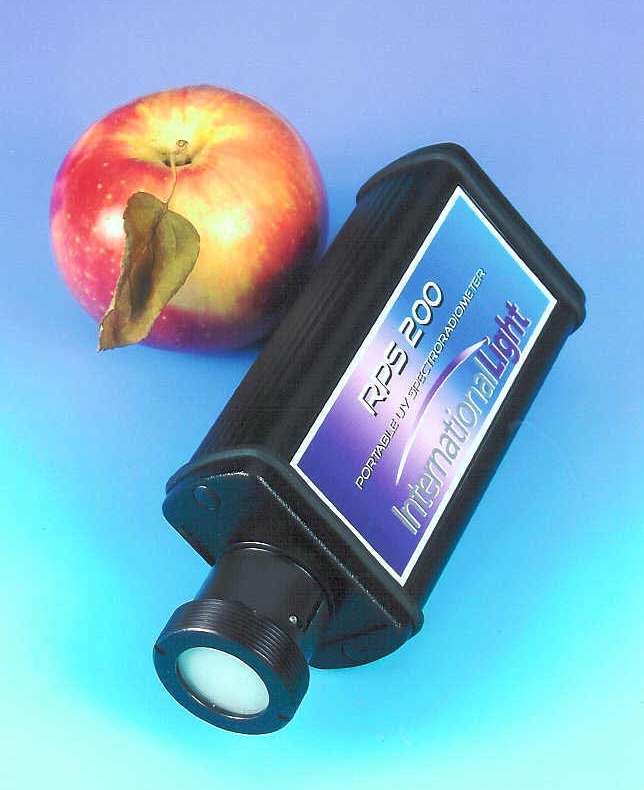

Nov 13, 2003 Multi-channel, CCD-based Model IL RPS-200 features cosine receptor for irradiance measurements and 24° viewing angle for radiance measurements. Hand-held, NIST-traceable unit covers 200–500 nm range with 5 nm resolution. Providing true laptop portability, instrument is powered from standard USB digital interface and uses Windows®-compatible software. Applications include UV curing, solar simulation, and photo-stability testing.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Nov 12, 2003 Designed for use with concrete and gypsum flooring, CRH meter measures moisture content, relative humidity, temperature, and dew point. Micro controller processes information received, calculates outputs, and shows them on clear, digital display. Non-volatile memory chip stores and retains data, which can be recalled at any time or downloaded to PC for storage and inclusion on spreadsheet or report.

Mark-10 Corp.    Copiague, NY 11726
Nov 12, 2003 Spring Test System consists of TSF force measurement test stand, CG1000 digital force gauge with ±0.2% accuracy, digital travel display with 0.0005 in. resolution, and implements. It tests tension and compression of springs up to 17 in. long and over 8 in. in diameter. Tester features side-mounted hand wheel, rigid 3 x 3 in. column, removable steel loading surface, and solid metal base. Max travel is 4 in., and travel rate is 0.013 in./hand wheel revolution.

Sealevel Systems Inc.    Liberty, SC 29657
Nov 12, 2003 ACB-Ultra.LPCI low-profile, PCI bus RS-232/422/485 serial interface board is based on Zilogâ„¢ Z16C32 IUSC and includes on-board DMA controller to eliminate bus bandwidth constraints. It features 256 K of on-board RAM, 32-byte FIFO buffer, and Universal Bus as required by PCISIG specification 2.3. SeaMAC v4.1 driver software is included, which supports protocols under Windows 2000/XP. Adapter is suited for satellite, radar, and banking applications.

FARO Technologies, Inc.    Lake Mary, FL 32746 6204
Nov 12, 2003 Laser ScanArm 7-axis contact/non-contact measurement device has integrated laser scanner and LED range finder. Hard probe and laser scanner digitize interchangeably without having to remove either component. Portable unit has open architecture and allows users to collect simple point variations with hard probe with rates of up to 13,000 points/sec. Users can then laser scan sections requiring larger volumes of data.

Quatech, Inc.    Akron, OH 44311

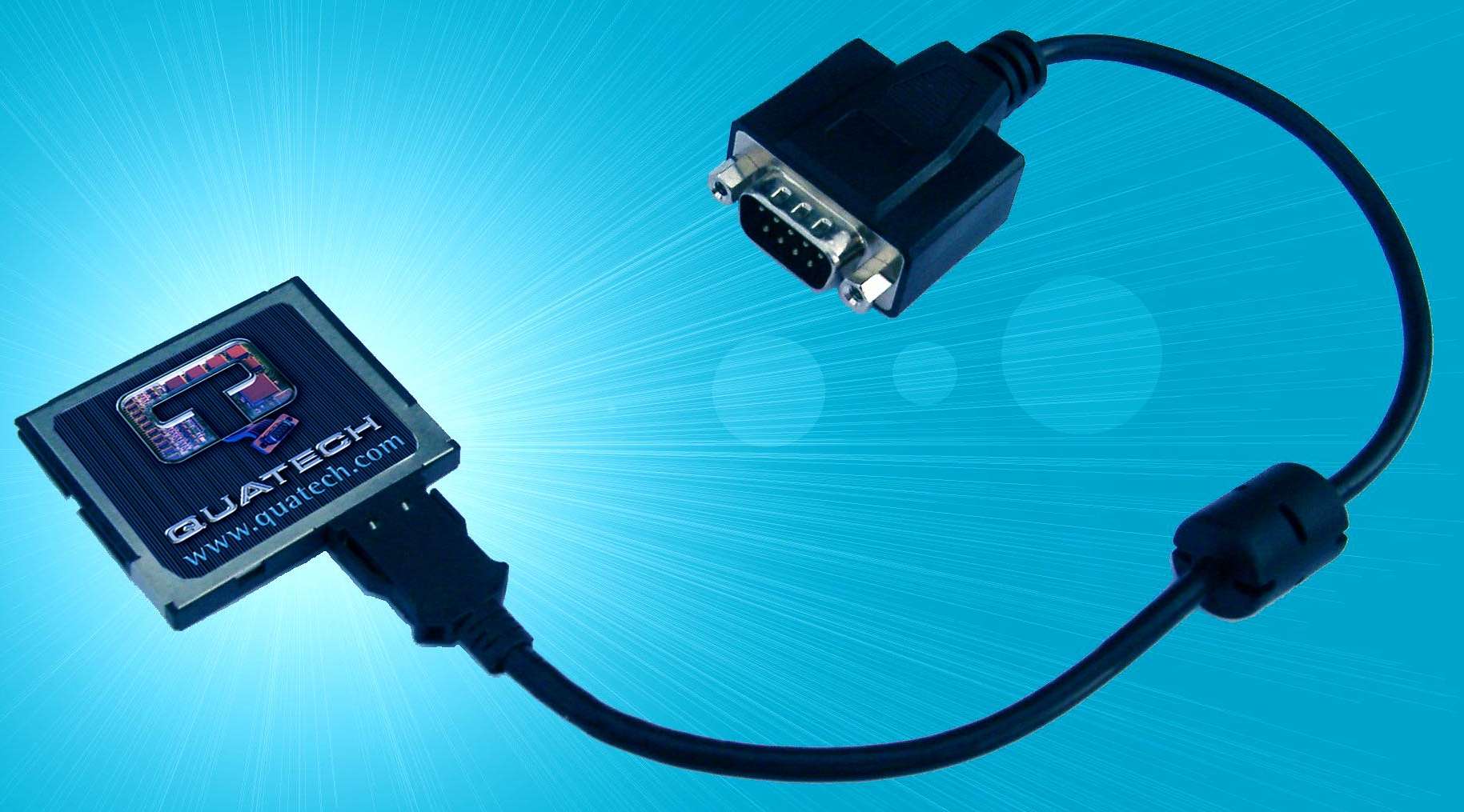

Nov 11, 2003 Housed in metal cases, CompactFlash cards enable users to add serial ports to handhelds, PDAs, tablets, laptops, and embedded systems for mobile computing applications. Models include one-port RS-232 serial CF card, 2-port RS-232 serial CF card, and one-port RS-422/485 serial CF card. They provide serial connectivity at rates to 921.6 kbps. Single-port cards provide ESD protection, and 2-port cards provide ±50 Vdc isolation for each port.

Fairchild Semiconductor    South Portland, ME 04106

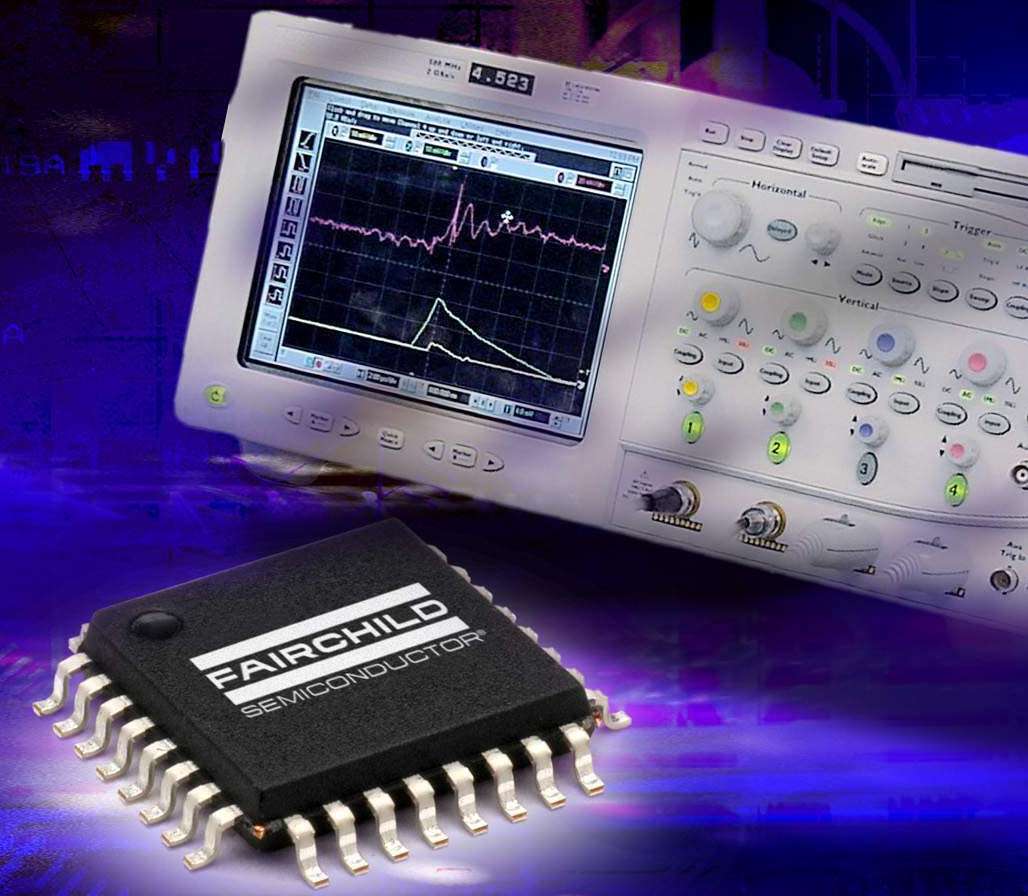

Nov 11, 2003 Model SPT5240 10-bit digital-to-analog converter dissipates 149 mW at 400 MWPS update rate. It operates from 3.3 V supply and includes extended operating temperature of -40 to +85°C, complementary current outputs, and internal reference. Available in 32-lead LQFP package, unit is suited for test equipment, medical diagnostic and imaging, portable communications, and other battery-operated equipment requiring high-speed data conversion.

Dranetz Technologies, Inc.    Edison, NJ 08818 4019
Nov 11, 2003 Three-phase PowerGuide® 4400 features 8 independent channels and color touch screen. Automated setups provide instant detection of circuit types and configurations. PowerXplorer® PX5 simultaneously captures and characterizes hundreds of parameters, including IEEE 1459 for non-sinusoidal and unbalanced systems. PowerXplorer PX5-400 provides range of monitoring and measurement for 400 Hz applications as well as 50/60 Hz. All units meet IEEE 1159 and EN50160 standards.

Draeger Safety, Inc.    Pittsburgh, PA 15230

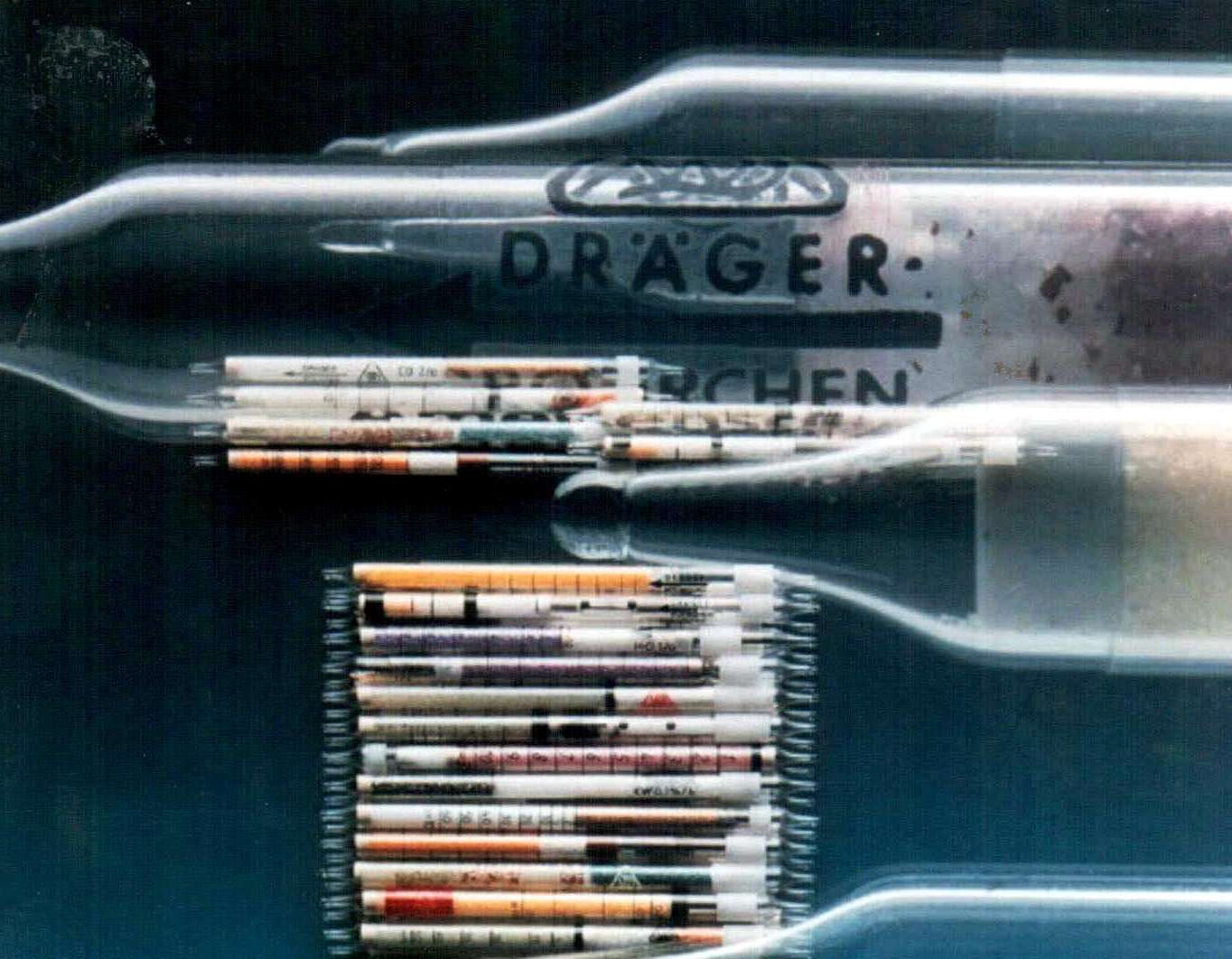

Nov 10, 2003 Hydrazine 0.01/a short term detector tube can measure down to ACGIH action level of 10 ppb. Applications include aerospace and military, power plant water treatment, chemicals such as pesticides, and chemical blowing agents used in production of plastics and foams.
