Saelig Co., Inc.    Pittsford, NY 14534
Dec 09, 2003 Model DLP-TH1 digital temperature, humidity, and dew point sensor features temperature range of -40 to 123°C with ±2% accuracy and humidity range of 0-100% RH with ±3% accuracy. It uses fully-calibrated capacitive polymer sensing element for RH and band-gap digital temperature sensor for long-term stability. Calibration coefficients are stored in digital memory within module. Windows software lets user chart results to PC screen and log data to hard drive.

RIDGID    Elyria, OH 44035
Dec 09, 2003 Made of 100% stainless steel, waterproof SeeSnake(TM) Plus features thick light shield for wear resistance. Push-rod assembly moves camera through multiple 90° bends, in ¼ to 8 in. lines and in 2-12 in. lines, depending on model. Factory-installed 512 Hz transmitter makes unit compatible with NaviTrack(TM) line locator, making it easier to locate in underground pipe. Video monitor shows blockage, while in-line transmitter pinpoints location of problem.

Leuze electronic, Inc.    New Hudson, MI 48165
Dec 09, 2003 Utilizing ultrasound technology, VSU 15 system checks and counts transparent labels during production and processing. With separate transmitter and receiver sensors, system independently monitors up to 10 channels. Central evaluation unit processes signals and transmits them via transistor outputs to machine control. Response time allows feeding speeds up to 120 m/min with 2 mm label gap.

Brudi Bolzoni Auramo    Homewood, IL 60430
Dec 08, 2003 Concealed within paper roll core, compact SPY device travels with paper roll from mill to end user, monitoring events that occur during transportation and handling. It monitors 3 perpendicular directions, temperature change, and exact time of occurrence to help determine cause of damage paper rolls may have encountered en route. Unit includes analysis program with GUI.

Keithley Instruments, Inc., Test Instrumentation Group    Cleveland, OH 44139 1891
Dec 08, 2003 Series S680DC/RF Parametric Test System allows control of 300 mm wafer processes in 200 mm test times. SimulTestâ„¢ parallel test software option allows measurement of up to 9 devices simultaneously with single probe touchdown. Single-wire 300 mm SECS/GEM automation complies with SEMI and GJG factory standards. Adapt Test Software option allows system to change test plans automatically in real-time. Per-pin electronics design minimizes parasitic capacitance and leakage currents.

Jerguson Gage & Valve, A Div. Of The Clark-Reliance Corp.    Strongsville, OH 44136
Dec 05, 2003 Mini-Magnicatorâ„¢ suits light-duty applications and features 316SS flags, each with ceramic magnet. It allows clear visual indication from extended viewing distance and does not allow glass to come in contact with process fluid. Gauge has operating pressure of 400 psi and operating temperature of 500°F. Styles include side flanged, side threaded, side socket weld, end flanged, end/side flanged, end flanged/side threaded, and end flanged/side socket weld.

Control Company    Friendswood, TX 77546
Dec 05, 2003 Traceable® Flip-Stick Thermometer incorporates stainless-steel probe that may be positioned at any angle. Fold-up protected probe permits carrying on wrist strap or in pocket. With ¾ in. high display, unit is shockproof in drop tests up to 5 ft and includes °F/°C switch, min and max memory readings over any time period, and HOLD switch. Range covers 99% of routine temperature measurements from -58 to +572°F. Reading is updated every second.

Autonics USA, Inc.    Vernon Hills, IL 60061
Dec 05, 2003 CT series counter/timer combines functionality of both counter and timer. As counter, it features high-speed input of up to 10K cps, input scaling, and single or dual presets. As timer, it is classified as multi-mode and multi-range. Unit is available in 48 x 48 and 74 x 72 mm packages with 4- and 6-digit dual displays.

MidTel Technologies    Arlington Heights, IL 60004
Dec 05, 2003 Model MPT-500 Crimp Terminal Pull Tester certifies quality of crimp-on solderless lug, ring, funnel barrel, tongue, and spade terminals to wire. Hand-held ratchet-action tester exerts up to 200 lb of force to make destructive pull type force measurements. Digital display shows exact fail force in ½ in. high digits, tests are N.I.S.T. traceable, and accuracy is ±0.5% of reading plus least significant digit. Unit measures 2 x 9.5 x 6.25 in. and weighs 2.5 lb.

Logic Beach, Inc.    La Mesa, CA 91942
Dec 05, 2003 Model HLP-10 HyperLoggerâ„¢ PowerPlusâ„¢ Data Logging System monitors and records air-compressor power data combined with pressure, mass air flow, and other compressor operating parameters. Power Sensing Harness transmits data via low-power isolated serial link, allowing HLP-10 to be located at safe distance from high-voltage connections. Self-contained system simplifies calculation of compressor efficiency by analyzing power consumption along with compressor output.

Controlotron Corp.    Hauppauge, NY 11788
Dec 05, 2003 Suited for pipelines carrying crude oil, refined petroleum, or liquefied gas, non-intrusive System 1010PV automatically compensates for product viscosity changes. Volumetric flow is displayed and outputted in RS232, pulse rate, 0-10 V, and 4-20 mA format. It includes internal 1 MB datalogger that stores system operation and condition diagnostics. Unit's resolution and stability make it suited for custody transfer and checkmetering applications.

MEGTEC Systems    De Pere, WI 54115-5030
Dec 04, 2003 EnviroMonitorâ„¢ Environmental Monitoring and Data Reporting System acquires data electronically, stores it on flash memory, and writes it to removable storage media or sends it via FTP to network server. Sort and search capabilities are provided for diagnosis and reporting. Multi-channel, network-capable system continuously receives and records data on key parameters and outputs reports required under MACT guidelines.

Acqiris LLC    Monroe, NY 10950 1430
Dec 04, 2003 Model AP240 and AP235 multifunctional signal analyzer boards feature analyzer platform hosting reconfigurable on-board digital processing unit. Averaging firmware option performs synchronous dual-channel real-time averaging at 1 GS/s. They feature full front-end signal conditioning with up to 1 GHz bandwidth. Each channel has independent digitizer and separate programmable computing circuits using FPGA technology.

Canon U.S.A. Inc.    Lake Success, NY 11042-1113
Dec 04, 2003 Measuring 56 mm, heavy-duty Model M1-H features max frequency response of 8.3 MHz and max rotation rate of 10,000 rpm. Balanced line driver output circuit allows for long distance signal transmissions. System's 780 mm semiconductor laser offers max output power of 5 mW, with signal error of 25 arc-sec. Encoder is suited for computer/electronics, imaging systems, optical scanners, semiconductor equipment, speed control, and 3-D digitizing.

Jerguson Gage & Valve, A Div. Of The Clark-Reliance Corp.    Strongsville, OH 44136
Dec 04, 2003 Hermetically Sealed Magnicator II® Flag Indicator is made of borosilicate rectangular tubing with 100% fused glass ends for true hermetic seal. Wash-down friendly unit eliminates fogging and clouding associated with gasket-type sealed indicators. All 316 stainless steel housing provides corrosion resistance, making unit suited for hazardous applications and offshore duty.

Beckhoff Automation LLC    Minneapolis, MN 55337
Dec 04, 2003 Models KL3361 and KL3362 process 16 mv and 10 V analog signals, respectively, and can replace separate analog cards and associated wiring harnesses. Analog input values are processed over 1 of 13 fieldbus networks including Ethernet, Profibus, and DeviceNet. Bus Terminals locally convert analog signal to digital signal at speeds configurable down to 10 µs. They store data in local 32 Kbyte buffer for subsequent transmission over fieldbus.

Newall Electronics, Inc.    Columbus, OH 43228
Dec 04, 2003 Completely sealed Spherosyn(TM) Absolute encoder has IP67 environmental rating and is tolerant to vibration and shock. With accuracy down to 3 microns and resolutions to 0.1 micron, it is suited for linear motor and high-velocity measurement applications. Unit is made up of reader head and scale and utilizes digital signal processor for positional data and communication of output protocols. Travel length is 9.25 m and traverse rate is up to 60 m/sec.

AutomationDirect.com    Cumming, GA 30040-9905

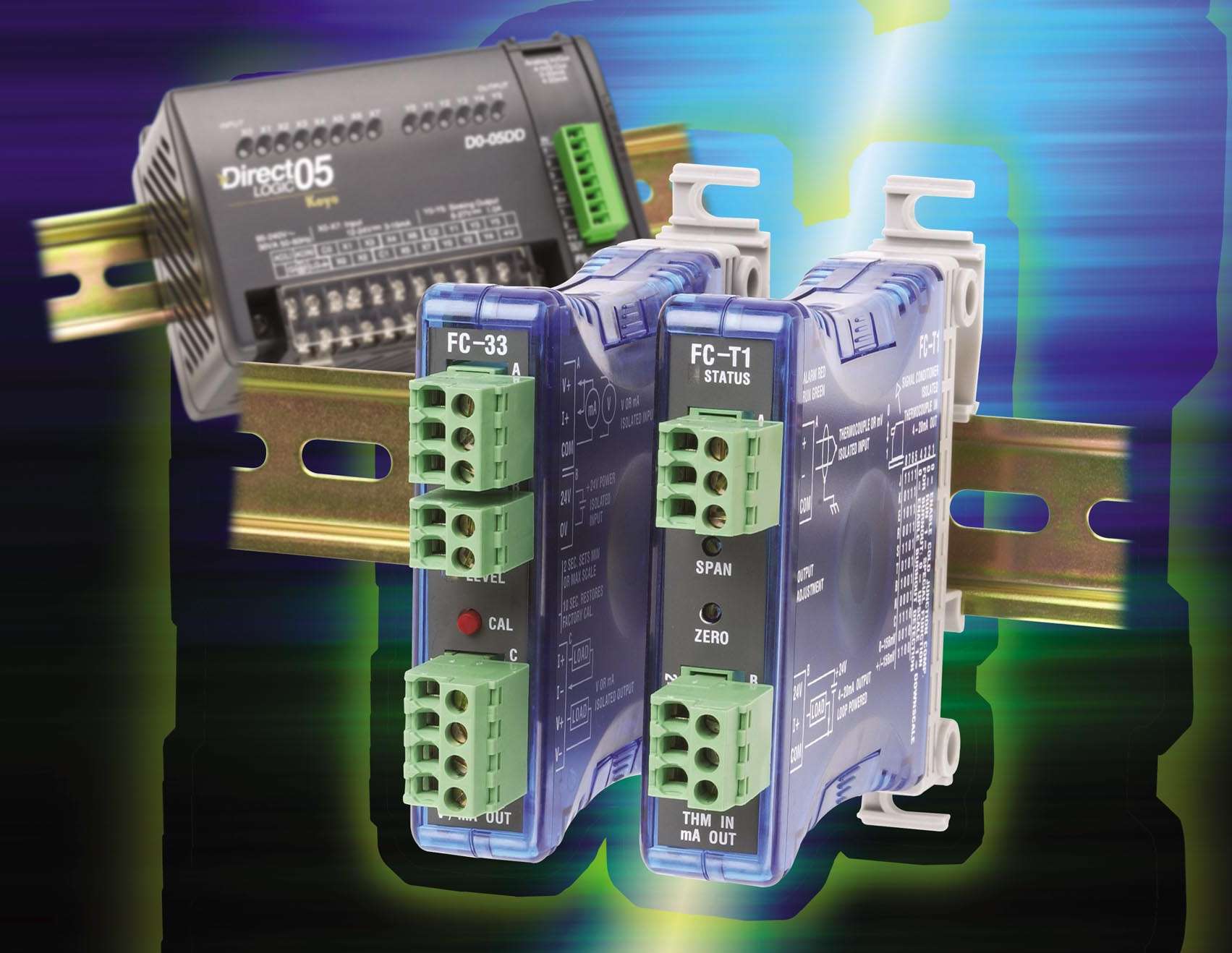

Dec 04, 2003 DIN-rail-mounted Series FC protects electronic equipment from electrical noise. Model FC-11 is a loop-powered signal conditioner/isolator for 4–20 mA signals. DC-powered Model FC-33 is a selectable signal conditioner/isolator for voltage/current signals with programmable ranges and LED indicators. Model FC-T1 offers conditioning, isolation, and cold-junction compensation for thermocouple/mV input signals. Loop-powered Model FC-R1, for RTD signals, offers selectable inputs.

Kinetic Systems, Inc.    Boston, MA 02131
Dec 04, 2003 Tabletops, benchtops, platforms, and breadboards with MaxxAlignâ„¢ design feature mounting holes tapped at ½ in. intervals in rows 1 in. apart, with ¼â€“20 or M6 threads. Breadboards and BenchMates are portable units. Compact personal workstations, suited for small labs and other tight spaces, accommodate loads to 440 lb. Midrange models provide spacious work surfaces and control loads to 2,000 lb, while heavy-load models accommodate loads over 20,000 lb.

Tracewell Systems, Inc.    Westerville, OH 43081-8846
Dec 04, 2003 Optimized for development of AdvancedTCA main boards and rear transition modules, 14-slot T-Frame for AdvancedTCAâ„¢ features open-frame design for access to front and rear boards. Offering capacity of 150 W/slot, cooling is bottom pressurized using 3 front-removable fan trays. System includes dual shelf management controllers to monitor, control, and assure proper operation of boards and shelf. Backplane supports dual star switch fabric routing at data rates to 3.125 Gbps.
