Renishaw, Inc.    Hoffman Estates, IL 60192

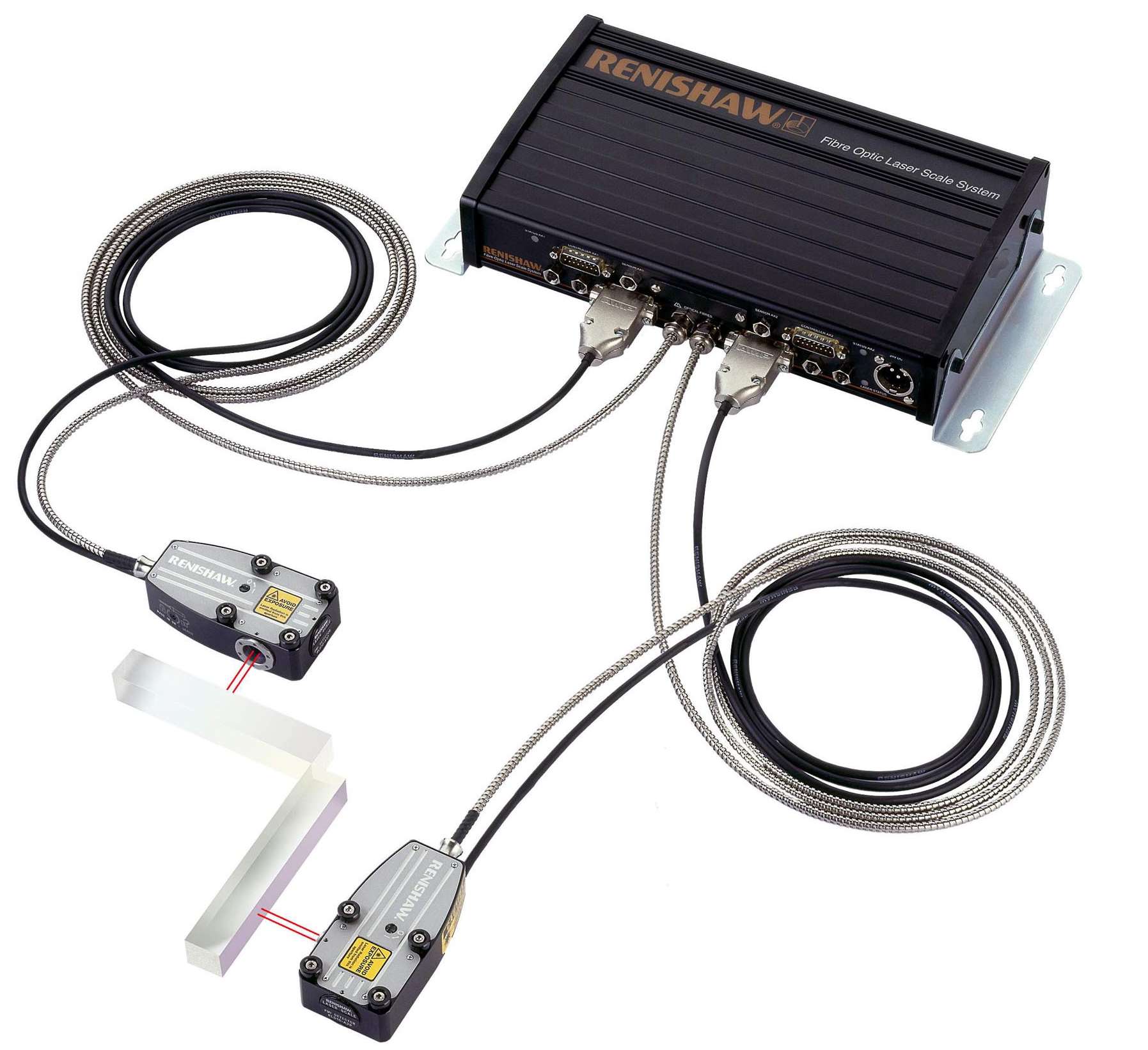

Jan 15, 2004 Model RLE10 delivers interferometer-based, nanometer positioning accuracy to multiple axes from single remote laser source. Available in configurations for linear or planar applications, system can be applied to axis lengths up to 4 m. Encoder can provide either 2 different selectable-resolution, RS422-format, digital quadrature outputs, or both analog 1 Vpp sin/cos signals and digital output quadrature output simultaneously.

Mid-West Instrument    Sterling Heights, MI 48314

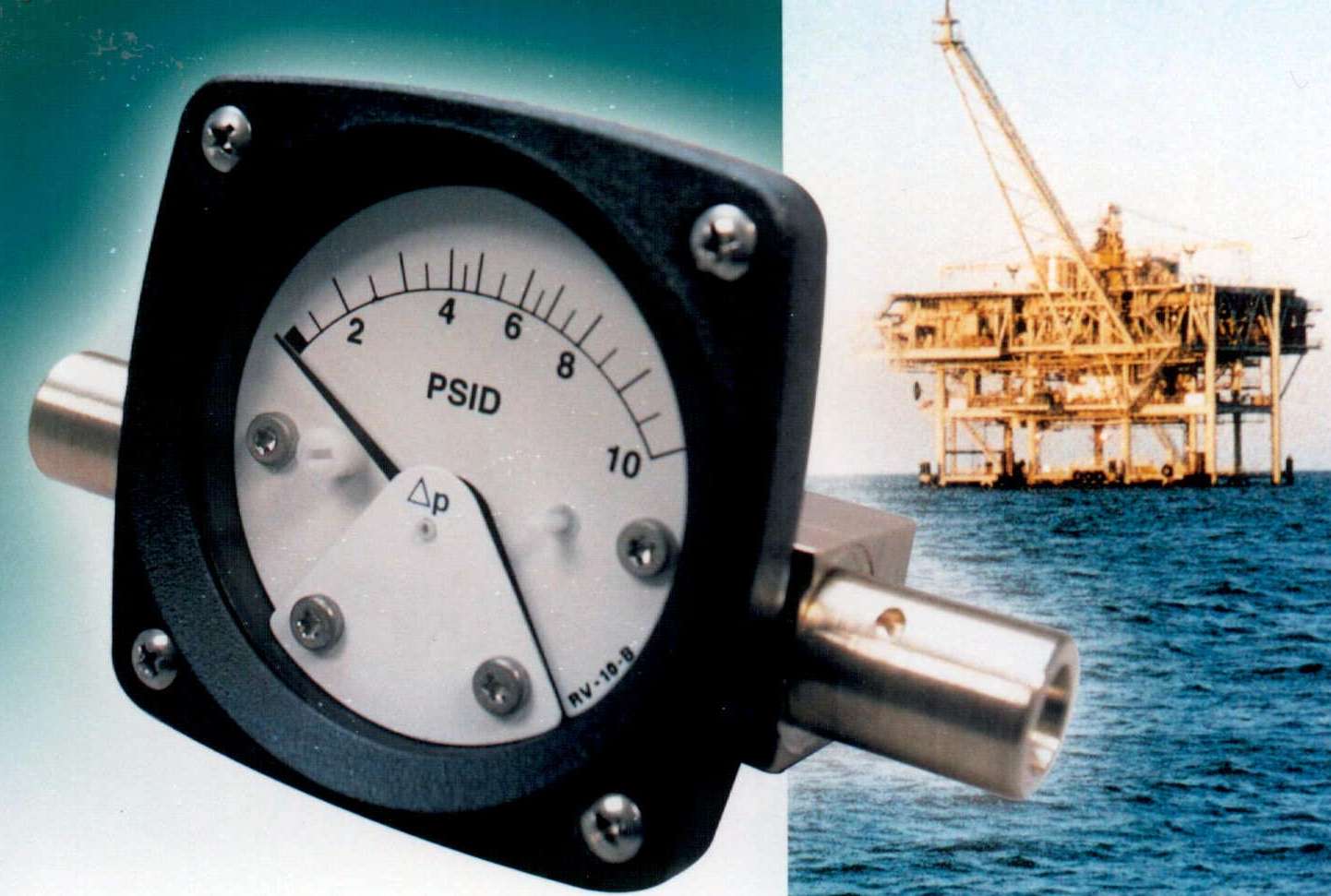

Jan 15, 2004 Model 120 Series Filter Minder ranges from 0–5 through 0–100 psid with accuracy of ±5% FS ascending. Differential pressure is sensed by movement of floating piston magnet against calibrated spring. Gauge pointer, outside pressure housing, follows movement of piston magnet and indicates pressure. Made of aluminum bronze or monel, unit is weather-resistant and offers working pressure of 5,000 psig. Dial is 2½, 3½, or 4½ in. round with shatter-resistant lens.

Ophir Optronics, Inc.    Danvers, MA 01923

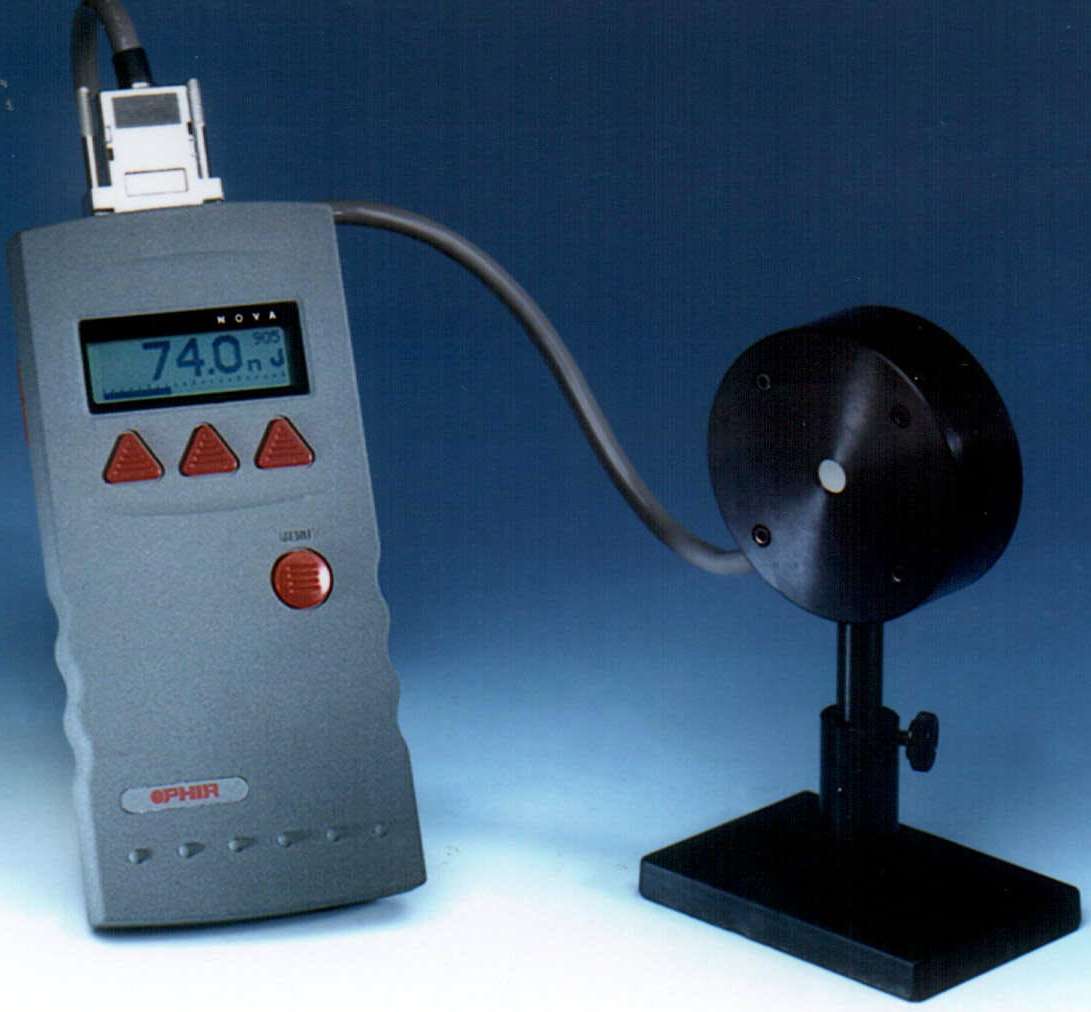

Jan 15, 2004 Model PD10-pJ Photodiode Energy head measures laser energies from 10 pJ to 100 nJ as well as pulse rates to 4,000 Hz. It is compatible with Nova Handheld, LaserStar, Dual Channel LaserStar, and Orion-PE Handheld smart displays. Features include spectral response from 200–1,100 nm, max pulse width of 50 ns, and max average power of 0.5 W with damage threshold of 0.1/cm². Calibration accuracy is ± 5%.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608

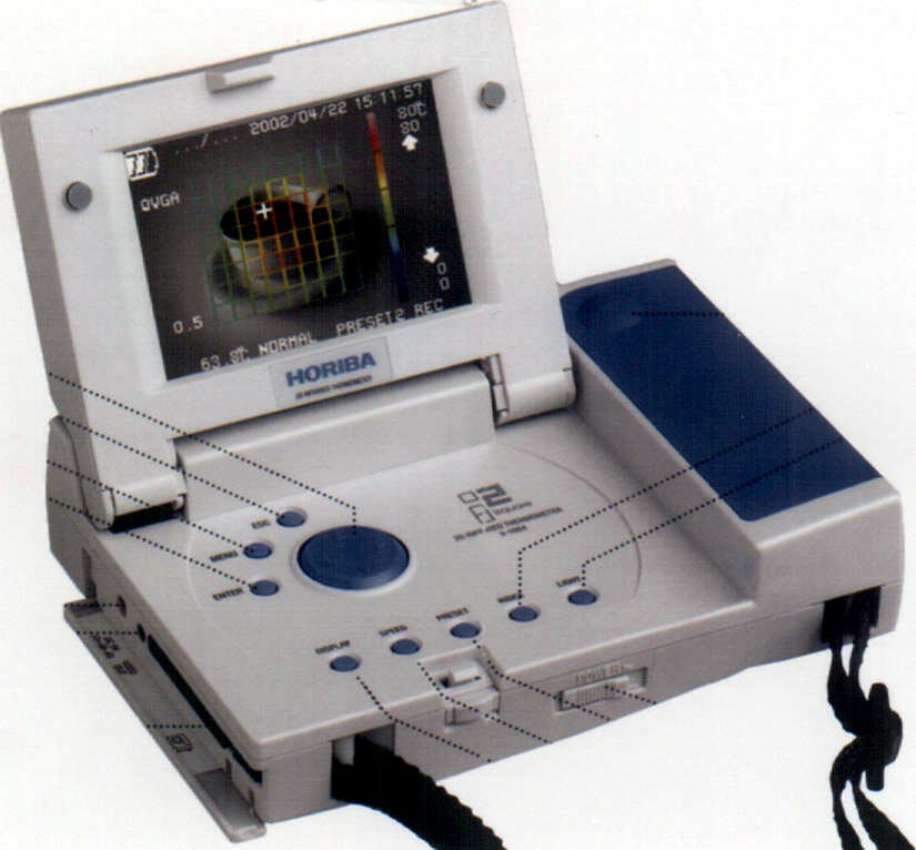

Jan 14, 2004 Equipped with 64-element thermopile array sensor and compact body, isquare 2D infrared thermometer allows users to view and verify measurement subject on LCD screen while simultaneously measuring temperature at 64 points. It can display and save data with graphic representation of temperature distribution overlaid on image of test subject. To save data, users line up object being measured in LCD monitor and press Save button.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608

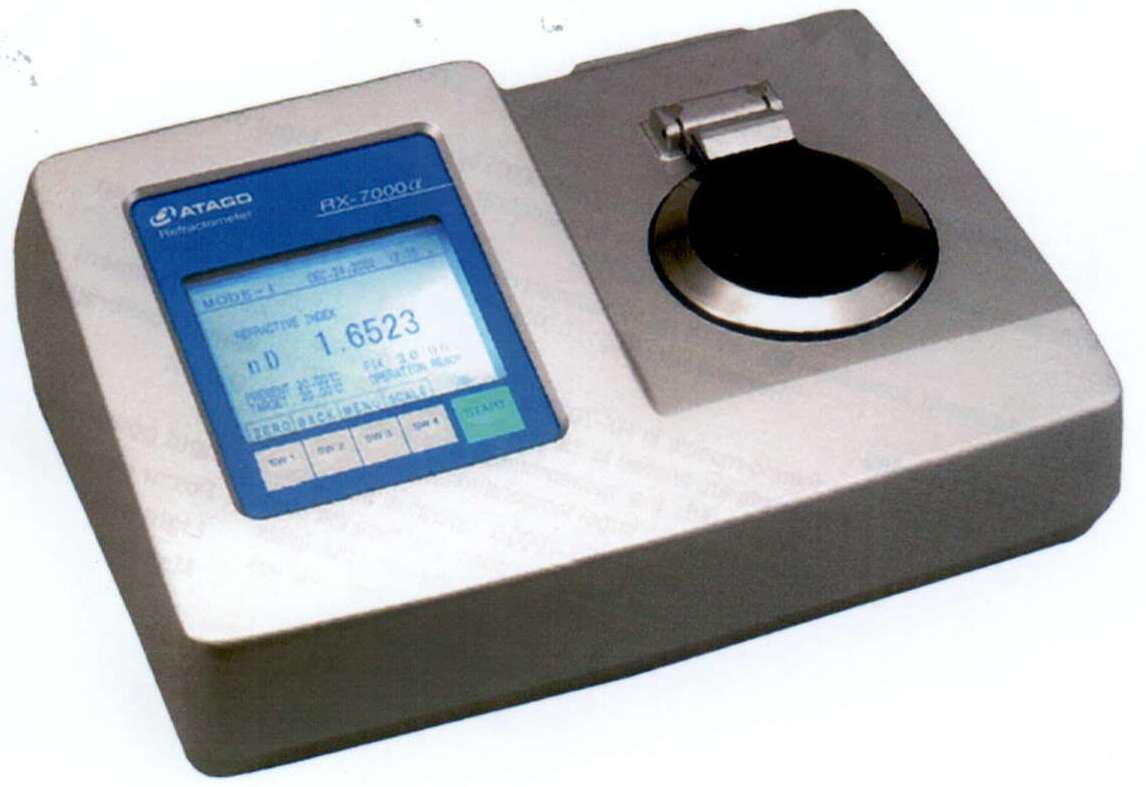

Jan 14, 2004 Model RX-7000a automatic digital refractometer features manual calibration, up to 30 user-programmable scales, and flash memory capable of recalling 30 previously measured values. Product measures refractive index from 1.3250-1.7000 nD and has brix range of 0.0-95.0%. Unit utilizes thermo-module and offers controlled measurement temperature range from 5 to 70°C.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Jan 14, 2004 When InfiniiMax 1130A 1.5 GHz differential probe is paired with Infiniium mixed signal and digital signal oscilloscopes, system validates and verifies performance of high-speed digital product designs. Controlled transmission-line probe heads provide flat frequency response over entire bandwidth. Resistor tip technology compensates for inductance and capacitance. Variable span between signal tips lets engineers adapt probes to design.

RIDGID    Elyria, OH 44035
Jan 14, 2004 Designed for use with proprietary video inspection system, compact SeeSnake® Plus provides video image in upright position with water flowing along bottom of pipe. Product has 1.365 in. dia and is 2 in. long, enabling it to fit into tight spots. Features include 512 Hz transmitter, stainless steel construction, and waterproof camera housing. Applications include use in drain lines and piping in order to determine cause and location of blockages.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Jan 14, 2004 Model ENA-L provides capabilities needed for characterization of active and passive components, and PNA-L microwave/millimeter-wave network analyzer provides S-parameter measurement and frequency-offset capabilities for evaluating frequency conversion devices. Both are equipped with Windows® interface. Model ENA-L has 4 measurement channels and 10.4 in. color LCD display with optional touch-screen capability, and PNA-L offers 32 measurement channels.

Geodetic Services, Inc.    Melbourne, FL 32901 4694

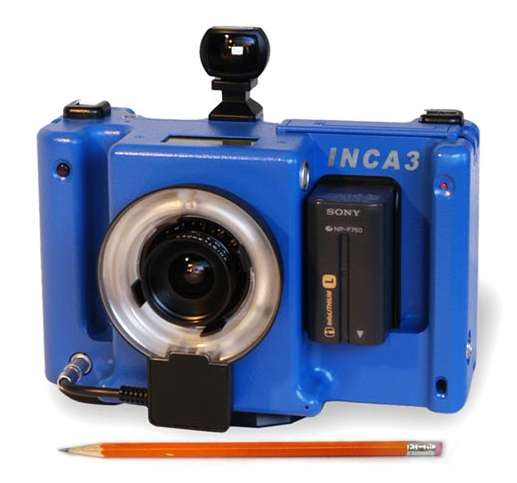

Jan 13, 2004 INCA3 Digital Photogrammetric Camera combines CCD sensor with PC-based computer to capture field measurements in harsh and unstable conditions. It includes integrated strobe, wireless operation and connectivity, and automatic exposure. Once INCA3 captures photos, V-STARS software automatically inspects collected digital images and extracts required 3D data. After processing, data can be aligned into object coordinate system, compared to previous measurements, or analyzed further.

Exacq Technologies, Inc.    Indianapolis, IN 46250

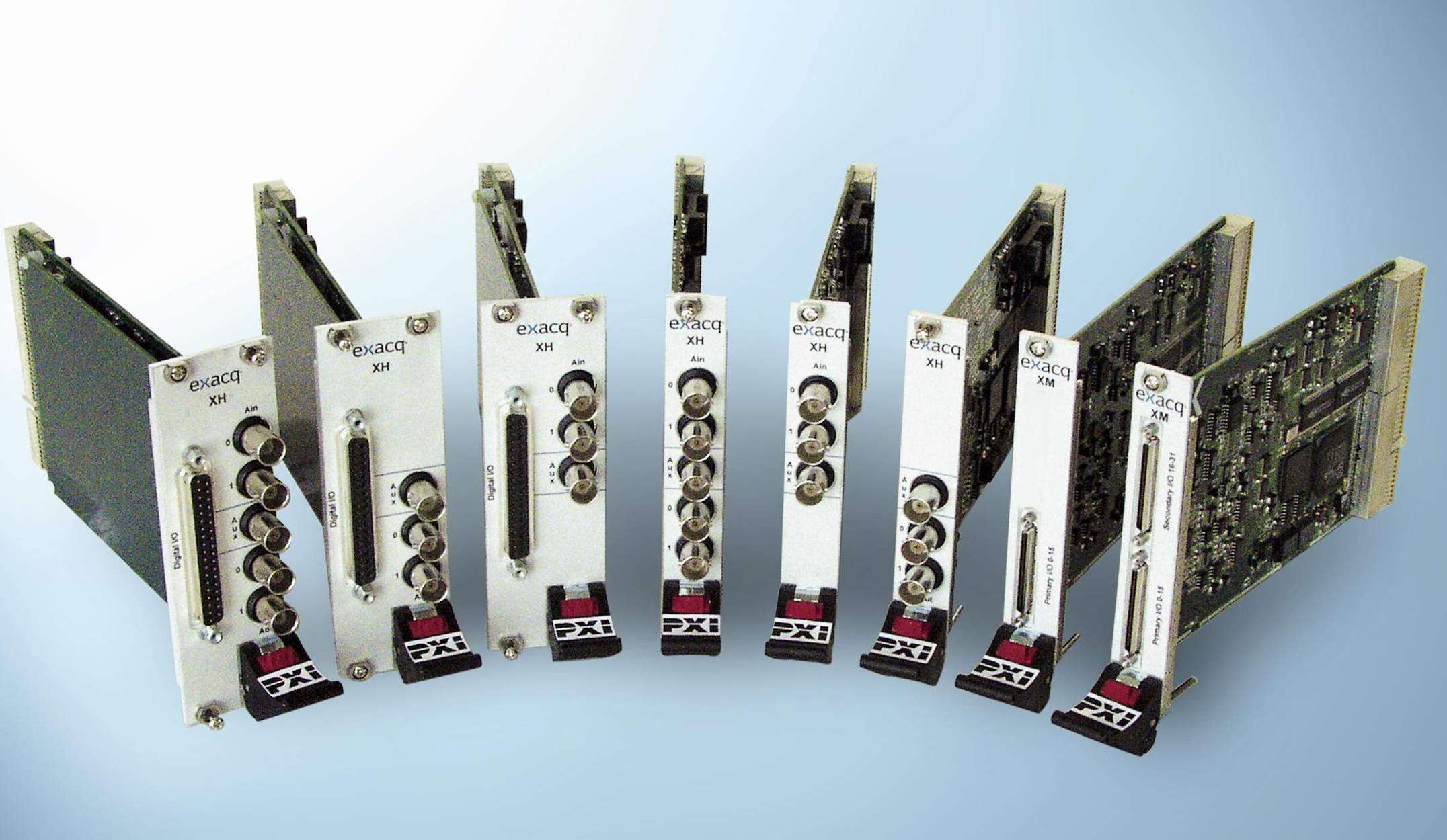

Jan 12, 2004 Series XH DAQ Boards have dual analog input channels that provide 20 million samples/sec per channel or up to 25 million samples/sec on single input. They offer 12-bit A/D resolution and 1 Hz sample clock resolution. Series XM multifunction analog I/O boards feature 32 single-ended or 16 differential mode inputs sampled at up to 1 MHz. They offer 16-bit A/D resolution and up to 32 digital I/Os, synchronous with analog I/O. Both include 16 MB onboard memory and 143 MHz, 32-bit DSP.

E Instruments International LLC    Langhorne, PA 19047
Jan 12, 2004 Model PT 2 tube and flow computer transmitter reports velocity, process gas temperature to 1200ºF, volumetric and mass flow, and differential pressure. Transmitter head includes 0-5 in. wg differential pressure transducer, 15 psi absolute pressure transducer, and thermocouple amplifier with cold junction compensation. Additional features include 4-20 mA analog outputs, programmable alarms, and RS 232 PC software for data logging and display.

Linear Technology Corp.    Milpitas, CA 95035
Jan 12, 2004 Models LTC1407A and LTC1407 are 14-bit and 12-bit Analog-to-Digital Converters with 2 simultaneous sampling inputs. Ten-pin MSOP package allows design of compact high-speed data acquisition systems. Powered from single 3 V supply with power dissipation of 12 mW, Model LTC1407A achieves 73.5 dB SINAD and guarantees 14-bit no missing codes. When device is not converting, power dissipation can be reduced to 3.3 mW in NAP mode, with 2.5 V reference remaining active.

E Instruments International LLC    Langhorne, PA 19047
Jan 08, 2004 Hand-held PT 3 portable flow monitor includes integrated probe with Pitot, Temperature, Static Pressure, and Log Trigger. Auto Log Trigger allows measurements and calculated parameters to be made and stored for analysis with provided software and transferred to PC program such as Word or Excel. Unit measures velocity; temperature to 1,475ºF; turbulence; flow mapping; and differential, barometric, and absolute pressure. It also calculates volumetric and mass flow.

Ideal Industries, Inc.    Sycamore, IL 60178

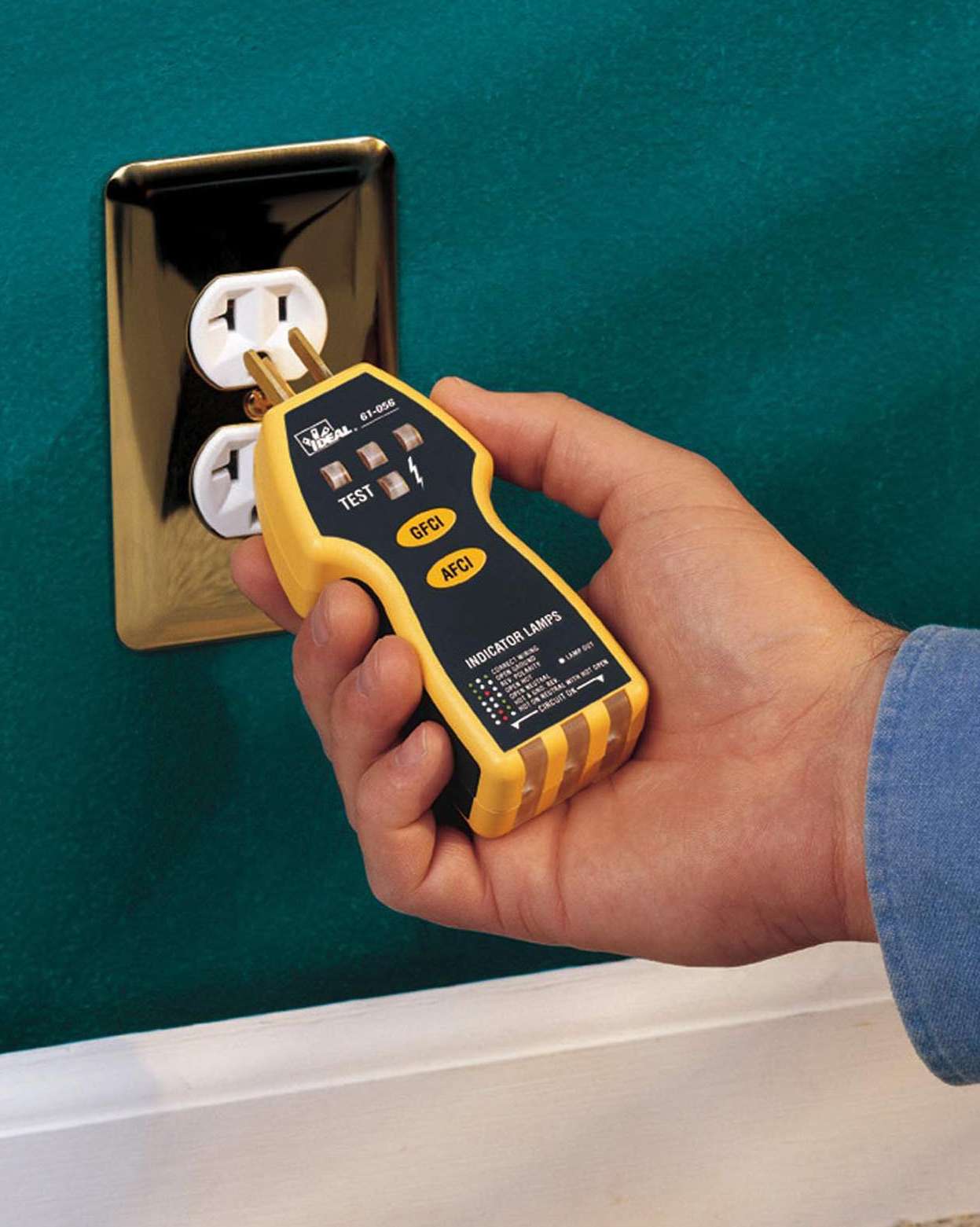

Jan 08, 2004 Palm-sized SureTest® Arc Circuit Tester provides professional-grade 120 V AFCI/GFCI testing. It plugs directly into any 120 V branch circuit receptacle or through optional extension cord and simulates parallel arcing between line and neutral to verify performance of arc fault breakers and outlet devices. UL-listed unit is suited for electricians checking new installations and do-it-yourselfers concerned with fire safety in older homes.

National Instruments Corp.    Austin, TX 78759-3504

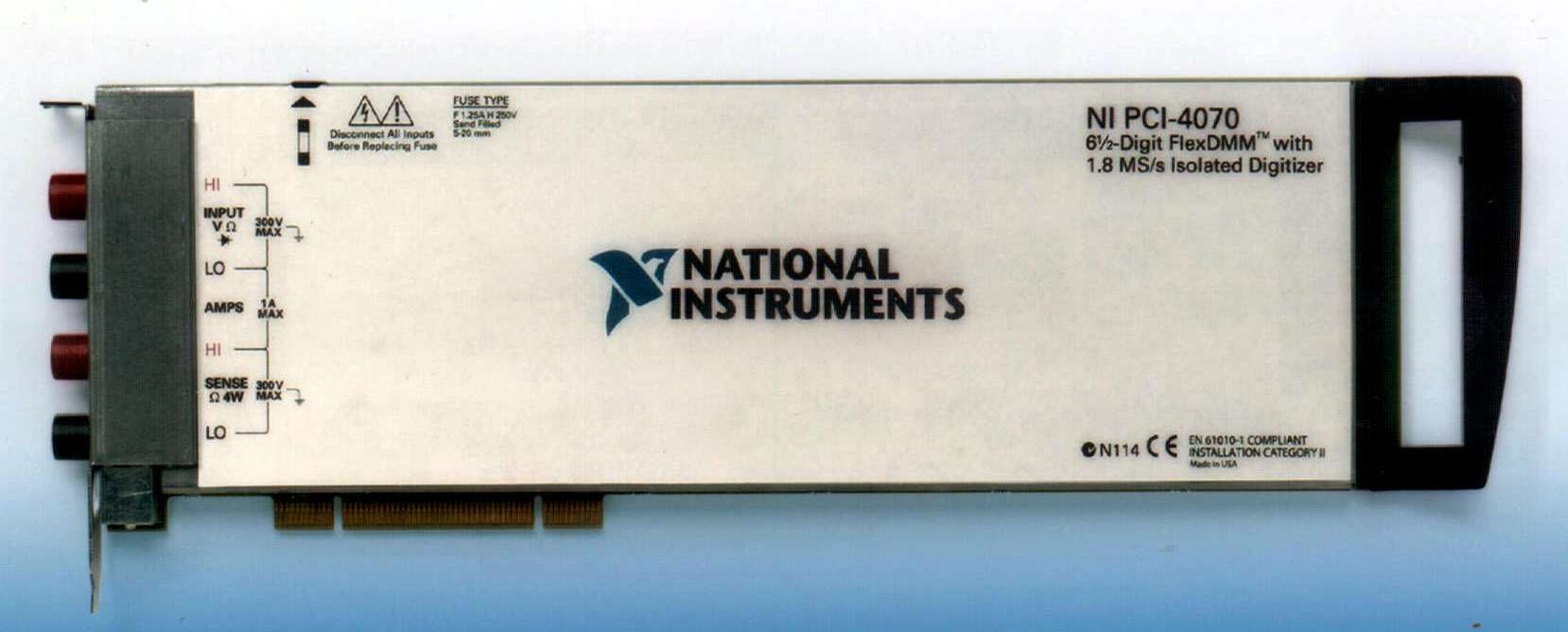

Jan 08, 2004 Model NI PCI-4070 FlexDMM can operate as 6½-digit DMM and 1.8 MS/s high-voltage isolated digitizer. It delivers 6 ppm basic 24-hr DC voltage accuracy and sub µV sensitivity. DC reading rate ranges from 100 S/s at6 ½ digits to 10 kS/s at 4½ digits. As a digitizer, FlexDMM acquires AC and DC-coupled voltage and current waveforms up to ±300 V and ±1 A input at max sampling rate of 1.8 MS/s. Unit integrates with LabVIEW 7 Express measurement software.

Electro Standards Laboratories    Cranston, RI 02921
Jan 08, 2004 Interactive, in-vehicle, Web-Enabled Data Acquisition System with GPS supplies real-time data. Vehicle sensors are user-supplied sensor inputs to Data Acquisition Signal Conditioning Unit (DAQ) that monitor desired vehicle parameters. GPS antenna gathers satellite signal information which is processed, digitized, and stored for analysis. DAQ accepts 16 channels of analog inputs and provides gain, filtering, and signal buffering of analog voltages.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Jan 08, 2004 Suited for double data rate 2, synchronous dynamic random access memory buses, Agilent FSI-60075 DDR2 memory-bus analysis probe utilizes verticle, low-profile interposer design. Operating at full DDR2-533 speeds, probe can be inserted into target memory socket while accepting memory module in extender DIMM slot that supports all DIMM types. Straddle-mount DIMM slot and right-angle Samtec connectors help minimize electrical and mechanical intrusion.

Moody Tools, Inc.    East Greenwich, RI 02818 0230

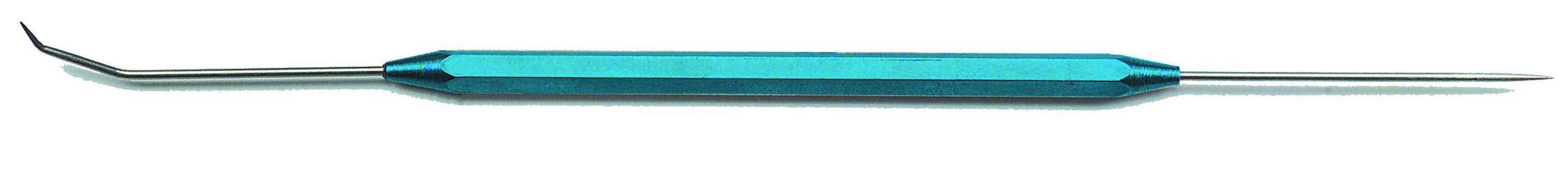

Jan 07, 2004 Double Ended 25 mil Probes feature needle-sharp, stainless steel points combined with blue anodized aluminum for clean room use. Configurations include straight by double bend, single bend by triple bend, single bend by hook, and triple bend by hook.

CyberResearch, Inc.    Branford, CT 06405 2932

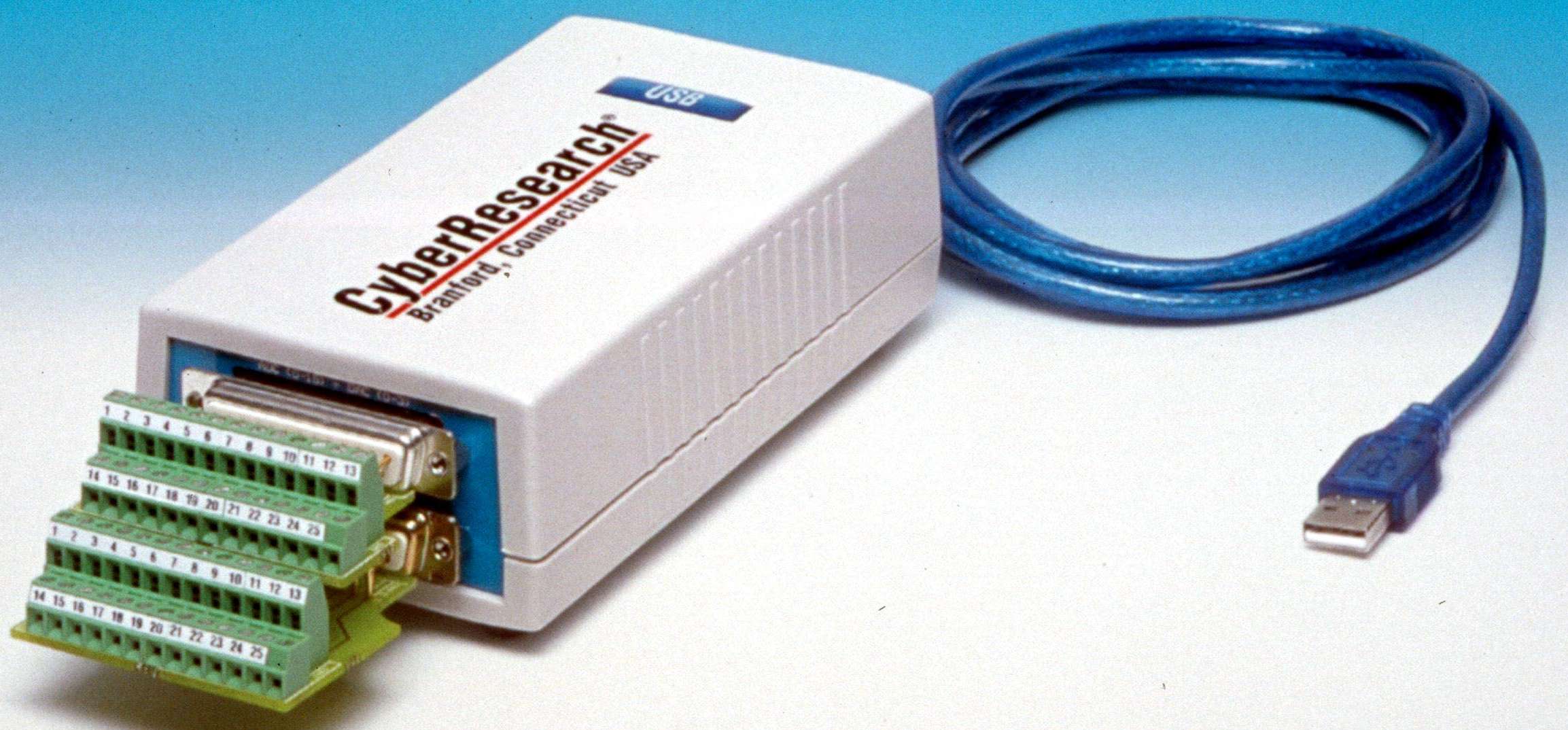

Jan 07, 2004 URDAQ series modules, equipped with DB-25M connectors for all A/D, D/A, and DIO lines, offer 14-bit resolution on A/D and D/A channels, 250 kHz A/D speed, and 500 Hz D/A speed. Additional features include 16-sample channel-gain queue, software-selectable gains from 0.25–100, and digital I/O lines for control and monitoring. Products come with DataWinâ„¢ for Windows®, EDRE applications builder, and drivers for LabVIEW®, TestPoint®, and Agilent VEE®.

Beta Dyne Inc.    Bridgewater, MA 02324
Jan 07, 2004 Isolated, 10 W DC/DC converters, offered in single- and dual-output models, incorporate low-switching noise techniques at input and output sections. Output noise is reduced to 5 mVpp via use of LDO linear regulators. Products offer standard 2:1 input voltage range, efficiencies to 86%, soft start, and adjustable outputs. They also provide short circuit protection, 5 µS transient response time, 6-sided shielding, and 1 mA off state current.
