Lascar Electronics, Inc.    Palo Alto, CA 94303-0727

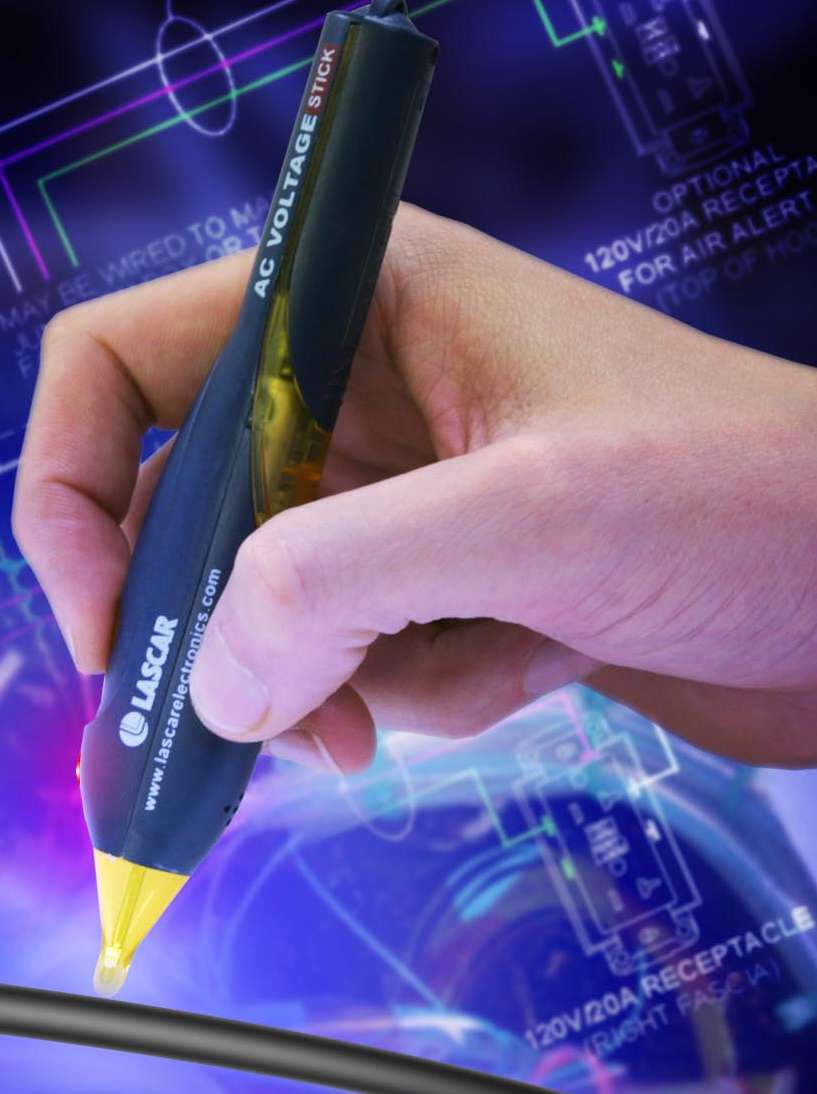

Mar 08, 2004 Pen-shaped, non-contact AC voltage detector, designed for ease of carrying and storage, has red LED and buzzer alarm that inform user when AC voltage is present. AC Voltage Stick pack includes 2 AAA batteries and precision screwdriver.

TEGAM, Inc.    Geneva, OH 44041
Mar 08, 2004 Model 3525 general-purpose programmable LCR Meter suits impedance parameter testing. Flexible design allows testing of capacitors, inductors, coils, resistors, materials, thermoelectric cooling devices, and piezoelectric sensors. Accuracy of 0.08% and measurement speed of 15 mS is provided. It also features 99 storable panel settings, dual 4½ digit LED display, voltage and current monitors, and built-in comparator function.

Softing North America, Inc.    Newburyport, MA 01950

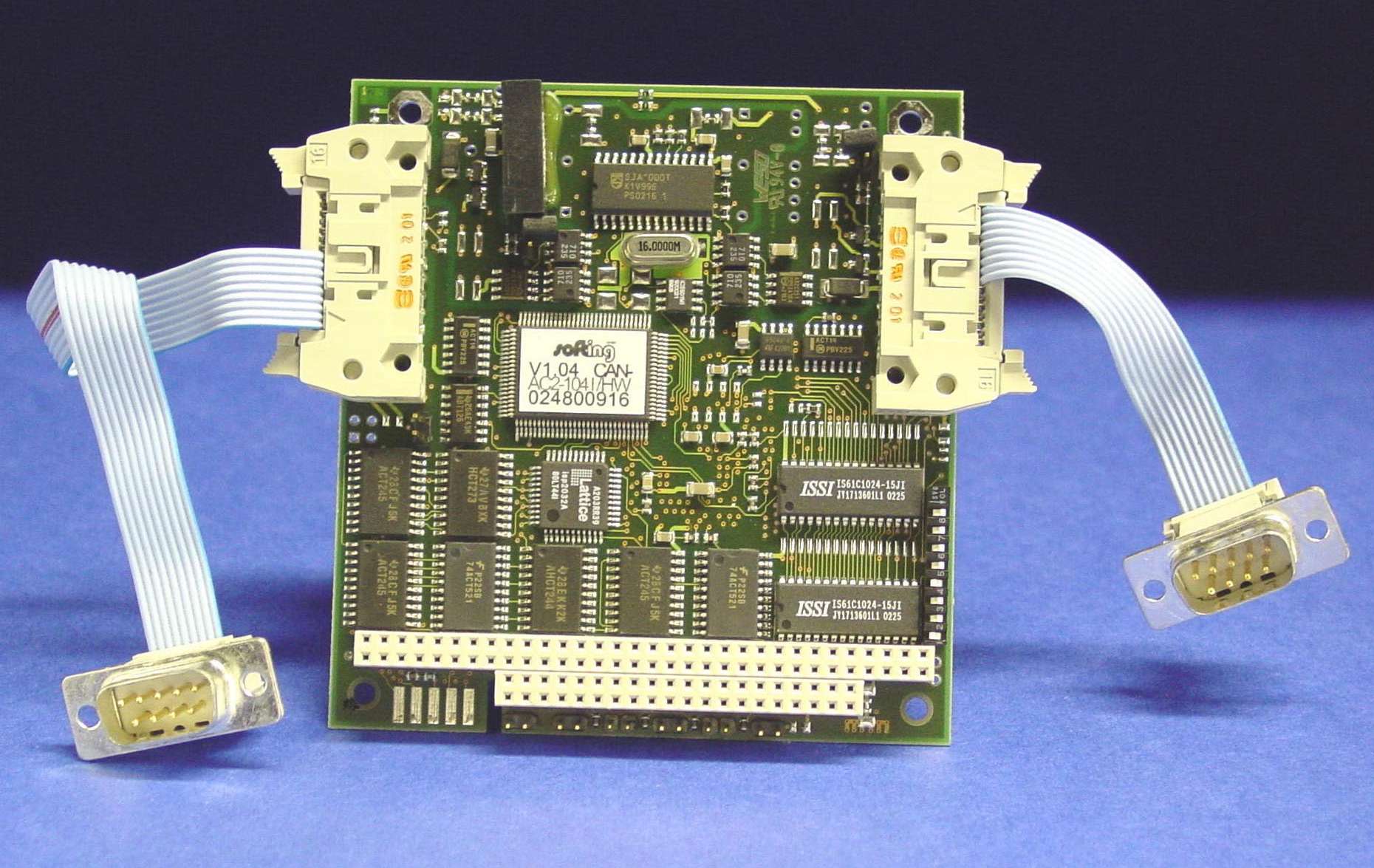

Mar 05, 2004 Based on modular PC/104 standard, Model CAN-AC2-104/I offers two 9-pin connection ports, each connecting to interface card via ribbon cable. With 256 kbyte SRAM and 4 kbyte dual-port RAM, unit operates in environments with temperature range from –40 to +85°C and relative non-condensing humidity up to 90%. It is also available coated for protection against condensing moisture. Card supports Windows 95/98/ME/NT/XP, Windows CE .NET, and Linux.

Weigh-Tronix, Inc.    Fairmont, MN 56031

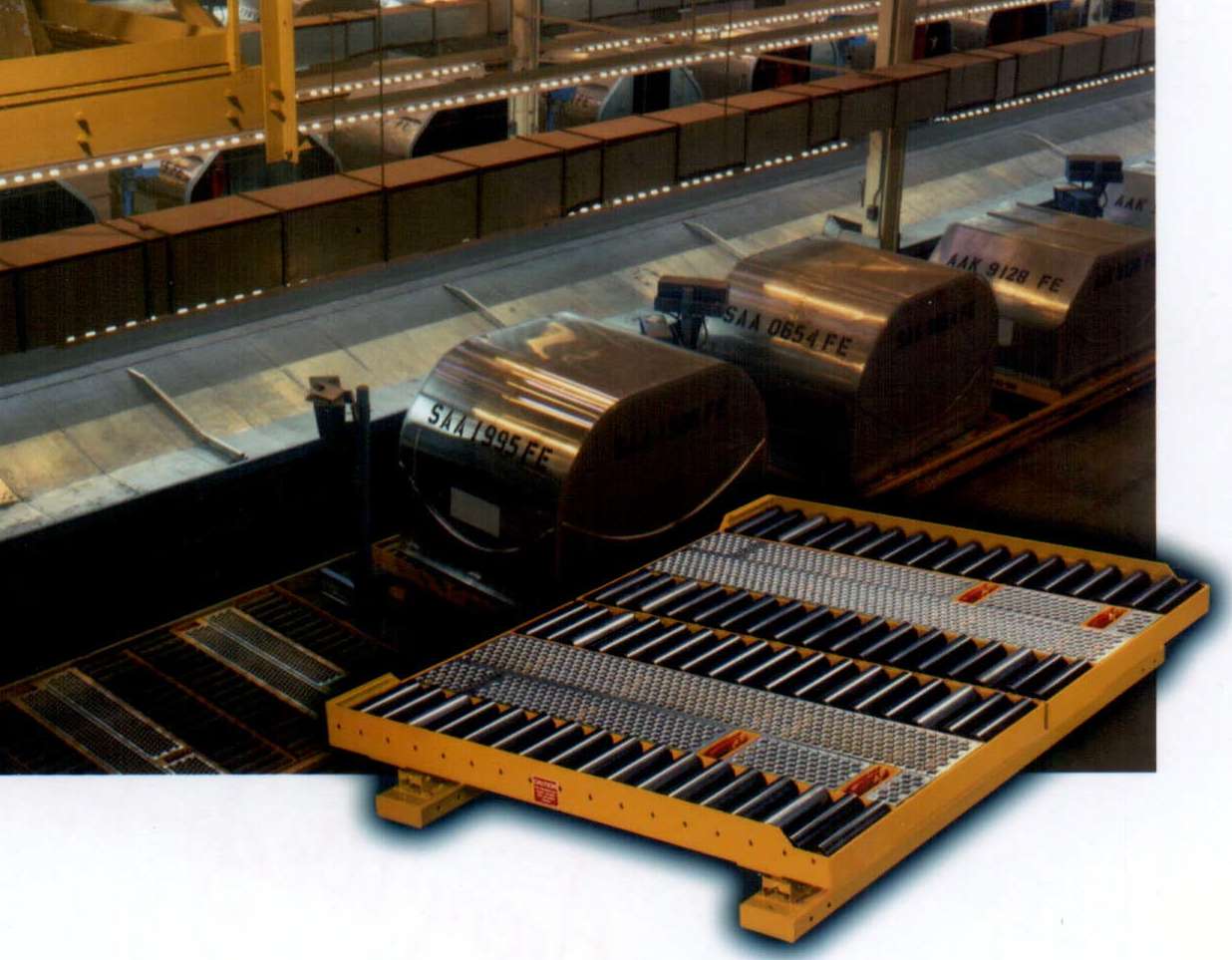

Mar 05, 2004 Dual Roller Scale consists of 2 side-by-side, 100 x 65.5 in. roller platforms that incorporate total of eight 2,500 lb Weigh Bar® sensors, providing total capacity of 20,000 lb. Self-contained scale features 27 in. non-skid walkway between roller platforms, 4 in. diameter rollers rated to 650 lb, integrated side rails and swing-up stops to assist in load positioning, and stainless steel junction box with 25 ft of indicator cable.

Thermo Electron Corp.    Waltham, MA 02454-9046

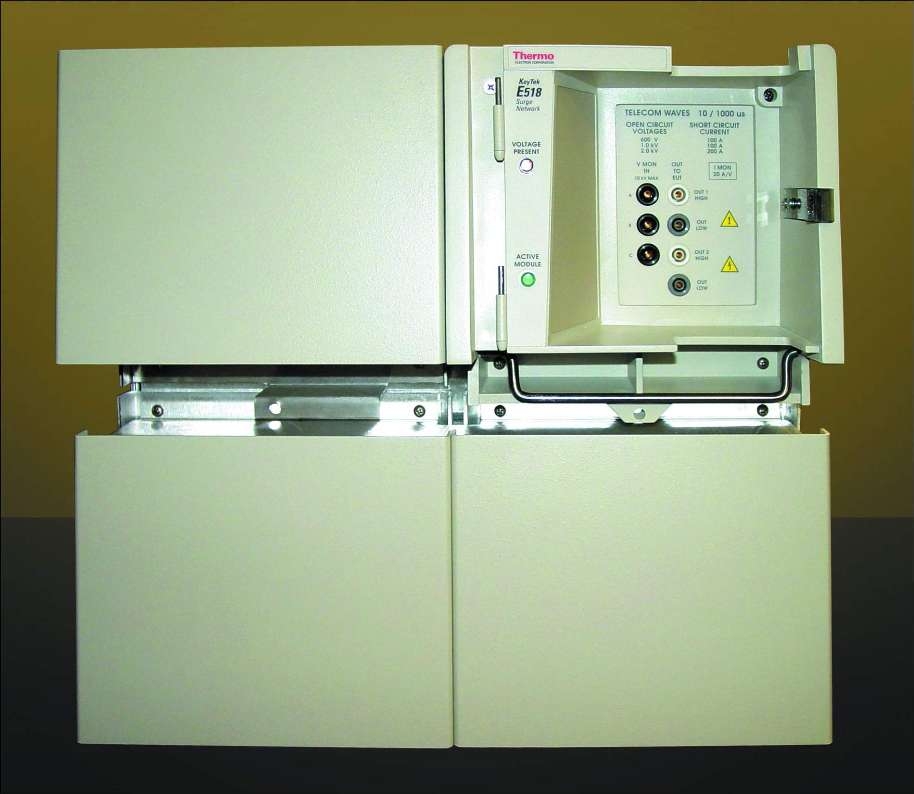

Mar 04, 2004 KeyTek E518 module, for ECAT-based telecom test systems, offers capability of protection coordination testing to 2 kV. It produces 10/1000 µs waveforms to meet first and second level lightning test requirements. Peak voltage and current monitors provide readings from E518 to front panel or computer controller while supplying attenuated outputs to BNC connectors to verify generator waveforms. Additional telecom test modules, surge, and EFT modules are also available.

Walchem Corp.    Holliston, MA 01746 1460
Mar 04, 2004 Constructed with glass electrode that is not prone to chemical attack, WDS Series differential pH and ORP sensors transmit signals up to 3,000 ft and are resistant to ground loop problems. Sensors can be replaced if reference solution becomes contaminated or salt bridge becomes clogged. Reference electrode is constructed from pH glass and is embedded in pH 7 buffer within sensor behind porous, replaceable salt bridge.

Men Micro Inc.    Lago Vista, TX 78645-4160
Mar 04, 2004 M-Module M35N can be configured with 16 single-ended, or 8 differential voltage or current analog channels, each with acquisition time of 5 µs with 14-bit resolution. Analog inputs are optically isolated from digital computer bus. M-Module is suited for open bus systems, such as those based on CompactPCI, PCI, PM, or VME. It can also be deployed in standalone, busless embedded computer systems. Extended temperature version operates over -40 to +85°C.

Moxa Inc.    Brea, CA 92823

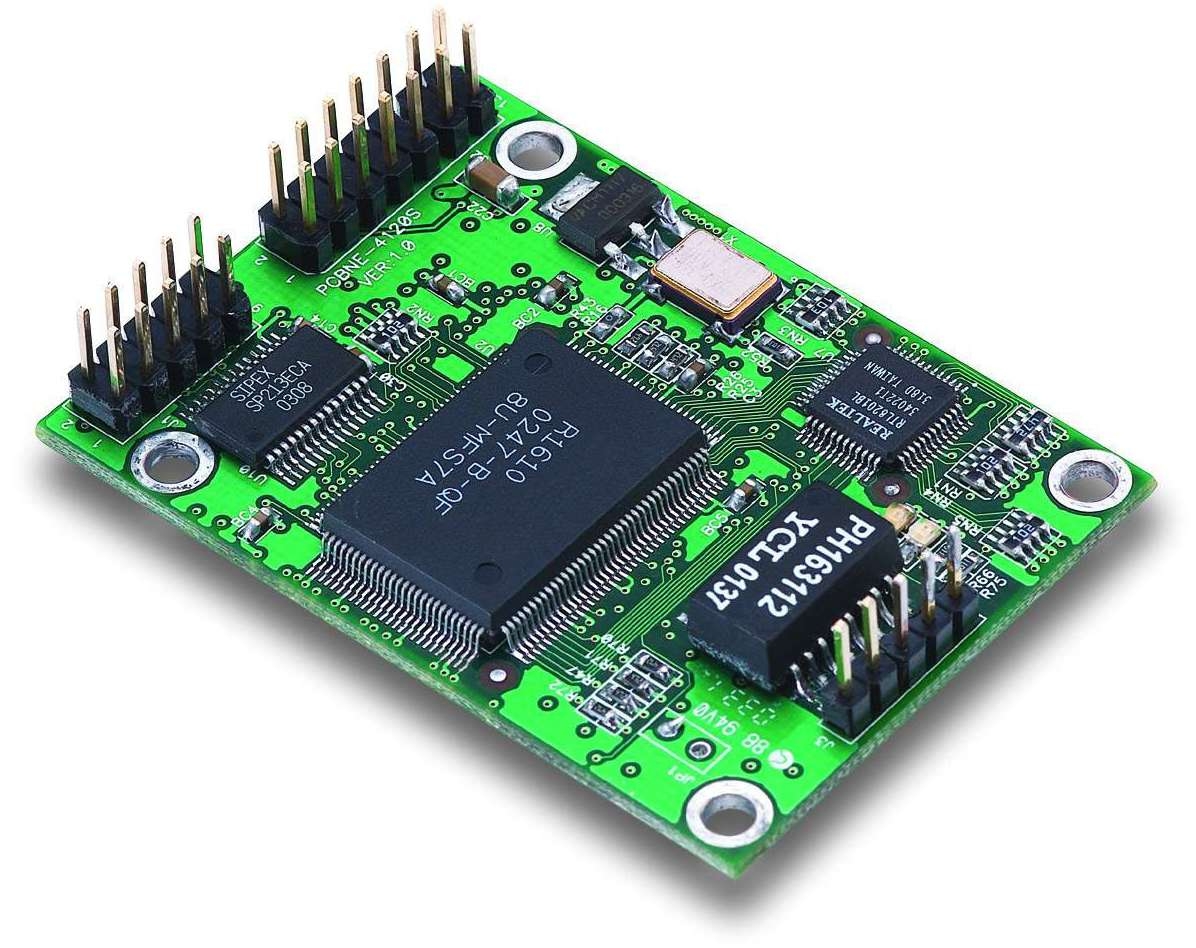

Mar 04, 2004 Measuring 57 x 40 mm, Series NE-4120S/A Network Enablers consume less than 1.5 W and integrate into serial devices to make them 10/100M Ethernet-ready. By network-enabling serial devices, card reader/SCADA systems and controllers can access and gather real-time data from NE-4120S/A modules. TCP/IP stack supports TCP Server, TCP Client, UDP, and Real COM operation modes. Configuration is done with Windows utility, Web browser, or serial console.

Optek Technology, Inc.    Carrollton, TX 75006-6905

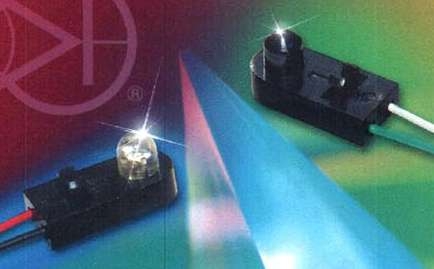

Mar 04, 2004 Optical emitter/phototransistor pair model OPB100 provides DC drive current and variable distance sensing up to 1 m. Suited for linear or vertical sensing applications, 890 nm input diode features forward DC current of 100 mA, with reverse DC voltages to 2.0 V and power dissipation of 142 mW. Output phototransistor features collector-emitter voltage of 30 V and emitter-collector voltage of 5 V. Collector DC current is 50 mA with 250 mW power dissipation.

Endress + Hauser Inc.    Greenwood, IN 46143
Mar 03, 2004 Utilizing Differential Switched Capacitor sensor technology, PROline® Prowirl 72/73 mass flowmeters are immune to vibrations up to 1 g, extreme temperature shocks, clogging, water hammer, and high pressure. They support superheated steam, compressed air, water, and gas measurement. Two-wire instruments require no additional power supply or wiring. Depending upon application, user can choose mounted or remote evaluation electronics.

Wheaton Science Products, Inc.    Millville, NJ 08332
Mar 03, 2004 Graduated in millimeters and ounces, Valumetricâ„¢ Bottles are not only suited for use as sample bottles, but also for dry powders, soil samples, and specimen storage. Caps are pre-attached, eliminating need to match caps with bottles in laboratory or storeroom. Convenience Packs include Hazard Communication Labels and Tamper Evidence Strips, allowing for content identification, and visible evidence of integrity of samples in transit or long term storage.

AMETEK Solidstate Controls    Columbus, OH 43085
Mar 03, 2004 Conserver IV - Model 440 determines acid dewpoint temperature in order to meet Clear Skies Initiative and reduce maintenance problems associated with SO₃ in boiler operation. Unit offers 6 programs, each with custom display: SO₃; SO₃ calculation to indicate relationship to condensables; Minimum metal temperature calculation; SO₃ calculation to indicate relationship to corrosion potential; efficiency calculation; and Rate of Acid Build Up graph.

Brookfield Engineering Laboratories, Inc.    Middleboro, MA 02346
Mar 03, 2004 DV-III Ultra comes with spindles, Rheoloaderâ„¢ and EZ-Yieldâ„¢ software programs, power base, guard leg, and temperature probe. It delivers continuous sensing and display with ±1.0% accuracy and ±0.2% repeatability. In stand-alone mode, operator enters test parameters and temperature control requirements then starts program. Results are shown on built-in display. Unit provides built-in math models for data analysis and includes yield stress measurement capability.

Dresser Instrument    Stratford, CT 06614-5145
Mar 03, 2004 Bimetal Thermometers feature Maxivision® dial, which eliminates parallax error. They come in 2, 3, and 5 in. dial sizes and in Fahrenheight, Celsius, or dual scale ranges. Standard stem lengths range from 2½ through 24 in., while non-standard stem lengths up to 60 in. can be custom-made. Thermometers are offered with hermetically sealed cases and lower, rear, or every-angle connections. They are manufactured to ASME B40.3 Grade A accuracy of 1% of span.

Kernco Instruments Co., Inc.    El Paso, TX 79927 7338
Mar 03, 2004 Series DR Refractometers read and measure salt/salinity from 0-28%, refractive index from 1.3330–1.3900 nD, and Brix from 0–35%. Units feature 0.75 in. digital LCD readout to eliminate misreadings. Microprocessor provides automatic calibration, automatic shutoff after 3 min, and low battery indicator. Water-resistant design protects electronics from wet environments. Suited for samples up to 100°C, models include stainless steel plate for optical sample prism.

Kernco Instruments Co., Inc.    El Paso, TX 79927 7338
Mar 03, 2004 Hand-held, pH stick meter, Model 8514 features .375 in. LCD display with hold function to retain readings. Probe mounts directly into LCD meter to form single unit. Meter is supplied with epoxy combination electrode and slope control feature to compensate for aging of electrode. It offers ±0.01 pH readability and accuracy, with manual temperature compensation from 0–60°C.

ATS RheoSystems    Bordentown, NJ 08505
Mar 03, 2004 STRESSTECH HR utilizes light triggering capability and Fast Oscillation Data Analysis, which allows for real-time UV cure profiling and shrinkage determination by providing ability to capture rapid, transient changes in material. Along with RheoExplorer v5 software, unit provides accurate measurements of DNS materials, which typically exhibit shrinkage of 10-15% while curing. Rheometer offers data collection rates greater than 100 points/s.

Brudi Bolzoni Auramo    Homewood, IL 60430
Mar 03, 2004 Portable TEST PAD helps eliminate paper roll out-of-roundness by showing real clamping force value with same diameter as paper roll itself. Pad radius provides non-damaging measuring operation. LCD display is battery operated and requires no external power source.

Wavetek Meterman Test Tools    Everett, WA 98206-9090
Mar 02, 2004 Series XP Digital Multimeters feature VolTecâ„¢ non-contact voltage detectors, ergonomic 155 x 72 mm case, Magne-Gripâ„¢ holster, integrated tilt-out bail, and 9 V battery. Models 5XP and 15XP provide 1999-count display, 750 Vac/1000 Vdc, 200 mA ac/dc current, 20 megaOhm resistance, Data Hold with min/max, continuity beeper, and battery test. Model 35XP provides 4000-count display, 0.5% accuracy, built-in type K thermometer, and 0.1 µA resolution for flame detector troubleshooting.

MicroE Systems    Bedford, MA 01730
Mar 02, 2004 Measuring 8.4 mm tall, Mercury(TM) miniature encoders are vented and compatible with 10^-8 Torr vacuum levels. Programmable Model M3500 features resolution to 5 nm, RS-422 compatible quadrature output, plus alignment and setup using integral LED indicators. Model M1000V provides analog sine/cosine output for use with interpolation electronics. SmartSignal(TM) alignment tool is used for alignment and setup procedures.
