Endress + Hauser Inc.    Greenwood, IN 46143

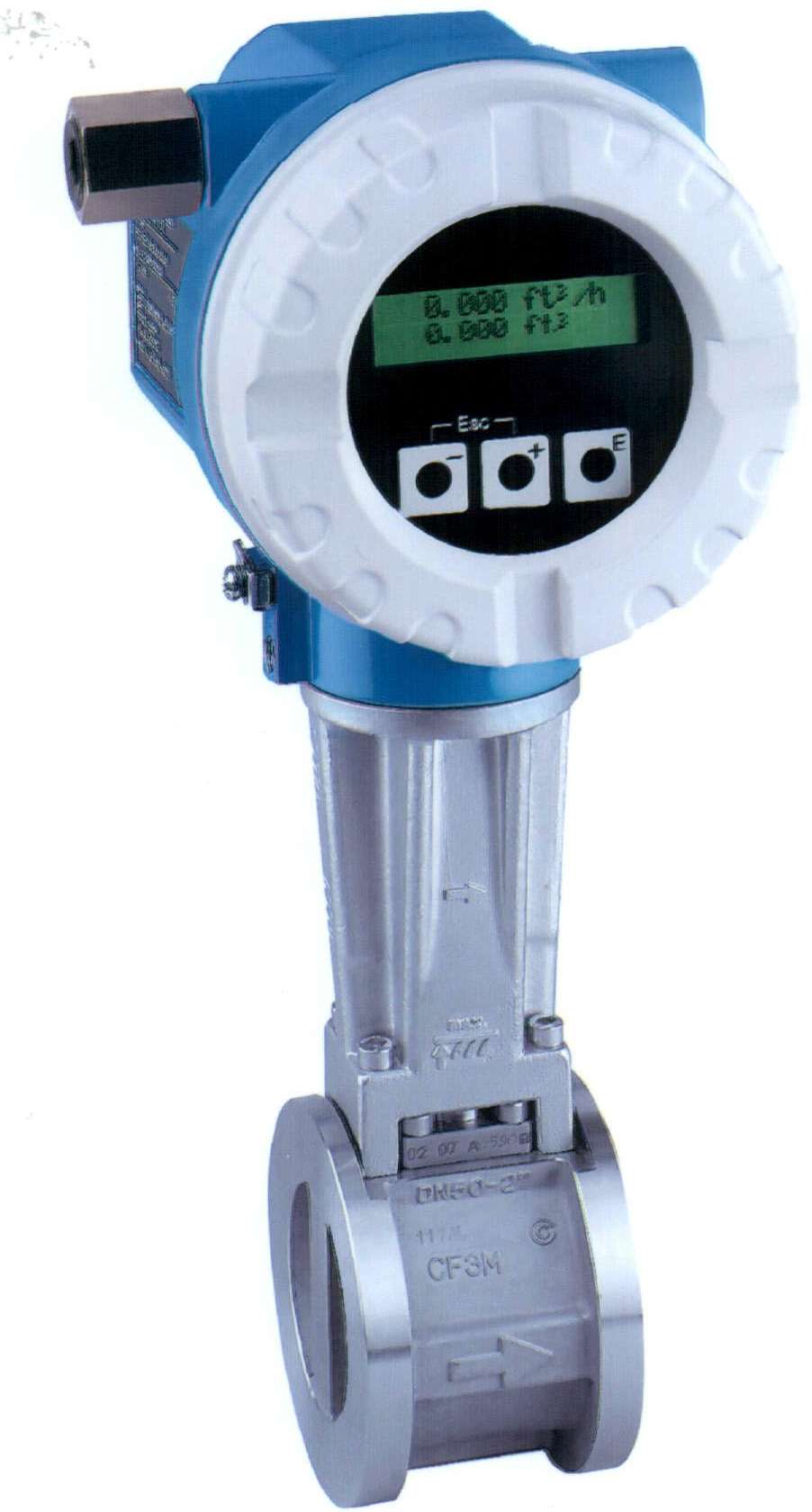

Mar 03, 2004 Utilizing Differential Switched Capacitor sensor technology, PROline® Prowirl 72/73 mass flowmeters are immune to vibrations up to 1 g, extreme temperature shocks, clogging, water hammer, and high pressure. They support superheated steam, compressed air, water, and gas measurement. Two-wire instruments require no additional power supply or wiring. Depending upon application, user can choose mounted or remote evaluation electronics.

Wheaton Science Products, Inc.    Millville, NJ 08332
Mar 03, 2004 Graduated in millimeters and ounces, Valumetricâ„¢ Bottles are not only suited for use as sample bottles, but also for dry powders, soil samples, and specimen storage. Caps are pre-attached, eliminating need to match caps with bottles in laboratory or storeroom. Convenience Packs include Hazard Communication Labels and Tamper Evidence Strips, allowing for content identification, and visible evidence of integrity of samples in transit or long term storage.

AMETEK Solidstate Controls    Columbus, OH 43085
Mar 03, 2004 Conserver IV - Model 440 determines acid dewpoint temperature in order to meet Clear Skies Initiative and reduce maintenance problems associated with SO₃ in boiler operation. Unit offers 6 programs, each with custom display: SO₃; SO₃ calculation to indicate relationship to condensables; Minimum metal temperature calculation; SO₃ calculation to indicate relationship to corrosion potential; efficiency calculation; and Rate of Acid Build Up graph.

Brookfield Engineering Laboratories, Inc.    Middleboro, MA 02346

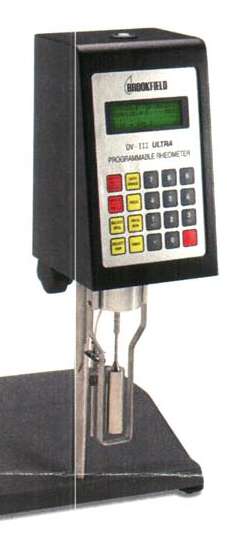

Mar 03, 2004 DV-III Ultra comes with spindles, Rheoloaderâ„¢ and EZ-Yieldâ„¢ software programs, power base, guard leg, and temperature probe. It delivers continuous sensing and display with ±1.0% accuracy and ±0.2% repeatability. In stand-alone mode, operator enters test parameters and temperature control requirements then starts program. Results are shown on built-in display. Unit provides built-in math models for data analysis and includes yield stress measurement capability.

Dresser Instrument    Stratford, CT 06614-5145

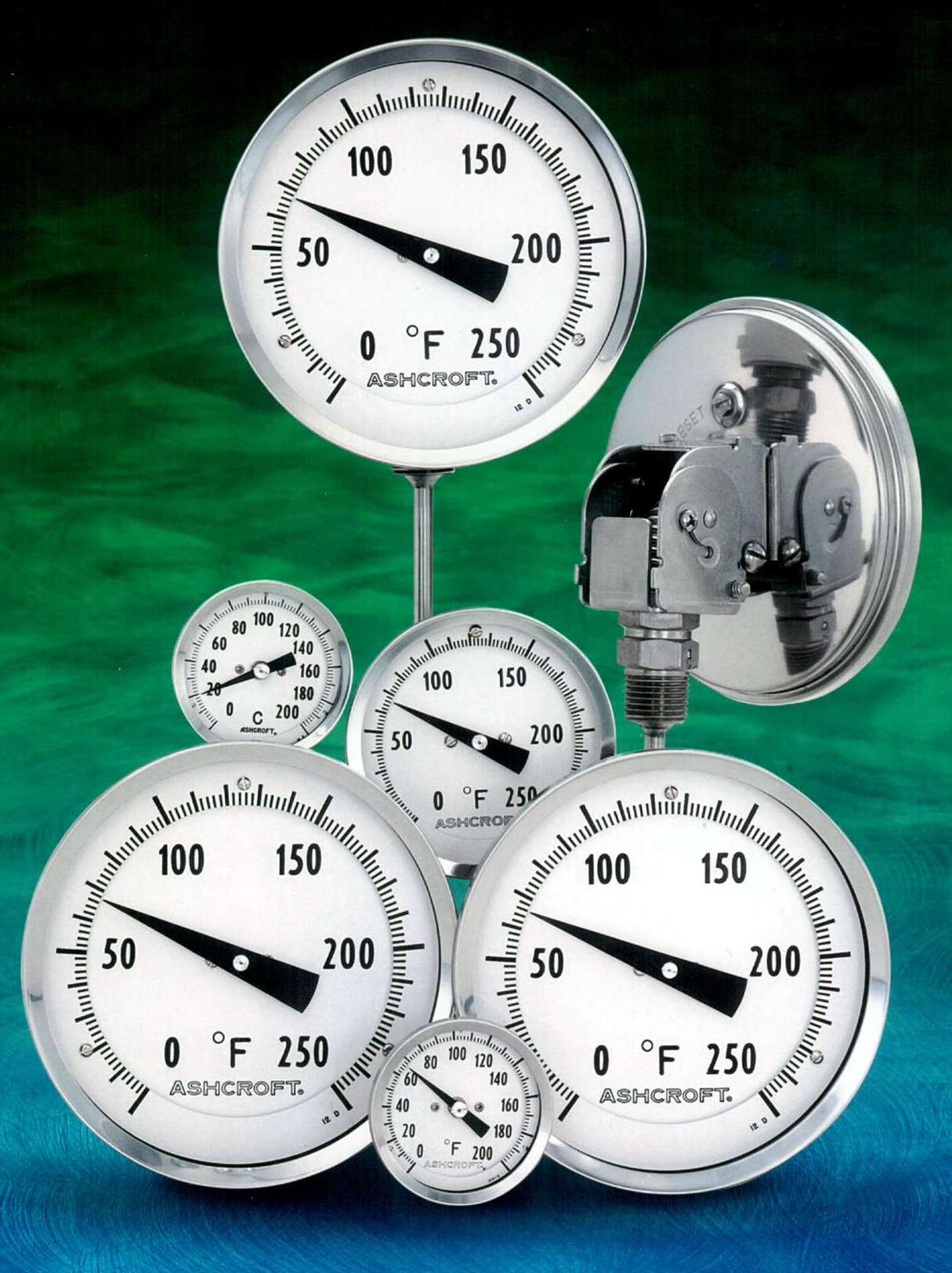

Mar 03, 2004 Bimetal Thermometers feature Maxivision® dial, which eliminates parallax error. They come in 2, 3, and 5 in. dial sizes and in Fahrenheight, Celsius, or dual scale ranges. Standard stem lengths range from 2½ through 24 in., while non-standard stem lengths up to 60 in. can be custom-made. Thermometers are offered with hermetically sealed cases and lower, rear, or every-angle connections. They are manufactured to ASME B40.3 Grade A accuracy of 1% of span.

Kernco Instruments Co., Inc.    El Paso, TX 79927 7338

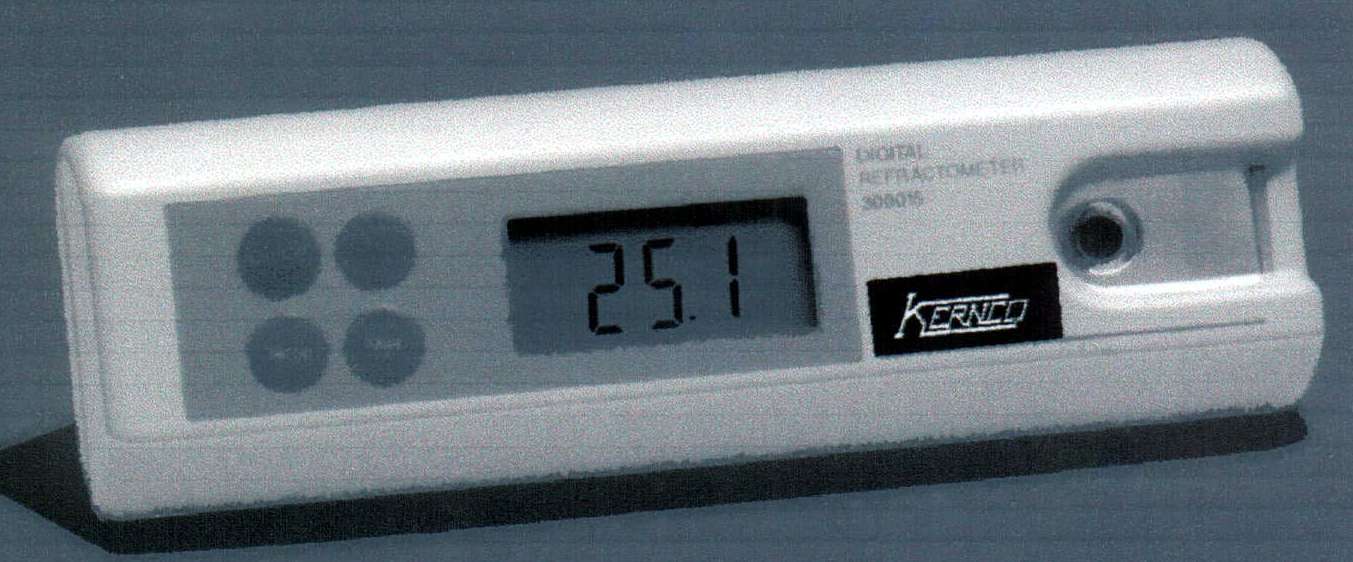

Mar 03, 2004 Series DR Refractometers read and measure salt/salinity from 0-28%, refractive index from 1.3330–1.3900 nD, and Brix from 0–35%. Units feature 0.75 in. digital LCD readout to eliminate misreadings. Microprocessor provides automatic calibration, automatic shutoff after 3 min, and low battery indicator. Water-resistant design protects electronics from wet environments. Suited for samples up to 100°C, models include stainless steel plate for optical sample prism.

Kernco Instruments Co., Inc.    El Paso, TX 79927 7338

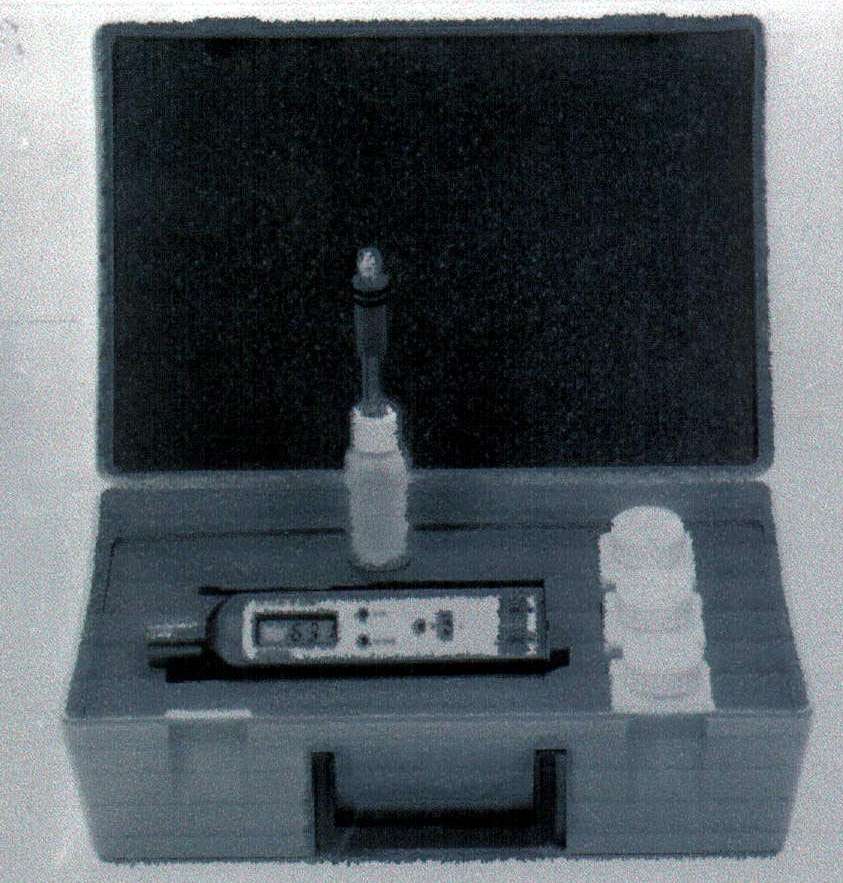

Mar 03, 2004 Hand-held, pH stick meter, Model 8514 features .375 in. LCD display with hold function to retain readings. Probe mounts directly into LCD meter to form single unit. Meter is supplied with epoxy combination electrode and slope control feature to compensate for aging of electrode. It offers ±0.01 pH readability and accuracy, with manual temperature compensation from 0–60°C.

ATS RheoSystems    Bordentown, NJ 08505

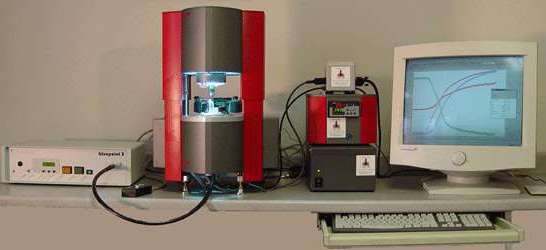

Mar 03, 2004 STRESSTECH HR utilizes light triggering capability and Fast Oscillation Data Analysis, which allows for real-time UV cure profiling and shrinkage determination by providing ability to capture rapid, transient changes in material. Along with RheoExplorer v5 software, unit provides accurate measurements of DNS materials, which typically exhibit shrinkage of 10-15% while curing. Rheometer offers data collection rates greater than 100 points/s.

Brudi Bolzoni Auramo    Homewood, IL 60430
Mar 03, 2004 Portable TEST PAD helps eliminate paper roll out-of-roundness by showing real clamping force value with same diameter as paper roll itself. Pad radius provides non-damaging measuring operation. LCD display is battery operated and requires no external power source.

Wavetek Meterman Test Tools    Everett, WA 98206-9090
Mar 02, 2004 Series XP Digital Multimeters feature VolTecâ„¢ non-contact voltage detectors, ergonomic 155 x 72 mm case, Magne-Gripâ„¢ holster, integrated tilt-out bail, and 9 V battery. Models 5XP and 15XP provide 1999-count display, 750 Vac/1000 Vdc, 200 mA ac/dc current, 20 megaOhm resistance, Data Hold with min/max, continuity beeper, and battery test. Model 35XP provides 4000-count display, 0.5% accuracy, built-in type K thermometer, and 0.1 µA resolution for flame detector troubleshooting.

MicroE Systems    Bedford, MA 01730

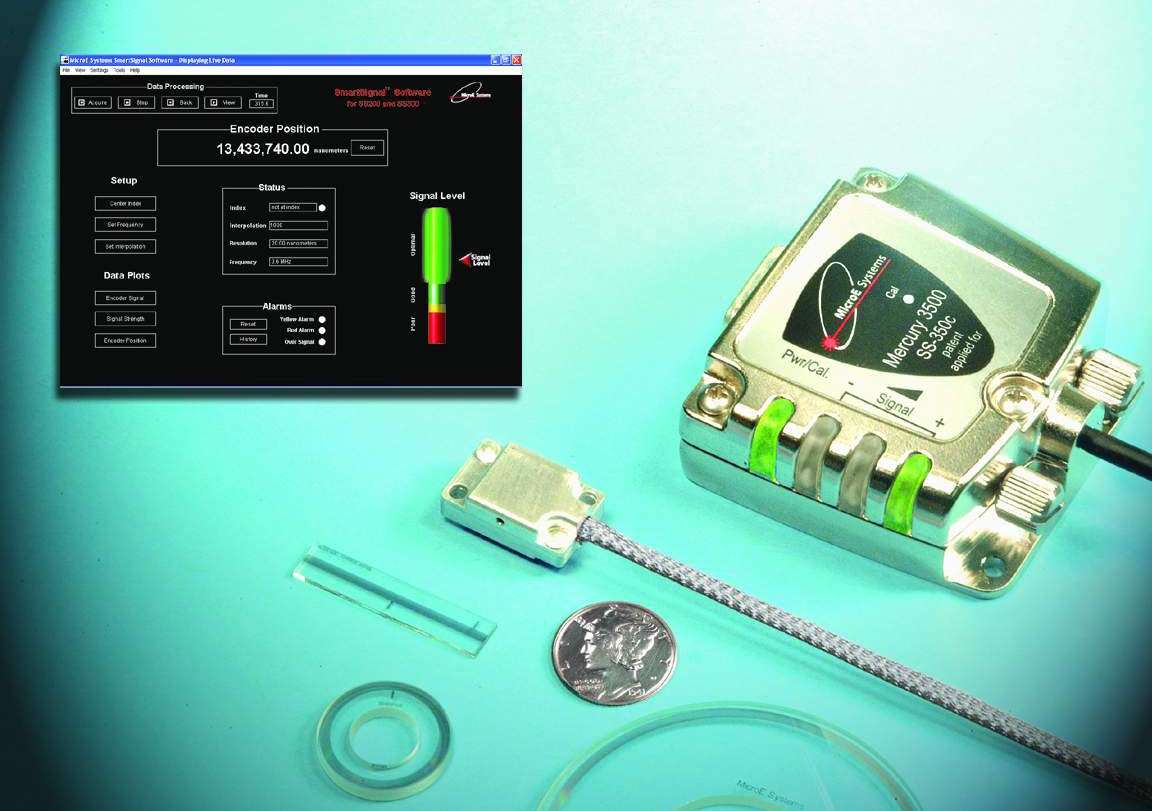

Mar 02, 2004 Measuring 8.4 mm tall, Mercury(TM) miniature encoders are vented and compatible with 10^-8 Torr vacuum levels. Programmable Model M3500 features resolution to 5 nm, RS-422 compatible quadrature output, plus alignment and setup using integral LED indicators. Model M1000V provides analog sine/cosine output for use with interpolation electronics. SmartSignal(TM) alignment tool is used for alignment and setup procedures.

Sierra Monitor Corp.    Milpitas, CA 95035 6825

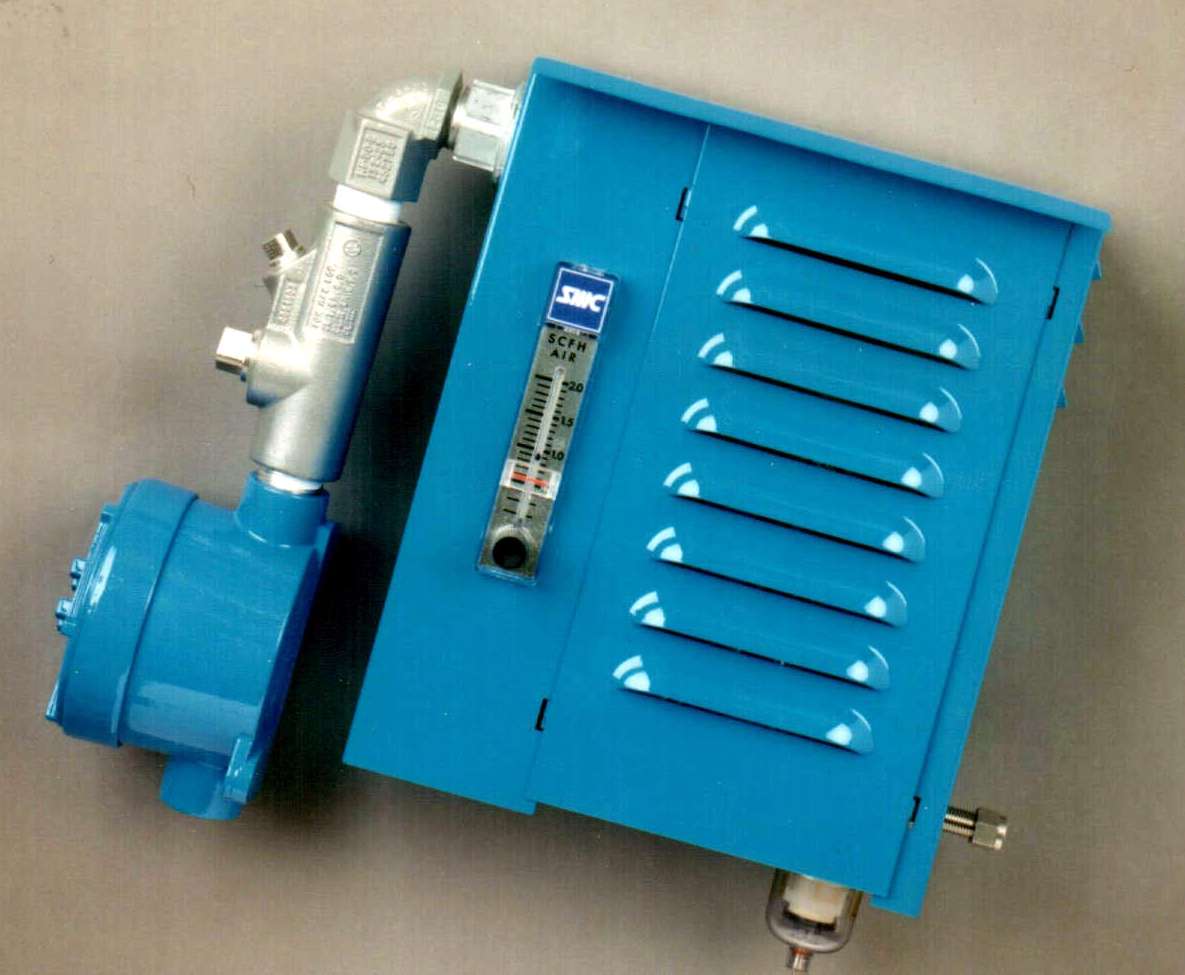

Mar 02, 2004 Model 4400 In-Stream Analyzer continuously verifies Hydrogen Sulfide content of natural gas streams to help guard against corrosive effects of H₂S on compressors, pipelines, and process equipment. There are no tapes to replace, no conditioning solutions, no mechanical stream blenders to calibrate, and no hazardous material to dispose. Calibration requires only external application of span gas and one-person adjustment.

Optical Gaging Products, Inc.    Rochester, NY 14621 4839

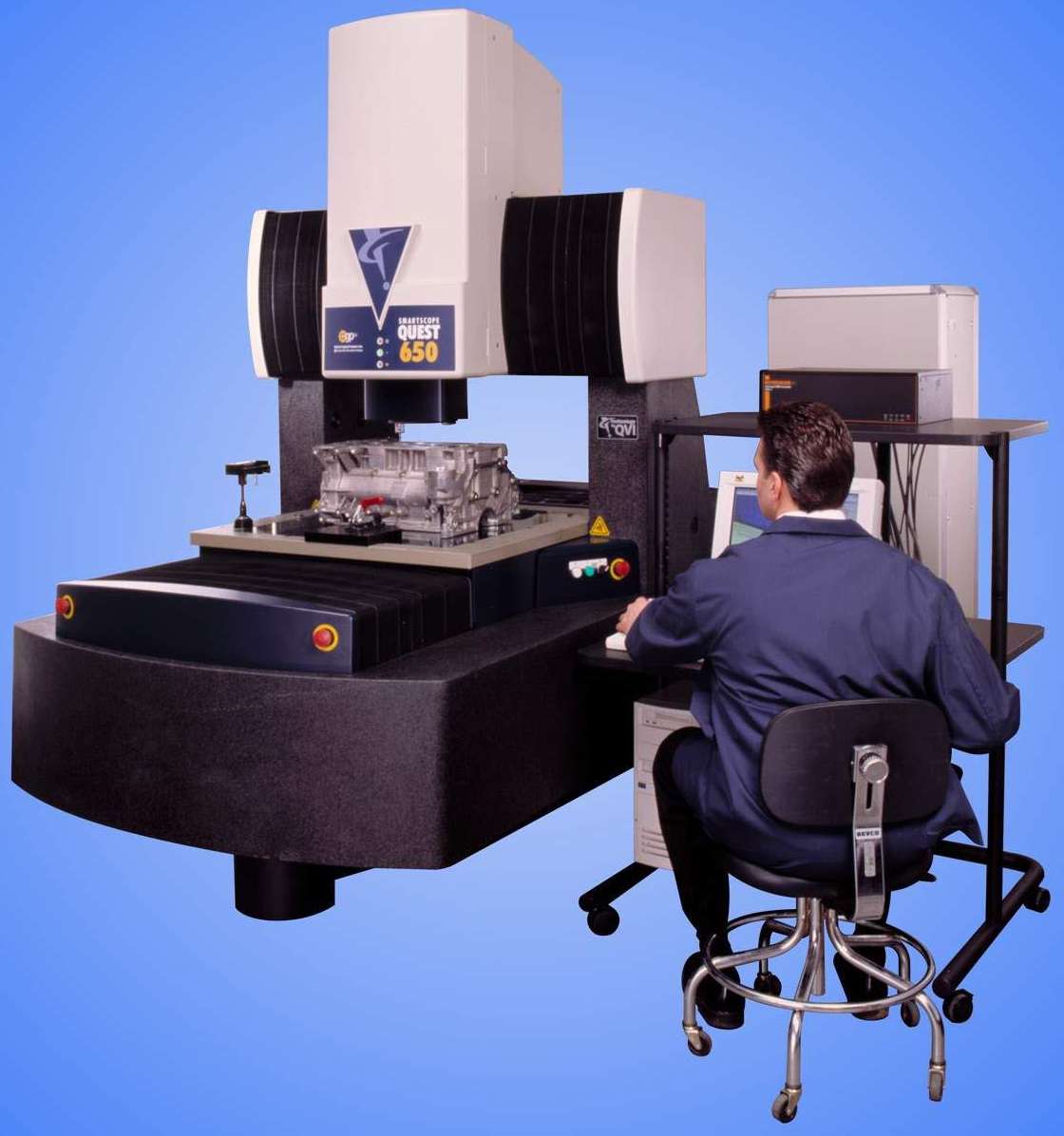

Mar 02, 2004 SmartScope® Quest 650 utilizes multiple sensors to measure features on complex manufactured parts in one setup. Telecentric TeleStar® zoom lens has collimated profile illumination that matches aperture of optics over entire range, and thermally stable Meehanite provides measurement volume of 24 x 26 x 12 in. XYZ. Features include granite base, linear-motor-driven stages, 50 nm scale resolution, and MeasureMind® 3D MultiSensor metrology software.

Bustronic Corp.    Fremont, CA 94538

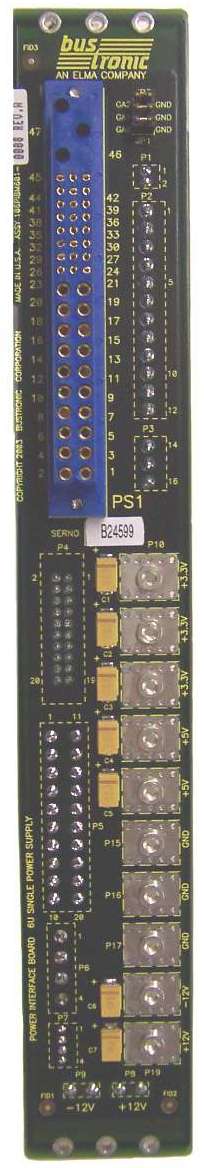

Mar 02, 2004 Able to interface to power section of backplane via power bugs with 6/32 screws, 6U PIB comes in versions containing one or two 47-pin hot pluggable power supply connectors. Power taps are provided for +5 V, 3.3 V, -12 V, +12 V, and GND. Features include header for voltage sense and current sharing, IPMB interface, ATX power connector, auxiliary/disk drive connector, and power switch header.

National Instruments Corp.    Austin, TX 78759-3504

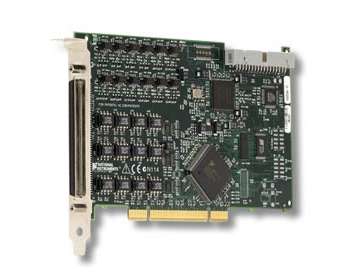

Mar 02, 2004 Model PCI-6528 and CompactPCI/PXI-6528 digital I/O devices feature up to 60 Vdc range on inputs and outputs, 5 V logic thresholds, and isolated input/output to PXI trigger bus. They include programmable power-up states, digital I/O watchdogs, change detection, and programmable input filters. Model PCI-6624 counter/timer board features 48 Vdc range and 5 V logic thresholds, as well as isolation to protect electronics from transient voltage spikes.

Eurotherm Controls    Leesburg, VA 20175
Mar 02, 2004 Series 5000 can deliver alarm or status notifications to cellular phone via text messaging, or send e-mail to one or multiple addresses. Message may contain up to 9 variables such as descriptors, values, batch status and data, or instrument name and number. E-Mail configuration is provided for mail server using static IP Address or DNS name. Where Ethernet network is not available, dialup modem capability is provided.

APCON, Inc.    Wilsonville, OR 97070
Mar 02, 2004 Eight-port T1, E1, J1 Blade, for modular IntellaPatch physical layer switch system, allows network management engineers to run interoperability and automation tests on T1 equipment, as well as European and Japanese standards. Engineers can utilize T1 blade to simulate specific carrier signal breaks and monitor effect they produce on front-end equipment. Multicasting abilities are suited for conducting stress tests on routers and analyzers.

ENM Company    Chicago, IL 60646 6135
Mar 01, 2004 Series T54 Hour Meters are turned on by natural vibration of lawnmower, diesel engine, compressor, or any device that has some vibration. Attached with double-sided tape or other mounting options, units will measure total hours that device is running. Self-contained battery provides approximately 10 years of life. Meters are waterproof and sealed against shock and vibration.

Dresser Instrument Headquarters, Ashcroft Pressure & Temperature Instrument Operation    Stratford, CT 06614 5145

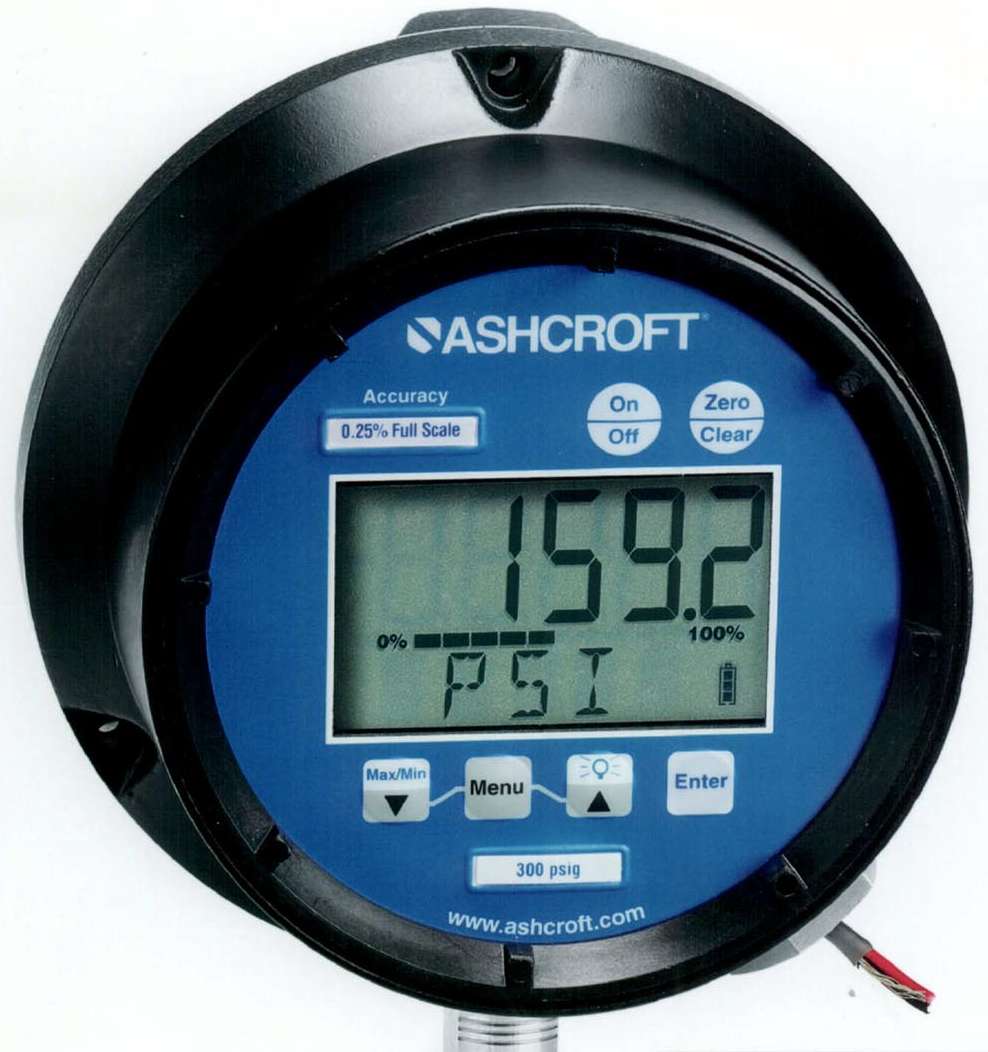

Mar 01, 2004 Housed in thermoplastic case with cam lock ring or aluminum case with threaded ring, 4½ in. Ashcroft® digital industrial gauge comes apart by twisting front ring. Once batteries are installed, gauge can be hand tightened to fit securely back in correct position. Unit is powered by 2 C-cell batteries that fasten into place with velcro behind key pad. Features include IP65 weatherproof case and 0.25% FS terminal point accuracy.

Dresser Instrument Headquarters, Ashcroft Pressure & Temperature Instrument Operation    Stratford, CT 06614 5145
Mar 01, 2004 Ashcroft® digital industrial gauge acts as mechanical gauge, transducer, and switch. It can be used for any combination of local indication, signal, and switching and can be specified 3 ways: 4-20 mA with adjustable turndown, line powered 12–36 Vdc, and 1 or 2 SPDT switches with deadband adjustable to pressure range of gauge. Optional battery backup and backlite are available.
