Data Acquisition Module suits industrial applications.
Arlington, TX 76011
Apr 07, 2004 PCM-ADIO single board, PC/104 data acquisition module combines 32-channel, 16-bit A/D converter; 4-channel, 12-bit D/A converter; 16 lines of digital I/O; and event trigger control. Onboard microprocessor controls input and configurations, conversion rates, FIFO depth, output ranges, calibration, and digital I/O settings without use of jumpers or potentiometers. Automatic conversion rate is programmable from channel to channel.
Multi-Valve Test Kits test backflow-prevention devices.
Conbraco Industries, Inc.
Matthews, NC 28106 0247
Apr 07, 2004 Test kits, made with corrosion-resistant materials, are rated for pressures to 200 psig and temperatures to 150°F. Offered as 3- (Series 40-200-TKU) and 5-valve (40-200-TK5U) kits, products test reduced-pressure principle assemblies, double-check assemblies, spill-resistant vacuum breakers, and pressure-type vacuum breakers. Both series have molded-plastic gauge body, soft-seated needle valves with replaceable seats, and differential-pressure gauge.
RTD Input Modules suit remote I/O functions.
Wixom, MI 48393 7037
Apr 07, 2004 BusWorks® 966EN Input Modules interface up to 6 RTD or resistance signals directly to Ethernet Modbus/TCP 10/100 network. Each unit accepts universal RTD/resistance inputs with user-selectable ranges for platinum, nickel, or copper RTD sensors and 0-500 ohm signals. Three-way 1,500 Vac isolation between input, network, and power circuits protects against surges and ground loops. Each module supports up to 10 sockets allowing communication with multiple masters.

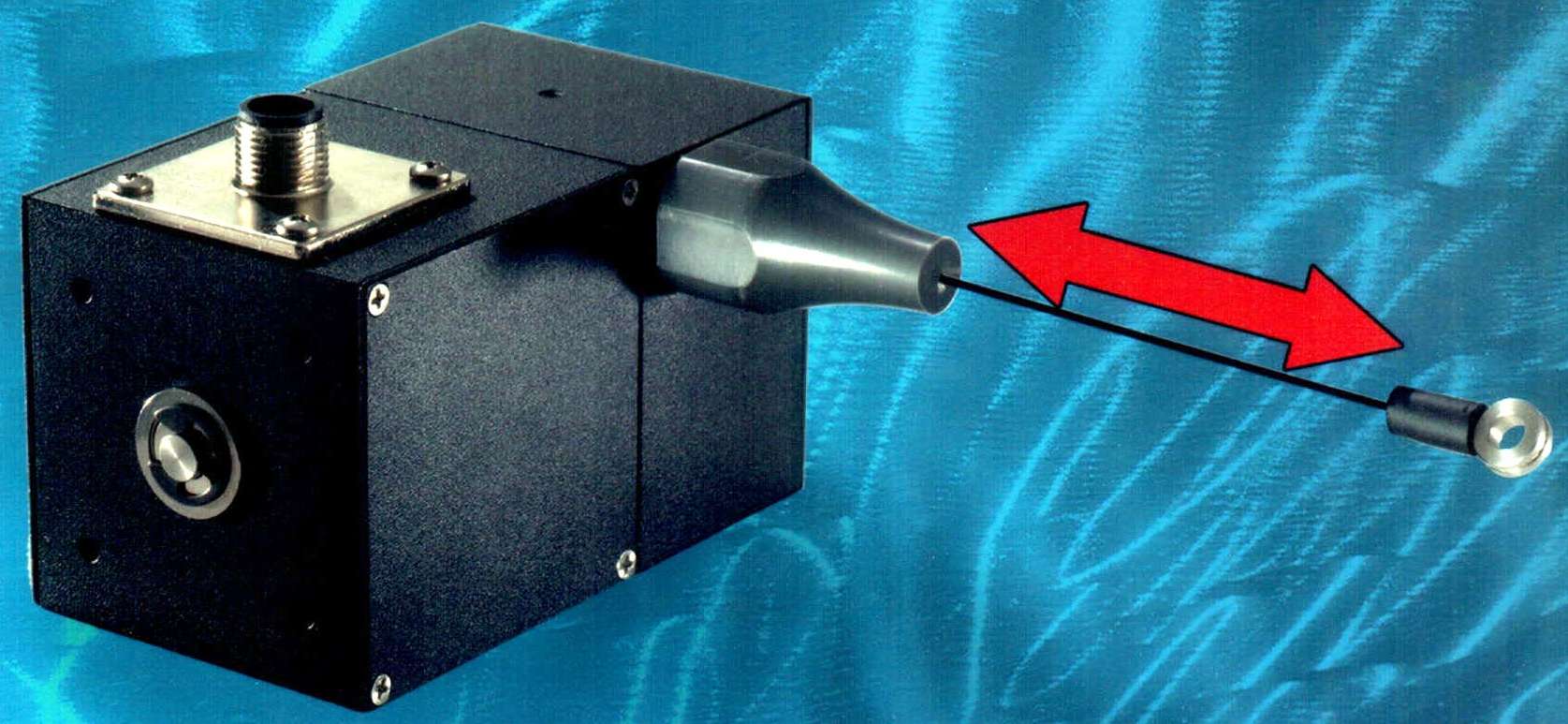

Linear Cable Encoder measures distances up to 50 in.
Encoder Products Co.
Sandpoint, ID 83864
Apr 07, 2004 Constructed with retractable stainless steel cable, Linear Cable Encoder (LCE) provides flexible solution for linear measurement in difficult environmental conditions. Product employs Cube series Accu-Coderâ„¢, which provides digital pulse train in single-channel or quadrature format. Additional features include optional IP65 rating and sealed bearings.

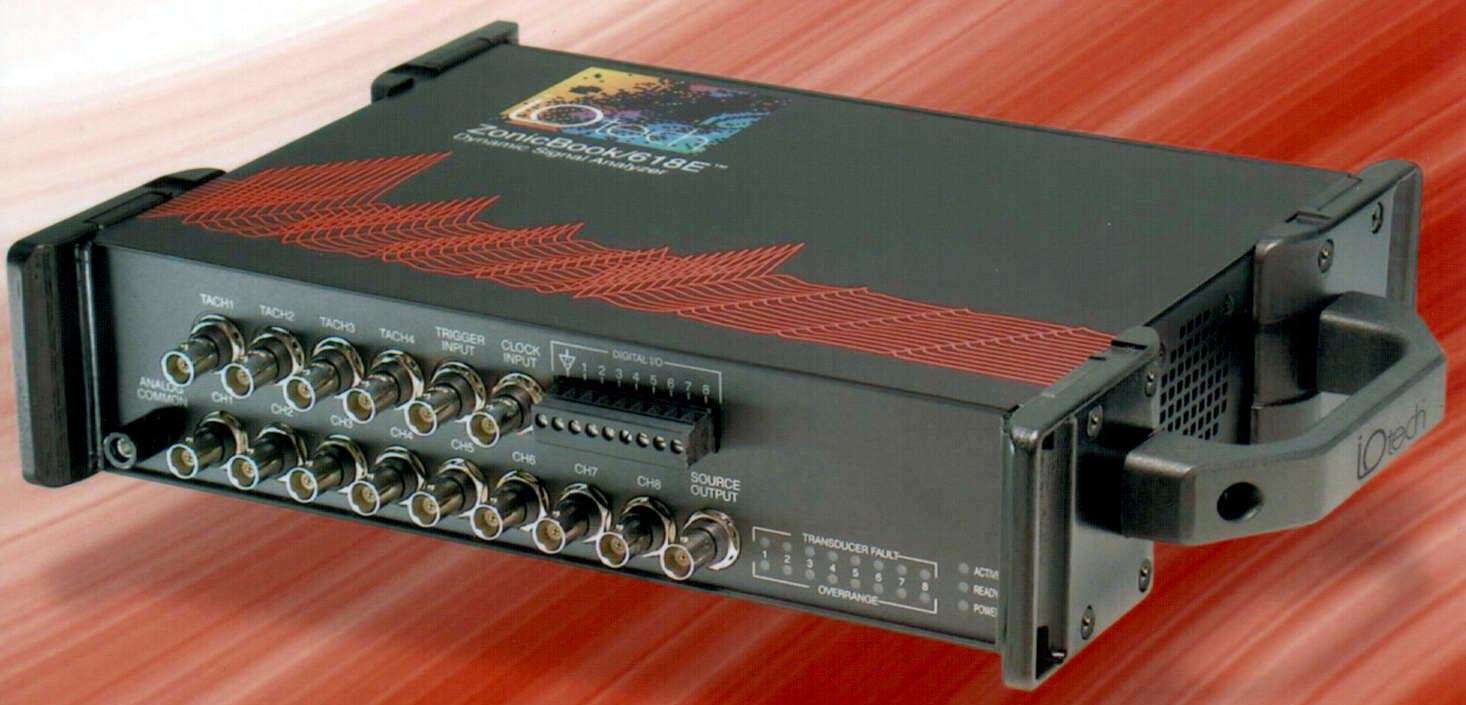

Ethernet Based Vibration Analyzer handles 8â€“56 channels.
Bedford Heights, OH 44146-1833
Apr 07, 2004 Portable ZonicBook/618Eâ„¢ vibration analysis and monitoring system is available with 5 eZ-Seriesâ„¢ software packages to define specific analysis and monitoring features. Hardware includes Ethernet engine powered by PowerPC processor, which enables all acquired data to be transferred to PC in real-time at 2+ Mb/sec. Unit has 8 software-programmable dynamic inputs, front-panel indicators for every channel, and 4 separate inputs for measuring tachometers.
Telephone/Telecom Test Kit is designed for field use.
Electro Standards Laboratories
Cranston, RI 02921
Apr 07, 2004 TELEPHONE/TELECOM TEST KIT contains test lead cords that are compatible with telephone systems, data and voice transmission test sets, and wideband circuit path/interconnect devices. Standard kit contains 13 cables to facilitate test and access of high-speed data interfaces, including T1/DS1. Connector interfaces include miniature 3-conductor nickel phone plugs, PJ-051 nickel phone plugs, piercing alligator clips, RJ-48 plugs with molded grip, and DB-15 connectors.

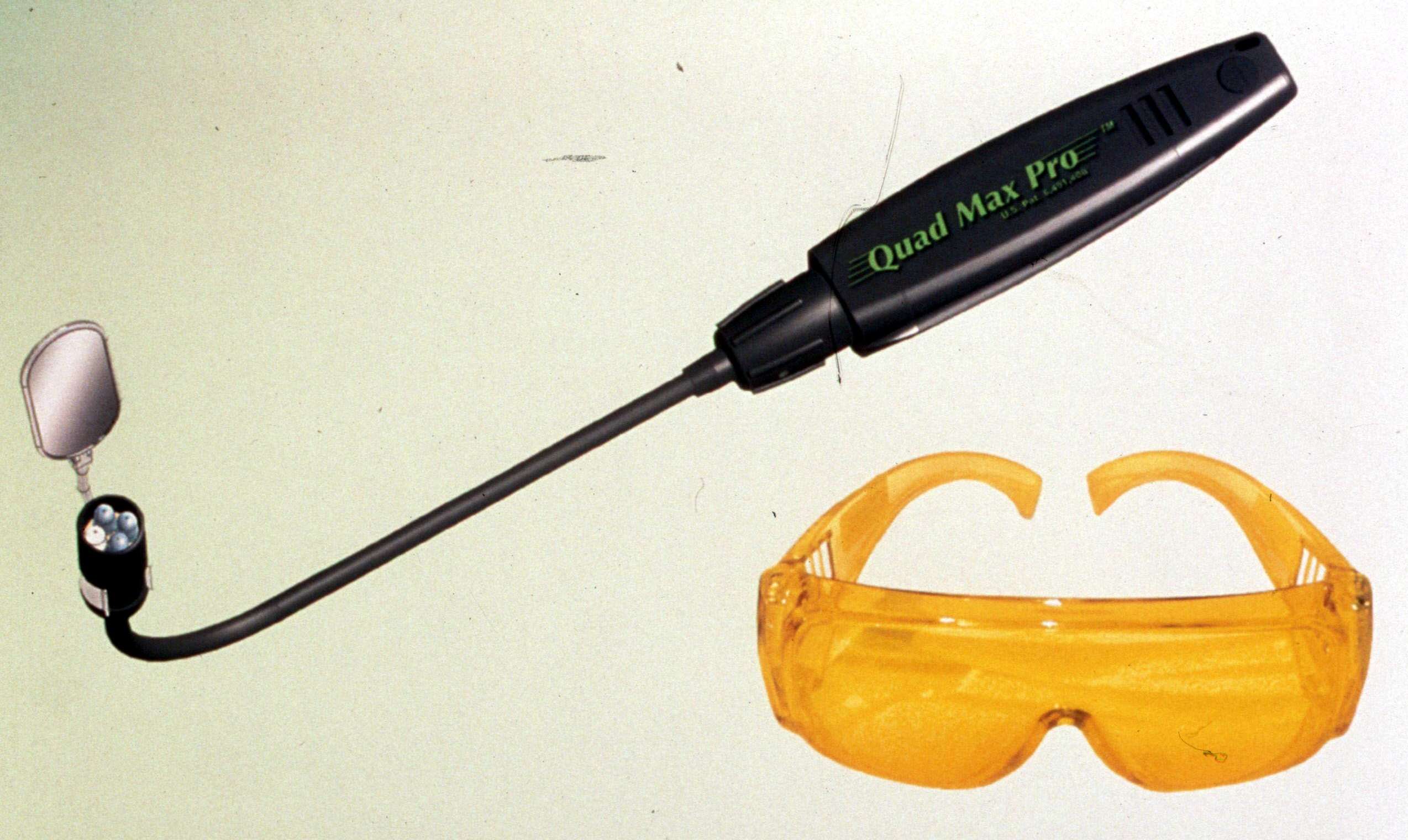

Leak Detector pinpoints hard-to-reach leaks.
Westbury, NY 11590
Apr 06, 2004 Cordless Quad Max Proâ„¢ combines 3 UV LEDs for fluorescent leak detection and 1 white LED for regular inspection. Twelve inch flexible extension allows unit to be maneuvered around hoses, fittings, and other obstructions in all types of HVAC/R equipment. Adjustable mirror reflects leaks hidden from direct view. Switch converts tool from UV inspection light into regular flashlight.
Moisture Detector utilizes coulometric titrimetry.
Dallas, TX 75237
Apr 06, 2004 Portable, ac mains-powered, KF-LAB Test Set detects moisture content of insulating oils, primarily within oil-filled transformers and switchgear. Default setting mode is arranged to give correct settings to test moisture content of insulating oils with specific gravity of 0.875. Unit also analyzes other substances with specific gravities between 0.6â€“1.4. Detection of moisture content helps prevent spontaneous combustion and deterioration of products.
LCR Meter suits automated impedance testing.
Geneva, OH 44041
Apr 05, 2004 Model 3550 measures within frequency range of 42 Hz to 5 MHz with measurement speed of 18 mS and accuracy of 0.10%. It offers 16 ac measurement parameters, 4,500 programmable frequency points, and built-in comparator with 10-bin capability. Additional features include 3 LED displays, RS-232C, and I/O connectors. Meter is suited for traditional component testing, materials characterization, incoming inspection, and high-frequency profiling.
Indicators allow remote monitoring of rupture disks.
ZOOK Enterprises, LLC
Chagrin Falls, OH 44022 0419
Apr 05, 2004 RDI Series rupture disk indicators notify plant personnel immediately when rupture disk bursts or relief valve opens. When electrical circuit, embedded within Kapton membrane, ruptures due to overpressurization, circuit is broken, and change in voltage or resistance to current activates monitoring system. Usable with metal or graphite rupture disks, products are available in sizes from 1â€“24 in. with operating temperature range of -40 to +392°F.
Hand-Held Unit tunes boilers and analyzes flue gas.
E Instruments International LLC
Langhorne, PA 19047
Apr 05, 2004
Portable, multifunctional BTU 1000 Basic Portable Gas Analyzer has magnetic rubber shell for hands-free operation and is capable of analyzing O2 and CO. Instrument calculates CO2 and has ambient CO monitor with 1 ppm resolution. Features include draft and differential pressure meter, 7 in. removable flue gas probe, and water trap. Analyzer also has direct function keys, built-in impact printer and 4-line LCD display.

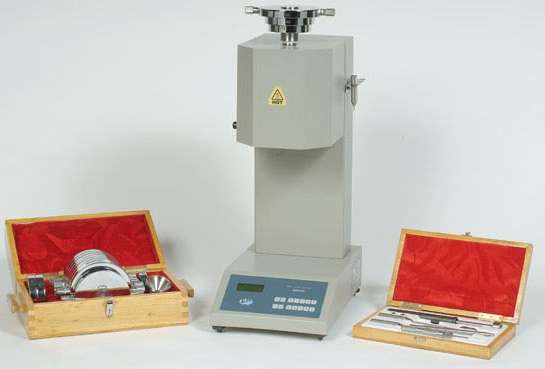

Melt Flow Indexer controls temperatures from 248â€“842°F.
Testing Machines, Inc.
Islandia, NY 11749
Apr 05, 2004 Able to measure melt flow resistance (MFR) of thermoplastics, XNR-400 tabletop tester controls temperatures from 248â€“842ºF with built-in microprocessor that maintains control to within ±0.4ºF. Extruded material is automatically cut-off by built-in scraper mechanism at preset intervals, controllable to ±0.01 sec. Product is supplied with spare barrel, die, and all accessories and weights necessary for maintenance and operation.
Radiometer permits underwater light measurements.
International Light, Inc.
Newburyport, MA 01950 4092
Apr 05, 2004 Underwater Radiometer Detector and filter combinations perform NIST traceable measurements from 200â€“1,100 nm and low light levels down to 0.5 picowatts/cm² underwater. Model IL400BL Research Radiometer is pressure tested to 60 psi and features quartz diffusers packaged in anodized aluminum housings and O-ring seals between filters. They are connected to water-blocked polypropylene-reinforced cables up to 600 ft long.
Laser Tachometer operates at 40 kHz.
Terahertz Technologies Inc.
Oriskany, NY 13424 4301
Apr 05, 2004 Hand-held, battery-operated, Model LT-880 senses passage of reflective/non-reflective markings of rotating or linearly translated piece of machinery to determine target's rotational rate or linear velocity. Fiber-coupled sensing head is remote from electronics package. Six-digit LCD display indicates rate of passage of white/dark areas of encoder and registers results in units of rpm, rps, or pps. Reading is updated twice per second.

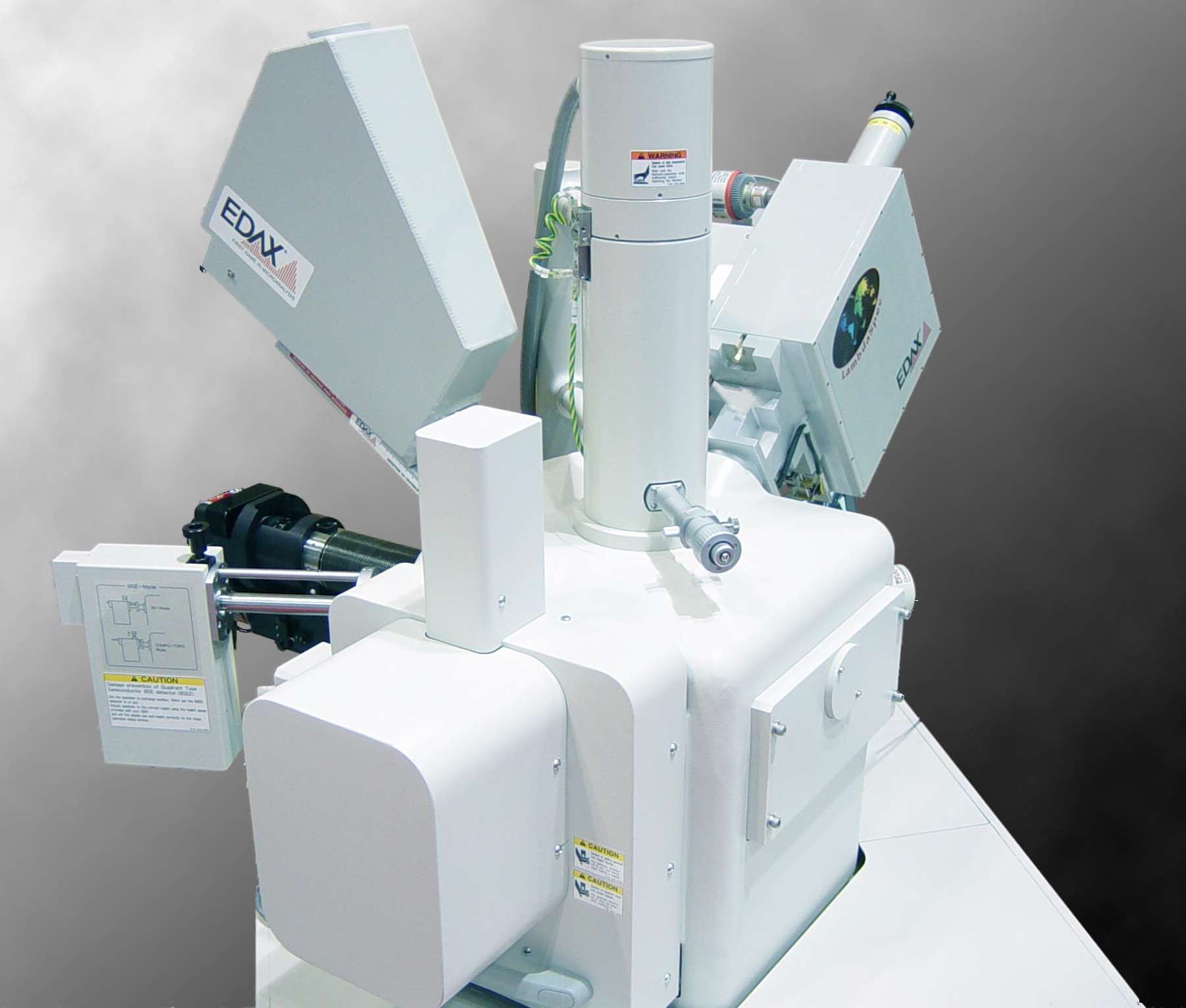

Microanalysis System combines EDS, EBSD, and WDS.
Mahwah, NJ 07430
Apr 05, 2004 Offered as 3-in-1 analysis tool, Trident microanalysis system combines X-ray microanalysis (EDS), electron diffraction (EBSD), and wavelength dispersal spectrometry (WDS). System's hardware and software integrate all above-listed techniques into one PC environment with data sharing and combining. This enables scientists to characterize composition and structure of materials on micro-scale.
SAN Test Module addresses 4 Gb/s Fibre Channel standard.
Agilent Technologies, Inc.
Santa Clara, CA 95051
Apr 05, 2004
Agilent 1733A Storage area network (SAN) test module enables Fibre Channel traffic generation at wire speeds of 2 or 4 Gb/s with allowances for any combination of data, error, link, fabric control, and fabric services test. Test engineers can use SAN tester to emulate 2,000 devices in 2U chassis. It offers device virtualization, host bus adapter behavior emulation, FICON device initialization, and capture buffer for failure analysis.

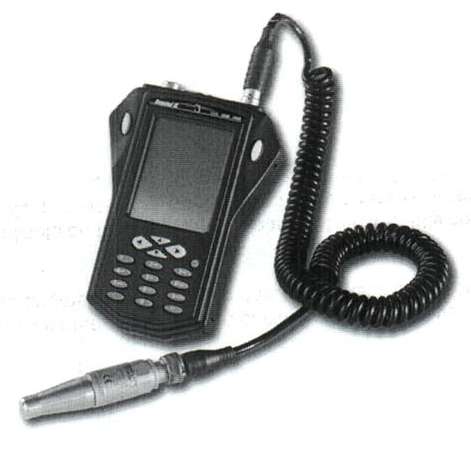

Vibration Data Collector is intrinsically safe.
Bently Nevada Corp.
Minden, NV 89423
Apr 02, 2004
Palm-sized Snapshot(TM) weighs 1.5 lb and is suitable for gathering condition monitoring data as part of Predictive Maintenance program. Instrument can be used in hazardous areas up to and including Zone 0 and Division 1. It collects full waveforms and spectral content for oscilloscope-like and spectrum analyzer capabilities. Single-channel instrument accepts 2 simultaneous input signals, one for dynamic vibration and one for phase or speed.

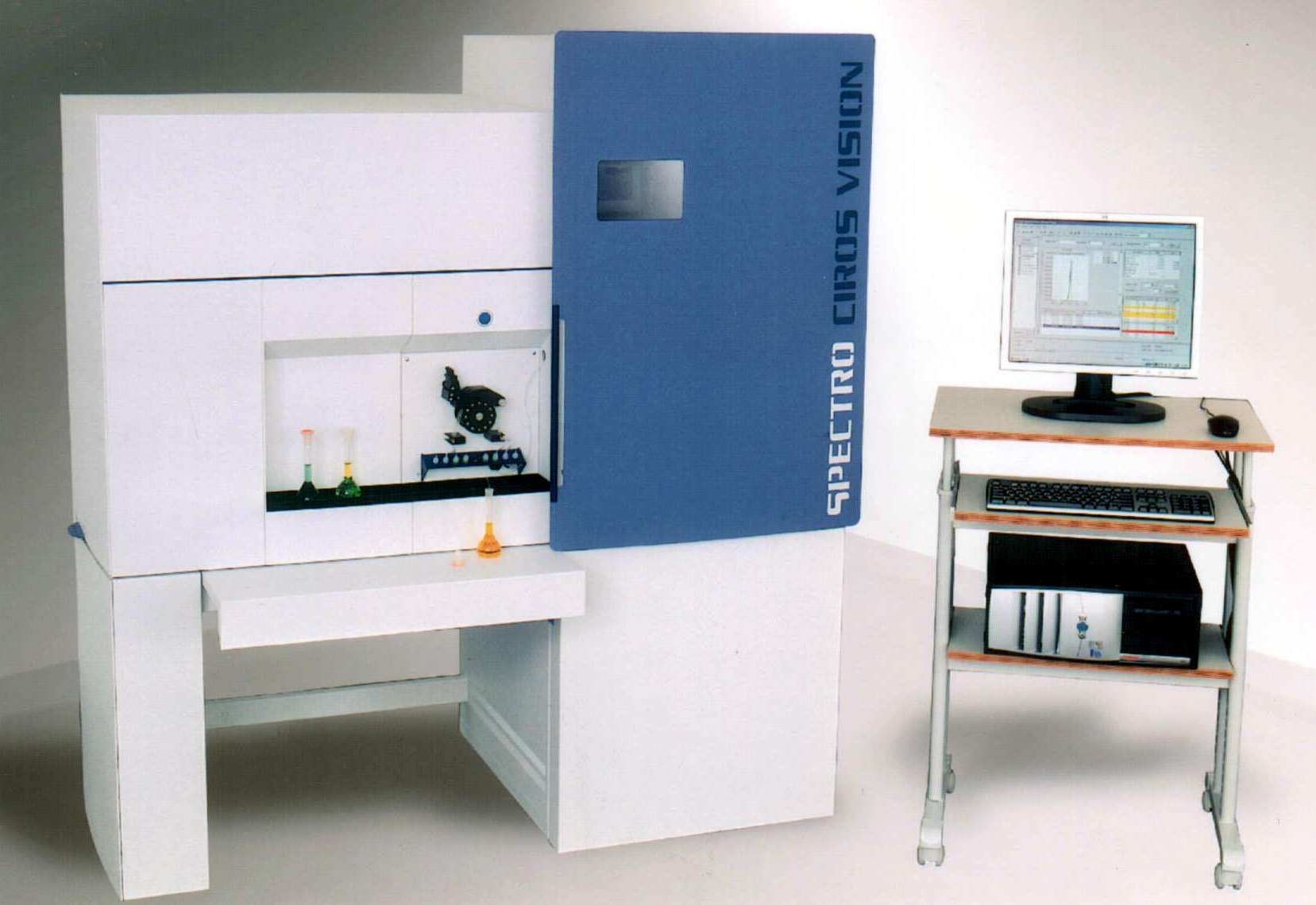

ICP Spectrometer measures spectrum in less than 3 seconds.
AMETEK Spectro Analytical Instruments Inc.
Mahwah, NJ 07430
Apr 02, 2004
CIROS VISION combines circular array technology and analytical software to determine trace level concentrations of difficult substances, such as halogens, in the presence of major elements. Wavelength coverage of 125-770 nm enables use of 98% of prominent emission lines. True total spectra reprocessing eliminates post-analysis errors. Software simplifies methods development and application template development, and allows automatic unattended operation of analyzer.

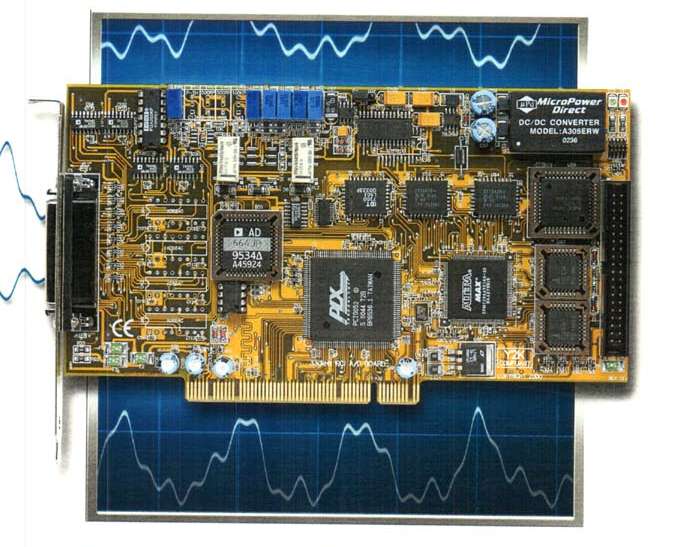

PCI Boards simplify general-purpose data acquisition.
Branford, CT 06405 2932
Apr 02, 2004 Complete with 256-position A/D channel/gain queue, Models RCP 1612 and 3212 store up to 2,048 samples in on-board FIFO buffers. Three 8-bit digital I/O ports can be configured as inputs or outputs, and support hardware handshaking, strobe I/O, and bi-directional protocols. Each board includes six 16-bit counter/timers. Two are used internally; 4 are available to measure frequency, count events, or measure speed.

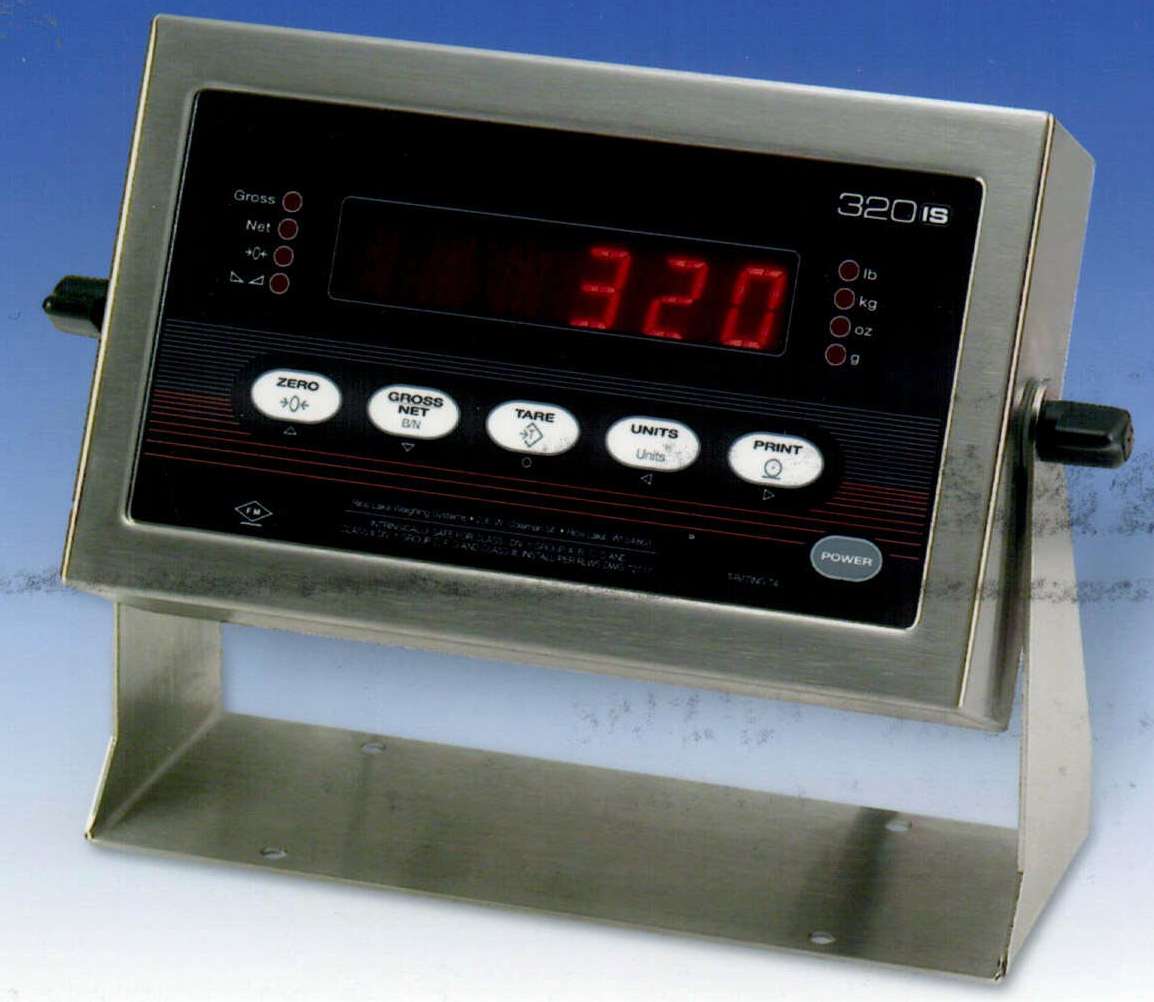

Digital Weight Indicator suits hazardous environments.
Rice Lake Weighing Systems
Rice Lake, WI 54868
Apr 02, 2004 FM-approved 320IS provides intrinsically safe solution that maintains visibility even in dimly-lit areas. Pushbutton functions include zero, gross net, tare, and print, while units of measure include lb, kg, oz, or g. Suited for dangerous and highly explosive environments, unit may be used with optional safe area I/O module, which provides analog outputs and digital I/O, and allows communication with printers, computers, and other peripherals.
