Pressure Gage is suited for process industries.
Buffalo, NY 14150
May 18, 2004 Process Series, constructed of engineered reinforced thermoplastic, features black, impact-resistant case with safety blowout back plate, solid front, and integral flange. It is available in 4½ in. dial with ¼ or ½ in. NPT bottom or back connections. Wetted parts are 316 stainless steel or brass, and instrument has accuracy of ±0.5% FS ANSI/ASME Grade 2A. Uses include severe service applications where pulsations and vibration exist.
Pressure Transmitter has ±0.25% full operating scale accuracy.
Buffalo, NY 14150
May 18, 2004 Protected against reverse voltage and over voltage, PT Series Pressure Transmitter has dual-wire 4-20 mA electrical output signal and Mini DIN 43650 style (4-pin) electrical connection, including mate. Housing and wetted parts are constructed of 316 stainless steel, with ¼ in. NPT male connection. Used on industrial machinery, product is also suited for hydraulics and pneumatics, compressor control, and HVAC/R equipment.

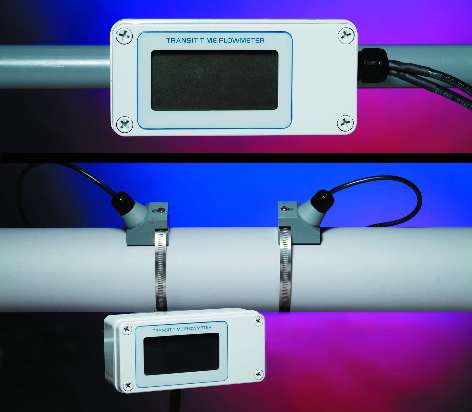

Ultrasonic Flow Meters handle suspended particles.
Flo-tech, Div. of Racine Federated Inc.
Racine, WI 53404
May 14, 2004
Non-invasive Series HTTF provides bi-directional flow measurement and is unaffected by suspended solids or gas pockets. Meters clamp onto outside of carbon steel and stainless steel pipes, as well as copper and plastic tubing in sizes from ½-2 in. with liquid temperatures from 0-180°F. Enclosure is weather-proof for indoor or outdoor mounting and comes with or without rate and totalizer display. Direct interface is provided for integrated data collection systems.
Stainless Steel Bench Scale is NTEP-approved.
Central Carolina Scale
Sanford, NC 27330
May 14, 2004 Digi DS-520 Digital Bench Shipping Scale, available in 60, 150, or 300 lb capacities, features stainless steel construction and indicator with 1 in. LCD characters. Legal for trade bench scale is available with indicator attached to scale or with column. Unit comes with AC adapter for plug-in operation, and battery option allows up to 200 hr of portable operation. Applications include shipping department, pharmaceutical, and chemical industries.
Delta Sigma ADC offers automatic signal calibration.
Linear Technology Corp.
Milpitas, CA 95035
May 14, 2004
Housed in 38-pin QFN package, LTC2449 automatically calibrates and removes offsets and drifts from external analog signal chain up to sensor output. Built with multiplexer architecture, 8 kHz, 16-Channel delta-sigma analog-to-digital converter (ADC) employs No Latency Delta Sigma(TM) architecture, along with 4 kHz conversion rate, that allows all 16-channels to be scanned in 4 msec. Features include programmable filter, internal oscillator, and 5 V supply operation.
Digital Manometer is suited for field or laboratory use.
Dwyer Instruments, Inc.
Michigan City, IN 46361
May 14, 2004
Model 476-0 features electronic zeroing to null out any minor pressure differences, and auto power off function that preserves battery life. Able to measure positive and negative pressure from -20 to +20 in. wc with ±1.5% FS accuracy, product is suitable for field or laboratory use. It can be utilized to set gas supply pressures, adjust regulators, verify pressure switch operation, and check pneumatic systems and computer peripherals.
DAQ System utilizes integral signal conditioning modules.
Heim Data Systems, Inc.
Belmar, NJ 07719
May 14, 2004 Portable A Series DiSC6 provides online PC data acquisition, and may also operate as recorder using optional tape, disk, or solid state drives. It features 6 signal module slots with optional extension to 12, providing up to 72 synchronously sampled channels. Total system bandwidth is 640 kHz with channel bandwidth from 150â€“200 kHz. Time code generator/reader with GPS time synchronization ensures accurate annotation and logical access to recorded data.
Checkweigher features variable capacitance technology.
Setra Systems Inc., Weighing Systems Div.
Boxborough, MA 01719
May 14, 2004 Checkweigher electronic counting and weighing scale provides up to 1 million internal increments for precision in small parts counting, and up to 500,000 user-selectable displayed increments. Capacities range from 2â€“50 kg with readability of 0.02 and 1 g. Database allows storage of up to 1,800 part numbers and associated low, target, high, and APW. With three RS232 ports, Checkweigher integrates with computer, barcode scanner, and label printer.
DAQ System captures up to 64 inputs at 200 kHz/channel.
West Warwick, RI 02893
May 14, 2004
Written in LabVIEW, AstroDAQ Xe PC-based data acquisition (DAQ) system captures 8 analog signals directly to internal 18 GByte hard drive at sample rate of 200 kHz/channel. Sample rates are selectable from 1 sample/min to 200,000 samples/sec/channel, and modular inputs allow each channel to be configured independently. Able to integrate into any system, product connects to any computer via USB 2.0 and provides real-time data viewing.
Turbine Flowmeters offer typical accuracy of ±0.25%.
Hoffer Flow Controls, Inc.
Elizabeth City, NC 27909
May 14, 2004 Available in ¼â€“12 in. sizes with 17 overlapping ranges, HO Series provides precision measurement with accuracies to ±.5%. Available end fittings include MS, NPT, and flanged types, and standard construction is 316 stainless steel. Series is offered with high output magnetic pickup, low drag modulated carrier pickup, or redi-pulse pickup coil that provides conditioned pulse output. Applications include liquid, gas, and cryogenic services.

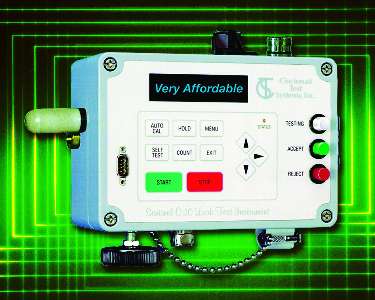

Leak Tester measures pressure changes of 0.0001 psi.
Cincinnati Test Systems Inc.
Village Of Cleves, OH 45002
May 14, 2004 Sentinel C-20 pressure decay leak tester offers Quik Test feature, which detects obvious accept or reject parts early in test cycle. Unit provides 4 part programs including timer, pressure, leak rate, and part change that can be stored and selected from menu button or remotely selected from host computer or PLC. Pressure data streaming is provided for graphic presentation of test cycle. Tester can store 500 test results for later output.
Sensor Tester checks hydraulic motor speed sensors.
White Hydraulics, Inc.
Hopkinsville, KY 42241 1127
May 14, 2004 Designed to facilitate troubleshooting and testing of hydraulic motor speed sensors and pulse detection systems, Sensor Tester lets user know if any part of speed control system is malfunctioning. LED light, audible signal, and flashing pulse button confirm proper operation of sensor/system, while cable LED ensures cable is connected properly and that power is being supplied. LED also indicates that trickle charger feature is working.
Ultrasonic Flowmeter suits custody transfer applications.
Emerson Process Management - Daniel Measurement and Control, Inc.
Houston, TX 77055
May 14, 2004 Featuring accurate meter performance of up to 100 fps, 4-path Daniel SeniorSonicâ„¢ Ultrasonic Gas Flow Meter features Daniel Mark III Electronics, which enables users to add future functionality without replacing electronics. Product also provides over-range performance of up to 125 fps and incorporates Daniel Customer Ultrasonic Interface (CUI) v3.0, which provides local and remote diagnostics and operations from single console view.
Stroke Counter is waterproof.
Fargo Controls, Inc.
Eatontown, NJ 07724
May 14, 2004 With protection degree of IP66, CBE 05 and 06 Series mechanical stroke counters are suited for outdoor use and wash down environments. Dust tight products have nylon body and ABS casing. Available with 5 or 6 digits, counter has reset wheel and is offered with left or right shaft rotation and shaft output. Base mounted units have max speed of 1,000 strokes/min. They are suited for continuous processes, automatic machines, and measurements.
DAQ System replaces paper-based recording systems.
Yokogawa Corp. Of America
Newnan, GA 30265 1040
May 14, 2004 DAQSTATION DX200 Expandable model provides graphical display, alarming, and archiving of up to 200 process values sourced from external measurement hardware. In addition to built-in measurement channels, it receives process input data from any hardware platform equipped with serial MODBUS RTU communications, such as DARWIN data acquisition systems, PLCs, and controllers. Network connectivity functions include FTP file transfer, web server, and email messaging.
Checkweigher weighs products from 10 g to 10 kg.
Thompson Scale Co.
Houston, TX 77055
May 13, 2004 Sonic 350 In-Motion Checkweigher offers conveyor speeds in excess of 250 fpm and production rates up to 200 units/min. Standard I/O will interface to new or existing metal detector, offering control of up to 3 reject devices for low/high/metal reject outputs. Model 4693 controller offers 75-product memory storage and adjustable 5 weight zones per product. Metering, pacing, reject, and material handling conveyors are available.

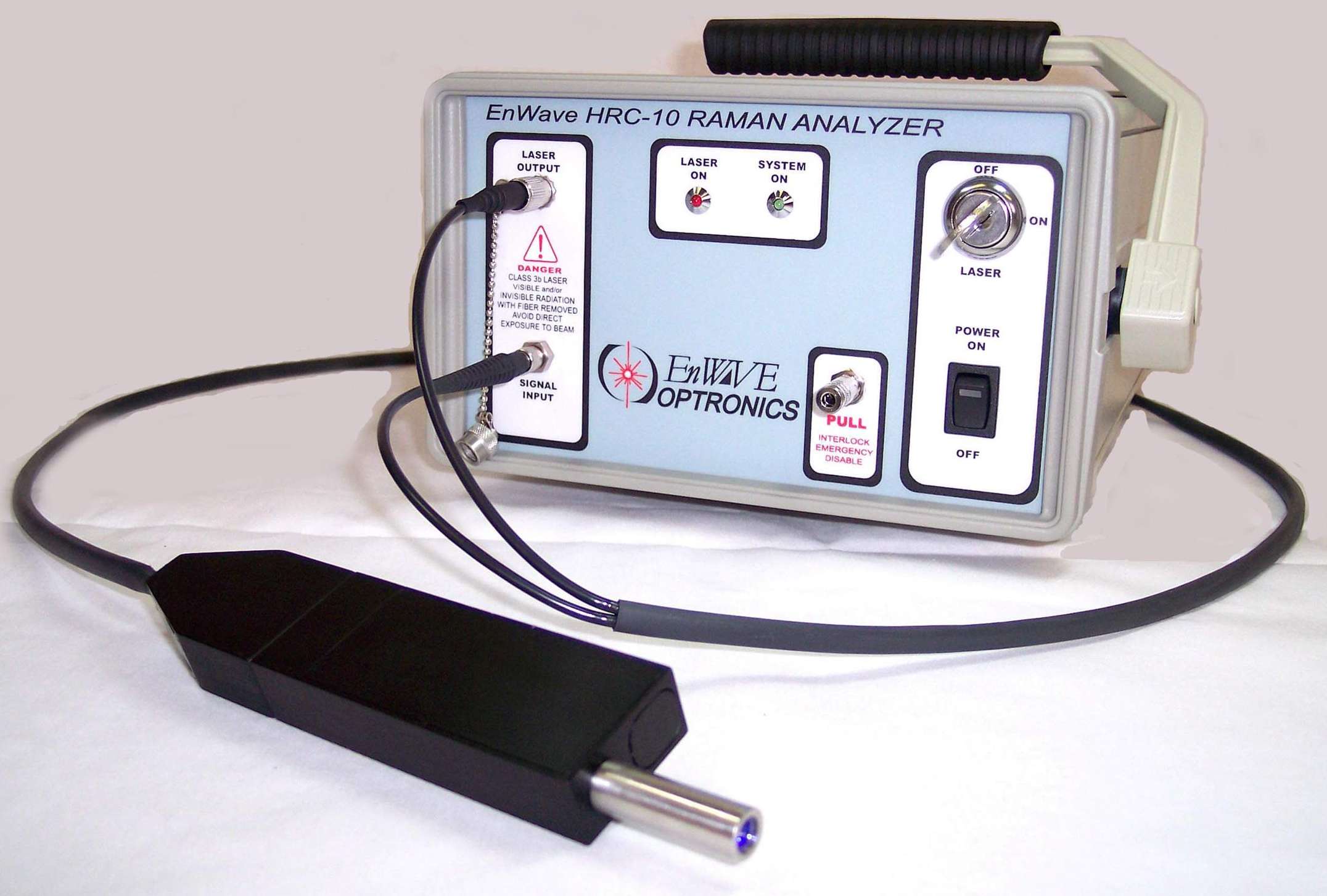

Portable Raman Analyzer identifies condensed material.
EnWave Optronics, Inc.
Irvine, CA 92614
May 13, 2004 Compact, fully integrated HRC-10 features FSL series 400 mW NIR frequency-stabilized/narrow linewidth diode laser. Other features include Enwave's HRP series high Rayleigh rejection/throughput fiber optic probe, sampling software, and CCD-based, high-resolution/throughput spectrograph. Product is suited for condensed material identification and process control.
Data Logger is suited for indoor energy monitoring.
Onset Computer Corp.
Bourne, MA 02532
May 13, 2004 Designed with flexible system architecture, multi-channel HOBO® Micro Station accepts pulse or analog inputs from third-party sensors such as power meters and flow meters as well as proprietary plug-in Smart Sensors. Unit features 500,000 measurement memory capacity and operates for up to one year on 4 AA batteries. It also provides optional dial-up modem access or wireless communications for remote data retrieval.
ISFET-Based pH Sensor suits sanitary applications.
Golden Valley, MN 55422 3935
May 13, 2004
Durafet III pH electrode, featuring IP68-rated Vario Pin watertight connection, delivers response times that allow real-time pH control. Non-glass, unbreakable sensor is also available in sanitary version to meet 3A standards for food and dairy, pharmaceutical, and biotech applications. Additional industrial and sanitary applications include wastewater influent/effluent monitoring, neutralization, reagent addition control, and plating.
Test Set supports wireless technologies.
Agilent Technologies, Inc.
Santa Clara, CA 95051
May 12, 2004
Model 8960 features RF source hardware for GSM, GPRS, and EGPRS technologies that creates network emulator for wireless device designers. It provides RF measurement capability, real-time phone-to-Internet connectivity, and live user data transfers for verifying real-life applications. Multiformat lab applications allow designers to switch between data and voice connections, send SMS messages while on voice call, and suspend and resume packet-switched data transfers.
