Selco Products Co.    Reno, NV 89521-5908

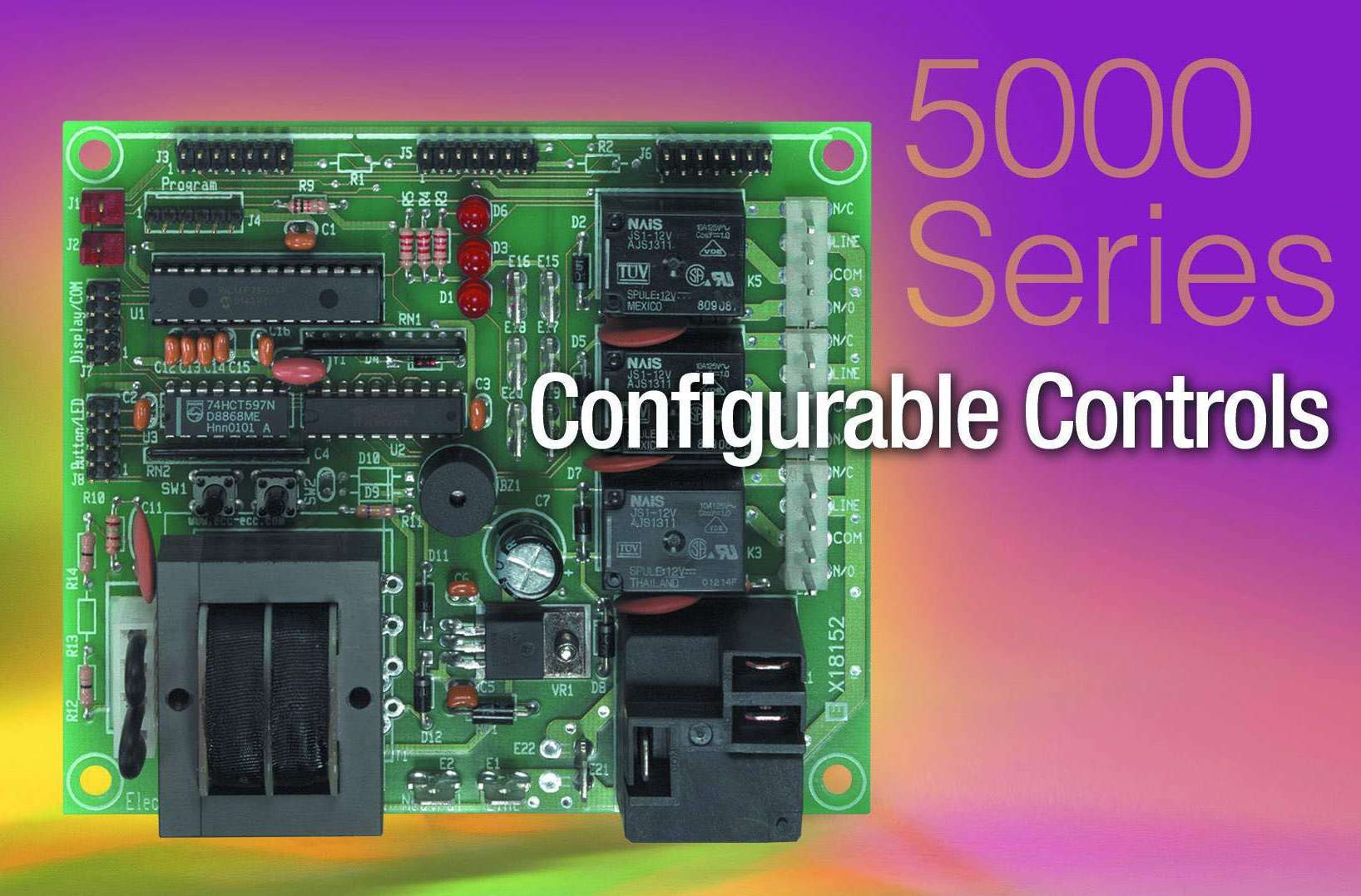

Jun 07, 2004 Configurable Controls 5000 Series incorporates processor, power source, and multiple input and outputs, depending on model. Front operator panel displays numbers, indicators, pushbuttons, switches, or pots. Controls feature onboard 10 A relay, 1 A solid-state relay, and external solid-state relay. Large output ports include onboard 30 A relay and 3 A solid-state relay. Other features include built-in thermistor temperature sensor circuit and up to 16 K program storage space.

TSI Inc., Flowmeter Div.    Shoreview, MN 55126

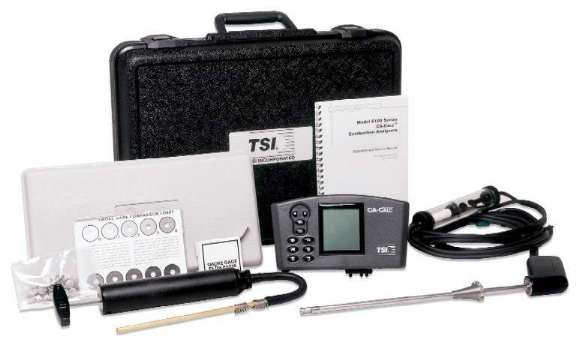

Jun 07, 2004 Comprising combustion analyzer and smoke soot pump, Model 6120-OH CA-CALC provides accurate flue-gas data to tune burners on furnaces, boilers, and other oil heating appliances. Analyzer has user-selectable fuels and supplies CO₂, O₂, stack, and ambient temperatures. Kit provides real-time display of CO₂ during burner adjustment and features electronic design that eliminates need for potentially hazard chemicals.

Fairbanks Scales    Kansas City, MO 64106
Jun 07, 2004 Available in portable and aboveground permanent models, Titan Steel Deck Truck Scale utilizes rocker column load cells as load receiving elements. Load cells are hermetically sealed with glass-to-metal welds, which create seal that is impervious to moisture intrusion. Stainless steel cable jacket protects against rodents and fraying. Using digital signal, Intalogixâ„¢ Technology eliminates voltage spikes and surges from lightning strikes.

Ohaus Corp.    Pine Brook, NJ 07058
Jun 07, 2004 High Resolution Ranger™ features 16-bit microprocessor and Magnetic Force Restoration (MRF) load cell technology, which ensures external resolution up to 1:300,000 with readabilities to 0.00002 lb. Available in three 18-gauge stainless steel weigh platform sizes, capacities range from 6–70 lb. Features include cast aluminum housing, backlit LCD display, and adaptive digital filtering. Products display results in g, kg, lb, and oz.

Leco Corp.    St. Joseph, MI 49085 2396

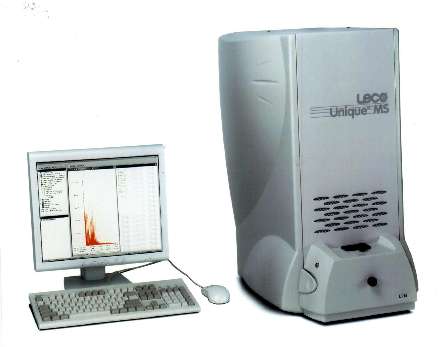

Jun 04, 2004 Unique® LC-TOFMS Benchtop Spectrometer offers acquisition rates of 100 spectra/sec, with detection limits of 500 attamoles/spectrum or better, and accurate mass measurement within 5 ppm. Windows®-based ChromaTOF® software implements fast LC data handling to facilitate LC-MS measurements using automated Peak Find and Mass Spectral Deconvolution algorithms, combined with library searching and formula generation.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Jun 04, 2004 Digital Optical Micrometer, Model 8400K evaluates severity of mechanical damage such as scratches, corrosion pits, or blemishes that are difficult to observe by other methods. User focuses on good surface near scratch or pit, sets display to 0.0000 in., then focuses into bottom of scratch or pit and reads depth on digital display. RS232 serial port allows data export to included processor/printer. Sealed, non-magnetic case is dustproof and shock-resistant.

Fluke Corp.    Everett, WA 98203

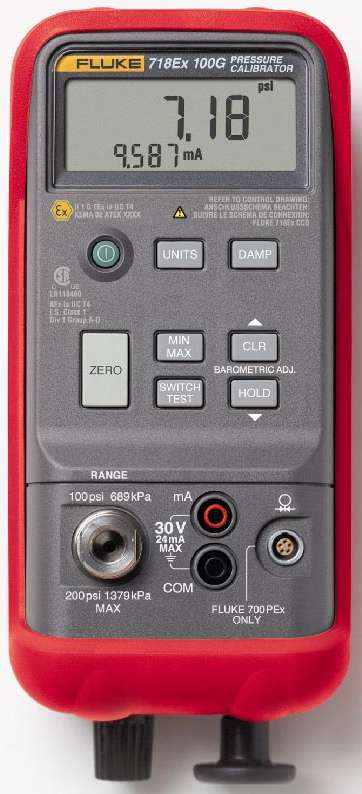

Jun 04, 2004 Suited for use in potentially explosive environments, 718Ex is unable to release sufficient energy to cause ignition of flammable material. Unit, available in 30 and 100 psig models, consists of self-contained pressure calibration tool with on-board pump, push-button user interface, and selectable measurement units for pressure. It is suited for use in petrochemical plants, oil platforms, refineries, and other locations subject to risk of explosion.

Optical Gaging Products, Inc.    Rochester, NY 14621 4839
Jun 04, 2004 Floor model Contour Projectors® QL-20â„¢ and QL-30â„¢ feature 20 and 30 in. dia screens, respectively. Vertical design, with 32 x 8 in., nickel-plated worktable, supports up to 550 lb loads and takes up less than 20 sq. ft. Both machines deliver images, upright and unreversed, on flat field screen. Ergonomically designed systems employ collimated, truly telecentric lenses and integral Geometric Measuring Processor with dual LCD displays.

Rotronic Instrument Corp.    Hauppauge, NY 11788

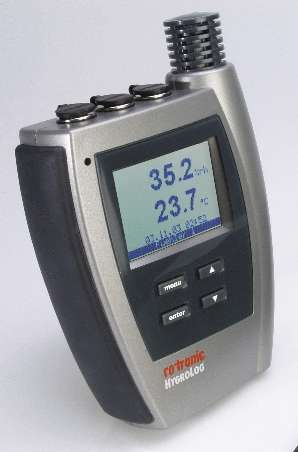

Jun 04, 2004 Utilizing HygroClip® digital humidity technology, HygroLog® NT accommodates up to 7 probes. It offers measuring range of -50 to 200°C and 0-100% relative humidity, depending on probe. Maximum accuracy is ±0.2°C and ±1.0% RH. Device feature compact flash memory card for virtually unlimited logging capacity. Data retrieval is achieved via network USB, RS232, and Bluetooth interface options. Software is FDA CFR 21 Part 11 and GAMP 4 compliant.

Powertronics    Candia, NH 03034
Jun 04, 2004 Multi-channel PQR-OEM monitors and records quality of power being supplied to equipment and facility. It monitors 3 ac hot voltage channels from 90–480 Vac, 1 ac neutral channel from 0–50 Vac, and 4 channels of current from 20–5,000 ac A via current transducer. All disturbances are recorded with date, time, magnitude, and duration in non-volatile Flash Memory on repetitive 30-day cycle. Software can be used to download data from RS232 serial port or USB port.

Men Micro Inc.    Lago Vista, TX 78645-4160
Jun 04, 2004 Model M81 mezzanine card has 16 opto-relay outputs that provide 500 Vdc optical isolation from system and 100 Vdc isolation between each channel. Output can switch either DC or AC voltage between 0-36 V per channel. M82 binary input card has 16 channels with 500 Vdc isolation from system and 100 Vdc isolation between each channel. Current limit for each input clamps input voltage to 0-40 V range. Both models support temperature range of -40 to +85°C.

IOtech, Inc.    Bedford Heights, OH 44146-1833

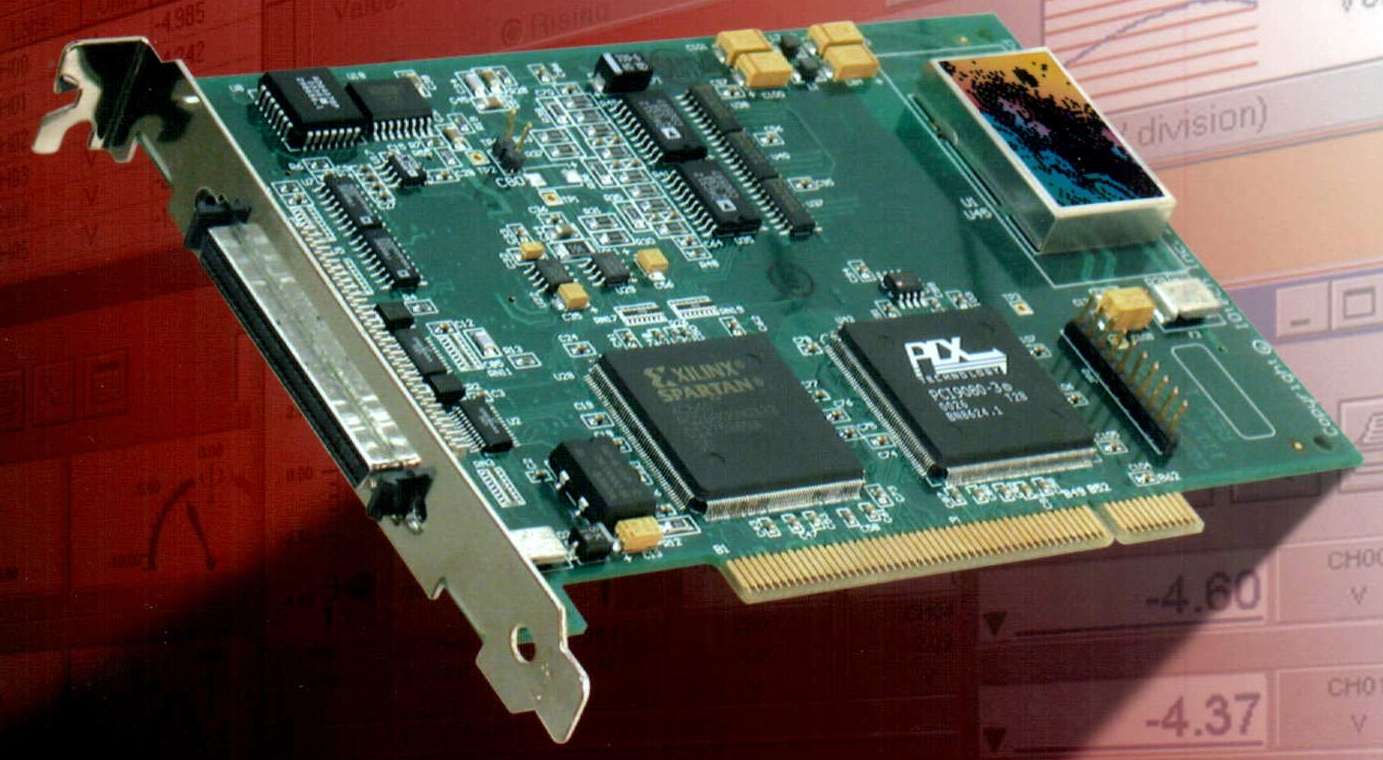

Jun 03, 2004 DaqBoard/1000â„¢ series provides 16-bit, 200-kHz A/D converter and 16 single-ended or 8 differential analog inputs. Boards feature synchronous analog, digital, and frequency I/O as well as DMA bus mastering. On-board scan sequencer permits user to select up to 512 channel/range combinations and scans all channels contained in sequence at rates to 5 µs/channel. Up to 4 DaqBoards can be used per PC for expansion up to 64 analog input channels and 96 digital I/O signals.

Mitutoyo America Corp.    Aurora, IL 60504 9176
Jun 03, 2004 Metris LC50/100â„¢ digitizing, non-contact probe aids in 3D part scanning, inspection, and reverse engineering. Its PH-10M/PH-10Q interface enables non-contact scanning to 19,200 points/sec, while adjustable camera and laser intensity settings ensure quality of data acquisition from different surfaces/environments. Bundled with COSMOS CMM and CADCompareâ„¢ software, product handles large pointclouds using intelligent filters that extract useful dataset.

MadgeTech    Warner, NH 03278

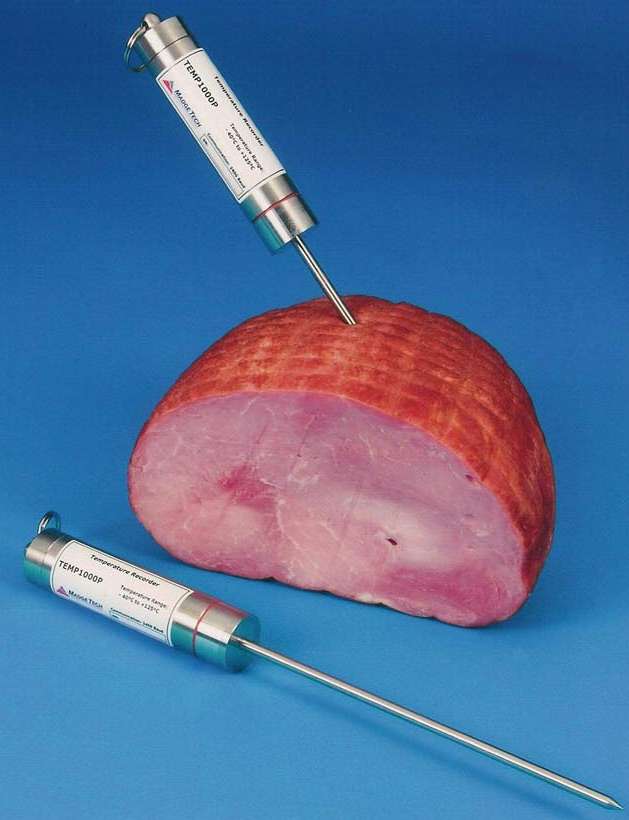

Jun 03, 2004 Designed for use in harsh environments, TEMP1000P can log internal temperatures in real-time before, during, and after processing. Stand-alone device features 100 ohm platinum RTD sensor in rigid probe for recording -40 to +125°C temperatures with ±0.5% FS accuracy and 0.05°C resolution. With less than 1 min response time, waterproof recorder automatically measures and logs up to 32,767 temperature measurements; all data is date stamped and NIST traceable.

E Instruments International LLC    Langhorne, PA 19047
Jun 03, 2004 Offering hands-free operation, Mini CO Sniffer is equipped with highly-sensitive, 5-LED Scale and Beeper to warn user of even smallest presence of carbon monoxide in ambient. It features 0-500 ppm range with 8 ppm sensitivity, less than 30 sec response time, and 180 hr of continuous operation. Soft vinyl case and belt clip are included.

Brimrose Corp. Of America    Baltimore, MD 21236

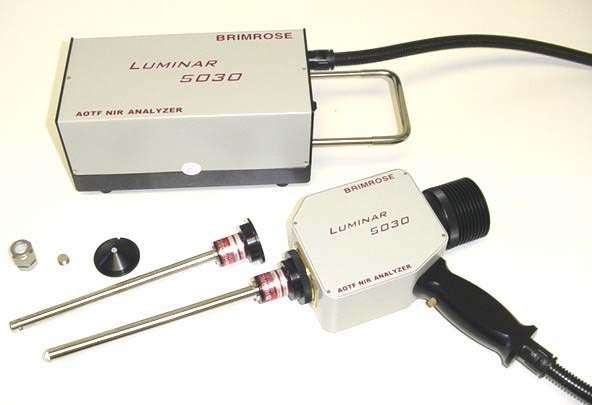

Jun 03, 2004 With compact, solid-state design, miniature Model 5030 AOTF-NIR Portable Analyzer is battery-powered, enabling users to perform laboratory tasks anywhere in plant. Attachments facilitate switch-over from solids to liquids, and LCD shows instant results. Insensitive to ambient light, product is also immune to vibration, dust, and dirt. Suited for harsh production environments, wireless instrument can transmit data to Main Plant PLCs or DCS.

Linear Technology Corp.    Milpitas, CA 95035
Jun 03, 2004 Housed in pin-compatible SSOP-16 package, 8-channel, 200 ksps LTC1867 offers 16-bit no missing codes over temperature and ±2 LSBMAX INL. It draws 1.3 mA at full speed, and supply current automatically drops at reduced speeds. Unit includes serial interface and multiplexer that allows any combination of single-ended inputs or differential inputs in unipolar or bipolar mode. Accuracy is independent of shift clock frequency, and commercial and industrial temperature ranges are available.

Strategic Test Corporation    Woburn, MA 01801-1915

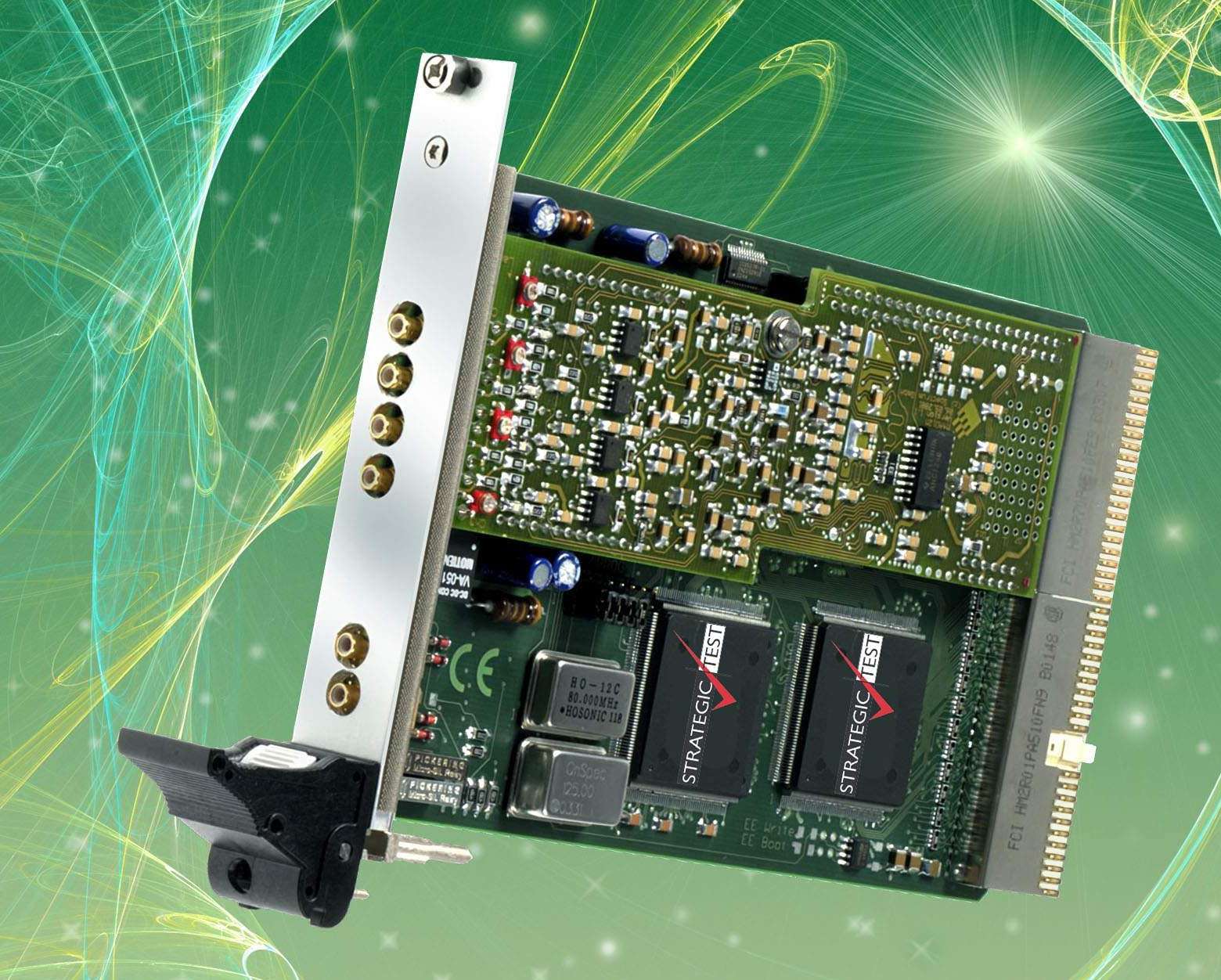

Jun 03, 2004 UltraFast UX3131 3U PXI Card allows engineers and scientists to acquire all 4 channels at sampling rates to 25 MS/s for SONAR, LIDAR, and ultrasonic measurements. Card combines 12-bit resolution, 8 input ranges, programmable input offset, up to 64 MS memory, and optional high-speed digital inputs. Each channel can be programmed with 1 of 8 input ranges ±50 mV to 10 V, and input signal can be offset adjusted by up to 100% of each range.

AVIDWireless    Dallas, TX 75006
Jun 03, 2004 AVIDirectorâ„¢ consists of Intelligent Wireless Information Director (IWID) designed to work with remote equipment and mobile networks. Open architecture unit employs 4 configurable AVIDIO ports and 160 MIPS Java processor that gathers, processes, and formats information, then transmits it over appropriate wireless network. Able to withstand hostile environments, it is suited for field data collection, vehicle monitoring, and RFID tracking.

Associated Research, Inc.    Lake Forest, IL 60045

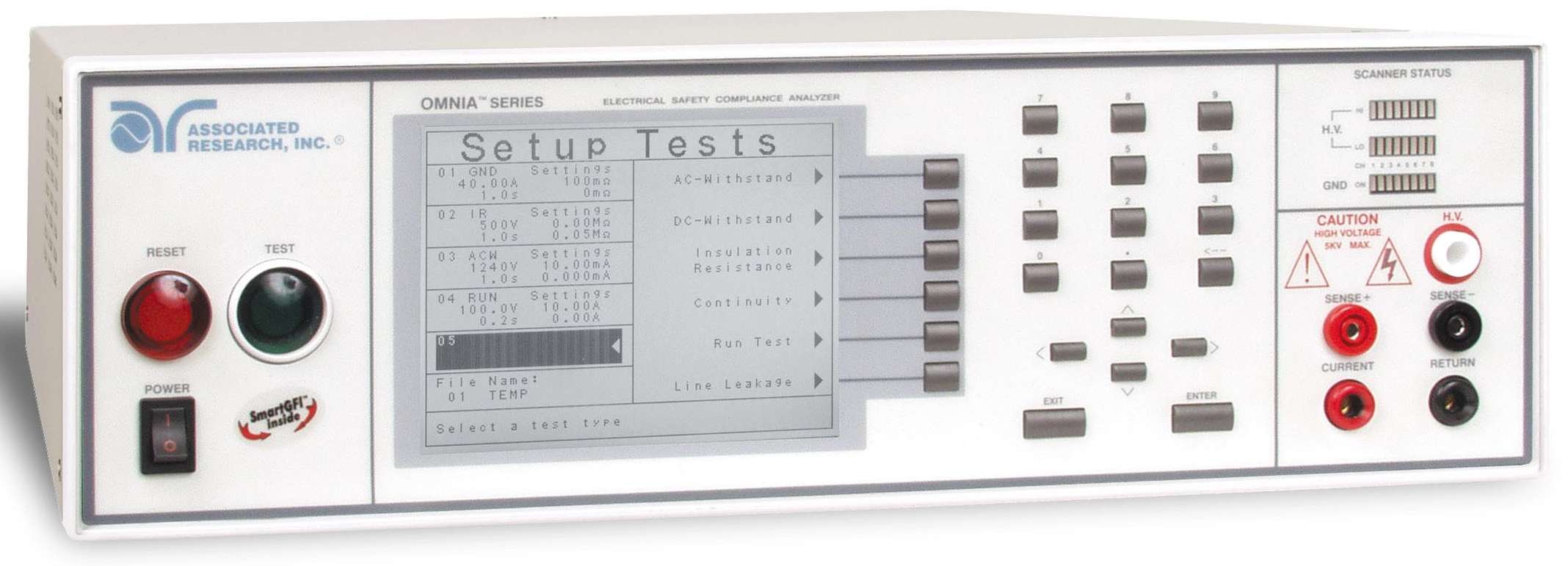

Jun 02, 2004 Offered as 4-in-1, 5-in-1, and 6-in-1 models, OMNIA 8100 Series features 50 memories with 30 steps per memory, built-in real current measurement, and RS-232 or GPIB automation interfaces. Base model 8104 contains 4 electrical safety tests: AC Hipot, DC Hipot, Ground Bond/Continuity, and Insulation Resistance. Model 8105 adds Functional Run testing, and model 8106 adds Line Leakage testing. Series features extended Ground Bond test current up to 40 A.
