Mitutoyo America Corp.    Aurora, IL 60504 9176
Jun 25, 2004 Quick Vision STREAMâ„¢ Series CNC non-contacting video system employs progressive camera with stroboscopic illumination bundled with QVPak® software to enable machine to register measurements while camera-head is in motion. Software enables programming of non-stop mode via intuitive GUI and supports extended 3-D data processing. Machine is suited for measurement and inspection of processes such as molding of plastic or metal parts and PCB assembly.

Mitutoyo America Corp.    Aurora, IL 60504 9176
Jun 25, 2004 Quick Vision Apex® Series CNC systems provide non-contact measurement of IC chips, IC packages, hybrid chassis, lead frames, and molded parts. Programmable power turret tube lens provides zooming for wider field of view at high levels of image detail. Systems are driven by QVPAK software, which displays measurement results in 2D/3D graphics and includes 3-D data processing functions, support of touch-probe measurement with video/TP calibration, and 2 illumination tools.

Nova Analytical Systems Inc.    Niagara Falls, NY 14301 2398
Jun 25, 2004 Model 300 CLD Analyzer continuously measures total concentration of oxides of nitrogen within gaseous sample. Method is based upon chemiluminescent reaction between ozone and nitric oxide (NO) to form nitrogen dioxide and oxygen. Features include 8 switch selectable ranges from 0–3 ppm to 0–10,000 ppm NO/NOx, critical flow orifice flow control, and digital diagnostics.

Orange Research, Inc.    Milford, CT 06460

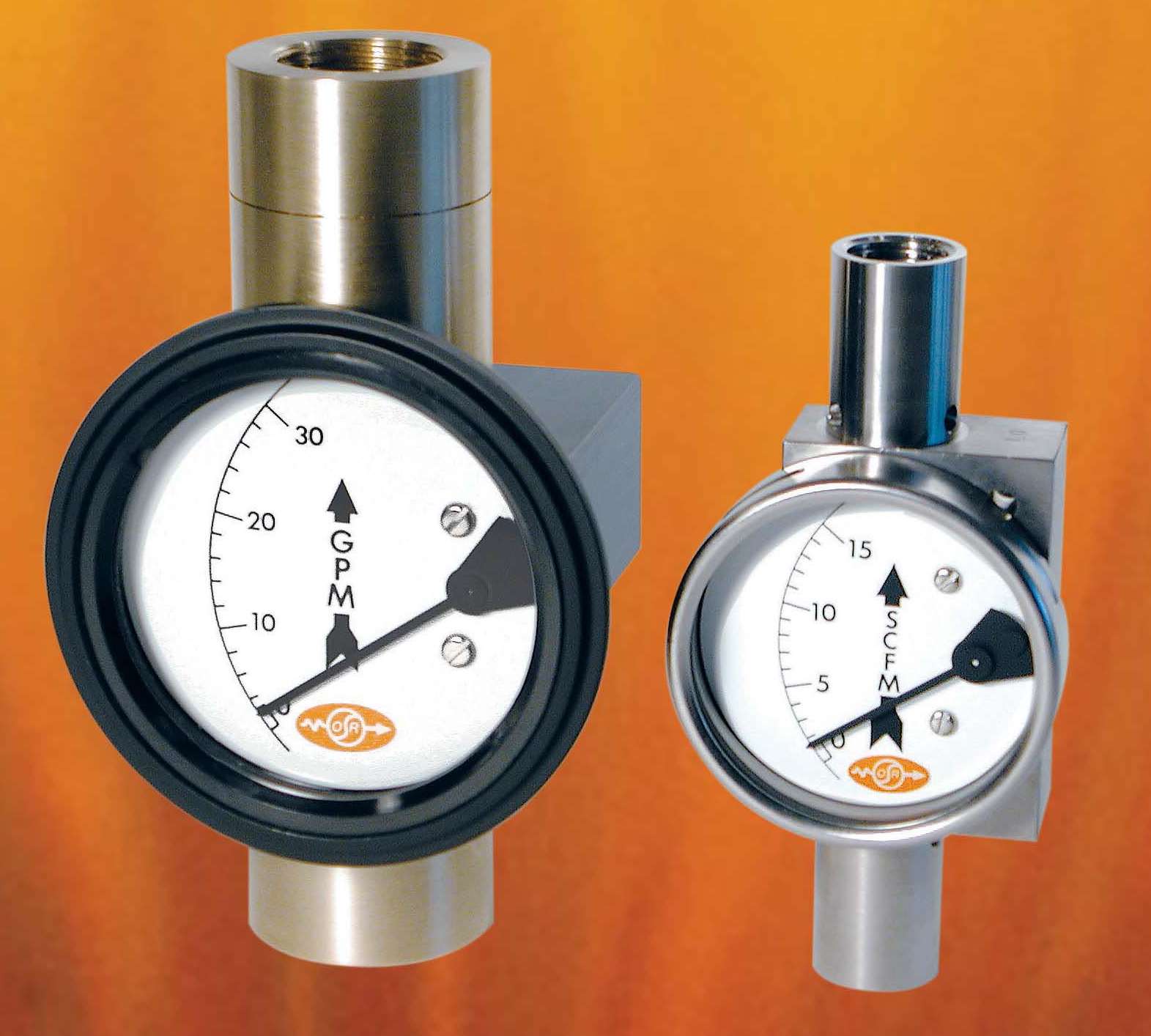

Jun 25, 2004 Series 2220 and 2320 measure liquids from 1–10 gpm and gases from 1.5–100 scfm at line pressures to 5,000 psi. Series 2420 measures liquids up to 30 gpm at line pressures to 1,500 psi. Magnet/cone sensor rests in orifice and is deflected by fluid flow. As flow increases, dial pointer, magnetically coupled to sensor, indicates flow rate on linear scale. Models are available in aluminum, stainless steel, or brass with dial faces from 2.5–4.5 in. diameter.

Intelligent Manufacturing Solutions    Erie, PA 16506
Jun 25, 2004 Intelligent Assemblyâ„¢ turnkey, real-time data retrieval system integrates directly into manual and automatic assembly processes. It provides real-time feedback and reporting of vital assembly data. Collecting, organizing, and reporting manufacturing cell information, product offers capabilities and reports such as full component and process traceability, downtime, SPC/SQC quality, and production efficiency.

RadiSys Corp.    Hillsboro, OR 97124
Jun 25, 2004 Based on 2 Intel® IXP28XX network processors, RadiSys Advanced Telecom Computing Architecture-compliant module includes interfaces for switch fabrics and physical media to receive, process, and forward data at 10 Gbps data rates. System offers physical interface implemented as Rear Transition Module (RTM), which provides rear I/O and flexibility of interface types. It also provides SPI-4 interface between main module and RTM via ATCA Zone 3 connector and supports 10 ports x 1 GbE.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Jun 24, 2004 Pro Series soft touch, logic analyzer probes enable direct connection from probe to targets on PCB without use of connector. They use micro spring-pin technology with 4-point crown tip that can pierce any contamination on board and provide redundant contact. Top-mount retention module accommodates varying PCB thicknesses. Probes are compatible with lead-free finishes such as organic-coated copper, as well as gold, silver, and hot-air surface level.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Jun 24, 2004 OmniBER OTN communication performance analyzer offers Generic Framing Procedure (GFP), Virtual Concatenation (VCat), Ethernet payload, and Link Capacity Adjustment Scheme (LCAS) measurement capabilities. Used for next-generation SONET/SDH (NG SONET) technologies, analysis capabilities provide insight into standards conformance and quality of service. System also helps resolve multi-vendor interoperability problems.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Jun 24, 2004 With multi-protocol environment, N2X OC-786c POS XS test card allows users to verify scalability and resiliency of highest rate line cards in terabit routers used for IP/MPLS (multi-protocol label switching) core networks. Interface for Agilent N2X provides wire-speed traffic generation and internet-scale protocol simulation at 40 Gbps, enabling carriers to deliver high-bandwidth voice, video, and data services.

Emerson Process Management Dieterich Standard Inc.    Boulder, CO 80301
Jun 24, 2004 Micro Motion Coriolis flowmeters provide complete-loop Safety Instrumented System (SIS) solution with Rosemount 3051S SIS pressure and 3144P SIS temperature transmitters. Products integrate with DeltaV SIS system as well as SIS final control elements. As extension of PlantWeb digital plant architecture, smart SIS safety management solution employs digital intelligence and diagnostics from sensor to logic solver to final control element.

UV Process Supply, Inc.    Chicago, IL 60614-4805
Jun 24, 2004 Model TFC-9000™ uses sensor to measure exothermic heat reaction from polymerizing sample. After 10–20 sec sample analysis, unit displays time to reach peak temperature, peak temperature in BTUs, slope of temperature rise, and total energy emitted by curing reaction in BTUs. Model TFC-9000 works as stand-alone measurement system or can be connected to computer through serial port. Captured data can be exported and plotted to Excel graph for analysis.

DeFelsko Corp.    Ogdensburg, NY 13669

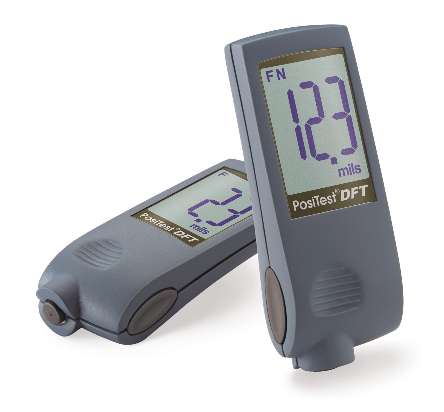

Jun 23, 2004 PosiTest DFT Coating Thickness Gage is available in 2 models, Ferrous for steel or Combo for all metals. Combo model automatically recognizes substrate and takes measurement. Both types are suited for powder coaters, paint applicators, and automotive refinishers.

Emerson Process Management, Rosemount Div.    Chanhassen, MN 55317
Jun 23, 2004 In Situ Analyzer, Model 5081 FG utilizes zirconium oxide sensor cell constructed of ceramic materials to measure excess oxygen in process temperatures ranging from 1,022-2,550°F. HART® protocol delivers device status and diagnostic data via handheld infrared remote control to technicians servicing and calibrating systems. Mounted close to furnace or radiant section of process flue gas system, unit provides accuracy of ±1.5% of reading.

Pressure Systems, Inc.    Hampton, VA 23666
Jun 23, 2004 Series 550 waterMONITOR consists of submersible hydrostatic level transducer capable of storing up to 600,000 level, temperature, and time stamp measurements. It has RS-485 electrical interface using SDI-12 protocol with selectable baud rates up to 19,200. Transducer incorporates 2 or 4 Mb internal non-volatile memory and uploads data at 100 scans/sec. Full-scale level ranges from 0-10 to 0-692 ft of water with +0.05% FS total error band accuracy.

Jerguson Gage & Valve, A Div. Of The Clark-Reliance Corp.    Strongsville, OH 44136
Jun 23, 2004 Suited for Magnicator II® magnetic level gages, LevelStar bi-color LED indicator delivers across-the-plant visibility in day and night conditions. Lights provide continuous service life exceeding 80,000 hr. With no mechanical or moving parts, product is available in 120 and 240 Vac options and FM Approved for use in hazardous environments. Standard and customized color options are available.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Jun 23, 2004 Model N2X combines services testing with carrier-grade infrastructure testing and emulation. It tests metro Ethernet, IP/VPN, and L2oMPLS for ATM, over standards such as MPLS, IPv6, and next-generation SONET. Unit is based on programmable measurement test cards that plug into common chassis and can be mixed and matched to create realistic emulation. Ethernet services disruption measurement validates quality of service across network architectures.

Ionics Instrument Business Group    Boulder, CO 80301
Jun 22, 2004 Sievers® 900 Series Total Organic Carbon (TOC) Analyzer Series includes 900 Laboratory, 900 On-Line, and 900 Portable TOC Analyzers as well as optional 900 Autosampler. With 0.03–50,000 ppb dynamic range and 4 min analysis time, products offer automated calibration, verification, and reagent adjustment routines. Touch screen display provides access to real-time or trend data, while USB port is included for data transfer.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Jun 22, 2004 Capacitive accelerometer signal conditioners provide excitation power for capacitive accelerometers and prepare their measurement signals for readout, recording, and data acquisition. Platforms are offered in portable, benchtop, modular, and rack-mount styles, all of which include per-channel null adjustment for zeroing DC offset voltage. Battery and optional dc-powered units are suited for in-vehicle applications or remote testing environments.

Adcole Corp.    Marlborough, MA 01752

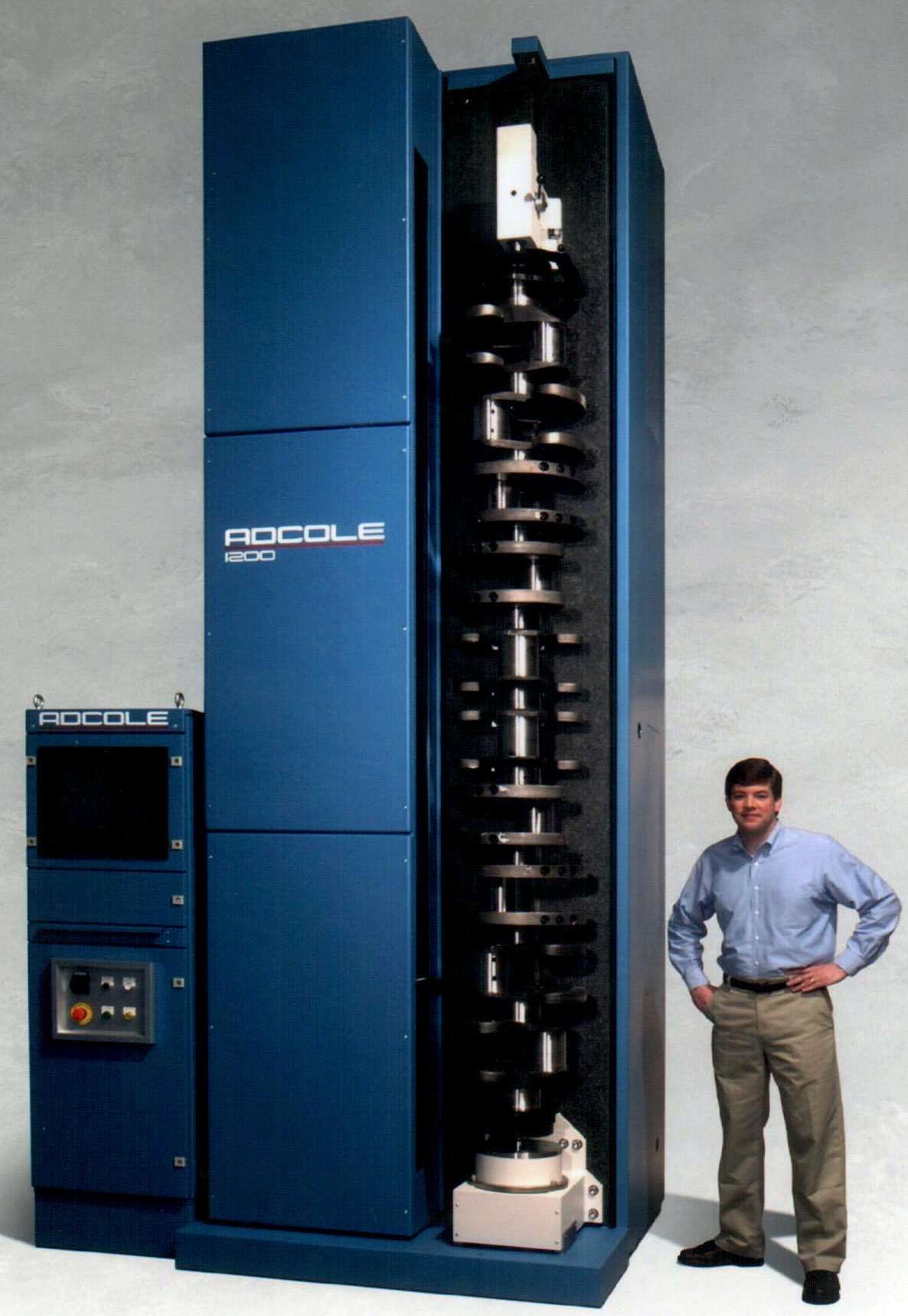

Jun 22, 2004 Heavy-duty Model 1200-8 crankshaft and camshaft gage measures parts up to 130 in. long, with 22 in. swing diameter, that weigh up to 3,200 lb. Featuring laser interferometer system, product also employs contact follower to measure pin journals for roundness and straightness. It has 12 in. follower stroke and provides instant graphic display of measured parameters. Built on base of structural steel main cabinets, unit incorporates Pentium PC with Windows XP software.

Diamond Systems Corporation    Mountain View, CA 94043
Jun 22, 2004 Mercury PC/104-Plus module integrates Ethernet connectivity with digital I/O, eliminating need for additional board in embedded computing applications. It provides 2 PCI-based, NE2000-compatible, 10/100Mbps Ethernet ports utilizing National Semiconductor DP83815 Mac + Phy PCI controller chip. Its 24 digital I/O lines feature programmable direction in 4- and 8-bit groups. All I/O lines contain user-configurable 10 kohm pull-up resistors.
