FARO Technologies, Inc.    Lake Mary, FL 32746 6204
Sep 10, 2004 Suited for small machine shops, FARO Gage and FARO Gage-PLUS provide .0004 and .0002 in. accuracy, respectively. Units set up in seconds, allowing user to inspect parts, molds, and assemblies directly on machinery producing them. Providing 3D measurement and statistical analysis, CMMs record all measurements and create comprehensive reports. They come with laptop computer and can be customized with accessories to best fit shop's needs.

Fiber Instrument Sales, Inc. (FIS)    Oriskany, NY 13424
Sep 10, 2004 With 4 in. screen and 200x magnification, Portable Video Microscope produces large endface images of fiber optic connectors to facilitate inspections. Compact, lightweight unit is housed in waterproof case and converts from ac to battery operation for field use. It comes with universal 2.5 mm adapter and charging adapter.

Labconco Corp.    Kansas City, MO 64132 2696
Sep 09, 2004 XPert HEPA Filtered Balance System features interior depth of 23 in., accommodating large micro and analytical balances. Clean-Sweepâ„¢ airfoil allows air to sweep work surface, while upper containment sash foil bleeds air into enclosure to direct contaminants away from user's breathing zone. Tempered safety-glass sash, sides, and top offer visibility and provide fire, scratch, and corrosion resistance. Enclosures are available in 2, 3, and 4 ft widths.

Ophir Optronics, Inc.    Danvers, MA 01923

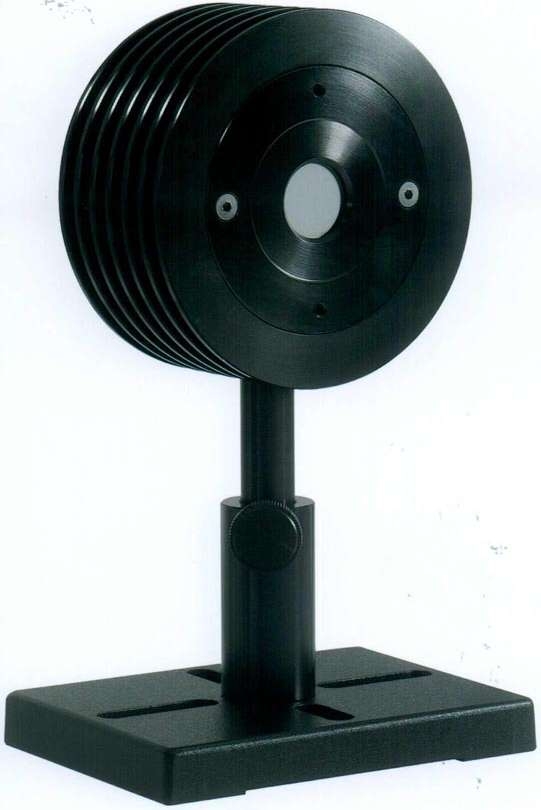

Sep 09, 2004 Model 30(150) A-SV volume-absorbing detector head measures beam power up to 30 W continuously and 150 W intermittently. It has 100 KW/cm² damage threshold for power density and 1 J/cm² damage threshold for energy density of nanosecond pulses. Spectral range is 0.19–12 µm, power range is 50 mW to 150 W, and energy range is 50 mJ to 200 J.

Ophir Optronics, Inc.    Danvers, MA 01923
Sep 09, 2004 Comet 1K Power Probe measures laser power from 20 W to 1 KW. Users set laser to 10 sec timed exposure, press ready button, and place probe in path of laser beam, where product senses temperature rise and measures it automatically. Specifications include 0.2–20 µm spectral range, ±5% absolute calibration accuracy, and ±1% repeatability for same initial temperature. Unit comes with 2x8 character LCD and swivel mount that rotates ±90°.

Shimadzu Scientific Instruments, Inc.    Columbia, MD 21046

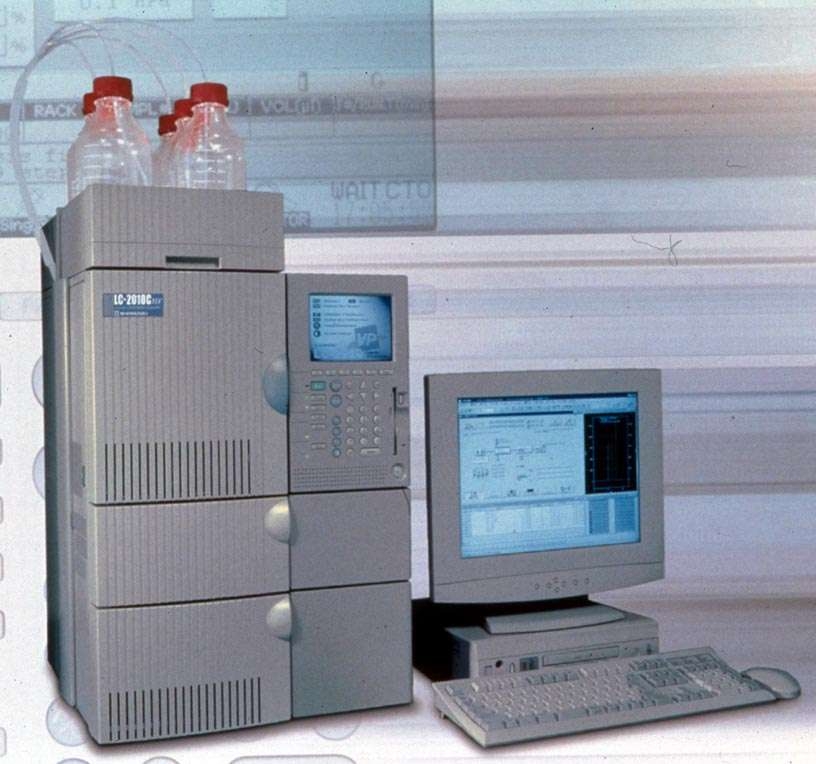

Sep 09, 2004 Series LC-2010HT includes models LC-2010AHT and LC-2010CHT with temperature-controlled sample compartment capable of heating and cooling samples. Products include system controller, membrane degasser, low-pressure gradient unit, autosampler, column oven, and UV detector with thermostatted flow cell. Features include built-in, automated validation functions, 2 programmable shutdown files, automated start-up function, and GUI. Sample injections can be made in 15 sec.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Sep 09, 2004 Pocket Detective 3.0 measures both Visible Light Transmission and Visible Light Reflectance. Operating from 1,600 mAh internal battery, unit includes Magna-Alignment(TM) auto alignment system, pushbutton operation, LCD digital readout, panel-light function indicators, and auto shut-off. Instrument measures all windows of vehicle, including roll-down and fixed glass. It is also suited for measuring opacity or clarity of plastic substrates.

Tyco Engineered Products & Services    Exeter, NH 03833
Sep 09, 2004 To aid in compliance with NFPA® 25, Zonecheck® simplifies testing of wet fire sprinkler system flow switches. Key-switch operation allows multiple zone key switches to be operated from one master. Product recirculates water within pipe around flow switch to simulate flow of one fire sprinkler in operation, causing actuation of flow switch. Working pressure rating is 175 psi and operating temperature range is 40–120°F.

MadgeTech    Warner, NH 03278
Sep 09, 2004 Stand-alone, battery-powered PRTRANS1000 measures and records up to 262,143 pressure readings in maximum of 255 transient events, with each event preceded by up to 32 samples of pre-trigger data. Featuring user-settable threshold levels to trigger events and real-time clock to ensure they are date and time stamped, stainless steel instrument is waterproof and has 0.1 ms pressure response time and ±0.5% FSR repeatability.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Sep 09, 2004 Agilent N4219B provides reliable connection to test system to debug SATA (serial ATA)-1, SATA-2 or SAS (serial attached SCSI) link. Leveraging technology from N4220B PCI Express packet analysis probe, product provides FPGA-based triggering and allows multiple packets to be defined and recognized within protocol analysis probe without consuming logic analyzer's triggering resources. For connection to test system, unit uses N4218A interposer.

Electronic Development Laboratories, Inc.    Danville, VA 24540
Sep 08, 2004 Available in variety of sizes and styles, Roller Contact Sensors feature glass-filled nylon block that can withstand temperatures up to 815°C. Protected thermocouple enables use on drums, rollers, pipes, hoses, tanks, tubes, and objects with surface speed up to 10 fps.

Altera Corp.    San Jose, CA 95134-1941
Sep 08, 2004 Able to facilitate designs using Stratix II high-density FPGAs, development kits include high-speed interface kit, DSP kit, and embedded design kit. Each includes Stratix II development board, 16 Mbyte flash memory, CD with documentation and reference designs, power supply, USB Blaster download cable, and other cables. Also available, MAX® II Development Kit helps build general-purpose, low-density logic applications using MAX II CPLD family.

Kurt Mfg. Co., Electronics Div.    Minneapolis, MN 55449

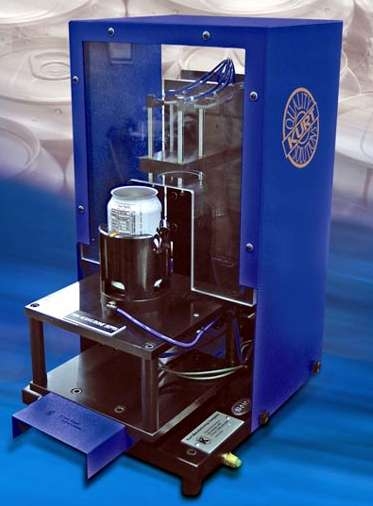

Sep 07, 2004 With measurement time of less than 10 sec, KurtCAN Gage systems measure multiple can sizes with resolution to 10 millionths. Complete measurement includes 3 separate gages for checking wall thickness, trim and dome heights, flange width, neck plug diameter, and finished can height. Hand-loaded in horizontal or vertical mode, systems capture over 1,000 readings per second and automatically rotates can 360° about its axis while measurement is done.

Ideal Industries, Inc.    Sycamore, IL 60178

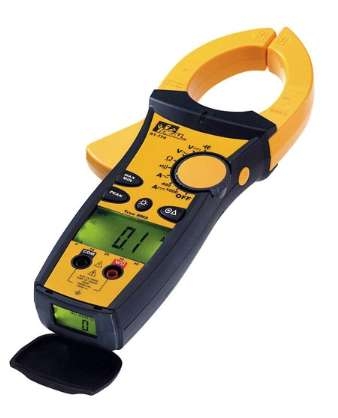

Sep 07, 2004 Series 770 and 760 consist of 1,000 and 600 A clamp meters, respectively. TightSightâ„¢ LCD, built into bottom of testers, enables electricians to view display from virtually any angle. Meters feature large tapered jaws and wire separating hook tip, true rms for noisy environments, and peak min/max with 1 ms capture to measure in-rush current. High Voltage Indicator alerts user if any voltage over 30 V ac/dc is present on any functions.

Cognex Corp.    Natick, MA 01760 2059
Sep 07, 2004 DataManâ„¢ 6400 and 6500 hand-held readers and In-Sight® fixed-mount readers combine IDMaxâ„¢ software with optimized lighting and optics for decoding 1D and 2D codes. DataMan 6400 reads laser and ink jet produced codes, while DataMan 6500 adds ability to read codes formed by electrochemical etching and dot peen marking. In-Sight 5110 supports ISO mark quality metrics for real-time 1D and 2D code verification at mark and read stations.

Central Carolina Scale    Sanford, NC 27330
Sep 07, 2004 Measuring 4 x 4 ft, precalibrated DCSB Pegasus Floor Scale includes Salter Brecknell S200E Indicator. Mild-steel scale features 4 alloy tool-steel, potted load cells, ABS J-box, powder-coat paint, and NTEP at 5,000 divisions. System includes interface cable and minimizes on-site installation.

Advanced Custom Sensors, Inc.    Irvine, CA 92618
Sep 07, 2004 Combining solid-state pressure sensor technology with microprocessor electronics, Model 1200 offers 4-digit LCD display, digital zeroing, automatic-off function, and 200% overpressure protection. Standard unit comes with ¼-18 NPT pressure port and operates on one 9 V alkaline battery.

InterTech Development Co.    Skokie, IL 60077 3220

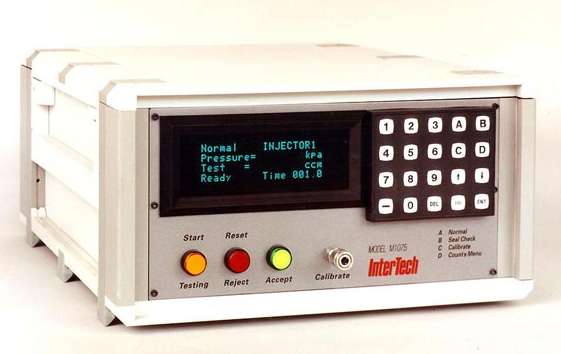

Sep 03, 2004 Models M-1075 CAVAL-03 and -04 eliminate need to manually check and adjust instrument zero and span, or to manually verify flow measurement. CALVAL-03 offers upstream testing from 0.10–4.00 sccm, while CALVAL-04 offers downstream alternative for 0.01–0.25 sccm range. Both units automatically keep pass/fail totals and store up to 1,000 test records. Calibration is NIST-traceable to less than 5% R and R, with calibration accuracy traceable to 0.2% primary standard.

Weldlogic, Inc.    Newbury Park, CA 91320
Sep 03, 2004 Portable Oxygen Analyzer, Model OM-4 measures oxygen levels for welding stainless steel pipes, tubes, and tanks to prevent coking, oxidation, and discoloration. It shows when oxygen has been removed down to 0.01%, indicating there are no leaks. Featuring large digital display, analyzer operates from internal, temperature-compensated, electrochemical oxygen sensor. Power is provided by 9 V battery, delivering 3 years of operation before replacement.

Linear Technology Corp.    Milpitas, CA 95035
Sep 03, 2004 Logarithmic Model LT5534 operates over RF input frequency of 50 MHz to 3 GHz and is capable of detecting full-scale RF changes with 38 ns delay. Output is directly proportional to logarithm of average RF voltage input. At 900 MHz, unit provides repeatable measurement of RF power within ±1 dB over 50 dB dynamic range, while spanning temperature extremes of -40 to +85°C. Operating from 2.7-5.25 V supply, detector comes in 6-lead, 2 x 2 mm surface-mount, SC-70 package.
