Mitutoyo America Corp.    Aurora, IL 60504 9176
Sep 17, 2004 Available in 2 sizes, UMAP (Ultrasonic Micro and Accurate Probe) system combines vision-measuring instrument with 20 mm dia, ultrasonically activated probe. Vision system positions probe for insertion into holes or other miniature features and takes measurement data according to wave-form changes when contact is made. Probe tip, made of carbide/glass, is 2 mm long, and system has 12 x 8 x 8 in. measuring range with 1.4 micron accuracy.

Honeywell Sensotec Test & Measure    Columbus, OH 43228
Sep 17, 2004 Featuring 313 stainless steel wetted parts, Model CK uses high-impedance sealed pressure transducer compatible with liquids and gases. It includes auto shut-off, independent zero and span adjustment pots, and on/off membrane switch. Maximum pressure is 1,000 psi and compensated temperature range is 0–70°C. User can select gage, absolute, or vacuum reference. Backlit display and NEMA 4X rating are optional.

TSI Inc., Flowmeter Div.    Shoreview, MN 55126

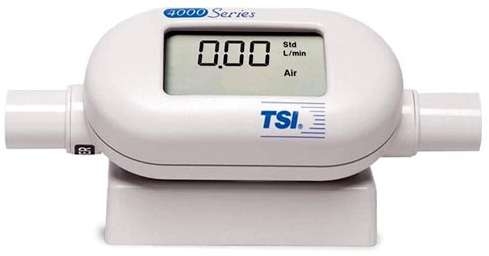

Sep 17, 2004 Model 4146, with range of 0.01–20 lpm, and Model 4046, with range from 2.5–300 lpm, are suited for low- and high-flow sampling pumps, respectively. Portable instruments provide continuous display of volumetric flow, allowing users to make calibration adjustments in real-time. Temperature compensated and pressure corrected, products offer volumetric flow accuracy within 2% of reading and can be used for any instrument that draws active sample.

Dresser Instrument, Ashcroft Transducer Operation    Shelton, CT 06484

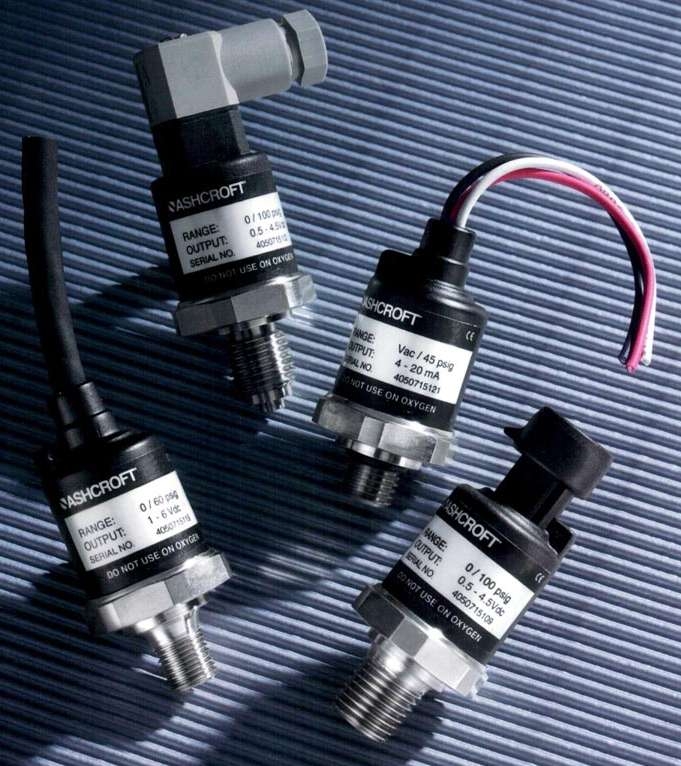

Sep 17, 2004 Ashcroft® G2 utilizes planer, micro-machined sensor combined with custom ASIC for digital compensation. Product delivers 1% FS Total Error Band performance, including linearity, hysterisis, non-repeatability, and thermal error. With IP67 water ingress rating, transducer is available in pressure ranges from 30–20,000 psi. Additional features include all-welded wetted materials and various pressure connections and electrical terminations.

Beta Calibrators    Farmersville, TX 75234

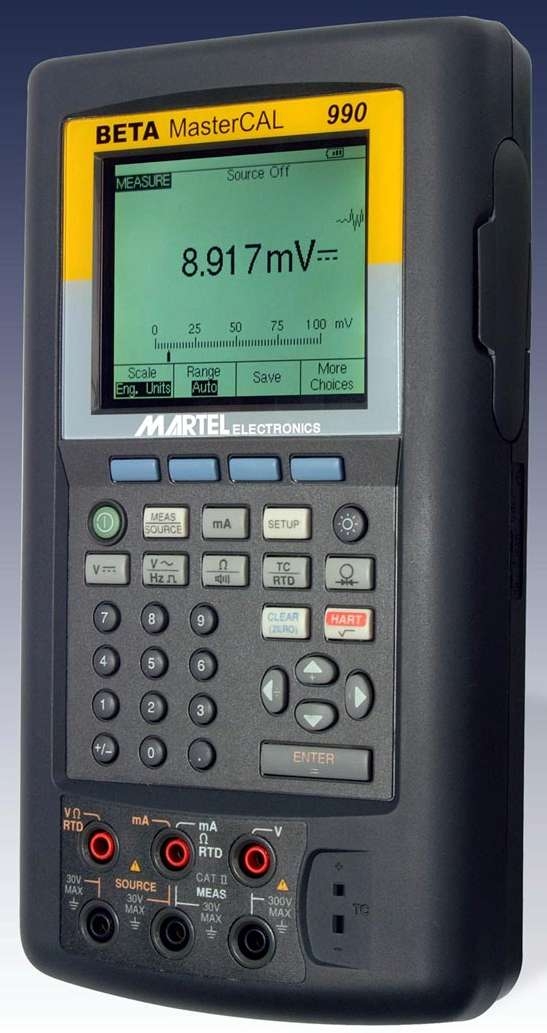

Sep 17, 2004 As precision calibrator, hand-held MasterCALâ„¢ 990 reads thermocouple, RTD, ohms, dc and ac voltage, dc current, pressure, and frequency and sources most of above. Measurements are displayed on 200 x 240 pixel, backlit LCD display. As HART configurator/communicator, product supports universal, command practice, and device-specific commands for various devices. It also supports point-to-point as well as multi-drop and burst-mode operation.

Dresser Instruments, Ashcroft & Heise Instruments    Stratford, CT 06614 5145

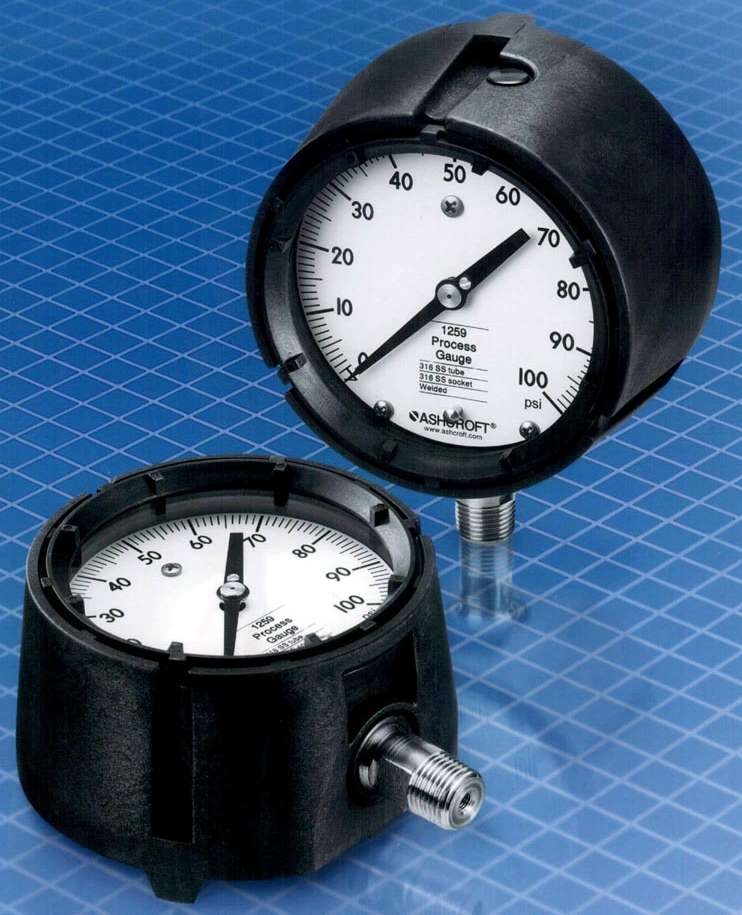

Sep 17, 2004 Equipped with 4½ in. solid front safety case, Ashcroft® Type 1259 process gauge has 316 SS or Monel wetted parts and can be filled with liquid in field without fill kit. It offers ranges from vacuum through 20,000 psi, including compound, and features 300 SS movement and thermoplastic case. Duratube® with as-welded Bourdon tube controls location of weld in lowest stress area for additional safety.

Brookfield Engineering Laboratories, Inc.    Middleboro, MA 02346
Sep 16, 2004 With FS torque range of 181,000-7,970 dyneocm, 1/23 CAP 1000+ offers choice of 750 and 900 rpm speeds or single custom speed suited for QC tests. Range lets users to perform shear rate tests on thinner coatings, polymers, resins, and other water-based products manufactured with no VOCs. Unit tests sample volumes of less than 1 mL and features temperature control from 5-75°C with integrated Peltier Plate or 50-235°C with integrated heating element.

Schunk    Morrisville, NC 27560

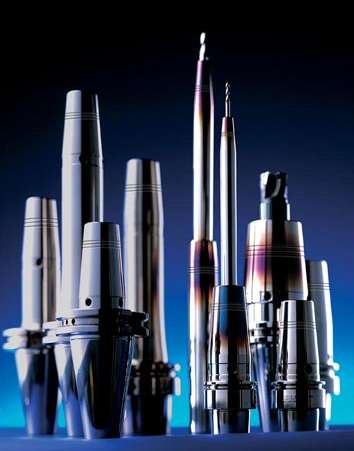

Sep 16, 2004 CELSIO Tooling guarantees true running of 0.003 mm when checked at inside end of clamping bore. Steel bodies ensure maximum toolholder life without temperature distortion. Mounting tapers are ground to grade AT3 Form A, and high-temperature as well as hardening procedures help avoid material distortion due to heating and cooling. High-frequency, 10 kW induction coil delivers fast shrinking for 3–32 mm dia carbide tools and 6–32 mm dia HSS toolholders.

Mahr Federal Inc.    Providence, RI 02905
Sep 16, 2004 Rated IP67, MarCalâ„¢ EW Digital Calipers feature resistant materials in casing and keyboard, and fluid protection system to safeguard electronic components. Offered in ranges from 6, 8, and 12 in., units include dirt wipers, lapped guide ways, and hardened stainless steel slide, beam, and measuring blades. Rated IP65, Digital Micrometer Models 16 and 40 EW feature satin chromed steel frames with heat-insulated holders, lapped carbide tipped anvils, rapid drives, and integrated ratchets.

Mahr Federal Inc.    Providence, RI 02905
Sep 16, 2004 MarFormâ„¢ MFU 100 delivers lab-quality 3D and form measurements to shop floor. In addition to cylindricity, concentricity, and parallelism, MFU 100 measures diameter and angle on parts such as sealing cones. Motorized centering tilt table, in conjunction with T7W motorized probe and motorized Y-axis, provides fully automated measurement. MFU 100 is driven by MarWin form evaluation software, which includes basic, teach-in, and text-editor modes.

Mahr Federal Inc.    Providence, RI 02905
Sep 16, 2004 Available in digital and mechanical versions, MarTest® 802 EW can determine zero position of workpiece and center of bore; correct position of workpiece; provide measurement of lengths and depths; and provide information for angular calculations. Unit measures in 3 dimensions simultaneously, providing operator with clear positioning data. Rated IP65 for water resistance, probe offers 0.236 in. range in all axes and resolution of 0.0001 in.

Mahr Federal Inc.    Providence, RI 02905
Sep 16, 2004 Maxum® III is available with canister or pencil probe and transducers can be buried in gaging fixtures while display remains visible to operator. Setup features include switchable in./mm, selectable digital resolution, analog display range, dynamic measuring functions, tolerances and measuring direction. Auto power-down feature extends battery life. Zero-based transducer never loses reference point and maintains last zero reading.

Optical Gaging Products, Inc.    Rochester, NY 14621 4839
Sep 16, 2004 Offering X, Y, Z stage travel of 300 x 150 x 200 mm, benchtop SmartScope® Questâ„¢ 250 can use video, touch probe, laser scanner, or micro-probes to characterize part. Fully telecentric TeleStar zoom lens provides consistent feature sizes anywhere within field of view at any magnification. Feather Probeâ„¢ adds micro-probing capability with mg-level probing pressure. All sensors are calibrated to common reference frame in MeasureMind® 3D MultiSensor metrology software.

Optical Gaging Products, Inc.    Rochester, NY 14621 4839
Sep 16, 2004 Equipped with built-in LCD displays and shop-hardened keypad, Focusâ„¢ Contour Projector® employs true telecentric optics; internal, turret-mounted magnification lenses; and balanced center-drive focus mechanism. Automatic lens sensing provides error-free measurement scaling. Product, with adjustable direct projection collimator, also features integral geometric measuring processor, square-on surface illumination, and hardened worktable with 8 x 5 in. travel.

Arlyn Scales    East Rockaway, NY 11518
Sep 15, 2004 SAW-T detects displacement values using all digital parallel SAW (Surface Acoustic Wave) transducers. Shock resistant product has 12 x 16 in. stainless steel platform and graphics indicator with 1 in. high digits. It also features 25 lb capacity and 0.0002 lb readability. Applications include formulation, parts counting, pharmaceuticals, and general weighing.

Mettler Toledo, Inc.    Columbus, OH 43240
Sep 15, 2004 Designed for overhead material handling and weighing, Xpress Crane Scales come in Economy and Standard models. Economy unit features power saving mode, waterproof construction, anti-scrape screen, and 5-digit LED display. Standard model includes power saving engine; physical load cell protection; waterproof, anti-shock PCB; and IR remote control. Applications include recycling, metal works, machine repair, transportation and logistics, as well as shipping and receiving.

View Engineering Inc.    Simi Valley, CA 93063 3348
Sep 15, 2004 Summit XP large-format, vision measurement/inspection series operates to 0.1 micron at velocities ranging from 400–500 mm/sec. It features fixed bridge design with granite base and arch, passive vibration isolation system, and noncontact stage encoders. Available in variety of sizes, system is suited for measuring large parts such as printed circuit boards, stencils, and flat-panel displays, as well as nested groups of smaller parts.

View Engineering Inc.    Simi Valley, CA 93063 3348
Sep 15, 2004 Non-contact, benchtop Benchmarkâ„¢ 300 features dual-magnification optical system that uses 2 cameras for near instantaneous magnification changes. Programmable Ring Light uses monochromatic red, green, blue, or white light for high-resolution imaging. Benchmark 300 offers measurement accuracy of U₂ (XY plane) = (2.5 + 5L/1000) µm and resolution to 0.1 µm. It is suited for applications ranging from article inspection in QA lab to process control on production floor.

Marposs Corp.    Auburn Hills, MI 48326-2954
Sep 15, 2004 Fenar L gauge system allows checking roundness of crankshaft main or pin journal diameter immediately after grinding, without removing part from machine. It is capable of controlling size on both mains and pins, in range up to 25 mm, without mechanical adjustment. Chordal measurement across 3 contact points can be accomplished with 1–2 rotations of part. Data stream from gauge is sent to PC, either within machine control or off line, where roundness calculations are made.

Marposs Corp.    Auburn Hills, MI 48326-2954

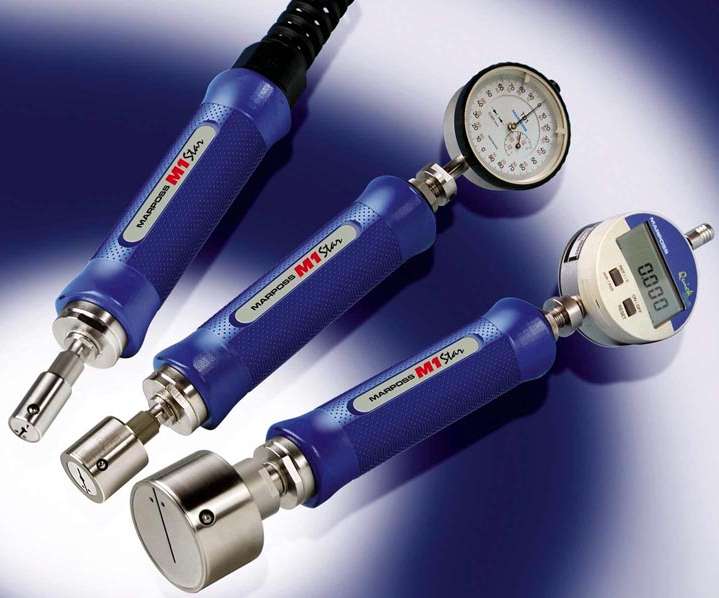

Sep 15, 2004 M1 Star™ MBG mechanical bore gauge checks ID and ovality or taper of through, blind, and super blind bores. Mechanical measurement-transmission system lasts over 10,000,000 measuring cycles and interfaces with any dial indicator, digital indicator, or pencil probe. Application range is 0.12–11.81 in. Modular measuring head facilitates retooling with removable nosepiece and contacts.
