Inspection Mirror Set allows examination of weld coupons.
Peterborough PE7 3FT United Kingdom
Sep 28, 2004 Inspection Mirror Set consists of light source with 110 mm shaft and angled inspection mirror mounted at end of shaft to allow operator to inspect weld root penetration. Two mirrors, one 16 mm dia and one 20 mm dia, are supplied in kit.
Analog-to-Digital Converters range from 10-170 Msps.
Linear Technology Corp.
Milpitas, CA 95035
Sep 28, 2004
Operating from 3.3 V supply, Series LTC2220 is comprised of 24 converters with 10, 12, or 14-bit resolution. At 630 mW, 12-bit Model LTC2224 operates at 135 Msps and comes in 7 x 7 mm QFN package. Suited for low power base station designs and optimized for undersampling, unit features 775 MHz bandwidth and achieves 77 dB SFDR up to 250 MHz input. Series offers selectable input range of ±0.5 or ±1 V and includes data ready output clock, as well as shutdown and nap modes.
GC/MS Instruments include software for centralized control.
Shimadzu Scientific Instruments, Inc.
Columbia, MD 21046
Sep 27, 2004 Compatible with GCMS-QP5000 Series of instruments, GCMSsolution v1.1 provides full compliance with FDA requirements for CFR 21 Part 11. It also provides support for USEPA, ASTM, and NIDA sample processing as well as reporting requirements for format and completeness. Software features One Window access that puts control of system on one screen, while wizards allow users to create batch and compound tables with up to 1,000 samples.
Ball Nuts withstand harsh environments.
Bosch Rexroth Corporation
Hoffman Estates, IL 60192-3707
Sep 24, 2004 Ball Screw Assemblies are offered with precision screws, zero-clearance preloaded nuts, or adjustable single nuts. Choice of seals provide wiping action and prevent fine dusts, chips, or coolants from penetrating nuts. Complete drive units with integrated ball screw assembly, plus matching pillow blocks and nut housings are available with screw supports for maximum linear velocity. Units are suited for feed, positioning, and transportation tasks in metalworking machines.
Transducer Indicator/Conditioner comes in 1/8 DIN package.
Honeywell Sensotec Test & Measure
Columbus, OH 43228
Sep 24, 2004 While offering strain gauge, high-level, and LVDT transducer input options, microprocessor-based Model SC500 also provides 5 output options, including RS-232 and RS-485. It has 4 virtual channels to support custom applications and offers Plug and Play technology, eliminating cabling and labeling problems. Equipped with vacuum-fluorescent display, unit is compatible with various Honeywell Sensotec sensors and comes with ac adapter.
Signal Conditioners suit strain gage sensors.
PCB Piezotronics Inc.
Depew, NY 14043 2495
Sep 24, 2004 Strain Gage Signal Conditioners provide conditioned, amplified analog voltage and current output for strain gage-based sensors. Operating from 12â€“28 Vdc or 115/230 Vac, they deliver ±5 or ±10 Vdc and 4â€“20 mA output signals for recording, control, and analysis. Offered in DIN Rail, 1/8 DIN panel, and in-line configurations, devices include shunt calibration, programmable set points, 5-digit display, peak and valley recall, RS-232 output, and waterproof enclosure.
Temperature/Vibration Sensor withstands harsh environments.
PCB Piezotronics Inc.
Depew, NY 14043 2495
Sep 24, 2004 Model TO640B 2-wire, loop-powered, 4â€“20 mA sensor is available with top-exit or 360° swivel-mount, side-exit connections. Unit can interface with existing alarm, control, and monitoring systems such as PLCs, DCSs, and SCADA systems. Temperature output is -40 to +185°F, with vibration signal offered in peak velocity, rms velocity, and rms acceleration versions. Sensor is suited for monitoring rotating machinery, gears, bearings, and motors.
Integrating Spheres provide lamp measurement.
Optronic Laboratories, Inc.
Orlando, FL 32811 6590
Sep 24, 2004 Available in diameters of 18, 39, and 76 in., Large Integrating Spheres provide total luminous flux and total spectral flux measurement. Two hemispheres, mounted in frame, separate for installing or interchanging lamps. Interior surfaces are coated with washable Optolon 2 Integrating Sphere Coating Spray. Internal baffles prevent non-integrated light from reaching detector port. Variety of lamps and lamp holders are available.
Stretch Wrapper handles pallets with 4,000 lb capacity.
Schiller Park, IL 60176
Sep 23, 2004
Semi-automatic, Sidewinder 4 WRAP-N-WEIGH combines wrapping and weighing into one operation by integrating precision scale and digital controls with turntable. It includes Allen Bradley Micrologix PLC, steel-it paint to prevent corrosion, anti-static pre-stretch rollers, and dual LED wrap counters. Additional features include built-in self-diagnostics, 3-wrap pattern selections, and electronically-controlled film tension adjustment.

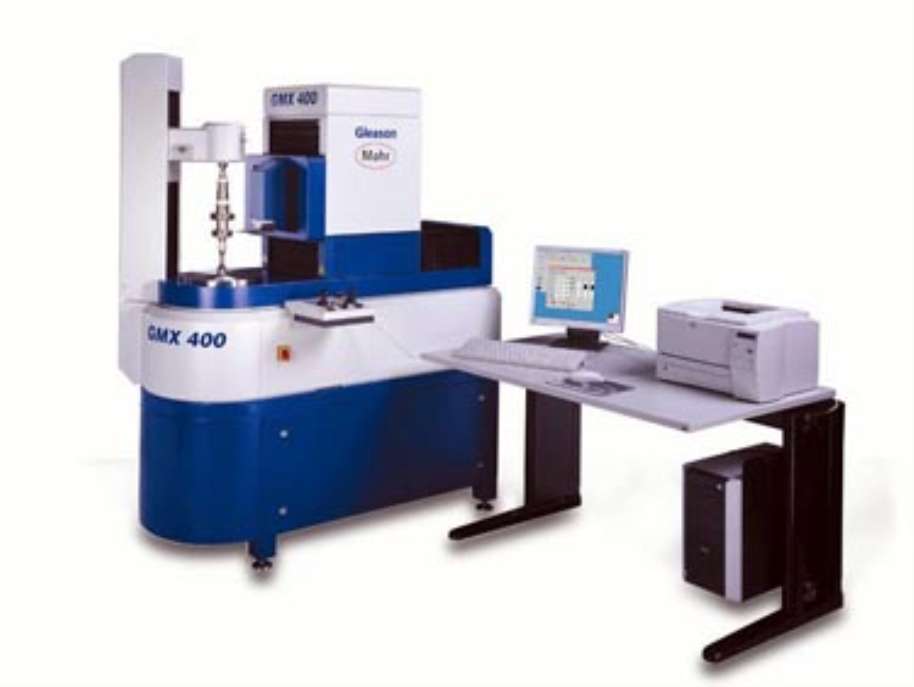

Analytical Gear Tester comes with 400 mm OD capacity.
Rochester, NY 14692 2970
Sep 23, 2004 GMX400 Class 1 CNC generative scanning inspection system allows gear tooth and flank form audit or select testing for bevel and cylindrical gears, using single fixturing setup. Probe system has scanning and single point data acquisition modes, and CNC center and tilt table enables users to perform one time, single part setup for all measurements. Four-axis inspection system with direct driven worktable permits high acceleration and accurate positioning.

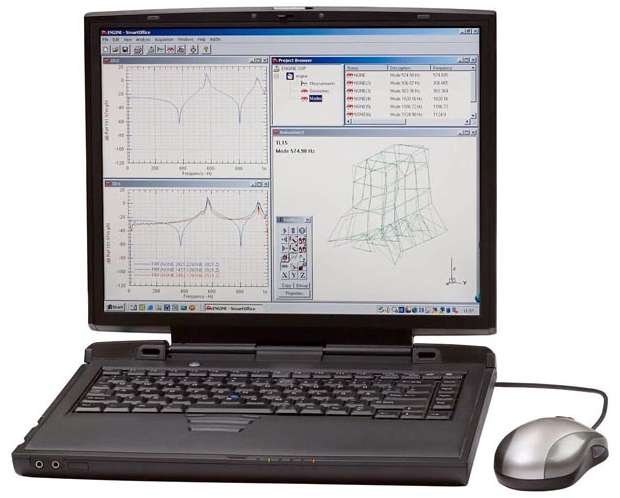

Test System lets driver perform pass-by-noise test in car.
m+p international inc.
Verona, NJ 07044
Sep 23, 2004 Pass-by-Noise system features continuous wireless monitoring of speed, position, and acceleration using GPS system within vehicle; automatic checks on entry speed and car position; and engine speed tacho input. It uses complete analysis suite of SmartOffice Analyzer, while intelligent wizards facilitate safe set-up and trigger setting. Graphical results can be copied and pasted into ActiveX compliant applications, where they stay active.
PCI DI/DO Cards offer 128 digital input/output channels.
Advantech Automation Corp.
Cincinnati, OH 45240
Sep 23, 2004
Models PCI-1758UDI and PCI-1758UDO are digital input/output cards with universal PCI bus, BoardID(TM) switch, and high-voltage isolation. PCI-1758UDI has interrupt function for each of 128 digital input channels and digital filter function, which provides de-bouncing for switches and relays. PCI-1758UDO features watchdog timer and user-configurable power-up states. Both cards support systems with 5 or 3.3 V signaling and can withstand up to 2,500 Vdc.
Mass Flow Meter utilizes Coriolis principle.
Franksville, WI 53126
Sep 23, 2004 Available with single or dual tubes, Series KCM allows real-time measurement of density and flow in liquids and slurries. Meters have no moving parts and feature smooth, 316 stainless steel flow tubes. Rated for temperatures to 250°F and pressures to 2,900 psi, units offer flow range capability up to 3,000 kg/hr with accuracy of 10.5%. Applications range from industrial paints to sanitary beverages and from non-Newtonian fluids to particle-filled materials.
Digital Signal Processor suits math-intensive applications.
Cambridge Consultants Ltd
Cambridge CB4 0DW United Kingdom
Sep 23, 2004
APE2 adaptive-datapath DSP core allows development of data engines for ASICs in wireless, audio, and control applications. VLIW architecture has parallel structure with processing modules such as single-cycle MACs and ALUs connected to common data routing bus. Ready-to-use circuit configurations include: sin/cos/tan/arcsin/arccos and arctan calculation; vector magnitude; ratios and reciprocals; coordinate transforms; and square root, exponents and logarithms.
Force Gauge captures, displays, and uploads data.
Horsham RH13 0SZ United Kingdom
Sep 22, 2004 Featuring 7-segment numeric display, BFG mid-specification instrument has ergonomic aluminum housing and 1,000 Hz loadcell sampling rate. Peak readings in tension or compression can be captured and displayed in a range of SI, metric, or imperial units. Data can also be uploaded to PCs or data-loggers in RS232 format. Available in 6 capacities from 10 N to 2.5 kN, product offers ±0.25% FS accuracy and resolution of 1 part in 5,000.
Mass Coriolis Flow Meter delivers real-time measurements.
Franksville, WI 53126
Sep 22, 2004 Utilizing Coriolis principle, KCM series employs process control tools that allow for real-time measurement of density and flow in liquids and slurries. Product features 10.5% accuracy and comes in single- or dual-tube design. Rated for temperatures to 250°F and operating pressures to 2,900 psi, meter has no moving parts and smooth flow tubes of 316 stainless steel. Flow range capability is rated at up to 3,000 kg/hr.
Recorder samples waveforms up to 4,096 times per sec.
Norwood, MA 02062
Sep 22, 2004 Gauge Buster Recorder force/stress and displacement indicator captures rapidly moving waveforms with 4,096 Hz sampling rate, user programmable lograte, and remote push-button to trigger recording. Powered by AC wall adapter or batteries, unit employs 24-bit ADC and can store up to 32,767 points per waveform. Alphanumeric display offers prompts for setup and operation and lets users view peak and live force simultaneously. WinCom PLUS Data Communications Program is included.
Modular Platform Standard suits automated test systems.
Agilent Technologies, Inc.
Santa Clara, CA 95051
Sep 22, 2004
LXI Standard combines built-in measurement science and PC-standard I/O connectivity from rack-and-stack instruments with modularity of cardcage-based systems. LAN connectivity enables modules to reside and be accessed anywhere worldwide. Available in full or half width, self-contained modules include processor, LAN connections, power supply, and trigger inputs. Controlled by computer, modules use Web browsers for troubleshooting and IVI-COM drivers for communications.
Presetter reduces tool-change time.
St. Louis, MO 63043
Sep 22, 2004 Equipped with Quick-Set Vision System, Hydromat Presetter measures, sets, and verifies all tools before placement in application. Measuring range is 248 mm for Z-axis (length), 248 mm for X-axis (radius), and 238 mm for swivel diameter. Upgradeable productivity tool includes 20x magnification camera system with in-screen measurement optics and 12 in. flat-screen, color monitor with 35x magnification, 0.005 mm display accuracy, and ± 0.01 mm measuring accuracy.
Digital Oscilloscope Adapter samples at 1 MS/sec.
Saelig Co., Inc.
Pittsford, NY 14534
Sep 21, 2004
Powered from USB port, dual-channel Stingray(TM) combines functions of oscilloscope, data logger, spectrum analyzer, volt meter, frequency meter, and signal generator in single device. It features simultaneous 12-bit sampling on both channels and 32 kbytes of sample buffer with hardware triggering, including delayed time base and pulse width. Stingray includes EasyScope II oscilloscope software and EasyLogger software for continuous PC data logging.
