ADMET    Norwood, MA 02062

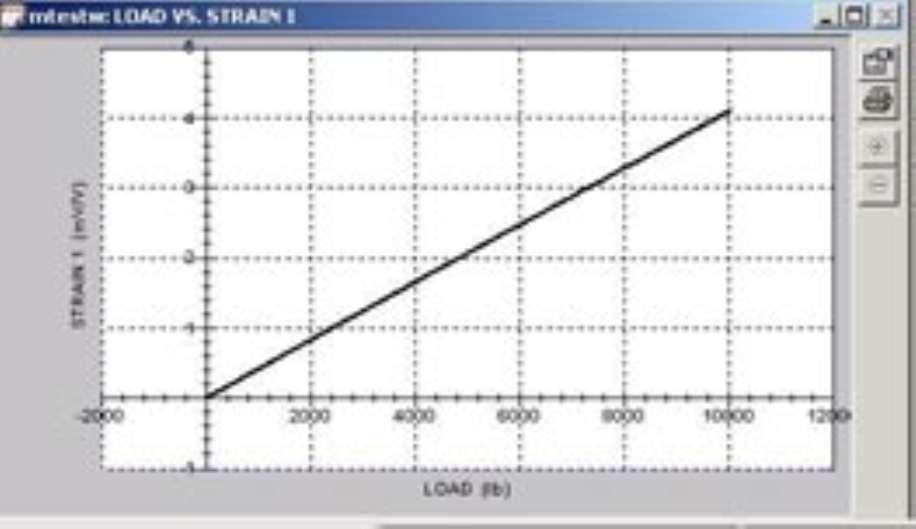

Oct 06, 2004 MTESTWindowsâ„¢ performs regression analysis of force transducers and reports coefficients of best fit polynomial, standard deviation, uncertainty, and percent error at each calibration point. It allows calibrations to be performed where load cell is rotated 120° between each load cycle, and curve is fitted to average of 3 cycles. External interface box controls movement of load frame in tension or compression and acquires load, deflection, and millivolt data.

Rockwell Automation / Allen-Bradley/Industrial Automation Sy    Mayfield Heights, OH 44124
Oct 06, 2004 FLEX modular I/O products include 1797-IE8H HART and 1797-OE8H HART, respective 8-point input and output HART analog modules that allow for communication with smart field devices that support HART protocol. FLEX I/O digital diagnostic modules allow control system user to identify operating conditions that may result in system failure. FLEX I/O also offers conformal coating that consists of 1–2 mm thick polymeric film that encapsulates printed circuit assemblies.

Optical Gaging Products, Inc.    Rochester, NY 14621 4839
Oct 05, 2004 Offering 20 x 18 x 8 in. XYZ travel in compact floor-stand system, multi-sensor SmartScope® Flashâ„¢ 500 features AccuCentric® 12x zoom lens, which is automatically calibrated at every magnification change. Optical assembly moves in X-axis across angled steel crossbeam, while part moves in Y-axis on servo-driven stage. Granite platform ensures proper damping and structural integrity. Illumination sources include LED SmartRingâ„¢, coaxial surface illuminator, and LED backlight.

Analog Devices, Inc.    Norwood, MA 02062-9106
Oct 04, 2004 Available in 8-lead packaging, nanoDAC(TM) AD5060 and AD5660 digital-to-analog converters offer 16-bit data conversion while integrating additional circuit components on-chip. Model AD5060 delivers 1 LSB max linearity error (INL), including its on-chip output buffer amplifier for open loop systems. For closed loop systems, AD5660 contains integrated 10 ppm/°C max on-chip reference and delivers 16 LSB max INL. Both are suited for space-constrained test and measurement equipment.

Zeiss, Carl, Industrial Measuring Technology (IMT) Corp.    Maple Grove, MN 55369

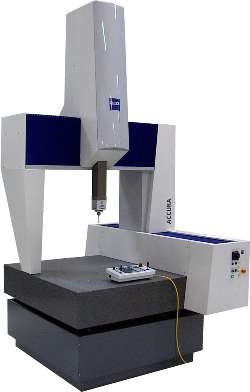

Oct 04, 2004 ACCURA bridge-type CMM offers access to various probing technologies including active scanning, single-point, and optical measurement. Offering XYZ measuring ranges from 700 x 900 x 500 mm to 1,600 x 4,200 x 1,400 mm, machine features enclosed X-axis, vibration isolation system, integrated control panel, and hidden cable routing. CAD-based CALYPSO software can be combined with HOLOS for measurement of 3D surfaces or DIMENSION for reverse engineering tasks.

Zeiss, Carl, Industrial Measuring Technology (IMT) Corp.    Maple Grove, MN 55369

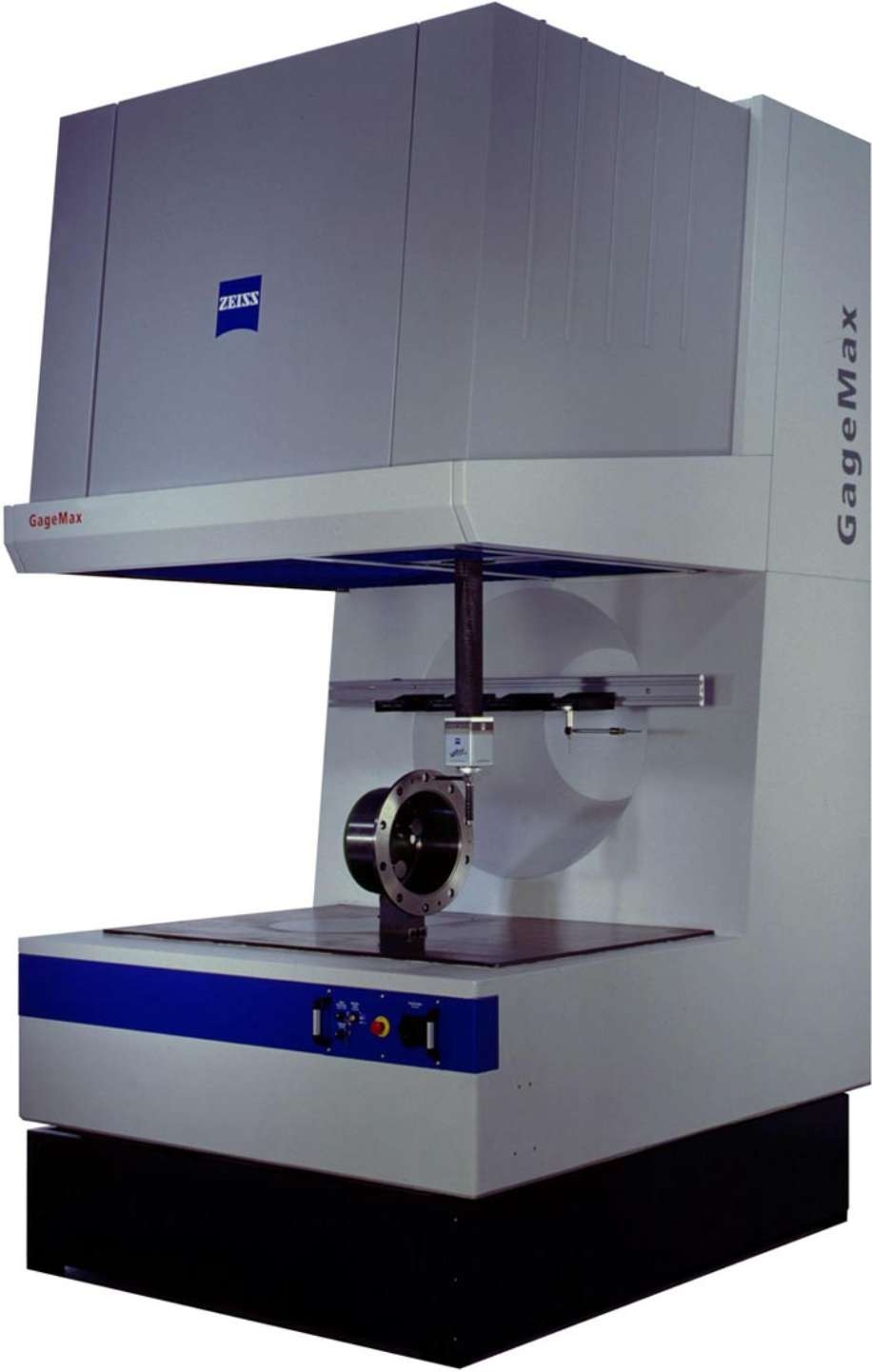

Oct 04, 2004 GageMax open measuring center has protected 3D box that houses complete measuring technology. Linear guideways and drive systems allow machine to be used in rough ambient conditions with temperatures of more than 35°C. Measured data is available immediately, and by changing measuring programs, machine is readied for new workpieces. It is available with VAST XT probe and Windows-based Calypso CAD software.

Zeiss, Carl, Industrial Measuring Technology (IMT) Corp.    Maple Grove, MN 55369

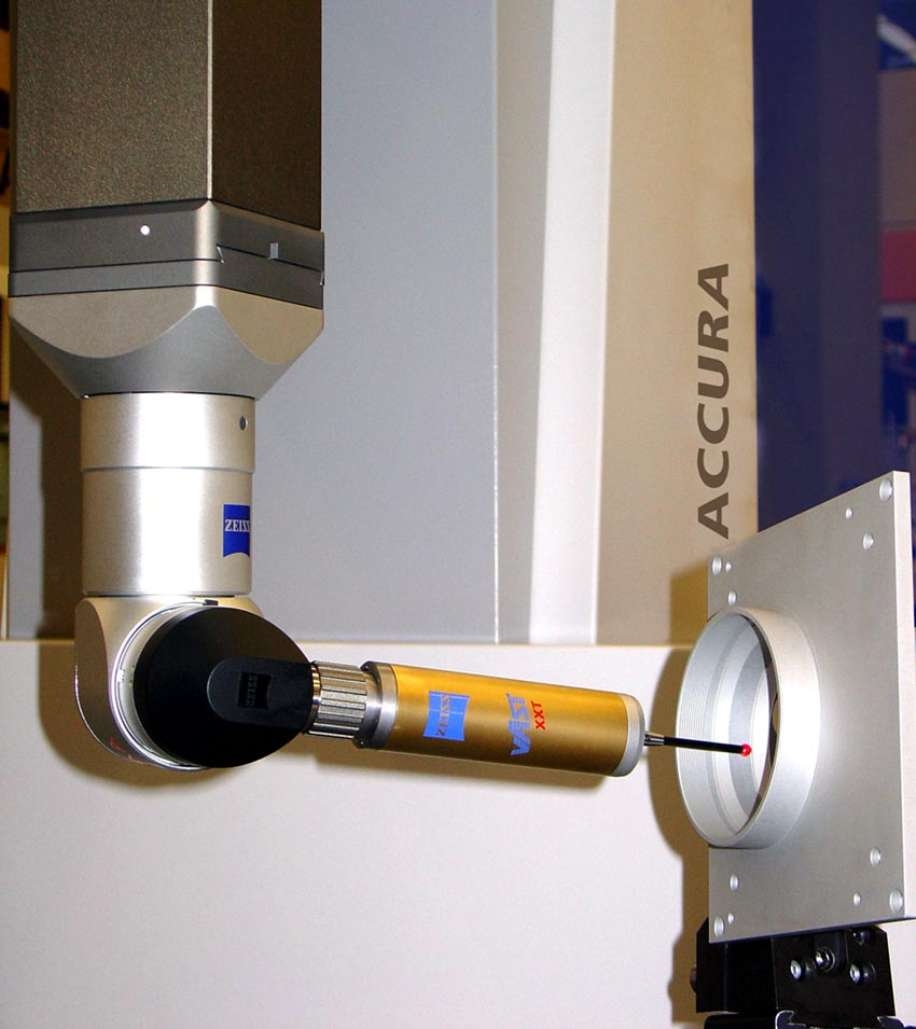

Oct 04, 2004 VAST XXT sensor adds scanning functionality to measurement spectrum on proprietary CMMs equipped with RDS articulating probe holder. It provides additional information about shape of features and integrates calibration techniques for real-time operation into intelligent control technology. Features include use of Cardanic kinematics, BUS-based digital data transfer, and MCC 800 control. Unit enables 2.5° angle position increments.

Computer Conversions Corp.    East Northport, NY 11731

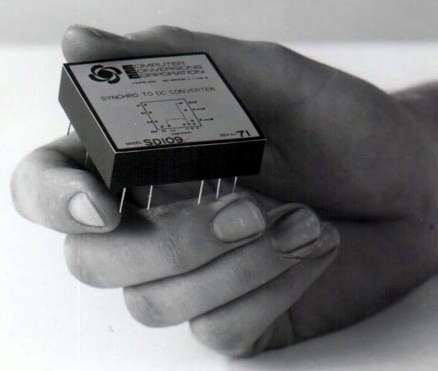

Oct 04, 2004 Operating at 400 conversions/sec, series SD109 miniature solid state synchro to DC converters offer peak angular error of +3 min. Products convert 3 phase Synchro or 2 phase Resolver inputs into DC Sine and Cosine outputs. They accept output of standard 11.8 or 90 V 3-wire Synchro or 4-wire Resolver and provide 2 DC voltages. Input is transformer isolated and balanced line to line, and synchro input quadrature is rejected.

Scientific Software Inc.    Pleasanton, CA 94588
Oct 04, 2004 Control Software allows EZChrom Elite(TM) or OpenLAB(TM) to fully control 3900 GC with instrument control of GC and related autosamplers. Single software method provides data analysis and reporting as well as control of instrument running conditions. It supports instrument parameters such as split/splitless mode, multiple on column injectors, inlet temperature control, column oven temperature, as well as FID and TCD detectors.

BYK Gardner USA    Columbia, MD 21046 2729
Oct 01, 2004 Spectro-guide measures color and 60° gloss simultaneously in compliance with ISO, ASTM, and DIN specifications, and displays both values together, enabling user to determine cause of mismatch. True circumferential illumination eliminates influence of measurement direction. Up to 200 standards and 999 samples can be saved in memory. Easy-link software contains pre-defined QC reports, and allows direct transfer of measurement results to MS Excelâ„¢.

B & K Precision Corp.    Yorba Linda, CA 92887
Oct 01, 2004 Synthesized Bench In-Circuit LCR/ESR Meter, Model 889A, utilizes standard 115 Vac outlet as power source to test components with basic accuracy of 0.1%. It provides dc/ac voltage and current measurements as well as diode/audible continuity checks. Utilizing front panel-mounted BNC connectors and test leads, user can test variety of components such as inductors, capacitors, and resistors. Dual display permits simultaneous measurements.

Resec Systems, Inc.    Bergenfield, NJ 07621

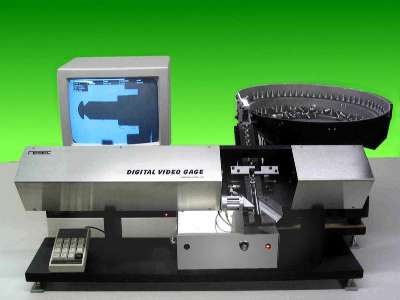

Oct 01, 2004 Model J181-T sorts small parts based on pre-programmed dimensional tolerances such as length, width, and diameter. Employing high-speed camera and Video Gage technology, sorter inspects each part and automatically places it into accept or reject bin. Suited for parts ranging in size from ¼â€“2 in., system inspects and sorts 3,600 part/hr with accuracy of ±0.0001 in. All measurements are available for data collection via serial port.

Encoder Products Co.    Sandpoint, ID 83864

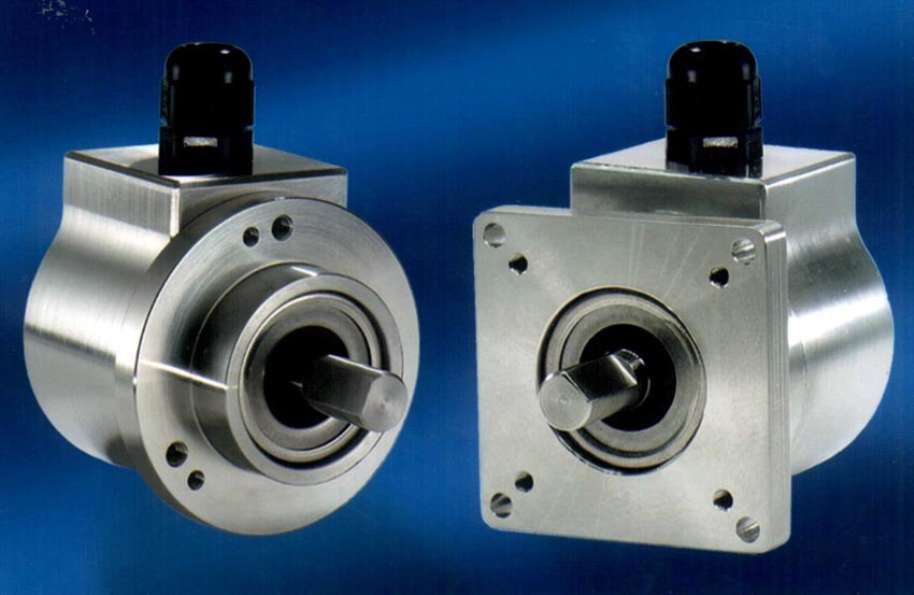

Oct 01, 2004 Accu-Coderâ„¢ comes in ultra-rugged stainless steel housing that withstands oil refining, chemical processing, and corrosive atmospheres. IP66-rated sealing resists high-pressure wash downs. Encoders operate at 100° temperature and have 80 lb shaft loading. Stainless Steel line is available in 2 housing sizes: Size 20, Model 802S, and Size 58, Model 858S.

Fargo Controls, Inc.    Eatontown, NJ 07724

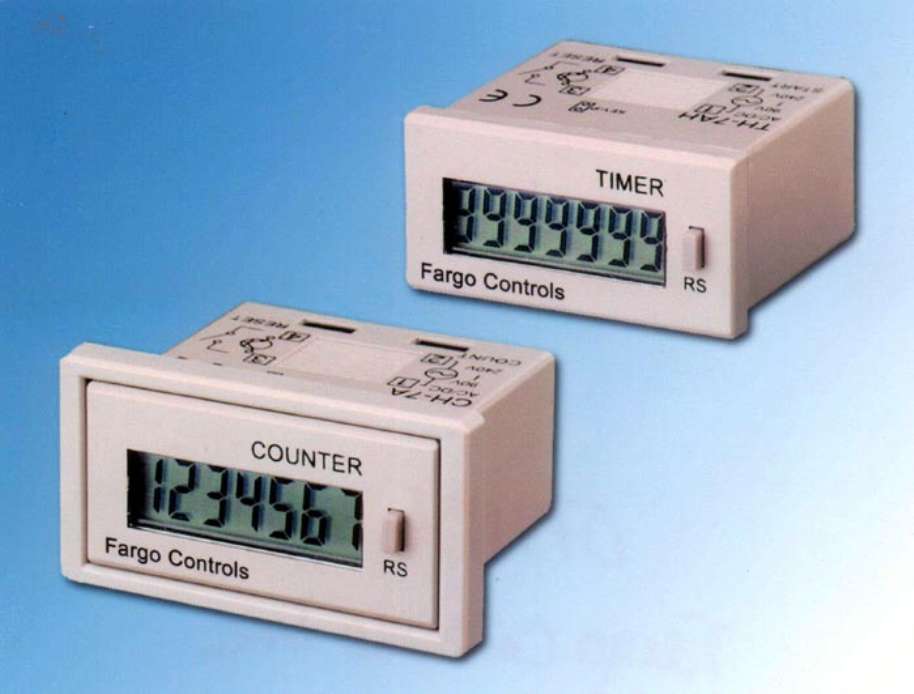

Oct 01, 2004 Panel-mounted series CH and TH Counters and Timers include 7-digit LCD display with push-button reset. CH counters accept non-voltage contact closure/NPN open collector, PNP 6-24 Vdc or 90-240 V ac/dc inputs, and offer one count per pulse function. TH timers accept non-voltage contact closure/NPN open collector or 90-240 V ac/dc inputs, and are available with timing function of minutes or hours.

FocalSpot, Inc.    San Diego, CA 92131
Oct 01, 2004 Verifer-HR, FSX-090 handles bare or populated PCB assemblies up to 16 x 18 in. or component packages down to 0201. Equipped with sealed, 90 kV microfocus x-ray source, system features magnification values over 650X and incorporates 2/4 Image Intensifier. Self-contained unit, with 32 x 34 in. footprint, can be rolled to wherever needed. System comes with image enhancement and defect analysis software, flat panel monitor, and Pentium computer running Windows XP.

CORECO Imaging Excellece in Machine Vision    Bedford MA 01730
Oct 01, 2004 Based on NetSight II platform, iNspect is intended for applications that require multiple inspections based on independent views of same part, and can accommodate views and processing for up to 3 cameras. It features setup and monitoring via desktop interface, local display that allows user to view runtime images with measurement overlays, and disk space for history and local job storage. Remote monitoring of inspections is available across network.

Electro Standards Laboratories    Cranston, RI 02921 3403
Oct 01, 2004 Featuring plug-and-play operation, Model 4215-LVDT measures and controls dual channel LVDT measurement fixtures. It combines 2 LVDT channels, print capabilities, and RS232/485 serial communication. Unit is electrically compatible with TEDS and can be programmed for full TEDS implementation. Offering 2-line VFD display, sample rate of 60/s, and core accuracy of 0.005%, indicator interfaces with dataView software for intuitive graphing, exporting, and archiving.

Norgren    Littleton, CO 80120
Sep 30, 2004 Suited for variety of mounting positions and locations, Type 140 I/P converter features fail to zero output pressure on signal failure, electronic closed loop, IP66 housing, and vibration immunity. Jack socket is provided for on-site monitoring and local calibration. Certified for use in hazardous areas, product incorporates encapsulated modular electronics and sub micron, field replaceable, pilot air filter. Unit is available in pressure ratings from 3–15 psi.

U E Systems, Inc.    Elmsford, NY 10523
Sep 30, 2004 Ultraprobe 201 Grease Caddy can be mounted directly on grease gun or put in holster and worn on belt. Magnetic mount enables placement of probe on bearing housings, and sensing element detects ultrasound while filtering out low-frequency signals. Monitoring changes in ultrasound levels as bearings are lubricated enables users to know when enough lubricant has been added. Product also has mini-spot light that helps users see their lube connections in low-light conditions.

Martel Electronics    Londonderry, NH 03053

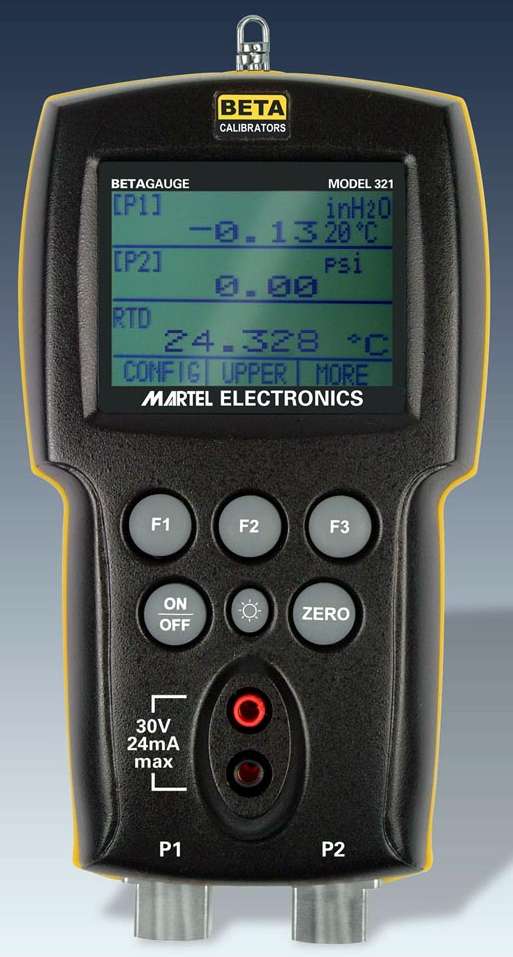

Sep 30, 2004 BetaGauge 321 provides 0.025% FS accuracy on 2 internal, isolated, stainless steel pressure sensors, while external connection supports all BetaPort-P pressure modules. Accurate to 0.2°F, Pt100 RTD input is provided for temperature measurements, and product also measures 4-20 mA loop current and up to 30 Vdc. Unit supports up to 3 simultaneous measurements in any combination. It is available in 15 psi/1,500 psi or 30 psi/3,000 psi ranges.
