Labnet International    Woodbridge, NJ 07095
Nov 22, 2004 Gel XL Ultraâ„¢ system includes intelligent power supply, migration tank, and gel casting set that enables up to 96 samples to run on one gel. Integrated photo sensor detects presence and orientation of lid and cuts power to electrodes if lid is not in place. System is available with output voltages of 35, 50, 100, and 135 V to optimize separation conditions. Digital timer can be set to shut off power and sound alarm at end of run.

Linear Technology Corp.    Milpitas, CA 95035
Nov 21, 2004 With variable speed/resolution, 24-bit Delta Sigma Model LTC2447 features multiplexing architecture to digitize multiple ratiometric sensors. Four differential inputs, coupled with 4 differential reference inputs, allow ratiometric measurements of multiple RTDs, bridges, and pressure sensors. Fifth differential reference can be shared by any or all inputs. For low output rate applications, ADC provides 200 nVRMS noise and simultaneous 50 and 60 Hz line frequency noise rejection.

Acksen Ltd    Belfast BT7 1NJ  United Kingdom

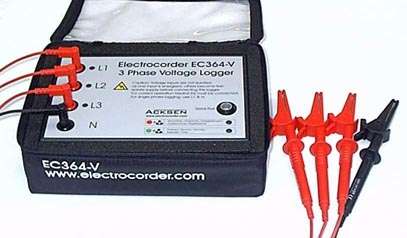

Nov 19, 2004 Three-Phase Electocorder, Model EC364-V monitors voltages in substations, distribution boards, and pumping stations. It measures minimum, average, and maximum voltages and stores data in memory with dates and times; Electrsoft software enables user to download data from logger, plot graphs, and save or export data. It also retains each Electrocorder’s location, installation date, and date on which logging is due to complete recording.

Universal Flow Monitors, Inc.    Hazel Park, MI 48030

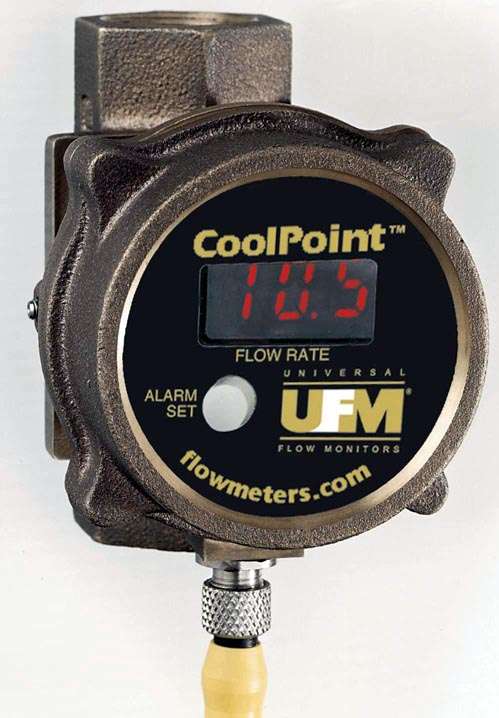

Nov 19, 2004 With no moving parts to stick or coat, Coolpointâ„¢ vortex shedding flowmeter measures and monitors flow of fluids with accuracy to ±2% and repeatability to ±1% of actual flow. It is available in sizes from ¼â€“2 in. with flow rates from 0.4–200 gpm and features totalizing capability. Scaled pulse output, offered as option, increases ability to measure, monitor, and control total amount of liquid used in process.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Nov 19, 2004 Model LMH6574 buffered 4:1 video MUX amplifier achieves 400 MHz-3 db bandwidth and 150 MHz 0.1 dB gain flatness to support switching of high video resolutions. It offers 8 ns switching time and 85 dB of channel-to-channel isolation. Buffered 2:1 RGB MUX amplifier, Model LMH6572, achieves 300 MHz-3 dB bandwidth and 60 MHz 0.1 dB gain flatness, which supports RGB switching. It features 10 ns switching time and 90 dB channel-to-channel isolation.

Elscint Automation    Pune 411026  India
Nov 19, 2004 Automatic system counts small parts such as plastic caps, spouts, screws, and rivets in addition to heavy parts such as anchor bolts, bearing races, and metal sockets. Equipment consists of vibratory bowl feeder, sensing device, and electronic, resettable, 10-digit counter. Counting speed ranges up to 1,000 parts/min, and counting automatically stops once preset number is reached. Restart can be manual or automatic via signal.

Optronic Laboratories, Inc.    Orlando, FL 32811 6590
Nov 18, 2004 OL Series 466 automated, integrating sphere calibration standard performs accurate calibrations of highly sensitive instruments under moderate to extremely low light levels. It consists of optics head, available in 4, 6, 8, 12, and 18 in. diameters, and microprocessor-controlled power supply. Unit serves as large area, uniform, diffusely radiating source with near normal luminance that can be varied over several decades without changing color temperature.

Radcom Equipment Inc.    Paramus, NJ 07652
Nov 18, 2004 As add-on to Cellular Performerâ„¢, 3G Video Analyzer monitors end-to-end cellular video service quality over 3G networks. It isolates problems that cause poor quality video and identifies them. Product examines video over 3G-324M circuit switch sessions and can synchronize multiple video playback of MPEG4 and H.263 sessions of all video participants in single view. Perceptual impairment analysis capability provides objective video quality evaluation intrusively and non-intrusively.

LSI Logic Corporation    Milpitas, CA 95035
Nov 18, 2004 Z.Voice(TM) solutions provide time-efficient way to voice-enable products, and include licensable ZSP® processor cores, DSP products, industry-compliant vocoders, bundled silicone/software packages, and reference designs. Products enable multi-channel VoIP solutions that support range of 2-32 channels of VoIP. Z.Voice-729 Bundle provides take-to-market G.729, G.729A/B, multi-channel VoIP solution, including DSP processors and software.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Nov 18, 2004 Handheld FrameScope Pro N2620A allows network technicians to test gigabit Ethernet by running RFC 2544 performance benchmarking to verify throughput at full line rate. Single tool tests 10/100/1 gigabit Ethernet copper connections and fiber connections via standard SFP interface for 1000BASE-SX/LX/ZX. Auto-test feature isolates protocol, configuration, and resource performance problems. Remote control via Web browser allows troubleshooting from central office.

National Instruments Corp.    Austin, TX 78759-3504
Nov 18, 2004 NI PXI-4072 FlexDMM combines functionality of LCR meter, 6½-digit multimeter, and 1.8 MS/s isolated digitizer in single-slot, 3U instrument. It provides 20 test measurements, including voltage, current, capacitance, inductance, temperature, and resistance. Unit comes with NI-DMM driver software, which is optimized for use with NI LabVIEW, LabWindows/CVI, and Microsoft Visual Studio .NET. Applications include component screening and cable capacitance testing.

ADMET    Norwood, MA 02062
Nov 17, 2004 ExPress servo-hydraulic universal testing machines are available with off center loading option that enables moment or torsion testing on machine designed for tension and compression testing. Available in capacities from 11,250–135,000 lb, systems are offered with Precise Digital Controller or MTESTWindows Materials Testing System. Former is suited for testing similar parts, repetitively, and latter provides flexibility of Windows-based testing system.

INSTRON    Grove City, PA 16127
Nov 17, 2004 Series 55MT MicroTorsion provides torsion testing for materials and parts that must withstand constant twisting and wrenching. Offered in 2,000 and 177 lb-in. designs, it features tabletop mounted load frame, adjustable crosshead, and torque cell protection device. Able to test specimens that require only few degrees of rotation or multiple turns in one or both directions, series is designed to test up to 36,000 revolutions.

Avitar, Inc.    Canton, MA 02021
Nov 17, 2004 ORALscreen® DRUGOMETER(TM) one-step, oral fluid drug test is administered like a thermometer. It can be dispensed anywhere in workplace since it does not require medical personnel, bathroom facilities, or additional electrical equipment. Unlike urine-based alternatives, oral tests can be observed without loss of dignity or associated gender issues. Tester detects over 99% of drugs commonly abused in workplace and provides results in 5-15 min.

Mass-Vac, Inc.    North Billerica, MA 01862 0359
Nov 16, 2004 Featuring 304 stainless steel vessel, Model MV has 1½ in. thick clear acrylic top, which accepts optional rotary motion feed-thru for stirring or manipulating batch contents from outside. Suitable for epoxies, urethanes, resins, and other viscous fluids, feed-thru has ¼ in. dia shaft supported by 2 ball bearings for friction-free operation, and is sealed with preloaded Viton O-ring. It can be operated manually or automatically at up to 500 rpm.

AXSUN Technologies Inc.    Billerica, MA 01821
Nov 16, 2004 Based on NIR-APS (applications prototyping system), analyzers offer wireless, USB, and RS232 communications options. They are housed in industrial-grade box and support direct-to-detector and fiber-to-detector sampling configurations. Products are optimized for liquid and gas analysis in process-manufacturing applications that require analysis in CH or OH spectral ranges. Accessory kit is also available, optimized for NIR-based methods development.

Supelco, A Unit Of Sigma-Aldrich    Bellefonte, PA 16823
Nov 16, 2004 Engineered with high surface coverage, Ascentisâ„¢ columns feature C18 and RP-Amide phases, and are designed to help researchers achieve chromatography separations in life sciences and other analytical sciences. Units offer near perfect peak symmetry, retention, orthogonal selectivity between C18 and RP-Alamide, and ultra low MS detectable bleed. RP-Alamide is compatible with 100% aqueous mobile phases.

X-TEL Communications, Inc.    Lombard, IL 60148
Nov 16, 2004 XQi voice quality evaluation tool supports single and multiple phone configurations for testing GSM and UMTS networks. X-TEL platform gives wireless operators ability to test voice quality side by side with traditional metrics such as RSSI, Ec/Io, RxQual, and BLER. Portable configuration enables field engineers to receive immediate feedback on perceived network quality while they optimize network performance.

Lascar Electronics, Inc.    Palo Alto, CA 94303-0727
Nov 15, 2004 Model SP5 1710-BL suits applications requiring quick indication of level rather than exact reading. LCD shows 17-position, analog style display and features permanent color scale and markers to identify measurement status. Voltmeter, with full scale deflection of 1 V, has splashproof housing that contains green LED backlight for viewing in any condition. Needle can be center or left justified.

Saelig Co., Inc.    Pittsford, NY 14534
Nov 12, 2004 Covering -270 to +1,820°C temperature range, 8-channel USBTC-08 features USB connectivity that allows multiple units to be run on one PC, facilitating creation of systems with up to 80 thermocouples. Measurements are presented in °C or mV, and PicoLog software aids in setup and viewing of gathered data. Data logger samples at rates to 10 readings/sec and features built-in cold junction compensation. Accurate to 0.2%, ±0.5°C, it has resolution of better than 0.1°C.
