Ocean Optics, Inc.    Dunedin, FL 34698
Apr 12, 2005 Laser-induced LIBS-ELITE provides real-time spectral analysis of elements in variety of materials. It covers 200-980 nm spectral range at 0.1 nm in single laser pulse. System includes 1,064 nm Nd:YAG laser, sample mapping and targeting functions, X-Y sample positioning, laser spot diameter control from 20 µm to 1,200 µm, sample magnification, and sample chamber with gas purge. Open-architecture housing accommodates sample sizes up to 4 in. in dia.

Keithley Instruments, Inc.    Cleveland, OH 44139 1891
Apr 11, 2005 Comprised of 5 multi-function modules, Series KUSB-3100 provides users with USB 2.0 and 1.1 compliant DAQ measurement solutions. Most modules provide 500 V isolation barrier from PC, protecting against voltage spikes, surges, or shorts. Offered as 12- and 16-bit models with respective sample rates from 40-100 kS/sec and 50-500 kS/sec, models come with variety of analog and digital I/O lines, counter/timer inputs, and software tools.

Dresser Instruments, Ashcroft & Heise Instruments    Stratford, CT 06614 5145

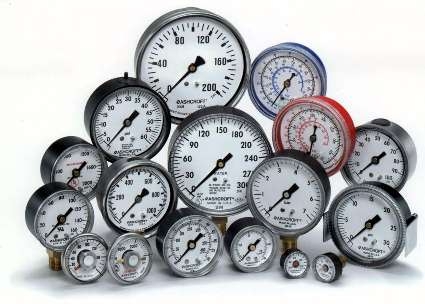

Apr 11, 2005 Available in diameters from 23 mm to 4½ in., Ashcroft® Commercial Pressure Gauges are offered in variety of configurations including sealed case, liquid filled or dry, back or bottom connection, and custom dials. Features such as PowerFlexâ„¢ extended life movement, FlutterGuardâ„¢ pointer stabilization, and True Zeroâ„¢ indications help make gauges suited for applications where shock, vibration, and pulsation are prevalent.

Mini Motor S.R.L    Piano   Italy
Apr 11, 2005 Drivert 1000 and Drivert 300 provide powers up to 1 kW and 300 W, respectively. Both feature DSP technology for sinusoidal brushless servomotors with resolver. Units include 15 inputs and 8 digital outputs, 2 analog inputs and 2 analog outputs, plus 1 I/O for simulation or encoder tracking. Mininvert 370-740 static frequency converters drive small 3-phase motors with power from 10–740 W. Mininvert 270E drives 3-phase asynchronous motors with powers up to 0.27 kW.

B & R Industrial Automation Corp.    Roswell, GA 30076
Apr 11, 2005 Providing users with control solution combined with remote I/O system, X20 System provides universal solution for any automation task in machine and system manufacturing. Applications for control, visualization, and drive technology are created using B&R Automation Studio with minimal required programming. Composed of bus module, electronic module, and terminal block, product features remote X2X Link backplane and component density of up to 12 I/O channels per system module.

Onset Computer Corp.    Bourne, MA 02532
Apr 11, 2005 HOBO® Pendant Logger monitors temperatures during transport and storage of temperature-sensitive goods, such as food, beverages, chemicals, and flowers. Miniature, waterproof unit provides 0.5°C accuracy and up to 52,000 readings. It records temperatures continuously and provides high and low LED alarms. HOBOwareâ„¢ 2.0 for Windows plots and analyzes temperature data, allowing users to print out graphs for temperature documentation.

Siemens AG    Munich D-80333  Germany
Apr 08, 2005 Sitrans P300, with stainless steel housing and measuring cell flush with front panel, is easy to clean and sterilize. It withstands process temperatures up to 200°C. Unit provides exact and stable measurements over long period and deviation in measured value is less than 0.075% with long-term drift of 0.25% in 5 yr. Parameters are set using Simatic PDM software and integral Hart or Profibus-PA interface.

Mahr Federal Inc.    Providence, RI 02905
Apr 08, 2005 MarForm MMQ44-R measures roundness, cylindricity, straightness, flatness, concentricity, coaxiality, run-out, parallelism, perpendicularity, and angularity. System handles parts up to 24.4 in. in dia and 25.2 in. in height with roundness error of .02 microns and straightness error of .15 microns per 100 mm. Software-driven, CNC motorized probe, Model T7W can automatically position itself over 360° of rotation in less than 1° increments.

YesTech Inc.    San Clemente, CA 92673
Apr 08, 2005 In-line, automated X-ray inspection system, YTX-5000, combines automated optical and X-ray inspections to provide defect detection for SMT manufactures. It inspects for visible and hidden defects on BGAs, flip chips, and other area array devices. With remote programming, users can create complete inspection program in under 30 min. Features include auto-zoom 130 kV x-ray, off-line programming, and real-time SPC data collection.

National Instruments Corp.    Austin, TX 78759-3504
Apr 08, 2005 Designed for Camera Link cameras, Model PCI-1426 features onboard image binarization, 16 Mb onboard memory, and optically isolated, 15-pin D-Sub connector for camera triggering and system synchronization. Monochrome, 4-channel Model PCI-1410 supports nonstandard analog cameras and eliminates need for extra synchronization signals to acquire nonstandard images. Model PCI-1405 is a color analog image acquisition board suited for security monitoring applications.

Emerson Process Management / Rosemount Div.    Chanhassen, MN 55317
Apr 07, 2005 Offered with single- or dual-detector capability, Model 700 provides real-time compositional data in various process applications. It measures in percentage or down to parts-per-million and thermal conductivity detector with thermistor provides universal response to all compounds. Unit stores up to 99 days of analysis data and 254 item averages. Flow paths in 6- or 10-port valve are arranged so that internal moving parts never connect with sample flow.

Corning Cable Systems    Hickory, NC 28603-0489
Apr 07, 2005 OptiVisorâ„¢ 400 Optical Time Domain Reflectometer provides field-interchangeable multimode, single-mode, and combination modules that can be switched without use of tools. Unit features 7.7 in. color LCD touch screen for viewing both trace and event tables, and internal memory stores up to 700 traces. Testing modes include auto mode for basic applications, advanced mode for experienced user, and template trace mode for comparison with other traces.

National Instruments Corp.    Austin, TX 78759-3504
Apr 07, 2005 Compact,16-channel FieldPoint Model cFP/FP-DIO-550 digital I/O module measures 8 digital inputs with range of 11–30 Vdc with 250 mA per channel. It delivers 250 V CAT II safety isolation to backplane, as well as interfacing for discrete sensors and actuators. Eight-channel analog input module, Model cFP-AI-118 measures 8 analog inputs at 16-bit resolution and offers 10 kS/s per channel sampling rate with range of 0 to 1, 5, 10, or 15 V, and ±1, ±5, ±10, or ±15 V.

Spectronics Corp.    Westbury, NY 11590
Apr 07, 2005 Quad Max Proâ„¢ is available as part of EZ-Jectâ„¢ QMK-40EZ/E kit with plastic carrying case. Cordless inspection lamp combines 3 UV LEDs for fluorescent leak detection and 1 white LED for regular inspection. Twelve inch extension allows unit to be maneuvered around hoses, fittings, and other obstructions. Adjustable mirror exposes leaks hidden from direct view. Switch converts 2-in-1 tool from UV inspection light into regular flashlight.

Spectronics Corp.    Westbury, NY 11590
Apr 07, 2005 Measuring 7¼ inches long, Spectroline® OPTIMAX Jrâ„¢ reveals refrigerant leaks in crowded air conditioning and refrigeration equipment by making fluorescent dyes glow. Cordless unit weighs 5 oz and can be carried in user's pocket. Utilizing LED bulb with 100,000 hr life, product is powered by 3 AA batteries and provides over 4 hr of peak performance with choice of continuous or intermittent illumination. Flashlight comes with fluorescence-enhancing glasses.

Lumberg, Inc.    Midlothian, VA 23113
Apr 06, 2005 Suited for use in I/O cabinets and J-Boxes, e2c 20 slice-style DIN rail mountable terminal block I/O modules feature spring clamp terminals and color coding to facilitate identification. Modules have 12 mm wide profile on all I/O modules, including 16-channel digital I/O. Units also include removable terminal blocks, module release latch, and support for DeviceNet and Profibus.

Snap-on Industrial    Kenosha, WI 53141 1410
Apr 06, 2005 ScanCheckâ„¢ OBD-II Scan Tool (MTSC500) enables technicians to retrieve and clear trouble codes on all 1996 and newer ODB-II compliant systems on domestic, European, and Asian vehicles. It supports CAN systems, displays freeze frame data and oxygen sensor readings, and includes manufacturer-specific enhanced P code information for GM, Ford and Chrysler vehicles. Internal software is updated via CD with optional PC computer connection kit.

Pomona Electronic    Everett, WA 98204
Apr 06, 2005 Designed to connect component test leads, terminals, and integrated circuit leads, Grabber® and Minigrabber® clips connect precisely and securely to facilitate testing. They are offered in variety of sizes, tips, and configurations. Available types include Minigrabbers No. 4723 and 4555, rotating Micrograbbers No. 5790, 5929, and 5930; and Micro SMD Grabbers No. 6490 and 6311 for connections in tight spaces, such as electronics.

Siemens AG    Munich D-80333  Germany
Apr 05, 2005 Simatic CPU 317F-2 PN/DP fail-safe controller features Profibus and Profinet interfaces, while modular ET 200pro I/O system with IP65/67 protection includes fail-safe Profinet I/Os. Automation solutions for standard and safety-relevant tasks can be generated via Profinet and Profibus using Simatic S7 distributed safety engineering software. Solutions comply with IEC 61508, EN 954, and NFPA 79 standards as well as IEC 62061 sector standard.

Siemens AG    Munich D-80333  Germany
Apr 05, 2005 Simatic ET 200pro features IP65/67 protection and safety-relevant Industrial Ethernet communication using Profisafe profile. Actuators and sensors are connected via fail-safe I/O modules. With interface module, standard and fail-safe modules can be optionally integrated in Profibus or Profinet networks, where standard and fail-safe communication is carried out in parallel on one cable. ET 200pro solves automation tasks with safety requirements up to SIL 3 or Category 4.
