Mark-10 Corp.    Copiague, NY 11726
May 10, 2005 Utilizing rigid column that minimizes bend, TSFM500 is designed for compression and tension testing of springs, packaging, metals, and fabrics. Clearance and throat depth accommodate variety of sample shapes and sizes, and remote control unit adds to testing safety. Along with 0.2-5.5 ipm user-selectable speed range, product has stepper motor design that eliminates speed variation with load. Digital travel display and set of limit switches are options.

Hamlet Video International Ltd    Amersham, Bucks HP6 6FB  United Kingdom
May 10, 2005 Built on all-digital platform, Flexiscope palm-top signal generator, waveform monitor, and vectorscope provides simultaneous operation in both HD and SD SDI, giving engineers ability to check signal parameters. Protean Axiom supports AES/EBU audio and ability to generate moving identification streams of up to 64 alphanumeric characters. Vidscope software-only signal analysis tool provides audio and video signal quality control on desktop.

Nikon, Inc. Instrument Group Div.    Melville, NY 11747
May 10, 2005 Non-contact Series NEXIV VMR LU is capable of crossing over from classic measuring microscopy to sophisticated coordinate measuring. Utilizing compound microscopes, digital technology, computers, and positioning components, system provides material characterization analysis, failure analysis, 3D image stacking, and large composite stitching. It supports brightfield, darkfield, DIC, and polarized light contrasting microscopy techniques.

STMicroelectronics    Lexington, MA 02421
May 09, 2005 Modular ST7MDT25-DVP3 provides start-to-finish development support, including real-time emulation, debugging, and in-circuit programming, for automotive and industrial applications based on ST72561 microcontroller family. Design is based on common main emulation board that provides communication and interface capabilities coupled with target emulation board dedicated to single family of ST7 devices. It includes CAN and LINbus interfaces.

ACCES I/O Products, Inc.    San Diego, CA 92121 1506

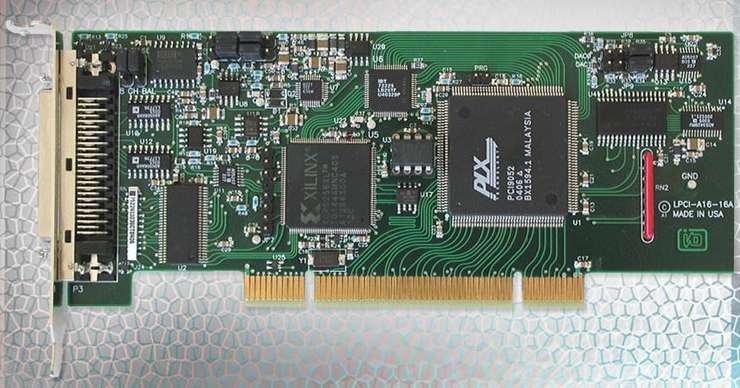

May 09, 2005 Suited for PC-based measurement, analysis, monitoring, and control, LPCI-A16-16A features dual 12-bit analog outputs, 16 digital I/O lines, and three 16-bit counter/timers. Board provides 500 kHz sampling rate with 16-bit resolution for 16 single-ended or 8 differential analog input channels while meeting MD2 Low Profile PCI Bus Specification. It also offers channel-by-channel programmable gain, 3 trigger modes, and 11 analog input ranges.

Leica Geosystems Inc.    Norcross, GA 30092
May 09, 2005 System 1200 GPS is offered with seismic stakeout application software package that ensures field crews do not intrude on exclusion zones when placing seismic charges and sensors. After user enters predefined data set of exclusion zones into System 1200, system will provide audible warning whenever crews attempt to place stake in prohibited area, thereby avoiding damage to nearby water wells, pipelines, or buildings.

Intercomp Co.    Minneapolis, MN 55447-4742
May 09, 2005 With certified calibration to 0.1%, SW-20K corner weight scale system is used in determining center of gravity, validating design weights, measuring down force, and certifying large wheeled vehicles. RS232 Serial Output port is included for data export to various software data logging packages. Each scale pad, machined from billet aluminum, has 5,000 lb capacity and measures 15 x 15 x 4 in. System features ½ in. display characters.

K-Tek    Prairieville, LA 70769
May 06, 2005 MagWave incorporates dual-chamber design that includes magnetic level gauge for level indication and guided wave radar transmitter. Unit offers accurate level measurements with pressures up to 3000 psi or temperatures to 800°F. Custom configuration is available with second chamber fitted for guided wave radar, magnetostrictive, or capacitance transmitters. Unit provides independent, redundant measurements in oil, gas, petrochemical, and power applications.

4D Technology Corporation    Tucson, AZ 85706
May 06, 2005 FizCam™ 1500 dynamic Fizeau interferometer uses single camera and high-speed optical phase sensor, making it insensitive to vibration and air turbulence. It measures full wavefront in 30 millionths of second and features 16x optical/digital zoom, wavelengths from 638 nm to 1.06 mm, and aperture options from 100–600 mm. System includes interferometer mainframe, Pentium IV computer system, and 4Sight™ advance wavefront analysis software.

Kurt Mfg. Co., Electronics Div.    Minneapolis, MN 55449
May 06, 2005 Modular USB building blocks provide plug and play solutions that allow mixing and matching of capabilities for specific applications without PLC logic and wiring. Offered as Digital, LVDT or Analog, DC I/O, and USB Modules, products allow user to collect data from any gage hardware, depending on model. USB modules allow process control, including automation control and CNC communication, and can be used with KurtSPC software.

Degree Controls Inc.    Milford, NH 03055
May 06, 2005 Used together or independently, COLDFRONT products automate thermal management of data centers, central offices, and communication centers. Products include COLDFRONT NODE temperature data acquisition system and COLDFRONT TILE fan-assisted, perforated floor tile. Thermal management software, COLDFRONT THERMAL SERVER, communicates with NODEs to read temperature measured and commands tile fans to operate at different speeds as required.

austriamicrosystems AG    Premstätten   Austria

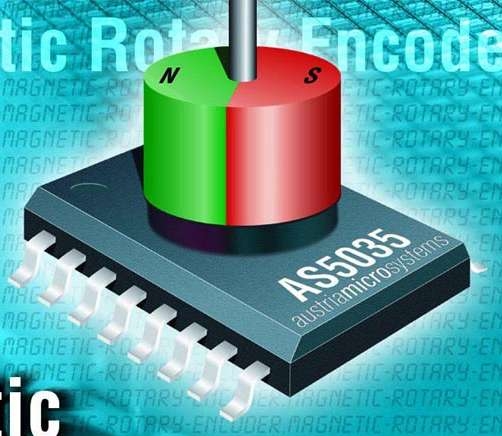

May 05, 2005 Manufactured in lead (Pb)-free SSOP 16 package, 8-bit AS5035 provides incremental quadrature A/B output signals and index output signal. It provides 64 ppr on each output channel for resolution of 2.8°/step over full turn of 360°. Able to operate at 10,000 rpm without missing any incremental pulses, product continuously monitors magnet presence for operational safety. Zero position can be programmed by user, and unit operates at 3.3 or 5 V.

WAGO Corp.    Germantown, WI 53022

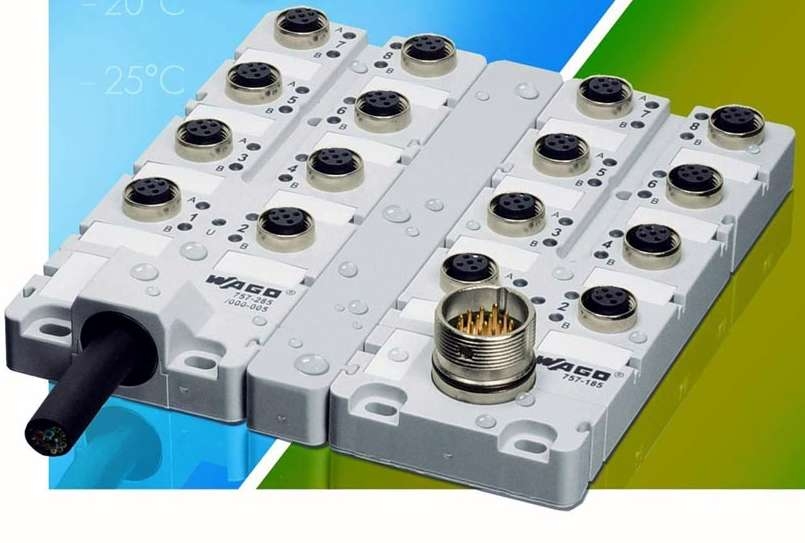

May 05, 2005 Sensor/actuator junction boxes in 757 Series safely extend control cabinet functions into field as well as locally on machine or process. Available with 4, 6, or 8 ports per box and 4 or 5 poles per port, IP 67/68 rated series features LED indication for power and signal status as well as connection point marking tags/holders. Master cable can be configured via M23 connector or pre-installed, and all cables are PUR Halogen-free.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
May 05, 2005 Manufactured in SOT23-6 and MSOP-8 packages, TMP141 measures temperature from -40 to 125°C without external sensing components. It features 10-bit resolution digital output and single-wire SensorPathâ„¢ interface protocol. Suited for space-restricted applications, product has 170 µA max operating current and extended supply range of 2.7–5.5 V. It is suited for monitoring hardware systems in servers and PCs as well as battery-powered instruments.

TE Connectivity Ltd.    Berwyn, PA 19312

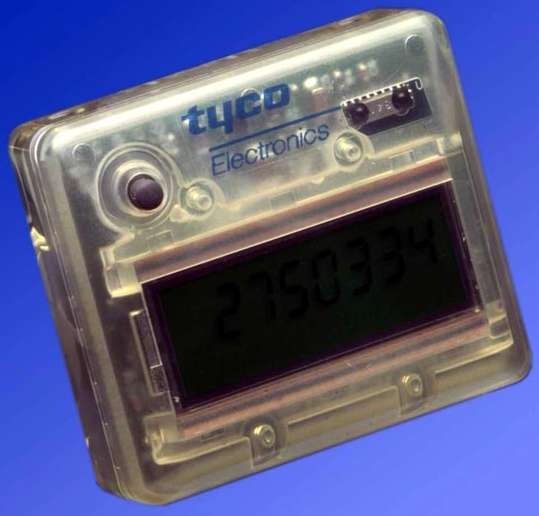

May 05, 2005 Integrated into AMP applicators, EDGE Counter displays cycles since installation to track tool usage and optimize maintenance scheduling. On-counter LCD display and EDGE Counter Software Pack provide access to operation counts and other applicator statistics. Tool enables operators to perform applicator maintenance and tool replacement at measured intervals with pre-set limits. Counter and software use wireless IR technology to transfer data.

Measurement Computing Corp.    Norton, MA 02766
May 05, 2005 Measurement Advantage(TM) USB-PDISO8 expands PC capabilities by providing 8 isolated ac or dc inputs and 8 electromechanical relays in one system with USB expansion port. Inputs monitor 24 Vac or Vdc inputs, while output relays provide 6 A, Form C, SPDT outputs @ 120 Vac or 28 Vdc. Screw terminals facilitate field wiring to I/O. External power supply and USB cable are included. In addition to integrated signal conditioning, product provides several software packages.

Adalet    Cleveland, OH 44135 3301

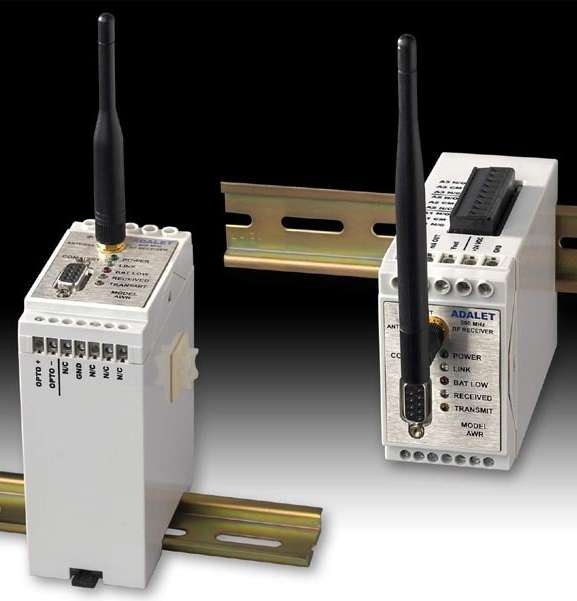

May 04, 2005 Available with 4–20 mA, pressure, and temperature inputs, multi-channel solution allows up to 60 field transmitters to communicate with up to 4 receiver base radios. All process variable inputs are available through Modbus RTU. Unit transmits data in explosionproof Division 1 or industrial areas over 3,000 ft distances, with no line of sight, at 902–928 MHz. Data transmit interval is factory-set from 1–60 sec, and transmit power varies from 1 mW to 1 W.

United Electric Controls    Watertown, MA 02472

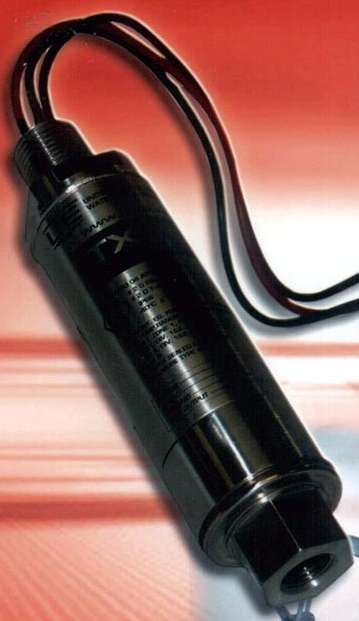

May 04, 2005 With all-welded, 316 stainless steel construction, airtight and watertight TX200 pressure transmitter uses bonded foil strain gauge technology. It produces choice of 4–20 mA or 1–5 Vdc output signal and is resistant to shock and vibration. Model A can be calibrated in place via non-interactive zero and span adjustments with 5:1 turndown range, while Model B has fixed ranges. Covering 0–24,000 psi range, products offer 0.25% accuracy and 0.1% repeatability.

Cal Test Electronics    Yorba Linda, CA 92887-4604
May 04, 2005 General-purpose MiniProâ„¢ series test clips, suited for circuit and basic test interconnections, feature smooth, soft touch actuation and gold-plated beryllium copper hooks. Offered in 10 colors, series features secure, snap-lock assembly that withstands heavy use. EU- and RoHS-compliant products are available individually, with lead wires, or in 10-piece kit.

Cognex Corp.    Natick, MA 01760 2059

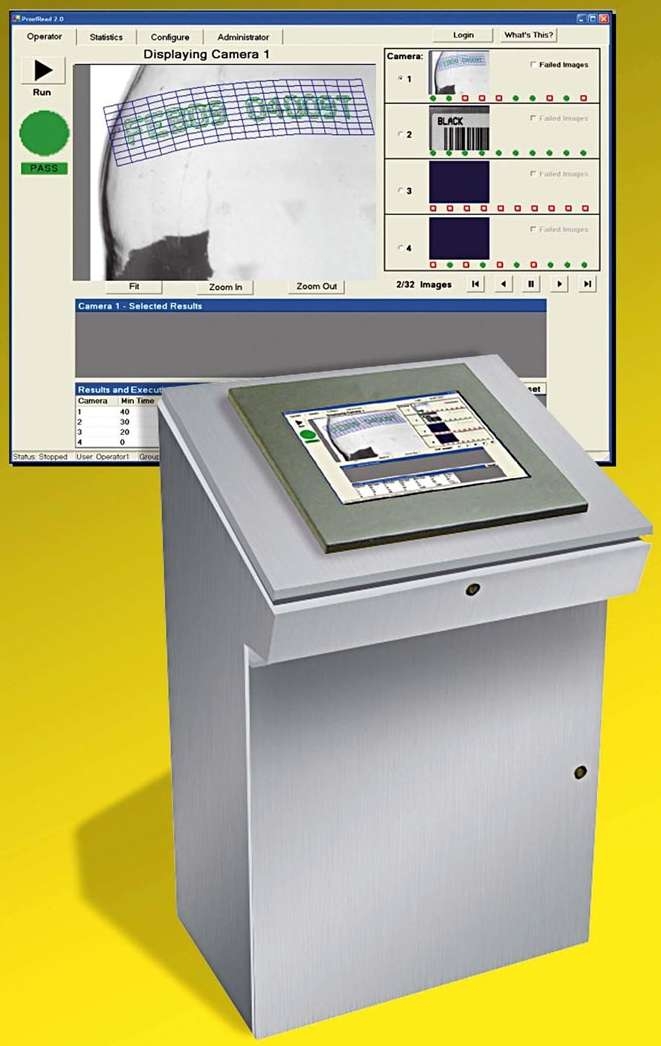

May 04, 2005 Available in 3 configurations, ProofReadâ„¢ ensures information is correctly printed onto labels and packages. Optical character verification (OCV) system includes OCVMaxâ„¢, which verifies characters printed on curved/flexible surfaces as well as those distorted during printing or packaging process. Equipped with GUI and touchscreen interface, system provides built-in security, change tracking, and logging capability for FDA 21 CFR Part 11 compliance.
