Digital Thermometer mounts in standard utility box.
AMETEK Power Instruments
West Chicago, IL 60185
Jun 07, 2005 Panel-mount Model TNC-TM 166 provides continual monitoring of temperature in critical environments and equipment. Heavy-duty front plate protects unit from mechanical shock. Powered from low-voltage ac or dc, thermometer can be mounted directly on equipment or on remote panel up to 250 ft away. Temperature sensing range is -25 to 100°F, and when temperature rises above set point, audible alarm and flashing display alert personnel and relay contacts close.
Electricity Meter provides 0.15% accuracy on watt-hours.
AMETEK Power Instruments
Rochester, NY 14605
Jun 07, 2005 Suited for commercial and industrial users, multi-function CI-20 revenue meter includes bi-directional Whr, VARhr, and VAhr measurements, as well as 8 configurable TOU rates. It features dual serial outputs or single serial output with modem or Ethernet ports. LCD graphic display indicates metered values, health status, alarms, and general operation. Secure, menu-driven display eliminates need for encrypted warning codes and combinations of buttons to access features.

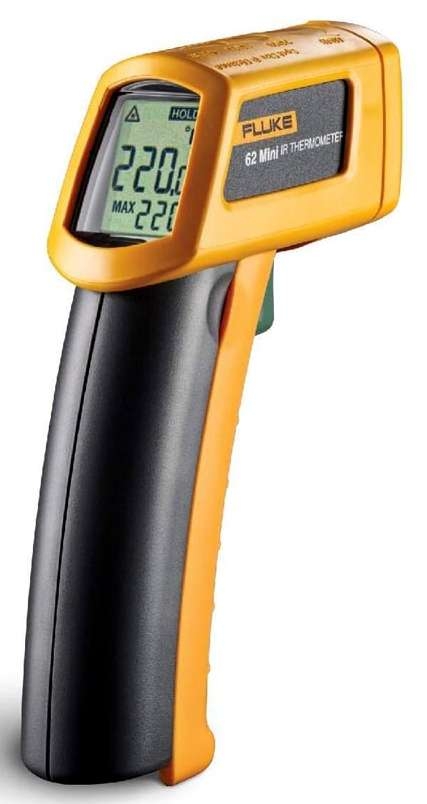

Infrared Thermometers have pistol grip design.
Everett, WA 98203
Jun 07, 2005 Fluke 62 Mini uses single-dot laser sighting system to indicate center of measurement spot. With temperature range of -20 to +932°F, general-purpose non-contact instrument has distance-to-spot (D:S) ratio of 10:1. Fluke 570 series, designed for predictive maintenance, includes 3 models with adjustable emissivity and coaxial 3-dot laser sighting system. All models have -25 to +1,600°F temperature range and 60:1 D:S ratio. Fluke 576 features integrated digital camera.
Bench Scales offer capacities from 100-1,000 lb.
Doran Scales Inc.
Batavia, IL 60510 1460
Jun 06, 2005 Available in base sizes of 18 x 18 in. to 24 x 24 in., general-purpose MVP Series is adaptable to range of industrial weighing tasks. Basic configuration is suited for tabletop use, with Mobility Option available to convert scale into portable floor scale. Units feature welded steel frame, heavy gauge platter, 7 overload stops, 2-part polyurethane paint for abrasion protection, and red LED panel that displays weight in lb, oz, lb:oz, kg, or g.
Interface Controller drives HD flat panel displays.
Digital View, Inc.
Morgan Hill, CA 95037
Jun 06, 2005 Model SVH-1920 provides full-screen buffering, multi-panel support, and range of inputs including ARGB, DVI, and Video with upgrade path for HD-SDI connection. Board can drive TFT LCDs at resolutions from VGA to WUXGA, with full screen image expansion. Featuring High-Quality Advanced Scaling, with support for non-linear scaling modes, unit includes dual-channel TTL and dual LVDS transmitters for direct connection to LCD panels, and can process 16.7 million colors.
Fully Programmable Sensor monitors flow and temperature.
Plymouth, MN 55441
Jun 06, 2005 Self-contained Digital Read Out flow sensor operates on calorimetric principle and features solid-state construction with 316 stainless steel wetted parts. Along with 3-digit display, unit provides adjustable on and off delay feature, programmable set points, and adjustable filter. In-line-mounted unit, available with transistor, relay, or analog output, monitors changes in flow between 0.2 and 12 gpm. It operates with fluids such as water and glycol.
Signal Conditioner/Amplifier accepts high level signals.
Vishay Intertechnology, Inc.
Malvern, PA 19355 2143
Jun 06, 2005 With frequency response of 110 kHz, Model A2 features digital control of system instrumentation and monitoring of 10 Vdc analog outputs, both locally on control panel and remotely by Ethernet from PC. Embedded web server is scalable in multiples of 8 channels to maximum of 128. All system, card, and channel settings are accessible using HTTP commands or GUI provided by system. Model A2 is designed for strain gages, strain-gage-based transducers, and thermocouples.
Digital Weight Indicator suits busy work environments.
Doran Scales Inc.
Batavia, IL 60510 1460
Jun 03, 2005 Made of heavy gauge, painted mild steel, Model DS100 is 2 in. deep with red LED display that can be read from up to 25 ft away. Weight can be displayed in lb, kg, g, oz, or lb and oz. Zero, Tare, Gross/Net, Units, and Print function buttons are clearly labeled. U-bracket allows indicator to be placed in variety of locations such as wall, shelf, or table. Power is supplied by UL-listed, wall-mount transformer. External DC/Vehicle DC Power supply is optional.
Scale Bases are built on rugged platform.
Doran Scales Inc.
Batavia, IL 60510 1460
Jun 03, 2005 Offered in 18 x 18, 18 x 24, or 24 x 24 in. sizes, DMS Mild Steel Bases combine rigid full-frame assembly, heavy-gauge platter, and load cell. NTEP-approved products incorporate Seven Overload Stop System that protects load cell from shock and overload damage as well as 2-part polyurethane finish that protects against wear and abrasion. Featuring 6-wire load cell output, models are available with max capacities from 100â€“1,000 lb.

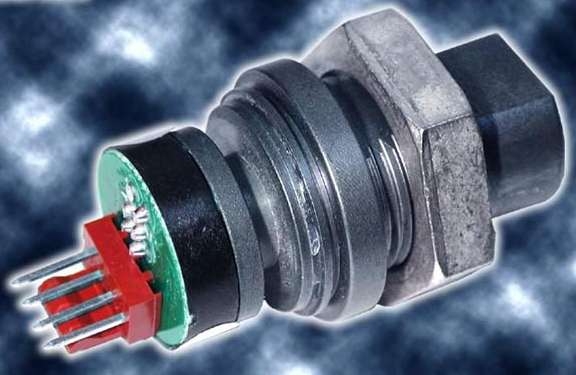

Pressure Transducers eliminate leaks in corrosive media.
American Sensor Technologies, Inc.
Mt. Olive, NJ 07828
Jun 03, 2005
Panel-mount Model AST4200 provides data for safety, control, and alarm functions. Able to measure benign and corrosive media from -70 to +300°F, product offers hermetic seal against media without use of adapters and features one-piece bulkhead design made of 17-4PH or 316L stainless steel. It offers outputs of 10 mV/V, 4-20 mA, or 1-5 V and provides gauge, sealed gauge, or compound gauge pressure measurement up to 10,000 psi.
Infrared Detector monitors multiple gases.
Mine Safety Appliances Co.
Pittsburgh, PA 15230
Jun 03, 2005 Hand-held Orion Plus IR Detector utilizes over 20 different sensors, including chemical, catalytic, and IR types. Functioning as personal monitor and pre-entry check device, unit detects combustible gases in atmospheric and inert applications. Backlit graphic display shows all gas readings at a glance, while text messages, LEDs, and audible alarm serve as additional alerts. Electrical Perma-Check function continuously controls built-in pump.
Measuring Station works with hard magnetic materials.
Dr. Brockhaus Messtechnik GmbH & Co. KG
Jun 03, 2005 Hystograph measuring station is offered with segment measuring poles that allow simulation of magnet segment behavior under realistic conditions in electric motor operation. Air gap remains after insertion of test item into segment measuring pole, and alignment enables measurement of total flux of test item. Measuring insert consists of 2 pole shoes; flux measuring coil is integrated in lower part, and Hall sensor measures field strength in air gap.
Laser Scan Micrometers perform up to 1,600 scans/sec.
Mitutoyo America Corp.
Aurora, IL 60504 9176
Jun 02, 2005 Utilizing multi-face polygonal mirrors and high-speed motors, Series LSM-544 can measure vibrating workpieces and items moving on-line at high speed, such as fiber extrusions. Instruments are available in variety of models for applications ranging from measurement of ultra-fine, 0.005 mm dia wires at 0.01 µm resolution to measurement of cylindrical workpieces up to 120 mm. RS-232C interface and SPC output are provided on most models.

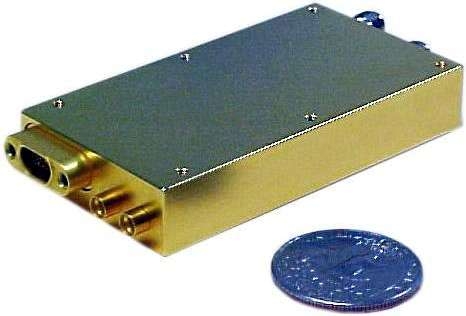

Sampling Down Converter meets airborne/naval requirements.
Picosecond Pulse Labs, Inc.
Boulder, CO 80301
Jun 02, 2005
Designed for use in high-end digital radar receivers, 7600 Down Conversion Sampling Module employs Non-Linear Transmission Line (NLTL) technologies and terahertz diode construction. It offers consistent linearity performance over 25 GHz of RF bandwidth at sampling rates to 2 GHz. Able to replace traditional mixers and reduce complexity of current broadband radar system architectures, product features sampling rate of 10 MS/sec to 2 GS/sec.
X-Ray Tool detects defects in semiconductor wafers.
Durham DH1 1TW United Kingdom
Jun 02, 2005 Digital X-ray inspection tool, BedeScanâ„˘, is used for identification and quantification of structural defects in semiconductor wafer substrates and epilayers up to 300 mm in diameter. Defect mapping tool uses non-destructive X-ray diffraction to identify anomalies in incoming and processed wafers and delivers quantitative data that enables in-line statistical control of manufacturing processes. Imaging of wafers is possible in reflection and transmission modes.
Particle Size Analyzer suits dry powder processes.
Malvern Instruments Inc.
Westborough, MA 01581
Jun 02, 2005
Insitec At-line Powder Sizer enables powder processors to make automated measurements close to process line. Unit is based on Insitec Voyager, which is a self-contained, plug-and-play device that can be moved around plant for use on different process lines or to sample at various points in same line. Operated manually or automatically, pneumatic dry dispersion unit provides sample presentation and can be interfaced with existing sampling systems at user's site.

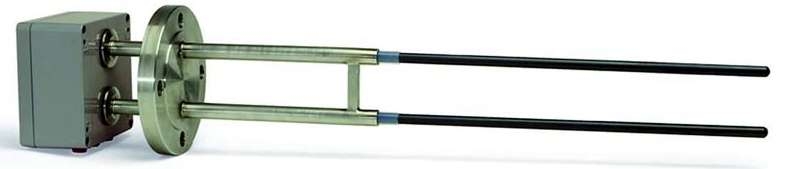

Air Flow Monitors are suited for dirty air streams.
Beverly, MA 01915
Jun 01, 2005 With no orifices or thermal elements to clog, AF 100 Series measures air flow/velocity in high-particulate processes and stacks. Abrasion-proof probes are available for pipes and ducts, while non-intrusive ring sensors are available for tubing. Combining time-of-flight/cross correlation principle with charge induction and current measurement techniques, monitors are suited for process pipes, injection lines, dryers, cyclones, precipitators, and baghouses.

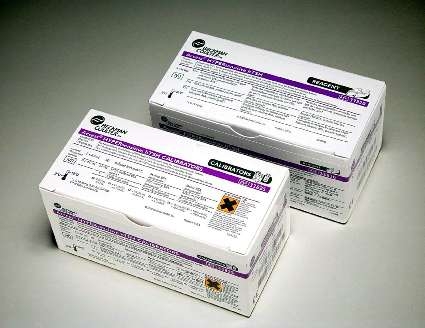

Assays help detect and monitor thyroid conditions.
Beckman Coulter, Inc.
Fullerton, CA 92834-3100
Jun 01, 2005 Access Fast hTSH assay enables laboratories to quantitatively determine levels of thyroid stimulating hormone in serum and plasma. It requires 55 µl of sample and delivers results in 20 min. Analytical sensitivity is less than 0.01 µIU/mL and functional sensitivity is less than or equal to 0.03 µIU/mL. Access® Free T3 assay quantitatively determines level of free triiodothyronine levels in serum and plasma with analytical sensitivity of 0.88 pg/mL.
Sound Meters are used for noise ordinance enforcement.
Quest Technologies Inc.
Oconomowoc, WI 53066 4828
Jun 01, 2005 SoundPatrol DP Series enables field testing of noise levels and documentation of measurement results in order to support citations. Equipped with portable, digital printer, sound level meters let users perform pre-test field calibration, take valid noise sample, perform post-test calibration check, and generate complete printed results.
Development Kits aid Nios II, DSP, and PCI design process.
San Jose, CA 95134-1941
Jun 01, 2005 Based on Cycloneâ„˘ II FPGAs, development kits facilitate prototyping of Nios® II embedded processor, DSP, and PCI designs. Each kit includes Cyclone II development board, CD with documentation and reference designs, and power supply as well as necessary cables, Quartus® II design software, and suite of interface IP cores. Nios II Development Kit provides everything needed for system-on-a-programmable-chip development.
