WAGO Corp.    Germantown, WI 53022

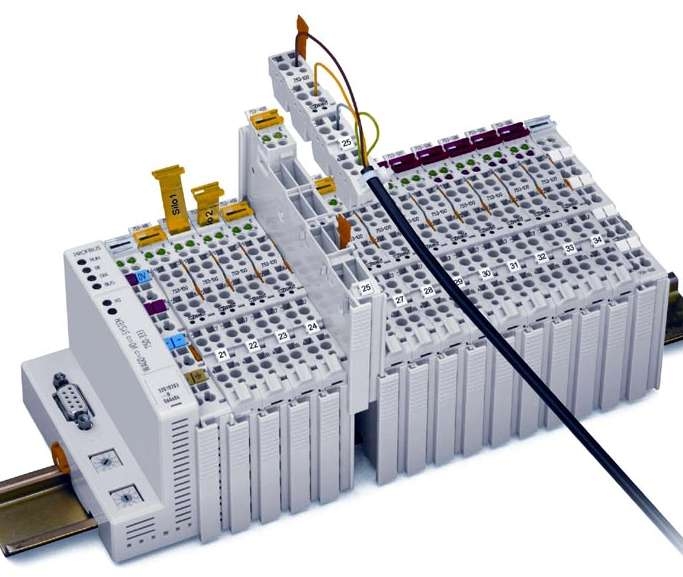

Jul 11, 2005 Offered as analog, digital, and special function modules, 753 Series facilitates installation and minimizes wiring errors. Pluggable I/O modules, along with corresponding connector, have overall dimensions of 12 x 64 x 100 mm. Orange pull tabs enable tool-less removal of connector or I/O module, and built-in test points are located at every connection point. Along with integrated strain-relief, modules allow up to 16 different coding possibilities.

FCI Electronics    Etters, PA 17319 9769

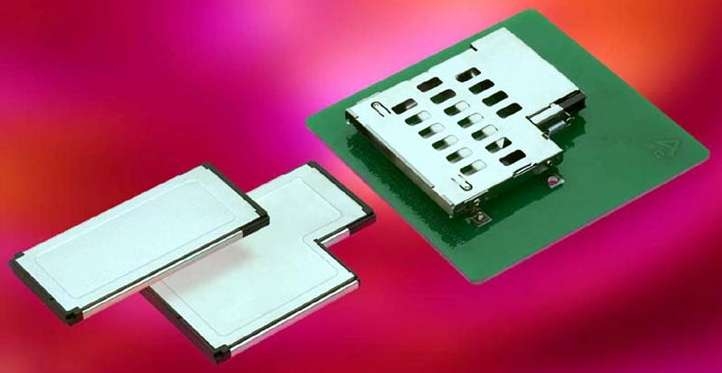

Jul 11, 2005 ExpressCard™ host connectors and slot systems support implementation of ExpressCard technology in mobile and desktop PCs. Top-mount universal slot systems with card push ejection are offered with slot standoffs from 0.0–2.2 mm. Supporting USB 2.0 and PCI Express™ serial interfaces, 26-position connector system is validated at PCI Express data rates of 2.5 and 5.0 Gbps. RoHS-compliant host connectors 10030584 and 10056265 have single-row, in-line configuration for SMT solder tails.

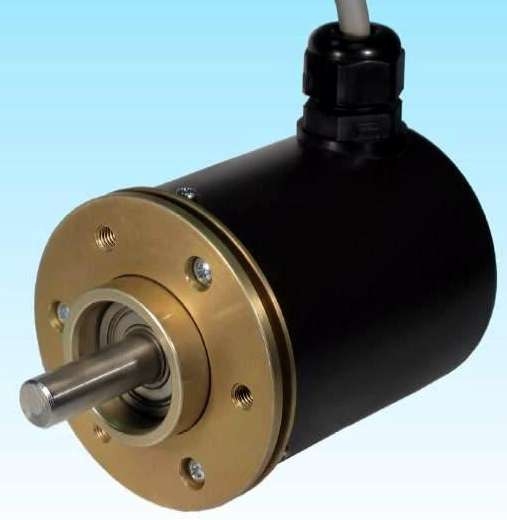

Computer Optical Products, Inc.    Chatsworth, CA 91311
Jul 08, 2005 Models CP850/950-HHC incremental rotary optical encoders, offered in shafted or blind-hollow shaft versions, have absolute accuracy of ±12 arcsec typ. Products are available in 35 resolutions from 25,000-1,250,000 full quadrature A and B cycles/rev if used with edge detection from 100,000-5,000,000 ppr, respectively. Model CP-850 comes with 3/8 in. shaft, and CP-950 is available for mounting on shafts with diameters to ½ in.

GE Energy    Atlanta, GA 30339

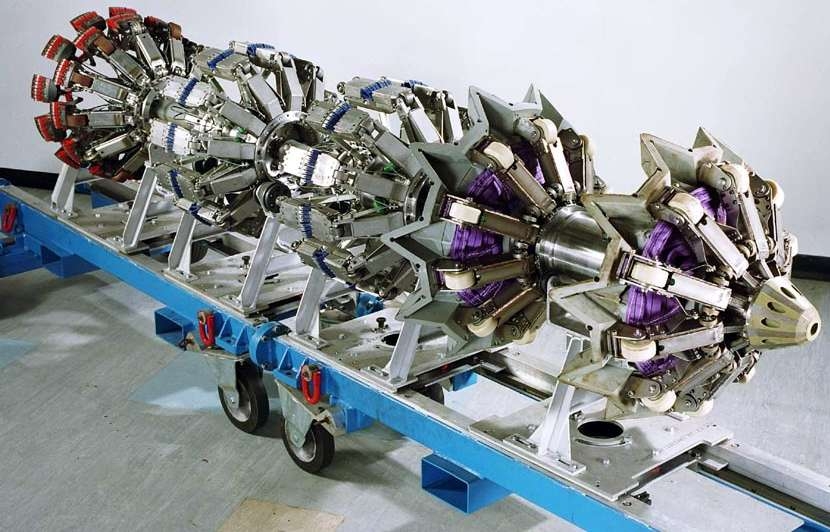

Jul 08, 2005 Suited for oil and gas industries, SmartScan™ performs in-line corrosion inspection of pipelines deemed unpiggable because of valve restrictions, multiple pipeline diameters, or multiple sharp bends. Flexible structure allows it to navigate pipeline diameter variations from 16–20, 20–26, and 24–30 in. Operators can launch and receive SmartScan via use of hot tap access hole, which is drilled into pipeline walls without interruption of service.

Carltex Inc    Greenlawn, NY 11740

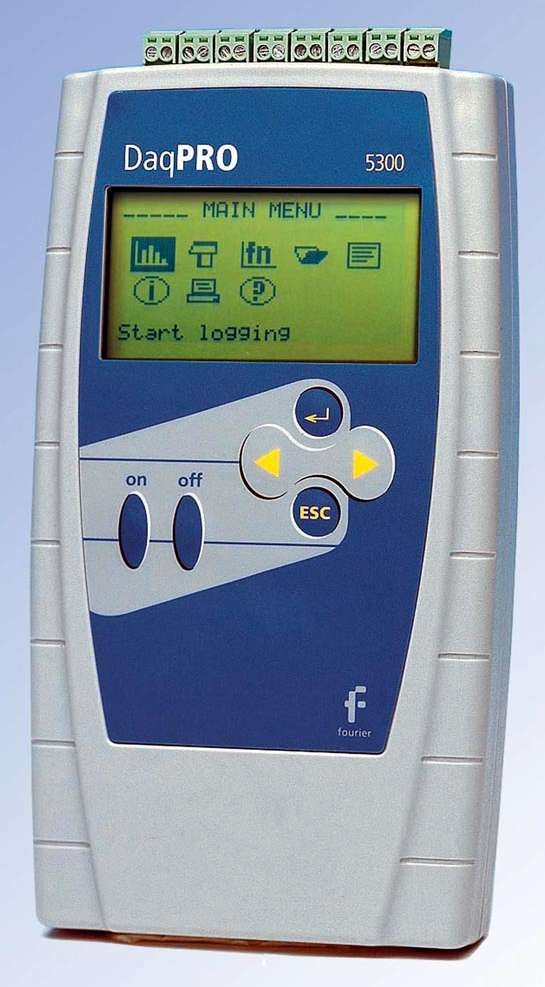

Jul 08, 2005 DaqPRO compact, 8-channel data acquisition (DAQ) and logging system incorporates graphic display and analysis functions. Each channel can be independently programmed for use with voltage, current, and temperature sensor inputs. Featuring 16-bit sampling resolution, 512 Kb onboard memory, and up to 4 kHZ sampling rate (single-channel), unit may be operated as stand alone unit or connected to PC for advanced analysis functions.

BYK Gardner USA    Columbia, MD 21046 2729

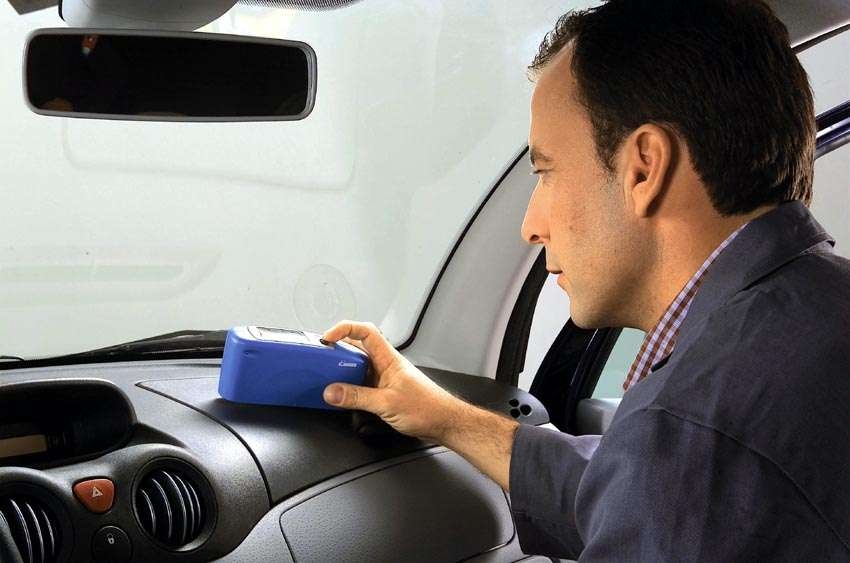

Jul 08, 2005 Micro-gloss S helps manufacturers meet QC requirements for automotive interior applications where materials such as leather, plastics, or fabrics are used and need to be harmonized in regards to appearance. To help ensure uniform look, it allows users to control gloss within ±0.3 gloss units and has auto-diagnosis feature that checks calibration values and ensures reliable readings. Included software allows for direct data transfer to Excel®.

Orange Research, Inc.    Milford, CT 06460

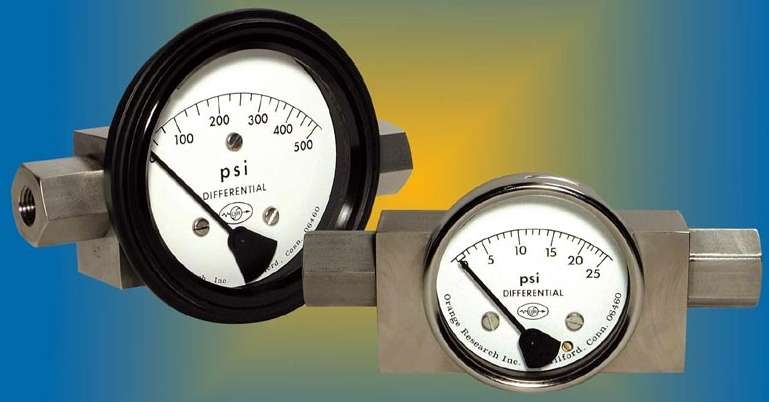

Jul 07, 2005 Designed for use where line pressures reach up to 10,000 psi, models 1206 and 1306 have pressure bodies machined from solid blocks of stainless steel or aluminum. Magnetic coupling of sensor and indicator allows for complete separation of process fluid from user. Products, which incorporate piston sensor and dials from 2.5–6 in. dia., measure differential pressures (DP) on liquids in ranges from 0–5 psid to 0–1000 psid with 2% FS accuracy.

esd electronics, Inc.    Hatfield, MA 01038

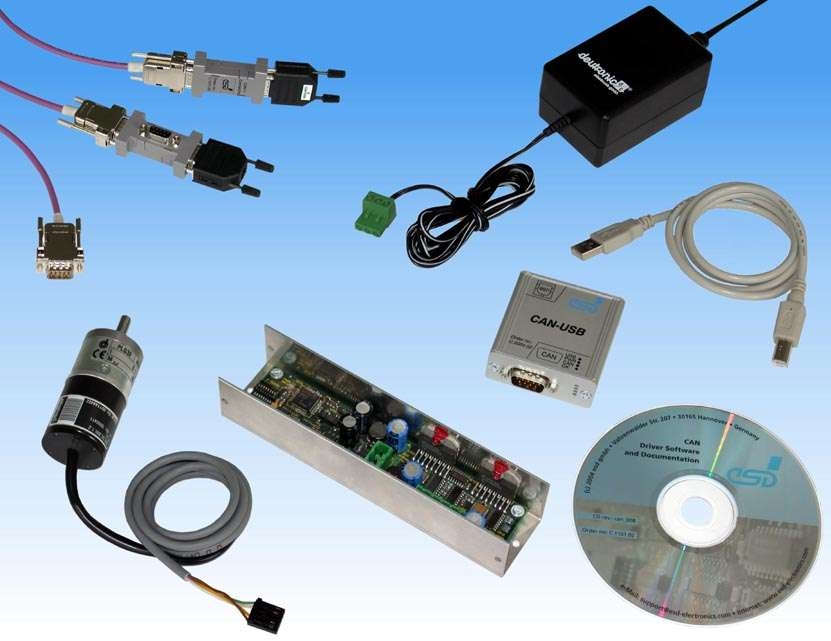

Jul 07, 2005 CAN-STEPCON (CANopen) starter kit enables PC users to gain experience with CANopen motion control in stepper motor applications. It contains CANopen stepper motor controller, CAN-STEPCON-1H; I/O wiring; 100-240 Vac/47–62 Hz power supply; and CAN network. Included CAN-USB-Mini interface module, with bit rate up to 1 Mbps, acts as CANopen Manager, while CAN-STEPCON-1H acts as slave. Provided with operator software for Windows, kit is fully programmable.

GE Inspection Technologies, GmbH    Huerth 50354  Germany

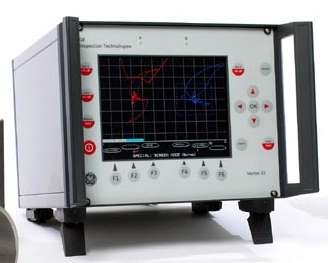

Jul 07, 2005 Vector 22 provides in-line and off-line operation in applications from manual inspection to integration in systems with robotic manipulation of product and probes. Suitable for rack- or bench-mounting, mains-operated unit can operate in dual-frequency mode through single input as well as drive 2 probes at 2 separate frequencies and in 2 different modes. Users can save up to 50 traces and 50 settings, and 6 analog outputs enable information download to data logger or PC.

MicroE Systems    Bedford, MA 01730
Jul 07, 2005 Utilizing SPI serial data interface, Mercury(TM) 3500Si achieves speeds of 7.2 m/sec while operating at 5 nm resolution. Encoder position values are digitized and sent directly into controller's DSP. LED indicators enable instrument-free sensor alignment, and users can complete alignment procedures in less than 30 sec. System resolution can be programmed in binary steps from x4 to x4,096 or 5 microns to 5 nm, linear and 6,600-67.1 million counts per/rev, rotary.

ELTA    Blagnac Cedex 31702  France
Jul 07, 2005 Argos High Accuracy Locator, Model HAL-2 pinpoints to accuracy of 1,000–1,300 ft, while Very High Accuracy Locator Model VHAL-2 is fitted with integrated GPS device for pinpointing to within a few feet. Products are virtually compatible and can be integrated into any data collecting system. They can pinpoint any mobile device fitted with transmitter, including devices at sea, on the ground, or in the air.

Dazor Mfg. Corp.    St. Louis, MO 63146
Jul 07, 2005 Multi-directional HIGHLIGHTER uses mouse to control direction of lights, as well as intensity and number of LEDs illuminated. Unit works on all makes of microscopes, allowing inspection and quality control workers to view surface defects. Left mouse click activates automatic continuous rotation of 1-39 LEDs so operator can compare and contrast image under different lighting. Right click alters light intensity to meet optical instrument and individual requirements.

Bryant Electric    Milford, CT 06460 2465
Jul 07, 2005 When test button is pushed, LED GFR® cycles through complete functional test and will return flashing red LED light if ground fault protection is compromised. It will also provide convenience power at face of receptacle to help prevent unsafe practices while device is out of service. If device is improperly wired, mis-wire protection blocks power at face or downstream loads. Unit meets UL943 surge testing, preventing inoperative power condition that locks out end user.

Hart Scientific, Inc.    American Fork, UT 84003 9775
Jul 06, 2005 Designed for calibration of thermometers and temperature sensors, Series 917X provides stability to ±0.005°C, axial uniformity to ±0.02°C, and radial uniformity to ±0.01°C. Units include LCD displays, numeric keypads, and menu-driven interface. Preprogrammed tasks such as ramp-and-soak routines can be saved in memory, while °C/°F button allows for switching of temperature units. Applications include food, petrochemical, pharmaceutical, semiconductor, and metrology labs.

Power Measurement Ltd.    Saanichton, BC V8M 2A5  Canada
Jul 06, 2005 Socket-mount ION® 8600 energy and power quality meter captures and stores transient disturbances, sags, swells, waveforms, and load trends. Providing up to 5 simultaneous communication ports, including web-ready Ethernet ports, unit offers industry-standard protocols for data sharing between utilities, customers, and network operators. It can interface to standard SCADA and billing systems, while performing power quality analysis, compliance reporting, and control functions.

eBusiness Solution Pros, Inc.    Tustin, CA 92780
Jul 06, 2005 Stay-Linkedâ„¢ v7 provides centralized, secure wireless access to 5250/3270 and VT100/220 host-based screen applications. Advanced Terminal Session Management functionality includes API that lets developers implement programmatic interaction with terminal devices and user sessions from within host application. Featuring GUI console, thin-client software solution lets users configure and manage automatic deployment of client software and software settings.

Baumer Ltd.    Southington, CT 06489 1534
Jul 01, 2005 Available with IP65 protection, H25 general-purpose, rotary motion encoder features H25 NEMA flange footprint and 3/8 in. shaft. It handles rotational speeds to 10,000 rpm and delivers up to 6,000 ppr output as standard quadrature signal. Able to operate in temperatures to 100ºC and RH to 95%, square flange encoder has bearings and aluminum housing that deliver shock rating of 200G. Output signals include channels A, B, and N as well as their inverses.

QuadTech, Inc.    Maynard, MA 01754
Jul 01, 2005 Model 1860 measures insulation resistance of components, leakage resistance on capacitors, and resistivity on samples of insulating material. Back-lit LCD display presents measurements in text and bar graph format, and RS-232C interface facilitates serial data collection. Along with programmable charge and measure times, unit offers built-in calibration capability and programmable limits. Resistance measurement range is 250 kohm to 20 Tohm.

Aries Electronics, Inc.    Bristol, PA 19007-6810
Jul 01, 2005 Test and Burn-In Socket accommodates devices from 41-55 mm² and lead pitches from 0.45-2.54 mm. Spring-loaded, cam-actuated pressure pad applies force against device after socket lid has been closed and latched. Reversing cam removes force prior to unlatching spring-loaded lid. With signal path of 1.92 mm during test, socket is suited for test and burn-in of IC devices such as SRAM, DRAM, DSP and Flash, as well as CSP, MicroBGA, LCC, LGA, QFP, QFN, and MLF packages.

TESCOR    Warminster, PA 18974
Jul 01, 2005 Available in 5, 10, 20, 30, and 40 ton capacities, Series ETB-0100 tests performance and endurance of open drive or Hermetic Refrigeration Compressors with no energy waste. PLC software provides automated cycling and timed test modes for high load, max compressor ratio, max flow, start/stop, full load/unload, suction liquid slug, and flooded crankcase start. Smart gas cycle design enables total test bench power consumption to equal compressor power draw.
