ASI Instruments, Inc.    Houston, TX 77024 1802
Sep 02, 2005 RotaryPointâ„¢ measures level of dry bulk solids with densities of 10 lb/ft³ or more in hoppers, silos, bins, and tanks. Dual 20 A, SPDT reed switches allow activation of alarms and controls. Unit comes with stainless steel mounting plates, which can be used on top or side of bins. Featuring heavy-duty motor gearing, product has twist-on cover that facilitates access to wiring and is available with FM-Approved and CSA-Certified housing options.

Swann Industries Corp.    Live Oak, FL 32060
Sep 02, 2005 Offering digital video recording and remote-view capabilities, PC DVR-4 NET turns any home or office PC into digital video security monitoring system where users can simultaneously view up to 4 camera feeds. PCI security card can also email still picture of feed when breach of security has occurred. For installation, user inserts card into PC, installs plug and play software, and connects up to 4 cameras (upgradeable to 16 cameras).

Banner Engineering Corp.    Minneapolis, MN 55441

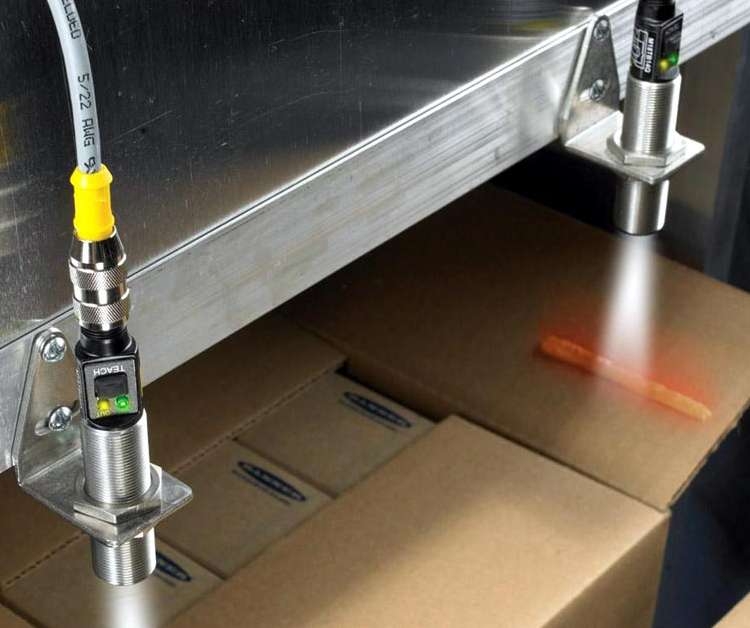

Sep 02, 2005 Non-contact, passive T-GAGE(TM) sensors detect objects that are hotter or colder than ambient condition and trigger output. Set-up is facilitated via Manual or Dynamic TEACH-mode push-button programming, which requires no potentiometer adjustments. Able to operate even if product is not moving, sensors detect temperatures from 0-300°C and changes as small as 3°C. Self-contained unit has stainless steel barrel construction and 25 msec response time.

Bruker AXS GmbH      Germany

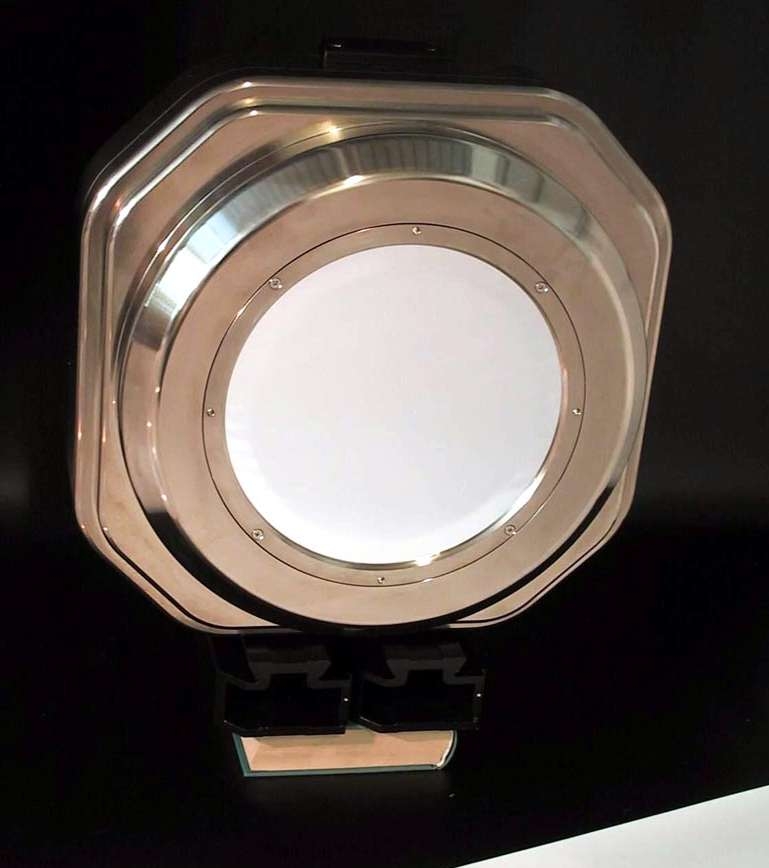

Sep 02, 2005 Designed for macromolecular X-ray crystallography, Ã…XIOM 200 has essentially zero detector noise, and is able to record each individual X-ray photon as it strikes detector. By eliminating readout dead-time, imaging system supports continuous scans where goniostat is scanned without stopping between frames. Active area of 200 mm diameter and high spatial resolution allows large protein crystal unit cells to be resolved.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Sep 02, 2005 Manufactured in 80-pin TQFP PowerPadâ„¢ package, ADS5444 incorporates high-bandwidth input buffer, linear track-and-hold stage, and internal reference. Analog-to-digital converter (ADC) operates from 5 V supply and provides LVDS-compatible digital outputs from 3.3 V supply. Specified over -40 to +85°C temperature range, product offers 68 dB SNR and 75 dB spurious-free dynamic range at max sample rate of 250 MSPS and input frequency of 230 MHz.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Sep 02, 2005 Enabling digital data capture from high-speed, high-resolution ADCs, TSW1100 card and software allow user to evaluate ADC performance. Card can operate in single- or dual-channel mode with data capture speeds to 170 MSPS, resolution to 16-bits, and data capture depths up to 1 million points. Data is transferred via USB interface, and software ENABLES users to compute ADC performance metrics such as SNR and SFDR as well as save raw data set or performance graphs.

Emerson Process Management, Rosemount Div.    Chanhassen, MN 55317
Sep 02, 2005 Designed for users in facilities without fieldbus I/O, Rosemount® 3420 Fieldbus Interface Module enables installation of FOUNDATIONâ„¢ fieldbus devices with any host system. It provides access to predictive diagnostic information, enabling asset management and performance optimization within AMSâ„¢ Suite. Module uses web server technology to facilitate commissioning, configuration, and maintenance tasks.

Creative Labs, Inc.    Milpitas, CA 95035
Sep 02, 2005 Standalone, self-powered Home Theater Connect DTS-610 connects media center or standard PC to multi-channel consumer electronics receiver. All audio from PC, including multi-channel and DRM-protected content, can be sent through sound card's analog outputs. Content is then encoded in real-time with DTS Interactive and digitally output for playback on surround-sound home theater system.

Fluke Corp.    Everett, WA 98203
Sep 01, 2005 Combining 88V Automotive Multimeter and Raytek MiniTemp MT6 Infrared Thermometer, dust- and splash-resistant 88V-IR Kit includes accessories for troubleshooting and diagnosing problems on conventional or hybrid vehicles. Multimeter includes magnetic hanger, and functions such as peak min/max recording, conductance, duty cycle, frequency, and pulse width. Infrared thermometer spots cooling faults, identifies engine misfires, and checks for proper air conditioning.

Enercorp Instruments Ltd.    Islington Ontario M9B 3S4, CD   Canada
Sep 01, 2005 Available in standard and refrigerant versions, Model PX61 determines pressures in liquids and gases and converts them into 4-20 mA signal. Compact transmitter has integral amplifier and converts mechanical deformation to electrical signal via DMS-bridge. Resistant to corrosion and vibration, 2-wire unit uses ceramic diaphragm sensing element and offers 0.5% accuracy. Versions are also available for use with ammonia or Freon.

UV Process Supply, Inc.    Chicago, IL 60614-4805
Sep 01, 2005 UV FastCheckâ„¢ Strips are used to determine levels of accumulated UV dose via visual inspection of 5 separate color changing zones. Made from same material, UV Intensity Labels operate on same color changing principle but display UV dose accumulation via 1 color changing zone. They measure UV doses from 0 mJ/cm² to greater than 5,000 mJ/cm². Strips measure 2 1/8 x ½ in., while labels measure 1 x ¾ in.

Atmel Corp.    San Jose, CA 95131
Sep 01, 2005 Featuring embedded 1:4 LVDS demultiplexer for direct interface with standard FPGAs, 10-bit AT84AS004TP has clock frequency of 2 GSps and SNR of 51 dB @ 2 GSps in first Nyquist conditions. Gain flatness remains flat at ±0.2 dB from dc to 1.5 GHz. Offered in EBGA317 package, product operates over commercial and industrial temperature ranges. It suits high-speed digitization applications such as broadband test and measurement equipment and high-speed DAQ.

Alliance Scale Inc.    Canton, MA 02021
Aug 31, 2005 Custom-fabricated Alliance Rod Weighing Scale weighs rod, tube, and bar stock and transports it on heavy-duty, smooth rolling casters. Able to measure loads up to 12,000 lb, portable unit features Rice Lake IQ Plus® 590-DC weight indicator with 1 in., 6-digit LCD; full numeric keypad; and piece counting capability. Pedestal-mounted rack scale is NTEP-approved and delivers 1:10,000 counts display resolution and ±0.01% FS system linearity.

Grace Engineered Products, Inc.    Davenport, IA 52807
Aug 31, 2005 ExinPlex® GFCI-protected Inside-Outlet(TM) combines external and internal control panel utility outlet in one assembly. Test and Reset functions are accessible from outside of control panel for maintenance personnel, and unit has clear cover that provides NEMA 12/4 rating when closed. Options include NEMA 4X, NEMA 4X 304 or 316 stainless steel, and circuit breakers. Product carries UL-, CSA-, and CE-certification.

Bellacure Inc.    Seattle, WA 98106
Aug 31, 2005 Worn against skin, visually discreet device gives patients and physicians ability to adjust amount of pain-relieving force applied to osteoarthritic knee. It includes lightweight materials, micro cables that match device to curve of leg, and dosimeter to provide patients with correct decompressing force to arthritic compartment of knee. Unit can not be seen under most clothes and is covered in silky material to avoid bunching under pant legs.

Control Company    Friendswood, TX 77546

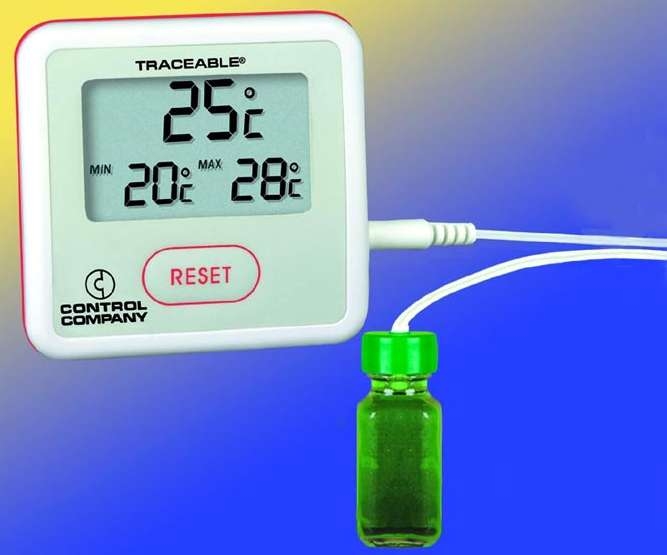

Aug 31, 2005 Traceable® Sentry Thermometer simultaneously displays high, low, and current temperature with triple display, enabling users to instantly view if freezer, water bath, or incubator is within temperature specifications. Capable of unattended monitoring, unit runs continuously for one year on supplied battery and has -58 to +158°F range. Single-button operation resets high/low memories, and probe is sealed in miniature bottle filled with nontoxic glycol.

Saelig Co., Inc.    Pittsford, NY 14534
Aug 30, 2005 Portable, standalone, EL-USB-3 measures and stores voltage readings over 0-30 Vdc range with 50 mV resolution. Along with ability to set logging rate, alarm thresholds, and start time, product enables download of stored data by plugging into PC USB port and running supplied Windows 98/2000/XP software. Logger can be named, and data can be graphed, printed, and exported to other applications. Unit features one pair of screw terminals.

Astro-Med, Inc.    West Warwick, RI 02893
Aug 30, 2005 Portable data acquisition and analysis recorder, Dash 8Xe, captures 8 channels of data to 36 Gb internal drive at fixed sample rate of 6,250 Hz. In transient mode, high-speed glitches and other anomalies are captured at sample rate of 200 kHz/channel. Utilizing AstroPower(TM) Monitoring Software, various power events, such as interrupts, swells, sags, harmonics, unbalance, and power factor can be recorded and reviewed with real-time and post-capture data analysis.

Spectronics Corp.    Westbury, NY 11590

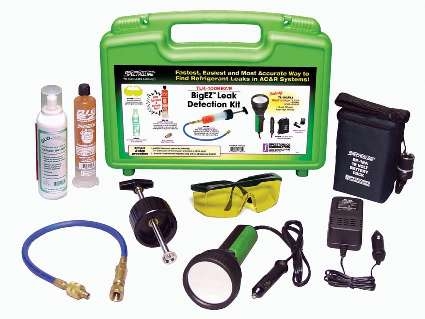

Aug 26, 2005 Kit TLK-100BEZ/E includes BigEZâ„¢ multi-dose dye injector with 4 oz universal dye cartridge that treats systems containing up to 16 gal of lubricant or 400 lb of refrigerant. Also included are TITAN® TL-100A/12 flashlight-style inspection lamp, 12 V rechargeable battery pack, 8 oz spray bottle of GLO-AWAYâ„¢ dye cleaner, fluorescence-enhancing glasses, and carrying case. Kit helps find leaks in large systems such as supermarkets, chillers, and commercial rooftop units.

Saelig Co., Inc.    Pittsford, NY 14534

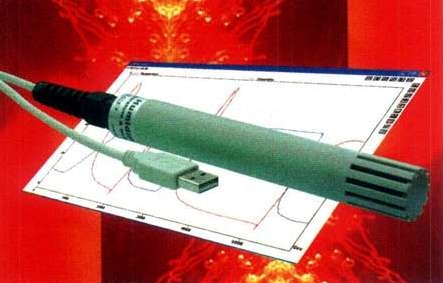

Aug 26, 2005 Self-contained HumidiProbe measures and records humidity and temperature using any PC with USB port. Unit measures temperature from 0-70°C with 0.01°C resolution and ±0.5°C accuracy, and humidity from 0-100% RH with 0.03% resolution and ±2% RH accuracy. Up to 4 HumidiProbes can be connected to 1 PC, allowing user to monitor temperature and humidity in multiple locations at once. PicoLog software collects, manipulates, analyzes, displays, and exports data.
