Mahr Federal Inc.    Providence, RI 02905

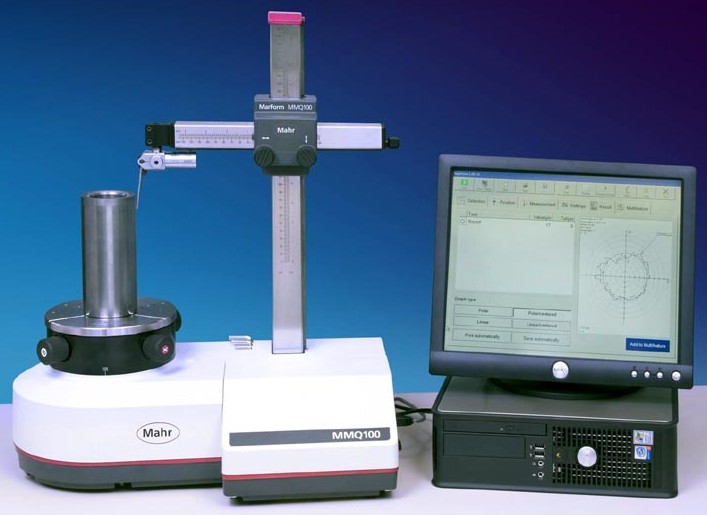

Sep 22, 2005 Weighing under 62 lb, MarForm MMQ 100 measures parts up to 14 in. dia and 18.5 in. high directly on shop floor. It helps identify production errors and minimize rework and rejection rates. Though equipped with Dell Optiplex Small Form Factor Chassis computer and wireless keyboard, instrument requires no keyboard or mouse for operation. Measurement results are displayed in 3D color graphics, and EasyForm touchscreen software facilitates program creation.

Fluke Corp.    Everett, WA 98203
Sep 22, 2005 Featuring remote test probe, Model 1507 provides insulation resistance testing up to 10 gigohms with 5 output voltages from 50-1,000 V, while Model 1503 tests up to 2,000 Megohms of resistance with either 500 or 1,000 V. Model 1507 includes compare function as well as automatic one-button calculation of polarization index and dielectric absorption ratio. Both testers include 600 V Cat IV overvoltage rating and withstand voltage spikes of 8 kV.

Electro Industries/Gaugetech    Westbury, NY 11590
Sep 22, 2005 From allocating apartment unit energy costs to tracking in-plant departmental energy expenditures, Shark100-S provides solution for residential, commercial, and industrial sub-metering needs. It offers standard interfaces using Modbus serial, RJ45 Ethernet Modbus TCP, or 802.11 Wireless Ethernet Modbus TCP. Standard Modbus interface allows unit to be interfaced to almost all energy management and SCADA systems, eliminating need for software and communication channels.

Fluke Corp.    Everett, WA 98203

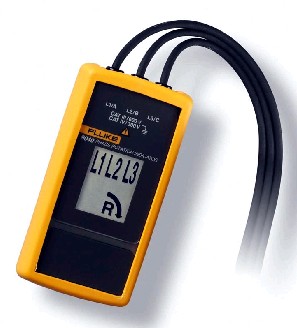

Sep 22, 2005 Designed to help professionals safely determine correct connections and phase sequence, Model 9040 indicates presence of all 3 phases, together with phase rotation direction, on LCD display. With voltage range of 40-700 V, unit is powered from circuit under test and does not require battery. Test probes have variable clamping range for safe contact and use in industrial sockets.

Malvern Instruments Inc.    Westborough, MA 01581

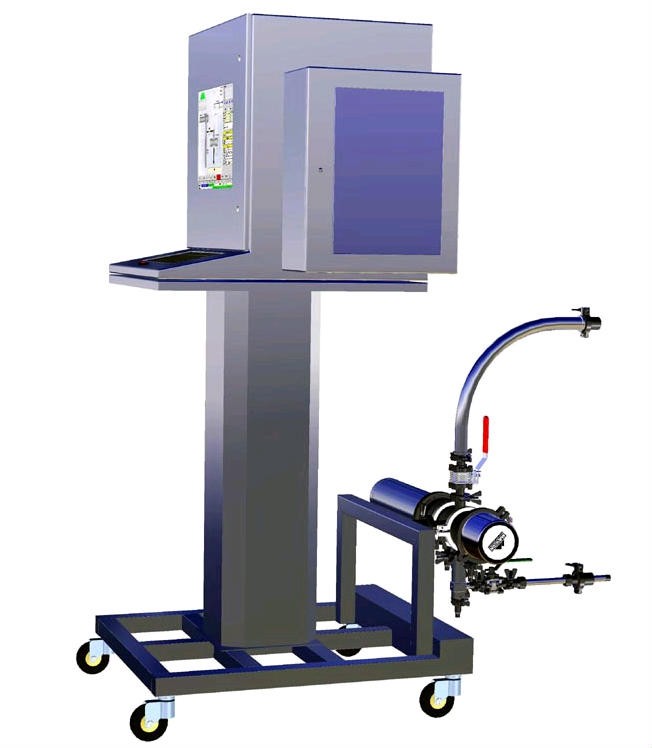

Sep 20, 2005 On-line Insitec Pharma Voyager combines laser diffraction-based Insitec X dry powder analyzer, measurement electronics, cabling, and pneumatics in mobile system with HMI. Available in inline or by-pass configurations, system meets GAMP requirements with triclamping and 316 SS parts. Software enables full compliance with FDA's 21 CFR Part 11 requirements. System requires no calibration or lengthy data acquisition intervals that can mask true process behavior.

Roland DGA Corporation    Irvine, CA 92618
Sep 20, 2005 Packaging Prototyping System combines LPX-1000 3D laser scanner, MDX-40 3D milling machine, SOLJET(TM) PRO II V SC-545EX printer/cutter, and vacuum forming equipment. Offering resolution of 0.0039 in., Model LPX-1000 scans objects up to 5 in. dia x 8 in. high. Model MDX-40 features 15,000 rpm spindle and offers work volume of 12 x 12 x 4.12 in. Fourth rotary axis is provided for unattended 2- and 4-sided milling. Printer/cutter delivers max print speed of 315 sq ft/hr at 450 x 360 dpi.

Orbimatic GmbH    Peterborough PE7 3FT  United Kingdom
Sep 19, 2005 Able to handle tubes from 14-150 mm, INVIZ Site Weld Inspector utilizes rotating head for uninterrupted weld seam inspection. Head unit, which can be controlled from drum unit for remote operation, is illuminated by Xenon lighting source and offers 60° field of vision and adjustable focus. Head unit can be mounted on 8 or 15 m cable, and centering tool can be used to maintain position of head unit in tube. Machine can be used with optional LCD display unit.

Hoyt Electrical Instrument Works, Inc.    Penacook, NH 03303 8798
Sep 19, 2005 Multifunctional EZM-4450 (1/16 DIN), EZM-7750 (1/8 DIN), EZM-4950 (1/8 DIN), and EZM-9950 (¼ DIN) can count up on 1 or 2 channels or subtract one from the other. Equipped with two 6-digit displays and on-board sensor power supply, products accept NPN, PNP, encoder, or dry contact input signals; have 2 set points, and communicate via RS-232 serial communication (MODBUS) or optional RS-485. Time range is programmable from 0.01 sec to 999.99 hr.

Federal Signal Corp., Signal Div./Electrical Products    University Park, IL 60466
Sep 19, 2005 Protected in polycarbonate housing, UnitStat produces up to 4 colors from single light source, while providing vibration resistance and 100,000 hours of service from lights. Flash patterns include steady burn, slow flash, strobe flash, and SimuStrobe(TM). By manipulating colors and patterns, user can choose total of 12 or 16 flash/color combinations. Offered in 24 Vac/dc and 120 Vac, NEMA Type 1 unit is PLC compatible and ready for surface mount or ¾ in. pipe mount.

EGS Electrical Group    Skokie, IL 60077
Sep 16, 2005 Suited for indoor or outdoor jobsites, portable Ground Fault Circuit Interrupters instantly safeguard operators of power tools, drills, washers, and other electrical equipment. UL Listed and CSA Approved, units interrupt electrical power when loads have potentially lethal ground current in excess of 4-6 mA. Contractors can choose from six 15 and 20 A, 120 and 240 V, 60 Hz models, including 11 in. cord set, tri-tap receptacles, in-line GFCIs, and GFCI protected quad box.

Beta Dyne Inc.    Bridgewater, MA 02324
Sep 16, 2005 Manufactured in 2.0 x 2.0 x 0.395 in. coated metal case that provides 6-sided EMI shielding, BD16000 features 2:1 input voltage range, input-to-output isolation, and soft start capability. It also incorporates input Pi filter, short circuit protection, 380 kHz switching frequency, flyback topology, and 4 LDO linear regulators. Converter accepts 18-36 Vin and provides 3.3, 5, 12, and 5 Vout at 1 A, 1.5 A, 200 mA, and 250 mA, respectively.

Raytek Corporation    Santa Cruz, CA 95061 1820

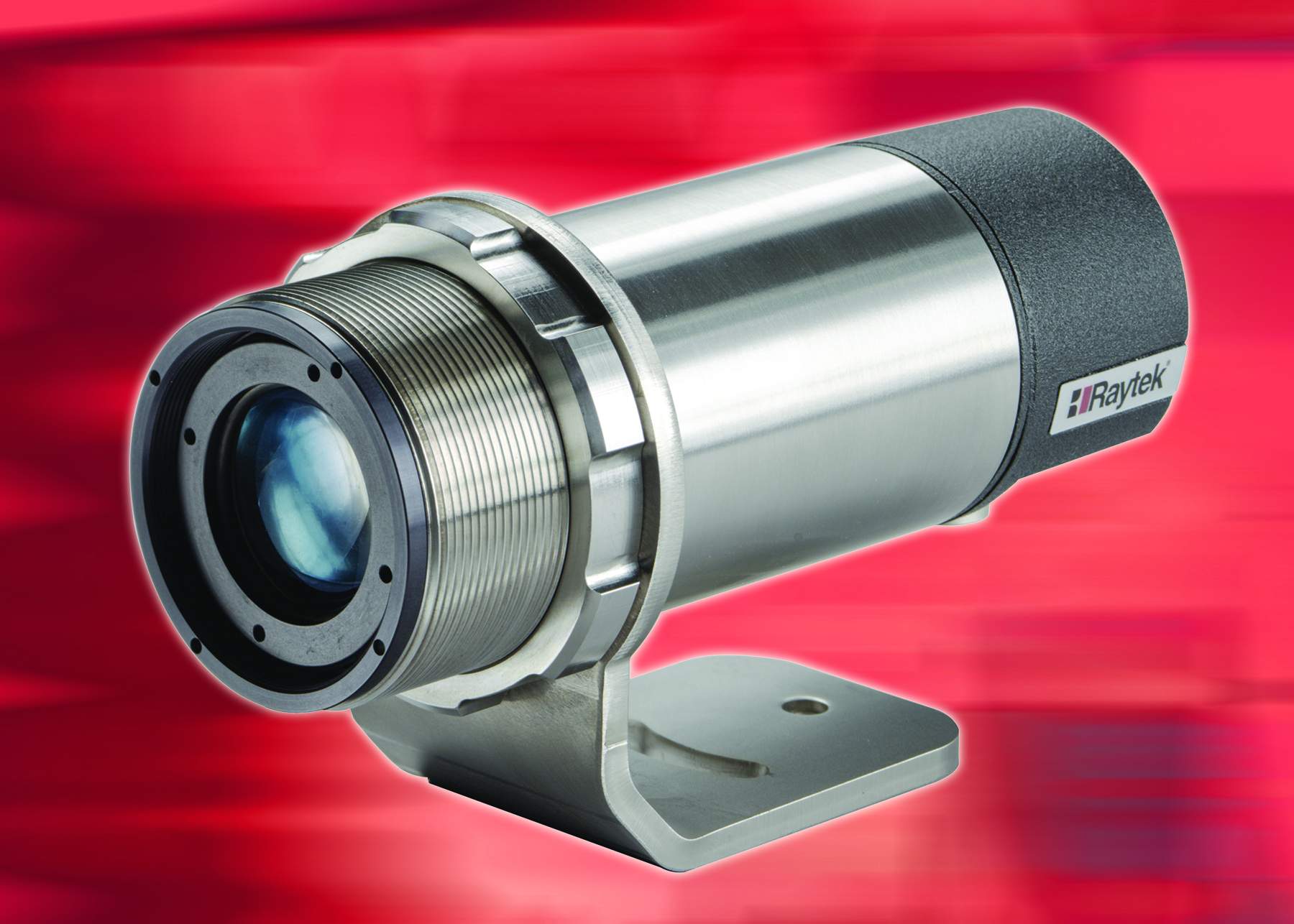

Sep 16, 2005 Offering through-the-lens and laser sighting methods, Marathon® MM covers temperature range of -40 to 3,000°C, and provides video surveillance and documentation capabilities. Housed in sealed NEMA 4 enclosure, thermometer features electro-optical design, digital electronics, and push-button operator interface. Optical resolution up to 300:1 enables targets with spot size as small as 0.6 mm to be measured from distance of 150 mm with response time of 2 ms.

X-Tek Systems LLC    Tyngsboro, MA 01879

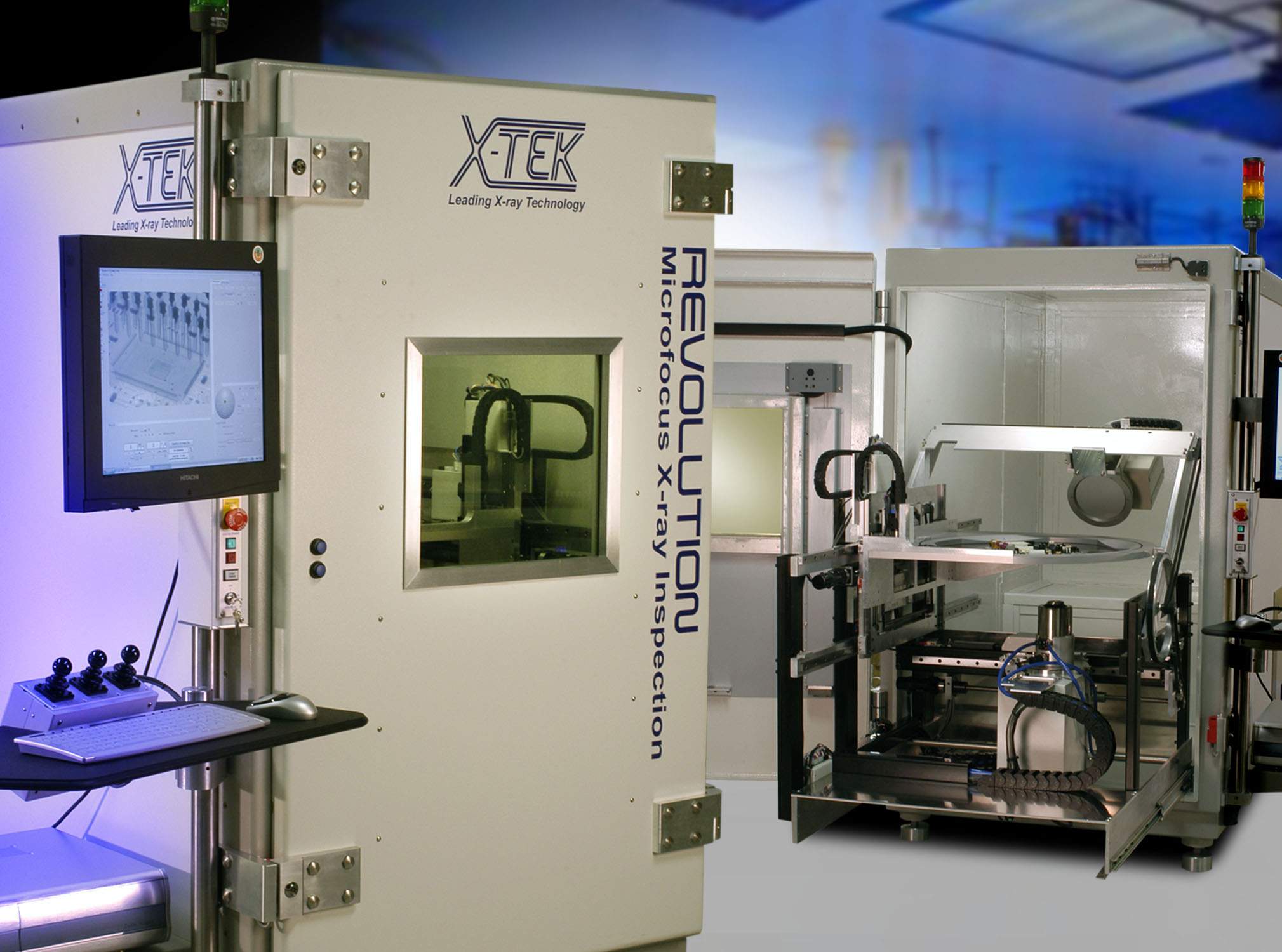

Sep 16, 2005 With sub-micron resolution, Revolution offers max magnification of 6000x at all angles over 16 x 16 in. manipulator scan area for analysis of wafer bump inspection, BGA ball wetting, attachment, cracks, and delaminations. Ergonomically designed unit features 160XI cable-free open x-ray tube and offers mouse and joystick control. Along with InspectX software and outsize viewing window, system has motors on all axes for optimal positional accuracy.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Sep 16, 2005 Featuring IP65-rated, 58 mm dia aluminum housing, RVI58 Series delivers incremental measurement outputs up to 10,000 ppr as positioning solution in harsh application environments. Products come with shielded cable or round connector and feature quadrature and index outputs or quadrature and index plus complementary outputs. Additional features include servo or clamping flange, 6 or 10 mm dia shaft, alarm output, and 10-30 or 5 Vdc power capability.

Dwyer Instruments, Inc.    Michigan City, IN 46361 0373
Sep 16, 2005 Constructed with 304 stainless steel housing, Series SGJ has green dial with anti-parallax mirror and dual English/metric scales with 0.25% ASME Grade 3A accuracy. Solid front design and pressure-relieving back increase safety in potentially dangerous applications. Gauges utilize beryllium copper wetted parts and withstand ambient and process temperatures to 149ºF. Ranges are available from full vacuum to 15,000 psi.

Dwyer Instruments, Inc.    Michigan City, IN 46361 0373

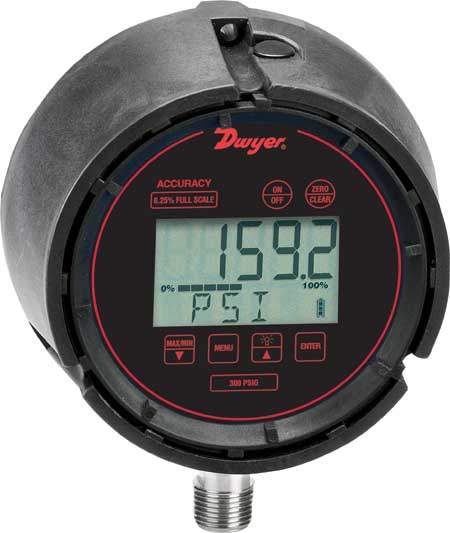

Sep 16, 2005 Series DSGT is designed for applications requiring pressure gauge, transmitter, and switches. Multi-function, 4½ in. gauge offers 4-20 mA output and 0.25% FS accuracy. Available for 0-30 to 0-20,000 psig as well as vacuum and compound ranges, DSGT may be equipped with 1 or 2 SPDT switches for alarm and control capabilities. Switch set points are programmed within password protected menu options, which also include unit conversion, field calibration, and bar graph indication.

Hart Scientific, Inc.    American Fork, UT 84003 9775
Sep 16, 2005 Offering uncertainties of better than ±0.0001°C, cells contain distilled ocean water with isotopic composition nearly identical to international standard Vienna Standard Mean Ocean Water (VSMOW). Errors associated with poor isotopic composition can be as large as 0.00025°C (0.25mK), and uncertainty contribution from VSMOW errors is less than ±0.000007°C (7µK). Series 5901X-G uses borosilicate glass shell, while Series 5901X-Q uses fused silica or quartz shell.

ACCES I/O Products, Inc.    San Diego, CA 92121 1506
Sep 16, 2005 Designed with 8 independent 12-bit DACs, Model 104-DA12-8A features simultaneous 4-20 mA outputs, 32-bit counters for precise timing, and fused general-purpose +5 V and +12 V power outputs. It includes 128 K SRAM for ARB data storage, and is supported for use in most operating systems. Eight-channel board is suited for variety of PC/104-based embedded applications including stimulus-response, test, simulation, industrial equipment control, and waveform/audio synthesis.

Shortridge Instruments, Inc.    Scottsdale, AZ 85260
Sep 15, 2005 Able to store 2,000 readings in 25 user-selectable groups, battery-operated ADM-880C AirData Multimeter measures air velocity, temperature, pressure, and flow. It calculates average, sum, min, and max of readings in each group and records time and date of each reading. Able to be programmed to take readings at selected intervals, unit provides serial communications port for automatic download of data and features backlit display and NIST Traceability.

Pico Technology Ltd    St Neots Cambridge PE19 1QB  United Kingdom
Sep 15, 2005 PicoScope 3224 is powered via USB 2.0 connection that also facilitates installation and allows smooth, responsive waveform display. Waveforms can be vertically zoomed to reveal greater detail, and 512 KS memory buffer allows long-duration signals to be captured at top sampling speed of 20 MS/s. Along with 1% voltage accuracy and 100 ppm timebase accuracy, product has 72 dB dynamic range and comes with PicoScope and PicoLog software applications.
