Hamlet Video International Ltd    Amersham, Bucks HP6 6FB  United Kingdom
Sep 29, 2005 Hand-held, portable Flexiscope uses modules for HD/SD or SD and composite. Each module enables test and measurement of embedded and AES/EBU audio. Built-in daylight LCD makes displayed picture, traces, errors, and operation status clear, while digital error logging against time-code plus trace downloads provide confirmation of fault occurrences. Unit includes loop, external reference input, batteries, and mains adaptor.

VanDyke Software Inc.    Albuquerque, NM 87111-2873
Sep 29, 2005 Providing Windows terminal emulator for Telnet, RLogin, and Serial protocols, CRT is suited for accessing host-based legacy applications, querying databases, accessing BBS, or connecting to network device. It includes multi-session tabbed interface with session management and customization features. Users can choose from range of emulations including VT100, VT102, VT220, ANSI, SCO ANSI, Wyse 50/60, Xterm, and Linux console.

Toshiba Teli America, Inc.    Irvine, CA 92618
Sep 28, 2005 Capable of acquiring 15 fps full-frame progressive scanned video, 2-megapixel Model CS6940CL is based on 1/1.8 type interline CCD with 2.11 total pixels and RGB color filter that allows fine details to be resolved within field of view. With Camera Link(TM) open standard for image output and camera control, and compact size of 2.1 x 1.3 x 2.2 in., camera is suited for color machine vision, intelligent traffic, or industrial inspection systems.

Servoflo Corp.    Lexington, MA 02421
Sep 28, 2005 Eliminating need for external trimming components, Models ZMD 31010 and 31050 provide digital compensation of sensor offset, sensitivity, temperature, and linearization. Housed in SPP8 package, Model ZMD31010 offers single pass calibration, while Model ZMD31050 is housed in SSOP16 or die package and interfaces to PC via digital bus interface. Applications include process control, data loggers, PDAs, mobile phones, blood pressure meters, and sleep apnea monitors.

Load Cell Central    Monroeton, PA 18832
Sep 27, 2005 Suited for force measurement applications, Duramount 21 load cell weighing assembly measures tension and compression with capacity from 0.3-50 kgs. It comes with short cable for OEM applications, or it can be optioned with connector and mate with 5, 10, 25, or 50 ft of cable. User can add unlimited mounting configurations in field by removing arms to drill and tap additional holes without damaging load cell.

YesTech Inc.    San Clemente, CA 92673
Sep 27, 2005 Included in AOI Series, F1 enables automated inspection of solder and lead defects, component presence and position, correct part, polarity, and through-hole parts. It utilizes Thin Camera(TM) electronics and provides complete inspection coverage. Image processing technology integrates several techniques, including color, normalized correlation, and rule-based algorithms, and typ time to create complete inspection program is less than 30 min.

Fluke Corp.    Everett, WA 98203
Sep 27, 2005 Fluke 1587/ET Advanced Electrical Troubleshooting Kit includes insulation multimeter, current clamp, and infrared thermometer. Model 1587 true-rms digital multimeter provides insulation resistance testing up to 2 GW with 5 output voltages ranging from 50-1,000 V. Current Clamp Model i400 measures current from 1-400 A ac without breaking circuit, and Fluke 62 mini non-contact thermometer finds hot spots in temperature range -20° to 932°F with accuracy of +1% of reading.

Scientific Technologies Inc. - Automation Sensors    Logan, UT 84321
Sep 27, 2005 Shock resistive RP Custom Resistive Chain Level Measurement Sensors operate with float that travels up and down vertical stem. Permanent magnet inside float acts on series of reed switches and resistors inside stem, and sensor converts resistance value into voltage and current signals proportional to level of liquid. Models are available in lengths and materials of construction defined by user, with variety of American and international mounting configurations available.

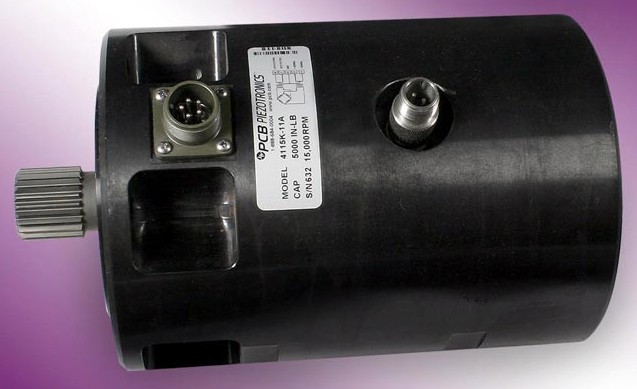

PCB Piezotronics Inc.    Depew, NY 14043 2495
Sep 26, 2005 Rotating torque transducers utilize non-contact, rotary transformers for sending excitation voltage to, and receiving measurement signals from, strain gage instrumented rotating sensor element. Flange and splined shaft design conforms to AND 10262 and 20002. In addition to torque output signal, optional pickup provides output proportional to speed and optional K type thermal couple to monitor internal bearing temperature. Custom units are available.

Computer Optical Products, Inc.    Chatsworth, CA 91311
Sep 26, 2005 Measuring .75 x 1.78 x 2.3 in., CP-250-HHC incremental hollow-shaft encoder offers 8 user-selectable resolutions from 5,000-144,000 quadrature cycles per revolution with repeatability of ±1 count. It can be adapted to shafts up to .39 in. and mounted to any available platform. Along with max frequency of 3 MHz and .25 mm non-glass disk to optics distance, product features differential digital line driver output that optimizes noise immunity.

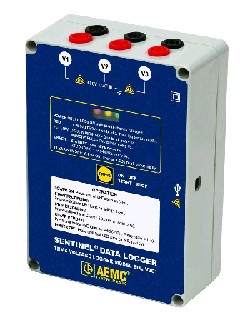

AEMC Instruments    Foxborough, MA 02035
Sep 26, 2005 Providing isolated differential 3-phase inputs, Sentinel® Voltage Data Loggers record true RMS measurements of ac voltage parameters. Extended Recording Mode allows operator to record over long period of time by reducing stored sample resolution of older data and maintaining matching resolution for newer data. Loggers store up to 480,000 points and 64 samples per cycle. DataView® software provides data storage, analysis, and report generation.

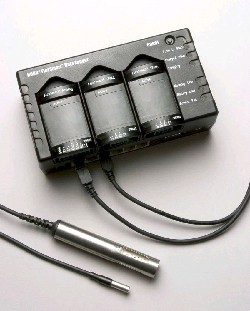

Onset Computer Corp.    Bourne, MA 02532
Sep 26, 2005 Offering flexible, open-ended architecture, HOBO® FlexSmart(TM) utilizes snap-in signal conditioning modules that convert signals from nearly any type of sensor. System measurements include True RMS AC current and voltage, power demand and energy consumption, differential air pressure, gauge pressure, pulse and contact closure, as well as temperature and relative humidity. Providing 512 K memory, HOBO FlexSmart features ±0.25% FS accuracy over 0-20 mA and 0-20 Vdc ranges.

Electro Standards Laboratories    Cranston, RI 02921 3403
Sep 26, 2005 Featuring 24-bit internal resolution, CellMite(TM) Model 4325B provides users with intelligent digital signal conditioner with TEDS-Tag for automatic load cell identification and calibration data storage. Calibration includes 2 pt, mV/V calibration, 6 pt Linearization Calibration, 2 pt Shunt. Along with internal temperature compensation, digital unit offers scalable 16-bit ±10 V analog output and 60 samples/sec sample rate. Functions include tare, peak, and valley.

Prosilica Inc.    Burnaby V5J 5E9  Canada
Sep 26, 2005 Available with Ethernet cables up to 100 m long, GE-Series Cameras conform to AIA GigE Vision standard, which includes hardware interface standard, communications protocols, and standardized camera control registers. Interface provides enough bandwidth to transmit uncompressed image data in real-time at speed required by machine vision applications. GigE Vision works with standard Gigabit Ethernet network hardware, which is useful in situations requiring multiple views.

Synergetix    Kansas City, KS 66106
Sep 23, 2005 Enabling engineers to accurately space and measure package resistance within 1 mOhm, Off-Set Kelvin Probe features beveled tip offset needle that allows for tight centers down to 0.2 mm. Tungsten alloy probe has 4-wire Kelvin design and uses standard 0.5 mm board layout. Tip naturally repels solder and is ultra-sharp for contaminant penetration. No plating is required.

Synergetix    Kansas City, KS 66106
Sep 23, 2005 Designed for use with test sockets, miniature 0.4 mm Probe is available with 4-point crown, concave, or 120 single point tip. Geometry of tip is optimized to meet most application requirements. Higher force spring is available for lead-free and highly contaminated environments.

Ophir Optronics, Inc.    Wilmington, MA 01887
Sep 23, 2005 Recommended for low power CW and pulsed lasers, Model PD300-3W measures up to 3 W at most wavelengths and up to 150 W/cm² without saturation or damage. It has power range from nW to 3 W and spectral response from 350-1,100 nm. With automatic background subtraction, 95-98% of background is cancelled under normal room conditions. For pulsed lasers, Model PD300-3W has max pulse energy of 20 µJ with filter out and 500 µJ with filter in.

Columbus Instruments    Columbus, OH 43204 2121
Sep 23, 2005 Suited for Respirometry experiments on soil, water, and sludge, Oxymax ER uses gas analyzers for oxygen and carbon dioxide, allowing head space gas exchange to be measured directly in up to 10 different chambers/samples. Meter can be used in laboratory with limited bench space or taken on site. In lab, unit connects to Windows PC for experiment configuration and data collection. In stand-alone operation on site, unit is powered by cigarette lighter adapter.

Electronic Development Laboratories, Inc.    Danville, VA 24540
Sep 23, 2005 Hand held, microprocessor-based Model LT-100 uses 24-bit A/D to generate precise temperature readings. It inputs all ASTM referenced thermocouples, K, N, J, E, T, R, S, B, C, and ±160.0000 mV dc A. Cold end reference junction is incorporated to accurately compensate for changes in ambient temperatures. When highest accuracy is required, internal electronic cold end reference can be set to external and ice bath used.

Acromag, Inc.    Wixom, MI 48393 7037
Sep 23, 2005 Combo 951EN and 952EN Ethernet I/O Modules feature 4 analog input channels, 2 analog output channels, and 6 discrete I/O channels on single 1 in. wide unit. They support Ethernet/IP and Modbus TCP/IP protocols as well as i2o(TM) communication technology. Since Combo modules have inputs and outputs, they can function as transmitters and receivers to independently interface signals. Three-way 1,500 Vac isolation separates I/O, network, and power circuits.
